G4ParticleHPInelasticCompFS Class Reference

#include <G4ParticleHPInelasticCompFS.hh>

Inheritance diagram for G4ParticleHPInelasticCompFS:

Collaboration diagram for G4ParticleHPInelasticCompFS:

Public Member Functions
	G4ParticleHPInelasticCompFS ()
virtual	~G4ParticleHPInelasticCompFS ()

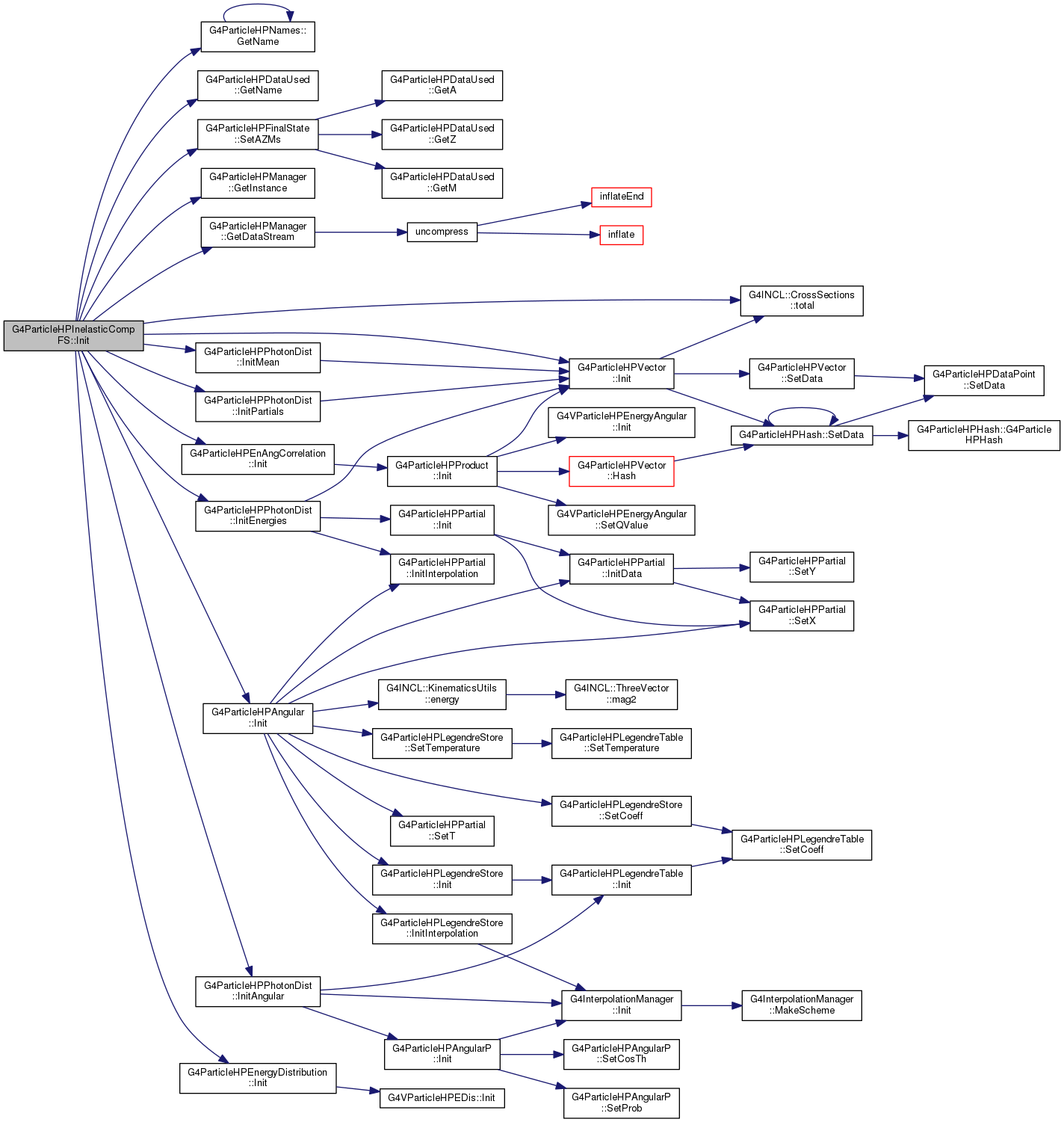

void	Init (G4double A, G4double Z, G4int M, G4String &dirName, G4String &aSFType, G4ParticleDefinition *)
void	InitGammas (G4double AR, G4double ZR)
virtual G4HadFinalState *	ApplyYourself (const G4HadProjectile &theTrack)=0
virtual G4ParticleHPFinalState *	New ()=0
virtual G4double	GetXsec (G4double anEnergy)
virtual G4ParticleHPVector *	GetXsec ()

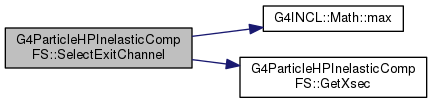

G4int	SelectExitChannel (G4double eKinetic)
void	CompositeApply (const G4HadProjectile &theTrack, G4ParticleDefinition *aHadron)
void	InitDistributionInitialState (G4ReactionProduct &anIncidentPart, G4ReactionProduct &aTarget, G4int it)
Public Member Functions inherited from G4ParticleHPFinalState
	G4ParticleHPFinalState ()
virtual	~G4ParticleHPFinalState ()
void	Init (G4double A, G4double Z, G4String &dirName, G4String &aFSType, G4ParticleDefinition *projectile)
G4bool	HasXsec ()
G4bool	HasFSData ()
G4bool	HasAnyData ()
void	SetA_Z (G4double anA, G4double aZ, G4int aM=0)
G4double	GetZ ()
G4double	GetN ()
G4double	GetA ()
G4int	GetM ()
void	SetAZMs (G4double anA, G4double aZ, G4int aM, G4ParticleHPDataUsed used)
void	SetProjectile (G4ParticleDefinition *projectile)

Protected Attributes
G4ParticleHPVector *	theXsection [51]
G4ParticleHPEnergyDistribution *	theEnergyDistribution [51]
G4ParticleHPAngular *	theAngularDistribution [51]
G4ParticleHPEnAngCorrelation *	theEnergyAngData [51]
G4ParticleHPPhotonDist *	theFinalStatePhotons [51]
G4ParticleHPDeExGammas	theGammas
G4String	gammaPath
std::vector< G4double >	QI
std::vector< G4int >	LR
Protected Attributes inherited from G4ParticleHPFinalState
G4bool	hasXsec
G4bool	hasFSData
G4bool	hasAnyData
G4ParticleHPNames	theNames
G4Cache< G4HadFinalState * >	theResult
G4double	theBaseA
G4double	theBaseZ
G4int	theBaseM
G4int	theNDLDataZ
G4int	theNDLDataA
G4int	theNDLDataM
G4ParticleDefinition *	theProjectile

Additional Inherited Members
Protected Member Functions inherited from G4ParticleHPFinalState
void	adjust_final_state (G4LorentzVector)
G4bool	DoNotAdjustFinalState ()

Detailed Description

Definition at line 43 of file G4ParticleHPInelasticCompFS.hh.

Constructor & Destructor Documentation

G4ParticleHPInelasticCompFS::G4ParticleHPInelasticCompFS ( )

inline

Definition at line 47 of file G4ParticleHPInelasticCompFS.hh.

  {

    QI.resize(51);
    LR.resize(51);
    for(G4int i=0; i<51; i++)
    {
      hasXsec = true;
      theXsection[i] = 0;
      theEnergyDistribution[i] = 0;
      theAngularDistribution[i] = 0;
      theEnergyAngData[i] = 0;
      theFinalStatePhotons[i] = 0;
      QI[i]=0.0;
      LR[i]=0;
    }

  }

virtual G4ParticleHPInelasticCompFS::~G4ParticleHPInelasticCompFS ( )

inlinevirtual

Definition at line 65 of file G4ParticleHPInelasticCompFS.hh.

  {
    for(G4int i=0; i<51; i++)
    {
      if(theXsection[i] != 0) delete theXsection[i];
      if(theEnergyDistribution[i] != 0) delete theEnergyDistribution[i];
      if(theAngularDistribution[i] != 0) delete theAngularDistribution[i];
      if(theEnergyAngData[i] != 0) delete theEnergyAngData[i];
      if(theFinalStatePhotons[i] != 0) delete theFinalStatePhotons[i];
    }
  }

Member Function Documentation

virtual G4HadFinalState* G4ParticleHPInelasticCompFS::ApplyYourself ( const G4HadProjectile &  theTrack )

pure virtual

Reimplemented from G4ParticleHPFinalState.

Implemented in G4ParticleHPAInelasticFS, G4ParticleHPDInelasticFS, G4ParticleHPHe3InelasticFS, G4ParticleHPNInelasticFS, G4ParticleHPPInelasticFS, and G4ParticleHPTInelasticFS.

void G4ParticleHPInelasticCompFS::CompositeApply	(	const G4HadProjectile &	theTrack,
		G4ParticleDefinition *	aHadron
	)

Definition at line 230 of file G4ParticleHPInelasticCompFS.cc.

{

// prepare neutron
    if ( theResult.Get() == NULL ) theResult.Put( new G4HadFinalState );
    theResult.Get()->Clear();
    G4double eKinetic = theTrack.GetKineticEnergy();
    const G4HadProjectile *hadProjectile = &theTrack;
    G4ReactionProduct incidReactionProduct( const_cast<G4ParticleDefinition *>(hadProjectile->GetDefinition()) ); // incidReactionProduct
    incidReactionProduct.SetMomentum( hadProjectile->Get4Momentum().vect() );
    incidReactionProduct.SetKineticEnergy( eKinetic );

// prepare target
    G4int i;
    for(i=0; i<50; i++)
    { if(theXsection[i] != 0) { break; } }

    G4double targetMass=0;
    G4double eps = 0.0001;
    targetMass = G4NucleiProperties::GetNuclearMass(static_cast<G4int>(theBaseA+eps), static_cast<G4int>(theBaseZ+eps));
#ifdef G4PHPDEBUG
    if( getenv("G4ParticleHPDebug"))  G4cout <<this <<" G4ParticleHPInelasticCompFS::CompositeApply A " <<theBaseA <<" Z " <<theBaseZ <<" incident " <<hadProjectile->GetDefinition()->GetParticleName() <<G4endl;
#endif
//    if(theEnergyAngData[i]!=0)
//        targetMass = theEnergyAngData[i]->GetTargetMass();
//    else if(theAngularDistribution[i]!=0)
//        targetMass = theAngularDistribution[i]->GetTargetMass();
//    else if(theFinalStatePhotons[50]!=0)
//        targetMass = theFinalStatePhotons[50]->GetTargetMass();
    G4ReactionProduct theTarget;
    G4Nucleus aNucleus;
    //G4ThreeVector neuVelo = (1./hadProjectile->GetDefinition()->GetPDGMass())*incidReactionProduct.GetMomentum();
    //theTarget = aNucleus.GetBiasedThermalNucleus( targetMass/hadProjectile->GetDefinition()->GetPDGMass() , neuVelo, theTrack.GetMaterial()->GetTemperature());
    //G4Nucleus::GetBiasedThermalNucleus requests normalization of mass and velocity in neutron mass
    G4ThreeVector neuVelo = ( 1./G4Neutron::Neutron()->GetPDGMass() )*incidReactionProduct.GetMomentum();
    theTarget = aNucleus.GetBiasedThermalNucleus( targetMass/G4Neutron::Neutron()->GetPDGMass()
                                                , neuVelo, theTrack.GetMaterial()->GetTemperature() );

    theTarget.SetDefinition( G4IonTable::GetIonTable()->GetIon( G4int(theBaseZ), G4int(theBaseA) , 0.0 ) );  //XX

// prepare the residual mass
    G4double residualMass=0;
    G4double residualZ = theBaseZ + theProjectile->GetPDGCharge() - aDefinition->GetPDGCharge();
    G4double residualA = theBaseA + theProjectile->GetBaryonNumber() - aDefinition->GetBaryonNumber();
    residualMass = G4NucleiProperties::GetNuclearMass(static_cast<G4int>(residualA+eps), static_cast<G4int>(residualZ+eps));

// prepare energy in target rest frame
    G4ReactionProduct boosted;
    boosted.Lorentz(incidReactionProduct, theTarget);
    eKinetic = boosted.GetKineticEnergy();
//    G4double momentumInCMS = boosted.GetTotalMomentum();

// select exit channel for composite FS class.
    G4int it = SelectExitChannel( eKinetic );

// set target and neutron in the relevant exit channel
    InitDistributionInitialState(incidReactionProduct, theTarget, it);

    G4ReactionProductVector * thePhotons = 0;
    G4ReactionProductVector * theParticles = 0;
    G4ReactionProduct aHadron;
    aHadron.SetDefinition(aDefinition); // what if only cross-sections exist ==> Na 23 11 @@@@
    G4double availableEnergy = incidReactionProduct.GetKineticEnergy() + incidReactionProduct.GetMass() - aHadron.GetMass() +
                             (targetMass - residualMass);
//080730c
    if ( availableEnergy < 0 )
    {
       //G4cout << "080730c Adjust availavleEnergy " << G4endl;
       availableEnergy = 0;
    }
    G4int nothingWasKnownOnHadron = 0;
    G4int dummy;
    G4double eGamm = 0;
    G4int iLevel=it-1;

//  TK without photon has it = 0
    if( 50 == it )
    {

//    TK Excitation level is not determined
      iLevel=-1;
      aHadron.SetKineticEnergy(availableEnergy*residualMass/
                               (aHadron.GetMass()+residualMass));

      //aHadron.SetMomentum(incidReactionProduct.GetMomentum()*(1./incidReactionProduct.GetTotalMomentum())*
      //                  std::sqrt(aHadron.GetTotalEnergy()*aHadron.GetTotalEnergy()-
      //                            aHadron.GetMass()*aHadron.GetMass()));

      //TK add safty 100909
      G4double p2 = ( aHadron.GetTotalEnergy()*aHadron.GetTotalEnergy() - aHadron.GetMass()*aHadron.GetMass() );
      G4double p = 0.0;
      if ( p2 > 0.0 ) p = std::sqrt( p );

      aHadron.SetMomentum(incidReactionProduct.GetMomentum()*(1./incidReactionProduct.GetTotalMomentum())*p );

    }
    else
    {
      while ( iLevel!=-1 && theGammas.GetLevel(iLevel) == 0 ) { iLevel--; } // Loop checking, 11.05.2015, T. Koi
    }


    if ( theAngularDistribution[it] != 0 ) // MF4
    {
      if(theEnergyDistribution[it]!=0) // MF5
      {
    //************************************************************
    /*
        aHadron.SetKineticEnergy(theEnergyDistribution[it]->Sample(eKinetic, dummy));
        G4double eSecN = aHadron.GetKineticEnergy();
    */
    //************************************************************
    //EMendoza --> maximum allowable energy should be taken into account.
        G4double dqi = 0.0;
        if ( QI[it] < 0 || 849 < QI[it] ) dqi = QI[it]; //For backword compatibility QI introduced since G4NDL3.15
    G4double MaxEne=eKinetic+dqi;
    G4double eSecN;

        G4int icounter=0;
        G4int icounter_max=1024;
        do {
           icounter++;
           if ( icounter > icounter_max ) {
          G4cout << "Loop-counter exceeded the threshold value at " << __LINE__ << "th line of " << __FILE__ << "." << G4endl;
              break;
           }
       eSecN=theEnergyDistribution[it]->Sample(eKinetic, dummy);
    }while(eSecN>MaxEne); // Loop checking, 11.05.2015, T. Koi
    aHadron.SetKineticEnergy(eSecN);
    //************************************************************
        eGamm = eKinetic-eSecN;
        for(iLevel=theGammas.GetNumberOfLevels()-1; iLevel>=0; iLevel--)
        {
          if(theGammas.GetLevelEnergy(iLevel)<eGamm) break;
        }
        G4double random = 2*G4UniformRand();
        iLevel+=G4int(random);
        if(iLevel>theGammas.GetNumberOfLevels()-1)iLevel = theGammas.GetNumberOfLevels()-1;
      }
      else
      {
        G4double eExcitation = 0;
        if(iLevel>=0) eExcitation = theGammas.GetLevel(iLevel)->GetLevelEnergy();
        while (eKinetic-eExcitation < 0 && iLevel>0) // Loop checking, 11.05.2015, T. Koi
    {
      iLevel--;
      eExcitation = theGammas.GetLevel(iLevel)->GetLevelEnergy();
    }
        //110610TK BEGIN
        //Use QI value for calculating excitation energy of residual.
        G4bool useQI=false;
        G4double dqi = QI[it];
        if ( dqi < 0 || 849 < dqi ) useQI = true; //Former libraies does not have values of this range

        if ( useQI )
        {
           // QI introudced since G4NDL3.15
           eExcitation = -QI[it];
           //Re-evluate iLevel based on this eExcitation
           iLevel = 0;
           G4bool find = false;
           G4int imaxEx = 0;
           while( theGammas.GetLevel(iLevel+1) != 0 ) // Loop checking, 11.05.2015, T. Koi
           {
              G4double maxEx = 0.0;
              if ( maxEx < theGammas.GetLevel(iLevel)->GetLevelEnergy() )
              {
                 maxEx = theGammas.GetLevel(iLevel)->GetLevelEnergy();
                 imaxEx = iLevel;
              }
              if ( eExcitation < theGammas.GetLevel(iLevel)->GetLevelEnergy() )
              {
                 find = true;
                 iLevel--;
                 // very small eExcitation, iLevel becomes -1, this is protected below.
                 if ( iLevel == -1 ) iLevel = 0; // But cause energy trouble.
                 break;
              }
              iLevel++;
           }
           // In case, cannot find proper level, then use the maximum level.
           if ( !find ) iLevel = imaxEx;
        }
        //110610TK END

    if(getenv("G4ParticleHPDebug") && eKinetic-eExcitation < 0)
    {
      throw G4HadronicException(__FILE__, __LINE__, "SEVERE: InelasticCompFS: Consistency of data not good enough, please file report");
    }
    if(eKinetic-eExcitation < 0) eExcitation = 0;
    if(iLevel!= -1) aHadron.SetKineticEnergy(eKinetic - eExcitation);

      }
      theAngularDistribution[it]->SampleAndUpdate(aHadron);

      if( theFinalStatePhotons[it] == 0 )
      {
        //G4cout << "110610 USE Gamma Level" << G4endl;
// TK comment Most n,n* eneter to this
    thePhotons = theGammas.GetDecayGammas(iLevel);
    eGamm -= theGammas.GetLevelEnergy(iLevel);
    if(eGamm>0) // @ ok for now, but really needs an efficient way of correllated sampling @
    {
          G4ReactionProduct * theRestEnergy = new G4ReactionProduct;
          theRestEnergy->SetDefinition(G4Gamma::Gamma());
          theRestEnergy->SetKineticEnergy(eGamm);
          G4double costh = 2.*G4UniformRand()-1.;
          G4double phi = CLHEP::twopi*G4UniformRand();
          theRestEnergy->SetMomentum(eGamm*std::sin(std::acos(costh))*std::cos(phi),
                                     eGamm*std::sin(std::acos(costh))*std::sin(phi),
                                     eGamm*costh);
          if(thePhotons == 0) { thePhotons = new G4ReactionProductVector; }
          thePhotons->push_back(theRestEnergy);
    }
      }
    }
    else if(theEnergyAngData[it] != 0) // MF6
    {

      theParticles = theEnergyAngData[it]->Sample(eKinetic);

      //141017 Fix BEGIN
      //Adjust A and Z in the case of miss much between selected data and target nucleus
      if ( theParticles != NULL ) {
         G4int sumA = 0;
         G4int sumZ = 0;
         G4int maxA = 0;
         G4int jAtMaxA = 0;
         for ( G4int j = 0 ; j != (G4int)theParticles->size() ; j++ ) {
            if ( theParticles->at(j)->GetDefinition()->GetBaryonNumber() > maxA ) {
               maxA = theParticles->at(j)->GetDefinition()->GetBaryonNumber();
               jAtMaxA = j;
            }
            sumA += theParticles->at(j)->GetDefinition()->GetBaryonNumber();
            sumZ += G4int( theParticles->at(j)->GetDefinition()->GetPDGCharge() + eps );
         }
         G4int dA = (G4int)theBaseA + hadProjectile->GetDefinition()->GetBaryonNumber() - sumA;
         G4int dZ = (G4int)theBaseZ + G4int( hadProjectile->GetDefinition()->GetPDGCharge() + eps ) - sumZ;
         if ( dA < 0 || dZ < 0 ) {
            G4int newA = theParticles->at(jAtMaxA)->GetDefinition()->GetBaryonNumber() + dA ;
            G4int newZ = G4int( theParticles->at(jAtMaxA)->GetDefinition()->GetPDGCharge() + eps ) + dZ;
            G4ParticleDefinition* pd = G4IonTable::GetIonTable()->GetIon ( newZ , newA );
            theParticles->at( jAtMaxA )->SetDefinition( pd );
         }
      }
      //141017 Fix END

    }
    else
    {
      // @@@ what to do, if we have photon data, but no info on the hadron itself
      nothingWasKnownOnHadron = 1;
    }

    //G4cout << "theFinalStatePhotons it " << it << G4endl;
    //G4cout << "theFinalStatePhotons[it] " << theFinalStatePhotons[it] << G4endl;
    //G4cout << "theFinalStatePhotons it " << it << G4endl;
    //G4cout << "theFinalStatePhotons[it] " << theFinalStatePhotons[it] << G4endl;
    //G4cout << "thePhotons " << thePhotons << G4endl;

    if ( theFinalStatePhotons[it] != 0 )
    {
       // the photon distributions are in the Nucleus rest frame.
       // TK residual rest frame
      G4ReactionProduct boosted_tmp;
      boosted_tmp.Lorentz(incidReactionProduct, theTarget);
      G4double anEnergy = boosted_tmp.GetKineticEnergy();
      thePhotons = theFinalStatePhotons[it]->GetPhotons(anEnergy);
      G4double aBaseEnergy = theFinalStatePhotons[it]->GetLevelEnergy();
      G4double testEnergy = 0;
      if(thePhotons!=0 && thePhotons->size()!=0)
      { aBaseEnergy-=thePhotons->operator[](0)->GetTotalEnergy(); }
      if(theFinalStatePhotons[it]->NeedsCascade())
      {
    while(aBaseEnergy>0.01*CLHEP::keV) // Loop checking, 11.05.2015, T. Koi
        {
          // cascade down the levels
      G4bool foundMatchingLevel = false;
          G4int closest = 2;
      G4double deltaEold = -1;
      for(G4int j=1; j<it; j++)
          {
            if(theFinalStatePhotons[j]!=0)
            {
              testEnergy = theFinalStatePhotons[j]->GetLevelEnergy();
            }
            else
            {
              testEnergy = 0;
            }
        G4double deltaE = std::abs(testEnergy-aBaseEnergy);
            if(deltaE<0.1*CLHEP::keV)
            {
              G4ReactionProductVector * theNext =
            theFinalStatePhotons[j]->GetPhotons(anEnergy);
              if ( thePhotons != NULL ) thePhotons->push_back(theNext->operator[](0));
              aBaseEnergy = testEnergy-theNext->operator[](0)->GetTotalEnergy();
              delete theNext;
          foundMatchingLevel = true;
              break; // ===>
            }
        if(theFinalStatePhotons[j]!=0 && ( deltaE<deltaEold||deltaEold<0.) )
        {
          closest = j;
          deltaEold = deltaE;
        }
          } // <=== the break goes here.
      if(!foundMatchingLevel)
      {
            G4ReactionProductVector * theNext =
               theFinalStatePhotons[closest]->GetPhotons(anEnergy);
            if ( thePhotons != NULL ) thePhotons->push_back(theNext->operator[](0));
            aBaseEnergy = aBaseEnergy-theNext->operator[](0)->GetTotalEnergy();
            delete theNext;
      }
        }
      }
    }
    unsigned int i0;
    if(thePhotons!=0)
    {
      for(i0=0; i0<thePhotons->size(); i0++)
      {
    // back to lab
    thePhotons->operator[](i0)->Lorentz(*(thePhotons->operator[](i0)), -1.*theTarget);
      }
    }
    //G4cout << "nothingWasKnownOnHadron " << nothingWasKnownOnHadron << G4endl;
    if(nothingWasKnownOnHadron)
    {
//    TKDB 100405
//    In this case, hadron should be isotropic in CM
//    mu and p should be correlated
//
      G4double totalPhotonEnergy = 0.0;
      if ( thePhotons != 0 )
      {
         unsigned int nPhotons = thePhotons->size();
         unsigned int ii0;
         for ( ii0=0; ii0<nPhotons; ii0++)
         {
            //thePhotons has energies at LAB system
            totalPhotonEnergy += thePhotons->operator[](ii0)->GetTotalEnergy();
         }
      }

      //isotropic distribution in CM
      G4double mu = 1.0 - 2 * G4UniformRand();

      // need momentums in target rest frame;
      G4LorentzVector target_in_LAB ( theTarget.GetMomentum() , theTarget.GetTotalEnergy() );
      G4ThreeVector boostToTargetRest = -target_in_LAB.boostVector();
      G4LorentzVector proj_in_LAB = hadProjectile->Get4Momentum();

      G4DynamicParticle* proj = new G4DynamicParticle( theProjectile , proj_in_LAB.boost( boostToTargetRest ) );
      G4DynamicParticle* targ = new G4DynamicParticle( G4IonTable::GetIonTable()->GetIon ( (G4int)theBaseZ , (G4int)theBaseA , totalPhotonEnergy )  , G4ThreeVector(0) );
      G4DynamicParticle* hadron = new G4DynamicParticle( aHadron.GetDefinition() , G4ThreeVector(0) );  // will be fill momentum

      two_body_reaction ( proj , targ , hadron , mu );

      G4LorentzVector hadron_in_trag_rest = hadron->Get4Momentum();
      G4LorentzVector hadron_in_LAB = hadron_in_trag_rest.boost ( -boostToTargetRest );
      aHadron.SetMomentum( hadron_in_LAB.v() );
      aHadron.SetKineticEnergy ( hadron_in_LAB.e() - hadron_in_LAB.m() );

      delete proj;
      delete targ;
      delete hadron;

//TKDB 100405
/*
      G4double totalPhotonEnergy = 0;
      if(thePhotons!=0)
      {
        unsigned int nPhotons = thePhotons->size();
    unsigned int i0;
    for(i0=0; i0<nPhotons; i0++)
        {
          totalPhotonEnergy += thePhotons->operator[](i0)->GetTotalEnergy();
        }
      }
      availableEnergy -= totalPhotonEnergy;
      residualMass += totalPhotonEnergy/theProjectile->GetPDGMass();
      aHadron.SetKineticEnergy(availableEnergy*residualMass*theProjectile->GetPDGMass()/
                               (aHadron.GetMass()+residualMass*theProjectile->GetPDGMass()));
      G4double CosTheta = 1.0 - 2.0*G4UniformRand();
      G4double SinTheta = std::sqrt(1.0 - CosTheta*CosTheta);
      G4double Phi = twopi*G4UniformRand();
      G4ThreeVector Vector(std::cos(Phi)*SinTheta, std::sin(Phi)*SinTheta, CosTheta);
      //aHadron.SetMomentum(Vector* std::sqrt(aHadron.GetTotalEnergy()*aHadron.GetTotalEnergy()-
      //                                 aHadron.GetMass()*aHadron.GetMass()));
      G4double p2 = aHadron.GetTotalEnergy()*aHadron.GetTotalEnergy()- aHadron.GetMass()*aHadron.GetMass();

      G4double p = 0.0;
      if ( p2 > 0.0 )
         p = std::sqrt ( p2 );

      aHadron.SetMomentum( Vector*p );
*/

    }

// fill the result
// Beware - the recoil is not necessarily in the particles...
// Can be calculated from momentum conservation?
// The idea is that the particles ar emitted forst, and the gammas only once the
// recoil is on the residual; assumption is that gammas do not contribute to
// the recoil.
// This needs more design @@@

    G4int nSecondaries = 2; // the hadron and the recoil
    G4bool needsSeparateRecoil = false;
    G4int totalBaryonNumber = 0;
    G4int totalCharge = 0;
    G4ThreeVector totalMomentum(0);
    if(theParticles != 0)
    {
      nSecondaries = theParticles->size();
      const G4ParticleDefinition * aDef;
      unsigned int ii0;
      for(ii0=0; ii0<theParticles->size(); ii0++)
      {
        aDef = theParticles->operator[](ii0)->GetDefinition();
    totalBaryonNumber+=aDef->GetBaryonNumber();
    totalCharge+=G4int(aDef->GetPDGCharge()+eps);
        totalMomentum += theParticles->operator[](ii0)->GetMomentum();
      }
      if(totalBaryonNumber!=G4int(theBaseA+eps+hadProjectile->GetDefinition()->GetBaryonNumber()))
      {
        needsSeparateRecoil = true;
    nSecondaries++;
    residualA = G4int(theBaseA+eps+hadProjectile->GetDefinition()->GetBaryonNumber()
                      -totalBaryonNumber);
    residualZ = G4int(theBaseZ+eps+hadProjectile->GetDefinition()->GetPDGCharge()
                      -totalCharge);
      }
    }

    G4int nPhotons = 0;
    if(thePhotons!=0) { nPhotons = thePhotons->size(); }
    nSecondaries += nPhotons;

    G4DynamicParticle * theSec;

    if( theParticles==0 )
    {
      theSec = new G4DynamicParticle;
      theSec->SetDefinition(aHadron.GetDefinition());
      theSec->SetMomentum(aHadron.GetMomentum());
      theResult.Get()->AddSecondary(theSec);
#ifdef G4PHPDEBUG
      if( getenv("G4ParticleHPDebug"))  G4cout << this << " G4ParticleHPInelasticCompFS::BaseApply  add secondary1 " << theSec->GetParticleDefinition()->GetParticleName() << " E= " << theSec->GetKineticEnergy() << " NSECO " << theResult.Get()->GetNumberOfSecondaries() << G4endl;
#endif

      aHadron.Lorentz(aHadron, theTarget);
      G4ReactionProduct theResidual;
      theResidual.SetDefinition(G4IonTable::GetIonTable()
                ->GetIon(static_cast<G4int>(residualZ), static_cast<G4int>(residualA), 0));
      theResidual.SetKineticEnergy(aHadron.GetKineticEnergy()*aHadron.GetMass()/theResidual.GetMass());

      //080612TK contribution from Benoit Pirard and Laurent Desorgher (Univ. Bern) #6
      //theResidual.SetMomentum(-1.*aHadron.GetMomentum());
      G4ThreeVector incidentNeutronMomentum = incidReactionProduct.GetMomentum();
      theResidual.SetMomentum(incidentNeutronMomentum - aHadron.GetMomentum());

      theResidual.Lorentz(theResidual, -1.*theTarget);
      G4ThreeVector totalPhotonMomentum(0,0,0);
      if(thePhotons!=0)
    {
          for(i=0; i<nPhotons; i++)
        {
          totalPhotonMomentum += thePhotons->operator[](i)->GetMomentum();
        }
    }
      theSec = new G4DynamicParticle;
      theSec->SetDefinition(theResidual.GetDefinition());
      theSec->SetMomentum(theResidual.GetMomentum()-totalPhotonMomentum);
      theResult.Get()->AddSecondary(theSec);
#ifdef G4PHPDEBUG
      if( getenv("G4ParticleHPDebug"))  G4cout << this << " G4ParticleHPInelasticCompFS::BaseApply add secondary2 " << theSec->GetParticleDefinition()->GetParticleName() << " E= " << theSec->GetKineticEnergy() << " NSECO " << theResult.Get()->GetNumberOfSecondaries() << G4endl;
#endif
    }
    else
    {
      for(i0=0; i0<theParticles->size(); i0++)
      {
        theSec = new G4DynamicParticle;
        theSec->SetDefinition(theParticles->operator[](i0)->GetDefinition());
        theSec->SetMomentum(theParticles->operator[](i0)->GetMomentum());
        theResult.Get()->AddSecondary(theSec);
#ifdef G4PHPDEBUG
      if( getenv("G4ParticleHPDebug"))  G4cout << this << " G4ParticleHPInelasticCompFS::BaseApply add secondary3 " << theSec->GetParticleDefinition()->GetParticleName() << " E= " << theSec->GetKineticEnergy() << " NSECO " << theResult.Get()->GetNumberOfSecondaries() << G4endl;
#endif
        delete theParticles->operator[](i0);
      }
      delete theParticles;
      if(needsSeparateRecoil && residualZ!=0)
      {
        G4ReactionProduct theResidual;
        theResidual.SetDefinition(G4IonTable::GetIonTable()
                              ->GetIon(static_cast<G4int>(residualZ), static_cast<G4int>(residualA), 0));
        G4double resiualKineticEnergy  = theResidual.GetMass()*theResidual.GetMass();
                 resiualKineticEnergy += totalMomentum*totalMomentum;
             resiualKineticEnergy  = std::sqrt(resiualKineticEnergy) - theResidual.GetMass();
//        cout << "Kinetic energy of the residual = "<<resiualKineticEnergy<<endl;
    theResidual.SetKineticEnergy(resiualKineticEnergy);

        //080612TK contribution from Benoit Pirard and Laurent Desorgher (Univ. Bern) #4
        //theResidual.SetMomentum(-1.*totalMomentum);
    //G4ThreeVector incidentNeutronMomentum = incidReactionProduct.GetMomentum();
        //theResidual.SetMomentum(incidentNeutronMomentum - aHadron.GetMomentum());
//080717 TK Comment still do NOT include photon's mometum which produce by thePhotons
        theResidual.SetMomentum( incidReactionProduct.GetMomentum() + theTarget.GetMomentum() - totalMomentum );

        theSec = new G4DynamicParticle;
        theSec->SetDefinition(theResidual.GetDefinition());
        theSec->SetMomentum(theResidual.GetMomentum());
        theResult.Get()->AddSecondary(theSec);
#ifdef G4PHPDEBUG
      if( getenv("G4ParticleHPDebug"))  G4cout << this << " G4ParticleHPInelasticCompFS::BaseApply add secondary4 " << theSec->GetParticleDefinition()->GetParticleName() << " E= " << theSec->GetKineticEnergy() << " NSECO " << theResult.Get()->GetNumberOfSecondaries() << G4endl;
#endif

      }
    }
    if(thePhotons!=0)
    {
      for(i=0; i<nPhotons; i++)
      {
        theSec = new G4DynamicParticle;
        //Bug reported Chao Zhang (Chao.Zhang@usd.edu), Dongming Mei(Dongming.Mei@usd.edu) Feb. 25, 2009
        //theSec->SetDefinition(G4Gamma::Gamma());
        theSec->SetDefinition( thePhotons->operator[](i)->GetDefinition() );
        //But never cause real effect at least with G4NDL3.13 TK
        theSec->SetMomentum(thePhotons->operator[](i)->GetMomentum());
        theResult.Get()->AddSecondary(theSec);
#ifdef G4PHPDEBUG
      if( getenv("G4ParticleHPDebug"))  G4cout << this << " G4ParticleHPInelasticCompFS::BaseApply add secondary5 " << theSec->GetParticleDefinition()->GetParticleName() << " E= " << theSec->GetKineticEnergy() << " NSECO " << theResult.Get()->GetNumberOfSecondaries() << G4endl;
#endif

        delete thePhotons->operator[](i);
      }
// some garbage collection
      delete thePhotons;
    }

//080721
   G4ParticleDefinition* targ_pd = G4IonTable::GetIonTable()->GetIon ( (G4int)theBaseZ , (G4int)theBaseA , 0.0 );
   G4LorentzVector targ_4p_lab ( theTarget.GetMomentum() , std::sqrt( targ_pd->GetPDGMass()*targ_pd->GetPDGMass() + theTarget.GetMomentum().mag2() ) );
   G4LorentzVector proj_4p_lab = theTrack.Get4Momentum();
   G4LorentzVector init_4p_lab = proj_4p_lab + targ_4p_lab;
   adjust_final_state ( init_4p_lab );

// clean up the primary neutron
    theResult.Get()->SetStatusChange( stopAndKill );
}

Here is the caller graph for this function:

virtual G4double G4ParticleHPInelasticCompFS::GetXsec ( G4double  anEnergy )

inlinevirtual

Reimplemented from G4ParticleHPFinalState.

Definition at line 80 of file G4ParticleHPInelasticCompFS.hh.

  {
    return std::max(0., theXsection[50]->GetY(anEnergy));
  }

Here is the call graph for this function:

virtual G4ParticleHPVector* G4ParticleHPInelasticCompFS::GetXsec ( )

inlinevirtual

Reimplemented from G4ParticleHPFinalState.

Definition at line 84 of file G4ParticleHPInelasticCompFS.hh.

{ return theXsection[50]; }

Here is the caller graph for this function:

void G4ParticleHPInelasticCompFS::Init ( G4double  A, G4double  Z, G4int  M, G4String &  dirName, G4String &  aSFType, G4ParticleDefinition *    )

virtual

Implements G4ParticleHPFinalState.

Reimplemented in G4ParticleHPNInelasticFS, G4ParticleHPPInelasticFS, and G4ParticleHPTInelasticFS.

Definition at line 81 of file G4ParticleHPInelasticCompFS.cc.

{
  gammaPath = "/Inelastic/Gammas/";  //only in neutron data base
    if(!getenv("G4NEUTRONHPDATA"))
       throw G4HadronicException(__FILE__, __LINE__, "Please setenv G4NEUTRONHPDATA to point to the neutron cross-section files where Inelastic/Gammas data is found.");
  G4String tBase = getenv("G4NEUTRONHPDATA");
  gammaPath = tBase+gammaPath;
  G4String tString = dirName;
  G4bool dbool;
  G4ParticleHPDataUsed aFile = theNames.GetName(static_cast<G4int>(A), static_cast<G4int>(Z), M, tString, aFSType, dbool);
  G4String filename = aFile.GetName();
#ifdef G4PHPDEBUG
  if( getenv("G4ParticleHPDebug") ) G4cout << " G4ParticleHPInelasticCompFS::Init FILE " << filename << G4endl;
#endif

  SetAZMs( A, Z, M, aFile );
  //theBaseA = aFile.GetA();
  //theBaseZ = aFile.GetZ();
  //theNDLDataA = (int)aFile.GetA();
  //theNDLDataZ = aFile.GetZ();
  //if(!dbool || ( Z<2.5 && ( std::abs(theBaseZ - Z)>0.0001 || std::abs(theBaseA - A)>0.0001)))
  if ( !dbool || ( Z<2.5 && ( std::abs(theNDLDataZ - Z)>0.0001 || std::abs(theNDLDataA - A)>0.0001)) )
  {
#ifdef G4PHPDEBUG
    if(getenv("G4ParticleHPDebug_NamesLogging")) G4cout << "Skipped = "<< filename <<" "<<A<<" "<<Z<<G4endl;
#endif
    hasAnyData = false;
    hasFSData = false;
    hasXsec = false;
    return;
  }
   //  theBaseA = A;
   //  theBaseZ = G4int(Z+.5);
//std::ifstream theData(filename, std::ios::in);
   std::istringstream theData(std::ios::in);
   G4ParticleHPManager::GetInstance()->GetDataStream(filename,theData);
  if(!theData) //"!" is a operator of ios
  {
    hasAnyData = false;
    hasFSData = false;
    hasXsec = false;
    //    theData.close();
    return;
  }
  // here we go
  G4int infoType, dataType, dummy;
  G4int sfType, it;
  hasFSData = false;
  while (theData >> infoType) // Loop checking, 11.05.2015, T. Koi
  {
    hasFSData = true;
    theData >> dataType;
    theData >> sfType >> dummy;
    it = 50;
    if(sfType>=600||(sfType<100&&sfType>=50)) it = sfType%50;
    if(dataType==3)
    {
      //theData >> dummy >> dummy;
      //TK110430
      // QI and LR introudced since G4NDL3.15
      G4double dqi;
      G4int ilr;
      theData >> dqi >> ilr;

      QI[ it ] = dqi*CLHEP::eV;
      LR[ it ] = ilr;
      theXsection[it] = new G4ParticleHPVector;
      G4int total;
      theData >> total;
      theXsection[it]->Init(theData, total, CLHEP::eV);
      //std::cout << theXsection[it]->GetXsec(1*MeV) << std::endl;
    }
    else if(dataType==4)
    {
      theAngularDistribution[it] = new G4ParticleHPAngular;
      theAngularDistribution[it]->Init(theData);
    }
    else if(dataType==5)
    {
      theEnergyDistribution[it] = new G4ParticleHPEnergyDistribution;
      theEnergyDistribution[it]->Init(theData);
    }
    else if(dataType==6)
    {
      theEnergyAngData[it] = new G4ParticleHPEnAngCorrelation(theProjectile);
      //      G4cout << this << " CompFS theEnergyAngData " << it << theEnergyAngData[it] << G4endl; //GDEB
      theEnergyAngData[it]->Init(theData);
    }
    else if(dataType==12)
    {
      theFinalStatePhotons[it] = new G4ParticleHPPhotonDist;
      theFinalStatePhotons[it]->InitMean(theData);
    }
    else if(dataType==13)
    {
      theFinalStatePhotons[it] = new G4ParticleHPPhotonDist;
      theFinalStatePhotons[it]->InitPartials(theData);
    }
    else if(dataType==14)
    {
      theFinalStatePhotons[it]->InitAngular(theData);
    }
    else if(dataType==15)
    {
      theFinalStatePhotons[it]->InitEnergies(theData);
    }
    else
    {
      throw G4HadronicException(__FILE__, __LINE__, "Data-type unknown to G4ParticleHPInelasticCompFS");
    }
  }
  //  theData.close();
}

Here is the call graph for this function:

Here is the caller graph for this function:

void G4ParticleHPInelasticCompFS::InitDistributionInitialState ( G4ReactionProduct &  anIncidentPart, G4ReactionProduct &  aTarget, G4int  it  )

inline

Definition at line 87 of file G4ParticleHPInelasticCompFS.hh.

  {
    if(theAngularDistribution[it]!=0)
    {
      theAngularDistribution[it]->SetTarget(aTarget);
      theAngularDistribution[it]->SetProjectileRP(anIncidentPart);
    }
    if(theEnergyAngData[it]!=0)
    {
      theEnergyAngData[it]->SetTarget(aTarget);
      theEnergyAngData[it]->SetProjectileRP(anIncidentPart);
    }
  }

Here is the call graph for this function:

Here is the caller graph for this function:

void G4ParticleHPInelasticCompFS::InitGammas	(	G4double	AR,
		G4double	ZR
	)

Definition at line 59 of file G4ParticleHPInelasticCompFS.cc.

{
  //   char the[100] = {""};
  //   std::ostrstream ost(the, 100, std::ios::out);
  //   ost <<gammaPath<<"z"<<ZR<<".a"<<AR;
  //   G4String * aName = new G4String(the);
  //   std::ifstream from(*aName, std::ios::in);

   std::ostringstream ost;
   ost <<gammaPath<<"z"<<ZR<<".a"<<AR;
   G4String aName = ost.str();
   std::ifstream from(aName, std::ios::in);

   if(!from) return; // no data found for this isotope
   //   std::ifstream theGammaData(*aName, std::ios::in);
   std::ifstream theGammaData(aName, std::ios::in);

   theGammas.Init(theGammaData);
   //   delete aName;

}

Here is the call graph for this function:

Here is the caller graph for this function:

virtual G4ParticleHPFinalState* G4ParticleHPInelasticCompFS::New ( )

pure virtual

Implements G4ParticleHPFinalState.

Implemented in G4ParticleHPAInelasticFS, G4ParticleHPDInelasticFS, G4ParticleHPHe3InelasticFS, G4ParticleHPNInelasticFS, G4ParticleHPPInelasticFS, and G4ParticleHPTInelasticFS.

G4int G4ParticleHPInelasticCompFS::SelectExitChannel

(

G4double

eKinetic

)

Definition at line 195 of file G4ParticleHPInelasticCompFS.cc.

{

// it = 0 has without Photon
  G4double running[50];
  running[0] = 0;
  unsigned int i;
  for(i=0; i<50; i++)
  {
    if(i!=0) running[i]=running[i-1];
    if(theXsection[i] != 0)
    {
      running[i] += std::max(0., theXsection[i]->GetXsec(eKinetic));
    }
  }
  G4double random = G4UniformRand();
  G4double sum = running[49];
  G4int it = 50;
  if(0!=sum)
  {
    G4int i0;
    for(i0=0; i0<50; i0++)
    {
      it = i0;
      //       G4cout << " SelectExitChannel " << it << " " << random << " " << running[i0]/sum << " " << running[i0] << G4endl; //GDEB
      if(random < running[i0]/sum) break;
    }
  }
//debug:  it = 1;
//  G4cout << " SelectExitChannel " << it << " " << sum << G4endl; //GDEB
  return it;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

G4String G4ParticleHPInelasticCompFS::gammaPath

protected

Definition at line 113 of file G4ParticleHPInelasticCompFS.hh.

std::vector<G4int > G4ParticleHPInelasticCompFS::LR

protected

Definition at line 120 of file G4ParticleHPInelasticCompFS.hh.

std::vector< G4double > G4ParticleHPInelasticCompFS::QI

protected

Definition at line 119 of file G4ParticleHPInelasticCompFS.hh.

G4ParticleHPAngular* G4ParticleHPInelasticCompFS::theAngularDistribution[51]

protected

Definition at line 107 of file G4ParticleHPInelasticCompFS.hh.

G4ParticleHPEnAngCorrelation* G4ParticleHPInelasticCompFS::theEnergyAngData[51]

protected

Definition at line 108 of file G4ParticleHPInelasticCompFS.hh.

G4ParticleHPEnergyDistribution* G4ParticleHPInelasticCompFS::theEnergyDistribution[51]

protected

Definition at line 106 of file G4ParticleHPInelasticCompFS.hh.

G4ParticleHPPhotonDist* G4ParticleHPInelasticCompFS::theFinalStatePhotons[51]

protected

Definition at line 110 of file G4ParticleHPInelasticCompFS.hh.

G4ParticleHPDeExGammas G4ParticleHPInelasticCompFS::theGammas

protected

Definition at line 112 of file G4ParticleHPInelasticCompFS.hh.

G4ParticleHPVector* G4ParticleHPInelasticCompFS::theXsection[51]

protected

Definition at line 105 of file G4ParticleHPInelasticCompFS.hh.

---

The documentation for this class was generated from the following files:

• source/geant4.10.03.p03/source/processes/hadronic/models/particle_hp/include/G4ParticleHPInelasticCompFS.hh
• source/geant4.10.03.p03/source/processes/hadronic/models/particle_hp/src/G4ParticleHPInelasticCompFS.cc
