G4ParticleHPAInelasticFS Class Reference

#include <G4ParticleHPAInelasticFS.hh>

Inheritance diagram for G4ParticleHPAInelasticFS:
Collaboration diagram for G4ParticleHPAInelasticFS:

Public Member Functions

 G4ParticleHPAInelasticFS ()

 ~G4ParticleHPAInelasticFS ()

void Init (G4double A, G4double Z, G4int M, G4String &dirName, G4String &aFSType, G4ParticleDefinition *)

G4HadFinalStateApplyYourself (const G4HadProjectile &theTrack)

G4ParticleHPFinalStateNew ()

- Public Member Functions inherited from G4ParticleHPInelasticCompFS
 G4ParticleHPInelasticCompFS ()

virtual ~G4ParticleHPInelasticCompFS ()

void Init (G4double A, G4double Z, G4int M, G4String &dirName, G4String &aSFType, G4ParticleDefinition *)

void InitGammas (G4double AR, G4double ZR)

virtual G4double GetXsec (G4double anEnergy)

virtual G4ParticleHPVectorGetXsec ()

G4int SelectExitChannel (G4double eKinetic)

void CompositeApply (const G4HadProjectile &theTrack, G4ParticleDefinition *aHadron)

void InitDistributionInitialState (G4ReactionProduct &anIncidentPart, G4ReactionProduct &aTarget, G4int it)

- Public Member Functions inherited from G4ParticleHPFinalState
 G4ParticleHPFinalState ()

virtual ~G4ParticleHPFinalState ()

void Init (G4double A, G4double Z, G4String &dirName, G4String &aFSType, G4ParticleDefinition *projectile)

G4bool HasXsec ()

G4bool HasFSData ()

G4bool HasAnyData ()

void SetA_Z (G4double anA, G4double aZ, G4int aM=0)

G4double GetZ ()

G4double GetN ()

G4double GetA ()

G4int GetM ()

void SetAZMs (G4double anA, G4double aZ, G4int aM, G4ParticleHPDataUsed used)

void SetProjectile (G4ParticleDefinition *projectile)


Additional Inherited Members

- Protected Member Functions inherited from G4ParticleHPFinalState
void adjust_final_state (G4LorentzVector)

G4bool DoNotAdjustFinalState ()

- Protected Attributes inherited from G4ParticleHPInelasticCompFS
G4ParticleHPVectortheXsection [51]

G4ParticleHPEnergyDistributiontheEnergyDistribution [51]

G4ParticleHPAngulartheAngularDistribution [51]

G4ParticleHPEnAngCorrelationtheEnergyAngData [51]

G4ParticleHPPhotonDisttheFinalStatePhotons [51]

G4ParticleHPDeExGammas theGammas

G4String gammaPath

std::vector< G4doubleQI

std::vector< G4intLR

- Protected Attributes inherited from G4ParticleHPFinalState
G4bool hasXsec

G4bool hasFSData

G4bool hasAnyData

G4ParticleHPNames theNames

G4Cache< G4HadFinalState * > theResult

G4double theBaseA

G4double theBaseZ

G4int theBaseM

G4int theNDLDataZ

G4int theNDLDataA

G4int theNDLDataM

G4ParticleDefinitiontheProjectile


Detailed Description

Definition at line 42 of file G4ParticleHPAInelasticFS.hh.

Constructor & Destructor Documentation

G4ParticleHPAInelasticFS::G4ParticleHPAInelasticFS ( )
inline

Definition at line 46 of file G4ParticleHPAInelasticFS.hh.

46 {}

Here is the caller graph for this function:

G4ParticleHPAInelasticFS::~G4ParticleHPAInelasticFS ( )
inline

Definition at line 47 of file G4ParticleHPAInelasticFS.hh.

47 {}

Member Function Documentation

G4HadFinalState * G4ParticleHPAInelasticFS::ApplyYourself ( const G4HadProjectile theTrack)
virtual

Implements G4ParticleHPInelasticCompFS.

Definition at line 64 of file G4ParticleHPAInelasticFS.cc.

65 {
66
67 // do the final state
69
70 // return the result
71  return theResult.Get();
72 }
G4Cache< G4HadFinalState * > theResult
value_type & Get() const
Definition: G4Cache.hh:282
void CompositeApply(const G4HadProjectile &theTrack, G4ParticleDefinition *aHadron)
static G4Alpha * Alpha()
Definition: G4Alpha.cc:89

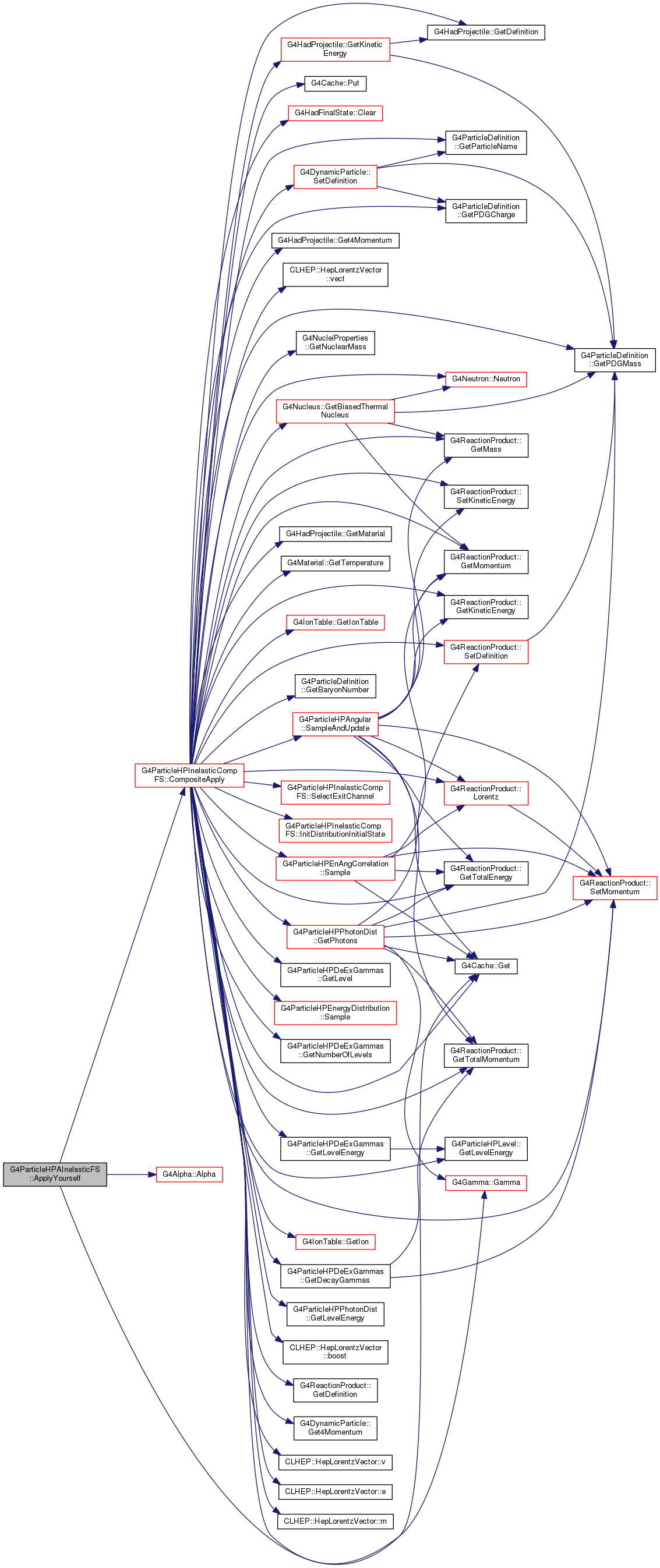

Here is the call graph for this function:

void G4ParticleHPAInelasticFS::Init ( G4double  A,
G4double  Z,
G4int  M,
G4String dirName,
G4String aFSType,
G4ParticleDefinition projectile
)
virtual

Implements G4ParticleHPFinalState.

Definition at line 36 of file G4ParticleHPAInelasticFS.cc.

37 {
38  G4ParticleHPInelasticCompFS::Init(A, Z, M, dirName, aFSType, projectile);
39  G4double ResidualA = 0;
40  G4double ResidualZ = 0;
41  if( projectile == G4Neutron::Neutron() ) {
42  ResidualA = A-3;
43  ResidualZ = Z-2;
44  } else if( projectile == G4Proton::Proton() ) {
45  ResidualA = A-3;
46  ResidualZ = Z-1;
47  } else if( projectile == G4Deuteron::Deuteron() ) {
48  ResidualA = A-2;
49  ResidualZ = Z-1;
50  } else if( projectile == G4Triton::Triton() ) {
51  ResidualA = A-1;
52  ResidualZ = Z-1;
53  } else if( projectile == G4He3::He3() ) {
54  ResidualA = A-1;
55  ResidualZ = Z;
56  } else if( projectile == G4Alpha::Alpha() ) {
57  ResidualA = A;
58  ResidualZ = Z;
59  }
60
61  G4ParticleHPInelasticCompFS::InitGammas(ResidualA, ResidualZ);
62 }
double A(double temperature)
void Init(G4double A, G4double Z, G4int M, G4String &dirName, G4String &aSFType, G4ParticleDefinition *)
static G4Triton * Triton()
Definition: G4Triton.cc:95
static G4Proton * Proton()
Definition: G4Proton.cc:93
static G4Neutron * Neutron()
Definition: G4Neutron.cc:104
static G4Deuteron * Deuteron()
Definition: G4Deuteron.cc:94
static G4Alpha * Alpha()
Definition: G4Alpha.cc:89
void InitGammas(G4double AR, G4double ZR)
double G4double
Definition: G4Types.hh:76
static G4He3 * He3()
Definition: G4He3.cc:94

Here is the call graph for this function:

G4ParticleHPFinalState* G4ParticleHPAInelasticFS::New ( )
inlinevirtual

Implements G4ParticleHPInelasticCompFS.

Definition at line 50 of file G4ParticleHPAInelasticFS.hh.

Here is the call graph for this function:


The documentation for this class was generated from the following files:
