Public Member Functions | Protected Attributes | List of all members
G4ParticleHPInelasticBaseFS Class Referenceabstract

#include <G4ParticleHPInelasticBaseFS.hh>

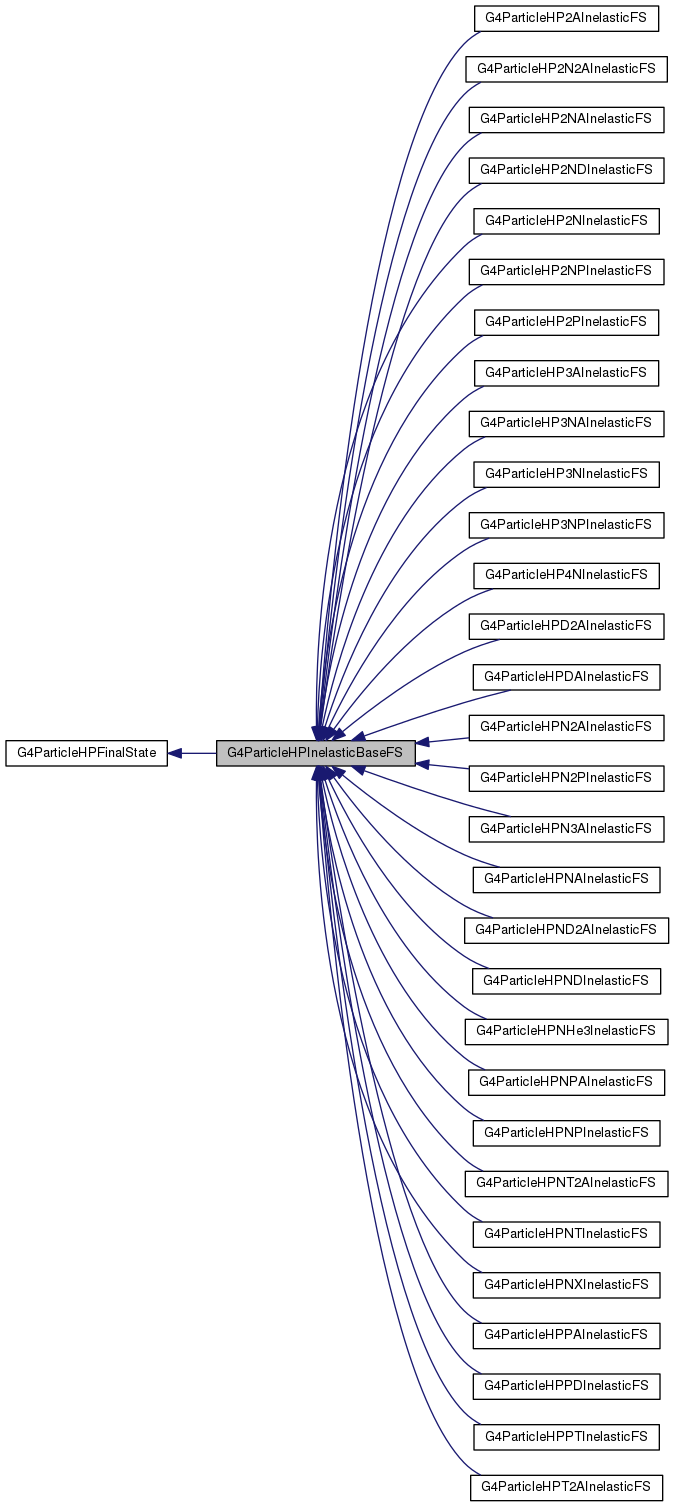

Inheritance diagram for G4ParticleHPInelasticBaseFS:
Inheritance graph
[legend]
Collaboration diagram for G4ParticleHPInelasticBaseFS:
Collaboration graph
[legend]

Public Member Functions

 G4ParticleHPInelasticBaseFS ()

virtual ~G4ParticleHPInelasticBaseFS ()

void Init (G4double A, G4double Z, G4int M, G4String &dirName, G4String &bit, G4ParticleDefinition *)

void BaseApply (const G4HadProjectile &theTrack, G4ParticleDefinition **theDefs, G4int nDef)

void InitGammas (G4double AR, G4double ZR)

virtual G4HadFinalState * ApplyYourself (const G4HadProjectile &theTrack)=0

virtual G4ParticleHPFinalState * New ()=0

virtual G4double GetXsec (G4double anEnergy)

virtual G4ParticleHPVector * GetXsec ()

- Public Member Functions inherited from G4ParticleHPFinalState
 G4ParticleHPFinalState ()

virtual ~G4ParticleHPFinalState ()

void Init (G4double A, G4double Z, G4String &dirName, G4String &aFSType, G4ParticleDefinition *projectile)

G4bool HasXsec ()

G4bool HasFSData ()

G4bool HasAnyData ()

void SetA_Z (G4double anA, G4double aZ, G4int aM=0)

G4double GetZ ()

G4double GetN ()

G4double GetA ()

G4int GetM ()

void SetAZMs (G4double anA, G4double aZ, G4int aM, G4ParticleHPDataUsed used)

void SetProjectile (G4ParticleDefinition *projectile)


Protected Attributes

G4ParticleHPVector * theXsection

G4ParticleHPEnergyDistribution * theEnergyDistribution

G4ParticleHPAngular * theAngularDistribution

G4ParticleHPEnAngCorrelation * theEnergyAngData

G4ParticleHPPhotonDist * theFinalStatePhotons

G4double theNuclearMassDifference

G4ParticleHPDeExGammas theGammas

G4String gammaPath

- Protected Attributes inherited from G4ParticleHPFinalState
G4bool hasXsec

G4bool hasFSData

G4bool hasAnyData

G4ParticleHPNames theNames

G4Cache< G4HadFinalState * > theResult

G4double theBaseA

G4double theBaseZ

G4int theBaseM

G4int theNDLDataZ

G4int theNDLDataA

G4int theNDLDataM

G4ParticleDefinition * theProjectile


Additional Inherited Members

- Protected Member Functions inherited from G4ParticleHPFinalState
void adjust_final_state (G4LorentzVector)

G4bool DoNotAdjustFinalState ()


Detailed Description

Definition at line 43 of file G4ParticleHPInelasticBaseFS.hh.

Constructor & Destructor Documentation

G4ParticleHPInelasticBaseFS::G4ParticleHPInelasticBaseFS ( )
inline

Definition at line 47 of file G4ParticleHPInelasticBaseFS.hh.

48  {
49  hasXsec = true;
50  theXsection = new G4ParticleHPVector;
51
52  theEnergyDistribution = 0;
53  theFinalStatePhotons = 0;
54  theEnergyAngData = 0;
55  theAngularDistribution = 0;
56
57  theNuclearMassDifference = 0.0;
58
59  }
G4ParticleHPInelasticBaseFS::theEnergyAngData
G4ParticleHPEnAngCorrelation * theEnergyAngData
Definition: G4ParticleHPInelasticBaseFS.hh:86
G4ParticleHPInelasticBaseFS::theEnergyDistribution
G4ParticleHPEnergyDistribution * theEnergyDistribution
Definition: G4ParticleHPInelasticBaseFS.hh:84
G4ParticleHPInelasticBaseFS::theFinalStatePhotons
G4ParticleHPPhotonDist * theFinalStatePhotons
Definition: G4ParticleHPInelasticBaseFS.hh:88
G4ParticleHPInelasticBaseFS::theAngularDistribution
G4ParticleHPAngular * theAngularDistribution
Definition: G4ParticleHPInelasticBaseFS.hh:85
virtual G4ParticleHPInelasticBaseFS::~G4ParticleHPInelasticBaseFS ( )
inlinevirtual

Definition at line 60 of file G4ParticleHPInelasticBaseFS.hh.

61  {
62  delete theXsection;
63  if(theEnergyDistribution!=0) delete theEnergyDistribution;
64  if(theFinalStatePhotons!=0) delete theFinalStatePhotons;
65  if(theEnergyAngData!=0) delete theEnergyAngData;
66  if(theAngularDistribution!=0) delete theAngularDistribution;
67  }
G4ParticleHPInelasticBaseFS::theEnergyAngData
G4ParticleHPEnAngCorrelation * theEnergyAngData
Definition: G4ParticleHPInelasticBaseFS.hh:86
G4ParticleHPInelasticBaseFS::theEnergyDistribution
G4ParticleHPEnergyDistribution * theEnergyDistribution
Definition: G4ParticleHPInelasticBaseFS.hh:84
G4ParticleHPInelasticBaseFS::theFinalStatePhotons
G4ParticleHPPhotonDist * theFinalStatePhotons
Definition: G4ParticleHPInelasticBaseFS.hh:88
G4ParticleHPInelasticBaseFS::theAngularDistribution
G4ParticleHPAngular * theAngularDistribution
Definition: G4ParticleHPInelasticBaseFS.hh:85

Member Function Documentation

virtual G4HadFinalState* G4ParticleHPInelasticBaseFS::ApplyYourself ( const G4HadProjectile &  theTrack)
pure virtual

Reimplemented from G4ParticleHPFinalState.

Implemented in G4ParticleHP2AInelasticFS, G4ParticleHP3NAInelasticFS, G4ParticleHP3NInelasticFS, G4ParticleHP3NPInelasticFS, G4ParticleHP4NInelasticFS, G4ParticleHP2N2AInelasticFS, G4ParticleHP2NAInelasticFS, G4ParticleHP2NDInelasticFS, G4ParticleHP2NInelasticFS, G4ParticleHP2NPInelasticFS, G4ParticleHP2PInelasticFS, G4ParticleHP3AInelasticFS, G4ParticleHPDAInelasticFS, G4ParticleHPN2AInelasticFS, G4ParticleHPN2PInelasticFS, G4ParticleHPN3AInelasticFS, G4ParticleHPNAInelasticFS, G4ParticleHPND2AInelasticFS, G4ParticleHPNDInelasticFS, G4ParticleHPNHe3InelasticFS, G4ParticleHPNPAInelasticFS, G4ParticleHPNPInelasticFS, G4ParticleHPNT2AInelasticFS, G4ParticleHPNTInelasticFS, G4ParticleHPNXInelasticFS, G4ParticleHPPAInelasticFS, G4ParticleHPPDInelasticFS, G4ParticleHPPTInelasticFS, G4ParticleHPD2AInelasticFS, and G4ParticleHPT2AInelasticFS.

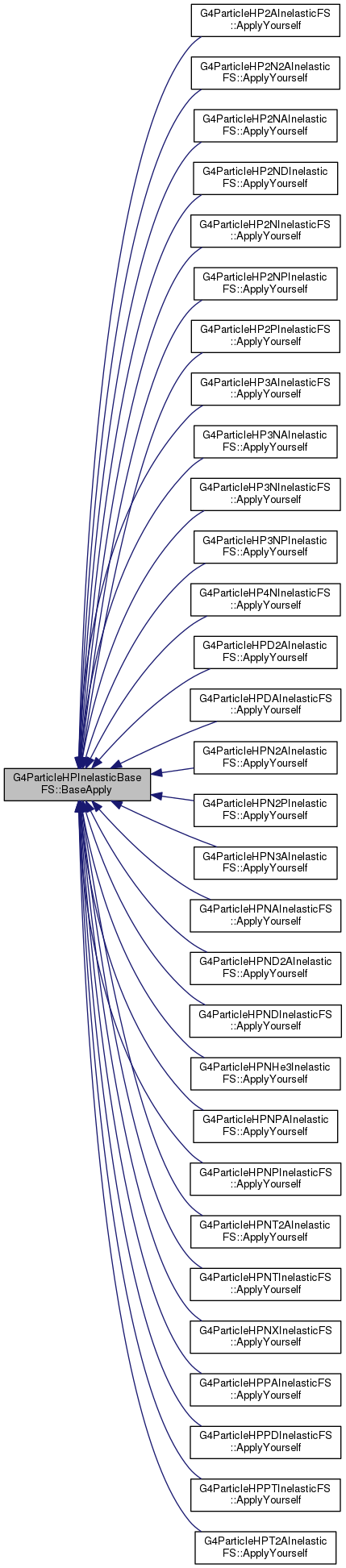

void G4ParticleHPInelasticBaseFS::BaseApply ( const G4HadProjectile &  theTrack,
G4ParticleDefinition **  theDefs,
G4int  nDef
)

Definition at line 182 of file G4ParticleHPInelasticBaseFS.cc.

185 {
186
187 // prepare neutron
188  if ( theResult.Get() == NULL ) theResult.Put( new G4HadFinalState );
189  theResult.Get()->Clear();
190  G4double eKinetic = theTrack.GetKineticEnergy();
191  const G4HadProjectile *hadProjectile = &theTrack;
192  G4ReactionProduct incidReactionProduct( const_cast<G4ParticleDefinition *>(hadProjectile->GetDefinition()) );
193  incidReactionProduct.SetMomentum( hadProjectile->Get4Momentum().vect() );
194  incidReactionProduct.SetKineticEnergy( eKinetic );
195
196 // prepare target
197  G4double targetMass;
198  G4double eps = 0.0001;
199  targetMass = ( G4NucleiProperties::GetNuclearMass(static_cast<G4int>(theBaseA+eps), static_cast<G4int>(theBaseZ+eps))) /
200  //theProjectile->GetPDGMass();
201  G4Neutron::Neutron()->GetPDGMass();
202
203  //give priority to ENDF vales for target mass
204  if(theEnergyAngData!=0)
205  { targetMass = theEnergyAngData->GetTargetMass(); }
206  if(theAngularDistribution!=0)
207  { targetMass = theAngularDistribution->GetTargetMass(); }
208
209 //080731a
210 //110512 TKDB ENDF-VII.0 21Sc45 has trouble in MF4MT22 (n,np) targetMass is not properly recorded.
211 //if ( targetMass == 0 ) G4cout << "080731a It looks like something wrong value in G4NDL, please update the latest version. If you use the latest, then please report this problem to Geant4 Hyper news." << G4endl;
212  if ( targetMass == 0 )
213  {
214  //G4cout << "TKDB targetMass = 0; ENDF-VII.0 21Sc45 has trouble in MF4MT22 (n,np) targetMass is not properly recorded. This could be a similar situation." << G4endl;
215  //targetMass = ( G4NucleiProperties::GetNuclearMass(static_cast<G4int>(theBaseA+eps), static_cast<G4int>(theBaseZ+eps))) / theProjectile->GetPDGMass();
216  targetMass = ( G4NucleiProperties::GetNuclearMass(static_cast<G4int>(theBaseA+eps), static_cast<G4int>(theBaseZ+eps))) / G4Neutron::Neutron()->GetPDGMass();
217  }
218
219  G4Nucleus aNucleus;
220  G4ReactionProduct theTarget;
221  //G4ThreeVector neuVelo = (1./hadProjectile->GetDefinition()->GetPDGMass())*incidReactionProduct.GetMomentum();
222  //theTarget = aNucleus.GetBiasedThermalNucleus( targetMass, neuVelo, theTrack.GetMaterial()->GetTemperature());
223  //G4Nucleus::GetBiasedThermalNucleus requests normalization of mass and velocity in neutron mass
224  G4ThreeVector neuVelo = (1./G4Neutron::Neutron()->GetPDGMass())*incidReactionProduct.GetMomentum();
225  theTarget = aNucleus.GetBiasedThermalNucleus( targetMass, neuVelo, theTrack.GetMaterial()->GetTemperature());
226
227  theTarget.SetDefinition( G4IonTable::GetIonTable()->GetIon( G4int(theBaseZ), G4int(theBaseA) , 0.0 ) );
228
229 // prepare energy in target rest frame
230  G4ReactionProduct boosted;
231  boosted.Lorentz(incidReactionProduct, theTarget);
232  eKinetic = boosted.GetKineticEnergy();
233  G4double orgMomentum = boosted.GetMomentum().mag();
234
235 // Take N-body phase-space distribution, if no other data present.
236  if(!HasFSData()) // adding the residual is trivial here @@@
237  {
238  G4ParticleHPNBodyPhaseSpace thePhaseSpaceDistribution;
239  G4double aPhaseMass=0;
240  G4int ii;
241  for(ii=0; ii<nDef; ii++)
242  {
243  aPhaseMass+=theDefs[ii]->GetPDGMass();
244  }
245  thePhaseSpaceDistribution.Init(aPhaseMass, nDef);
246  thePhaseSpaceDistribution.SetProjectileRP(&incidReactionProduct);
247  thePhaseSpaceDistribution.SetTarget(&theTarget);
248  for(ii=0; ii<nDef; ii++)
249  {
250  G4double massCode = 1000.*std::abs(theDefs[ii]->GetPDGCharge());
251  massCode += theDefs[ii]->GetBaryonNumber();
252  G4double dummy = 0;
253  G4ReactionProduct * aSec = thePhaseSpaceDistribution.Sample(eKinetic, massCode, dummy);
254  aSec->Lorentz(*aSec, -1.*theTarget);
255  G4DynamicParticle * aPart = new G4DynamicParticle();
256  aPart->SetDefinition(aSec->GetDefinition());
257  aPart->SetMomentum(aSec->GetMomentum());
258  delete aSec;
259  theResult.Get()->AddSecondary(aPart);
260 #ifdef G4PHPDEBUG
261  if( getenv("G4ParticleHPDebug")) G4cout << this << " G4ParticleHPInelasticBaseFS::BaseApply NoFSData add secondary " << aPart->GetParticleDefinition()->GetParticleName() << " E= " << aPart->GetKineticEnergy() << " NSECO " << theResult.Get()->GetNumberOfSecondaries() << G4endl;
262 #endif
263  }
264  theResult.Get()->SetStatusChange(stopAndKill);
265  //TK120607
266  //Final momentum check should be done before return
267  G4ParticleDefinition* targ_pd = G4IonTable::GetIonTable()->GetIon ( (G4int)theBaseZ , (G4int)theBaseA , 0.0 );
268  G4LorentzVector targ_4p_lab ( theTarget.GetMomentum() , std::sqrt( targ_pd->GetPDGMass()*targ_pd->GetPDGMass() + theTarget.GetMomentum().mag2() ) );
269  G4LorentzVector proj_4p_lab = theTrack.Get4Momentum();
270  G4LorentzVector init_4p_lab = proj_4p_lab + targ_4p_lab;
271  adjust_final_state ( init_4p_lab );
272
273  return;
274  }
275
276 // set target and neutron in the relevant exit channel
277  if(theAngularDistribution!=0)
278  {
279  theAngularDistribution->SetTarget(theTarget);
280  theAngularDistribution->SetProjectileRP(incidReactionProduct);
281  }
282  else if(theEnergyAngData!=0)
283  {
284  theEnergyAngData->SetTarget(theTarget);
285  theEnergyAngData->SetProjectileRP(incidReactionProduct);
286  }
287
288  G4ReactionProductVector * tmpHadrons = 0;
289 #ifdef G4PHPDEBUG
290  //To avoid compilation error around line 532.
291  G4int ii(0);
292 #endif
293  G4int dummy;
294  unsigned int i;
295
296  if(theEnergyAngData != 0)
297  {
298  tmpHadrons = theEnergyAngData->Sample(eKinetic);
299
300  if ( !getenv( "G4PHP_DO_NOT_ADJUST_FINAL_STATE" ) ) {
301  //141017 Fix BEGIN
302  //Adjust A and Z in the case of miss much between selected data and target nucleus
303  if ( tmpHadrons != NULL ) {
304  G4int sumA = 0;
305  G4int sumZ = 0;
306  G4int maxA = 0;
307  G4int jAtMaxA = 0;
308  for ( G4int j = 0 ; j != (G4int)tmpHadrons->size() ; j++ ) {
309  //G4cout << __FILE__ << " " << __LINE__ << "th line: tmpHadrons->at(j)->GetDefinition()->GetParticleName() = " << tmpHadrons->at(j)->GetDefinition()->GetParticleName() << G4endl;
310  if ( tmpHadrons->at(j)->GetDefinition()->GetBaryonNumber() > maxA ) {
311  maxA = tmpHadrons->at(j)->GetDefinition()->GetBaryonNumber();
312  jAtMaxA = j;
313  }
314  sumA += tmpHadrons->at(j)->GetDefinition()->GetBaryonNumber();
315  sumZ += G4int( tmpHadrons->at(j)->GetDefinition()->GetPDGCharge() + eps );
316  }
317  G4int dA = (G4int)theBaseA + hadProjectile->GetDefinition()->GetBaryonNumber() - sumA;
318  G4int dZ = (G4int)theBaseZ + G4int( hadProjectile->GetDefinition()->GetPDGCharge() + eps ) - sumZ;
319  if ( dA < 0 || dZ < 0 ) {
320  G4int newA = tmpHadrons->at(jAtMaxA)->GetDefinition()->GetBaryonNumber() + dA ;
321  G4int newZ = G4int( tmpHadrons->at(jAtMaxA)->GetDefinition()->GetPDGCharge() + eps ) + dZ;
322  G4ParticleDefinition* pd = G4IonTable::GetIonTable()->GetIon ( newZ , newA );
323  tmpHadrons->at( jAtMaxA )->SetDefinition( pd );
324  }
325  }
326  //141017 Fix END
327  }
328  }
329  else if(theAngularDistribution!= 0)
330  {
331  G4bool * Done = new G4bool[nDef];
332  G4int i0;
333  for(i0=0; i0<nDef; i0++) Done[i0] = false;
334
335 //Following lines are commented out to fix coverity defeat 58622
336 // if(tmpHadrons == 0)
337 // {
338  tmpHadrons = new G4ReactionProductVector;
339 // }
340 // else
341 // {
342 // for(i=0; i<tmpHadrons->size(); i++)
343 // {
344 // for(ii=0; ii<nDef; ii++)
345 // if(!Done[ii] && tmpHadrons->operator[](i)->GetDefinition() == theDefs[ii])
346 // Done[ii] = true;
347 // }
348 #ifdef G4PHPDEBUG
349 // if( getenv("G4ParticleHPDebug")) G4cout << " G4ParticleHPInelasticBaseFS::BaseApply secondary previously added " << tmpHadrons->operator[](i)->GetDefinition()->GetParticleName() << " E= " << tmpHadrons->operator[](i)->GetKineticEnergy() << G4endl;
350 #endif
351 // }
352  G4ReactionProduct * aHadron;
353  G4double localMass = ( G4NucleiProperties::GetNuclearMass(static_cast<G4int>(theBaseA+eps), static_cast<G4int>(theBaseZ+eps)));
354  G4ThreeVector bufferedDirection(0,0,0);
355  for(i0=0; i0<nDef; i0++)
356  {
357  if(!Done[i0])
358  {
359  aHadron = new G4ReactionProduct;
360  if(theEnergyDistribution!=0)
361  {
362  aHadron->SetDefinition(theDefs[i0]);
363  aHadron->SetKineticEnergy(theEnergyDistribution->Sample(eKinetic, dummy));
364  }
365  else if(nDef == 1)
366  {
367  aHadron->SetDefinition(theDefs[i0]);
368  aHadron->SetKineticEnergy(eKinetic);
369  }
370  else if(nDef == 2)
371  {
372  aHadron->SetDefinition(theDefs[i0]);
373  aHadron->SetKineticEnergy(50*CLHEP::MeV);
374  }
375  else
376  {
377  throw G4HadronicException(__FILE__, __LINE__, "No energy distribution to sample from in InelasticBaseFS::BaseApply");
378  }
379  theAngularDistribution->SampleAndUpdate(*aHadron);
380  if(theEnergyDistribution==0 && nDef == 2)
381  {
382  if(i0==0)
383  {
384  G4double mass1 = theDefs[0]->GetPDGMass();
385  G4double mass2 = theDefs[1]->GetPDGMass();
386  G4double massn = theProjectile->GetPDGMass();
387  G4int z1 = static_cast<G4int>(theBaseZ+eps-theDefs[0]->GetPDGCharge()-theDefs[1]->GetPDGCharge());
388  G4int a1 = static_cast<G4int>(theBaseA+eps)-theDefs[0]->GetBaryonNumber()-theDefs[1]->GetBaryonNumber();
389  G4double concreteMass = G4NucleiProperties::GetNuclearMass(a1, z1);
390  G4double availableEnergy = eKinetic+massn+localMass-mass1-mass2-concreteMass;
391  // available kinetic energy in CMS (non relativistic)
392  G4double emin = availableEnergy+mass1+mass2 - std::sqrt((mass1+mass2)*(mass1+mass2)+orgMomentum*orgMomentum);
393  G4double p1=std::sqrt(2.*mass2*emin);
394  bufferedDirection = p1*aHadron->GetMomentum().unit();
395 #ifdef G4PHPDEBUG
396  if(getenv("G4ParticleHPDebug")) // @@@@@ verify the nucleon counting...
397  {
398  G4cout << "G4ParticleHPInelasticBaseFS "<<z1<<" "<<theBaseZ<<" "<<a1<<" "<<theBaseA<<" "<<availableEnergy<<" "
399  << emin<<G4endl;
400  }
401 #endif
402  }
403  else
404  {
405  bufferedDirection = -bufferedDirection;
406  }
407  // boost from cms to lab
408 #ifdef G4PHPDEBUG
409  if(getenv("G4ParticleHPDebug"))
410  {
411  G4cout << " G4ParticleHPInelasticBaseFS "<<bufferedDirection.mag2()<<G4endl;
412  }
413 #endif
414  aHadron->SetTotalEnergy( std::sqrt(aHadron->GetMass()*aHadron->GetMass()
415  +bufferedDirection.mag2()) );
416  aHadron->SetMomentum(bufferedDirection);
417  aHadron->Lorentz(*aHadron, -1.*(theTarget+incidReactionProduct));
418 #ifdef G4PHPDEBUG
419  if(getenv("G4ParticleHPDebug"))
420  {
421  G4cout << " G4ParticleHPInelasticBaseFS "<<aHadron->GetTotalEnergy()<<" "<<aHadron->GetMomentum()<<G4endl;
422  }
423 #endif
424  }
425  tmpHadrons->push_back(aHadron);
426 #ifdef G4PHPDEBUG
427  if( getenv("G4ParticleHPDebug")) G4cout << " G4ParticleHPInelasticBaseFS::BaseApply FSData add secondary " << aHadron->GetDefinition()->GetParticleName() << " E= " << aHadron->GetKineticEnergy() << G4endl;
428 #endif
429  }
430  }
431  delete [] Done;
432  }
433  else
434  {
435  throw G4HadronicException(__FILE__, __LINE__, "No data to create the neutrons in NInelasticFS");
436  }
437
438  G4ReactionProductVector * thePhotons = 0;
439  if(theFinalStatePhotons!=0)
440  {
441  // the photon distributions are in the Nucleus rest frame.
442  G4ReactionProduct boosted_tmp;
443  boosted_tmp.Lorentz(incidReactionProduct, theTarget);
444  G4double anEnergy = boosted_tmp.GetKineticEnergy();
445  thePhotons = theFinalStatePhotons->GetPhotons(anEnergy);
446  if(thePhotons!=0)
447  {
448  for(i=0; i<thePhotons->size(); i++)
449  {
450  // back to lab
451  thePhotons->operator[](i)->Lorentz(*(thePhotons->operator[](i)), -1.*theTarget);
452  }
453  }
454  }
455  else if(theEnergyAngData!=0)
456  {
457
458  // PA130927: do not create photons to adjust binding energy
459  G4bool bAdjustPhotons = true;
460 #ifdef PHP_AS_HP
461  bAdjustPhotons = true;
462 #else
463  if ( getenv( "G4PHP_DO_NOT_ADJUST_FINAL_STATE" ) ) bAdjustPhotons = false;
464 #endif
465
466  if( bAdjustPhotons ) {
467  G4double theGammaEnergy = theEnergyAngData->GetTotalMeanEnergy();
468  G4double anEnergy = boosted.GetKineticEnergy();
469  theGammaEnergy = anEnergy-theGammaEnergy;
470  theGammaEnergy += theNuclearMassDifference;
471  G4double eBindProducts = 0;
472  G4double eBindN = 0;
473  G4double eBindP = 0;
474  G4double eBindD = G4NucleiProperties::GetBindingEnergy(2,1);
475  G4double eBindT = G4NucleiProperties::GetBindingEnergy(3,1);
476  G4double eBindHe3 = G4NucleiProperties::GetBindingEnergy(3,2);
477  G4double eBindA = G4NucleiProperties::GetBindingEnergy(4,2);
478  G4int ia=0;
479  for(i=0; i<tmpHadrons->size(); i++)
480  {
481  if(tmpHadrons->operator[](i)->GetDefinition() == G4Neutron::Neutron())
482  {
483  eBindProducts+=eBindN;
484  }
485  else if(tmpHadrons->operator[](i)->GetDefinition() == G4Proton::Proton())
486  {
487  eBindProducts+=eBindP;
488  }
489  else if(tmpHadrons->operator[](i)->GetDefinition() == G4Deuteron::Deuteron())
490  {
491  eBindProducts+=eBindD;
492  }
493  else if(tmpHadrons->operator[](i)->GetDefinition() == G4Triton::Triton())
494  {
495  eBindProducts+=eBindT;
496  }
497  else if(tmpHadrons->operator[](i)->GetDefinition() == G4He3::He3())
498  {
499  eBindProducts+=eBindHe3;
500  }
501  else if(tmpHadrons->operator[](i)->GetDefinition() == G4Alpha::Alpha())
502  {
503  eBindProducts+=eBindA;
504  ia++;
505  }
506  }
507
508  theGammaEnergy += eBindProducts;
509
510 #ifdef G4PHPDEBUG
511  if( getenv("G4ParticleHPDebug")) G4cout << " G4ParticleHPInelasticBaseFS::BaseApply gamma Energy " << theGammaEnergy << " eBindProducts " << eBindProducts << G4endl;
512 #endif
513
514  //101111
515  //Special treatment for Be9 + n -> 2n + Be8 -> 2n + a + a
516  if ( (G4int)(theBaseZ+eps) == 4 && (G4int)(theBaseA+eps) == 9 )
517  {
518  // This only valid for G4NDL3.13,,,
519  if ( std::abs( theNuclearMassDifference -
520  ( G4NucleiProperties::GetBindingEnergy( 8 , 4 ) -
521  G4NucleiProperties::GetBindingEnergy( 9 , 4 ) ) ) < 1*CLHEP::keV
522  && ia == 2 )
523  {
524  theGammaEnergy -= (2*eBindA);
525  }
526  }
527
528  G4ReactionProductVector * theOtherPhotons = 0;
529  G4int iLevel;
530  while(theGammaEnergy>=theGammas.GetLevelEnergy(0)) // Loop checking, 11.05.2015, T. Koi
531  {
532  for(iLevel=theGammas.GetNumberOfLevels()-1; iLevel>=0; iLevel--)
533  {
534  if(theGammas.GetLevelEnergy(iLevel)<theGammaEnergy) break;
535  }
536  if(iLevel==0||iLevel==theGammas.GetNumberOfLevels()-1)
537  {
538  theOtherPhotons = theGammas.GetDecayGammas(iLevel);
539 #ifdef G4PHPDEBUG
540  if( getenv("G4ParticleHPDebug")) G4cout << " G4ParticleHPInelasticBaseFS::BaseApply adding gamma from level " << iLevel << theOtherPhotons->operator[](ii)->GetKineticEnergy() << G4endl;
541 #endif
542  }
543  else
544  {
545  G4double random = G4UniformRand();
546  G4double eLow = theGammas.GetLevelEnergy(iLevel);
547  G4double eHigh = theGammas.GetLevelEnergy(iLevel+1);
548  if(random > (eHigh-eLow)/(theGammaEnergy-eLow)) iLevel++;
549  theOtherPhotons = theGammas.GetDecayGammas(iLevel);
550  }
551  if(thePhotons==0) thePhotons = new G4ReactionProductVector;
552  if(theOtherPhotons != 0)
553  {
554  for(unsigned int iii=0; iii<theOtherPhotons->size(); iii++)
555  {
556  thePhotons->push_back(theOtherPhotons->operator[](iii));
557 #ifdef G4PHPDEBUG
558  if( getenv("G4ParticleHPDebug"))
559  G4cout << iii << " G4ParticleHPInelasticBaseFS::BaseApply adding gamma " << theOtherPhotons->operator[](iii)->GetKineticEnergy() << G4endl;
560 #endif
561  }
562  delete theOtherPhotons;
563  }
564  theGammaEnergy -= theGammas.GetLevelEnergy(iLevel);
565  if(iLevel == -1) break;
566  }
567  }
568  }
569
570  // fill the result
571  unsigned int nSecondaries = tmpHadrons->size();
572  unsigned int nPhotons = 0;
573  if(thePhotons!=0) { nPhotons = thePhotons->size(); }
574  nSecondaries += nPhotons;
575  G4DynamicParticle * theSec;
576 #ifdef G4PHPDEBUG
577  if( getenv("G4ParticleHPDebug")) G4cout << " G4ParticleHPInelasticBaseFS::BaseApply N hadrons " << nSecondaries-nPhotons << G4endl;
578 #endif
579
580  for(i=0; i<nSecondaries-nPhotons; i++)
581  {
582  theSec = new G4DynamicParticle;
583  theSec->SetDefinition(tmpHadrons->operator[](i)->GetDefinition());
584  theSec->SetMomentum(tmpHadrons->operator[](i)->GetMomentum());
585  theResult.Get()->AddSecondary(theSec);
586 #ifdef G4PHPDEBUG
587  if( getenv("G4ParticleHPDebug")) G4cout << this << " G4ParticleHPInelasticBaseFS::BaseApply add secondary2 " << theSec->GetParticleDefinition()->GetParticleName() << " E= " << theSec->GetKineticEnergy() << " NSECO " << theResult.Get()->GetNumberOfSecondaries() << G4endl;
588 #endif
589  if( getenv("G4PHPTEST") ) G4cout << " InelasticBaseFS COS THETA " << std::cos(theSec->GetMomentum().theta()) << " " << (theSec->GetMomentum().theta()) << " " << theSec->GetMomentum() << " E "<< theSec->GetKineticEnergy() << " " << theSec->GetDefinition()->GetParticleName() << G4endl; //GDEB
590  delete tmpHadrons->operator[](i);
591  }
592 #ifdef G4PHPDEBUG
593  if( getenv("G4ParticleHPDebug")) G4cout << " G4ParticleHPInelasticBaseFS::BaseApply N photons " << nPhotons << G4endl;
594 #endif
595  if(thePhotons != 0)
596  {
597  for(i=0; i<nPhotons; i++)
598  {
599  theSec = new G4DynamicParticle;
600  theSec->SetDefinition(thePhotons->operator[](i)->GetDefinition());
601  theSec->SetMomentum(thePhotons->operator[](i)->GetMomentum());
602  theResult.Get()->AddSecondary(theSec);
603 #ifdef G4PHPDEBUG
604  if( getenv("G4ParticleHPDebug")) G4cout << this << " G4ParticleHPInelasticBaseFS::BaseApply add secondary3 " << theSec->GetParticleDefinition()->GetParticleName() << " E= " << theSec->GetKineticEnergy() << " NSECO " << theResult.Get()->GetNumberOfSecondaries() << G4endl;
605 #endif
606  delete thePhotons->operator[](i);
607  }
608  }
609
610 // some garbage collection
611  delete thePhotons;
612  delete tmpHadrons;
613
614 //080721
615  G4ParticleDefinition* targ_pd = G4IonTable::GetIonTable()->GetIon ( (G4int)theBaseZ , (G4int)theBaseA , 0.0 );
616  G4LorentzVector targ_4p_lab ( theTarget.GetMomentum() , std::sqrt( targ_pd->GetPDGMass()*targ_pd->GetPDGMass() + theTarget.GetMomentum().mag2() ) );
617  G4LorentzVector proj_4p_lab = theTrack.Get4Momentum();
618  G4LorentzVector init_4p_lab = proj_4p_lab + targ_4p_lab;
619  adjust_final_state ( init_4p_lab );
620
621 // clean up the primary neutron
622  theResult.Get()->SetStatusChange(stopAndKill);
623 }
G4ParticleHPNBodyPhaseSpace::Sample
G4ReactionProduct * Sample(G4double anEnergy, G4double massCode, G4double mass)
Definition: G4ParticleHPNBodyPhaseSpace.cc:44
G4ParticleHPDeExGammas::GetDecayGammas
G4ReactionProductVector * GetDecayGammas(G4int aLevel)
Definition: G4ParticleHPDeExGammas.hh:63
G4NucleiProperties::GetNuclearMass
static G4double GetNuclearMass(const G4double A, const G4double Z)
Definition: G4NucleiProperties.cc:64
stopAndKill
Definition: G4HadFinalState.hh:42
G4ParticleHPFinalState::theResult
G4Cache< G4HadFinalState * > theResult
Definition: G4ParticleHPFinalState.hh:117
G4DynamicParticle::SetMomentum
void SetMomentum(const G4ThreeVector &momentum)
Definition: G4DynamicParticle.cc:371
G4ReactionProduct::Lorentz
void Lorentz(const G4ReactionProduct &p1, const G4ReactionProduct &p2)
Definition: G4ReactionProduct.cc:206
G4DynamicParticle::GetKineticEnergy
G4double GetKineticEnergy() const
CLHEP::keV
static constexpr double keV
Definition: SystemOfUnits.h:176
G4ReactionProduct::SetKineticEnergy
void SetKineticEnergy(const G4double en)
Definition: G4ReactionProduct.hh:132
G4ReactionProduct::SetMomentum
void SetMomentum(const G4double x, const G4double y, const G4double z)
Definition: G4ReactionProduct.cc:171
G4ParticleHPEnAngCorrelation::SetProjectileRP
void SetProjectileRP(G4ReactionProduct &aIncidentPart)
Definition: G4ParticleHPEnAngCorrelation.hh:120
G4IonTable::GetIon
G4ParticleDefinition * GetIon(G4int Z, G4int A, G4int lvl=0)
Definition: G4IonTable.cc:503
G4Cache::Get
value_type & Get() const
Definition: G4Cache.hh:282
G4ParticleHPInelasticBaseFS::theEnergyAngData
G4ParticleHPEnAngCorrelation * theEnergyAngData
Definition: G4ParticleHPInelasticBaseFS.hh:86
eps
static const G4double eps
Definition: G4ElectroNuclearCrossSection.cc:99
G4DynamicParticle::GetDefinition
G4ParticleDefinition * GetDefinition() const
G4int
int G4int
Definition: G4Types.hh:78
G4ParticleHPEnergyDistribution::Sample
G4double Sample(G4double anEnergy, G4int &it)
Definition: G4ParticleHPEnergyDistribution.hh:101
G4ParticleHPEnAngCorrelation::Sample
G4ReactionProductVector * Sample(G4double anEnergy)
Definition: G4ParticleHPEnAngCorrelation.cc:75
G4ParticleDefinition::GetParticleName
const G4String & GetParticleName() const
Definition: G4ParticleDefinition.hh:120
G4ReactionProduct::SetDefinition
void SetDefinition(const G4ParticleDefinition *aParticleDefinition)
Definition: G4ReactionProduct.cc:160
G4ParticleHPAngular::SetProjectileRP
void SetProjectileRP(const G4ReactionProduct &anIncidentParticleRP)
Definition: G4ParticleHPAngular.hh:85
G4ParticleHPFinalState::theProjectile
G4ParticleDefinition * theProjectile
Definition: G4ParticleHPFinalState.hh:136
G4ParticleHPNBodyPhaseSpace::Init
void Init(G4double aMass, G4int aCount)
Definition: G4ParticleHPNBodyPhaseSpace.hh:54
G4HadFinalState::SetStatusChange
void SetStatusChange(G4HadFinalStateStatus aS)
Definition: G4HadFinalState.hh:67
G4ReactionProductVector
std::vector< G4ReactionProduct * > G4ReactionProductVector
Definition: G4ReactionProductVector.hh:43
G4ParticleHPAngular::SetTarget
void SetTarget(const G4ReactionProduct &aTarget)
Definition: G4ParticleHPAngular.hh:83
G4ParticleHPFinalState::adjust_final_state
void adjust_final_state(G4LorentzVector)
Definition: G4ParticleHPFinalState.cc:46
G4ReactionProduct::GetDefinition
const G4ParticleDefinition * GetDefinition() const
Definition: G4ReactionProduct.hh:107
G4Nucleus::GetBiasedThermalNucleus
G4ReactionProduct GetBiasedThermalNucleus(G4double aMass, G4ThreeVector aVelocity, G4double temp=-1) const
Definition: G4Nucleus.cc:113
CLHEP::HepLorentzVector::vect
Hep3Vector vect() const
G4UniformRand
#define G4UniformRand()
Definition: Randomize.hh:97
G4cout
G4GLOB_DLL std::ostream G4cout
G4ParticleHPAngular::SampleAndUpdate
void SampleAndUpdate(G4ReactionProduct &anIncidentParticle)
Definition: G4ParticleHPAngular.cc:100
G4HadProjectile::GetDefinition
const G4ParticleDefinition * GetDefinition() const
Definition: G4HadProjectile.hh:81
G4bool
bool G4bool
Definition: G4Types.hh:79
G4HadProjectile::GetKineticEnergy
G4double GetKineticEnergy() const
Definition: G4HadProjectile.hh:106
G4ReactionProduct::SetTotalEnergy
void SetTotalEnergy(const G4double en)
Definition: G4ReactionProduct.hh:141
CLHEP::MeV
static constexpr double MeV
Definition: SystemOfUnits.h:174
theTarget
G4ErrorTarget * theTarget
Definition: errprop.cc:59
G4Triton::Triton
static G4Triton * Triton()
Definition: G4Triton.cc:95
G4Proton::Proton
static G4Proton * Proton()
Definition: G4Proton.cc:93
G4Neutron::Neutron
static G4Neutron * Neutron()
Definition: G4Neutron.cc:104
G4DynamicParticle::GetParticleDefinition
const G4ParticleDefinition * GetParticleDefinition() const
G4HadProjectile::Get4Momentum
const G4LorentzVector & Get4Momentum() const
Definition: G4HadProjectile.hh:86
G4VParticleHPEnergyAngular::SetProjectileRP
void SetProjectileRP(G4ReactionProduct *aIncidentParticleRP)
Definition: G4VParticleHPEnergyAngular.hh:70
G4Deuteron::Deuteron
static G4Deuteron * Deuteron()
Definition: G4Deuteron.cc:94
G4IonTable::GetIonTable
static G4IonTable * GetIonTable()
Definition: G4IonTable.hh:78
CLHEP::Hep3Vector::theta
double theta() const
G4ReactionProduct::GetKineticEnergy
G4double GetKineticEnergy() const
Definition: G4ReactionProduct.hh:138
G4ReactionProduct::GetTotalEnergy
G4double GetTotalEnergy() const
Definition: G4ReactionProduct.hh:129
G4VParticleHPEnergyAngular::SetTarget
void SetTarget(G4ReactionProduct *aTarget)
Definition: G4VParticleHPEnergyAngular.hh:76
G4ParticleDefinition::GetPDGMass
G4double GetPDGMass() const
Definition: G4ParticleDefinition.hh:122
G4NucleiProperties::GetBindingEnergy
static G4double GetBindingEnergy(const G4int A, const G4int Z)
Definition: G4NucleiProperties.cc:268
G4ParticleHPInelasticBaseFS::theEnergyDistribution
G4ParticleHPEnergyDistribution * theEnergyDistribution
Definition: G4ParticleHPInelasticBaseFS.hh:84
CLHEP::Hep3Vector::unit
Hep3Vector unit() const
G4ParticleHPEnAngCorrelation::SetTarget
void SetTarget(G4ReactionProduct &aTarget)
Definition: G4ParticleHPEnAngCorrelation.hh:114
CLHEP::Hep3Vector::mag2
double mag2() const
G4ParticleHPPhotonDist::GetPhotons
G4ReactionProductVector * GetPhotons(G4double anEnergy)
Definition: G4ParticleHPPhotonDist.cc:282
G4ReactionProduct::GetMomentum
G4ThreeVector GetMomentum() const
Definition: G4ReactionProduct.hh:123
G4Material::GetTemperature
G4double GetTemperature() const
Definition: G4Material.hh:182
G4endl
#define G4endl
Definition: G4ios.hh:61
G4HadProjectile::GetMaterial
const G4Material * GetMaterial() const
Definition: G4HadProjectile.hh:76
G4Alpha::Alpha
static G4Alpha * Alpha()
Definition: G4Alpha.cc:89
G4HadFinalState::AddSecondary
void AddSecondary(G4DynamicParticle *aP, G4int mod=-1)
Definition: G4HadFinalState.hh:61
G4double
double G4double
Definition: G4Types.hh:76
G4DynamicParticle::SetDefinition
void SetDefinition(const G4ParticleDefinition *aParticleDefinition)
Definition: G4DynamicParticle.cc:305
G4ParticleHPInelasticBaseFS::theFinalStatePhotons
G4ParticleHPPhotonDist * theFinalStatePhotons
Definition: G4ParticleHPInelasticBaseFS.hh:88
G4ParticleDefinition::GetPDGCharge
G4double GetPDGCharge() const
Definition: G4ParticleDefinition.hh:124
G4He3::He3
static G4He3 * He3()
Definition: G4He3.cc:94
CLHEP::Hep3Vector::mag
double mag() const
G4Cache::Put
void Put(const value_type &val) const
Definition: G4Cache.hh:286
G4ParticleHPDeExGammas::GetLevelEnergy
G4double GetLevelEnergy(G4int aLevel)
Definition: G4ParticleHPDeExGammas.hh:100
G4ReactionProduct::GetMass
G4double GetMass() const
Definition: G4ReactionProduct.hh:150
G4HadFinalState::GetNumberOfSecondaries
G4int GetNumberOfSecondaries() const
Definition: G4HadFinalState.hh:51
G4ParticleHPInelasticBaseFS::theAngularDistribution
G4ParticleHPAngular * theAngularDistribution
Definition: G4ParticleHPInelasticBaseFS.hh:85
G4DynamicParticle::GetMomentum
G4ThreeVector GetMomentum() const
G4ParticleHPNBodyPhaseSpace
Definition: G4ParticleHPNBodyPhaseSpace.hh:42

Here is the caller graph for this function:

virtual G4double G4ParticleHPInelasticBaseFS::GetXsec ( G4double  anEnergy)
inlinevirtual

Reimplemented from G4ParticleHPFinalState.

Definition at line 75 of file G4ParticleHPInelasticBaseFS.hh.

76  {
77  return std::max(0., theXsection->GetY(anEnergy));
78  }
G4ParticleHPVector::GetY
G4double GetY(G4double x)
Definition: G4ParticleHPVector.hh:198
G4INCL::Math::max
T max(const T t1, const T t2)
brief Return the largest of the two arguments
Definition: G4INCLGlobals.hh:112

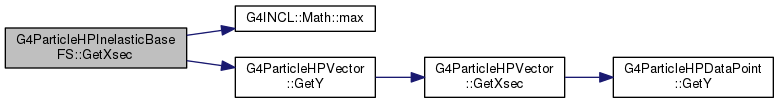

Here is the call graph for this function:

virtual G4ParticleHPVector* G4ParticleHPInelasticBaseFS::GetXsec ( )
inlinevirtual

Reimplemented from G4ParticleHPFinalState.

Definition at line 79 of file G4ParticleHPInelasticBaseFS.hh.

79 { return theXsection; }
void G4ParticleHPInelasticBaseFS::Init ( G4double  A,
G4double  Z,
G4int  M,
G4String &  dirName,
G4String &  bit,
G4ParticleDefinition *
)
virtual

Implements G4ParticleHPFinalState.

Reimplemented in G4ParticleHPN2AInelasticFS, G4ParticleHPN2PInelasticFS, G4ParticleHPN3AInelasticFS, G4ParticleHPNAInelasticFS, G4ParticleHPND2AInelasticFS, G4ParticleHPNDInelasticFS, G4ParticleHPNHe3InelasticFS, G4ParticleHPNPAInelasticFS, G4ParticleHPNPInelasticFS, G4ParticleHPNT2AInelasticFS, G4ParticleHPNTInelasticFS, G4ParticleHPNXInelasticFS, G4ParticleHPPAInelasticFS, G4ParticleHPPDInelasticFS, G4ParticleHPPTInelasticFS, and G4ParticleHPT2AInelasticFS.

Definition at line 74 of file G4ParticleHPInelasticBaseFS.cc.

75 {
76  gammaPath = "/Inelastic/Gammas/";
77  if(!getenv("G4NEUTRONHPDATA"))
78  throw G4HadronicException(__FILE__, __LINE__, "Please setenv G4NEUTRONHPDATA to point to the neutron cross-section files where Inelastic/Gammas data is found.");
79  G4String tBase = getenv("G4NEUTRONHPDATA");
80  gammaPath = tBase+gammaPath;
81  G4String tString = dirName;
82  G4bool dbool;
83  G4ParticleHPDataUsed aFile = theNames.GetName(static_cast<G4int>(A), static_cast<G4int>(Z), M,tString, bit, dbool);
84  G4String filename = aFile.GetName();
85 #ifdef G4PHPDEBUG
86  if( getenv("G4ParticleHPDebug") ) G4cout << " G4ParticleHPInelasticBaseFS::Init FILE " << filename << G4endl;
87 #endif
88  SetAZMs( A, Z, M, aFile);
89  //theBaseA = aFile.GetA();
90  //theBaseZ = aFile.GetZ();
91  // theNDLDataA = (int)aFile.GetA();
92  // theNDLDataZ = aFile.GetZ();
93  //if(!dbool || ( Z<2.5 && ( std::abs(theBaseZ - Z)>0.0001 || std::abs(theBaseA - A)>0.0001)))
94  if ( !dbool || ( Z<2.5 && ( std::abs(theNDLDataZ - Z)>0.0001 || std::abs(theNDLDataA - A)>0.0001)) )
95  {
96 #ifdef G4PHPDEBUG
97  if(getenv("G4ParticleHPDebug_NamesLogging")) G4cout << "Skipped = "<< filename <<" "<<A<<" "<<Z<<G4endl;
98 #endif
99  hasAnyData = false;
100  hasFSData = false;
101  hasXsec = false;
102  return;
103  }
104  // theBaseA = A;
105  // theBaseZ = G4int(Z+.5);
106  //std::ifstream theData(filename, std::ios::in);
107  //130205 For compressed data files
108  std::istringstream theData(std::ios::in);
109  G4ParticleHPManager::GetInstance()->GetDataStream(filename,theData);
110  //130205 END
111  if(!theData) //"!" is a operator of ios
112  {
113  hasAnyData = false;
114  hasFSData = false;
115  hasXsec = false;
116  // theData.close();
117  return; // no data for exactly this isotope and FS
118  }
119  // here we go
120  G4int infoType, dataType, dummy=INT_MAX;
121  hasFSData = false;
122  while (theData >> infoType) // Loop checking, 11.05.2015, T. Koi
123  {
124  theData >> dataType;
125
126  if(dummy==INT_MAX) theData >> dummy >> dummy;
127  if(dataType==3)
128  {
129  G4int total;
130  theData >> total;
131  theXsection->Init(theData, total, CLHEP::eV);
132  }
133  else if(dataType==4)
134  {
135  theAngularDistribution = new G4ParticleHPAngular;
136  theAngularDistribution->Init(theData);
137  hasFSData = true;
138  }
139  else if(dataType==5)
140  {
141  theEnergyDistribution = new G4ParticleHPEnergyDistribution;
142  theEnergyDistribution->Init(theData);
143  hasFSData = true;
144  }
145  else if(dataType==6)
146  {
147  theEnergyAngData = new G4ParticleHPEnAngCorrelation(theProjectile);
148  //- G4cout << this << " BaseFS theEnergyAngData " << theEnergyAngData << G4endl; //GDEB
149  theEnergyAngData->Init(theData);
150  hasFSData = true;
151  }
152  else if(dataType==12)
153  {
154  theFinalStatePhotons = new G4ParticleHPPhotonDist;
155  theFinalStatePhotons->InitMean(theData);
156  hasFSData = true;
157  }
158  else if(dataType==13)
159  {
160  theFinalStatePhotons = new G4ParticleHPPhotonDist;
161  theFinalStatePhotons->InitPartials(theData);
162  hasFSData = true;
163  }
164  else if(dataType==14)
165  {
166  theFinalStatePhotons->InitAngular(theData);
167  hasFSData = true;
168  }
169  else if(dataType==15)
170  {
171  theFinalStatePhotons->InitEnergies(theData);
172  hasFSData = true;
173  }
174  else
175  {
176  throw G4HadronicException(__FILE__, __LINE__, "Data-type unknown to G4ParticleHPInelasticBaseFS");
177  }
178  }
179  // theData.close();
180 }
G4ParticleHPManager::GetInstance
static G4ParticleHPManager * GetInstance()
Definition: G4ParticleHPManager.hh:56
G4ParticleHPFinalState::SetAZMs
void SetAZMs(G4double anA, G4double aZ, G4int aM, G4ParticleHPDataUsed used)
Definition: G4ParticleHPFinalState.hh:102
G4ParticleHPManager::GetDataStream
void GetDataStream(G4String, std::istringstream &iss)
Definition: G4ParticleHPManager.cc:100
G4ParticleHPInelasticBaseFS::theEnergyAngData
G4ParticleHPEnAngCorrelation * theEnergyAngData
Definition: G4ParticleHPInelasticBaseFS.hh:86
G4int
int G4int
Definition: G4Types.hh:78
G4ParticleHPPhotonDist::InitPartials
void InitPartials(std::istream &aDataFile)
Definition: G4ParticleHPPhotonDist.cc:253
G4ParticleHPFinalState::theProjectile
G4ParticleDefinition * theProjectile
Definition: G4ParticleHPFinalState.hh:136
G4ParticleHPVector::Init
void Init(std::istream &aDataFile, G4int total, G4double ux=1., G4double uy=1.)
Definition: G4ParticleHPVector.hh:221
G4cout
G4GLOB_DLL std::ostream G4cout
A
double A(double temperature)
Definition: G4DNAElectronHoleRecombination.cc:60
G4ParticleHPPhotonDist::InitMean
G4bool InitMean(std::istream &aDataFile)
Definition: G4ParticleHPPhotonDist.cc:55
G4bool
bool G4bool
Definition: G4Types.hh:79
CLHEP::eV
static constexpr double eV
Definition: SystemOfUnits.h:175
INT_MAX
#define INT_MAX
Definition: templates.hh:111
G4INCL::CrossSections::total
G4double total(Particle const *const p1, Particle const *const p2)
Definition: G4INCLCrossSections.cc:59
G4ParticleHPInelasticBaseFS::theEnergyDistribution
G4ParticleHPEnergyDistribution * theEnergyDistribution
Definition: G4ParticleHPInelasticBaseFS.hh:84
G4endl
#define G4endl
Definition: G4ios.hh:61
G4ParticleHPNames::GetName
G4ParticleHPDataUsed GetName(G4int A, G4int Z, G4String base, G4String rest, G4bool &active)
Definition: G4ParticleHPNames.hh:48
G4ParticleHPPhotonDist::InitEnergies
void InitEnergies(std::istream &aDataFile)
Definition: G4ParticleHPPhotonDist.cc:228
G4ParticleHPInelasticBaseFS::theFinalStatePhotons
G4ParticleHPPhotonDist * theFinalStatePhotons
Definition: G4ParticleHPInelasticBaseFS.hh:88
G4ParticleHPAngular::Init
void Init(std::istream &aDataFile)
Definition: G4ParticleHPAngular.cc:41
G4ParticleHPPhotonDist::InitAngular
void InitAngular(std::istream &aDataFile)
Definition: G4ParticleHPPhotonDist.cc:122
G4ParticleHPInelasticBaseFS::theAngularDistribution
G4ParticleHPAngular * theAngularDistribution
Definition: G4ParticleHPInelasticBaseFS.hh:85
Z
G4int Z
Definition: G4ParticleHPJENDLHEData.cc:262
G4ParticleHPEnAngCorrelation::Init
void Init(std::istream &aDataFile)
Definition: G4ParticleHPEnAngCorrelation.hh:88

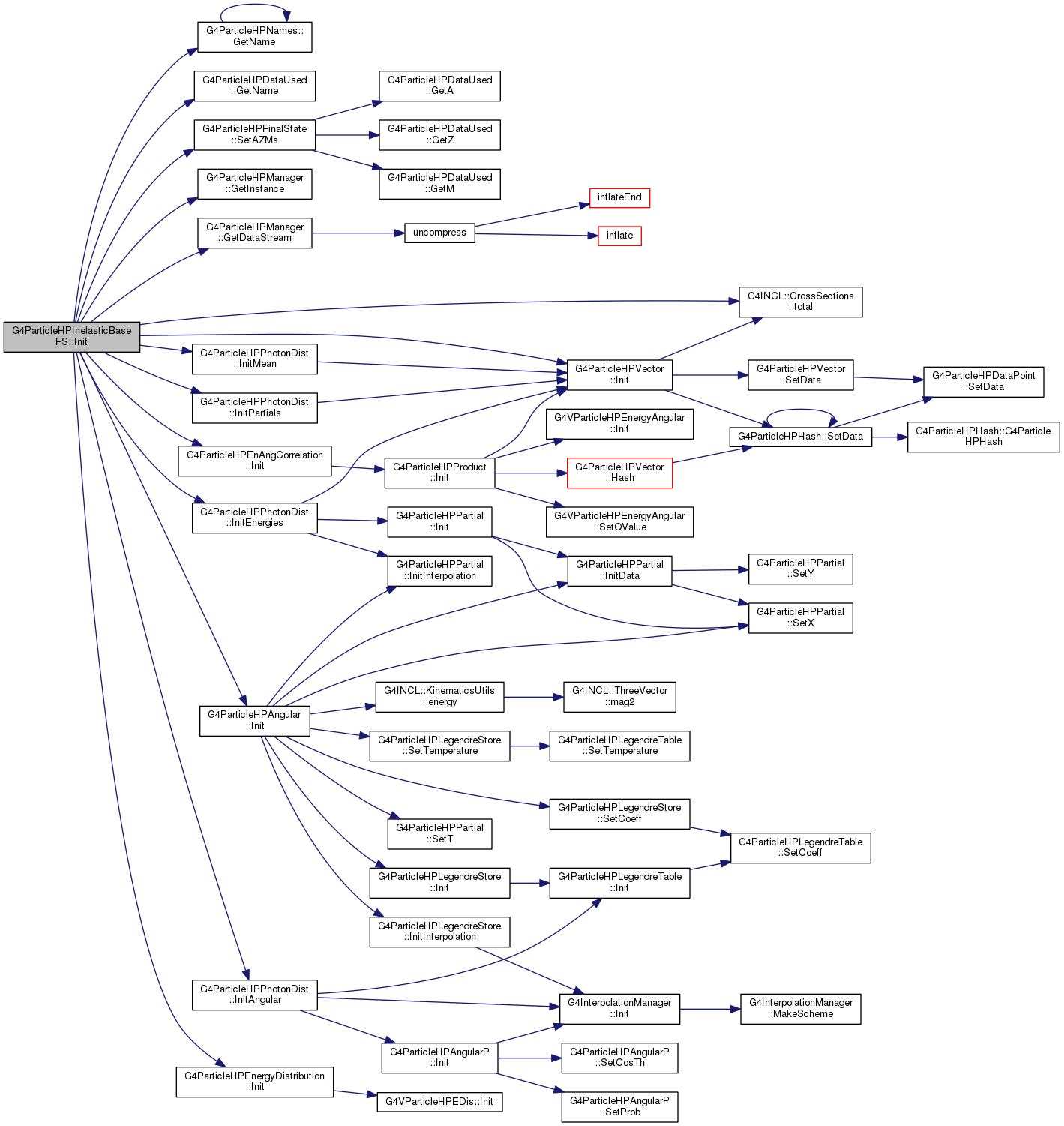

Here is the call graph for this function:

Here is the caller graph for this function:

void G4ParticleHPInelasticBaseFS::InitGammas ( G4double  AR,
G4double  ZR
)

Definition at line 48 of file G4ParticleHPInelasticBaseFS.cc.

49 {
50  // char the[100] = {""};
51  // std::ostrstream ost(the, 100, std::ios::out);
52  // ost <<gammaPath<<"z"<<ZR<<".a"<<AR;
53  // G4String * aName = new G4String(the);
54  // std::ifstream from(*aName, std::ios::in);
55
56  std::ostringstream ost;
57  ost <<gammaPath<<"z"<<ZR<<".a"<<AR;
58  G4String aName = ost.str();
59  std::ifstream from(aName, std::ios::in);
60
61  if(!from) return; // no data found for this isotope
62  // std::ifstream theGammaData(*aName, std::ios::in);
63  std::ifstream theGammaData(aName, std::ios::in);
64
65  G4double eps = 0.001;
66  theNuclearMassDifference =
67  G4NucleiProperties::GetBindingEnergy(static_cast<G4int>(AR+eps),static_cast<G4int>(ZR+eps)) -
68  G4NucleiProperties::GetBindingEnergy(static_cast<G4int>(theBaseA+eps), static_cast<G4int>(theBaseZ+eps));
69  theGammas.Init(theGammaData);
70  // delete aName;
71
72 }
eps
static const G4double eps
Definition: G4ElectroNuclearCrossSection.cc:99
G4ParticleHPDeExGammas::Init
void Init(std::istream &aDataFile)
Definition: G4ParticleHPDeExGammas.cc:37
G4NucleiProperties::GetBindingEnergy
static G4double GetBindingEnergy(const G4int A, const G4int Z)
Definition: G4NucleiProperties.cc:268
G4double
double G4double
Definition: G4Types.hh:76

Here is the call graph for this function:

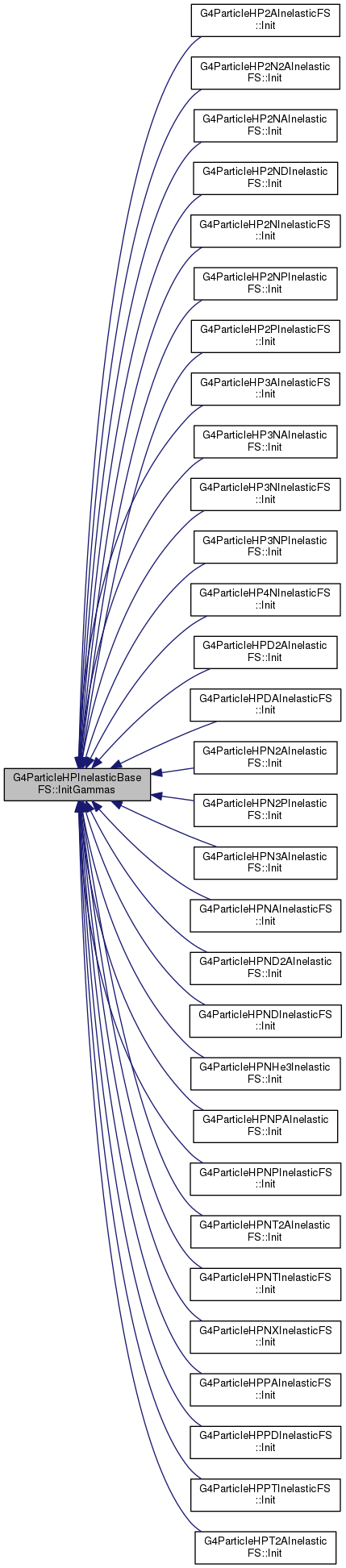

Here is the caller graph for this function:

virtual G4ParticleHPFinalState* G4ParticleHPInelasticBaseFS::New ( )
pure virtual

Implements G4ParticleHPFinalState.

Implemented in G4ParticleHP2AInelasticFS, G4ParticleHP3NAInelasticFS, G4ParticleHP3NInelasticFS, G4ParticleHP3NPInelasticFS, G4ParticleHP4NInelasticFS, G4ParticleHP2N2AInelasticFS, G4ParticleHP2NAInelasticFS, G4ParticleHP2NDInelasticFS, G4ParticleHP2NInelasticFS, G4ParticleHP2NPInelasticFS, G4ParticleHP2PInelasticFS, G4ParticleHP3AInelasticFS, G4ParticleHPDAInelasticFS, G4ParticleHPN2AInelasticFS, G4ParticleHPN2PInelasticFS, G4ParticleHPN3AInelasticFS, G4ParticleHPNAInelasticFS, G4ParticleHPND2AInelasticFS, G4ParticleHPNDInelasticFS, G4ParticleHPNHe3InelasticFS, G4ParticleHPNPAInelasticFS, G4ParticleHPNPInelasticFS, G4ParticleHPNT2AInelasticFS, G4ParticleHPNTInelasticFS, G4ParticleHPNXInelasticFS, G4ParticleHPPAInelasticFS, G4ParticleHPPDInelasticFS, G4ParticleHPPTInelasticFS, G4ParticleHPD2AInelasticFS, and G4ParticleHPT2AInelasticFS.

Member Data Documentation

G4String G4ParticleHPInelasticBaseFS::gammaPath
protected

Definition at line 91 of file G4ParticleHPInelasticBaseFS.hh.

G4ParticleHPAngular* G4ParticleHPInelasticBaseFS::theAngularDistribution
protected

Definition at line 85 of file G4ParticleHPInelasticBaseFS.hh.

G4ParticleHPEnAngCorrelation* G4ParticleHPInelasticBaseFS::theEnergyAngData
protected

Definition at line 86 of file G4ParticleHPInelasticBaseFS.hh.

G4ParticleHPEnergyDistribution* G4ParticleHPInelasticBaseFS::theEnergyDistribution
protected

Definition at line 84 of file G4ParticleHPInelasticBaseFS.hh.

G4ParticleHPPhotonDist* G4ParticleHPInelasticBaseFS::theFinalStatePhotons
protected

Definition at line 88 of file G4ParticleHPInelasticBaseFS.hh.

G4ParticleHPDeExGammas G4ParticleHPInelasticBaseFS::theGammas
protected

Definition at line 90 of file G4ParticleHPInelasticBaseFS.hh.

G4double G4ParticleHPInelasticBaseFS::theNuclearMassDifference
protected

Definition at line 89 of file G4ParticleHPInelasticBaseFS.hh.

G4ParticleHPVector* G4ParticleHPInelasticBaseFS::theXsection
protected

Definition at line 83 of file G4ParticleHPInelasticBaseFS.hh.

The documentation for this class was generated from the following files:
