G4ParticleHPPAInelasticFS Class Reference

#include <G4ParticleHPPAInelasticFS.hh>

Inheritance diagram for G4ParticleHPPAInelasticFS:

Collaboration diagram for G4ParticleHPPAInelasticFS:

Public Member Functions
	G4ParticleHPPAInelasticFS ()
	~G4ParticleHPPAInelasticFS ()
void	Init (G4double A, G4double Z, G4int M, G4String &dirName, G4String &aFSType, G4ParticleDefinition *)
G4HadFinalState *	ApplyYourself (const G4HadProjectile &theTrack)
G4ParticleHPFinalState *	New ()
Public Member Functions inherited from G4ParticleHPInelasticBaseFS
	G4ParticleHPInelasticBaseFS ()
virtual	~G4ParticleHPInelasticBaseFS ()
void	BaseApply (const G4HadProjectile &theTrack, G4ParticleDefinition **theDefs, G4int nDef)
void	InitGammas (G4double AR, G4double ZR)
virtual G4double	GetXsec (G4double anEnergy)
virtual G4ParticleHPVector *	GetXsec ()
Public Member Functions inherited from G4ParticleHPFinalState
	G4ParticleHPFinalState ()
virtual	~G4ParticleHPFinalState ()
void	Init (G4double A, G4double Z, G4String &dirName, G4String &aFSType, G4ParticleDefinition *projectile)
G4bool	HasXsec ()
G4bool	HasFSData ()
G4bool	HasAnyData ()
void	SetA_Z (G4double anA, G4double aZ, G4int aM=0)
G4double	GetZ ()
G4double	GetN ()
G4double	GetA ()
G4int	GetM ()
void	SetAZMs (G4double anA, G4double aZ, G4int aM, G4ParticleHPDataUsed used)
void	SetProjectile (G4ParticleDefinition *projectile)

Additional Inherited Members
Protected Member Functions inherited from G4ParticleHPFinalState
void	adjust_final_state (G4LorentzVector)
G4bool	DoNotAdjustFinalState ()
Protected Attributes inherited from G4ParticleHPInelasticBaseFS
G4ParticleHPVector *	theXsection
G4ParticleHPEnergyDistribution *	theEnergyDistribution
G4ParticleHPAngular *	theAngularDistribution
G4ParticleHPEnAngCorrelation *	theEnergyAngData
G4ParticleHPPhotonDist *	theFinalStatePhotons
G4double	theNuclearMassDifference
G4ParticleHPDeExGammas	theGammas
G4String	gammaPath
Protected Attributes inherited from G4ParticleHPFinalState
G4bool	hasXsec
G4bool	hasFSData
G4bool	hasAnyData
G4ParticleHPNames	theNames
G4Cache< G4HadFinalState * >	theResult
G4double	theBaseA
G4double	theBaseZ
G4int	theBaseM
G4int	theNDLDataZ
G4int	theNDLDataA
G4int	theNDLDataM
G4ParticleDefinition *	theProjectile

Detailed Description

Definition at line 41 of file G4ParticleHPPAInelasticFS.hh.

Constructor & Destructor Documentation

G4ParticleHPPAInelasticFS::G4ParticleHPPAInelasticFS ( )

inline

Definition at line 45 of file G4ParticleHPPAInelasticFS.hh.

{}

Here is the caller graph for this function:

G4ParticleHPPAInelasticFS::~G4ParticleHPPAInelasticFS ( )

inline

Definition at line 46 of file G4ParticleHPPAInelasticFS.hh.

{}

Member Function Documentation

G4HadFinalState * G4ParticleHPPAInelasticFS::ApplyYourself ( const G4HadProjectile &  theTrack )

virtual

Implements G4ParticleHPInelasticBaseFS.

Definition at line 37 of file G4ParticleHPPAInelasticFS.cc.

{
// these are the particle types in the final state

  G4ParticleDefinition * theDefs[2];
  theDefs[0] = G4Proton::Proton();
  theDefs[1] = G4Alpha::Alpha();

// fill the final state
  G4ParticleHPInelasticBaseFS::BaseApply(theTrack, theDefs, 2);

// return the result
   return theResult.Get();
}

Here is the call graph for this function:

void G4ParticleHPPAInelasticFS::Init ( G4double  A, G4double  Z, G4int  M, G4String &  dirName, G4String &  aFSType, G4ParticleDefinition *  projectile  )

virtual

Reimplemented from G4ParticleHPInelasticBaseFS.

Definition at line 53 of file G4ParticleHPPAInelasticFS.cc.

{
   G4ParticleHPInelasticBaseFS::Init(A, Z, M, dirName, aFSType, projectile);
   G4double ResidualA = 0;
   G4double ResidualZ = 0;
   if( projectile == G4Neutron::Neutron() ) {
     ResidualA = A-4;
     ResidualZ = Z-3;
   } else if( projectile == G4Proton::Proton() ) {
     ResidualA = A-4;
     ResidualZ = Z-2;
   } else if( projectile == G4Deuteron::Deuteron() ) {
     ResidualA = A-3;
     ResidualZ = Z-2;
   } else if( projectile == G4Triton::Triton() ) {
     ResidualA = A-2;
     ResidualZ = Z-2;
   } else if( projectile == G4He3::He3() ) {
     ResidualA = A-2;
     ResidualZ = Z-1;
   } else if( projectile == G4Alpha::Alpha() ) {
     ResidualA = A-1;
     ResidualZ = Z-1;
   }

   G4ParticleHPInelasticBaseFS::InitGammas(ResidualA, ResidualZ);
}

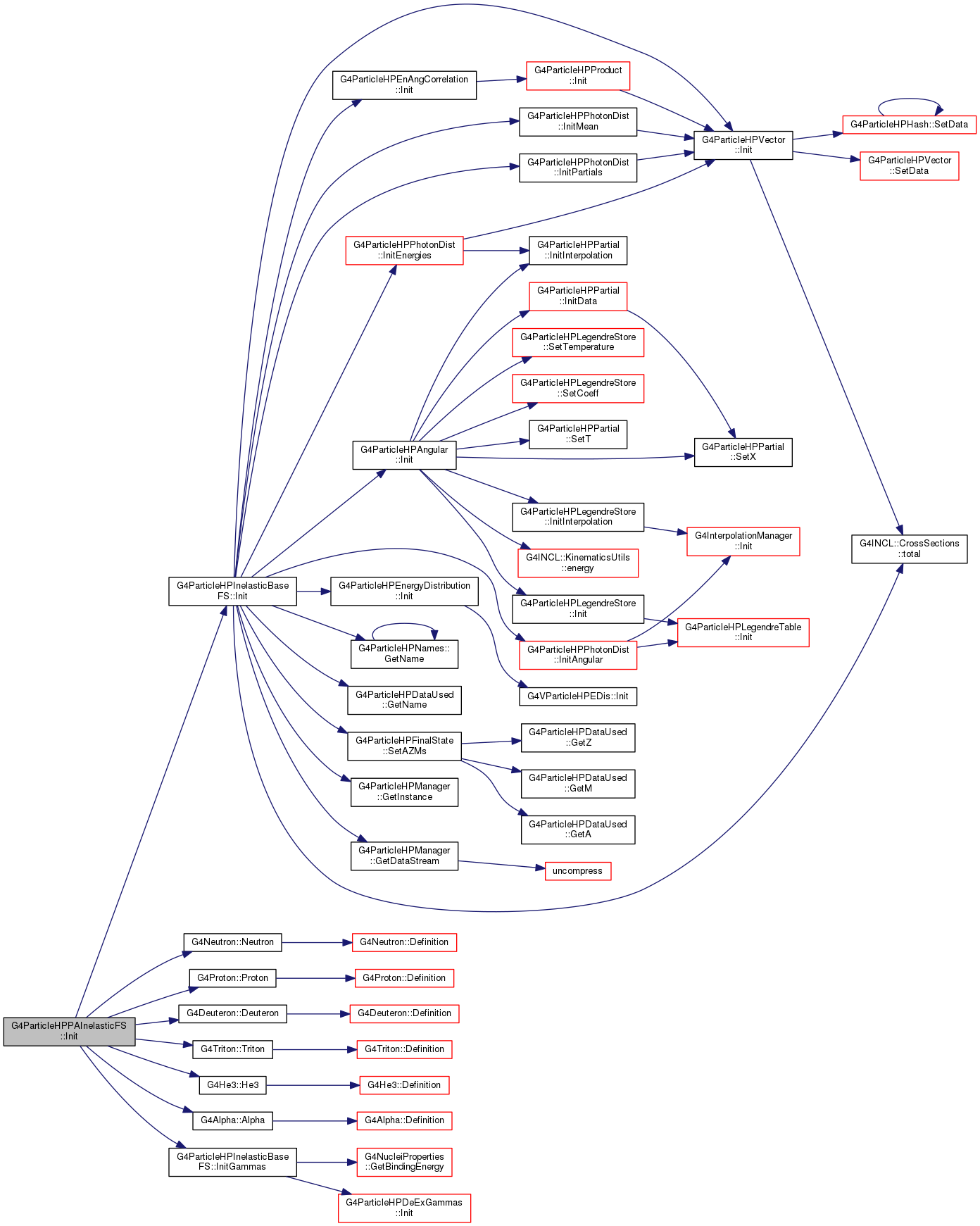

Here is the call graph for this function:

G4ParticleHPFinalState* G4ParticleHPPAInelasticFS::New ( )

inlinevirtual

Implements G4ParticleHPInelasticBaseFS.

Definition at line 49 of file G4ParticleHPPAInelasticFS.hh.

  {
   G4ParticleHPPAInelasticFS * theNew = new G4ParticleHPPAInelasticFS;
   return theNew;
  }

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• source/geant4.10.03.p03/source/processes/hadronic/models/particle_hp/include/G4ParticleHPPAInelasticFS.hh
• source/geant4.10.03.p03/source/processes/hadronic/models/particle_hp/src/G4ParticleHPPAInelasticFS.cc
