Geant4  10.03.p03
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Macros Groups Pages
Public Member Functions | List of all members
G4ParticleHP2AInelasticFS Class Reference

#include <G4ParticleHP2AInelasticFS.hh>

Inheritance diagram for G4ParticleHP2AInelasticFS:
Inheritance graph
[legend]

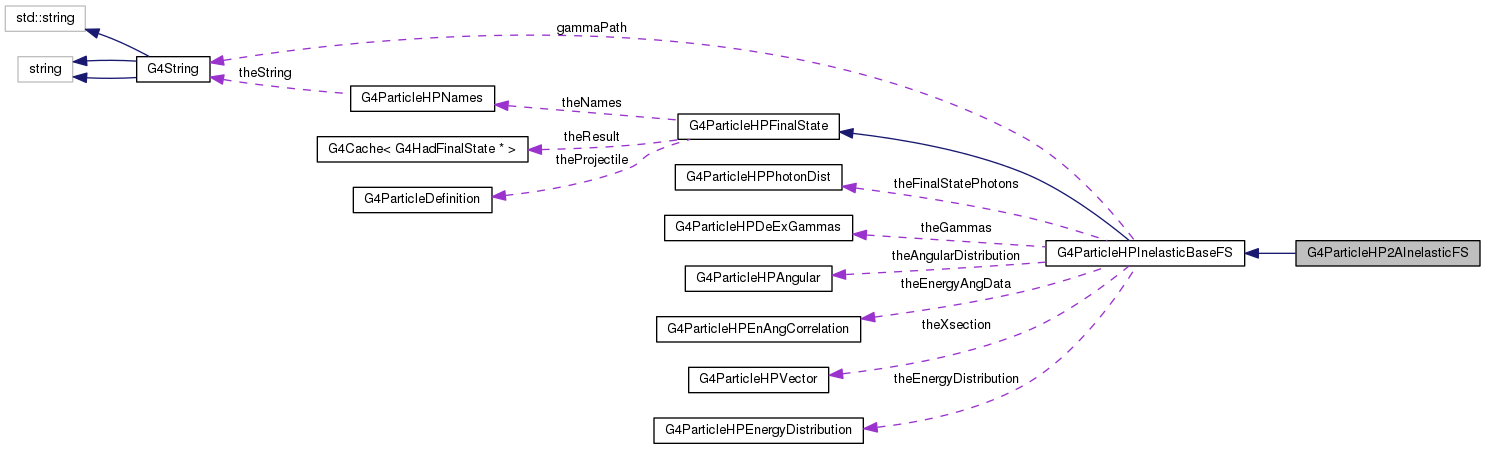

Collaboration diagram for G4ParticleHP2AInelasticFS:
Collaboration graph
[legend]

Public Member Functions

 G4ParticleHP2AInelasticFS ()

 ~G4ParticleHP2AInelasticFS ()

void Init (G4double A, G4double Z, G4int M, G4String &dirName, G4String &aFSType, G4ParticleDefinition *)

G4HadFinalState * ApplyYourself (const G4HadProjectile &theTrack)

G4ParticleHPFinalState * New ()

- Public Member Functions inherited from G4ParticleHPInelasticBaseFS
 G4ParticleHPInelasticBaseFS ()

virtual ~G4ParticleHPInelasticBaseFS ()

void Init (G4double A, G4double Z, G4int M, G4String &dirName, G4String &bit, G4ParticleDefinition *)

void BaseApply (const G4HadProjectile &theTrack, G4ParticleDefinition **theDefs, G4int nDef)

void InitGammas (G4double AR, G4double ZR)

virtual G4double GetXsec (G4double anEnergy)

virtual G4ParticleHPVector * GetXsec ()

- Public Member Functions inherited from G4ParticleHPFinalState
 G4ParticleHPFinalState ()

virtual ~G4ParticleHPFinalState ()

void Init (G4double A, G4double Z, G4String &dirName, G4String &aFSType, G4ParticleDefinition *projectile)

G4bool HasXsec ()

G4bool HasFSData ()

G4bool HasAnyData ()

void SetA_Z (G4double anA, G4double aZ, G4int aM=0)

G4double GetZ ()

G4double GetN ()

G4double GetA ()

G4int GetM ()

void SetAZMs (G4double anA, G4double aZ, G4int aM, G4ParticleHPDataUsed used)

void SetProjectile (G4ParticleDefinition *projectile)


Additional Inherited Members

- Protected Member Functions inherited from G4ParticleHPFinalState
void adjust_final_state (G4LorentzVector)

G4bool DoNotAdjustFinalState ()

- Protected Attributes inherited from G4ParticleHPInelasticBaseFS
G4ParticleHPVector * theXsection

G4ParticleHPEnergyDistribution * theEnergyDistribution

G4ParticleHPAngular * theAngularDistribution

G4ParticleHPEnAngCorrelation * theEnergyAngData

G4ParticleHPPhotonDist * theFinalStatePhotons

G4double theNuclearMassDifference

G4ParticleHPDeExGammas theGammas

G4String gammaPath

- Protected Attributes inherited from G4ParticleHPFinalState
G4bool hasXsec

G4bool hasFSData

G4bool hasAnyData

G4ParticleHPNames theNames

G4Cache< G4HadFinalState * > theResult

G4double theBaseA

G4double theBaseZ

G4int theBaseM

G4int theNDLDataZ

G4int theNDLDataA

G4int theNDLDataM

G4ParticleDefinition * theProjectile


Detailed Description

Definition at line 42 of file G4ParticleHP2AInelasticFS.hh.

Constructor & Destructor Documentation

G4ParticleHP2AInelasticFS::G4ParticleHP2AInelasticFS ( )
inline

Definition at line 46 of file G4ParticleHP2AInelasticFS.hh.

46 {}

Here is the caller graph for this function:

G4ParticleHP2AInelasticFS::~G4ParticleHP2AInelasticFS ( )
inline

Definition at line 47 of file G4ParticleHP2AInelasticFS.hh.

47 {}

Member Function Documentation

G4HadFinalState * G4ParticleHP2AInelasticFS::ApplyYourself ( const G4HadProjectile &  theTrack)
virtual

Implements G4ParticleHPInelasticBaseFS.

Definition at line 36 of file G4ParticleHP2AInelasticFS.cc.

37 {
38
39 // these are the particle types in the final state
40
41  G4ParticleDefinition * theDefs[2];
42  theDefs[0] = G4Alpha::Alpha();
43  theDefs[1] = G4Alpha::Alpha();
44
45 // fill the final state
46  G4ParticleHPInelasticBaseFS::BaseApply(theTrack, theDefs, 2);
47
48 // return the result
49  return theResult.Get();
50 }
G4ParticleHPFinalState::theResult
G4Cache< G4HadFinalState * > theResult
Definition: G4ParticleHPFinalState.hh:117
G4Cache::Get
value_type & Get() const
Definition: G4Cache.hh:282
G4ParticleHPInelasticBaseFS::BaseApply
void BaseApply(const G4HadProjectile &theTrack, G4ParticleDefinition **theDefs, G4int nDef)
Definition: G4ParticleHPInelasticBaseFS.cc:182
G4Alpha::Alpha
static G4Alpha * Alpha()
Definition: G4Alpha.cc:89

Here is the call graph for this function:

void G4ParticleHP2AInelasticFS::Init ( G4double  A,
G4double  Z,
G4int  M,
G4String &  dirName,
G4String &  aFSType,
G4ParticleDefinition *  projectile
)
virtual

Implements G4ParticleHPFinalState.

Definition at line 53 of file G4ParticleHP2AInelasticFS.cc.

54 {
55  G4ParticleHPInelasticBaseFS::Init(A, Z, M, dirName, aFSType, projectile);
56  G4double ResidualA = 0;
57  G4double ResidualZ = 0;
58  if( projectile == G4Neutron::Neutron() ) {
59  ResidualA = A-7;
60  ResidualZ = Z-4;
61  } else if( projectile == G4Proton::Proton() ) {
62  ResidualA = A-7;
63  ResidualZ = Z-3;
64  } else if( projectile == G4Deuteron::Deuteron() ) {
65  ResidualA = A-6;
66  ResidualZ = Z-3;
67  } else if( projectile == G4Triton::Triton() ) {
68  ResidualA = A-5;
69  ResidualZ = Z-3;
70  } else if( projectile == G4He3::He3() ) {
71  ResidualA = A-5;
72  ResidualZ = Z-2;
73  } else if( projectile == G4Alpha::Alpha() ) {
74  ResidualA = A-4;
75  ResidualZ = Z-2;
76  }
77
78  G4ParticleHPInelasticBaseFS::InitGammas(ResidualA, ResidualZ);
79 }
A
double A(double temperature)
Definition: G4DNAElectronHoleRecombination.cc:60
G4Triton::Triton
static G4Triton * Triton()
Definition: G4Triton.cc:95
G4Proton::Proton
static G4Proton * Proton()
Definition: G4Proton.cc:93
G4Neutron::Neutron
static G4Neutron * Neutron()
Definition: G4Neutron.cc:104
G4Deuteron::Deuteron
static G4Deuteron * Deuteron()
Definition: G4Deuteron.cc:94
G4ParticleHPInelasticBaseFS::InitGammas
void InitGammas(G4double AR, G4double ZR)
Definition: G4ParticleHPInelasticBaseFS.cc:48
G4Alpha::Alpha
static G4Alpha * Alpha()
Definition: G4Alpha.cc:89
G4ParticleHPInelasticBaseFS::Init
void Init(G4double A, G4double Z, G4int M, G4String &dirName, G4String &bit, G4ParticleDefinition *)
Definition: G4ParticleHPInelasticBaseFS.cc:74
G4double
double G4double
Definition: G4Types.hh:76
G4He3::He3
static G4He3 * He3()
Definition: G4He3.cc:94
Z
G4int Z
Definition: G4ParticleHPJENDLHEData.cc:262

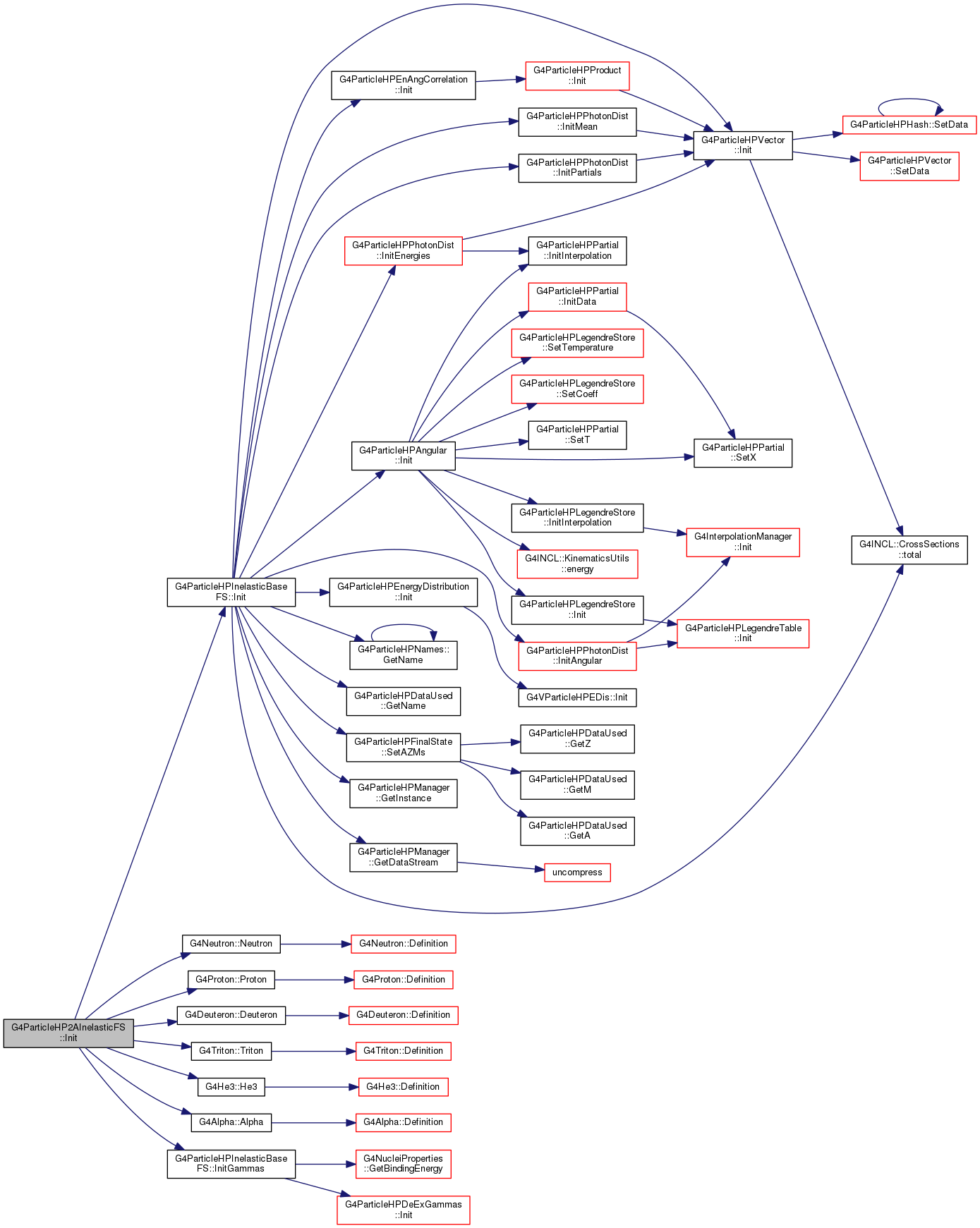

Here is the call graph for this function:

G4ParticleHPFinalState* G4ParticleHP2AInelasticFS::New ( )
inlinevirtual

Implements G4ParticleHPInelasticBaseFS.

Definition at line 50 of file G4ParticleHP2AInelasticFS.hh.

51  {
52  G4ParticleHP2AInelasticFS * theNew = new G4ParticleHP2AInelasticFS;
53  return theNew;
54  }

Here is the call graph for this function:

The documentation for this class was generated from the following files:
