G03ColorWriter Class Reference

GDML writer for the color attributes. More...

#include <G03ColorWriter.hh>

Inheritance diagram for G03ColorWriter:
Inheritance graph
[legend]
Collaboration diagram for G03ColorWriter:
Collaboration graph
[legend]

Public Member Functions

 G03ColorWriter ()

 ~G03ColorWriter ()

void AddExtension (xercesc::DOMElement *volumeElement, const G4LogicalVolume *const vol)

void ExtensionWrite (xercesc::DOMElement *element)

void ColorWrite (xercesc::DOMElement *volumeElement, const G4VisAttributes *const att)

G4bool BookAttribute (const G4VisAttributes *const att)

- Public Member Functions inherited from G4GDMLWriteStructure
 G4GDMLWriteStructure ()

virtual ~G4GDMLWriteStructure ()

virtual void StructureWrite (xercesc::DOMElement *)

void AddVolumeAuxiliary (G4GDMLAuxStructType myaux, const G4LogicalVolume *const)

void SetEnergyCutsExport (G4bool)

void SetSDExport (G4bool)

- Public Member Functions inherited from G4GDMLWriteParamvol
virtual void ParamvolWrite (xercesc::DOMElement *, const G4VPhysicalVolume *const)

virtual void ParamvolAlgorithmWrite (xercesc::DOMElement *paramvolElement, const G4VPhysicalVolume *const paramvol)

- Public Member Functions inherited from G4GDMLWriteSetup
virtual void SetupWrite (xercesc::DOMElement *, const G4LogicalVolume *const)

- Public Member Functions inherited from G4GDMLWriteSolids
virtual void AddSolid (const G4VSolid *const)

virtual void SolidsWrite (xercesc::DOMElement *)

- Public Member Functions inherited from G4GDMLWriteMaterials
void AddIsotope (const G4Isotope *const)

void AddElement (const G4Element *const)

void AddMaterial (const G4Material *const)

virtual void MaterialsWrite (xercesc::DOMElement *)

- Public Member Functions inherited from G4GDMLWriteDefine
G4ThreeVector GetAngles (const G4RotationMatrix &)

void ScaleWrite (xercesc::DOMElement *element, const G4String &name, const G4ThreeVector &scl)

void RotationWrite (xercesc::DOMElement *element, const G4String &name, const G4ThreeVector &rot)

void PositionWrite (xercesc::DOMElement *element, const G4String &name, const G4ThreeVector &pos)

void FirstrotationWrite (xercesc::DOMElement *element, const G4String &name, const G4ThreeVector &rot)

void FirstpositionWrite (xercesc::DOMElement *element, const G4String &name, const G4ThreeVector &pos)

void AddPosition (const G4String &name, const G4ThreeVector &pos)

virtual void DefineWrite (xercesc::DOMElement *)

- Public Member Functions inherited from G4GDMLWrite
G4Transform3D Write (const G4String &filename, const G4LogicalVolume *const topLog, const G4String &schemaPath, const G4int depth, G4bool storeReferences=true)

void AddModule (const G4VPhysicalVolume *const topVol)

void AddModule (const G4int depth)

void AddAuxiliary (G4GDMLAuxStructType myaux)

virtual void UserinfoWrite (xercesc::DOMElement *)

G4String GenerateName (const G4String &, const void *const)


Additional Inherited Members

- Static Public Member Functions inherited from G4GDMLWrite
static void SetAddPointerToName (G4bool)

- Protected Member Functions inherited from G4GDMLWriteStructure
void DivisionvolWrite (xercesc::DOMElement *, const G4PVDivision *const)

void PhysvolWrite (xercesc::DOMElement *, const G4VPhysicalVolume *const topVol, const G4Transform3D &transform, const G4String &moduleName)

void ReplicavolWrite (xercesc::DOMElement *, const G4VPhysicalVolume *const)

G4Transform3D TraverseVolumeTree (const G4LogicalVolume *const topVol, const G4int depth)

void SurfacesWrite ()

void BorderSurfaceCache (const G4LogicalBorderSurface *const)

void SkinSurfaceCache (const G4LogicalSkinSurface *const)

const G4LogicalBorderSurface * GetBorderSurface (const G4VPhysicalVolume *const)

const G4LogicalSkinSurface * GetSkinSurface (const G4LogicalVolume *const)

G4bool FindOpticalSurface (const G4SurfaceProperty *)

void ExportEnergyCuts (const G4LogicalVolume *const)

void ExportSD (const G4LogicalVolume *const)

- Protected Member Functions inherited from G4GDMLWriteParamvol
 G4GDMLWriteParamvol ()

virtual ~G4GDMLWriteParamvol ()

void Box_dimensionsWrite (xercesc::DOMElement *, const G4Box *const)

void Trd_dimensionsWrite (xercesc::DOMElement *, const G4Trd *const)

void Trap_dimensionsWrite (xercesc::DOMElement *, const G4Trap *const)

void Tube_dimensionsWrite (xercesc::DOMElement *, const G4Tubs *const)

void Cone_dimensionsWrite (xercesc::DOMElement *, const G4Cons *const)

void Sphere_dimensionsWrite (xercesc::DOMElement *, const G4Sphere *const)

void Orb_dimensionsWrite (xercesc::DOMElement *, const G4Orb *const)

void Torus_dimensionsWrite (xercesc::DOMElement *, const G4Torus *const)

void Ellipsoid_dimensionsWrite (xercesc::DOMElement *, const G4Ellipsoid *const)

void Para_dimensionsWrite (xercesc::DOMElement *, const G4Para *const)

void Hype_dimensionsWrite (xercesc::DOMElement *, const G4Hype *const)

void Polycone_dimensionsWrite (xercesc::DOMElement *, const G4Polycone *const)

void Polyhedra_dimensionsWrite (xercesc::DOMElement *, const G4Polyhedra *const)

void ParametersWrite (xercesc::DOMElement *, const G4VPhysicalVolume *const, const G4int &)

- Protected Member Functions inherited from G4GDMLWriteSetup
 G4GDMLWriteSetup ()

virtual ~G4GDMLWriteSetup ()

- Protected Member Functions inherited from G4GDMLWriteSolids
 G4GDMLWriteSolids ()

virtual ~G4GDMLWriteSolids ()

void MultiUnionWrite (xercesc::DOMElement *solElement, const G4MultiUnion *const)

void BooleanWrite (xercesc::DOMElement *, const G4BooleanSolid *const)

void ScaledWrite (xercesc::DOMElement *, const G4ScaledSolid *const)

void BoxWrite (xercesc::DOMElement *, const G4Box *const)

void ConeWrite (xercesc::DOMElement *, const G4Cons *const)

void ElconeWrite (xercesc::DOMElement *, const G4EllipticalCone *const)

void EllipsoidWrite (xercesc::DOMElement *, const G4Ellipsoid *const)

void EltubeWrite (xercesc::DOMElement *, const G4EllipticalTube *const)

void XtruWrite (xercesc::DOMElement *, const G4ExtrudedSolid *const)

void HypeWrite (xercesc::DOMElement *, const G4Hype *const)

void OrbWrite (xercesc::DOMElement *, const G4Orb *const)

void ParaWrite (xercesc::DOMElement *, const G4Para *const)

void ParaboloidWrite (xercesc::DOMElement *, const G4Paraboloid *const)

void PolyconeWrite (xercesc::DOMElement *, const G4Polycone *const)

void GenericPolyconeWrite (xercesc::DOMElement *, const G4GenericPolycone *const)

void PolyhedraWrite (xercesc::DOMElement *, const G4Polyhedra *const)

void SphereWrite (xercesc::DOMElement *, const G4Sphere *const)

void TessellatedWrite (xercesc::DOMElement *, const G4TessellatedSolid *const)

void TetWrite (xercesc::DOMElement *, const G4Tet *const)

void TorusWrite (xercesc::DOMElement *, const G4Torus *const)

void GenTrapWrite (xercesc::DOMElement *, const G4GenericTrap *const)

void TrapWrite (xercesc::DOMElement *, const G4Trap *const)

void TrdWrite (xercesc::DOMElement *, const G4Trd *const)

void TubeWrite (xercesc::DOMElement *, const G4Tubs *const)

void CutTubeWrite (xercesc::DOMElement *, const G4CutTubs *const)

void TwistedboxWrite (xercesc::DOMElement *, const G4TwistedBox *const)

void TwistedtrapWrite (xercesc::DOMElement *, const G4TwistedTrap *const)

void TwistedtrdWrite (xercesc::DOMElement *, const G4TwistedTrd *const)

void TwistedtubsWrite (xercesc::DOMElement *, const G4TwistedTubs *const)

void ZplaneWrite (xercesc::DOMElement *, const G4double &, const G4double &, const G4double &)

void RZPointWrite (xercesc::DOMElement *, const G4double &, const G4double &)

void OpticalSurfaceWrite (xercesc::DOMElement *, const G4OpticalSurface *const)

- Protected Member Functions inherited from G4GDMLWriteMaterials
 G4GDMLWriteMaterials ()

virtual ~G4GDMLWriteMaterials ()

void AtomWrite (xercesc::DOMElement *, const G4double &)

void DWrite (xercesc::DOMElement *, const G4double &)

void PWrite (xercesc::DOMElement *, const G4double &)

void TWrite (xercesc::DOMElement *, const G4double &)

void MEEWrite (xercesc::DOMElement *, const G4double &)

void IsotopeWrite (const G4Isotope *const)

void ElementWrite (const G4Element *const)

void MaterialWrite (const G4Material *const)

void PropertyWrite (xercesc::DOMElement *, const G4Material *const)

void PropertyVectorWrite (const G4String &, const G4PhysicsOrderedFreeVector *const)

- Protected Member Functions inherited from G4GDMLWriteDefine
 G4GDMLWriteDefine ()

virtual ~G4GDMLWriteDefine ()

void Scale_vectorWrite (xercesc::DOMElement *, const G4String &, const G4String &, const G4ThreeVector &)

void Rotation_vectorWrite (xercesc::DOMElement *, const G4String &, const G4String &, const G4ThreeVector &)

void Position_vectorWrite (xercesc::DOMElement *, const G4String &, const G4String &, const G4ThreeVector &)

- Protected Member Functions inherited from G4GDMLWrite
 G4GDMLWrite ()

virtual ~G4GDMLWrite ()

VolumeMapType & VolumeMap ()

xercesc::DOMAttr * NewAttribute (const G4String &, const G4String &)

xercesc::DOMAttr * NewAttribute (const G4String &, const G4double &)

xercesc::DOMElement * NewElement (const G4String &)

G4String Modularize (const G4VPhysicalVolume *const topvol, const G4int depth)

void AddAuxInfo (G4GDMLAuxListType *auxInfoList, xercesc::DOMElement *element)

G4bool FileExists (const G4String &) const

PhysVolumeMapType & PvolumeMap ()

DepthMapType & DepthMap ()

- Protected Attributes inherited from G4GDMLWriteStructure
xercesc::DOMElement * structureElement

std::vector
< xercesc::DOMElement * > 		borderElementVec

std::vector
< xercesc::DOMElement * > 		skinElementVec

std::map< const
G4LogicalVolume
*, G4GDMLAuxListType > 		auxmap

- Protected Attributes inherited from G4GDMLWriteSolids
std::vector< const G4VSolid * > solidList

xercesc::DOMElement * solidsElement

- Protected Attributes inherited from G4GDMLWriteMaterials
std::vector< const G4Isotope * > isotopeList

std::vector< const G4Element * > elementList

std::vector< const G4Material * > materialList

xercesc::DOMElement * materialsElement

- Protected Attributes inherited from G4GDMLWriteDefine
xercesc::DOMElement * defineElement

- Protected Attributes inherited from G4GDMLWrite
G4String SchemaLocation

xercesc::DOMDocument * doc

xercesc::DOMElement * extElement

xercesc::DOMElement * userinfoElement

XMLCh tempStr [10000]

G4GDMLAuxListType auxList

- Static Protected Attributes inherited from G4GDMLWriteSolids
static const G4int maxTransforms = 8

- Static Protected Attributes inherited from G4GDMLWriteDefine
static const G4double kRelativePrecision = DBL_EPSILON

static const G4double kAngularPrecision = DBL_EPSILON

static const G4double kLinearPrecision = DBL_EPSILON

- Static Protected Attributes inherited from G4GDMLWrite
static G4bool addPointerToName = true


Detailed Description

GDML writer for the color attributes.

Definition at line 49 of file G03ColorWriter.hh.

Constructor & Destructor Documentation

G03ColorWriter::G03ColorWriter ( )

Definition at line 40 of file G03ColorWriter.cc.

41  : G4GDMLWriteStructure()
42 {
43 }
G03ColorWriter::~G03ColorWriter ( )

Definition at line 47 of file G03ColorWriter.cc.

48 {
49 }

Member Function Documentation

void G03ColorWriter::AddExtension ( xercesc::DOMElement *  volumeElement,
const G4LogicalVolume *const  vol
)
virtual

Reimplemented from G4GDMLWrite.

Definition at line 53 of file G03ColorWriter.cc.

55 {
56  const G4VisAttributes* vis = vol->GetVisAttributes();
57  if (vis) { ColorWrite(volumeElement, vis); }
58 }
G4LogicalVolume::GetVisAttributes
const G4VisAttributes * GetVisAttributes() const
G03ColorWriter::ColorWrite
void ColorWrite(xercesc::DOMElement *volumeElement, const G4VisAttributes *const att)
Definition: G03ColorWriter.cc:74

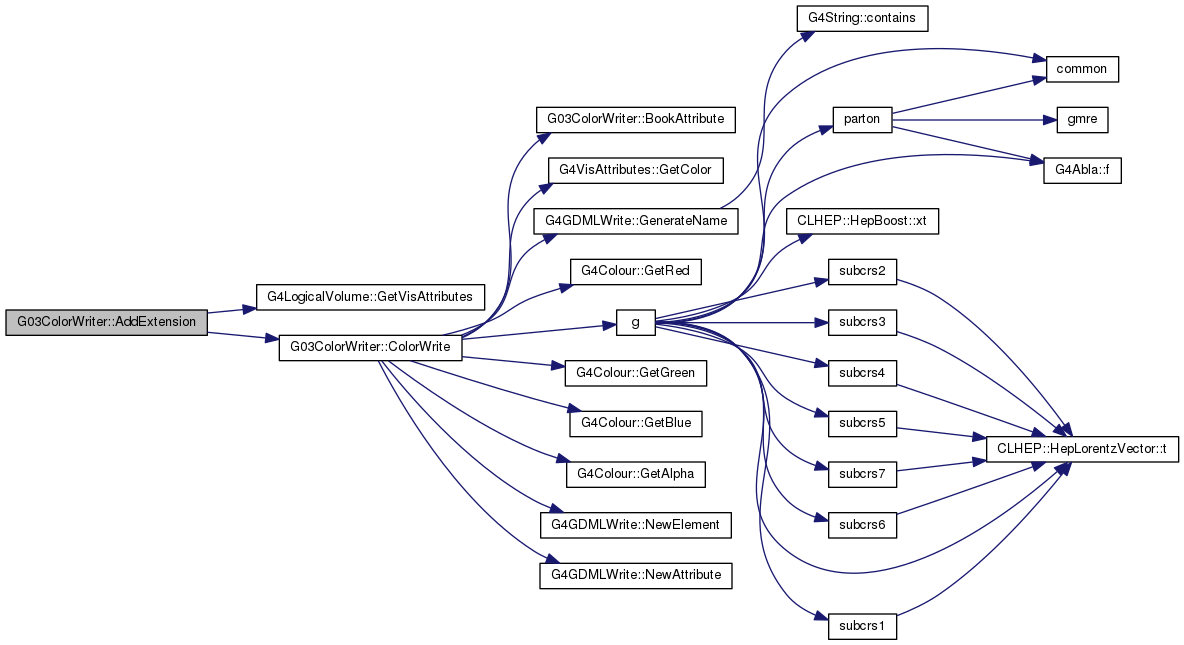

Here is the call graph for this function:

G4bool G03ColorWriter::BookAttribute ( const G4VisAttributes *const  att)

Definition at line 105 of file G03ColorWriter.cc.

106 {
107  G4bool booking = true;
108  std::vector<const G4VisAttributes*>::const_iterator pos =
109  std::find(fAttribs.begin(), fAttribs.end(), ref);
110
111  if (pos != fAttribs.end()) { booking = false; }
112  else { fAttribs.push_back(ref); }
113
114  return booking;
115 }
G4bool
bool G4bool
Definition: G4Types.hh:79
pos
static const G4double pos
Definition: G4ElectroNuclearCrossSection.cc:66

Here is the caller graph for this function:

void G03ColorWriter::ColorWrite ( xercesc::DOMElement *  volumeElement,
const G4VisAttributes *const  att
)

Definition at line 74 of file G03ColorWriter.cc.

76 {
77  G4bool book = BookAttribute(att);
78  G4Color color = att->GetColor();
79
80  const G4String& name = GenerateName("test_color", att);
81  G4double r=color.GetRed(), g=color.GetGreen(),
82  b=color.GetBlue(), a=color.GetAlpha();
83
84  if (book)
85  {
86  xercesc::DOMElement* colElement = NewElement("color");
87  colElement->setAttributeNode(NewAttribute("name",name));
88  colElement->setAttributeNode(NewAttribute("R",r));
89  colElement->setAttributeNode(NewAttribute("G",g));
90  colElement->setAttributeNode(NewAttribute("B",b));
91  colElement->setAttributeNode(NewAttribute("A",a));
92  extElement->appendChild(colElement);
93  }
94
95  xercesc::DOMElement* colorrefElement = NewElement("colorref");
96  colorrefElement->setAttributeNode(NewAttribute("ref",name));
97  volumeElement->appendChild(colorrefElement);
98
99  G4cout << "Written color attribute (R,G,B,A) is: "
100  << r << ", " << g << ", " << b << ", " << a << " !" << G4endl;
101 }
name
const XML_Char * name
Definition: expat.h:151
G4Colour::GetAlpha
G4double GetAlpha() const
Definition: G4Colour.hh:142
a
std::vector< ExP01TrackerHit * > a
Definition: ExP01Classes.hh:33
G4Colour::GetBlue
G4double GetBlue() const
Definition: G4Colour.hh:141
G4GDMLWrite::NewElement
xercesc::DOMElement * NewElement(const G4String &)
Definition: G4GDMLWrite.cc:160
g
function g(Y1, Y2, PT2)
Definition: hijing1.383.f:5205
test.b
tuple b
Definition: test.py:12
G4cout
G4GLOB_DLL std::ostream G4cout
G4Colour::GetRed
G4double GetRed() const
Definition: G4Colour.hh:139
G4bool
bool G4bool
Definition: G4Types.hh:79
G4Colour::GetGreen
G4double GetGreen() const
Definition: G4Colour.hh:140
G4GDMLWrite::GenerateName
G4String GenerateName(const G4String &, const void *const)
Definition: G4GDMLWrite.cc:123
G4VisAttributes::GetColor
const G4Color & GetColor() const
G4GDMLWrite::NewAttribute
xercesc::DOMAttr * NewAttribute(const G4String &, const G4String &)
Definition: G4GDMLWrite.cc:136
G4endl
#define G4endl
Definition: G4ios.hh:61
G4double
double G4double
Definition: G4Types.hh:76
G03ColorWriter::BookAttribute
G4bool BookAttribute(const G4VisAttributes *const att)
Definition: G03ColorWriter.cc:105
G4GDMLWrite::extElement
xercesc::DOMElement * extElement
Definition: G4GDMLWrite.hh:134

Here is the call graph for this function:

Here is the caller graph for this function:

void G03ColorWriter::ExtensionWrite ( xercesc::DOMElement *  element)
virtual

Reimplemented from G4GDMLWrite.

Definition at line 62 of file G03ColorWriter.cc.

63 {
64  G4cout << "G4GDML: Writing GDML extension..." << G4endl;
65
66  // Mandatory calls the -first- time an extension is created
67  //
68  extElement = NewElement("extension");
69  element->appendChild(extElement);
70 }
G4GDMLWrite::NewElement
xercesc::DOMElement * NewElement(const G4String &)
Definition: G4GDMLWrite.cc:160
G4cout
G4GLOB_DLL std::ostream G4cout
G4endl
#define G4endl
Definition: G4ios.hh:61
G4GDMLWrite::extElement
xercesc::DOMElement * extElement
Definition: G4GDMLWrite.hh:134

Here is the call graph for this function:

The documentation for this class was generated from the following files:
