G4HadronElasticPhysicsLEND Class Reference

#include <G4HadronElasticPhysicsLEND.hh>

Inheritance diagram for G4HadronElasticPhysicsLEND:

Collaboration diagram for G4HadronElasticPhysicsLEND:

Public Member Functions
	G4HadronElasticPhysicsLEND (G4int ver=1, G4String evaluation="")
virtual	~G4HadronElasticPhysicsLEND ()
virtual void	ConstructParticle ()
virtual void	ConstructProcess ()
Public Member Functions inherited from G4VPhysicsConstructor
	G4VPhysicsConstructor (const G4String &="")
	G4VPhysicsConstructor (const G4String &name, G4int physics_type)
virtual	~G4VPhysicsConstructor ()
void	SetPhysicsName (const G4String &="")
const G4String &	GetPhysicsName () const
void	SetPhysicsType (G4int)
G4int	GetPhysicsType () const
void	SetVerboseLevel (G4int value)
G4int	GetVerboseLevel () const
G4int	GetInstanceID () const

Additional Inherited Members
Static Public Member Functions inherited from G4VPhysicsConstructor
static const G4VPCManager &	GetSubInstanceManager ()
Protected Member Functions inherited from G4VPhysicsConstructor
G4bool	RegisterProcess (G4VProcess *process, G4ParticleDefinition *particle)
G4ParticleTable::G4PTblDicIterator *	GetParticleIterator () const
Protected Attributes inherited from G4VPhysicsConstructor
G4int	verboseLevel
G4String	namePhysics
G4int	typePhysics
G4ParticleTable *	theParticleTable
G4int	g4vpcInstanceID
Static Protected Attributes inherited from G4VPhysicsConstructor
static G4RUN_DLL G4VPCManager	subInstanceManager

Detailed Description

Definition at line 47 of file G4HadronElasticPhysicsLEND.hh.

Constructor & Destructor Documentation

G4HadronElasticPhysicsLEND::G4HadronElasticPhysicsLEND	(	G4int	ver = 1,
		G4String	evaluation = ""
	)

Definition at line 61 of file G4HadronElasticPhysicsLEND.cc.

  : G4VPhysicsConstructor("hElasticWEL_CHIPS_LEND"), verbose(ver),
    evaluation(eva)
{
  if(verbose > 1) {
    G4cout << "### G4HadronElasticPhysicsLEND: " << GetPhysicsName()
       << G4endl;
  }
  mainElasticBuilder = new G4HadronElasticPhysics(verbose);
}

Here is the call graph for this function:

G4HadronElasticPhysicsLEND::~G4HadronElasticPhysicsLEND ( )

virtual

Definition at line 72 of file G4HadronElasticPhysicsLEND.cc.

{
  delete mainElasticBuilder;
}

Member Function Documentation

void G4HadronElasticPhysicsLEND::ConstructParticle ( void  )

virtual

Implements G4VPhysicsConstructor.

Definition at line 77 of file G4HadronElasticPhysicsLEND.cc.

{
  // G4cout << "G4HadronElasticPhysics::ConstructParticle" << G4endl;
  mainElasticBuilder->ConstructParticle();
}

Here is the call graph for this function:

void G4HadronElasticPhysicsLEND::ConstructProcess ( void  )

virtual

Implements G4VPhysicsConstructor.

Definition at line 83 of file G4HadronElasticPhysicsLEND.cc.

{
  if(wasActivated) return;
  wasActivated = true;
  //Needed because this is a TLS object and this method is called by all threads
  if ( ! mainElasticBuilder )  mainElasticBuilder = new G4HadronElasticPhysics(verbose);
  mainElasticBuilder->ConstructProcess();

  mainElasticBuilder->GetNeutronModel()->SetMinEnergy(19.5*MeV);

  G4HadronicProcess* hel = mainElasticBuilder->GetNeutronProcess();

  G4LENDElastic* lend = new G4LENDElastic( G4Neutron::Neutron() );
  if ( evaluation.size() > 0 ) lend->ChangeDefaultEvaluation( evaluation );
  //lend->AllowNaturalAbundanceTarget();
  lend->AllowAnyCandidateTarget();
  hel->RegisterMe(lend);
  G4LENDElasticCrossSection* lend_XS = new G4LENDElasticCrossSection( G4Neutron::Neutron() );
  if ( evaluation.size() > 0 ) lend_XS->ChangeDefaultEvaluation( evaluation );
  //lend_XS->AllowNaturalAbundanceTarget();
  lend_XS->AllowAnyCandidateTarget();
  hel->AddDataSet( lend_XS );

  if(verbose > 1) {
    G4cout << "### HadronElasticPhysicsLEND is constructed"
       << G4endl;
  }
}

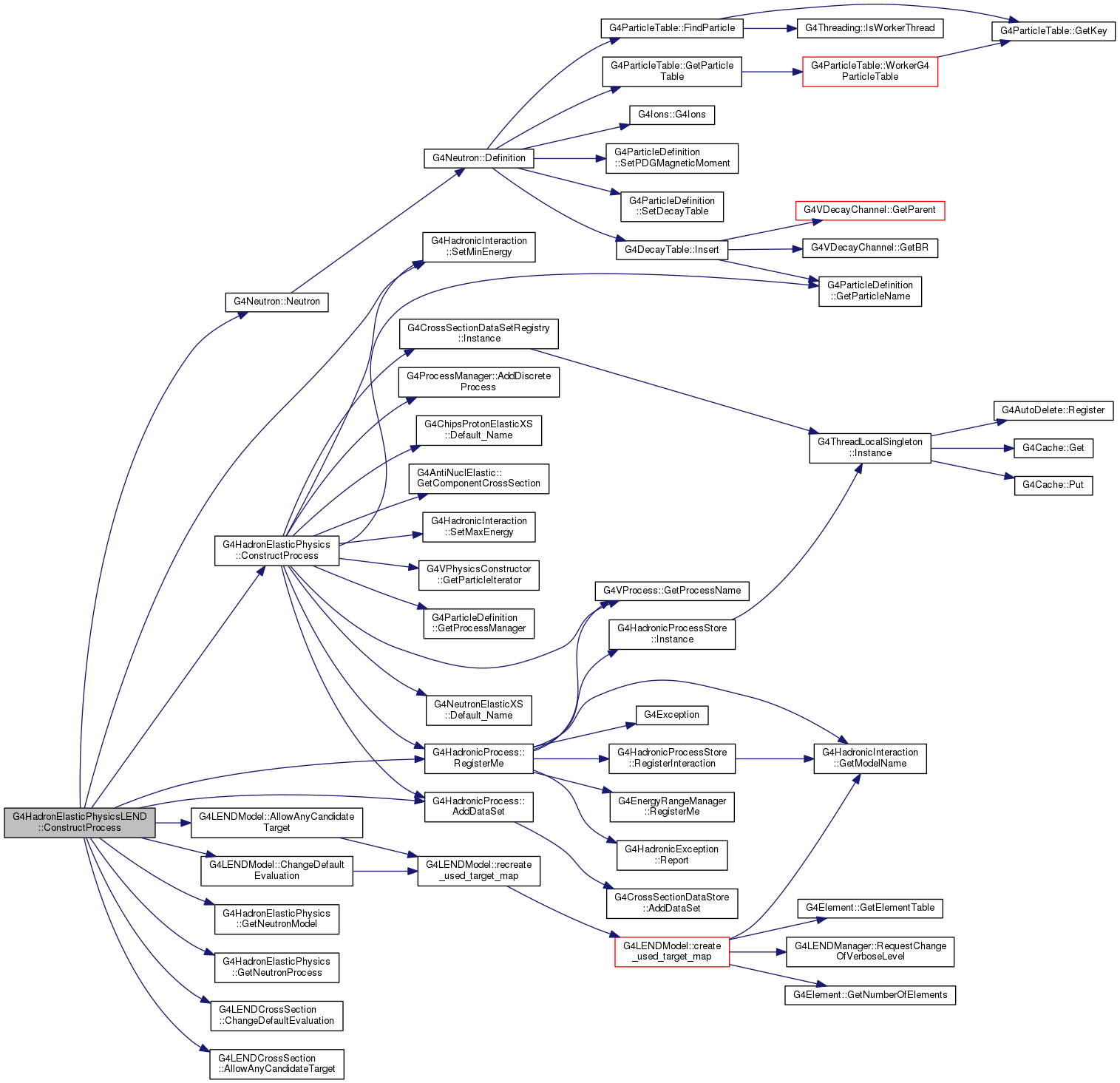

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• source/geant4.10.03.p03/source/physics_lists/constructors/hadron_elastic/include/G4HadronElasticPhysicsLEND.hh
• source/geant4.10.03.p03/source/physics_lists/constructors/hadron_elastic/src/G4HadronElasticPhysicsLEND.cc
