G4VRML2FileSceneHandler Class Reference

#include <G4VRML2FileSceneHandler.hh>

Inheritance diagram for G4VRML2FileSceneHandler:
Inheritance graph
[legend]
Collaboration diagram for G4VRML2FileSceneHandler:
Collaboration graph
[legend]

Public Member Functions

 G4VRML2FileSceneHandler (G4VRML2File &system, const G4String &name="")

virtual ~G4VRML2FileSceneHandler ()

void AddSolid (const G4Box &)

void AddSolid (const G4Cons &)

void AddSolid (const G4Tubs &)

void AddSolid (const G4Trd &)

void AddSolid (const G4Trap &)

void AddSolid (const G4Sphere &)

void AddSolid (const G4Para &)

void AddSolid (const G4Torus &)

void AddSolid (const G4Polycone &polycone)

void AddSolid (const G4Polyhedra &polyhedra)

void AddSolid (const G4Orb &orb)

void AddSolid (const G4Ellipsoid &ellipsoid)

void AddSolid (const G4VSolid &)

void AddCompound (const G4VTrajectory &traj)

void AddCompound (const G4VHit &hit)

void AddCompound (const G4VDigi &digi)

void AddCompound (const G4THitsMap< G4double > &hits)

void AddCompound (const G4THitsMap< G4StatDouble > &hits)

void BeginPrimitives (const G4Transform3D &objectTransformation)

void EndPrimitives ()

void AddPrimitive (const G4Polyline &)

void AddPrimitive (const G4Polyhedron &)

void AddPrimitive (const G4Text &)

void AddPrimitive (const G4Circle &)

void AddPrimitive (const G4Square &)

void AddPrimitive (const G4Polymarker &polymarker)

void AddPrimitive (const G4Scale &scale)

void ClearTransientStore ()

void BeginModeling ()

void EndModeling ()

void VRMLBeginModeling ()

void VRMLEndModeling ()

void connectPort ()

void closePort ()

- Public Member Functions inherited from G4VSceneHandler
 G4VSceneHandler (G4VGraphicsSystem &system, G4int id, const G4String &name="")

virtual ~G4VSceneHandler ()

virtual void PreAddSolid (const G4Transform3D &objectTransformation, const G4VisAttributes &)

virtual void PostAddSolid ()

virtual void BeginPrimitives2D (const G4Transform3D &objectTransformation)

virtual void EndPrimitives2D ()

virtual const G4VisExtent & GetExtent () const

const G4String & GetName () const

G4int GetSceneHandlerId () const

G4int GetViewCount () const

G4VGraphicsSystem * GetGraphicsSystem () const

G4Scene * GetScene () const

const G4ViewerList & GetViewerList () const

G4VModel * GetModel () const

G4VViewer * GetCurrentViewer () const

G4bool GetMarkForClearingTransientStore () const

G4bool IsReadyForTransients () const

G4bool GetTransientsDrawnThisEvent () const

G4bool GetTransientsDrawnThisRun () const

const G4Transform3D & GetObjectTransformation () const

void SetName (const G4String &)

void SetCurrentViewer (G4VViewer *)

virtual void SetScene (G4Scene *)

G4ViewerList & SetViewerList ()

void SetModel (G4VModel *)

void SetMarkForClearingTransientStore (G4bool)

void SetTransientsDrawnThisEvent (G4bool)

void SetTransientsDrawnThisRun (G4bool)

void SetObjectTransformation (const G4Transform3D &)

const G4Colour & GetColour ()

const G4Colour & GetColor ()

const G4Colour & GetTextColour (const G4Text &)

const G4Colour & GetTextColor (const G4Text &)

G4double GetLineWidth (const G4VisAttributes *)

G4ViewParameters::DrawingStyle GetDrawingStyle (const G4VisAttributes *)

G4bool GetAuxEdgeVisible (const G4VisAttributes *)

G4int GetNoOfSides (const G4VisAttributes *)

G4double GetMarkerSize (const G4VMarker &, MarkerSizeType &)

G4double GetMarkerDiameter (const G4VMarker &, MarkerSizeType &)

G4double GetMarkerRadius (const G4VMarker &, MarkerSizeType &)

G4ModelingParameters * CreateModelingParameters ()

void DrawEvent (const G4Event *)

void DrawEndOfRunModels ()

template<class T >
void AddSolidT (const T &solid)

template<class T >
void AddSolidWithAuxiliaryEdges (const T &solid)

G4int IncrementViewCount ()

virtual void ClearStore ()

void AddViewerToList (G4VViewer *pView)

void RemoveViewerFromList (G4VViewer *pView)

- Public Member Functions inherited from G4VGraphicsScene
 G4VGraphicsScene ()

virtual ~G4VGraphicsScene ()


Public Attributes

std::ofstream fDest


Friends

class G4VRML2FileViewer


Additional Inherited Members

- Public Types inherited from G4VSceneHandler
enum  MarkerSizeType { world, screen }

- Protected Member Functions inherited from G4VSceneHandler
virtual void ProcessScene ()

virtual void RequestPrimitives (const G4VSolid &solid)

virtual G4VSolid * CreateSectionSolid ()

virtual G4VSolid * CreateCutawaySolid ()

void LoadAtts (const G4Visible &, G4AttHolder *)

- Protected Attributes inherited from G4VSceneHandler
G4VGraphicsSystem & fSystem

const G4int fSceneHandlerId

G4String fName

G4int fViewCount

G4ViewerList fViewerList

G4VViewer * fpViewer

G4Scene * fpScene

G4bool fMarkForClearingTransientStore

G4bool fReadyForTransients

G4bool fTransientsDrawnThisEvent

G4bool fTransientsDrawnThisRun

G4bool fProcessingSolid

G4bool fProcessing2D

G4VModel * fpModel

G4Transform3D fObjectTransformation

G4int fNestingDepth

const G4VisAttributes * fpVisAttribs

const G4Transform3D fIdentityTransformation


Detailed Description

Definition at line 45 of file G4VRML2FileSceneHandler.hh.

Constructor & Destructor Documentation

G4VRML2FileSceneHandler::G4VRML2FileSceneHandler ( G4VRML2File &  system,
const G4String &  name = ""
)

Definition at line 75 of file G4VRML2FileSceneHandler.cc.

75  :
76  G4VSceneHandler(system, fSceneIdCount++, name),
77  fSystem(system),
78  fFlagDestOpen( false ),
79  fPVPickable ( false ),
80  fDest()
81 {
82  // output file name
83  strcpy(fVRMLFileName, "");
84
85  // destination directory
86  if ( getenv( VRMLFILE_DEST_DIR ) == NULL ) {
87  strcpy( fVRMLFileDestDir, "" );
88  } else {
89  strcpy( fVRMLFileDestDir, getenv( VRMLFILE_DEST_DIR ) );
90  }
91
92
93  // maximum number of g4.prim files in the dest directory
94  fMaxFileNum = DEFAULT_MAX_WRL_FILE_NUM ; // initialization
95  if ( getenv( "G4VRMLFILE_MAX_FILE_NUM" ) != NULL ) {
96
97  sscanf( getenv("G4VRMLFILE_MAX_FILE_NUM"), "%d", &fMaxFileNum ) ;
98
99  } else {
100  fMaxFileNum = DEFAULT_MAX_WRL_FILE_NUM ;
101  }
102  if( fMaxFileNum < 1 ) { fMaxFileNum = 1; }
103
104
105  // PV name pickability
106  if( getenv( "G4VRML_PV_PICKABLE" ) != NULL ) {
107
108  int is_pickable ;
109  sscanf( getenv("G4VRML_PV_PICKABLE"), "%d", &is_pickable ) ;
110
111  if ( is_pickable ) { SetPVPickability ( true ) ; }
112  }
113
114  // PV Transparency
115  SetPVTransparency ();
116
117 }
DEFAULT_MAX_WRL_FILE_NUM
const int DEFAULT_MAX_WRL_FILE_NUM
Definition: G4VRML1FileSceneHandler.cc:74
G4VSceneHandler::G4VSceneHandler
G4VSceneHandler(G4VGraphicsSystem &system, G4int id, const G4String &name="")
Definition: G4VSceneHandler.cc:94
VRMLFILE_DEST_DIR
const char VRMLFILE_DEST_DIR[]
Definition: G4VRML1FileSceneHandler.cc:73
G4VRML2FileSceneHandler::~G4VRML2FileSceneHandler ( )
virtual

Definition at line 120 of file G4VRML2FileSceneHandler.cc.

121 {
122 #if defined DEBUG_FR_SCENE
123  if (G4VisManager::GetVerbosity() >= G4VisManager::errors)
124  G4cout << "***** ~G4VRML2FileSceneHandler" << G4endl;
125 #endif
126  VRMLEndModeling();
127 }
G4cout
G4GLOB_DLL std::ostream G4cout
G4VisManager::GetVerbosity
static Verbosity GetVerbosity()
Definition: G4VisManager.cc:2282
G4endl
#define G4endl
Definition: G4ios.hh:61

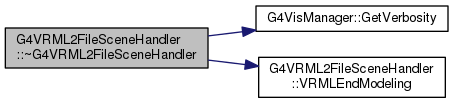

Here is the call graph for this function:

Member Function Documentation

void G4VRML2FileSceneHandler::AddCompound ( const G4VTrajectory &  traj)
inlinevirtual

Reimplemented from G4VSceneHandler.

Definition at line 74 of file G4VRML2FileSceneHandler.hh.

74  {
75  G4VSceneHandler::AddCompound(traj);
76  }
G4VSceneHandler::AddCompound
virtual void AddCompound(const G4VTrajectory &)
Definition: G4VSceneHandler.cc:313

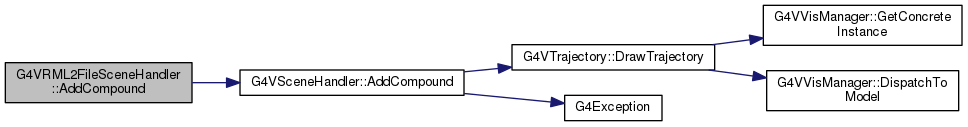

Here is the call graph for this function:

void G4VRML2FileSceneHandler::AddCompound ( const G4VHit &  hit)
inlinevirtual

Reimplemented from G4VSceneHandler.

Definition at line 77 of file G4VRML2FileSceneHandler.hh.

77  {
78  G4VSceneHandler::AddCompound(hit);
79  }
G4VSceneHandler::AddCompound
virtual void AddCompound(const G4VTrajectory &)
Definition: G4VSceneHandler.cc:313

Here is the call graph for this function:

void G4VRML2FileSceneHandler::AddCompound ( const G4VDigi &  digi)
inlinevirtual

Reimplemented from G4VSceneHandler.

Definition at line 80 of file G4VRML2FileSceneHandler.hh.

80  {
81  G4VSceneHandler::AddCompound(digi);
82  }
G4VSceneHandler::AddCompound
virtual void AddCompound(const G4VTrajectory &)
Definition: G4VSceneHandler.cc:313

Here is the call graph for this function:

void G4VRML2FileSceneHandler::AddCompound ( const G4THitsMap< G4double > &  hits)
inlinevirtual

Reimplemented from G4VSceneHandler.

Definition at line 83 of file G4VRML2FileSceneHandler.hh.

83  {
84  G4VSceneHandler::AddCompound(hits);
85  }
G4VSceneHandler::AddCompound
virtual void AddCompound(const G4VTrajectory &)
Definition: G4VSceneHandler.cc:313

Here is the call graph for this function:

void G4VRML2FileSceneHandler::AddCompound ( const G4THitsMap< G4StatDouble > &  hits)
inlinevirtual

Reimplemented from G4VSceneHandler.

Definition at line 86 of file G4VRML2FileSceneHandler.hh.

86  {
87  G4VSceneHandler::AddCompound(hits);
88  }
G4VSceneHandler::AddCompound
virtual void AddCompound(const G4VTrajectory &)
Definition: G4VSceneHandler.cc:313

Here is the call graph for this function:

void G4VRML2FileSceneHandler::AddPrimitive ( const G4Polyline &  )
virtual

Implements G4VSceneHandler.

void G4VRML2FileSceneHandler::AddPrimitive ( const G4Polyhedron &  )
virtual

Implements G4VSceneHandler.

void G4VRML2FileSceneHandler::AddPrimitive ( const G4Text &  )
virtual

Implements G4VSceneHandler.

void G4VRML2FileSceneHandler::AddPrimitive ( const G4Circle &  )
virtual

Implements G4VSceneHandler.

void G4VRML2FileSceneHandler::AddPrimitive ( const G4Square &  )
virtual

Implements G4VSceneHandler.

void G4VRML2FileSceneHandler::AddPrimitive ( const G4Polymarker &  polymarker)
inlinevirtual

Reimplemented from G4VSceneHandler.

Definition at line 98 of file G4VRML2FileSceneHandler.hh.

99  { G4VSceneHandler::AddPrimitive (polymarker); }
G4VSceneHandler::AddPrimitive
virtual void AddPrimitive(const G4Polyline &)=0

Here is the call graph for this function:

void G4VRML2FileSceneHandler::AddPrimitive ( const G4Scale &  scale)
inlinevirtual

Reimplemented from G4VSceneHandler.

Definition at line 100 of file G4VRML2FileSceneHandler.hh.

101  { G4VSceneHandler::AddPrimitive (scale); }
G4VSceneHandler::AddPrimitive
virtual void AddPrimitive(const G4Polyline &)=0

Here is the call graph for this function:

void G4VRML2FileSceneHandler::AddSolid ( const G4Box &  )
virtual

Reimplemented from G4VSceneHandler.

void G4VRML2FileSceneHandler::AddSolid ( const G4Cons &  )
virtual

Reimplemented from G4VSceneHandler.

void G4VRML2FileSceneHandler::AddSolid ( const G4Tubs &  )
virtual

Reimplemented from G4VSceneHandler.

void G4VRML2FileSceneHandler::AddSolid ( const G4Trd &  )
virtual

Reimplemented from G4VSceneHandler.

void G4VRML2FileSceneHandler::AddSolid ( const G4Trap &  )
virtual

Reimplemented from G4VSceneHandler.

void G4VRML2FileSceneHandler::AddSolid ( const G4Sphere &  )
virtual

Reimplemented from G4VSceneHandler.

void G4VRML2FileSceneHandler::AddSolid ( const G4Para &  )
virtual

Reimplemented from G4VSceneHandler.

void G4VRML2FileSceneHandler::AddSolid ( const G4Torus &  )
virtual

Reimplemented from G4VSceneHandler.

void G4VRML2FileSceneHandler::AddSolid ( const G4Polycone &  polycone)
inlinevirtual

Reimplemented from G4VSceneHandler.

Definition at line 61 of file G4VRML2FileSceneHandler.hh.

61  {
62  G4VSceneHandler::AddSolid (polycone);
63  }
G4VSceneHandler::AddSolid
virtual void AddSolid(const G4Box &)
Definition: G4VSceneHandler.cc:246

Here is the call graph for this function:

void G4VRML2FileSceneHandler::AddSolid ( const G4Polyhedra &  polyhedra)
inlinevirtual

Reimplemented from G4VSceneHandler.

Definition at line 64 of file G4VRML2FileSceneHandler.hh.

64  {
65  G4VSceneHandler::AddSolid (polyhedra);
66  }
G4VSceneHandler::AddSolid
virtual void AddSolid(const G4Box &)
Definition: G4VSceneHandler.cc:246

Here is the call graph for this function:

void G4VRML2FileSceneHandler::AddSolid ( const G4Orb &  orb)
inlinevirtual

Reimplemented from G4VSceneHandler.

Definition at line 67 of file G4VRML2FileSceneHandler.hh.

67  {
68  G4VSceneHandler::AddSolid (orb);
69  }
G4VSceneHandler::AddSolid
virtual void AddSolid(const G4Box &)
Definition: G4VSceneHandler.cc:246

Here is the call graph for this function:

void G4VRML2FileSceneHandler::AddSolid ( const G4Ellipsoid &  ellipsoid)
inlinevirtual

Reimplemented from G4VSceneHandler.

Definition at line 70 of file G4VRML2FileSceneHandler.hh.

70  {
71  G4VSceneHandler::AddSolid (ellipsoid);
72  }
G4VSceneHandler::AddSolid
virtual void AddSolid(const G4Box &)
Definition: G4VSceneHandler.cc:246

Here is the call graph for this function:

void G4VRML2FileSceneHandler::AddSolid ( const G4VSolid &  )
virtual

Reimplemented from G4VSceneHandler.

void G4VRML2FileSceneHandler::BeginModeling ( )
virtual

Reimplemented from G4VSceneHandler.

void G4VRML2FileSceneHandler::BeginPrimitives ( const G4Transform3D &  objectTransformation)
virtual

Reimplemented from G4VSceneHandler.

void G4VRML2FileSceneHandler::ClearTransientStore ( )
virtual

Reimplemented from G4VSceneHandler.

void G4VRML2FileSceneHandler::closePort ( )

Definition at line 198 of file G4VRML2FileSceneHandler.cc.

199 {
200  char command[256] ;
201  char viewer [256] ;
202  strcpy( viewer, NO_VRML_VIEWER ); // initialization
203  if( getenv( ENV_VRML_VIEWER ) ) {
204  strcpy( viewer, getenv( ENV_VRML_VIEWER ) ) ;
205  }
206
207  // close VRML file
208  fDest.close(); fFlagDestOpen = false ;
209  if (G4VisManager::GetVerbosity() >= G4VisManager::errors)
210  G4cout << "*** VRML 2.0 File " << fVRMLFileName << " is generated." << G4endl;
211
212
213  // Invoke viewer
214
215  if ( !strcmp(viewer, NO_VRML_VIEWER )) {
216  if (G4VisManager::GetVerbosity() >= G4VisManager::errors) {
217  G4cout << "MESSAGE from VRML2FILE driver:" << G4endl;
218  G4cout << " Set an environmental variable " ;
219  G4cout << ENV_VRML_VIEWER << G4endl;
220  G4cout << " if you want to visualize the generated VRML file" << G4endl;
221  G4cout << " automatically. For example, " << G4endl;
222  G4cout << " setenv " << ENV_VRML_VIEWER << " vrwave " << G4endl;
223  }
224  } else {
225  std::ostringstream ossCommand;
226  ossCommand << viewer << ' ' << fVRMLFileName;
227  strncpy(command,ossCommand.str().c_str(),sizeof(command));
228  (void) system( command );
229  }
230 }
ENV_VRML_VIEWER
const char ENV_VRML_VIEWER[]
Definition: G4VRML1FileSceneHandler.cc:71
G4cout
G4GLOB_DLL std::ostream G4cout
NO_VRML_VIEWER
const char NO_VRML_VIEWER[]
Definition: G4VRML1FileSceneHandler.cc:72
G4VisManager::GetVerbosity
static Verbosity GetVerbosity()
Definition: G4VisManager.cc:2282
G4endl
#define G4endl
Definition: G4ios.hh:61
void
typedef void(XMLCALL *XML_ElementDeclHandler)(void *userData

Here is the call graph for this function:

void G4VRML2FileSceneHandler::connectPort ( )

Definition at line 137 of file G4VRML2FileSceneHandler.cc.

138 {
139  // g4_00.wrl, g4_01.wrl, ..., g4_MAX_FILE_INDEX.wrl
140  const int MAX_FILE_INDEX = fMaxFileNum - 1 ;
141
142  // dest directory (null if no environmental variables is set)
143  strcpy ( fVRMLFileName, fVRMLFileDestDir) ;
144
145  // create full path name (default)
146  strcat ( fVRMLFileName, DEFAULT_WRL_FILE_NAME );
147
148  // Determine VRML file name
149  for( int i = 0 ; i < fMaxFileNum ; i++) {
150
151  // Message in the final execution
152  if( i == MAX_FILE_INDEX )
153  {
154  if (G4VisManager::GetVerbosity() >= G4VisManager::errors) {
155  G4cout << "===========================================" << G4endl;
156  G4cout << "WARNING MESSAGE from VRML2FILE driver: " << G4endl;
157  G4cout << " This file name is the final one in the " << G4endl;
158  G4cout << " automatic updation of the output file name." << G4endl;
159  G4cout << " You may overwrite existing files, i.e. " << G4endl;
160  G4cout << " g4_XX.wrl. " << G4endl;
161  G4cout << "===========================================" << G4endl;
162  }
163  }
164
165  // re-determine file name as G4VRMLFILE_DEST_DIR/g4_XX.wrl
166  std::ostringstream filename;
167  filename
168  << fVRMLFileDestDir << WRL_FILE_HEADER
169  << std::setw(2) << std::setfill('0') << i << ".wrl";
170  strncpy(fVRMLFileName,filename.str().c_str(),sizeof(fVRMLFileName));
171
172  // check validity of the file name
173  std::ifstream fin ;
174  fin.open(fVRMLFileName) ;
175  if(!fin) {
176  // new file
177  fin.close();
178  break;
179  } else {
180  // already exists (try next)
181  fin.close();
182  }
183
184  } // for
185
186  // open a VRML 2.0 file with determined file name
187  if (G4VisManager::GetVerbosity() >= G4VisManager::errors) {
188  G4cout << "===========================================" << G4endl;
189  G4cout << "Output VRML 2.0 file: " << fVRMLFileName << G4endl;
190  G4cout << "Maximum number of files in the destination directory: " << fMaxFileNum << G4endl;
191  G4cout << " (Customizable with the environment variable: G4VRMLFILE_MAX_FILE_NUM) " << G4endl;
192  G4cout << "===========================================" << G4endl;
193  }
194  fDest.open(fVRMLFileName) ; fFlagDestOpen = true ;
195 }
G4cout
G4GLOB_DLL std::ostream G4cout
G4VisManager::GetVerbosity
static Verbosity GetVerbosity()
Definition: G4VisManager.cc:2282
G4endl
#define G4endl
Definition: G4ios.hh:61
WRL_FILE_HEADER
const char WRL_FILE_HEADER[]
Definition: G4VRML1FileSceneHandler.cc:69
DEFAULT_WRL_FILE_NAME
const char DEFAULT_WRL_FILE_NAME[]
Definition: G4VRML1FileSceneHandler.cc:70

Here is the call graph for this function:

void G4VRML2FileSceneHandler::EndModeling ( )
virtual

Reimplemented from G4VSceneHandler.

void G4VRML2FileSceneHandler::EndPrimitives ( )
virtual

Reimplemented from G4VSceneHandler.

void G4VRML2FileSceneHandler::VRMLBeginModeling ( )

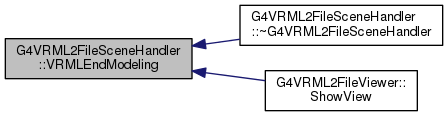

Here is the caller graph for this function:

void G4VRML2FileSceneHandler::VRMLEndModeling ( )

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class G4VRML2FileViewer
friend

Definition at line 47 of file G4VRML2FileSceneHandler.hh.

Member Data Documentation

std::ofstream G4VRML2FileSceneHandler::fDest

Definition at line 153 of file G4VRML2FileSceneHandler.hh.

The documentation for this class was generated from the following files:
