G4INCLXXProtonBuilder Class Reference

#include <G4INCLXXProtonBuilder.hh>

Inheritance diagram for G4INCLXXProtonBuilder:

Collaboration diagram for G4INCLXXProtonBuilder:

Public Member Functions
	G4INCLXXProtonBuilder ()
virtual	~G4INCLXXProtonBuilder ()
virtual void	Build (G4HadronElasticProcess *aP)
virtual void	Build (G4ProtonInelasticProcess *aP)
void	SetMinEnergy (G4double aM)
void	SetMaxEnergy (G4double aM)
Public Member Functions inherited from G4VProtonBuilder
	G4VProtonBuilder ()
virtual	~G4VProtonBuilder ()

Detailed Description

Builder for proton processes using the INCL++ intra-nuclear cascade model.

By default the INCL++ is used for projectile energies 0 - 3 GeV.

The builder uses INCL++ cascade model with G4ExcitationHandler de-excitation. This is implemented in interface G4INCLXXInterface.

See Also

G4INCLXXInterface

G4INCLXXNeutronBuilder

G4INCLXXPiKBuilder

Definition at line 55 of file G4INCLXXProtonBuilder.hh.

Constructor & Destructor Documentation

G4INCLXXProtonBuilder::G4INCLXXProtonBuilder

(

)

Definition at line 37 of file G4INCLXXProtonBuilder.cc.

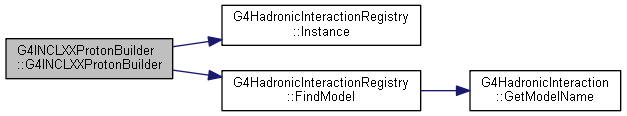

Here is the call graph for this function:

G4INCLXXProtonBuilder::~G4INCLXXProtonBuilder ( )

virtual

Definition at line 51 of file G4INCLXXProtonBuilder.cc.

Member Function Documentation

void G4INCLXXProtonBuilder::Build ( G4HadronElasticProcess *  aP )

virtual

Build elastic process.

No elastic process is built.

Implements G4VProtonBuilder.

Definition at line 57 of file G4INCLXXProtonBuilder.cc.

void G4INCLXXProtonBuilder::Build ( G4ProtonInelasticProcess *  aP )

virtual

Build inelastic process.

Implements G4VProtonBuilder.

Definition at line 62 of file G4INCLXXProtonBuilder.cc.

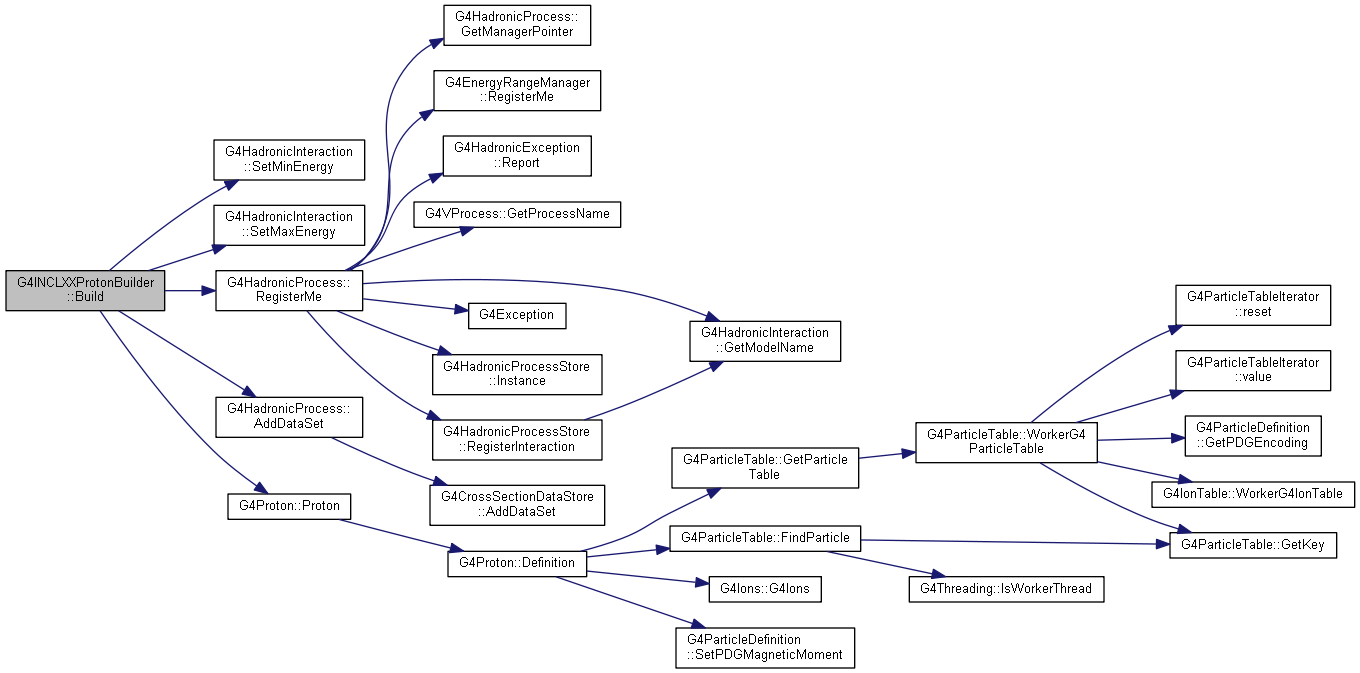

Here is the call graph for this function:

void G4INCLXXProtonBuilder::SetMaxEnergy ( G4double  aM )

inline

Set the maximum energy limit for the model.

Definition at line 82 of file G4INCLXXProtonBuilder.hh.

void G4INCLXXProtonBuilder::SetMinEnergy ( G4double  aM )

inline

Set the minimum energy limit for the model.

Definition at line 77 of file G4INCLXXProtonBuilder.hh.

---

The documentation for this class was generated from the following files:

• source/source/physics_lists/builders/include/G4INCLXXProtonBuilder.hh
• source/source/physics_lists/builders/src/G4INCLXXProtonBuilder.cc
