INCL++ intra-nuclear cascade. More...

#include <G4INCLXXInterface.hh>

Inheritance diagram for G4INCLXXInterface:

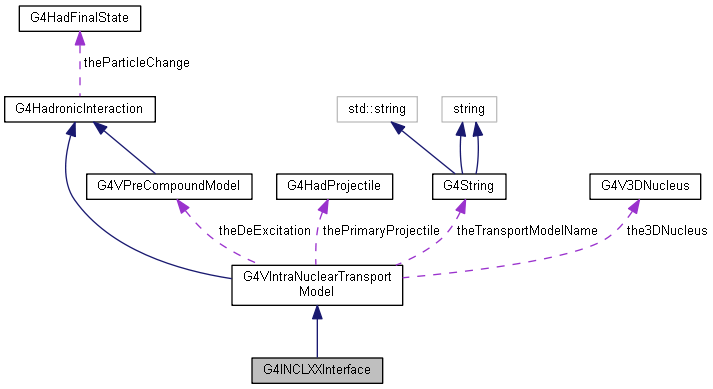

Collaboration diagram for G4INCLXXInterface:

[legend]

Public Member Functions
	G4INCLXXInterface (G4VPreCompoundModel *const aPreCompound=0)

	~G4INCLXXInterface ()

G4int	operator== (G4INCLXXInterface &right)

G4int	operator!= (G4INCLXXInterface &right)

G4ReactionProductVector *	Propagate (G4KineticTrackVector theSecondaries, G4V3DNucleus theNucleus)

G4HadFinalState *	ApplyYourself (const G4HadProjectile &aTrack, G4Nucleus &theNucleus)

void	DeleteModel ()

Public Member Functions inherited from G4VIntraNuclearTransportModel
	G4VIntraNuclearTransportModel (const G4String &modelName="CascadeModel", G4VPreCompoundModel *ptr=0)

virtual	~G4VIntraNuclearTransportModel ()

virtual G4ReactionProductVector *	PropagateNuclNucl (G4KineticTrackVector theSecondaries, G4V3DNucleus theNucleus, G4V3DNucleus *theProjectileNucleus)

void	SetDeExcitation (G4VPreCompoundModel *ptr)

void	Set3DNucleus (G4V3DNucleus *const value)

void	SetPrimaryProjectile (const G4HadProjectile &aPrimary)

const G4String &	GetModelName () const

virtual void	ModelDescription (std::ostream &outFile) const

virtual void	PropagateModelDescription (std::ostream &outFile) const

Public Member Functions inherited from G4HadronicInteraction
	G4HadronicInteraction (const G4String &modelName="HadronicModel")

virtual	~G4HadronicInteraction ()

virtual G4double	SampleInvariantT (const G4ParticleDefinition *p, G4double plab, G4int Z, G4int A)

virtual G4bool	IsApplicable (const G4HadProjectile &, G4Nucleus &)

G4double	GetMinEnergy () const

G4double	GetMinEnergy (const G4Material aMaterial, const G4Element anElement) const

void	SetMinEnergy (G4double anEnergy)

void	SetMinEnergy (G4double anEnergy, const G4Element *anElement)

void	SetMinEnergy (G4double anEnergy, const G4Material *aMaterial)

G4double	GetMaxEnergy () const

G4double	GetMaxEnergy (const G4Material aMaterial, const G4Element anElement) const

void	SetMaxEnergy (const G4double anEnergy)

void	SetMaxEnergy (G4double anEnergy, const G4Element *anElement)

void	SetMaxEnergy (G4double anEnergy, const G4Material *aMaterial)

const G4HadronicInteraction *	GetMyPointer () const

virtual G4int	GetVerboseLevel () const

virtual void	SetVerboseLevel (G4int value)

const G4String &	GetModelName () const

void	DeActivateFor (const G4Material *aMaterial)

void	ActivateFor (const G4Material *aMaterial)

void	DeActivateFor (const G4Element *anElement)

void	ActivateFor (const G4Element *anElement)

G4bool	IsBlocked (const G4Material *aMaterial) const

G4bool	IsBlocked (const G4Element *anElement) const

void	SetRecoilEnergyThreshold (G4double val)

G4double	GetRecoilEnergyThreshold () const

G4bool	operator== (const G4HadronicInteraction &right) const

G4bool	operator!= (const G4HadronicInteraction &right) const

virtual const std::pair < G4double, G4double >	GetFatalEnergyCheckLevels () const

virtual std::pair< G4double, G4double >	GetEnergyMomentumCheckLevels () const

void	SetEnergyMomentumCheckLevels (G4double relativeLevel, G4double absoluteLevel)

Additional Inherited Members
Protected Member Functions inherited from G4VIntraNuclearTransportModel
G4V3DNucleus *	Get3DNucleus () const

G4VPreCompoundModel *	GetDeExcitation () const

const G4HadProjectile *	GetPrimaryProjectile () const

Protected Member Functions inherited from G4HadronicInteraction
void	SetModelName (const G4String &nam)

G4bool	IsBlocked () const

void	Block ()

Protected Attributes inherited from G4VIntraNuclearTransportModel
G4String	theTransportModelName

G4V3DNucleus *	the3DNucleus

G4VPreCompoundModel *	theDeExcitation

const G4HadProjectile *	thePrimaryProjectile

Protected Attributes inherited from G4HadronicInteraction
G4HadFinalState	theParticleChange

G4int	verboseLevel

G4double	theMinEnergy

G4double	theMaxEnergy

G4bool	isBlocked

Detailed Description

INCL++ intra-nuclear cascade.

Interface for INCL++. This interface handles basic hadron bullet particles (protons, neutrons, pions), as well as light ions.

Example usage in case of protons:

* G4INCLXXInterface* inclModel = new G4INCLXXInterface;
* inclModel -> SetMinEnergy(0.0 * MeV); // Set the energy limits
* inclModel -> SetMaxEnergy(3.0 * GeV);
*
* G4ProtonInelasticProcess* protonInelasticProcess = new G4ProtonInelasticProcess();
* G4ProtonInelasticCrossSection* protonInelasticCrossSection =  new G4ProtonInelasticCrossSection();
*
* protonInelasticProcess -> RegisterMe(inclModel);
* protonInelasticProcess -> AddDataSet(protonInelasticCrossSection);
*
* particle = G4Proton::Proton();
* processManager = particle -> GetProcessManager();
* processManager -> AddDiscreteProcess(protonInelasticProcess);
*

The same setup procedure is needed for neutron, pion and generic-ion inelastic processes as well.

Definition at line 99 of file G4INCLXXInterface.hh.

Constructor & Destructor Documentation

G4INCLXXInterface::G4INCLXXInterface ( G4VPreCompoundModel *const aPreCompound = 0 )

Definition at line 53 of file G4INCLXXInterface.cc.

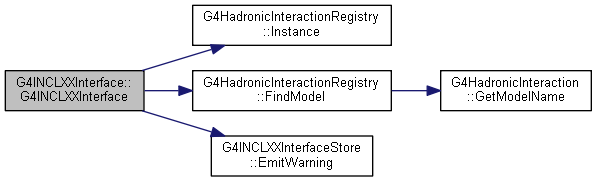

Here is the call graph for this function:

G4INCLXXInterface::~G4INCLXXInterface ( )

Definition at line 92 of file G4INCLXXInterface.cc.

Member Function Documentation

G4HadFinalState * G4INCLXXInterface::ApplyYourself	(	const G4HadProjectile &	aTrack,
		G4Nucleus &	theNucleus
	)

virtual

Main method to apply the INCL physics model.

Parameters

aTrack	the projectile particle
theNucleus	target nucleus

Returns: the output of the INCL physics model

Implements G4HadronicInteraction.

Definition at line 141 of file G4INCLXXInterface.cc.

void G4INCLXXInterface::DeleteModel ( )

inline

Definition at line 124 of file G4INCLXXInterface.hh.

G4int G4INCLXXInterface::operator!= ( G4INCLXXInterface & right )

inline

Definition at line 108 of file G4INCLXXInterface.hh.

G4int G4INCLXXInterface::operator== ( G4INCLXXInterface & right )

inline

Definition at line 104 of file G4INCLXXInterface.hh.

G4ReactionProductVector * G4INCLXXInterface::Propagate	(	G4KineticTrackVector *	theSecondaries,
		G4V3DNucleus *	theNucleus
	)

virtual

Implements G4VIntraNuclearTransportModel.

Definition at line 464 of file G4INCLXXInterface.cc.

The documentation for this class was generated from the following files:

source/source/processes/hadronic/models/inclxx/interface/include/G4INCLXXInterface.hh
source/source/processes/hadronic/models/inclxx/interface/src/G4INCLXXInterface.cc
