#include <G4INCLStandardPropagationModel.hh>

Inheritance diagram for G4INCL::StandardPropagationModel:

Collaboration diagram for G4INCL::StandardPropagationModel:

Public Member Functions
	StandardPropagationModel (LocalEnergyType localEnergyType, LocalEnergyType localEnergyDeltaType)

virtual	~StandardPropagationModel ()

G4double	getCurrentTime ()

void	setNucleus (G4INCL::Nucleus *nucleus)

G4INCL::Nucleus *	getNucleus ()

G4double	shoot (ParticleSpecies const projectileSpecies, const G4double kineticEnergy, const G4double impactParameter, const G4double phi)

G4double	shootParticle (ParticleType const t, const G4double kineticEnergy, const G4double impactParameter, const G4double phi)

G4double	shootComposite (ParticleSpecies const s, const G4double kineticEnergy, const G4double impactParameter, const G4double phi)

void	setStoppingTime (G4double)

G4double	getStoppingTime ()

void	registerAvatar (G4INCL::IAvatar *anAvatar)

IAvatar *	generateBinaryCollisionAvatar (Particle const p1, Particle const p2)
	Generate a two-particle avatar. More...

G4double	getReflectionTime (G4INCL::Particle const *const aParticle)
	Get the reflection time. More...

G4double	getTime (G4INCL::Particle const const particleA, G4INCL::Particle const const particleB, G4double *minDistOfApproach) const

void	generateUpdatedCollisions (const ParticleList &updatedParticles, const ParticleList &particles)
	Generate and register collisions between a list of updated particles and all the other particles. More...

void	generateCollisions (const ParticleList &particles)
	Generate and register collisions among particles in a list, except between those in another list. More...

void	generateCollisions (const ParticleList &particles, const ParticleList &except)
	Generate and register collisions among particles in a list, except between those in another list. More...

void	generateDecays (const ParticleList &particles)
	Generate decays for particles that can decay. More...

void	updateAvatars (const ParticleList &particles)

void	generateAllAvatars ()
	(Re)Generate all possible avatars. More...

G4INCL::IAvatar *	propagate ()

Public Member Functions inherited from G4INCL::IPropagationModel
	IPropagationModel ()

virtual	~IPropagationModel ()

Additional Inherited Members

Detailed Description

Standard INCL4 particle propagation and avatar prediction

This class implements the standard INCL4 avatar prediction and particle propagation logic. The main idea is to predict all collisions between particles and their reflections from the potential wall. After this we select the avatar with the smallest time, propagate all particles to their positions at that time and return the avatar to the INCL kernel

See Also: G4INCL::Kernel.

The particle trajectories in this propagation model are straight lines and all particles are assumed to move with constant velocity.

Definition at line 68 of file G4INCLStandardPropagationModel.hh.

Constructor & Destructor Documentation

G4INCL::StandardPropagationModel::StandardPropagationModel	(	LocalEnergyType	localEnergyType,
		LocalEnergyType	localEnergyDeltaType
	)

Definition at line 62 of file G4INCLStandardPropagationModel.cc.

G4INCL::StandardPropagationModel::~StandardPropagationModel ( )

virtual

Definition at line 69 of file G4INCLStandardPropagationModel.cc.

Member Function Documentation

void G4INCL::StandardPropagationModel::generateAllAvatars ( )

(Re)Generate all possible avatars.

Definition at line 433 of file G4INCLStandardPropagationModel.cc.

Here is the call graph for this function:

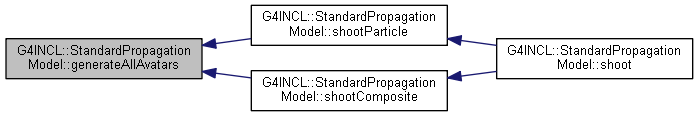

Here is the caller graph for this function:

IAvatar * G4INCL::StandardPropagationModel::generateBinaryCollisionAvatar	(	Particle *const	p1,
		Particle *const	p2
	)

Generate a two-particle avatar.

Generate a two-particle avatar, if all the appropriate conditions are met.

Definition at line 261 of file G4INCLStandardPropagationModel.cc.

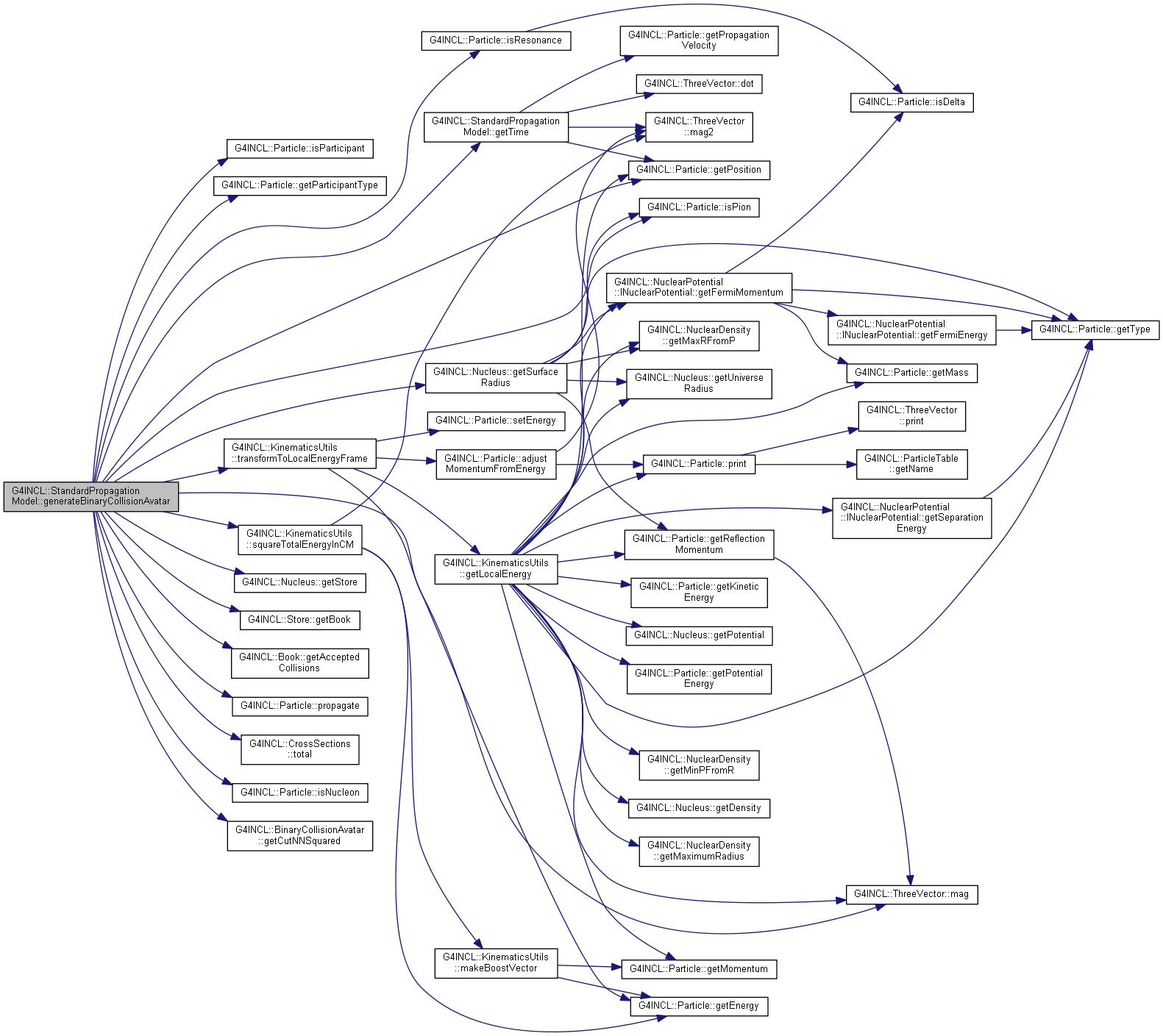

Here is the call graph for this function:

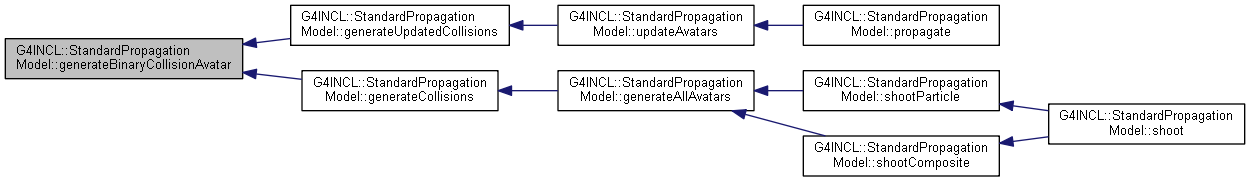

Here is the caller graph for this function:

void G4INCL::StandardPropagationModel::generateCollisions ( const ParticleList & particles )

Generate and register collisions among particles in a list, except between those in another list.

This method generates all possible collisions among the particles. Each collision is generated only once.

Parameters

particles list of particles

Definition at line 393 of file G4INCLStandardPropagationModel.cc.

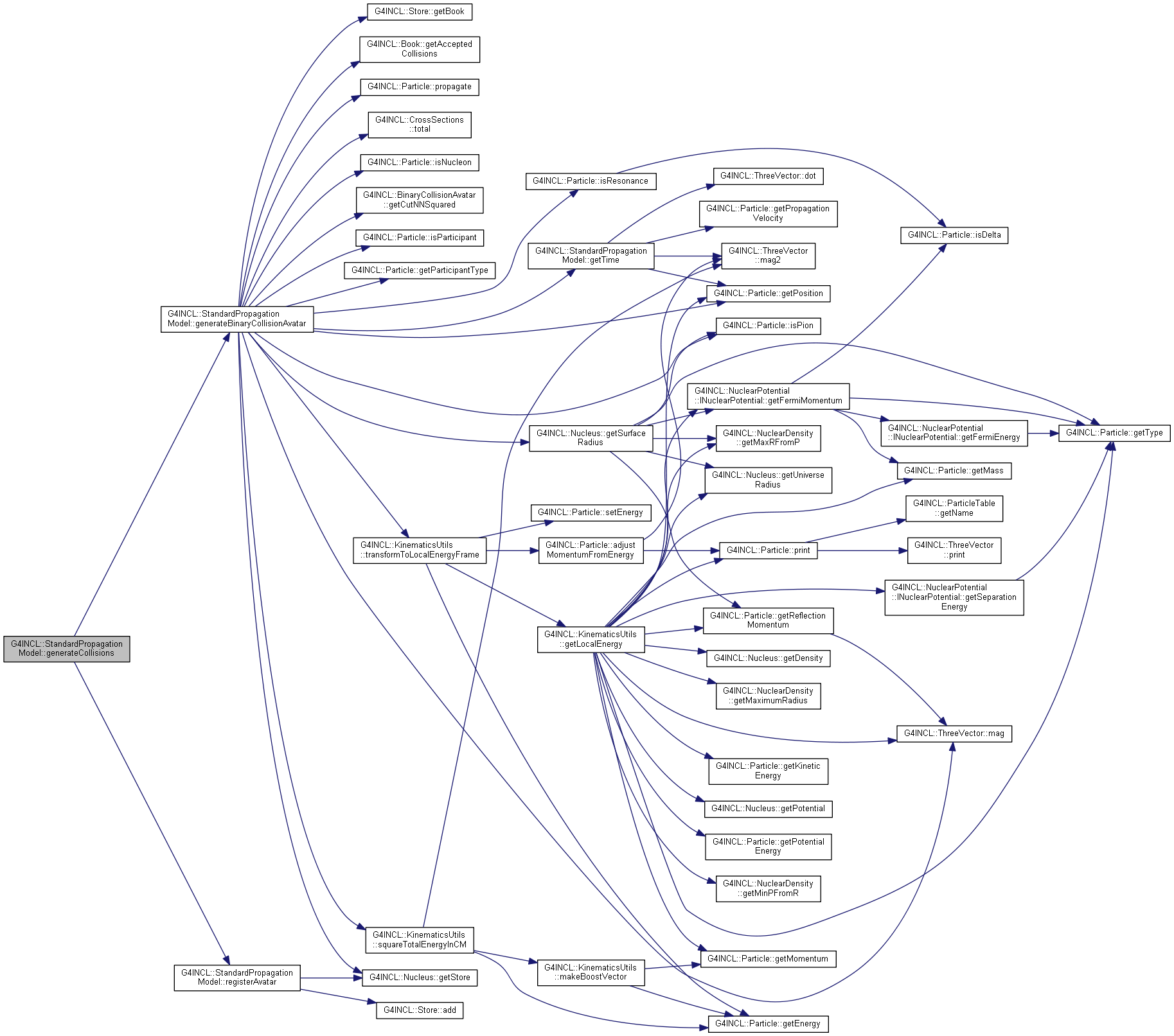

Here is the call graph for this function:

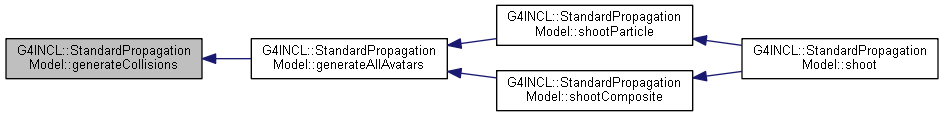

Here is the caller graph for this function:

void G4INCL::StandardPropagationModel::generateCollisions	(	const ParticleList &	particles,
		const ParticleList &	except
	)

Generate and register collisions among particles in a list, except between those in another list.

This method generates all possible collisions among the particles. Each collision is generated only once. The collision is NOT generated if BOTH collision partners belong to the except list.

You should pass an empty list as the except parameter if you want to generate all possible collisions among particles.

Parameters

particles	list of particles
except	list of excluded particles

Definition at line 403 of file G4INCLStandardPropagationModel.cc.

Here is the call graph for this function:

void G4INCL::StandardPropagationModel::generateDecays ( const ParticleList & particles )

Generate decays for particles that can decay.

The list of particles given as an argument is allowed to contain also stable particles.

Parameters

particles list of particles to (possibly) generate decays for

Definition at line 458 of file G4INCLStandardPropagationModel.cc.

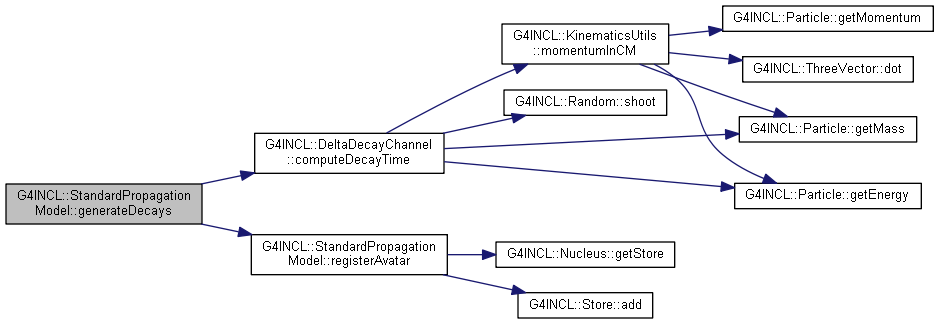

Here is the call graph for this function:

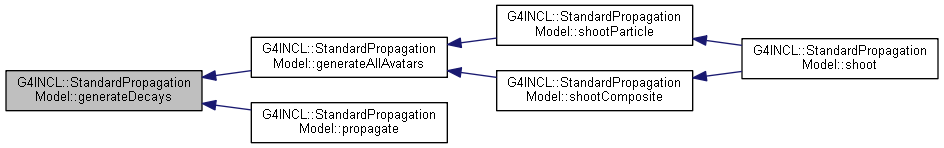

Here is the caller graph for this function:

void G4INCL::StandardPropagationModel::generateUpdatedCollisions	(	const ParticleList &	updatedParticles,
		const ParticleList &	particles
	)

Generate and register collisions between a list of updated particles and all the other particles.

This method does not generate collisions among the particles in updatedParticles; in other words, it generates a collision between one of the updatedParticles and one of the particles ONLY IF the latter does not belong to updatedParticles.

If you intend to generate all possible collisions among particles in a list, use generateCollisions().

Parameters

updatedParticles	list of updated particles
particles	list of particles

Definition at line 374 of file G4INCLStandardPropagationModel.cc.

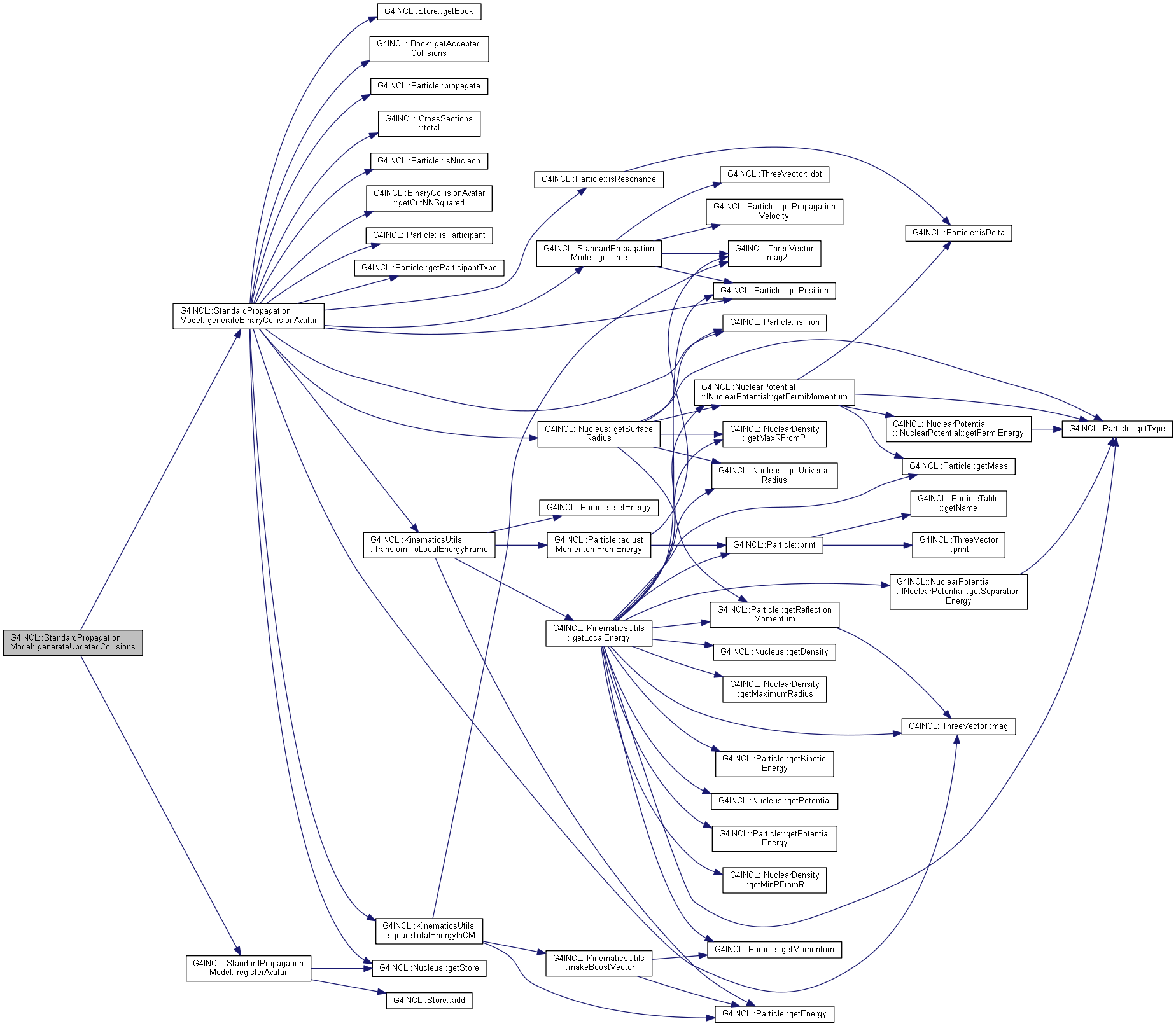

Here is the call graph for this function:

Here is the caller graph for this function:

G4double G4INCL::StandardPropagationModel::getCurrentTime ( )

virtual

Returns the current global time of the system.

Implements G4INCL::IPropagationModel.

Definition at line 247 of file G4INCLStandardPropagationModel.cc.

G4INCL::Nucleus * G4INCL::StandardPropagationModel::getNucleus ( )

virtual

Get the nucleus.

Implements G4INCL::IPropagationModel.

Definition at line 74 of file G4INCLStandardPropagationModel.cc.

G4double G4INCL::StandardPropagationModel::getReflectionTime ( G4INCL::Particle const *const aParticle )

Get the reflection time.

Returns the reflection time of a particle on the potential wall.

Parameters

aParticle pointer to the particle

Definition at line 337 of file G4INCLStandardPropagationModel.cc.

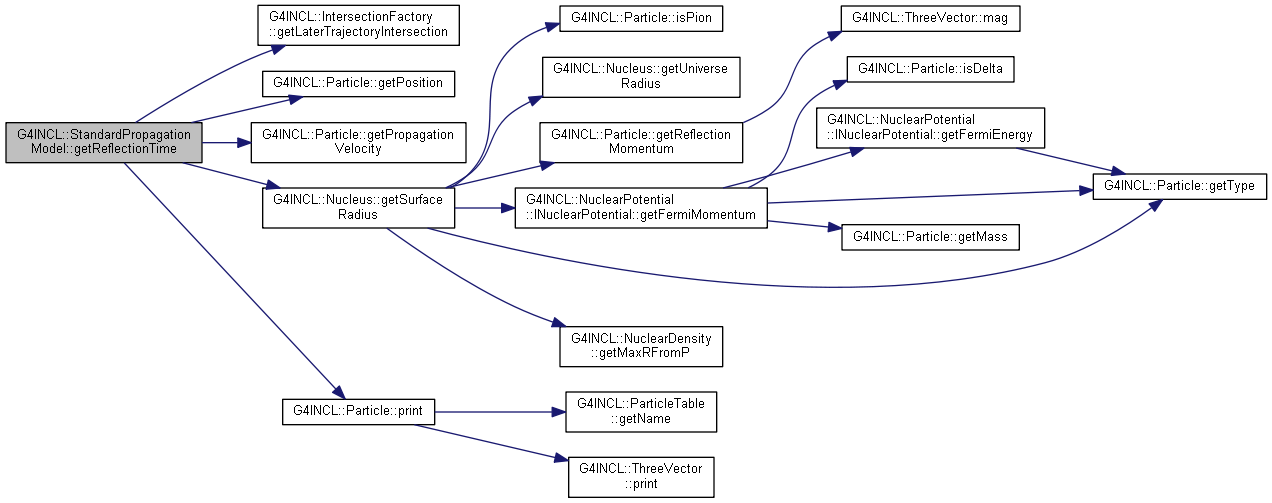

Here is the call graph for this function:

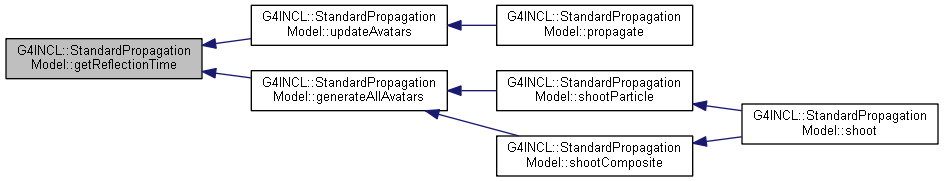

Here is the caller graph for this function:

G4double G4INCL::StandardPropagationModel::getStoppingTime ( )

virtual

Get the current stopping time.

Implements G4INCL::IPropagationModel.

Definition at line 238 of file G4INCLStandardPropagationModel.cc.

G4double G4INCL::StandardPropagationModel::getTime	(	G4INCL::Particle const *const	particleA,
		G4INCL::Particle const *const	particleB,
		G4double *	minDistOfApproach
	)		const

Get the predicted time of the collision between two particles.

Definition at line 354 of file G4INCLStandardPropagationModel.cc.

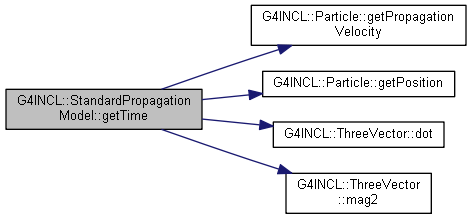

Here is the call graph for this function:

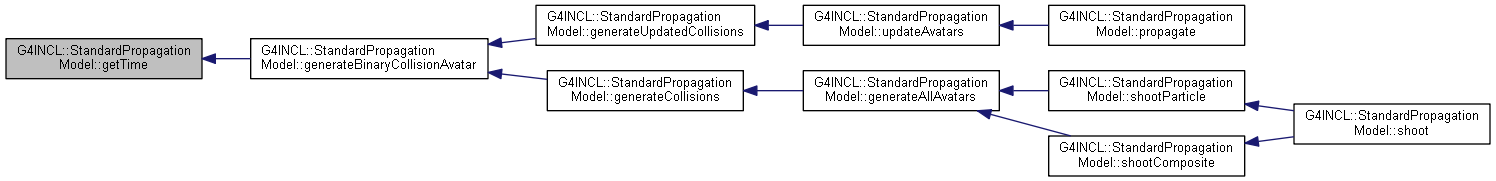

Here is the caller graph for this function:

G4INCL::IAvatar * G4INCL::StandardPropagationModel::propagate ( )

virtual

Propagate all particles and return the first avatar.

Implements G4INCL::IPropagationModel.

Definition at line 470 of file G4INCLStandardPropagationModel.cc.

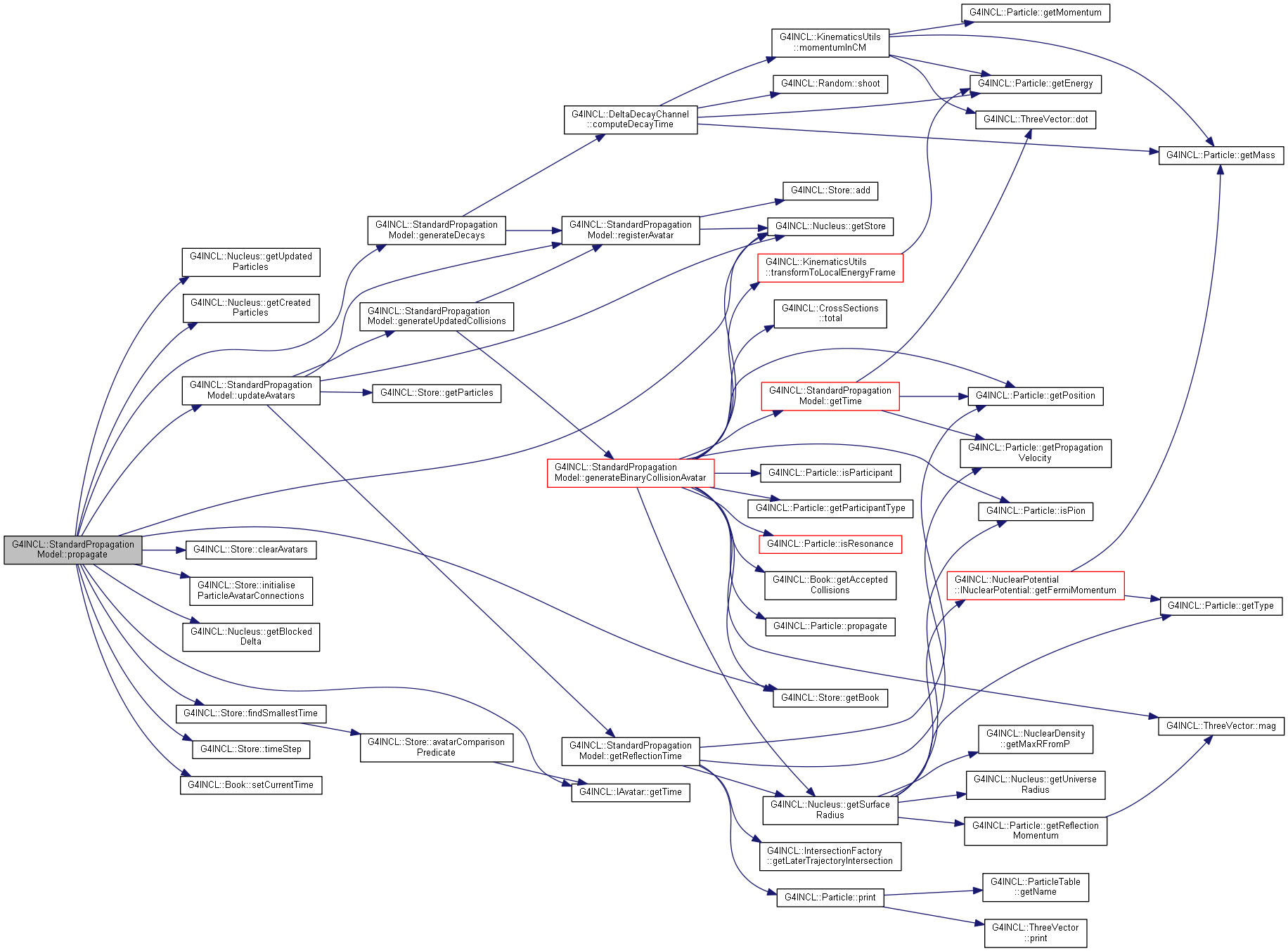

Here is the call graph for this function:

void G4INCL::StandardPropagationModel::registerAvatar ( G4INCL::IAvatar * anAvatar )

Add an avatar to the storage.

Definition at line 256 of file G4INCLStandardPropagationModel.cc.

Here is the call graph for this function:

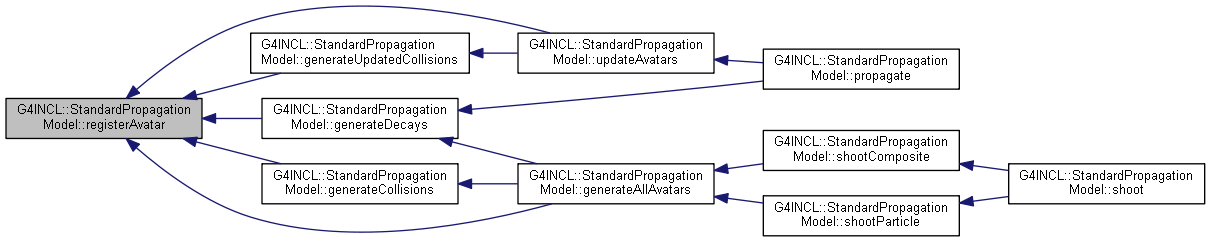

Here is the caller graph for this function:

void G4INCL::StandardPropagationModel::setNucleus ( G4INCL::Nucleus * nucleus )

virtual

Set the nucleus for this propagation model.

Implements G4INCL::IPropagationModel.

Definition at line 251 of file G4INCLStandardPropagationModel.cc.

void G4INCL::StandardPropagationModel::setStoppingTime ( G4double time )

virtual

Set the stopping time of the simulation.

Implements G4INCL::IPropagationModel.

Definition at line 242 of file G4INCLStandardPropagationModel.cc.

G4double G4INCL::StandardPropagationModel::shoot	(	ParticleSpecies const	projectileSpecies,
		const G4double	kineticEnergy,
		const G4double	impactParameter,
		const G4double	phi
	)

virtual

Implements G4INCL::IPropagationModel.

Definition at line 79 of file G4INCLStandardPropagationModel.cc.

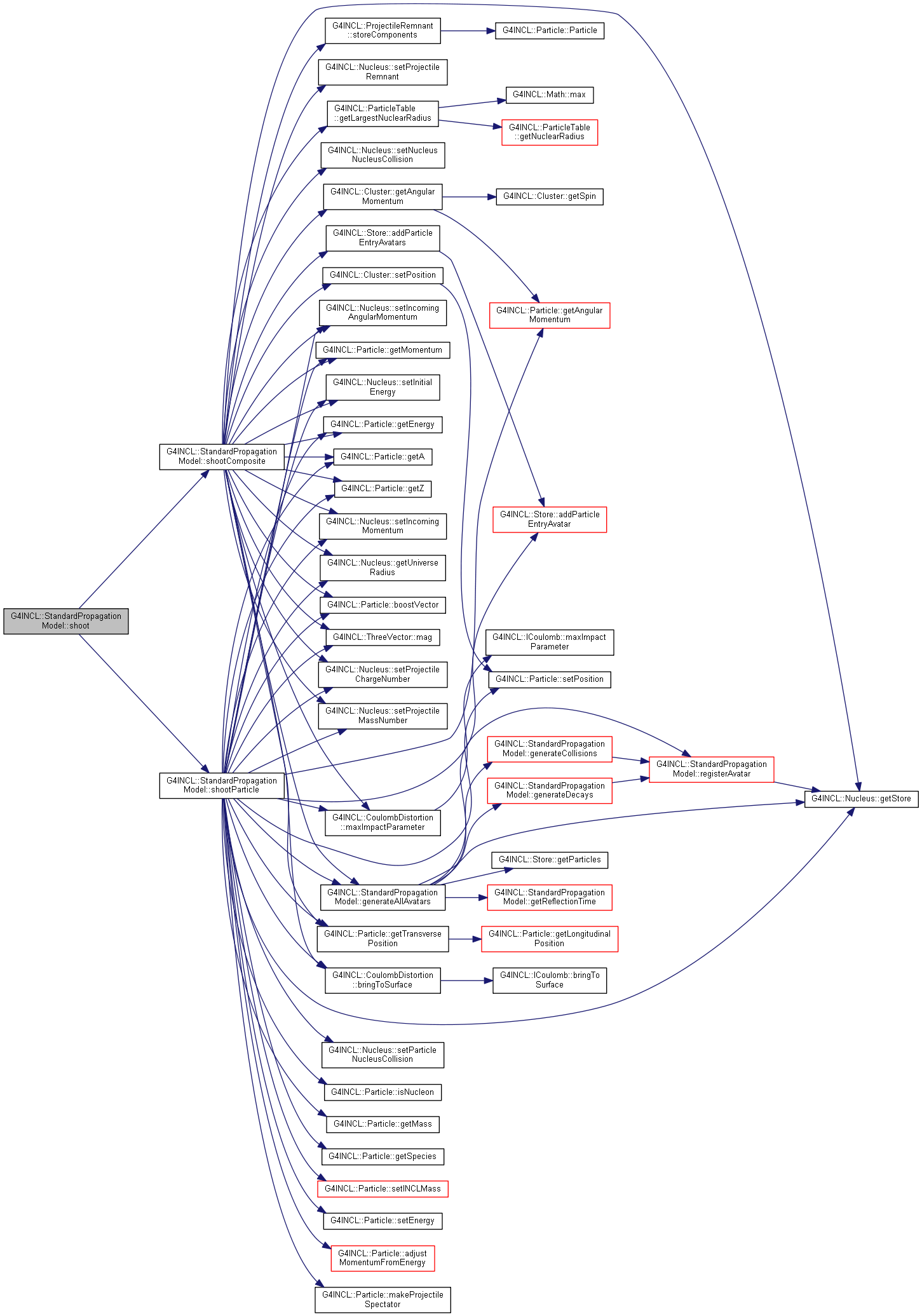

Here is the call graph for this function:

G4double G4INCL::StandardPropagationModel::shootComposite	(	ParticleSpecies const	s,
		const G4double	kineticEnergy,
		const G4double	impactParameter,
		const G4double	phi
	)

virtual

Implements G4INCL::IPropagationModel.

Definition at line 160 of file G4INCLStandardPropagationModel.cc.

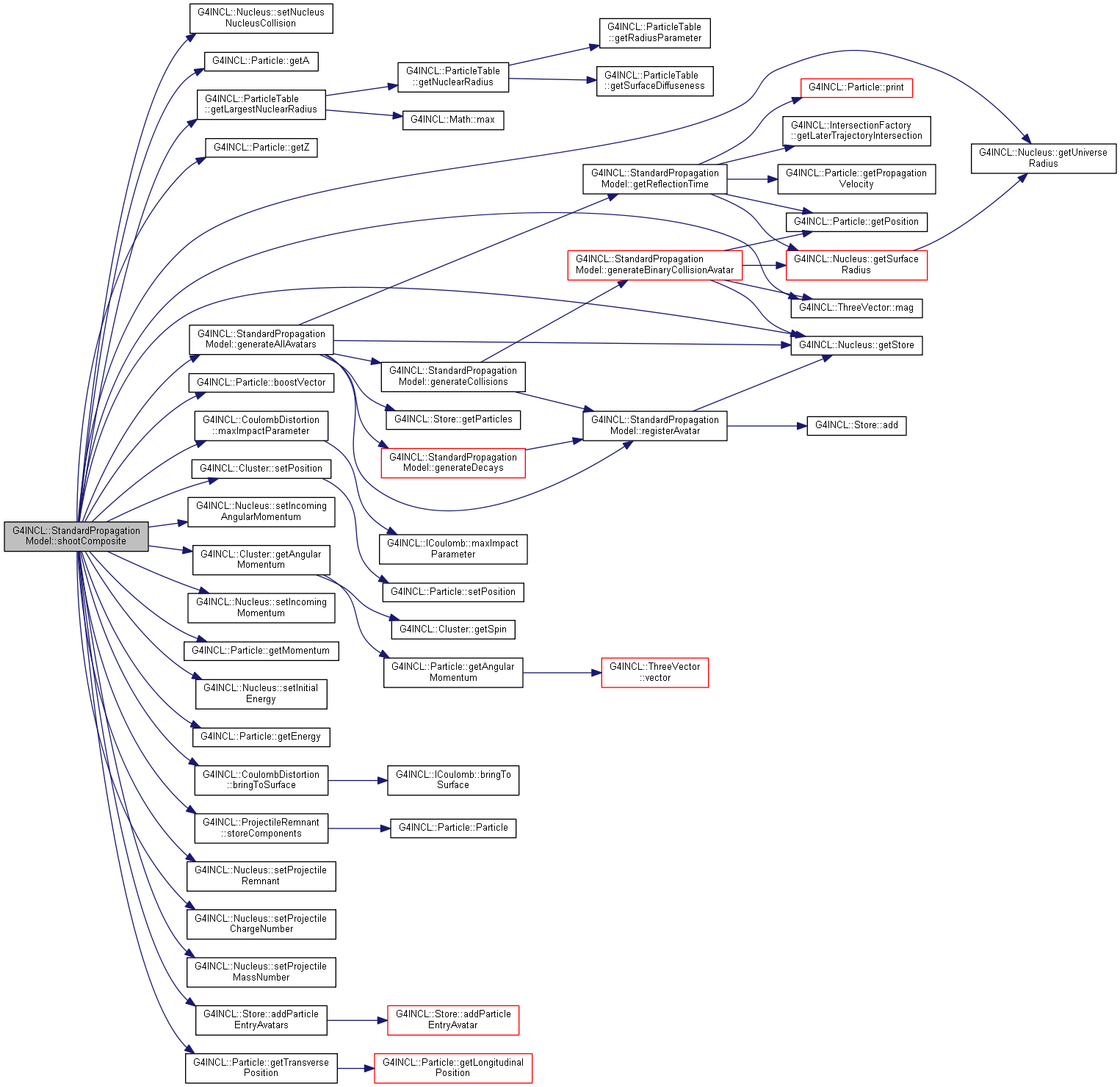

Here is the call graph for this function:

Here is the caller graph for this function:

G4double G4INCL::StandardPropagationModel::shootParticle	(	ParticleType const	t,
		const G4double	kineticEnergy,
		const G4double	impactParameter,
		const G4double	phi
	)

virtual

Implements G4INCL::IPropagationModel.

Definition at line 86 of file G4INCLStandardPropagationModel.cc.

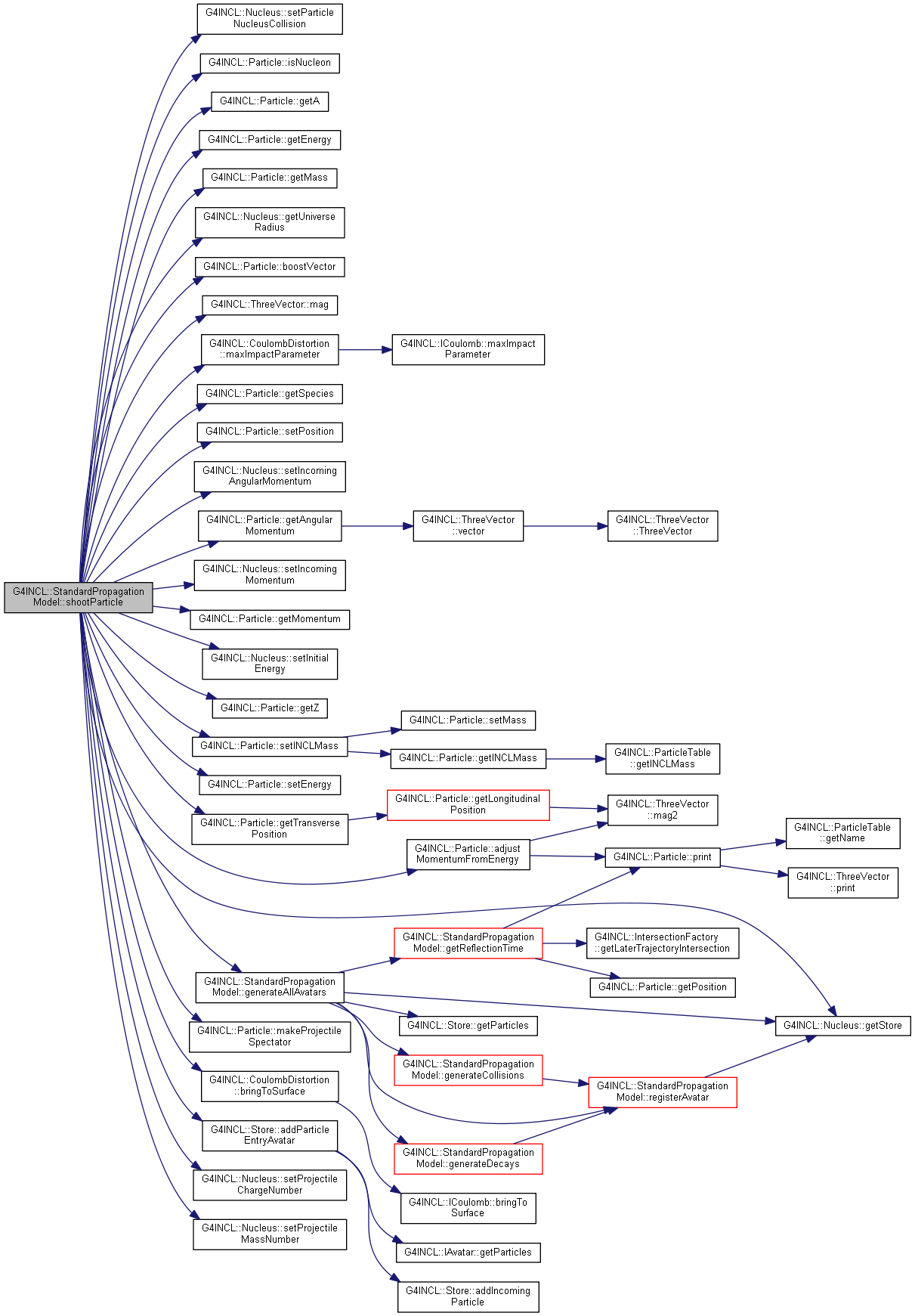

Here is the call graph for this function:

Here is the caller graph for this function:

void G4INCL::StandardPropagationModel::updateAvatars ( const ParticleList & particles )

Update all avatars related to a particle.

Definition at line 423 of file G4INCLStandardPropagationModel.cc.

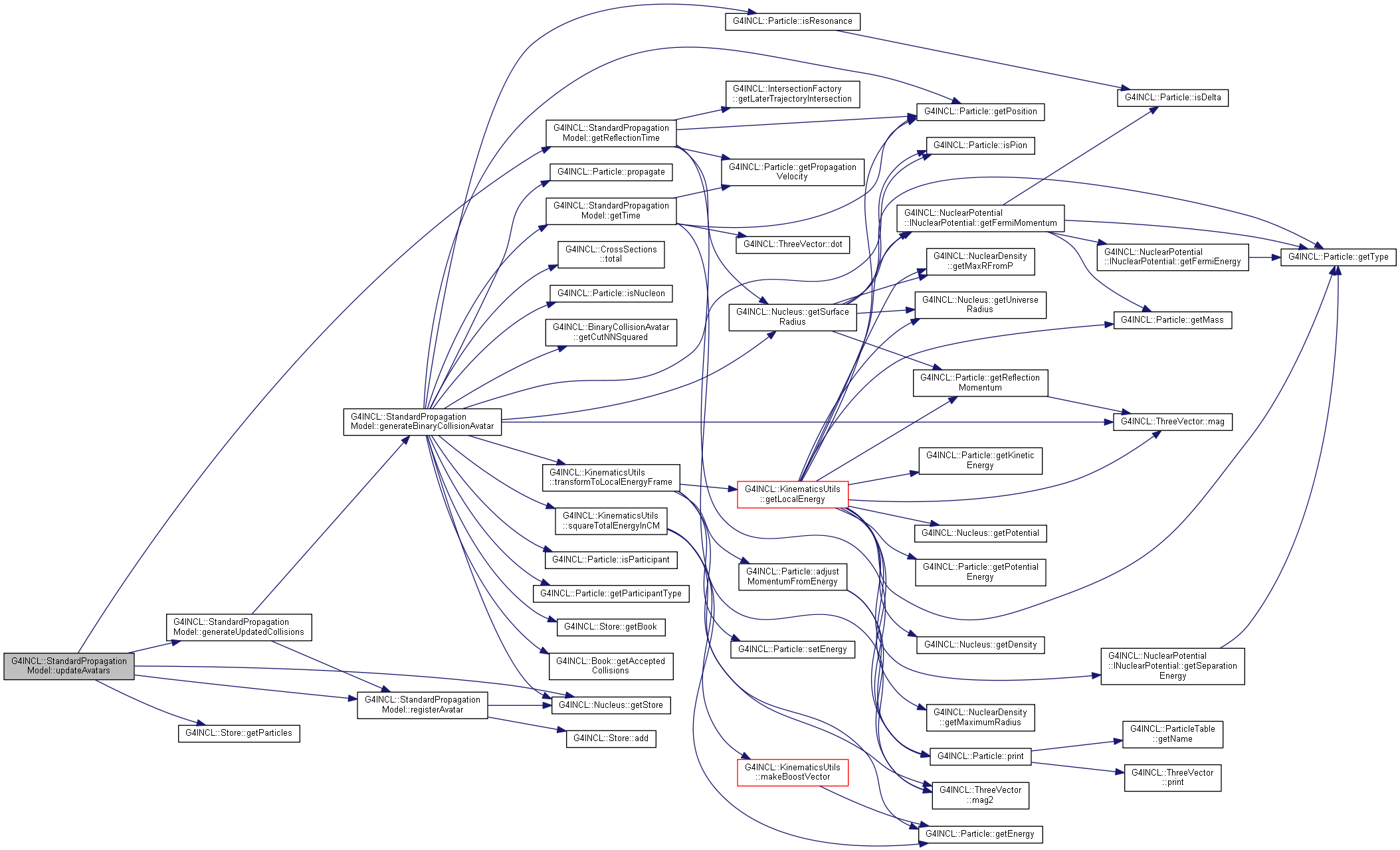

Here is the call graph for this function:

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

source/source/processes/hadronic/models/inclxx/incl_physics/include/G4INCLStandardPropagationModel.hh
source/source/processes/hadronic/models/inclxx/incl_physics/src/G4INCLStandardPropagationModel.cc
