G4INCLXXInterface Class Reference

INCL++ intra-nuclear cascade with G4ExcitationHandler for de-excitation. More...

#include <G4INCLXXInterface.hh>

Inheritance diagram for G4INCLXXInterface:

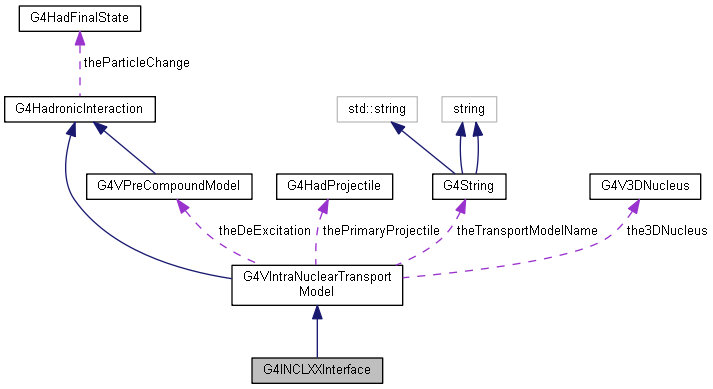

Collaboration diagram for G4INCLXXInterface:

Public Member Functions
	G4INCLXXInterface (const G4String &name="INCL++ cascade with G4ExcitationHandler")
	~G4INCLXXInterface ()
G4int	operator== (G4INCLXXInterface &right)
G4int	operator!= (G4INCLXXInterface &right)
G4ReactionProductVector *	Propagate (G4KineticTrackVector *theSecondaries, G4V3DNucleus *theNucleus)
G4HadFinalState *	ApplyYourself (const G4HadProjectile &aTrack, G4Nucleus &theNucleus)
void	DeleteModel ()
Public Member Functions inherited from G4VIntraNuclearTransportModel
	G4VIntraNuclearTransportModel (const G4String &modelName="CascadeModel", G4VPreCompoundModel *ptr=0)
virtual	~G4VIntraNuclearTransportModel ()
void	SetDeExcitation (G4VPreCompoundModel *ptr)
void	Set3DNucleus (G4V3DNucleus *const value)
void	SetPrimaryProjectile (const G4HadProjectile &aPrimary)
const G4String &	GetModelName () const
virtual void	ModelDescription (std::ostream &outFile) const
virtual void	PropagateModelDescription (std::ostream &outFile) const
Public Member Functions inherited from G4HadronicInteraction
	G4HadronicInteraction (const G4String &modelName="HadronicModel")
virtual	~G4HadronicInteraction ()
virtual G4double	SampleInvariantT (const G4ParticleDefinition *p, G4double plab, G4int Z, G4int A)
virtual G4bool	IsApplicable (const G4HadProjectile &, G4Nucleus &)
G4double	GetMinEnergy () const
G4double	GetMinEnergy (const G4Material *aMaterial, const G4Element *anElement) const
void	SetMinEnergy (G4double anEnergy)
void	SetMinEnergy (G4double anEnergy, const G4Element *anElement)
void	SetMinEnergy (G4double anEnergy, const G4Material *aMaterial)
G4double	GetMaxEnergy () const
G4double	GetMaxEnergy (const G4Material *aMaterial, const G4Element *anElement) const
void	SetMaxEnergy (const G4double anEnergy)
void	SetMaxEnergy (G4double anEnergy, const G4Element *anElement)
void	SetMaxEnergy (G4double anEnergy, const G4Material *aMaterial)
const G4HadronicInteraction *	GetMyPointer () const
G4int	GetVerboseLevel () const
void	SetVerboseLevel (G4int value)
const G4String &	GetModelName () const
void	DeActivateFor (const G4Material *aMaterial)
void	ActivateFor (const G4Material *aMaterial)
void	DeActivateFor (const G4Element *anElement)
void	ActivateFor (const G4Element *anElement)
G4bool	IsBlocked (const G4Material *aMaterial) const
G4bool	IsBlocked (const G4Element *anElement) const
void	SetRecoilEnergyThreshold (G4double val)
G4double	GetRecoilEnergyThreshold () const
G4bool	operator== (const G4HadronicInteraction &right) const
G4bool	operator!= (const G4HadronicInteraction &right) const
virtual const std::pair < G4double, G4double >	GetFatalEnergyCheckLevels () const
virtual std::pair< G4double, G4double >	GetEnergyMomentumCheckLevels () const
void	SetEnergyMomentumCheckLevels (G4double relativeLevel, G4double absoluteLevel)

Additional Inherited Members
Protected Member Functions inherited from G4VIntraNuclearTransportModel
G4V3DNucleus *	Get3DNucleus () const
G4VPreCompoundModel *	GetDeExcitation () const
const G4HadProjectile *	GetPrimaryProjectile () const
Protected Attributes inherited from G4VIntraNuclearTransportModel
G4String	theTransportModelName
G4V3DNucleus *	the3DNucleus
G4VPreCompoundModel *	theDeExcitation
const G4HadProjectile *	thePrimaryProjectile

Detailed Description

INCL++ intra-nuclear cascade with G4ExcitationHandler for de-excitation.

Interface for INCL++. This interface handles basic hadron bullet particles (protons, neutrons, pions), as well as light ions.

Example usage in case of protons:

G4INCLXXInterface* inclModel = new G4INCLXXInterface;
inclModel -> SetMinEnergy(0.0 * MeV); // Set the energy limits
inclModel -> SetMaxEnergy(3.0 * GeV);

G4ProtonInelasticProcess* protonInelasticProcess = new G4ProtonInelasticProcess();
G4ProtonInelasticCrossSection* protonInelasticCrossSection =  new G4ProtonInelasticCrossSection();

protonInelasticProcess -> RegisterMe(inclModel);
protonInelasticProcess -> AddDataSet(protonInelasticCrossSection);

particle = G4Proton::Proton();
processManager = particle -> GetProcessManager();
processManager -> AddDiscreteProcess(protonInelasticProcess);

The same setup procedure is needed for neutron, pion and generic-ion inelastic processes as well.

Definition at line 91 of file G4INCLXXInterface.hh.

Constructor & Destructor Documentation

G4INCLXXInterface::G4INCLXXInterface

(

const G4String &

name = "INCL++ cascade with G4ExcitationHandler")

Definition at line 49 of file G4INCLXXInterface.cc.

Here is the call graph for this function:

G4INCLXXInterface::~G4INCLXXInterface

(

)

Definition at line 67 of file G4INCLXXInterface.cc.

Member Function Documentation

G4HadFinalState * G4INCLXXInterface::ApplyYourself ( const G4HadProjectile &  aTrack, G4Nucleus &  theNucleus  )

virtual

Main method to apply the INCL physics model.

Parameters

aTrack	the projectile particle
theNucleus	target nucleus

Returns

the output of the INCL physics model

Implements G4HadronicInteraction.

Definition at line 118 of file G4INCLXXInterface.cc.

Here is the call graph for this function:

void G4INCLXXInterface::DeleteModel ( )

inline

Definition at line 114 of file G4INCLXXInterface.hh.

G4int G4INCLXXInterface::operator!= ( G4INCLXXInterface &  right)

inline

Definition at line 100 of file G4INCLXXInterface.hh.

G4int G4INCLXXInterface::operator== ( G4INCLXXInterface &  right)

inline

Definition at line 96 of file G4INCLXXInterface.hh.

G4ReactionProductVector * G4INCLXXInterface::Propagate ( G4KineticTrackVector *  theSecondaries, G4V3DNucleus *  theNucleus  )

virtual

Implements G4VIntraNuclearTransportModel.

Definition at line 369 of file G4INCLXXInterface.cc.

---

The documentation for this class was generated from the following files:

• D:/Geant4/geant4_9_6_p02/source/processes/hadronic/models/inclxx/interface/include/G4INCLXXInterface.hh
• D:/Geant4/geant4_9_6_p02/source/processes/hadronic/models/inclxx/interface/src/G4INCLXXInterface.cc
