G4TDNAOneStepThermalizationModel< MODEL > Class Template Reference

#include <G4DNAOneStepThermalizationModel.hh>

Inheritance diagram for G4TDNAOneStepThermalizationModel< MODEL >:
Inheritance graph
[legend]
Collaboration diagram for G4TDNAOneStepThermalizationModel< MODEL >:
Collaboration graph
[legend]

Public Types

typedef MODEL Model


Public Member Functions

 G4TDNAOneStepThermalizationModel (const G4ParticleDefinition *p=0, const G4String &nam="DNAOneStepThermalizationModel")

virtual ~G4TDNAOneStepThermalizationModel ()

virtual void Initialise (const G4ParticleDefinition *, const G4DataVector &)

virtual G4double CrossSectionPerVolume (const G4Material *material, const G4ParticleDefinition *p, G4double ekin, G4double emin, G4double emax)

virtual void SampleSecondaries (std::vector< G4DynamicParticle * > *, const G4MaterialCutsCouple *, const G4DynamicParticle *, G4double tmin, G4double maxEnergy)

void SetVerbose (int flag)

void GetPenetration (G4double energy, G4ThreeVector &displacement)

double GetRmean (double energy)

- Public Member Functions inherited from G4VEmModel
 G4VEmModel (const G4String &nam)

virtual ~G4VEmModel ()

virtual void InitialiseLocal (const G4ParticleDefinition *, G4VEmModel *masterModel)

virtual void InitialiseForMaterial (const G4ParticleDefinition *, const G4Material *)

virtual void InitialiseForElement (const G4ParticleDefinition *, G4int Z)

virtual G4double ComputeDEDXPerVolume (const G4Material *, const G4ParticleDefinition *, G4double kineticEnergy, G4double cutEnergy=DBL_MAX)

virtual G4double GetPartialCrossSection (const G4Material *, G4int level, const G4ParticleDefinition *, G4double kineticEnergy)

virtual G4double ComputeCrossSectionPerAtom (const G4ParticleDefinition *, G4double kinEnergy, G4double Z, G4double A=0., G4double cutEnergy=0.0, G4double maxEnergy=DBL_MAX)

virtual G4double ComputeCrossSectionPerShell (const G4ParticleDefinition *, G4int Z, G4int shellIdx, G4double kinEnergy, G4double cutEnergy=0.0, G4double maxEnergy=DBL_MAX)

virtual G4double ChargeSquareRatio (const G4Track &)

virtual G4double GetChargeSquareRatio (const G4ParticleDefinition *, const G4Material *, G4double kineticEnergy)

virtual G4double GetParticleCharge (const G4ParticleDefinition *, const G4Material *, G4double kineticEnergy)

virtual void StartTracking (G4Track *)

virtual void CorrectionsAlongStep (const G4MaterialCutsCouple *, const G4DynamicParticle *, G4double &eloss, G4double &niel, G4double length)

virtual G4double Value (const G4MaterialCutsCouple *, const G4ParticleDefinition *, G4double kineticEnergy)

virtual G4double MinPrimaryEnergy (const G4Material *, const G4ParticleDefinition *, G4double cut=0.0)

virtual G4double MinEnergyCut (const G4ParticleDefinition *, const G4MaterialCutsCouple *)

virtual void SetupForMaterial (const G4ParticleDefinition *, const G4Material *, G4double kineticEnergy)

virtual void DefineForRegion (const G4Region *)

virtual void ModelDescription (std::ostream &outFile) const

void InitialiseElementSelectors (const G4ParticleDefinition *, const G4DataVector &)

std::vector
< G4EmElementSelector * > * 		GetElementSelectors ()

void SetElementSelectors (std::vector< G4EmElementSelector * > *)

virtual G4double ComputeDEDX (const G4MaterialCutsCouple *, const G4ParticleDefinition *, G4double kineticEnergy, G4double cutEnergy=DBL_MAX)

G4double CrossSection (const G4MaterialCutsCouple *, const G4ParticleDefinition *, G4double kineticEnergy, G4double cutEnergy=0.0, G4double maxEnergy=DBL_MAX)

G4double ComputeMeanFreePath (const G4ParticleDefinition *, G4double kineticEnergy, const G4Material *, G4double cutEnergy=0.0, G4double maxEnergy=DBL_MAX)

G4double ComputeCrossSectionPerAtom (const G4ParticleDefinition *, const G4Element *, G4double kinEnergy, G4double cutEnergy=0.0, G4double maxEnergy=DBL_MAX)

G4int SelectIsotopeNumber (const G4Element *)

const G4Element * SelectRandomAtom (const G4MaterialCutsCouple *, const G4ParticleDefinition *, G4double kineticEnergy, G4double cutEnergy=0.0, G4double maxEnergy=DBL_MAX)

const G4Element * SelectRandomAtom (const G4Material *, const G4ParticleDefinition *, G4double kineticEnergy, G4double cutEnergy=0.0, G4double maxEnergy=DBL_MAX)

G4int SelectRandomAtomNumber (const G4Material *)

void SetParticleChange (G4VParticleChange *, G4VEmFluctuationModel *f=nullptr)

void SetCrossSectionTable (G4PhysicsTable *, G4bool isLocal)

G4ElementData * GetElementData ()

G4PhysicsTable * GetCrossSectionTable ()

G4VEmFluctuationModel * GetModelOfFluctuations ()

G4VEmAngularDistribution * GetAngularDistribution ()

void SetAngularDistribution (G4VEmAngularDistribution *)

G4double HighEnergyLimit () const

G4double LowEnergyLimit () const

G4double HighEnergyActivationLimit () const

G4double LowEnergyActivationLimit () const

G4double PolarAngleLimit () const

G4double SecondaryThreshold () const

G4bool LPMFlag () const

G4bool DeexcitationFlag () const

G4bool ForceBuildTableFlag () const

G4bool UseAngularGeneratorFlag () const

void SetAngularGeneratorFlag (G4bool)

void SetHighEnergyLimit (G4double)

void SetLowEnergyLimit (G4double)

void SetActivationHighEnergyLimit (G4double)

void SetActivationLowEnergyLimit (G4double)

G4bool IsActive (G4double kinEnergy)

void SetPolarAngleLimit (G4double)

void SetSecondaryThreshold (G4double)

void SetLPMFlag (G4bool val)

void SetDeexcitationFlag (G4bool val)

void SetForceBuildTable (G4bool val)

void SetFluctuationFlag (G4bool val)

void SetMasterThread (G4bool val)

G4bool IsMaster () const

G4double MaxSecondaryKinEnergy (const G4DynamicParticle *dynParticle)

const G4String & GetName () const

void SetCurrentCouple (const G4MaterialCutsCouple *)

const G4Element * GetCurrentElement () const

const G4Isotope * GetCurrentIsotope () const

G4bool IsLocked () const

void SetLocked (G4bool)


Protected Attributes

const std::vector< G4double > * fpWaterDensity

G4ParticleChangeForGamma * fParticleChangeForGamma

G4bool fIsInitialised

G4int fVerboseLevel

G4Navigator * fNavigator

- Protected Attributes inherited from G4VEmModel
G4ElementData * fElementData

G4VParticleChange * pParticleChange

G4PhysicsTable * xSectionTable

const std::vector< G4double > * theDensityFactor

const std::vector< G4int > * theDensityIdx

size_t idxTable

G4bool lossFlucFlag


Additional Inherited Members

- Protected Member Functions inherited from G4VEmModel
G4ParticleChangeForLoss * GetParticleChangeForLoss ()

G4ParticleChangeForGamma * GetParticleChangeForGamma ()

virtual G4double MaxSecondaryEnergy (const G4ParticleDefinition *, G4double kineticEnergy)

const G4MaterialCutsCouple * CurrentCouple () const

void SetCurrentElement (const G4Element *)

- Static Protected Attributes inherited from G4VEmModel
static const G4double inveplus = 1.0/CLHEP::eplus


Detailed Description

template<typename MODEL = DNA::Penetration::Meesungnoen2002>
class G4TDNAOneStepThermalizationModel< MODEL >

When an electron reaches the highest energy domain of G4DNAOneStepThermalizationModel, it is then automatically converted into a solvated electron and displace from its original position using a published thermalization statistic.

Definition at line 100 of file G4DNAOneStepThermalizationModel.hh.

Member Typedef Documentation

template<typename MODEL = DNA::Penetration::Meesungnoen2002>
typedef MODEL G4TDNAOneStepThermalizationModel< MODEL >::Model

Definition at line 103 of file G4DNAOneStepThermalizationModel.hh.

Constructor & Destructor Documentation

template<typename MODEL >
G4TDNAOneStepThermalizationModel< MODEL >::G4TDNAOneStepThermalizationModel ( const G4ParticleDefinition *  p = 0,
const G4String &  nam = "DNAOneStepThermalizationModel"
)

Definition at line 56 of file G4DNAOneStepThermalizationModel.hpp.

57  :
58 G4VEmModel(nam), fIsInitialised(false)
59 {
60  fVerboseLevel = 0;
61  SetLowEnergyLimit(0.);
62  G4DNAWaterExcitationStructure exStructure;
63  SetHighEnergyLimit(exStructure.ExcitationEnergy(0));
64  fParticleChangeForGamma = 0;
65  fpWaterDensity = 0;
66  fNavigator = 0;
67 }
G4TDNAOneStepThermalizationModel::fpWaterDensity
const std::vector< G4double > * fpWaterDensity
Definition: G4DNAOneStepThermalizationModel.hh:133
G4VEmModel::G4VEmModel
G4VEmModel(const G4String &nam)
Definition: G4VEmModel.cc:68
G4VEmModel::SetHighEnergyLimit
void SetHighEnergyLimit(G4double)
Definition: G4VEmModel.hh:732
G4VEmModel::SetLowEnergyLimit
void SetLowEnergyLimit(G4double)
Definition: G4VEmModel.hh:739

Here is the call graph for this function:

template<typename MODEL >
G4TDNAOneStepThermalizationModel< MODEL >::~G4TDNAOneStepThermalizationModel ( )
virtual

Definition at line 72 of file G4DNAOneStepThermalizationModel.hpp.

73 {
74  if(fNavigator)
75  {
76  // if(fNavigator->GetNavigatorState())
77  // delete fNavigator->GetNavigatorState();
78  delete fNavigator;
79  }
80 }

Member Function Documentation

template<typename MODEL >
G4double G4TDNAOneStepThermalizationModel< MODEL >::CrossSectionPerVolume ( const G4Material *  material,
const G4ParticleDefinition *  p,
G4double  ekin,
G4double  emin,
G4double  emax
)
virtual

Reimplemented from G4VEmModel.

Definition at line 132 of file G4DNAOneStepThermalizationModel.hpp.

137 {
138 #ifdef MODEL_VERBOSE
139  if(fVerboseLevel > 1)
140  G4cout << "Calling CrossSectionPerVolume() of G4DNAOneStepThermalizationModel"
141  << G4endl;
142 #endif
143
144  if(ekin > HighEnergyLimit()){
145  return 0.0;
146  }
147
148  G4double waterDensity = (*fpWaterDensity)[material->GetIndex()];
149
150  if(waterDensity!= 0.0){
151  return DBL_MAX;
152  }
153  return 0.;
154 }
G4VEmModel::HighEnergyLimit
G4double HighEnergyLimit() const
Definition: G4VEmModel.hh:636
G4Material::GetIndex
size_t GetIndex() const
Definition: G4Material.hh:262
G4cout
G4GLOB_DLL std::ostream G4cout
G4endl
#define G4endl
Definition: G4ios.hh:61
G4double
double G4double
Definition: G4Types.hh:76
DBL_MAX
#define DBL_MAX
Definition: templates.hh:83

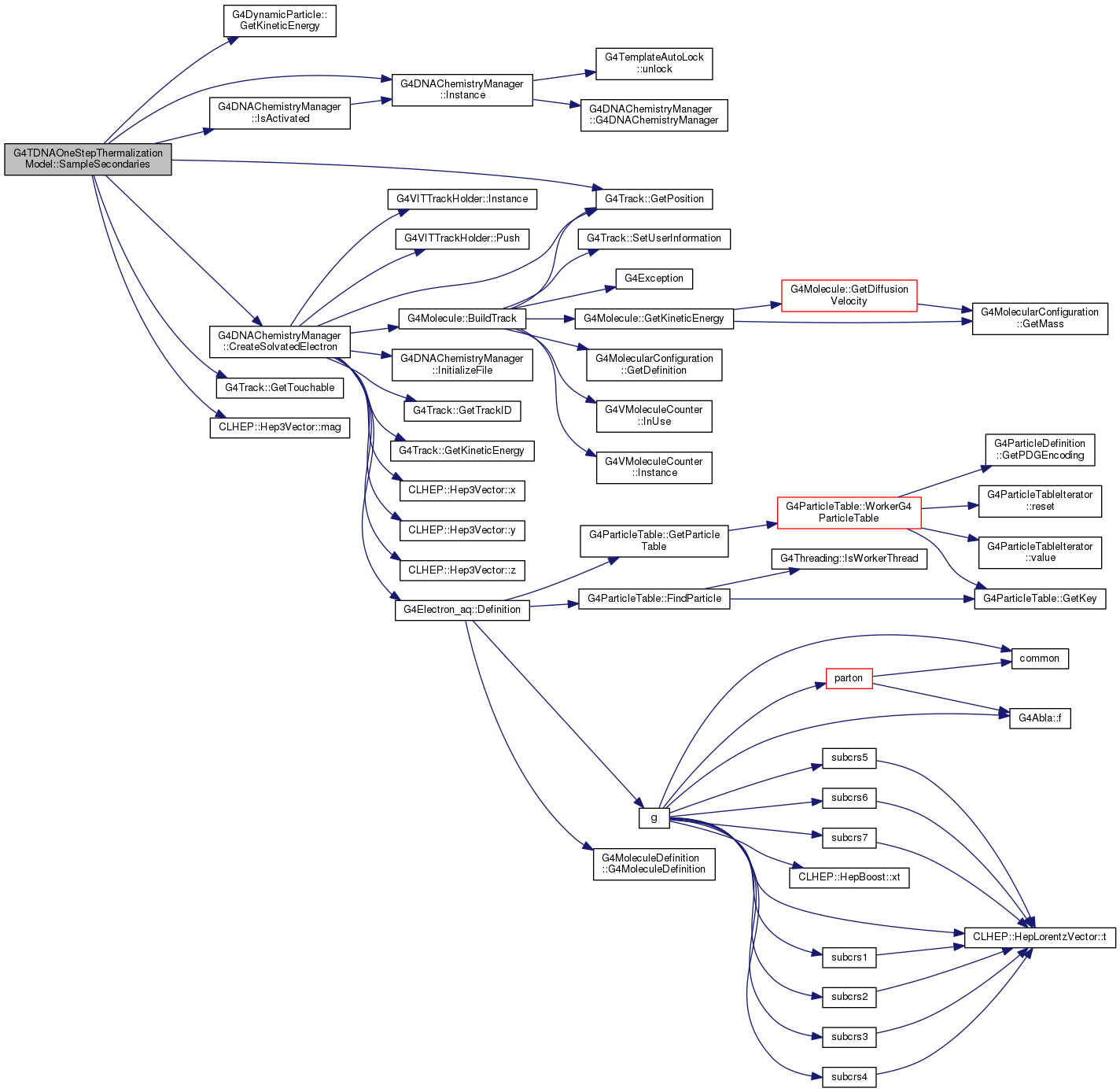

Here is the call graph for this function:

template<typename MODEL >
void G4TDNAOneStepThermalizationModel< MODEL >::GetPenetration ( G4double  energy,
G4ThreeVector &  displacement
)

Definition at line 167 of file G4DNAOneStepThermalizationModel.hpp.

168 {
169  return MODEL::GetPenetration(k, displacement);
170 }
template<typename MODEL >
double G4TDNAOneStepThermalizationModel< MODEL >::GetRmean ( double  energy)

Definition at line 158 of file G4DNAOneStepThermalizationModel.hpp.

158  {
159  return MODEL::GetRmean(k);
160 }
template<typename MODEL >
void G4TDNAOneStepThermalizationModel< MODEL >::Initialise ( const G4ParticleDefinition *  particleDefinition,
const G4DataVector &
)
virtual

Implements G4VEmModel.

Definition at line 85 of file G4DNAOneStepThermalizationModel.hpp.

87 {
88 #ifdef MODEL_VERBOSE
89  if(fVerboseLevel)
90  G4cout << "Calling G4DNAOneStepThermalizationModel::Initialise()"
91  << G4endl;
92 #endif
93  if (particleDefinition->GetParticleName() != "e-")
94  {
95  G4ExceptionDescription errMsg;
96  errMsg << "G4DNAOneStepThermalizationModel can only be applied "
97  "to electrons";
98  G4Exception("G4DNAOneStepThermalizationModel::CrossSectionPerVolume",
99  "G4DNAOneStepThermalizationModel001",
100  FatalErrorInArgument,errMsg);
101  return;
102  }
103
104  if(!fIsInitialised)
105  {
106  fIsInitialised = true;
107  fParticleChangeForGamma = GetParticleChangeForGamma();
108  }
109
110  G4Navigator* navigator =
111  G4TransportationManager::GetTransportationManager()->
112  GetNavigatorForTracking();
113
114  fNavigator = new G4Navigator();
115
116  if(navigator){ // add these checks for testing mode
117  auto world=navigator->GetWorldVolume();
118  if(world){
119  fNavigator->SetWorldVolume(world);
120  //fNavigator->NewNavigatorState();
121  }
122  }
123
124  fpWaterDensity =
125  G4DNAMolecularMaterial::Instance()->
126  GetNumMolPerVolTableFor(G4Material::GetMaterial("G4_WATER"));
127 }
G4ExceptionDescription
std::ostringstream G4ExceptionDescription
Definition: globals.hh:76
G4TDNAOneStepThermalizationModel::fpWaterDensity
const std::vector< G4double > * fpWaterDensity
Definition: G4DNAOneStepThermalizationModel.hh:133
G4Material::GetMaterial
static G4Material * GetMaterial(const G4String &name, G4bool warning=true)
Definition: G4Material.cc:602
G4ParticleDefinition::GetParticleName
const G4String & GetParticleName() const
Definition: G4ParticleDefinition.hh:120
G4cout
G4GLOB_DLL std::ostream G4cout
write_gdml.navigator
tuple navigator
Definition: write_gdml.py:35
G4Exception
void G4Exception(const char *originOfException, const char *exceptionCode, G4ExceptionSeverity severity, const char *comments)
Definition: G4Exception.cc:41
G4TransportationManager::GetTransportationManager
static G4TransportationManager * GetTransportationManager()
Definition: G4TransportationManager.cc:100
G4DNAMolecularMaterial::Instance
static G4DNAMolecularMaterial * Instance()
Definition: G4DNAMolecularMaterial.cc:75
FatalErrorInArgument
Definition: G4ExceptionSeverity.hh:61
G4Navigator::SetWorldVolume
void SetWorldVolume(G4VPhysicalVolume *pWorld)
G4endl
#define G4endl
Definition: G4ios.hh:61
G4Navigator::GetWorldVolume
G4VPhysicalVolume * GetWorldVolume() const
G4VEmModel::GetParticleChangeForGamma
G4ParticleChangeForGamma * GetParticleChangeForGamma()
Definition: G4VEmModel.cc:132

Here is the call graph for this function:

template<typename MODEL >
void G4TDNAOneStepThermalizationModel< MODEL >::SampleSecondaries ( std::vector< G4DynamicParticle * > *  ,
const G4MaterialCutsCouple *  ,
const G4DynamicParticle *  particle,
G4double  tmin,
G4double  maxEnergy
)
virtual

Implements G4VEmModel.

Definition at line 175 of file G4DNAOneStepThermalizationModel.hpp.

180 {
181 #ifdef MODEL_VERBOSE
182  if(fVerboseLevel)
183  G4cout << "Calling SampleSecondaries() of G4DNAOneStepThermalizationModel"
184  << G4endl;
185 #endif
186
187  G4double k = particle->GetKineticEnergy();
188
189  if (k <= HighEnergyLimit())
190  {
191  fParticleChangeForGamma->ProposeTrackStatus(fStopAndKill);
192  fParticleChangeForGamma->ProposeLocalEnergyDeposit(k);
193
194  if(G4DNAChemistryManager::IsActivated())
195  {
196  G4ThreeVector displacement(0,0,0);
197  GetPenetration(k, displacement);
198
199  //______________________________________________________________
200  const G4Track * theIncomingTrack =
201  fParticleChangeForGamma->GetCurrentTrack();
202  G4ThreeVector finalPosition(theIncomingTrack->GetPosition()+displacement);
203
204  fNavigator->SetWorldVolume(theIncomingTrack->GetTouchable()->
205  GetVolume(theIncomingTrack->GetTouchable()->
206  GetHistoryDepth()));
207
208  double displacementMag = displacement.mag();
209  double safety = DBL_MAX;
210  G4ThreeVector direction = displacement/displacementMag;
211
212  //--
213  // 6/09/16 - recupere de molecular dissocation
214  double mag_displacement = displacement.mag();
215  G4ThreeVector displacement_direction = displacement/mag_displacement;
216
217  // double step = DBL_MAX;
218  // step = fNavigator->CheckNextStep(theIncomingTrack->GetPosition(),
219  // displacement_direction,
220  // mag_displacement,
221  // safety);
222  //
223  //
224  // if(safety < mag_displacement)
225  // {
227  // finalPosition = theIncomingTrack->GetPosition()
228  // + (displacement/displacementMag)*safety*0.80;
229  // }
230  //--
231
232  fNavigator->ResetHierarchyAndLocate(theIncomingTrack->GetPosition(),
233  direction,
234  *((G4TouchableHistory*)
235  theIncomingTrack->GetTouchable()));
236
237  fNavigator->ComputeStep(theIncomingTrack->GetPosition(),
238  displacement/displacementMag,
239  displacementMag,
240  safety);
241
242  if(safety <= displacementMag)
243  {
244  finalPosition = theIncomingTrack->GetPosition()
245  + (displacement/displacementMag)*safety*0.80;
246  }
247
248  G4DNAChemistryManager::Instance()->CreateSolvatedElectron(theIncomingTrack,
249  &finalPosition);
250
251  fParticleChangeForGamma->SetProposedKineticEnergy(25.e-3*eV);
252  }
253  }
254 }
G4DynamicParticle::GetKineticEnergy
G4double GetKineticEnergy() const
G4VEmModel::HighEnergyLimit
G4double HighEnergyLimit() const
Definition: G4VEmModel.hh:636
G4DNAChemistryManager::CreateSolvatedElectron
void CreateSolvatedElectron(const G4Track *, G4ThreeVector *finalPosition=0)
Definition: G4DNAChemistryManager.cc:638
G4Track::GetPosition
const G4ThreeVector & GetPosition() const
G4Navigator::ComputeStep
virtual G4double ComputeStep(const G4ThreeVector &pGlobalPoint, const G4ThreeVector &pDirection, const G4double pCurrentProposedStepLength, G4double &pNewSafety)
Definition: G4Navigator.cc:747
G4Navigator::ResetHierarchyAndLocate
virtual G4VPhysicalVolume * ResetHierarchyAndLocate(const G4ThreeVector &point, const G4ThreeVector &direction, const G4TouchableHistory &h)
Definition: G4Navigator.cc:95
G4VParticleChange::ProposeLocalEnergyDeposit
void ProposeLocalEnergyDeposit(G4double anEnergyPart)
G4cout
G4GLOB_DLL std::ostream G4cout
G4TDNAOneStepThermalizationModel::GetPenetration
void GetPenetration(G4double energy, G4ThreeVector &displacement)
Definition: G4DNAOneStepThermalizationModel.hpp:167
eV
static constexpr double eV
Definition: G4SIunits.hh:215
G4DNAChemistryManager::Instance
static G4DNAChemistryManager * Instance()
Definition: G4DNAChemistryManager.cc:117
G4Track::GetTouchable
const G4VTouchable * GetTouchable() const
G4Navigator::SetWorldVolume
void SetWorldVolume(G4VPhysicalVolume *pWorld)
fStopAndKill
Definition: G4TrackStatus.hh:56
G4ParticleChangeForGamma::GetCurrentTrack
const G4Track * GetCurrentTrack() const
Definition: G4ParticleChangeForGamma.hh:154
G4ParticleChangeForGamma::SetProposedKineticEnergy
void SetProposedKineticEnergy(G4double proposedKinEnergy)
Definition: G4ParticleChangeForGamma.hh:129
G4endl
#define G4endl
Definition: G4ios.hh:61
G4double
double G4double
Definition: G4Types.hh:76
G4VParticleChange::ProposeTrackStatus
void ProposeTrackStatus(G4TrackStatus status)
CLHEP::Hep3Vector::mag
double mag() const
DBL_MAX
#define DBL_MAX
Definition: templates.hh:83

Here is the call graph for this function:

template<typename MODEL = DNA::Penetration::Meesungnoen2002>
void G4TDNAOneStepThermalizationModel< MODEL >::SetVerbose ( int  flag)
inline

Definition at line 123 of file G4DNAOneStepThermalizationModel.hh.

123  {
124  fVerboseLevel = flag;
125  }

Member Data Documentation

template<typename MODEL = DNA::Penetration::Meesungnoen2002>
G4bool G4TDNAOneStepThermalizationModel< MODEL >::fIsInitialised
protected

Definition at line 136 of file G4DNAOneStepThermalizationModel.hh.

template<typename MODEL = DNA::Penetration::Meesungnoen2002>
G4Navigator* G4TDNAOneStepThermalizationModel< MODEL >::fNavigator
protected

Definition at line 138 of file G4DNAOneStepThermalizationModel.hh.

template<typename MODEL = DNA::Penetration::Meesungnoen2002>
G4ParticleChangeForGamma* G4TDNAOneStepThermalizationModel< MODEL >::fParticleChangeForGamma
protected

Definition at line 135 of file G4DNAOneStepThermalizationModel.hh.

template<typename MODEL = DNA::Penetration::Meesungnoen2002>
const std::vector<G4double>* G4TDNAOneStepThermalizationModel< MODEL >::fpWaterDensity
protected

Definition at line 133 of file G4DNAOneStepThermalizationModel.hh.

template<typename MODEL = DNA::Penetration::Meesungnoen2002>
G4int G4TDNAOneStepThermalizationModel< MODEL >::fVerboseLevel
protected

Definition at line 137 of file G4DNAOneStepThermalizationModel.hh.

The documentation for this class was generated from the following files:
