G4DNAMolecularStepByStepModel Class Reference

#include <G4DNAMolecularStepByStepModel.hh>

Inheritance diagram for G4DNAMolecularStepByStepModel:

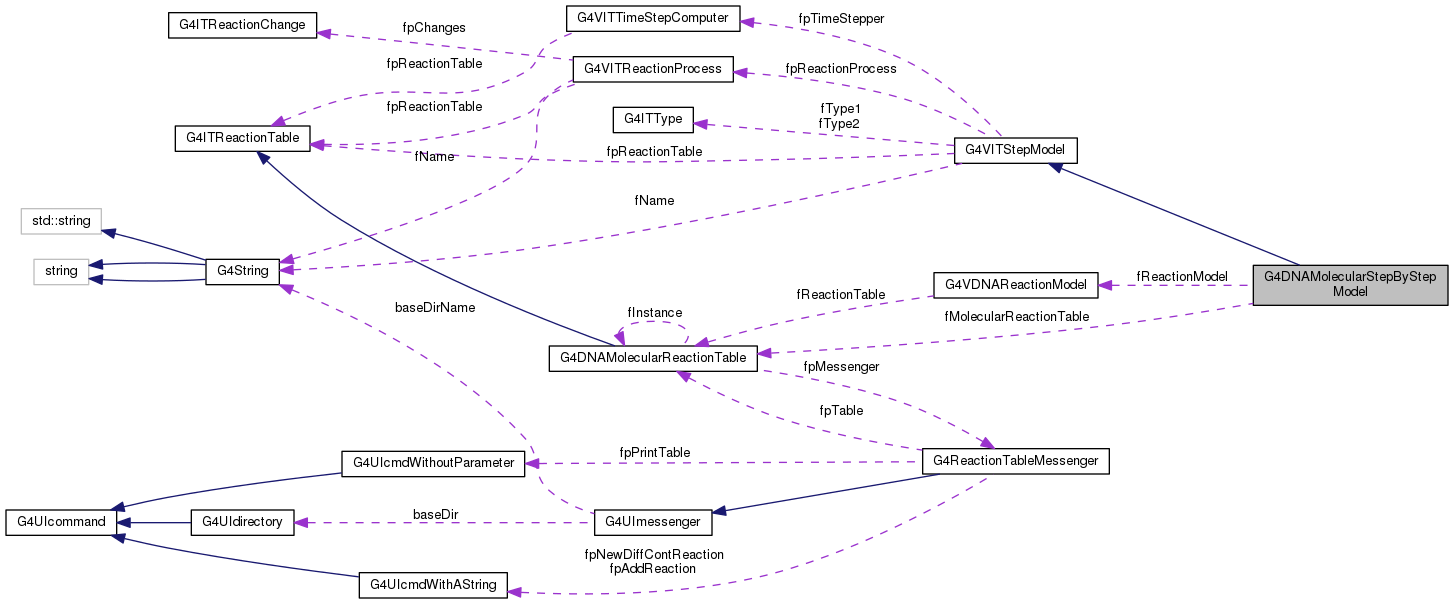

Collaboration diagram for G4DNAMolecularStepByStepModel:

Public Member Functions
	G4DNAMolecularStepByStepModel (const G4String &name="DNAMolecularStepByStepModel")
virtual	~G4DNAMolecularStepByStepModel ()
	G4DNAMolecularStepByStepModel (const G4DNAMolecularStepByStepModel &)
virtual void	PrintInfo ()
virtual void	Initialize ()
void	SetReactionModel (G4VDNAReactionModel *)
G4VDNAReactionModel *	GetReactionModel ()
Public Member Functions inherited from G4VITStepModel
	G4VITStepModel (const G4String &aName="NoName")
virtual	~G4VITStepModel ()
void	IsApplicable (G4ITType &type1, G4ITType &type2)
void	SetTimeStepper (G4VITTimeStepComputer *timeStepper)
void	SetReactionProcess (G4VITReactionProcess *reactionProcess)
G4VITTimeStepComputer *	GetTimeStepper ()
const G4String &	GetName ()
G4VITReactionProcess *	GetReactionProcess ()
void	SetReactionTable (G4ITReactionTable *)
const G4ITReactionTable *	GetReactionTable ()

Protected Attributes
const G4DNAMolecularReactionTable *&	fMolecularReactionTable
G4VDNAReactionModel *	fReactionModel
Protected Attributes inherited from G4VITStepModel
G4String	fName
G4VITTimeStepComputer *	fpTimeStepper
G4VITReactionProcess *	fpReactionProcess
const G4ITReactionTable *	fpReactionTable
G4ITType	fType1
G4ITType	fType2

Additional Inherited Members
Protected Member Functions inherited from G4VITStepModel
	G4VITStepModel (const G4VITStepModel &other)
G4VITStepModel &	operator= (const G4VITStepModel &other)

Detailed Description

G4DNAMolecularStepByStepModel :

• TimeStepper : G4DNAMolecularEncounterStepper
• ReactionProcess : G4DNAMolecularReaction Before each step, the next minimum encounter time is calculated for each pair of molecule. The minimum time step is selected. All the molecules are stepped within this time step. Then, only the relevant pair of molecules are checked for reaction.

Definition at line 69 of file G4DNAMolecularStepByStepModel.hh.

Constructor & Destructor Documentation

G4DNAMolecularStepByStepModel::G4DNAMolecularStepByStepModel

(

const G4String &

name = "DNAMolecularStepByStepModel"

)

Default constructor

Definition at line 40 of file G4DNAMolecularStepByStepModel.cc.

                                                                                 :
    G4VITStepModel(name),
    fMolecularReactionTable(reference_cast<const G4DNAMolecularReactionTable*>(fpReactionTable))
{
  fpTimeStepper = new G4DNAMoleculeEncounterStepper();
  fpReactionProcess = new G4DNAMolecularReaction();

  fType1 = G4Molecule::ITType();
  fType2 = G4Molecule::ITType();
  fReactionModel = 0;
}

G4DNAMolecularStepByStepModel::~G4DNAMolecularStepByStepModel ( )

virtual

Default destructor

Definition at line 52 of file G4DNAMolecularStepByStepModel.cc.

{
  if(fReactionModel) delete fReactionModel;
}

G4DNAMolecularStepByStepModel::G4DNAMolecularStepByStepModel

(

const G4DNAMolecularStepByStepModel &

right

)

Definition at line 69 of file G4DNAMolecularStepByStepModel.cc.

                                                                                                       :
    G4VITStepModel(right),
    fMolecularReactionTable(reference_cast<const G4DNAMolecularReactionTable*>(fpReactionTable))
{
  fpReactionTable = right.fpReactionTable;
  if(right.fReactionModel)
  {
    fReactionModel = right.fReactionModel->Clone();
    ((G4DNAMolecularReaction*) fpReactionProcess)->SetReactionModel(fReactionModel);
    ((G4DNAMoleculeEncounterStepper*) fpTimeStepper)->SetReactionModel(fReactionModel);
  }
  else fReactionModel = 0;
}

Member Function Documentation

G4VDNAReactionModel * G4DNAMolecularStepByStepModel::GetReactionModel ( )

inline

Definition at line 104 of file G4DNAMolecularStepByStepModel.hh.

{
    return fReactionModel;
}

void G4DNAMolecularStepByStepModel::Initialize ( )

virtual

Reimplemented from G4VITStepModel.

Definition at line 83 of file G4DNAMolecularStepByStepModel.cc.

{
  if(fpReactionTable == 0)
  {
    SetReactionTable(G4DNAMolecularReactionTable::GetReactionTable());
  }

  if(fReactionModel == 0)
  {
    fReactionModel = new G4DNASmoluchowskiReactionModel();
  }

  fReactionModel->SetReactionTable((const G4DNAMolecularReactionTable*) fpReactionTable);

  ((G4DNAMolecularReaction*) fpReactionProcess)->SetReactionModel(fReactionModel);
  ((G4DNAMoleculeEncounterStepper*) fpTimeStepper)->SetReactionModel(fReactionModel);

  G4VITStepModel::Initialize();
}

Here is the call graph for this function:

void G4DNAMolecularStepByStepModel::PrintInfo ( )

virtual

Reimplemented from G4VITStepModel.

Definition at line 103 of file G4DNAMolecularStepByStepModel.cc.

{
#ifdef G4VERBOSE
  G4cout << "DNAMolecularStepByStepModel will be used" << G4endl;
#endif
}

void G4DNAMolecularStepByStepModel::SetReactionModel ( G4VDNAReactionModel *  reactionModel )

inline

Definition at line 99 of file G4DNAMolecularStepByStepModel.hh.

{
    fReactionModel = reactionModel;
}

Here is the caller graph for this function:

Member Data Documentation

const G4DNAMolecularReactionTable*& G4DNAMolecularStepByStepModel::fMolecularReactionTable

protected

Definition at line 88 of file G4DNAMolecularStepByStepModel.hh.

G4VDNAReactionModel* G4DNAMolecularStepByStepModel::fReactionModel

protected

Definition at line 89 of file G4DNAMolecularStepByStepModel.hh.

---

The documentation for this class was generated from the following files:

• source/geant4.10.03.p03/source/processes/electromagnetic/dna/models/include/G4DNAMolecularStepByStepModel.hh
• source/geant4.10.03.p03/source/processes/electromagnetic/dna/models/src/G4DNAMolecularStepByStepModel.cc
