G4DNABornExcitationModel2 Class Reference

#include <G4DNABornExcitationModel2.hh>

Inheritance diagram for G4DNABornExcitationModel2:
Inheritance graph
[legend]
Collaboration diagram for G4DNABornExcitationModel2:
Collaboration graph
[legend]

Public Member Functions

 G4DNABornExcitationModel2 (const G4ParticleDefinition *p=0, const G4String &nam="DNABornExcitationModel")

virtual ~G4DNABornExcitationModel2 ()

virtual void Initialise (const G4ParticleDefinition *, const G4DataVector &=*(new G4DataVector()))

virtual G4double CrossSectionPerVolume (const G4Material *material, const G4ParticleDefinition *p, G4double ekin, G4double emin, G4double emax)

virtual G4double GetPartialCrossSection (const G4Material *, G4int level, const G4ParticleDefinition *, G4double kineticEnergy)

virtual void SampleSecondaries (std::vector< G4DynamicParticle * > *, const G4MaterialCutsCouple *, const G4DynamicParticle *, G4double tmin, G4double maxEnergy)

void SelectStationary (G4bool input)

- Public Member Functions inherited from G4VEmModel
 G4VEmModel (const G4String &nam)

virtual ~G4VEmModel ()

virtual void InitialiseLocal (const G4ParticleDefinition *, G4VEmModel *masterModel)

virtual void InitialiseForMaterial (const G4ParticleDefinition *, const G4Material *)

virtual void InitialiseForElement (const G4ParticleDefinition *, G4int Z)

virtual G4double ComputeDEDXPerVolume (const G4Material *, const G4ParticleDefinition *, G4double kineticEnergy, G4double cutEnergy=DBL_MAX)

virtual G4double ComputeCrossSectionPerAtom (const G4ParticleDefinition *, G4double kinEnergy, G4double Z, G4double A=0., G4double cutEnergy=0.0, G4double maxEnergy=DBL_MAX)

virtual G4double ComputeCrossSectionPerShell (const G4ParticleDefinition *, G4int Z, G4int shellIdx, G4double kinEnergy, G4double cutEnergy=0.0, G4double maxEnergy=DBL_MAX)

virtual G4double ChargeSquareRatio (const G4Track &)

virtual G4double GetChargeSquareRatio (const G4ParticleDefinition *, const G4Material *, G4double kineticEnergy)

virtual G4double GetParticleCharge (const G4ParticleDefinition *, const G4Material *, G4double kineticEnergy)

virtual void StartTracking (G4Track *)

virtual void CorrectionsAlongStep (const G4MaterialCutsCouple *, const G4DynamicParticle *, G4double &eloss, G4double &niel, G4double length)

virtual G4double Value (const G4MaterialCutsCouple *, const G4ParticleDefinition *, G4double kineticEnergy)

virtual G4double MinPrimaryEnergy (const G4Material *, const G4ParticleDefinition *, G4double cut=0.0)

virtual G4double MinEnergyCut (const G4ParticleDefinition *, const G4MaterialCutsCouple *)

virtual void SetupForMaterial (const G4ParticleDefinition *, const G4Material *, G4double kineticEnergy)

virtual void DefineForRegion (const G4Region *)

virtual void ModelDescription (std::ostream &outFile) const

void InitialiseElementSelectors (const G4ParticleDefinition *, const G4DataVector &)

std::vector
< G4EmElementSelector * > * 		GetElementSelectors ()

void SetElementSelectors (std::vector< G4EmElementSelector * > *)

virtual G4double ComputeDEDX (const G4MaterialCutsCouple *, const G4ParticleDefinition *, G4double kineticEnergy, G4double cutEnergy=DBL_MAX)

G4double CrossSection (const G4MaterialCutsCouple *, const G4ParticleDefinition *, G4double kineticEnergy, G4double cutEnergy=0.0, G4double maxEnergy=DBL_MAX)

G4double ComputeMeanFreePath (const G4ParticleDefinition *, G4double kineticEnergy, const G4Material *, G4double cutEnergy=0.0, G4double maxEnergy=DBL_MAX)

G4double ComputeCrossSectionPerAtom (const G4ParticleDefinition *, const G4Element *, G4double kinEnergy, G4double cutEnergy=0.0, G4double maxEnergy=DBL_MAX)

G4int SelectIsotopeNumber (const G4Element *)

const G4Element * SelectRandomAtom (const G4MaterialCutsCouple *, const G4ParticleDefinition *, G4double kineticEnergy, G4double cutEnergy=0.0, G4double maxEnergy=DBL_MAX)

const G4Element * SelectRandomAtom (const G4Material *, const G4ParticleDefinition *, G4double kineticEnergy, G4double cutEnergy=0.0, G4double maxEnergy=DBL_MAX)

G4int SelectRandomAtomNumber (const G4Material *)

void SetParticleChange (G4VParticleChange *, G4VEmFluctuationModel *f=nullptr)

void SetCrossSectionTable (G4PhysicsTable *, G4bool isLocal)

G4ElementData * GetElementData ()

G4PhysicsTable * GetCrossSectionTable ()

G4VEmFluctuationModel * GetModelOfFluctuations ()

G4VEmAngularDistribution * GetAngularDistribution ()

void SetAngularDistribution (G4VEmAngularDistribution *)

G4double HighEnergyLimit () const

G4double LowEnergyLimit () const

G4double HighEnergyActivationLimit () const

G4double LowEnergyActivationLimit () const

G4double PolarAngleLimit () const

G4double SecondaryThreshold () const

G4bool LPMFlag () const

G4bool DeexcitationFlag () const

G4bool ForceBuildTableFlag () const

G4bool UseAngularGeneratorFlag () const

void SetAngularGeneratorFlag (G4bool)

void SetHighEnergyLimit (G4double)

void SetLowEnergyLimit (G4double)

void SetActivationHighEnergyLimit (G4double)

void SetActivationLowEnergyLimit (G4double)

G4bool IsActive (G4double kinEnergy)

void SetPolarAngleLimit (G4double)

void SetSecondaryThreshold (G4double)

void SetLPMFlag (G4bool val)

void SetDeexcitationFlag (G4bool val)

void SetForceBuildTable (G4bool val)

void SetFluctuationFlag (G4bool val)

void SetMasterThread (G4bool val)

G4bool IsMaster () const

G4double MaxSecondaryKinEnergy (const G4DynamicParticle *dynParticle)

const G4String & GetName () const

void SetCurrentCouple (const G4MaterialCutsCouple *)

const G4Element * GetCurrentElement () const

const G4Isotope * GetCurrentIsotope () const

G4bool IsLocked () const

void SetLocked (G4bool)


Protected Attributes

G4ParticleChangeForGamma * fParticleChangeForGamma

- Protected Attributes inherited from G4VEmModel
G4ElementData * fElementData

G4VParticleChange * pParticleChange

G4PhysicsTable * xSectionTable

const std::vector< G4double > * theDensityFactor

const std::vector< G4int > * theDensityIdx

size_t idxTable

G4bool lossFlucFlag


Additional Inherited Members

- Protected Member Functions inherited from G4VEmModel
G4ParticleChangeForLoss * GetParticleChangeForLoss ()

G4ParticleChangeForGamma * GetParticleChangeForGamma ()

virtual G4double MaxSecondaryEnergy (const G4ParticleDefinition *, G4double kineticEnergy)

const G4MaterialCutsCouple * CurrentCouple () const

void SetCurrentElement (const G4Element *)

- Static Protected Attributes inherited from G4VEmModel
static const G4double inveplus = 1.0/CLHEP::eplus


Detailed Description

Definition at line 45 of file G4DNABornExcitationModel2.hh.

Constructor & Destructor Documentation

G4DNABornExcitationModel2::G4DNABornExcitationModel2 ( const G4ParticleDefinition *  p = 0,
const G4String &  nam = "DNABornExcitationModel"
)

Definition at line 44 of file G4DNABornExcitationModel2.cc.

45  :
46  G4VEmModel(nam), isInitialised(false), fTableData(0)
47 {
48  fpMolWaterDensity = 0;
49  fHighEnergy = 0;
50  fLowEnergy = 0;
51  fParticleDefinition = 0;
52
53  verboseLevel = 0;
54  // Verbosity scale:
55  // 0 = nothing
56  // 1 = warning for energy non-conservation
57  // 2 = details of energy budget
58  // 3 = calculation of cross sections, file openings, sampling of atoms
59  // 4 = entering in methods
60
61  if (verboseLevel > 0)
62  {
63  G4cout << "Born excitation model is constructed " << G4endl;
64  }
65  fParticleChangeForGamma = 0;
66  fLastBinCallForFinalXS = 0;
67  fTotalXS = 0;
68  fTableData = 0;
69
70  // Selection of stationary mode
71
72  statCode = false;
73 }
G4VEmModel::G4VEmModel
G4VEmModel(const G4String &nam)
Definition: G4VEmModel.cc:68
G4cout
G4GLOB_DLL std::ostream G4cout
G4endl
#define G4endl
Definition: G4ios.hh:61
G4DNABornExcitationModel2::fParticleChangeForGamma
G4ParticleChangeForGamma * fParticleChangeForGamma
Definition: G4DNABornExcitationModel2.hh:77
G4DNABornExcitationModel2::~G4DNABornExcitationModel2 ( )
virtual

Definition at line 77 of file G4DNABornExcitationModel2.cc.

78 {
79  // Cross section
80  if (fTableData)
81  delete fTableData;
82 }

Member Function Documentation

G4double G4DNABornExcitationModel2::CrossSectionPerVolume ( const G4Material *  material,
const G4ParticleDefinition *  p,
G4double  ekin,
G4double  emin,
G4double  emax
)
virtual

Reimplemented from G4VEmModel.

Definition at line 188 of file G4DNABornExcitationModel2.cc.

193 {
194  if (verboseLevel > 3)
195  {
196  G4cout << "Calling CrossSectionPerVolume() of G4DNABornExcitationModel2"
197  << G4endl;
198  }
199
200  if(particleDefinition != fParticleDefinition) return 0;
201
202  // Calculate total cross section for model
203
204  G4double sigma=0;
205
206  G4double waterDensity = (*fpMolWaterDensity)[material->GetIndex()];
207
208  if(waterDensity!= 0.0)
209  {
210  if (ekin >= fLowEnergy && ekin < fHighEnergy)
211  {
212  sigma = fTotalXS->Value(ekin, fLastBinCallForFinalXS);
213
214 // for(size_t i = 0; i < 5; ++i)
215 // sigma += (*fTableData)[i]->Value(ekin);
216
217  if(sigma == 0)
218  {
219  G4cerr << "PROBLEM SIGMA = 0 at " << G4BestUnit(ekin, "Energy")<< G4endl;
220  }
221  }
222
223  if (verboseLevel > 2)
224  {
225  G4cout << "__________________________________" << G4endl;
226  G4cout << "G4DNABornExcitationModel2 - XS INFO START" << G4endl;
227  G4cout << "Kinetic energy(eV)=" << ekin/eV << " particle : " << particleDefinition->GetParticleName() << G4endl;
228  G4cout << "Cross section per water molecule (cm^2)=" << sigma/cm/cm << G4endl;
229  G4cout << "Cross section per water molecule (cm^-1)=" << sigma*waterDensity/(1./cm) << G4endl;
230  G4cout << "G4DNABornExcitationModel2 - XS INFO END" << G4endl;
231  }
232  } // if (waterMaterial)
233  else
234  {
235  G4cerr << "PROBLEM NO WATER MATERIAL ?" << G4endl;
236  }
237
238  return sigma*waterDensity;
239 }
G4Material::GetIndex
size_t GetIndex() const
Definition: G4Material.hh:262
G4BestUnit
#define G4BestUnit(a, b)
#define G4_USE_G4BESTUNIT_FOR_VERBOSE 1
Definition: G4SteppingVerbose.cc:53
G4cout
G4GLOB_DLL std::ostream G4cout
cm
static constexpr double cm
Definition: G4SIunits.hh:119
eV
static constexpr double eV
Definition: G4SIunits.hh:215
G4PhysicsVector::Value
G4double Value(G4double theEnergy, size_t &lastidx) const
Definition: G4PhysicsVector.cc:498
G4endl
#define G4endl
Definition: G4ios.hh:61
G4double
double G4double
Definition: G4Types.hh:76
G4cerr
G4GLOB_DLL std::ostream G4cerr

Here is the call graph for this function:

G4double G4DNABornExcitationModel2::GetPartialCrossSection ( const G4Material *  ,
G4int  level,
const G4ParticleDefinition *  particle,
G4double  kineticEnergy
)
virtual

Reimplemented from G4VEmModel.

Definition at line 280 of file G4DNABornExcitationModel2.cc.

284 {
285  if (fParticleDefinition != particle)
286  {
287  G4Exception("G4DNABornExcitationModel2::GetPartialCrossSection",
288  "bornParticleType",
289  FatalException,
290  "Model initialized for another particle type.");
291  }
292
293  return (*fTableData)(level)->Value(kineticEnergy);
294 }
G4Exception
void G4Exception(const char *originOfException, const char *exceptionCode, G4ExceptionSeverity severity, const char *comments)
Definition: G4Exception.cc:41
FatalException
Definition: G4ExceptionSeverity.hh:60
G4VEmModel::Value
virtual G4double Value(const G4MaterialCutsCouple *, const G4ParticleDefinition *, G4double kineticEnergy)
Definition: G4VEmModel.cc:377

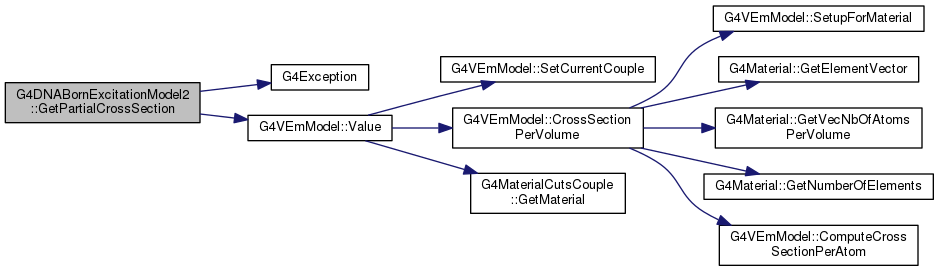

Here is the call graph for this function:

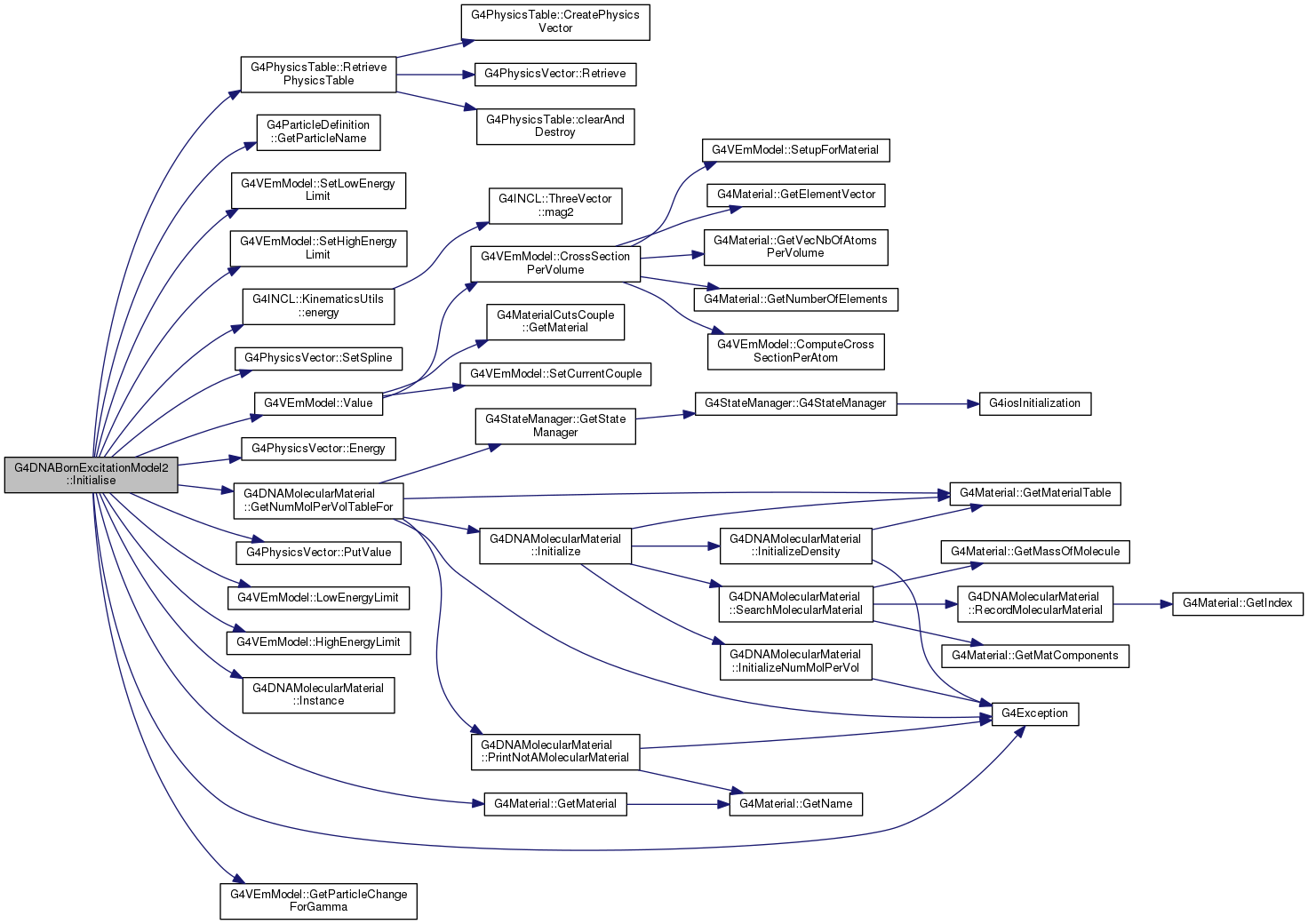

void G4DNABornExcitationModel2::Initialise ( const G4ParticleDefinition *  particle,
const G4DataVector &  = *(new G4DataVector())
)
virtual

Implements G4VEmModel.

Definition at line 86 of file G4DNABornExcitationModel2.cc.

88 {
89
90  if (verboseLevel > 3)
91  {
92  G4cout << "Calling G4DNABornExcitationModel2::Initialise()" << G4endl;
93  }
94
95  if(fParticleDefinition != 0 && fParticleDefinition != particle)
96  {
97  G4Exception("G4DNABornExcitationModel2::Initialise","em0001",
98  FatalException,"Model already initialized for another particle type.");
99  }
100
101  fParticleDefinition = particle;
102
103  std::ostringstream fullFileName;
104  char *path = getenv("G4LEDATA");
105
106  if(G4String(path) == "")
107  {
108  G4Exception("G4DNABornExcitationModel2::Initialise","G4LEDATA-CHECK",
109  FatalException, "G4LEDATA not defined in environment variables");
110  }
111
112  fullFileName << path;
113
114  if(particle->GetParticleName() == "e-")
115  {
116  fullFileName << "/dna/bornExcitation-e.dat";
117  fLowEnergy = 9*eV;
118  fHighEnergy = 1*MeV;
119  }
120  else if(particle->GetParticleName() == "proton")
121  {
122  fullFileName << "/dna/bornExcitation-p.dat";
123  fLowEnergy = 500. * keV;
124  fHighEnergy = 100. * MeV;
125  }
126
127  SetLowEnergyLimit(fLowEnergy);
128  SetHighEnergyLimit(fHighEnergy);
129
130 // G4double scaleFactor = (1.e-22 / 3.343) * m*m;
131
132  fTableData = new G4PhysicsTable();
133  fTableData->RetrievePhysicsTable(fullFileName.str().c_str(), true);
134  for(size_t level = 0; level<fTableData->size(); ++level)
135  {
136 // (*fTableData)(level)->ScaleVector(1,scaleFactor);
137  (*fTableData)(level)->SetSpline(true);
138  }
139
140  size_t finalBin_i = 2000;
141  G4double E_min = fLowEnergy;
142  G4double E_max = fHighEnergy;
143  fTotalXS = new G4PhysicsLogVector(E_min, E_max, finalBin_i);
144  fTotalXS->SetSpline(true);
145  G4double energy;
146  G4double finalXS;
147
148  for(size_t energy_i = 0; energy_i < finalBin_i; ++energy_i)
149  {
150  energy = fTotalXS->Energy(energy_i);
151  finalXS = 0;
152
153  for(size_t level = 0; level<fTableData->size(); ++level)
154  {
155  finalXS += (*fTableData)(level)->Value(energy);
156  }
157  fTotalXS->PutValue(energy_i, finalXS);
158 // G4cout << "energy = " << energy << " " << fTotalXS->Value(energy)
159 // << " " << energy_i << " " << finalXS << G4endl;
160  }
161
162 // for(energy = LowEnergyLimit() ; energy < HighEnergyLimit() ; energy += 1*pow(10,log10(energy)))
163 // {
164 // G4cout << "energy = " << energy << " " << fTotalXS->Value(energy) << G4endl;
165 // }
166
167  if( verboseLevel>0 )
168  {
169  G4cout << "Born excitation model is initialized " << G4endl
170  << "Energy range: "
171  << LowEnergyLimit() / eV << " eV - "
172  << HighEnergyLimit() / keV << " keV for "
173  << particle->GetParticleName()
174  << G4endl;
175  }
176
177  // Initialize water density pointer
178  fpMolWaterDensity = G4DNAMolecularMaterial::Instance()->GetNumMolPerVolTableFor(G4Material::GetMaterial("G4_WATER"));
179
180  if (isInitialised)
181  { return;}
182  fParticleChangeForGamma = GetParticleChangeForGamma();
183  isInitialised = true;
184 }
G4VEmModel::LowEnergyLimit
G4double LowEnergyLimit() const
Definition: G4VEmModel.hh:643
G4PhysicsTable::RetrievePhysicsTable
G4bool RetrievePhysicsTable(const G4String &filename, G4bool ascii=false)
Definition: G4PhysicsTable.cc:166
G4VEmModel::HighEnergyLimit
G4double HighEnergyLimit() const
Definition: G4VEmModel.hh:636
G4Material::GetMaterial
static G4Material * GetMaterial(const G4String &name, G4bool warning=true)
Definition: G4Material.cc:602
G4ParticleDefinition::GetParticleName
const G4String & GetParticleName() const
Definition: G4ParticleDefinition.hh:120
G4PhysicsVector::SetSpline
void SetSpline(G4bool)
G4VEmModel::SetHighEnergyLimit
void SetHighEnergyLimit(G4double)
Definition: G4VEmModel.hh:732
G4cout
G4GLOB_DLL std::ostream G4cout
G4DNAMolecularMaterial::GetNumMolPerVolTableFor
const std::vector< double > * GetNumMolPerVolTableFor(const G4Material *) const
Definition: G4DNAMolecularMaterial.cc:437
G4PhysicsVector::PutValue
void PutValue(size_t index, G4double theValue)
eV
static constexpr double eV
Definition: G4SIunits.hh:215
G4PhysicsVector::Energy
G4double Energy(size_t index) const
G4Exception
void G4Exception(const char *originOfException, const char *exceptionCode, G4ExceptionSeverity severity, const char *comments)
Definition: G4Exception.cc:41
G4DNAMolecularMaterial::Instance
static G4DNAMolecularMaterial * Instance()
Definition: G4DNAMolecularMaterial.cc:75
G4INCL::KinematicsUtils::energy
G4double energy(const ThreeVector &p, const G4double m)
Definition: G4INCLKinematicsUtils.cc:157
FatalException
Definition: G4ExceptionSeverity.hh:60
G4endl
#define G4endl
Definition: G4ios.hh:61
MeV
static constexpr double MeV
Definition: G4SIunits.hh:214
G4double
double G4double
Definition: G4Types.hh:76
G4VEmModel::SetLowEnergyLimit
void SetLowEnergyLimit(G4double)
Definition: G4VEmModel.hh:739
keV
static constexpr double keV
Definition: G4SIunits.hh:216
G4VEmModel::GetParticleChangeForGamma
G4ParticleChangeForGamma * GetParticleChangeForGamma()
Definition: G4VEmModel.cc:132
G4VEmModel::Value
virtual G4double Value(const G4MaterialCutsCouple *, const G4ParticleDefinition *, G4double kineticEnergy)
Definition: G4VEmModel.cc:377
G4DNABornExcitationModel2::fParticleChangeForGamma
G4ParticleChangeForGamma * fParticleChangeForGamma
Definition: G4DNABornExcitationModel2.hh:77

Here is the call graph for this function:

void G4DNABornExcitationModel2::SampleSecondaries ( std::vector< G4DynamicParticle * > *  ,
const G4MaterialCutsCouple *  ,
const G4DynamicParticle *  aDynamicParticle,
G4double  tmin,
G4double  maxEnergy
)
virtual

Implements G4VEmModel.

Definition at line 243 of file G4DNABornExcitationModel2.cc.

248 {
249
250  if (verboseLevel > 3)
251  {
252  G4cout << "Calling SampleSecondaries() of G4DNABornExcitationModel2"
253  << G4endl;
254  }
255
256  G4double k = aDynamicParticle->GetKineticEnergy();
257
258  G4int level = RandomSelect(k);
259  G4double excitationEnergy = waterStructure.ExcitationEnergy(level);
260  G4double newEnergy = k - excitationEnergy;
261
262  if (newEnergy > 0)
263  {
264  fParticleChangeForGamma->ProposeMomentumDirection(aDynamicParticle->GetMomentumDirection());
265
266  if (!statCode) fParticleChangeForGamma->SetProposedKineticEnergy(newEnergy);
267  else fParticleChangeForGamma->SetProposedKineticEnergy(k);
268
269  fParticleChangeForGamma->ProposeLocalEnergyDeposit(excitationEnergy);
270  }
271
272  const G4Track * theIncomingTrack = fParticleChangeForGamma->GetCurrentTrack();
273  G4DNAChemistryManager::Instance()->CreateWaterMolecule(eExcitedMolecule,
274  level,
275  theIncomingTrack);
276 }
G4DynamicParticle::GetKineticEnergy
G4double GetKineticEnergy() const
G4int
int G4int
Definition: G4Types.hh:78
G4ParticleChangeForGamma::ProposeMomentumDirection
void ProposeMomentumDirection(G4double Px, G4double Py, G4double Pz)
Definition: G4ParticleChangeForGamma.hh:147
G4VParticleChange::ProposeLocalEnergyDeposit
void ProposeLocalEnergyDeposit(G4double anEnergyPart)
G4cout
G4GLOB_DLL std::ostream G4cout
G4DynamicParticle::GetMomentumDirection
const G4ThreeVector & GetMomentumDirection() const
G4DNAChemistryManager::Instance
static G4DNAChemistryManager * Instance()
Definition: G4DNAChemistryManager.cc:117
G4DNAChemistryManager::CreateWaterMolecule
void CreateWaterMolecule(ElectronicModification, G4int, const G4Track *)
Definition: G4DNAChemistryManager.cc:572
eExcitedMolecule
Definition: G4DNAChemistryManager.hh:71
G4ParticleChangeForGamma::GetCurrentTrack
const G4Track * GetCurrentTrack() const
Definition: G4ParticleChangeForGamma.hh:154
G4ParticleChangeForGamma::SetProposedKineticEnergy
void SetProposedKineticEnergy(G4double proposedKinEnergy)
Definition: G4ParticleChangeForGamma.hh:129
G4endl
#define G4endl
Definition: G4ios.hh:61
G4double
double G4double
Definition: G4Types.hh:76
G4DNABornExcitationModel2::fParticleChangeForGamma
G4ParticleChangeForGamma * fParticleChangeForGamma
Definition: G4DNABornExcitationModel2.hh:77

Here is the call graph for this function:

void G4DNABornExcitationModel2::SelectStationary ( G4bool  input)
inline

Definition at line 109 of file G4DNABornExcitationModel2.hh.

110 {
111  statCode = input;
112 }

Member Data Documentation

G4ParticleChangeForGamma* G4DNABornExcitationModel2::fParticleChangeForGamma
protected

Definition at line 77 of file G4DNABornExcitationModel2.hh.

The documentation for this class was generated from the following files:
