CLHEP::HepBoost Class Reference

#include <Boost.h>

Collaboration diagram for CLHEP::HepBoost:
Collaboration graph
[legend]

Public Member Functions

 HepBoost ()

 HepBoost (const HepBoost &m)

HepBoost & operator= (const HepBoost &m)

HepBoost & set (double betaX, double betaY, double betaZ)

 HepBoost (double betaX, double betaY, double betaZ)

HepBoost & set (const HepRep4x4Symmetric &m)

 HepBoost (const HepRep4x4Symmetric &m)

HepBoost & set (Hep3Vector direction, double beta)

 HepBoost (Hep3Vector direction, double beta)

HepBoost & set (const Hep3Vector &boost)

 HepBoost (const Hep3Vector &boost)

HepBoost & set (const HepBoostX &boost)

HepBoost & set (const HepBoostY &boost)

HepBoost & set (const HepBoostZ &boost)

 HepBoost (const HepBoostX &boost)

 HepBoost (const HepBoostY &boost)

 HepBoost (const HepBoostZ &boost)

double beta () const

double gamma () const

Hep3Vector boostVector () const

Hep3Vector getDirection () const

Hep3Vector direction () const

double xx () const

double xy () const

double xz () const

double xt () const

double yx () const

double yy () const

double yz () const

double yt () const

double zx () const

double zy () const

double zz () const

double zt () const

double tx () const

double ty () const

double tz () const

double tt () const

HepLorentzVector col1 () const

HepLorentzVector col2 () const

HepLorentzVector col3 () const

HepLorentzVector col4 () const

HepLorentzVector row1 () const

HepLorentzVector row2 () const

HepLorentzVector row3 () const

HepLorentzVector row4 () const

HepRep4x4 rep4x4 () const

HepRep4x4Symmetric rep4x4Symmetric () const

void decompose (HepRotation &rotation, HepBoost &boost) const

void decompose (HepAxisAngle &rotation, Hep3Vector &boost) const

void decompose (HepBoost &boost, HepRotation &rotation) const

void decompose (Hep3Vector &boost, HepAxisAngle &rotation) const

int compare (const HepBoost &b) const

bool operator== (const HepBoost &b) const

bool operator!= (const HepBoost &b) const

bool operator<= (const HepBoost &b) const

bool operator>= (const HepBoost &b) const

bool operator< (const HepBoost &b) const

bool operator> (const HepBoost &b) const

bool isIdentity () const

double distance2 (const HepBoost &b) const

double distance2 (const HepBoostX &bx) const

double distance2 (const HepBoostY &by) const

double distance2 (const HepBoostZ &bz) const

double distance2 (const HepRotation &r) const

double distance2 (const HepLorentzRotation &lt) const

double howNear (const HepBoost &b) const

bool isNear (const HepBoost &b, double epsilon=Hep4RotationInterface::tolerance) const

double howNear (const HepRotation &r) const

double howNear (const HepLorentzRotation &lt) const

bool isNear (const HepRotation &r, double epsilon=Hep4RotationInterface::tolerance) const

bool isNear (const HepLorentzRotation &lt, double epsilon=Hep4RotationInterface::tolerance) const

double norm2 () const

void rectify ()

HepLorentzVector operator() (const HepLorentzVector &p) const

HepLorentzVector operator* (const HepLorentzVector &p) const

HepLorentzRotation operator* (const HepBoost &b) const

HepLorentzRotation operator* (const HepRotation &r) const

HepLorentzRotation operator* (const HepLorentzRotation &lt) const

HepBoost inverse () const

HepBoost & invert ()

std::ostream & print (std::ostream &os) const


Static Public Member Functions

static double getTolerance ()

static double setTolerance (double tol)


Protected Member Functions

HepLorentzVector vectorMultiplication (const HepLorentzVector &w) const

HepLorentzRotation matrixMultiplication (const HepRep4x4 &m) const

HepLorentzRotation matrixMultiplication (const HepRep4x4Symmetric &m) const

 HepBoost (double xx, double xy, double xz, double xt, double yy, double yz, double yt, double zz, double zt, double tt)

void setBoost (double bx, double by, double bz)


Protected Attributes

HepRep4x4Symmetric rep_


Friends

HepBoost inverseOf (const HepBoost &lt)


Detailed Description

Author

Definition at line 42 of file Boost.h.

Constructor & Destructor Documentation

CLHEP::HepBoost::HepBoost ( )
inline

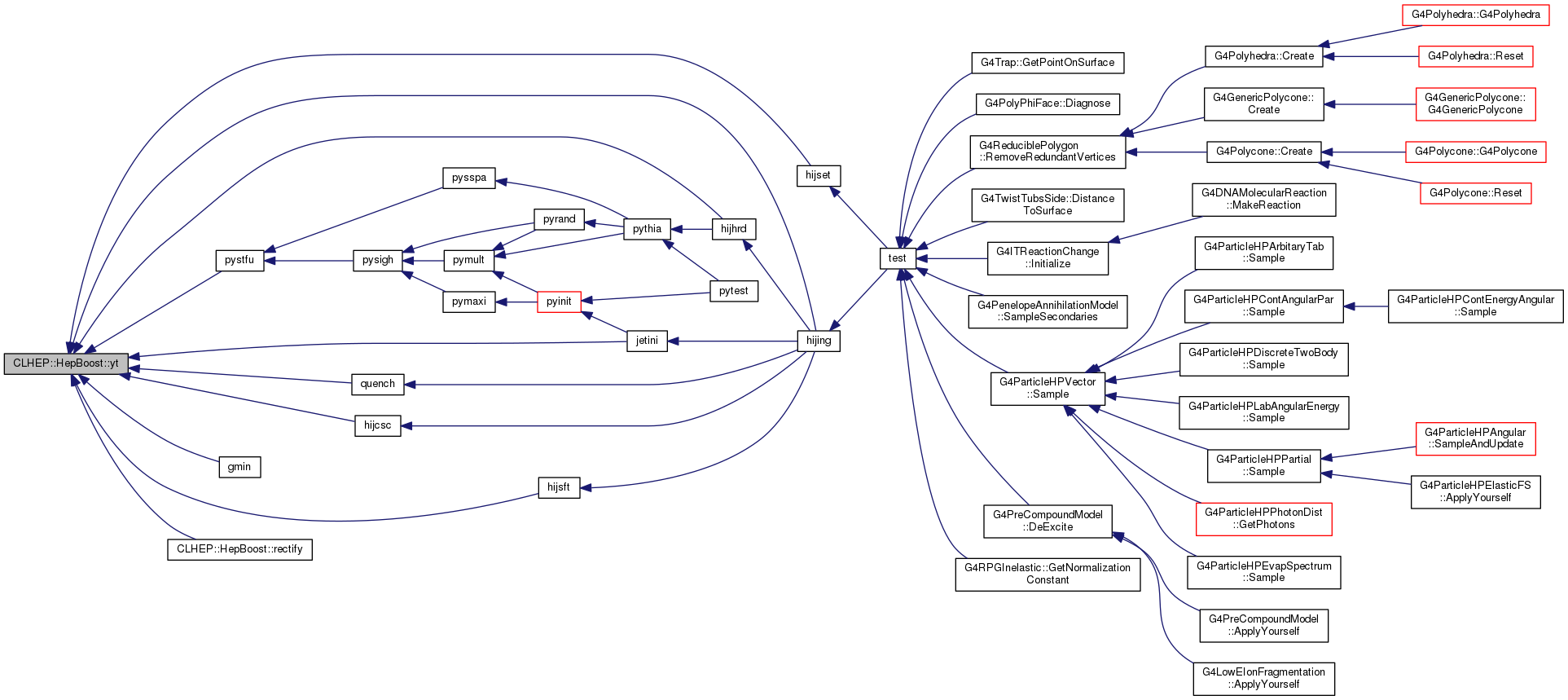

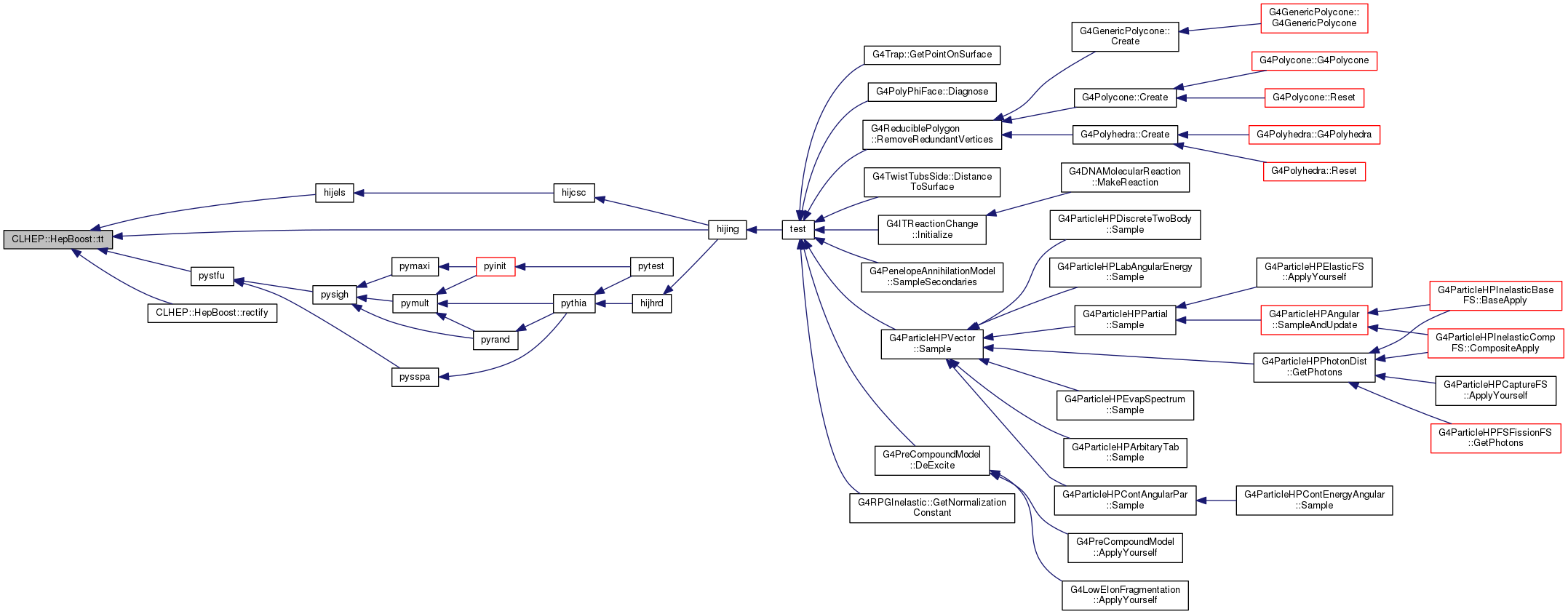

Here is the caller graph for this function:

CLHEP::HepBoost::HepBoost ( const HepBoost &  m)
inline
CLHEP::HepBoost::HepBoost ( double  betaX,
double  betaY,
double  betaZ
)
inline
CLHEP::HepBoost::HepBoost ( const HepRep4x4Symmetric &  m)
inline
CLHEP::HepBoost::HepBoost ( Hep3Vector  direction,
double  beta
)
inline
CLHEP::HepBoost::HepBoost ( const Hep3Vector &  boost)
inline
CLHEP::HepBoost::HepBoost ( const HepBoostX &  boost)
inline
CLHEP::HepBoost::HepBoost ( const HepBoostY &  boost)
inline
CLHEP::HepBoost::HepBoost ( const HepBoostZ &  boost)
inline
CLHEP::HepBoost::HepBoost ( double  xx,
double  xy,
double  xz,
double  xt,
double  yy,
double  yz,
double  yt,
double  zz,
double  zt,
double  tt
)
inlineprotected

Member Function Documentation

double CLHEP::HepBoost::beta ( ) const
inline

Here is the caller graph for this function:

Hep3Vector CLHEP::HepBoost::boostVector ( ) const
inline

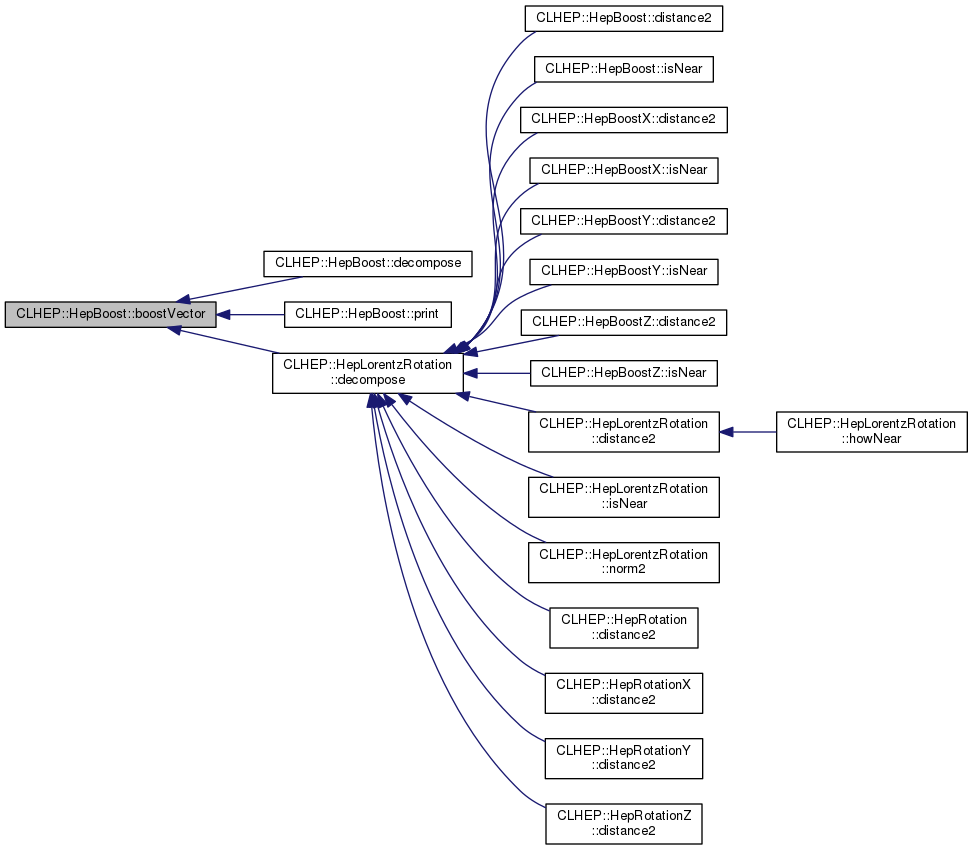

Here is the caller graph for this function:

HepLorentzVector CLHEP::HepBoost::col1 ( ) const
inline
HepLorentzVector CLHEP::HepBoost::col2 ( ) const
inline
HepLorentzVector CLHEP::HepBoost::col3 ( ) const
inline
HepLorentzVector CLHEP::HepBoost::col4 ( ) const
inline
int CLHEP::HepBoost::compare ( const HepBoost &  b) const
inline
void CLHEP::HepBoost::decompose ( HepRotation &  rotation,
HepBoost &  boost
) const

Definition at line 69 of file Boost.cc.

69  {
70  HepAxisAngle vdelta = HepAxisAngle();
71  rotation = HepRotation(vdelta);
72  Hep3Vector bbeta = boostVector();
73  boost = HepBoost(bbeta);
74 }
CLHEP::HepBoost::boostVector
Hep3Vector boostVector() const

Here is the call graph for this function:

void CLHEP::HepBoost::decompose ( HepAxisAngle &  rotation,
Hep3Vector &  boost
) const

Definition at line 76 of file Boost.cc.

76  {
77  rotation = HepAxisAngle();
78  boost = boostVector();
79 }
CLHEP::HepBoost::boostVector
Hep3Vector boostVector() const

Here is the call graph for this function:

void CLHEP::HepBoost::decompose ( HepBoost &  boost,
HepRotation &  rotation
) const

Definition at line 81 of file Boost.cc.

81  {
82  HepAxisAngle vdelta = HepAxisAngle();
83  rotation = HepRotation(vdelta);
84  Hep3Vector bbeta = boostVector();
85  boost = HepBoost(bbeta);
86 }
CLHEP::HepBoost::boostVector
Hep3Vector boostVector() const

Here is the call graph for this function:

void CLHEP::HepBoost::decompose ( Hep3Vector &  boost,
HepAxisAngle &  rotation
) const

Definition at line 88 of file Boost.cc.

88  {
89  rotation = HepAxisAngle();
90  boost = boostVector();
91 }
CLHEP::HepBoost::boostVector
Hep3Vector boostVector() const

Here is the call graph for this function:

Hep3Vector CLHEP::HepBoost::direction ( ) const
inline
double CLHEP::HepBoost::distance2 ( const HepBoost &  b) const
inline

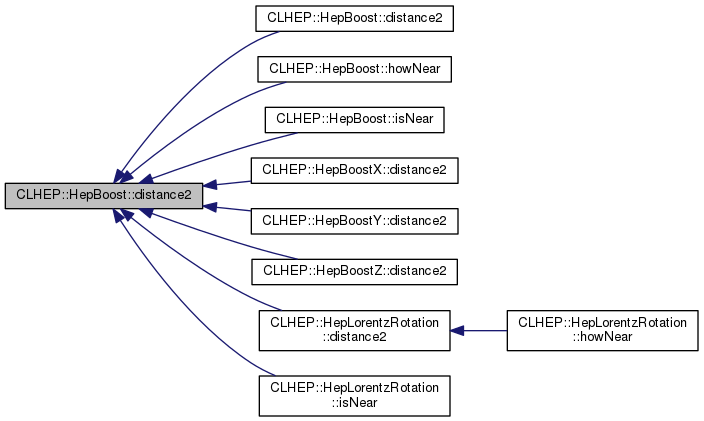

Here is the caller graph for this function:

double CLHEP::HepBoost::distance2 ( const HepBoostX &  bx) const
inline
double CLHEP::HepBoost::distance2 ( const HepBoostY &  by) const
inline
double CLHEP::HepBoost::distance2 ( const HepBoostZ &  bz) const
inline

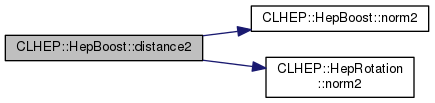

double CLHEP::HepBoost::distance2 ( const HepRotation &  r) const

Definition at line 95 of file Boost.cc.

95  {
96  double db2 = norm2();
97  double dr2 = r.norm2();
98  return (db2 + dr2);
99 }
CLHEP::HepBoost::norm2
double norm2() const
Definition: Boost.cc:138

Here is the call graph for this function:

double CLHEP::HepBoost::distance2 ( const HepLorentzRotation &  lt) const

Definition at line 101 of file Boost.cc.

101  {
102  HepBoost b1;
103  HepRotation r1;
104  lt.decompose(b1,r1);
105  double db2 = distance2(b1);
106  double dr2 = r1.norm2();
107  return (db2 + dr2);
108 }
CLHEP::HepBoost::distance2
double distance2(const HepBoost &b) const

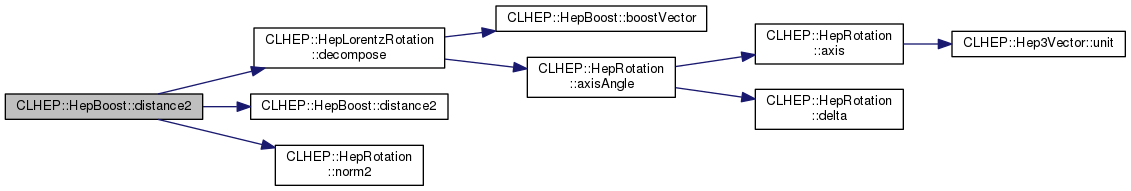

Here is the call graph for this function:

double CLHEP::HepBoost::gamma ( ) const
inline

Here is the caller graph for this function:

Hep3Vector CLHEP::HepBoost::getDirection ( ) const
inline
static double CLHEP::HepBoost::getTolerance ( )
inlinestatic
double CLHEP::HepBoost::howNear ( const HepBoost &  b) const
inline
double CLHEP::HepBoost::howNear ( const HepRotation &  r) const

Definition at line 110 of file Boost.cc.

110  {
111  return std::sqrt(distance2(r));
112 }
CLHEP::HepBoost::distance2
double distance2(const HepBoost &b) const

Here is the call graph for this function:

double CLHEP::HepBoost::howNear ( const HepLorentzRotation &  lt) const

Definition at line 114 of file Boost.cc.

114  {
115  return std::sqrt(distance2(lt));
116 }
CLHEP::HepBoost::distance2
double distance2(const HepBoost &b) const

Here is the call graph for this function:

HepBoost CLHEP::HepBoost::inverse ( ) const
inline
HepBoost& CLHEP::HepBoost::invert ( )
inline
bool CLHEP::HepBoost::isIdentity ( ) const
inline
bool CLHEP::HepBoost::isNear ( const HepBoost &  b,
double  epsilon = Hep4RotationInterface::tolerance
) const
inline
bool CLHEP::HepBoost::isNear ( const HepRotation &  r,
double  epsilon = Hep4RotationInterface::tolerance
) const

Definition at line 118 of file Boost.cc.

118  {
119  double db2 = norm2();
120  if (db2 > epsilon*epsilon) return false;
121  double dr2 = r.norm2();
122  return (db2+dr2 <= epsilon*epsilon);
123 }
CLHEP::HepBoost::norm2
double norm2() const
Definition: Boost.cc:138
epsilon
double epsilon(double density, double temperature)
Definition: G4DNAElectronHoleRecombination.cc:96

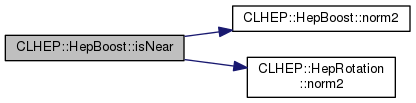

Here is the call graph for this function:

bool CLHEP::HepBoost::isNear ( const HepLorentzRotation &  lt,
double  epsilon = Hep4RotationInterface::tolerance
) const

Definition at line 125 of file Boost.cc.

126  {
127  HepBoost b1;
128  HepRotation r1;
129  double db2 = distance2(b1);
130  lt.decompose(b1,r1);
131  if (db2 > epsilon*epsilon) return false;
132  double dr2 = r1.norm2();
133  return (db2 + dr2);
134 }
CLHEP::HepBoost::distance2
double distance2(const HepBoost &b) const
epsilon
double epsilon(double density, double temperature)
Definition: G4DNAElectronHoleRecombination.cc:96

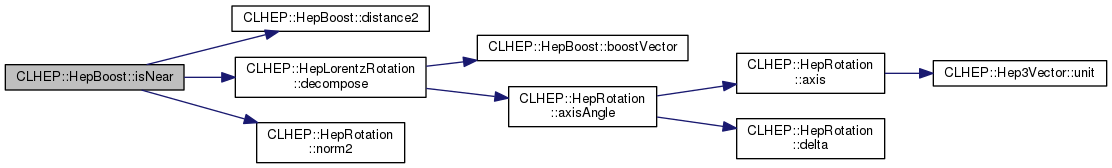

Here is the call graph for this function:

HepLorentzRotation CLHEP::HepBoost::matrixMultiplication ( const HepRep4x4 &  m) const
protected

Definition at line 180 of file Boost.cc.

180  {
181  HepRep4x4Symmetric r = rep4x4Symmetric();
182  return HepLorentzRotation( HepRep4x4 (
183  r.xx_*m1.xx_ + r.xy_*m1.yx_ + r.xz_*m1.zx_ + r.xt_*m1.tx_,
184  r.xx_*m1.xy_ + r.xy_*m1.yy_ + r.xz_*m1.zy_ + r.xt_*m1.ty_,
185  r.xx_*m1.xz_ + r.xy_*m1.yz_ + r.xz_*m1.zz_ + r.xt_*m1.tz_,
186  r.xx_*m1.xt_ + r.xy_*m1.yt_ + r.xz_*m1.zt_ + r.xt_*m1.tt_,
187
188  r.xy_*m1.xx_ + r.yy_*m1.yx_ + r.yz_*m1.zx_ + r.yt_*m1.tx_,
189  r.xy_*m1.xy_ + r.yy_*m1.yy_ + r.yz_*m1.zy_ + r.yt_*m1.ty_,
190  r.xy_*m1.xz_ + r.yy_*m1.yz_ + r.yz_*m1.zz_ + r.yt_*m1.tz_,
191  r.xy_*m1.xt_ + r.yy_*m1.yt_ + r.yz_*m1.zt_ + r.yt_*m1.tt_,
192
193  r.xz_*m1.xx_ + r.yz_*m1.yx_ + r.zz_*m1.zx_ + r.zt_*m1.tx_,
194  r.xz_*m1.xy_ + r.yz_*m1.yy_ + r.zz_*m1.zy_ + r.zt_*m1.ty_,
195  r.xz_*m1.xz_ + r.yz_*m1.yz_ + r.zz_*m1.zz_ + r.zt_*m1.tz_,
196  r.xz_*m1.xt_ + r.yz_*m1.yt_ + r.zz_*m1.zt_ + r.zt_*m1.tt_,
197
198  r.xt_*m1.xx_ + r.yt_*m1.yx_ + r.zt_*m1.zx_ + r.tt_*m1.tx_,
199  r.xt_*m1.xy_ + r.yt_*m1.yy_ + r.zt_*m1.zy_ + r.tt_*m1.ty_,
200  r.xt_*m1.xz_ + r.yt_*m1.yz_ + r.zt_*m1.zz_ + r.tt_*m1.tz_,
201  r.xt_*m1.xt_ + r.yt_*m1.yt_ + r.zt_*m1.zt_ + r.tt_*m1.tt_) );
202 }
CLHEP::HepBoost::rep4x4Symmetric
HepRep4x4Symmetric rep4x4Symmetric() const

Here is the call graph for this function:

Here is the caller graph for this function:

HepLorentzRotation CLHEP::HepBoost::matrixMultiplication ( const HepRep4x4Symmetric &  m) const
protected

Definition at line 205 of file Boost.cc.

205  {
206  HepRep4x4Symmetric r = rep4x4Symmetric();
207  return HepLorentzRotation( HepRep4x4 (
208  r.xx_*m1.xx_ + r.xy_*m1.xy_ + r.xz_*m1.xz_ + r.xt_*m1.xt_,
209  r.xx_*m1.xy_ + r.xy_*m1.yy_ + r.xz_*m1.yz_ + r.xt_*m1.yt_,
210  r.xx_*m1.xz_ + r.xy_*m1.yz_ + r.xz_*m1.zz_ + r.xt_*m1.zt_,
211  r.xx_*m1.xt_ + r.xy_*m1.yt_ + r.xz_*m1.zt_ + r.xt_*m1.tt_,
212
213  r.xy_*m1.xx_ + r.yy_*m1.xy_ + r.yz_*m1.xz_ + r.yt_*m1.xt_,
214  r.xy_*m1.xy_ + r.yy_*m1.yy_ + r.yz_*m1.yz_ + r.yt_*m1.yt_,
215  r.xy_*m1.xz_ + r.yy_*m1.yz_ + r.yz_*m1.zz_ + r.yt_*m1.zt_,
216  r.xy_*m1.xt_ + r.yy_*m1.yt_ + r.yz_*m1.zt_ + r.yt_*m1.tt_,
217
218  r.xz_*m1.xx_ + r.yz_*m1.xy_ + r.zz_*m1.xz_ + r.zt_*m1.xt_,
219  r.xz_*m1.xy_ + r.yz_*m1.yy_ + r.zz_*m1.yz_ + r.zt_*m1.yt_,
220  r.xz_*m1.xz_ + r.yz_*m1.yz_ + r.zz_*m1.zz_ + r.zt_*m1.zt_,
221  r.xz_*m1.xt_ + r.yz_*m1.yt_ + r.zz_*m1.zt_ + r.zt_*m1.tt_,
222
223  r.xt_*m1.xx_ + r.yt_*m1.xy_ + r.zt_*m1.xz_ + r.tt_*m1.xt_,
224  r.xt_*m1.xy_ + r.yt_*m1.yy_ + r.zt_*m1.yz_ + r.tt_*m1.yt_,
225  r.xt_*m1.xz_ + r.yt_*m1.yz_ + r.zt_*m1.zz_ + r.tt_*m1.zt_,
226  r.xt_*m1.xt_ + r.yt_*m1.yt_ + r.zt_*m1.zt_ + r.tt_*m1.tt_) );
227 }
CLHEP::HepBoost::rep4x4Symmetric
HepRep4x4Symmetric rep4x4Symmetric() const

Here is the call graph for this function:

double CLHEP::HepBoost::norm2 ( ) const

Definition at line 138 of file Boost.cc.

138  {
139  double bgx = rep_.xt_;
140  double bgy = rep_.yt_;
141  double bgz = rep_.zt_;
142  return bgx*bgx+bgy*bgy+bgz*bgz;
143 }
CLHEP::HepBoost::rep_
HepRep4x4Symmetric rep_
Definition: Boost.h:235

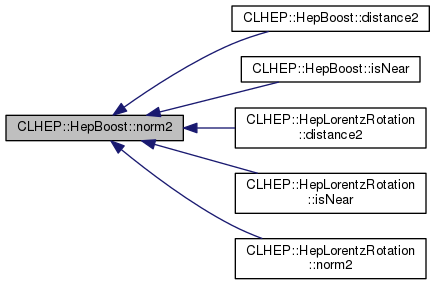

Here is the caller graph for this function:

bool CLHEP::HepBoost::operator!= ( const HepBoost &  b) const
inline
HepLorentzVector CLHEP::HepBoost::operator() ( const HepLorentzVector &  p) const
inline
HepLorentzVector CLHEP::HepBoost::operator* ( const HepLorentzVector &  p) const
inline
HepLorentzRotation CLHEP::HepBoost::operator* ( const HepBoost &  b) const

Definition at line 235 of file Boost.cc.

235  {
236  return matrixMultiplication(b.rep_);
237 }
test.b
tuple b
Definition: test.py:12
CLHEP::HepBoost::matrixMultiplication
HepLorentzRotation matrixMultiplication(const HepRep4x4 &m) const
Definition: Boost.cc:180

Here is the call graph for this function:

HepLorentzRotation CLHEP::HepBoost::operator* ( const HepRotation &  r) const

Definition at line 240 of file Boost.cc.

240  {
241  return matrixMultiplication(r.rep4x4());
242 }
CLHEP::HepBoost::matrixMultiplication
HepLorentzRotation matrixMultiplication(const HepRep4x4 &m) const
Definition: Boost.cc:180

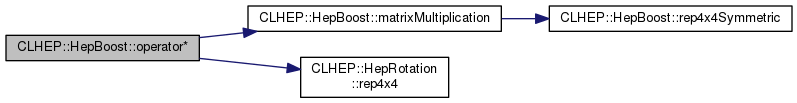

Here is the call graph for this function:

HepLorentzRotation CLHEP::HepBoost::operator* ( const HepLorentzRotation &  lt) const

Definition at line 230 of file Boost.cc.

230  {
231  return matrixMultiplication(lt.rep4x4());
232 }
CLHEP::HepBoost::matrixMultiplication
HepLorentzRotation matrixMultiplication(const HepRep4x4 &m) const
Definition: Boost.cc:180

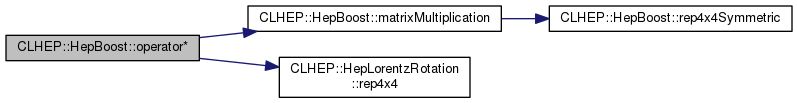

Here is the call graph for this function:

bool CLHEP::HepBoost::operator< ( const HepBoost &  b) const
inline
bool CLHEP::HepBoost::operator<= ( const HepBoost &  b) const
inline
HepBoost& CLHEP::HepBoost::operator= ( const HepBoost &  m)
inline
bool CLHEP::HepBoost::operator== ( const HepBoost &  b) const
inline
bool CLHEP::HepBoost::operator> ( const HepBoost &  b) const
inline
bool CLHEP::HepBoost::operator>= ( const HepBoost &  b) const
inline
std::ostream & CLHEP::HepBoost::print ( std::ostream &  os) const

Definition at line 246 of file Boost.cc.

246  {
247  if ( rep_.tt_ <= 1 ) {
248  os << "Lorentz Boost( IDENTITY )";
249  } else {
250  double norm = boostVector().mag();
251  os << "\nLorentz Boost " << boostVector()/norm <<
252  "\n{beta = " << beta() << " gamma = " << gamma() << "}\n";
253  }
254  return os;
255 }
CLHEP::HepBoost::boostVector
Hep3Vector boostVector() const
CLHEP::HepBoost::rep_
HepRep4x4Symmetric rep_
Definition: Boost.h:235
CLHEP::HepBoost::gamma
double gamma() const
CLHEP::HepBoost::beta
double beta() const
CLHEP::Hep3Vector::mag
double mag() const

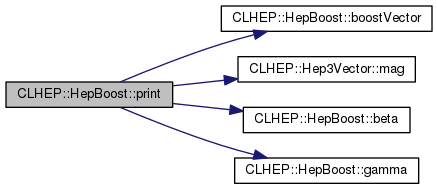

Here is the call graph for this function:

void CLHEP::HepBoost::rectify ( )

Definition at line 145 of file Boost.cc.

145  {
146  // Assuming the representation of this is close to a true pure boost,
147  // but may have drifted due to round-off error from many operations,
148  // this forms an "exact" pure boost matrix for the LT again.
149
150  // The natural way to do this is to use the t column as a boost and set
151  // based on that boost vector.
152
153  // There is perhaps danger that this boost vector will appear equal to or
154  // greater than a unit vector; the best we can do for such a case is use
155  // a boost in that direction but rescaled to just less than one.
156
157  // There is in principle no way that gamma could have become negative,
158  // but if that happens, we ZMthrow and (if continuing) just rescale, which
159  // will change the sign of the last column when computing the boost.
160
161  double gam = tt();
162  if (gam <= 0) { // 4/12/01 mf
163  std::cerr << "HepBoost::rectify() - "
164  << "Attempt to rectify a boost with non-positive gamma." << std::endl;
165  if (gam==0) return; // NaN-proofing
166  }
167  Hep3Vector boost (xt(), yt(), zt());
168  boost /= tt();
169  if ( boost.mag2() >= 1 ) { // NaN-proofing:
170  boost /= ( boost.mag() * ( 1.0 + 1.0e-16 ) ); // used to just check > 1
171  }
172  set ( boost );
173 }
CLHEP::HepBoost::xt
double xt() const
CLHEP::HepBoost::tt
double tt() const
CLHEP::HepBoost::zt
double zt() const
CLHEP::HepBoost::set
HepBoost & set(double betaX, double betaY, double betaZ)
Definition: Boost.cc:21
CLHEP::HepBoost::yt
double yt() const

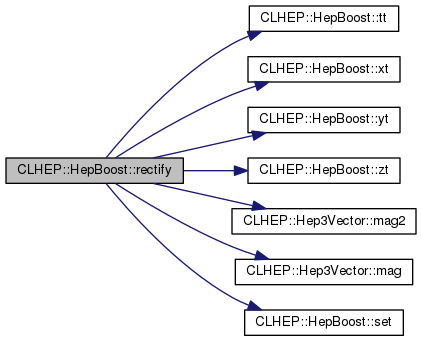

Here is the call graph for this function:

HepRep4x4 CLHEP::HepBoost::rep4x4 ( ) const
inline

Here is the caller graph for this function:

HepRep4x4Symmetric CLHEP::HepBoost::rep4x4Symmetric ( ) const
inline

Here is the caller graph for this function:

HepLorentzVector CLHEP::HepBoost::row1 ( ) const
inline
HepLorentzVector CLHEP::HepBoost::row2 ( ) const
inline
HepLorentzVector CLHEP::HepBoost::row3 ( ) const
inline
HepLorentzVector CLHEP::HepBoost::row4 ( ) const
inline
HepBoost & CLHEP::HepBoost::set ( double  betaX,
double  betaY,
double  betaZ
)

Definition at line 21 of file Boost.cc.

21  {
22  double bp2 = bx*bx + by*by + bz*bz;
23 // if (bp2 >= 1) {
24 // std::cerr << "HepBoost::set() - "
25 // << "Boost Vector supplied to set HepBoost represents speed >= c." << std::endl;
26 // }
27  double ggamma = 1.0 / std::sqrt(1.0 - bp2);
28  double bgamma = ggamma * ggamma / (1.0 + ggamma);
29  rep_.xx_ = 1.0 + bgamma * bx * bx;
30  rep_.yy_ = 1.0 + bgamma * by * by;
31  rep_.zz_ = 1.0 + bgamma * bz * bz;
32  rep_.xy_ = bgamma * bx * by;
33  rep_.xz_ = bgamma * bx * bz;
34  rep_.yz_ = bgamma * by * bz;
35  rep_.xt_ = ggamma * bx;
36  rep_.yt_ = ggamma * by;
37  rep_.zt_ = ggamma * bz;
38  rep_.tt_ = ggamma;
39  return *this;
40 }
CLHEP::HepBoost::rep_
HepRep4x4Symmetric rep_
Definition: Boost.h:235

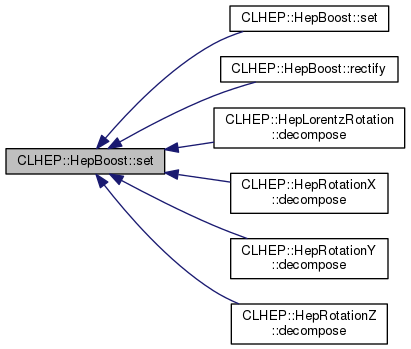

Here is the caller graph for this function:

HepBoost & CLHEP::HepBoost::set ( const HepRep4x4Symmetric &  m)

Definition at line 42 of file Boost.cc.

42  {
43  rep_ = m1;
44  return *this;
45 }
CLHEP::HepBoost::rep_
HepRep4x4Symmetric rep_
Definition: Boost.h:235
HepBoost & CLHEP::HepBoost::set ( Hep3Vector  direction,
double  beta
)

Definition at line 47 of file Boost.cc.

47  {
48  double length = ddirection.mag();
49  if (length <= 0) { // Nan-proofing
50  std::cerr << "HepBoost::set() - "
51  << "Direction supplied to set HepBoost is zero." << std::endl;
52  set (0,0,0);
53  return *this;
54  }
55  set(bbeta*ddirection.x()/length,
56  bbeta*ddirection.y()/length,
57  bbeta*ddirection.z()/length);
58  return *this;
59 }
CLHEP::HepBoost::set
HepBoost & set(double betaX, double betaY, double betaZ)
Definition: Boost.cc:21

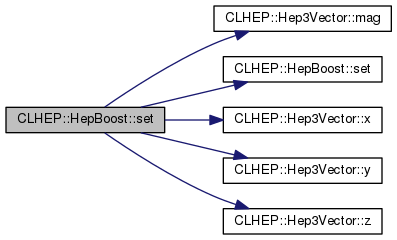

Here is the call graph for this function:

HepBoost & CLHEP::HepBoost::set ( const Hep3Vector &  boost)

Definition at line 61 of file Boost.cc.

61  {
62  return set (bboost.x(), bboost.y(), bboost.z());
63 }
CLHEP::HepBoost::set
HepBoost & set(double betaX, double betaY, double betaZ)
Definition: Boost.cc:21

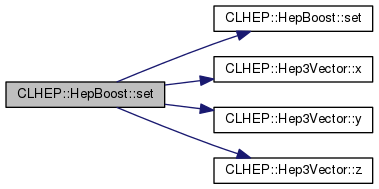

Here is the call graph for this function:

HepBoost& CLHEP::HepBoost::set ( const HepBoostX &  boost)
inline
HepBoost& CLHEP::HepBoost::set ( const HepBoostY &  boost)
inline
HepBoost& CLHEP::HepBoost::set ( const HepBoostZ &  boost)
inline
void CLHEP::HepBoost::setBoost ( double  bx,
double  by,
double  bz
)
inlineprotected
static double CLHEP::HepBoost::setTolerance ( double  tol)
inlinestatic
double CLHEP::HepBoost::tt ( ) const
inline

Here is the caller graph for this function:

double CLHEP::HepBoost::tx ( ) const
inline

Here is the caller graph for this function:

double CLHEP::HepBoost::ty ( ) const
inline
double CLHEP::HepBoost::tz ( ) const
inline
HepLorentzVector CLHEP::HepBoost::vectorMultiplication ( const HepLorentzVector &  w) const
inlineprotected
double CLHEP::HepBoost::xt ( ) const
inline

Here is the caller graph for this function:

double CLHEP::HepBoost::xx ( ) const
inline
double CLHEP::HepBoost::xy ( ) const
inline
double CLHEP::HepBoost::xz ( ) const
inline
double CLHEP::HepBoost::yt ( ) const
inline

Here is the caller graph for this function:

double CLHEP::HepBoost::yx ( ) const
inline
double CLHEP::HepBoost::yy ( ) const
inline
double CLHEP::HepBoost::yz ( ) const
inline
double CLHEP::HepBoost::zt ( ) const
inline

Here is the caller graph for this function:

double CLHEP::HepBoost::zx ( ) const
inline
double CLHEP::HepBoost::zy ( ) const
inline
double CLHEP::HepBoost::zz ( ) const
inline

Friends And Related Function Documentation

HepBoost inverseOf ( const HepBoost &  lt)
friend

Member Data Documentation

HepRep4x4Symmetric CLHEP::HepBoost::rep_
protected

Definition at line 235 of file Boost.h.

The documentation for this class was generated from the following files:
