G4VTwistSurface::CurrentStatus Class Reference

#include <G4VTwistSurface.hh>

Public Member Functions
	CurrentStatus ()
virtual	~CurrentStatus ()
G4ThreeVector	GetXX (G4int i) const
G4double	GetDistance (G4int i) const
G4int	GetAreacode (G4int i) const
G4int	GetNXX () const
G4bool	IsDone () const
G4bool	IsValid (G4int i) const
void	SetCurrentStatus (G4int i, G4ThreeVector &xx, G4double &dist, G4int &areacode, G4bool &isvalid, G4int nxx, EValidate validate, const G4ThreeVector *p, const G4ThreeVector *v=0)
void	ResetfDone (EValidate validate, const G4ThreeVector *p, const G4ThreeVector *v=0)
void	DebugPrint () const

Detailed Description

Definition at line 251 of file G4VTwistSurface.hh.

Constructor & Destructor Documentation

G4VTwistSurface::CurrentStatus::CurrentStatus

(

)

Definition at line 1124 of file G4VTwistSurface.cc.

{
  for (size_t i=0; i<G4VSURFACENXX; i++)
  {
    fDistance[i] = kInfinity;
    fAreacode[i] = sOutside;
    fIsValid[i]  = false;
    fXX[i].set(kInfinity, kInfinity, kInfinity);
  }
  fNXX   = 0;
  fLastp.set(kInfinity, kInfinity, kInfinity);
  fLastv.set(kInfinity, kInfinity, kInfinity);
  fLastValidate = kUninitialized;
  fDone = false;
}

Here is the call graph for this function:

G4VTwistSurface::CurrentStatus::~CurrentStatus ( )

virtual

Definition at line 1143 of file G4VTwistSurface.cc.

{
}

Member Function Documentation

void G4VTwistSurface::CurrentStatus::DebugPrint

(

)

const

Definition at line 1219 of file G4VTwistSurface.cc.

{
  G4cout << "CurrentStatus::Dist0,1= " << fDistance[0]
         << " " << fDistance[1] << " areacode = " << fAreacode[0]
         << " " << fAreacode[1] << G4endl;
}

G4int G4VTwistSurface::CurrentStatus::GetAreacode ( G4int  i ) const

inline

Definition at line 260 of file G4VTwistSurface.hh.

{ return fAreacode[i]; }

Here is the caller graph for this function:

G4double G4VTwistSurface::CurrentStatus::GetDistance ( G4int  i ) const

inline

Definition at line 259 of file G4VTwistSurface.hh.

{ return fDistance[i]; }

Here is the caller graph for this function:

G4int G4VTwistSurface::CurrentStatus::GetNXX ( ) const

inline

Definition at line 261 of file G4VTwistSurface.hh.

{ return fNXX;         }

Here is the caller graph for this function:

G4ThreeVector G4VTwistSurface::CurrentStatus::GetXX ( G4int  i ) const

inline

Definition at line 258 of file G4VTwistSurface.hh.

{ return fXX[i];       }

Here is the caller graph for this function:

G4bool G4VTwistSurface::CurrentStatus::IsDone ( ) const

inline

Definition at line 262 of file G4VTwistSurface.hh.

{ return fDone;        }

Here is the caller graph for this function:

G4bool G4VTwistSurface::CurrentStatus::IsValid ( G4int  i ) const

inline

Definition at line 263 of file G4VTwistSurface.hh.

{ return fIsValid[i];  }

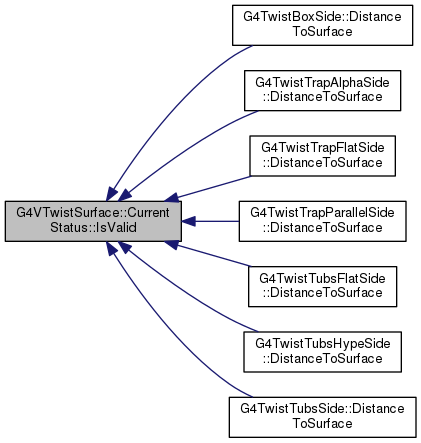

Here is the caller graph for this function:

void G4VTwistSurface::CurrentStatus::ResetfDone	(	EValidate	validate,
		const G4ThreeVector *	p,
		const G4ThreeVector *	v = 0
	)

Definition at line 1191 of file G4VTwistSurface.cc.

{
  if (validate == fLastValidate && p && *p == fLastp)
  {
     if (!v || (*v == fLastv)) return;
  }
  G4ThreeVector xx(kInfinity, kInfinity, kInfinity);
  for (size_t i=0; i<G4VSURFACENXX; i++)
  {
    fDistance[i] = kInfinity;
    fAreacode[i] = sOutside;
    fIsValid[i]  = false;
    fXX[i] = xx;   // bug in old code ( was fXX[i] =  xx[i]  )
  }
  fNXX   = 0;
  fLastp.set(kInfinity, kInfinity, kInfinity);
  fLastv.set(kInfinity, kInfinity, kInfinity);
  fLastValidate = kUninitialized;
  fDone = false;
}

Here is the call graph for this function:

Here is the caller graph for this function:

void G4VTwistSurface::CurrentStatus::SetCurrentStatus	(	G4int	i,
		G4ThreeVector &	xx,
		G4double &	dist,
		G4int &	areacode,
		G4bool &	isvalid,
		G4int	nxx,
		EValidate	validate,
		const G4ThreeVector *	p,
		const G4ThreeVector *	v = 0
	)

Definition at line 1151 of file G4VTwistSurface.cc.

{
  fDistance[i]  = dist;
  fAreacode[i]  = areacode;
  fIsValid[i]   = isvalid;
  fXX[i]        = xx;
  fNXX          = nxx;
  fLastValidate = validate;
  if (p)
  {
    fLastp = *p;
  }
  else
  {
    G4Exception("G4VTwistSurface::CurrentStatus::SetCurrentStatus()",
                "GeomSolids0003", FatalException, "SetCurrentStatus: p = 0!");
  }
  if (v)
  {
    fLastv = *v;
  }
  else
  {
    fLastv.set(kInfinity, kInfinity, kInfinity);
  }
  fDone = true;
}

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• geant4.10.03.p01/source/geometry/solids/specific/include/G4VTwistSurface.hh
• geant4.10.03.p01/source/geometry/solids/specific/src/G4VTwistSurface.cc
