G4ParticleChangeForMSC Class Reference

#include <G4ParticleChangeForMSC.hh>

Inheritance diagram for G4ParticleChangeForMSC:
Inheritance graph
[legend]
Collaboration diagram for G4ParticleChangeForMSC:
Collaboration graph
[legend]

Public Member Functions

 G4ParticleChangeForMSC ()

virtual ~G4ParticleChangeForMSC ()

virtual G4Step * UpdateStepForAlongStep (G4Step *Step)

virtual G4Step * UpdateStepForPostStep (G4Step *Step)

virtual void Initialize (const G4Track &)

void ProposeMomentumDirection (const G4ThreeVector &Pfinal)

void ProposeMomentumDirection (G4double Px, G4double Py, G4double Pz)

const G4ThreeVector * GetMomentumDirection () const

const G4ThreeVector * GetProposedMomentumDirection () const

void SetProposedMomentumDirection (const G4ThreeVector &Pfinal)

const G4ThreeVector * GetPosition () const

void ProposePosition (const G4ThreeVector &finalPosition)

const G4ThreeVector * GetProposedPosition () const

void SetProposedPosition (const G4ThreeVector &finalPosition)

virtual void DumpInfo () const

virtual G4bool CheckIt (const G4Track &)

- Public Member Functions inherited from G4VParticleChange
 G4VParticleChange ()

virtual ~G4VParticleChange ()

G4bool operator== (const G4VParticleChange &right) const

G4bool operator!= (const G4VParticleChange &right) const

virtual G4Step * UpdateStepForAtRest (G4Step *Step)

G4double GetTrueStepLength () const

void ProposeTrueStepLength (G4double truePathLength)

G4double GetLocalEnergyDeposit () const

void ProposeLocalEnergyDeposit (G4double anEnergyPart)

G4double GetNonIonizingEnergyDeposit () const

void ProposeNonIonizingEnergyDeposit (G4double anEnergyPart)

G4TrackStatus GetTrackStatus () const

void ProposeTrackStatus (G4TrackStatus status)

G4SteppingControl GetSteppingControl () const

void ProposeSteppingControl (G4SteppingControl StepControlFlag)

G4bool GetFirstStepInVolume () const

G4bool GetLastStepInVolume () const

void ProposeFirstStepInVolume (G4bool flag)

void ProposeLastStepInVolume (G4bool flag)

void Clear ()

void SetNumberOfSecondaries (G4int totSecondaries)

G4int GetNumberOfSecondaries () const

G4Track * GetSecondary (G4int anIndex) const

void AddSecondary (G4Track *aSecondary)

G4double GetWeight () const

G4double GetParentWeight () const

void ProposeWeight (G4double finalWeight)

void ProposeParentWeight (G4double finalWeight)

void SetSecondaryWeightByProcess (G4bool)

G4bool IsSecondaryWeightSetByProcess () const

void SetParentWeightByProcess (G4bool)

G4bool IsParentWeightSetByProcess () const

void SetVerboseLevel (G4int vLevel)

G4int GetVerboseLevel () const

void ClearDebugFlag ()

void SetDebugFlag ()

G4bool GetDebugFlag () const


Protected Member Functions

 G4ParticleChangeForMSC (const G4ParticleChangeForMSC &right)

G4ParticleChangeForMSC & operator= (const G4ParticleChangeForMSC &right)

- Protected Member Functions inherited from G4VParticleChange
 G4VParticleChange (const G4VParticleChange &right)

G4VParticleChange & operator= (const G4VParticleChange &right)

G4Step * UpdateStepInfo (G4Step *Step)

void InitializeTrueStepLength (const G4Track &)

void InitializeLocalEnergyDeposit (const G4Track &)

void InitializeSteppingControl (const G4Track &)

void InitializeParentWeight (const G4Track &)

void InitializeParentGlobalTime (const G4Track &)

void InitializeStatusChange (const G4Track &)

void InitializeSecondaries (const G4Track &)

void InitializeStepInVolumeFlags (const G4Track &)

G4bool CheckSecondary (G4Track &)

G4double GetAccuracyForWarning () const

G4double GetAccuracyForException () const


Additional Inherited Members

- Protected Attributes inherited from G4VParticleChange
G4TrackFastVector * theListOfSecondaries

G4int theNumberOfSecondaries

G4int theSizeOftheListOfSecondaries

G4TrackStatus theStatusChange

G4SteppingControl theSteppingControlFlag

G4double theLocalEnergyDeposit

G4double theNonIonizingEnergyDeposit

G4double theTrueStepLength

G4bool theFirstStepInVolume

G4bool theLastStepInVolume

G4double theParentWeight

G4bool isParentWeightProposed

G4bool fSetSecondaryWeightByProcess

G4double theParentGlobalTime

G4int verboseLevel

G4bool debugFlag

- Static Protected Attributes inherited from G4VParticleChange
static const G4double accuracyForWarning = 1.0e-9

static const G4double accuracyForException = 0.001


Detailed Description

Definition at line 54 of file G4ParticleChangeForMSC.hh.

Constructor & Destructor Documentation

G4ParticleChangeForMSC::G4ParticleChangeForMSC ( )

Definition at line 47 of file G4ParticleChangeForMSC.cc.

48  : G4VParticleChange()
49 {
50 #ifdef G4VERBOSE
51  if (verboseLevel>2) {
52  G4cout << "G4ParticleChangeForMSC::G4ParticleChangeForMSC() " << G4endl;
53  }
54 #endif
55 }
G4cout
G4GLOB_DLL std::ostream G4cout
G4endl
#define G4endl
Definition: G4ios.hh:61
G4ParticleChangeForMSC::~G4ParticleChangeForMSC ( )
virtual

Definition at line 57 of file G4ParticleChangeForMSC.cc.

58 {
59 #ifdef G4VERBOSE
60  if (verboseLevel>2) {
61  G4cout << "G4ParticleChangeForMSC::~G4ParticleChangeForMSC() " << G4endl;
62  }
63 #endif
64 }
G4cout
G4GLOB_DLL std::ostream G4cout
G4endl
#define G4endl
Definition: G4ios.hh:61
G4ParticleChangeForMSC::G4ParticleChangeForMSC ( const G4ParticleChangeForMSC &  right)
protected

Definition at line 67 of file G4ParticleChangeForMSC.cc.

68  : G4VParticleChange(right)
69 {
70  if (verboseLevel>1) {
71  G4cout << "G4ParticleChangeForMSC:: copy constructor is called " << G4endl;
72  }
73  theMomentumDirection = right.theMomentumDirection;
74  thePosition = right.thePosition;
75 }
G4cout
G4GLOB_DLL std::ostream G4cout
G4endl
#define G4endl
Definition: G4ios.hh:61

Member Function Documentation

G4bool G4ParticleChangeForMSC::CheckIt ( const G4Track &  aTrack)
virtual

Reimplemented from G4VParticleChange.

Definition at line 169 of file G4ParticleChangeForMSC.cc.

170 {
171  G4bool itsOK = true;
172  G4bool exitWithError = false;
173
174  G4double accuracy;
175
176  // check
177
178  // MomentumDirection should be unit vector
179  accuracy = std::fabs(theMomentumDirection.mag2()-1.0);
180  if (accuracy > accuracyForWarning) {
181  itsOK = false;
182  exitWithError = (accuracy > accuracyForException);
183 #ifdef G4VERBOSE
184  G4cout << " G4ParticleChangeForMSC::CheckIt : ";
185  G4cout << "the Momentum Change is not unit vector !!"
186  << " Difference: " << accuracy << G4endl;
187  G4cout << aTrack.GetDefinition()->GetParticleName()
188  << " E=" << aTrack.GetKineticEnergy()/MeV
189  << " pos=" << aTrack.GetPosition().x()/m
190  << ", " << aTrack.GetPosition().y()/m
191  << ", " << aTrack.GetPosition().z()/m
192  <<G4endl;
193 #endif
194  }
195
196  // dump out information of this particle change
197 #ifdef G4VERBOSE
198  if (!itsOK) DumpInfo();
199 #endif
200
201  // Exit with error
202  if (exitWithError) {
203  G4Exception("G4ParticleChangeForMSC::CheckIt",
204  "300",
205  EventMustBeAborted,
206  "momentum direction was illegal");
207  }
208  //correction
209  if (!itsOK) {
210  G4double vmag = theMomentumDirection.mag();
211  theMomentumDirection = (1./vmag)*theMomentumDirection;
212  }
213
214  itsOK = (itsOK) && G4VParticleChange::CheckIt(aTrack);
215  return itsOK;
216 }
G4Track::GetDefinition
G4ParticleDefinition * GetDefinition() const
CLHEP::Hep3Vector::x
double x() const
G4Track::GetPosition
const G4ThreeVector & GetPosition() const
G4ParticleDefinition::GetParticleName
const G4String & GetParticleName() const
Definition: G4ParticleDefinition.hh:120
CLHEP::Hep3Vector::z
double z() const
G4VParticleChange::accuracyForException
static const G4double accuracyForException
Definition: G4VParticleChange.hh:318
G4VParticleChange::CheckIt
virtual G4bool CheckIt(const G4Track &)
Definition: G4VParticleChange.cc:316
G4Track::GetKineticEnergy
G4double GetKineticEnergy() const
G4cout
G4GLOB_DLL std::ostream G4cout
m
static constexpr double m
Definition: G4SIunits.hh:129
G4bool
bool G4bool
Definition: G4Types.hh:79
G4Exception
void G4Exception(const char *originOfException, const char *exceptionCode, G4ExceptionSeverity severity, const char *comments)
Definition: G4Exception.cc:41
EventMustBeAborted
Definition: G4ExceptionSeverity.hh:63
CLHEP::Hep3Vector::y
double y() const
CLHEP::Hep3Vector::mag2
double mag2() const
G4ParticleChangeForMSC::DumpInfo
virtual void DumpInfo() const
Definition: G4ParticleChangeForMSC.cc:141
G4endl
#define G4endl
Definition: G4ios.hh:61
MeV
static constexpr double MeV
Definition: G4SIunits.hh:214
G4double
double G4double
Definition: G4Types.hh:76
G4VParticleChange::accuracyForWarning
static const G4double accuracyForWarning
Definition: G4VParticleChange.hh:317
CLHEP::Hep3Vector::mag
double mag() const

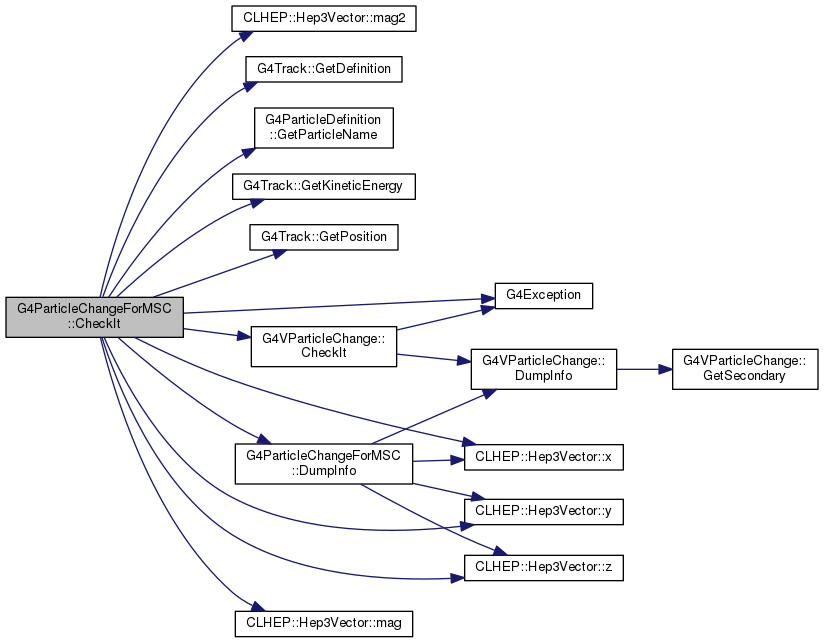

Here is the call graph for this function:

void G4ParticleChangeForMSC::DumpInfo ( ) const
virtual

Reimplemented from G4VParticleChange.

Definition at line 141 of file G4ParticleChangeForMSC.cc.

142 {
143 // use base-class DumpInfo
144  G4VParticleChange::DumpInfo();
145
146  G4int oldprc = G4cout.precision(3);
147  G4cout << " Position - x (mm) : "
148  << std::setw(20) << thePosition.x()/mm
149  << G4endl;
150  G4cout << " Position - y (mm) : "
151  << std::setw(20) << thePosition.y()/mm
152  << G4endl;
153  G4cout << " Position - z (mm) : "
154  << std::setw(20) << thePosition.z()/mm
155  << G4endl;
156  G4cout << " Momentum Direct - x : "
157  << std::setw(20) << theMomentumDirection.x()
158  << G4endl;
159  G4cout << " Momentum Direct - y : "
160  << std::setw(20) << theMomentumDirection.y()
161  << G4endl;
162  G4cout << " Momentum Direct - z : "
163  << std::setw(20) << theMomentumDirection.z()
164  << G4endl;
165  G4cout.precision(oldprc);
166 }
mm
static constexpr double mm
Definition: G4SIunits.hh:115
CLHEP::Hep3Vector::x
double x() const
G4VParticleChange::DumpInfo
virtual void DumpInfo() const
Definition: G4VParticleChange.cc:252
G4int
int G4int
Definition: G4Types.hh:78
CLHEP::Hep3Vector::z
double z() const
G4cout
G4GLOB_DLL std::ostream G4cout
CLHEP::Hep3Vector::y
double y() const
G4endl
#define G4endl
Definition: G4ios.hh:61

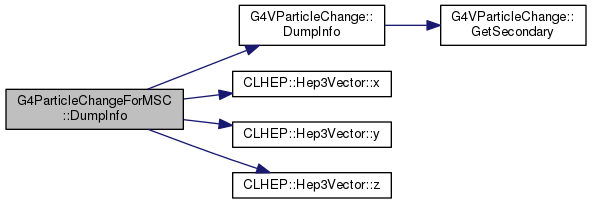

Here is the call graph for this function:

Here is the caller graph for this function:

const G4ThreeVector* G4ParticleChangeForMSC::GetMomentumDirection ( ) const

Here is the caller graph for this function:

const G4ThreeVector* G4ParticleChangeForMSC::GetPosition ( ) const
const G4ThreeVector* G4ParticleChangeForMSC::GetProposedMomentumDirection ( ) const
const G4ThreeVector* G4ParticleChangeForMSC::GetProposedPosition ( ) const
virtual void G4ParticleChangeForMSC::Initialize ( const G4Track &  )
virtual

Reimplemented from G4VParticleChange.

Here is the caller graph for this function:

G4ParticleChangeForMSC & G4ParticleChangeForMSC::operator= ( const G4ParticleChangeForMSC &  right)
protected

Definition at line 78 of file G4ParticleChangeForMSC.cc.

80 {
81  if (verboseLevel>1) {
82  G4cout << "G4ParticleChangeForMSC:: assignment operator is called " << G4endl;
83  }
84  if (this != &right)
85  {
86  theListOfSecondaries = right.theListOfSecondaries;
87  theSizeOftheListOfSecondaries = right.theSizeOftheListOfSecondaries;
88  theNumberOfSecondaries = right.theNumberOfSecondaries;
89  theStatusChange = right.theStatusChange;
90  theLocalEnergyDeposit = right.theLocalEnergyDeposit;
91  theSteppingControlFlag = right.theSteppingControlFlag;
92  theTrueStepLength = right.theTrueStepLength;
93
94  theMomentumDirection = right.theMomentumDirection;
95  thePosition = right.thePosition;
96  }
97  return *this;
98 }
G4VParticleChange::theListOfSecondaries
G4TrackFastVector * theListOfSecondaries
Definition: G4VParticleChange.hh:245
G4cout
G4GLOB_DLL std::ostream G4cout
G4VParticleChange::theSteppingControlFlag
G4SteppingControl theSteppingControlFlag
Definition: G4VParticleChange.hh:257
G4endl
#define G4endl
Definition: G4ios.hh:61
G4VParticleChange::theStatusChange
G4TrackStatus theStatusChange
Definition: G4VParticleChange.hh:254
void G4ParticleChangeForMSC::ProposeMomentumDirection ( const G4ThreeVector &  Pfinal)

Here is the caller graph for this function:

void G4ParticleChangeForMSC::ProposeMomentumDirection ( G4double  Px,
G4double  Py,
G4double  Pz
)
void G4ParticleChangeForMSC::ProposePosition ( const G4ThreeVector &  finalPosition)

Here is the caller graph for this function:

void G4ParticleChangeForMSC::SetProposedMomentumDirection ( const G4ThreeVector &  Pfinal)
void G4ParticleChangeForMSC::SetProposedPosition ( const G4ThreeVector &  finalPosition)
G4Step * G4ParticleChangeForMSC::UpdateStepForAlongStep ( G4Step *  Step)
virtual

Reimplemented from G4VParticleChange.

Definition at line 104 of file G4ParticleChangeForMSC.cc.

105 {
106  // Update the G4Step specific attributes
107  pStep->SetStepLength(theTrueStepLength);
108  theStatusChange = pStep->GetTrack()->GetTrackStatus();
109
110  // Multiple scattering calculates the final state of the particle
111  G4StepPoint* pPostStepPoint = pStep->GetPostStepPoint();
112
113  // update momentum direction
114  pPostStepPoint->SetMomentumDirection(theMomentumDirection);
115
116  // update position
117  pPostStepPoint->SetPosition( thePosition );
118  return pStep;
119 }
G4StepPoint::SetPosition
void SetPosition(const G4ThreeVector &aValue)
G4StepPoint::SetMomentumDirection
void SetMomentumDirection(const G4ThreeVector &aValue)
G4VParticleChange::theStatusChange
G4TrackStatus theStatusChange
Definition: G4VParticleChange.hh:254

Here is the call graph for this function:

G4Step * G4ParticleChangeForMSC::UpdateStepForPostStep ( G4Step *  Step)
virtual

Reimplemented from G4VParticleChange.

Definition at line 121 of file G4ParticleChangeForMSC.cc.

122 {
123  // Multiple scattering calculates the final state of the particle
124  G4StepPoint* pPostStepPoint = pStep->GetPostStepPoint();
125
126  // update momentum direction
127  pPostStepPoint->SetMomentumDirection(theMomentumDirection);
128
129  // update position
130  pPostStepPoint->SetPosition( thePosition );
131
132  // Update the G4Step specific attributes
133  return pStep;
134 }
G4StepPoint::SetPosition
void SetPosition(const G4ThreeVector &aValue)
G4StepPoint::SetMomentumDirection
void SetMomentumDirection(const G4ThreeVector &aValue)

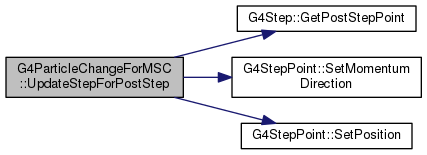

Here is the call graph for this function:

The documentation for this class was generated from the following files:
