G4INCLXXNeutronBuilder Class Reference

#include <G4INCLXXNeutronBuilder.hh>

Inheritance diagram for G4INCLXXNeutronBuilder:

Collaboration diagram for G4INCLXXNeutronBuilder:

Public Member Functions
	G4INCLXXNeutronBuilder ()
virtual	~G4INCLXXNeutronBuilder ()
virtual void	Build (G4HadronElasticProcess *aP)
virtual void	Build (G4HadronFissionProcess *aP)
virtual void	Build (G4HadronCaptureProcess *aP)
virtual void	Build (G4NeutronInelasticProcess *aP)
void	SetMinEnergy (G4double aM)
void	SetMaxEnergy (G4double aM)
void	SetMinPreCompoundEnergy (G4double aM)
void	SetMaxPreCompoundEnergy (G4double aM)
void	UsePreCompound (const G4bool w)
Public Member Functions inherited from G4VNeutronBuilder
	G4VNeutronBuilder ()
virtual	~G4VNeutronBuilder ()

Detailed Description

Builder for neutron processes using the INCL++ intra-nuclear cascade model.

By default the INCL++ model is used for projectile energies 0 - 3 GeV.

The builder uses INCL++ cascade model with G4ExcitationHandler de-excitation. This is implemented in interface G4INCLXXInterface.

See Also

G4INCLXXInterface

G4INCLXXProtonBuilder

G4INCLXXPiKBuilder

Definition at line 54 of file G4INCLXXNeutronBuilder.hh.

Constructor & Destructor Documentation

G4INCLXXNeutronBuilder::G4INCLXXNeutronBuilder

(

)

Definition at line 39 of file G4INCLXXNeutronBuilder.cc.

{
  withPreCompound = true;
  thePreCompoundMin = 0;
  thePreCompoundMax = 2*MeV;
  theMin = 1.0*MeV;
  theMax = 3.0*GeV;
  G4HadronicInteraction* p =
    G4HadronicInteractionRegistry::Instance()->FindModel("PRECO");
  thePreCompoundModel = static_cast<G4VPreCompoundModel*>(p);
  if(!thePreCompoundModel) { thePreCompoundModel = new G4PreCompoundModel(); }
  theModel = new G4INCLXXInterface(thePreCompoundModel);
}

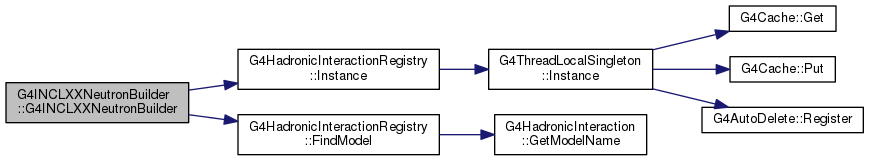

Here is the call graph for this function:

G4INCLXXNeutronBuilder::~G4INCLXXNeutronBuilder ( )

virtual

Definition at line 68 of file G4INCLXXNeutronBuilder.cc.

{
  //delete theModel;
}

Member Function Documentation

void G4INCLXXNeutronBuilder::Build ( G4HadronElasticProcess *  aP )

virtual

Implements G4VNeutronBuilder.

Definition at line 74 of file G4INCLXXNeutronBuilder.cc.

{
}

void G4INCLXXNeutronBuilder::Build ( G4HadronFissionProcess *  aP )

virtual

Implements G4VNeutronBuilder.

Definition at line 79 of file G4INCLXXNeutronBuilder.cc.

{
}

void G4INCLXXNeutronBuilder::Build ( G4HadronCaptureProcess *  aP )

virtual

Implements G4VNeutronBuilder.

Definition at line 84 of file G4INCLXXNeutronBuilder.cc.

{
}

void G4INCLXXNeutronBuilder::Build ( G4NeutronInelasticProcess *  aP )

virtual

Implements G4VNeutronBuilder.

Definition at line 54 of file G4INCLXXNeutronBuilder.cc.

{
  if(withPreCompound) {
    thePreCompoundModel->SetMinEnergy(thePreCompoundMin);
    thePreCompoundModel->SetMaxEnergy(thePreCompoundMax);
    aP->RegisterMe(thePreCompoundModel);
  }
  theModel->SetMinEnergy(theMin);
  theModel->SetMaxEnergy(theMax);
  aP->RegisterMe(theModel);
  aP->AddDataSet((G4NeutronInelasticXS*)G4CrossSectionDataSetRegistry::Instance()->GetCrossSectionDataSet(G4NeutronInelasticXS::Default_Name()));
}

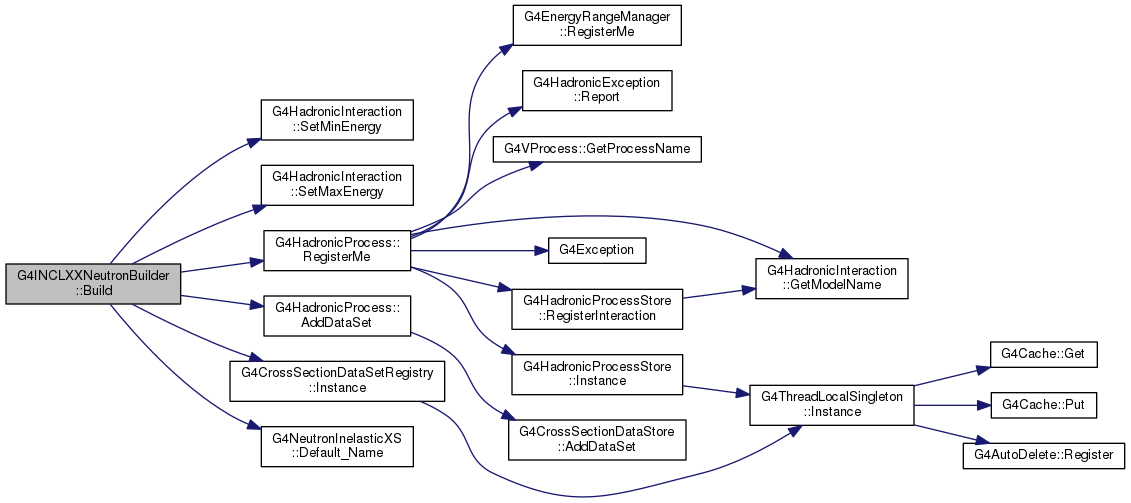

Here is the call graph for this function:

void G4INCLXXNeutronBuilder::SetMaxEnergy ( G4double  aM )

inline

Definition at line 67 of file G4INCLXXNeutronBuilder.hh.

{theMax = aM;}

void G4INCLXXNeutronBuilder::SetMaxPreCompoundEnergy ( G4double  aM )

inline

Definition at line 70 of file G4INCLXXNeutronBuilder.hh.

{thePreCompoundMax = aM;}

void G4INCLXXNeutronBuilder::SetMinEnergy ( G4double  aM )

inline

Definition at line 66 of file G4INCLXXNeutronBuilder.hh.

{theMin = aM;}

void G4INCLXXNeutronBuilder::SetMinPreCompoundEnergy ( G4double  aM )

inline

Definition at line 69 of file G4INCLXXNeutronBuilder.hh.

{thePreCompoundMin = aM;}

void G4INCLXXNeutronBuilder::UsePreCompound ( const G4bool  w )

inline

Definition at line 72 of file G4INCLXXNeutronBuilder.hh.

{ withPreCompound = w;}

---

The documentation for this class was generated from the following files:

• geant4.10.03.p01/source/physics_lists/builders/include/G4INCLXXNeutronBuilder.hh
• geant4.10.03.p01/source/physics_lists/builders/src/G4INCLXXNeutronBuilder.cc
