G4ComponentSAIDTotalXS Class Reference

#include <G4ComponentSAIDTotalXS.hh>

Inheritance diagram for G4ComponentSAIDTotalXS:

Collaboration diagram for G4ComponentSAIDTotalXS:

Public Member Functions
	G4ComponentSAIDTotalXS ()
virtual	~G4ComponentSAIDTotalXS ()
virtual G4double	GetTotalElementCrossSection (const G4ParticleDefinition *, G4double kinEnergy, G4int, G4double)
virtual G4double	GetTotalIsotopeCrossSection (const G4ParticleDefinition *, G4double kinEnergy, G4int, G4int)
virtual G4double	GetInelasticElementCrossSection (const G4ParticleDefinition *, G4double kinEnergy, G4int, G4double)
virtual G4double	GetInelasticIsotopeCrossSection (const G4ParticleDefinition *, G4double kinEnergy, G4int, G4int)
virtual G4double	GetElasticElementCrossSection (const G4ParticleDefinition *, G4double kinEnergy, G4int, G4double)
virtual G4double	GetElasticIsotopeCrossSection (const G4ParticleDefinition *, G4double kinEnergy, G4int, G4int)
G4double	GetChargeExchangeCrossSection (const G4ParticleDefinition *prim, const G4ParticleDefinition *sec, G4double kinEnergy, G4int, G4int)
virtual void	Description () const
Public Member Functions inherited from G4VComponentCrossSection
	G4VComponentCrossSection (const G4String &nam="")
virtual	~G4VComponentCrossSection ()
G4double	GetTotalElementCrossSection (const G4ParticleDefinition *, G4double kinEnergy, const G4Element *)
G4double	GetInelasticElementCrossSection (const G4ParticleDefinition *, G4double kinEnergy, const G4Element *)
G4double	GetElasticElementCrossSection (const G4ParticleDefinition *, G4double kinEnergy, const G4Element *)
virtual G4double	ComputeQuasiElasticRatio (const G4ParticleDefinition *, G4double kinEnergy, G4int, G4int)
virtual void	BuildPhysicsTable (const G4ParticleDefinition &)
virtual void	DumpPhysicsTable (const G4ParticleDefinition &)
void	SetVerboseLevel (G4int value)
G4int	GetVerboseLevel () const
G4double	GetMinKinEnergy () const
void	SetMinKinEnergy (G4double value)
G4double	GetMaxKinEnergy () const
void	SetMaxKinEnergy (G4double value)
const G4String &	GetName () const

Detailed Description

Definition at line 74 of file G4ComponentSAIDTotalXS.hh.

Constructor & Destructor Documentation

G4ComponentSAIDTotalXS::G4ComponentSAIDTotalXS

(

)

Definition at line 50 of file G4ComponentSAIDTotalXS.cc.

  : G4VComponentCrossSection("xsSAID")
{
  for(G4int i=0; i<numberOfSaidXS; ++i) {
    elastdata[i] = 0;
    inelastdata[i] = 0;
  }
}

G4ComponentSAIDTotalXS::~G4ComponentSAIDTotalXS ( )

virtual

Definition at line 59 of file G4ComponentSAIDTotalXS.cc.

{
  for(G4int i=0; i<numberOfSaidXS; ++i) {
    if(elastdata[i]) {
      delete elastdata[i];
      elastdata[i] = 0;
    }
    if(inelastdata[i]) {
      delete inelastdata[i];
      inelastdata[i] = 0;
    }
  }
}

Member Function Documentation

void G4ComponentSAIDTotalXS::Description ( ) const

virtual

Reimplemented from G4VComponentCrossSection.

Definition at line 168 of file G4ComponentSAIDTotalXS.cc.

{
}

G4double G4ComponentSAIDTotalXS::GetChargeExchangeCrossSection	(	const G4ParticleDefinition *	prim,
		const G4ParticleDefinition *	sec,
		G4double	kinEnergy,
		G4int	Z,
		G4int	N
	)

Definition at line 150 of file G4ComponentSAIDTotalXS.cc.

{
  G4double cross = 0.0;
  G4SAIDCrossSectionType tp = GetType(prim,sec,Z,N);
  if(saidUnknown != tp) {
    G4int idx = G4int(tp);
    if(!inelastdata[idx]) { Initialise(tp); }
    if(inelastdata[idx]) {
      cross = (inelastdata[idx])->Value(kinEnergy);
    }
  }
  return cross;
}

G4double G4ComponentSAIDTotalXS::GetElasticElementCrossSection ( const G4ParticleDefinition *  part, G4double  kinEnergy, G4int  Z, G4double  N  )

virtual

Implements G4VComponentCrossSection.

Definition at line 122 of file G4ComponentSAIDTotalXS.cc.

{
  PrintWarning(part,0,Z,G4lrint(N),
           "G4ComponentSAIDTotalXS::GetTotalElementCrossSection",
           "Method is not implemented");
  return 0.0;
}

Here is the call graph for this function:

G4double G4ComponentSAIDTotalXS::GetElasticIsotopeCrossSection ( const G4ParticleDefinition *  part, G4double  kinEnergy, G4int  Z, G4int  N  )

virtual

Implements G4VComponentCrossSection.

Definition at line 133 of file G4ComponentSAIDTotalXS.cc.

{
  G4double cross = 0.0;
  G4SAIDCrossSectionType tp = GetType(part,0,Z,N);
  if(saidUnknown != tp) {
    G4int idx = G4int(tp);
    if(!elastdata[idx]) { Initialise(tp); }
    if(elastdata[idx]) {
      cross = (elastdata[idx])->Value(kinEnergy);
    }
  }
  return cross;
}

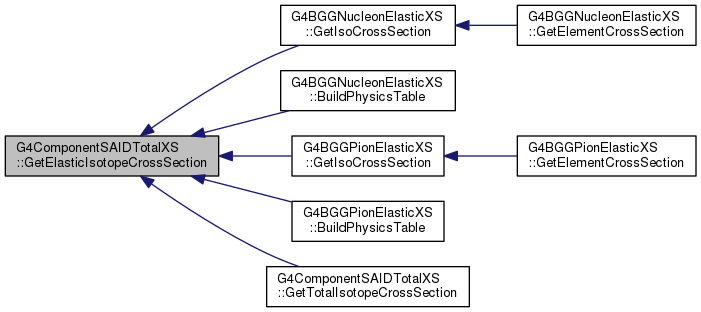

Here is the caller graph for this function:

G4double G4ComponentSAIDTotalXS::GetInelasticElementCrossSection ( const G4ParticleDefinition *  part, G4double  kinEnergy, G4int  Z, G4double  N  )

virtual

Implements G4VComponentCrossSection.

Definition at line 94 of file G4ComponentSAIDTotalXS.cc.

{
  PrintWarning(part,0,Z,G4lrint(N),
           "G4ComponentSAIDTotalXS::GetTotalElementCrossSection",
           "Method is not implemented");
  return 0.0;
}

Here is the call graph for this function:

G4double G4ComponentSAIDTotalXS::GetInelasticIsotopeCrossSection ( const G4ParticleDefinition *  part, G4double  kinEnergy, G4int  Z, G4int  N  )

virtual

Implements G4VComponentCrossSection.

Definition at line 105 of file G4ComponentSAIDTotalXS.cc.

{
  G4double cross = 0.0;
  G4SAIDCrossSectionType tp = GetType(part,0,Z,N);
  if(saidUnknown != tp) {
    G4int idx = G4int(tp);
    if(!inelastdata[idx]) { Initialise(tp); }
    if(inelastdata[idx]) {
      cross = (inelastdata[idx])->Value(kinEnergy);
    }
  }
  return cross;
}

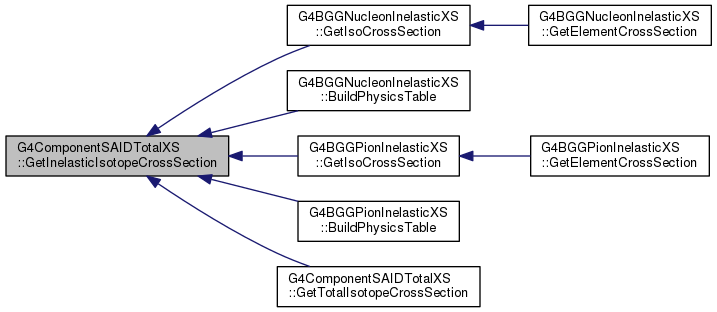

Here is the caller graph for this function:

G4double G4ComponentSAIDTotalXS::GetTotalElementCrossSection ( const G4ParticleDefinition *  part, G4double  kinEnergy, G4int  Z, G4double  N  )

virtual

Implements G4VComponentCrossSection.

Definition at line 74 of file G4ComponentSAIDTotalXS.cc.

{
  PrintWarning(part,0,Z,G4lrint(N),
           "G4ComponentSAIDTotalXS::GetTotalElementCrossSection",
           "Method is not implemented");
  return 0.0;
}

Here is the call graph for this function:

G4double G4ComponentSAIDTotalXS::GetTotalIsotopeCrossSection ( const G4ParticleDefinition *  part, G4double  kinEnergy, G4int  Z, G4int  N  )

virtual

Implements G4VComponentCrossSection.

Definition at line 85 of file G4ComponentSAIDTotalXS.cc.

{
  return GetInelasticIsotopeCrossSection(part,kinEnergy,Z,N)
    + GetElasticIsotopeCrossSection(part,kinEnergy,Z,N);
}

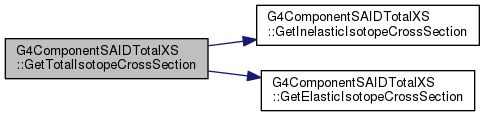

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• geant4.10.03.p01/source/processes/hadronic/cross_sections/include/G4ComponentSAIDTotalXS.hh
• geant4.10.03.p01/source/processes/hadronic/cross_sections/src/G4ComponentSAIDTotalXS.cc
