HepGeom::BasicVector3D< T > Class Template Reference

#include <BasicVector3D.h>

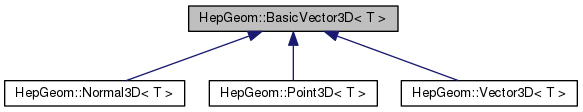

Inheritance diagram for HepGeom::BasicVector3D< T >:
Inheritance graph
[legend]
Collaboration diagram for HepGeom::BasicVector3D< T >:
Collaboration graph
[legend]

Public Types

enum  {
  X = 0, Y = 1, Z = 2, NUM_COORDINATES = 3,
  SIZE = NUM_COORDINATES
}


Public Member Functions

 BasicVector3D (T x1, T y1, T z1)

 BasicVector3D (const BasicVector3D< float > &v)

virtual ~BasicVector3D ()

 operator T * ()

 operator const T * () const

 operator CLHEP::Hep3Vector () const

BasicVector3D< T > & operator= (const BasicVector3D< T > &v)

BasicVector3D< T > & operator+= (const BasicVector3D< T > &v)

BasicVector3D< T > & operator-= (const BasicVector3D< T > &v)

BasicVector3D< T > & operator*= (double a)

BasicVector3D< T > & operator/= (double a)

T operator() (int i) const

T operator[] (int i) const

T & operator() (int i)

T & operator[] (int i)

T x () const

T y () const

T z () const

void setX (T a)

void setY (T a)

void setZ (T a)

void set (T x1, T y1, T z1)

T perp2 () const

T perp () const

T rho () const

void setPerp (T rh)

T mag2 () const

T mag () const

T r () const

T phi () const

T theta () const

T cosTheta () const

T getR () const

T getPhi () const

T getTheta () const

void setMag (T ma)

void setR (T ma)

void setPhi (T ph)

void setTheta (T th)

T pseudoRapidity () const

T eta () const

T getEta () const

void setEta (T a)

T dot (const BasicVector3D< T > &v) const

BasicVector3D< T > cross (const BasicVector3D< T > &v) const

T perp2 (const BasicVector3D< T > &v) const

T perp (const BasicVector3D< T > &v) const

T angle (const BasicVector3D< T > &v) const

BasicVector3D< T > unit () const

BasicVector3D< T > orthogonal () const

BasicVector3D< T > & rotateX (T a)

BasicVector3D< T > & rotateY (T a)

BasicVector3D< T > & rotateZ (T a)

BasicVector3D< T > & rotate (T a, const BasicVector3D< T > &v)

template<>
float pseudoRapidity () const

template<>
void setEta (float a)

template<>
float angle (const BasicVector3D< float > &v) const

template<>
BasicVector3D< float > & rotateX (float a)

template<>
BasicVector3D< float > & rotateY (float a)

template<>
BasicVector3D< float > & rotateZ (float a)

template<>
BasicVector3D< float > & rotate (float a, const BasicVector3D< float > &v)

template<>
double pseudoRapidity () const

template<>
void setEta (double a)

template<>
double angle (const BasicVector3D< double > &v) const

template<>
BasicVector3D< double > & rotateX (double a)

template<>
BasicVector3D< double > & rotateY (double a)

template<>
BasicVector3D< double > & rotateZ (double a)

template<>
BasicVector3D< double > & rotate (double a, const BasicVector3D< double > &v)


Protected Member Functions

 BasicVector3D ()


Protected Attributes

T v_ [3]


Related Functions

(Note that these are not member functions.)

std::ostream & operator<< (std::ostream &, const BasicVector3D< float > &)

std::istream & operator>> (std::istream &, BasicVector3D< float > &)

BasicVector3D< float > operator+ (const BasicVector3D< float > &v)

BasicVector3D< float > operator+ (const BasicVector3D< float > &a, const BasicVector3D< float > &b)

BasicVector3D< float > operator- (const BasicVector3D< float > &v)

BasicVector3D< float > operator- (const BasicVector3D< float > &a, const BasicVector3D< float > &b)

BasicVector3D< float > operator* (const BasicVector3D< float > &v, double a)

float operator* (const BasicVector3D< float > &a, const BasicVector3D< float > &b)

BasicVector3D< float > operator* (double a, const BasicVector3D< float > &v)

BasicVector3D< float > operator/ (const BasicVector3D< float > &v, double a)

bool operator== (const BasicVector3D< float > &a, const BasicVector3D< float > &b)

bool operator!= (const BasicVector3D< float > &a, const BasicVector3D< float > &b)

std::ostream & operator<< (std::ostream &, const BasicVector3D< double > &)

std::istream & operator>> (std::istream &, BasicVector3D< double > &)

BasicVector3D< double > operator+ (const BasicVector3D< double > &v)

BasicVector3D< double > operator+ (const BasicVector3D< double > &a, const BasicVector3D< double > &b)

BasicVector3D< double > operator- (const BasicVector3D< double > &v)

BasicVector3D< double > operator- (const BasicVector3D< double > &a, const BasicVector3D< double > &b)

BasicVector3D< double > operator* (const BasicVector3D< double > &v, double a)

double operator* (const BasicVector3D< double > &a, const BasicVector3D< double > &b)

BasicVector3D< double > operator* (double a, const BasicVector3D< double > &v)

BasicVector3D< double > operator/ (const BasicVector3D< double > &v, double a)

bool operator== (const BasicVector3D< double > &a, const BasicVector3D< double > &b)

bool operator!= (const BasicVector3D< double > &a, const BasicVector3D< double > &b)


Detailed Description

template<class T>
class HepGeom::BasicVector3D< T >

Base class for Point3D<T>, Vector3D<T> and Normal3D<T>. It defines only common functionality for those classes and should not be used as separate class.

Author
Evgeni Chernyaev Evgue.nosp@m.ni.T.nosp@m.chern.nosp@m.iaev.nosp@m.@cern.nosp@m..ch

Definition at line 27 of file BasicVector3D.h.

Member Enumeration Documentation

template<class T>
anonymous enum

Safe indexing of the coordinates when using with matrices, arrays, etc.

Enumerator
X

index for x-component

Y

index for y-component

Z

index for z-component

NUM_COORDINATES

number of components

SIZE

number of components

Definition at line 41 of file BasicVector3D.h.

41  {
42  X = 0,
43  Y = 1,
44  Z = 2,
45  NUM_COORDINATES = 3,
46  SIZE = NUM_COORDINATES
47  };

Constructor & Destructor Documentation

template<class T>
HepGeom::BasicVector3D< T >::BasicVector3D ( )
inlineprotected

Default constructor. It is protected - this class should not be instantiated directly.

Definition at line 35 of file BasicVector3D.h.

35 { v_[0] = 0; v_[1] = 0; v_[2] = 0; }
template<class T>
HepGeom::BasicVector3D< T >::BasicVector3D ( T  x1,
T  y1,
T  z1
)
inline

Constructor from three numbers.

Definition at line 51 of file BasicVector3D.h.

51 { v_[0] = x1; v_[1] = y1; v_[2] = z1; }
template<class T>
HepGeom::BasicVector3D< T >::BasicVector3D ( const BasicVector3D< float > &  v)
inline

Copy constructor. Note: BasicVector3D<double> has constructors from BasicVector3D<double> (provided by compiler) and from BasicVector3D<float> (defined in this file); BasicVector3D<float> has only the last one.

Definition at line 60 of file BasicVector3D.h.

60  {
61  v_[0] = v.x(); v_[1] = v.y(); v_[2] = v.z();
62  }
template<class T>
virtual HepGeom::BasicVector3D< T >::~BasicVector3D ( )
inlinevirtual

Destructor.

Definition at line 66 of file BasicVector3D.h.

66 {}

Member Function Documentation

template<>
float HepGeom::BasicVector3D< float >::angle ( const BasicVector3D< float > &  v) const

Definition at line 36 of file BasicVector3D.cc.

36  {
37  double cosa = 0;
38  double ptot = mag()*v.mag();
39  if(ptot > 0) {
40  cosa = dot(v)/ptot;
41  if(cosa > 1) cosa = 1;
42  if(cosa < -1) cosa = -1;
43  }
44  return std::acos(cosa);
45  }
HepGeom::BasicVector3D::dot
T dot(const BasicVector3D< T > &v) const
Definition: BasicVector3D.h:269

Here is the call graph for this function:

template<>
double HepGeom::BasicVector3D< double >::angle ( const BasicVector3D< double > &  v) const

Definition at line 192 of file BasicVector3D.cc.

192  {
193  double cosa = 0;
194  double ptot = mag()*v.mag();
195  if(ptot > 0) {
196  cosa = dot(v)/ptot;
197  if(cosa > 1) cosa = 1;
198  if(cosa < -1) cosa = -1;
199  }
200  return std::acos(cosa);
201  }
HepGeom::BasicVector3D::dot
T dot(const BasicVector3D< T > &v) const
Definition: BasicVector3D.h:269

Here is the call graph for this function:

template<class T>
T HepGeom::BasicVector3D< T >::angle ( const BasicVector3D< T > &  v) const

Returns angle w.r.t. another vector.

template<class T>
T HepGeom::BasicVector3D< T >::cosTheta ( ) const
inline

Gets cosine of polar angle.

Definition at line 211 of file BasicVector3D.h.

211 { T ma = mag(); return ma == 0 ? 1 : z()/ma; }
template<class T>
BasicVector3D<T> HepGeom::BasicVector3D< T >::cross ( const BasicVector3D< T > &  v) const
inline

Vector product.

Definition at line 275 of file BasicVector3D.h.

275  {
276  return BasicVector3D<T>(y()*v.z()-v.y()*z(),
277  z()*v.x()-v.z()*x(),
278  x()*v.y()-v.x()*y());
279  }
test.v
tuple v
Definition: test.py:18

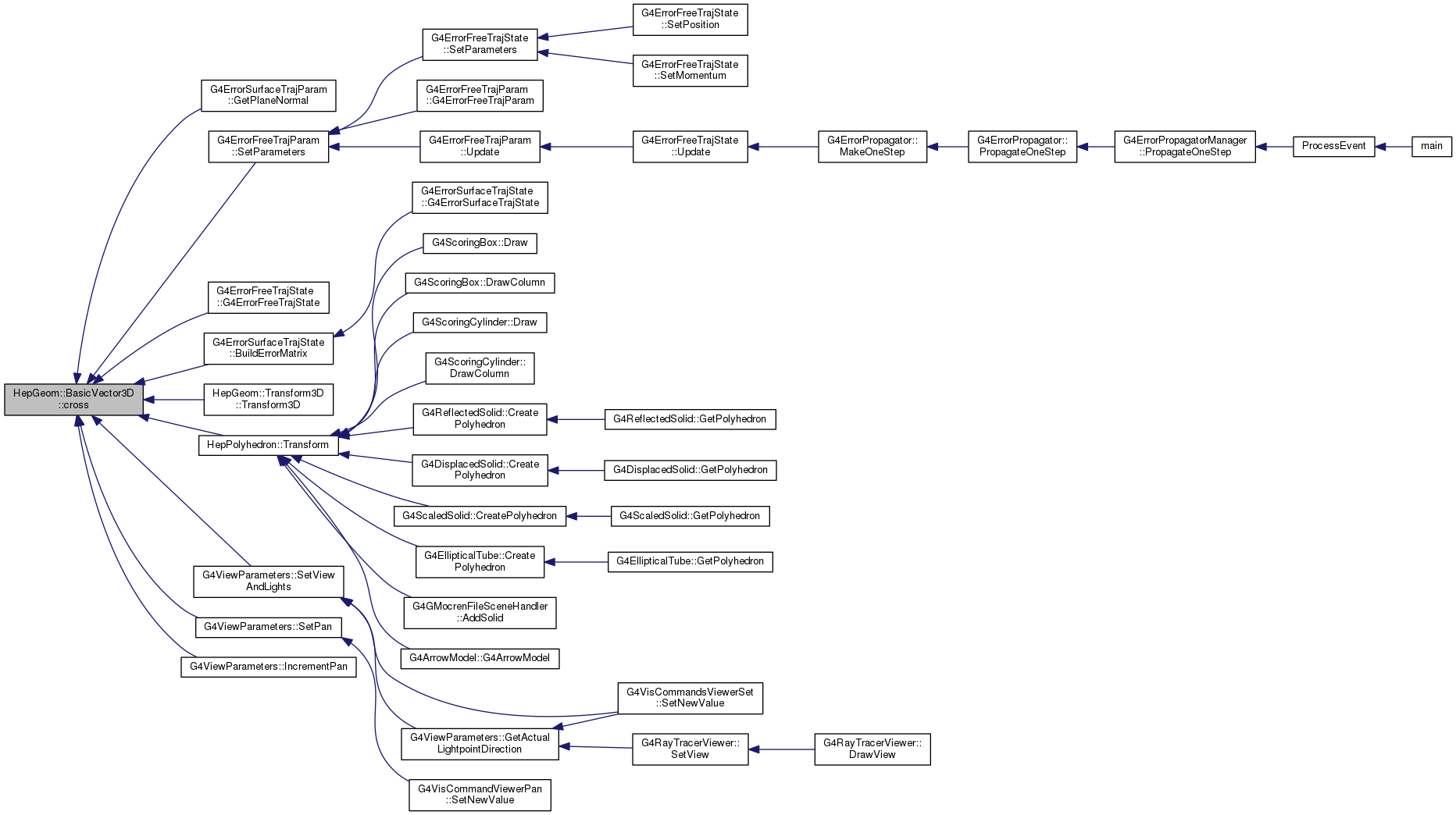

Here is the caller graph for this function:

template<class T>
T HepGeom::BasicVector3D< T >::dot ( const BasicVector3D< T > &  v) const
inline

Scalar product.

Definition at line 269 of file BasicVector3D.h.

269  {
270  return x()*v.x()+y()*v.y()+z()*v.z();
271  }
test.v
tuple v
Definition: test.py:18

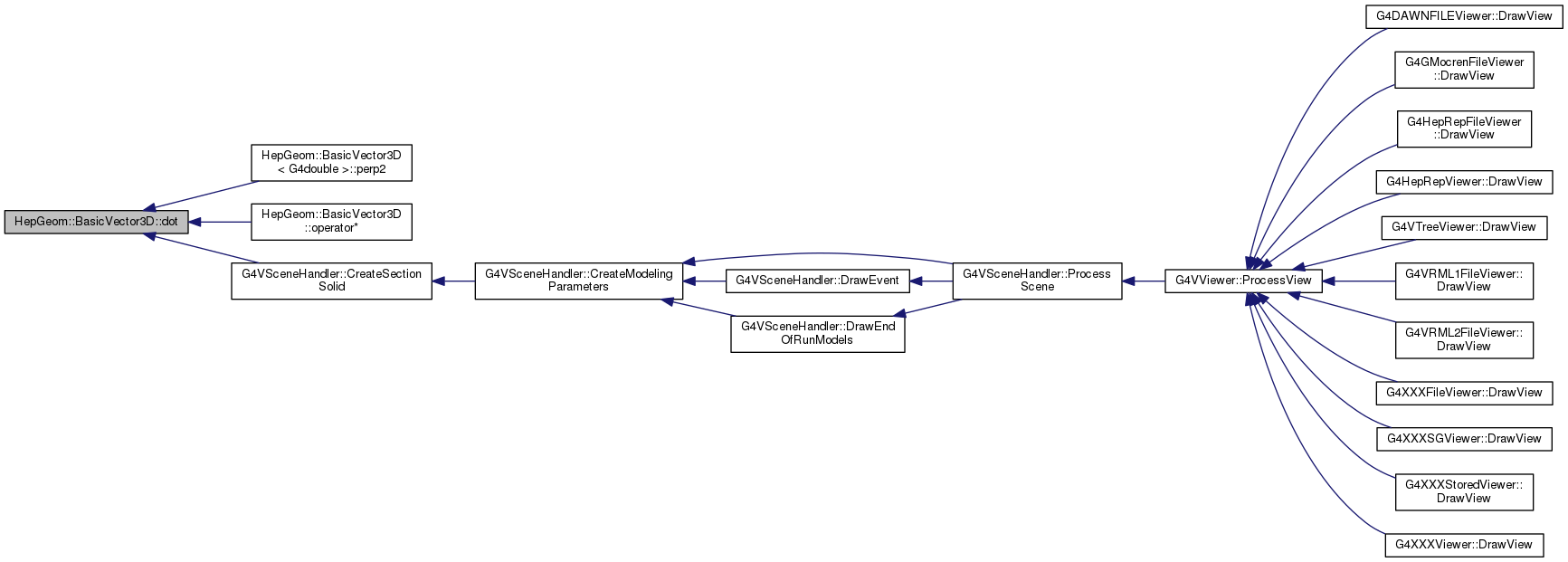

Here is the caller graph for this function:

template<class T>
T HepGeom::BasicVector3D< T >::eta ( ) const
inline

Gets pseudo-rapidity.

Definition at line 254 of file BasicVector3D.h.

254 { return pseudoRapidity(); }

Here is the caller graph for this function:

template<class T>
T HepGeom::BasicVector3D< T >::getEta ( ) const
inline

Gets pseudo-rapidity.

Definition at line 257 of file BasicVector3D.h.

257 { return pseudoRapidity(); }
template<class T>
T HepGeom::BasicVector3D< T >::getPhi ( ) const
inline

Gets phi-component in spherical coordinate system

Definition at line 218 of file BasicVector3D.h.

218 { return phi(); }
template<class T>
T HepGeom::BasicVector3D< T >::getR ( ) const
inline

Gets r-component in spherical coordinate system

Definition at line 215 of file BasicVector3D.h.

215 { return r(); }
template<class T>
T HepGeom::BasicVector3D< T >::getTheta ( ) const
inline

Gets theta-component in spherical coordinate system

Definition at line 221 of file BasicVector3D.h.

221 { return theta(); }
template<class T>
T HepGeom::BasicVector3D< T >::mag ( ) const
inline

Gets magnitude of the vector.

Definition at line 195 of file BasicVector3D.h.

195 { return std::sqrt(mag2()); }

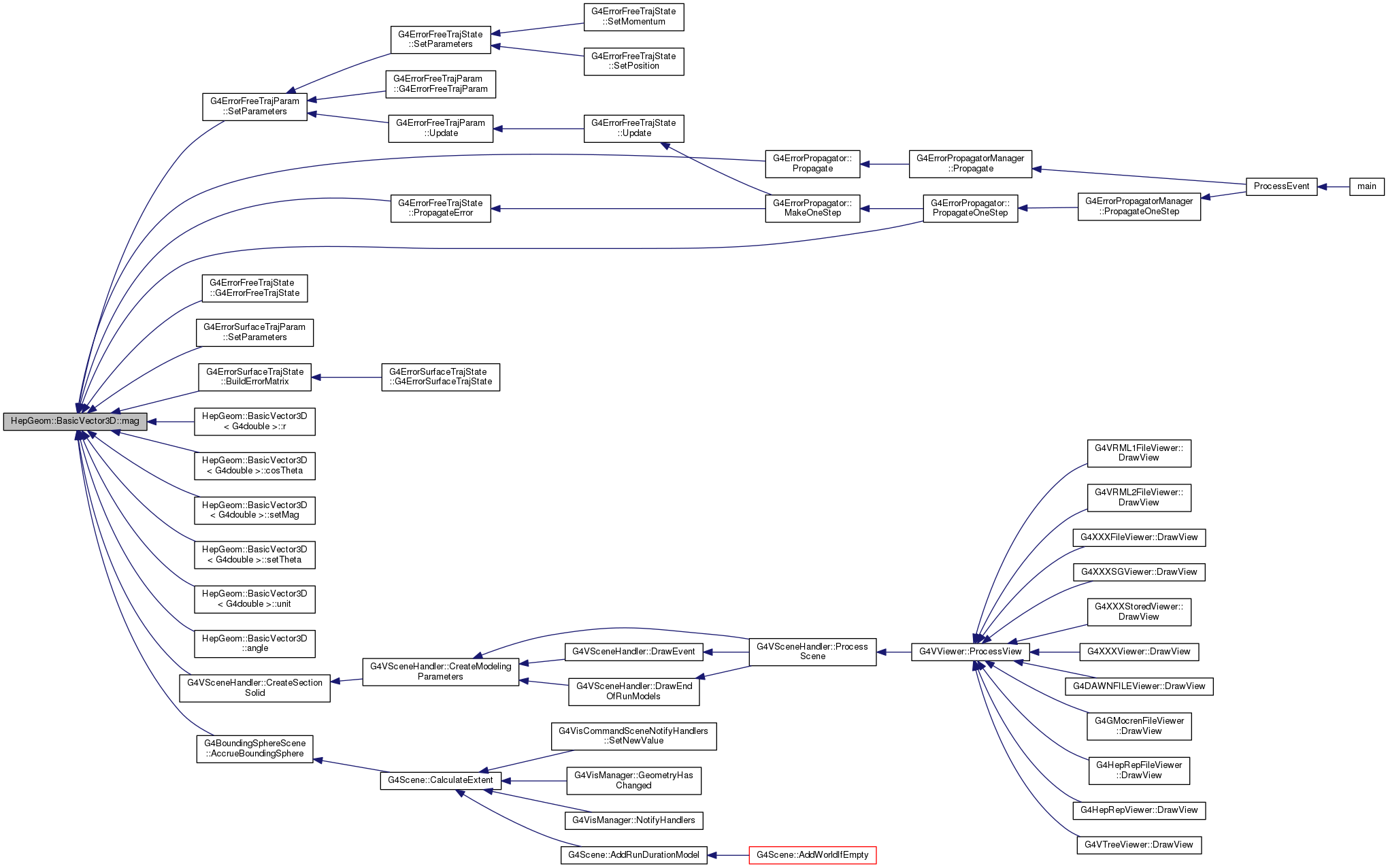

Here is the caller graph for this function:

template<class T>
T HepGeom::BasicVector3D< T >::mag2 ( ) const
inline

Gets magnitude squared of the vector.

Definition at line 192 of file BasicVector3D.h.

192 { return x()*x()+y()*y()+z()*z(); }

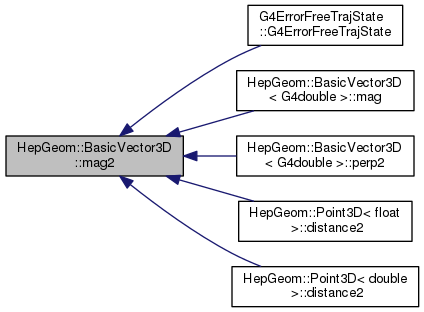

Here is the caller graph for this function:

template<class T>
HepGeom::BasicVector3D< T >::operator CLHEP::Hep3Vector ( ) const
inline

Conversion (cast) to CLHEP::Hep3Vector. This operator is needed only for backward compatibility and in principle should not exit.

Definition at line 85 of file BasicVector3D.h.

85 { return CLHEP::Hep3Vector(x(),y(),z()); }
template<class T>
HepGeom::BasicVector3D< T >::operator const T * ( ) const
inline

Conversion (cast) to ordinary const array.

Definition at line 78 of file BasicVector3D.h.

78 { return v_; }
template<class T>
HepGeom::BasicVector3D< T >::operator T * ( )
inline

Conversion (cast) to ordinary array.

Definition at line 74 of file BasicVector3D.h.

74 { return v_; }
template<class T>
T HepGeom::BasicVector3D< T >::operator() ( int  i) const
inline

Gets components by index.

Definition at line 123 of file BasicVector3D.h.

123 { return v_[i]; }
template<class T>
T& HepGeom::BasicVector3D< T >::operator() ( int  i)
inline

Sets components by index.

Definition at line 130 of file BasicVector3D.h.

130 { return v_[i]; }
template<class T>
BasicVector3D<T>& HepGeom::BasicVector3D< T >::operator*= ( double  a)
inline

Multiplication by scalar.

Definition at line 108 of file BasicVector3D.h.

108  {
109  v_[0] *= a; v_[1] *= a; v_[2] *= a; return *this;
110  }
a
std::vector< ExP01TrackerHit * > a
Definition: ExP01Classes.hh:33
template<class T>
BasicVector3D<T>& HepGeom::BasicVector3D< T >::operator+= ( const BasicVector3D< T > &  v)
inline

Addition.

Definition at line 98 of file BasicVector3D.h.

98  {
99  v_[0] += v.v_[0]; v_[1] += v.v_[1]; v_[2] += v.v_[2]; return *this;
100  }
test.v
tuple v
Definition: test.py:18
template<class T>
BasicVector3D<T>& HepGeom::BasicVector3D< T >::operator-= ( const BasicVector3D< T > &  v)
inline

Subtraction.

Definition at line 103 of file BasicVector3D.h.

103  {
104  v_[0] -= v.v_[0]; v_[1] -= v.v_[1]; v_[2] -= v.v_[2]; return *this;
105  }
test.v
tuple v
Definition: test.py:18
template<class T>
BasicVector3D<T>& HepGeom::BasicVector3D< T >::operator/= ( double  a)
inline

Division by scalar.

Definition at line 113 of file BasicVector3D.h.

113  {
114  v_[0] /= a; v_[1] /= a; v_[2] /= a; return *this;
115  }
a
std::vector< ExP01TrackerHit * > a
Definition: ExP01Classes.hh:33
template<class T>
BasicVector3D<T>& HepGeom::BasicVector3D< T >::operator= ( const BasicVector3D< T > &  v)
inline

Assignment.

Definition at line 93 of file BasicVector3D.h.

93  {
94  v_[0] = v.v_[0]; v_[1] = v.v_[1]; v_[2] = v.v_[2]; return *this;
95  }
test.v
tuple v
Definition: test.py:18
template<class T>
T HepGeom::BasicVector3D< T >::operator[] ( int  i) const
inline

Gets components by index.

Definition at line 126 of file BasicVector3D.h.

126 { return v_[i]; }
template<class T>
T& HepGeom::BasicVector3D< T >::operator[] ( int  i)
inline

Sets components by index.

Definition at line 133 of file BasicVector3D.h.

133 { return v_[i]; }
template<class T>
BasicVector3D<T> HepGeom::BasicVector3D< T >::orthogonal ( ) const
inline

Returns orthogonal vector.

Definition at line 312 of file BasicVector3D.h.

312  {
313  T dx = x() < 0 ? -x() : x();
314  T dy = y() < 0 ? -y() : y();
315  T dz = z() < 0 ? -z() : z();
316  if (dx < dy) {
317  return dx < dz ?
318  BasicVector3D<T>(0,z(),-y()) : BasicVector3D<T>(y(),-x(),0);
319  }else{
320  return dy < dz ?
321  BasicVector3D<T>(-z(),0,x()) : BasicVector3D<T>(y(),-x(),0);
322  }
323  }
template<class T>
T HepGeom::BasicVector3D< T >::perp ( ) const
inline

Gets transverse component.

Definition at line 172 of file BasicVector3D.h.

172 { return std::sqrt(perp2()); }

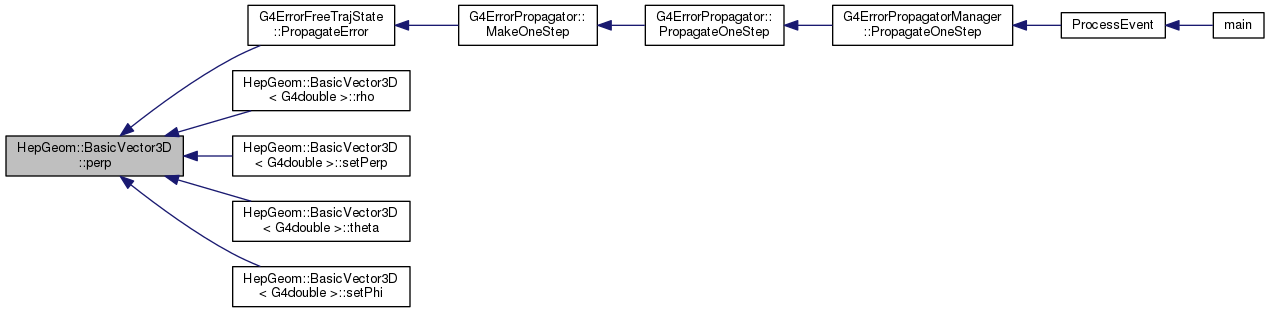

Here is the caller graph for this function:

template<class T>
T HepGeom::BasicVector3D< T >::perp ( const BasicVector3D< T > &  v) const
inline

Returns transverse component w.r.t. given axis.

Definition at line 290 of file BasicVector3D.h.

290  {
291  return std::sqrt(perp2(v));
292  }
test.v
tuple v
Definition: test.py:18
template<class T>
T HepGeom::BasicVector3D< T >::perp2 ( ) const
inline

Gets transverse component squared.

Definition at line 169 of file BasicVector3D.h.

169 { return x()*x()+y()*y(); }

Here is the caller graph for this function:

template<class T>
T HepGeom::BasicVector3D< T >::perp2 ( const BasicVector3D< T > &  v) const
inline

Returns transverse component w.r.t. given axis squared.

Definition at line 283 of file BasicVector3D.h.

283  {
284  T tot = v.mag2(), s = dot(v);
285  return tot > 0 ? mag2()-s*s/tot : mag2();
286  }
s
const XML_Char * s
Definition: expat.h:262
test.v
tuple v
Definition: test.py:18
HepGeom::BasicVector3D::dot
T dot(const BasicVector3D< T > &v) const
Definition: BasicVector3D.h:269
template<class T>
T HepGeom::BasicVector3D< T >::phi ( ) const
inline

Gets azimuth angle.

Definition at line 201 of file BasicVector3D.h.

201  {
202  return x() == 0 && y() == 0 ? 0 : std::atan2(y(),x());
203  }

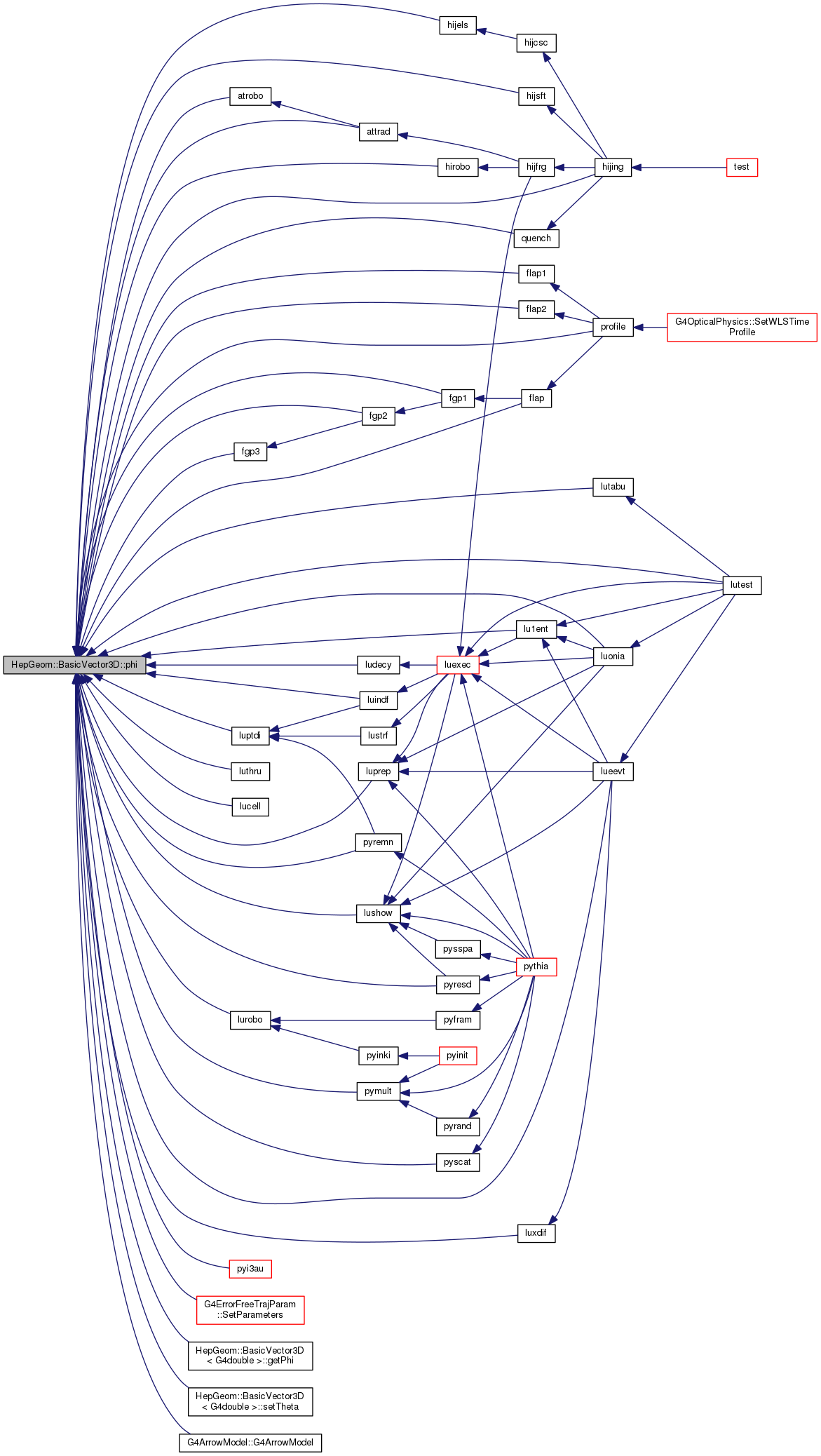

Here is the caller graph for this function:

template<>
float HepGeom::BasicVector3D< float >::pseudoRapidity ( ) const

Definition at line 13 of file BasicVector3D.cc.

13  {
14  float ma = mag(), dz = z();
15  if (ma == 0) return 0;
16  if (ma == dz) return FLT_MAX;
17  if (ma == -dz) return -FLT_MAX;
18  return 0.5*std::log((ma+dz)/(ma-dz));
19  }
FLT_MAX
#define FLT_MAX
Definition: templates.hh:99
template<>
double HepGeom::BasicVector3D< double >::pseudoRapidity ( ) const

Definition at line 169 of file BasicVector3D.cc.

169  {
170  double ma = mag(), dz = z();
171  if (ma == 0) return 0;
172  if (ma == dz) return DBL_MAX;
173  if (ma == -dz) return -DBL_MAX;
174  return 0.5*std::log((ma+dz)/(ma-dz));
175  }
DBL_MAX
#define DBL_MAX
Definition: templates.hh:83
template<class T>
T HepGeom::BasicVector3D< T >::pseudoRapidity ( ) const

Gets pseudo-rapidity: -ln(tan(theta/2))

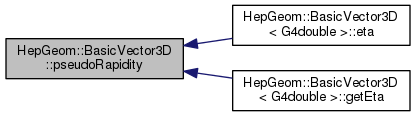

Here is the caller graph for this function:

template<class T>
T HepGeom::BasicVector3D< T >::r ( ) const
inline

Gets r-component in spherical coordinate system

Definition at line 198 of file BasicVector3D.h.

198 { return mag(); }

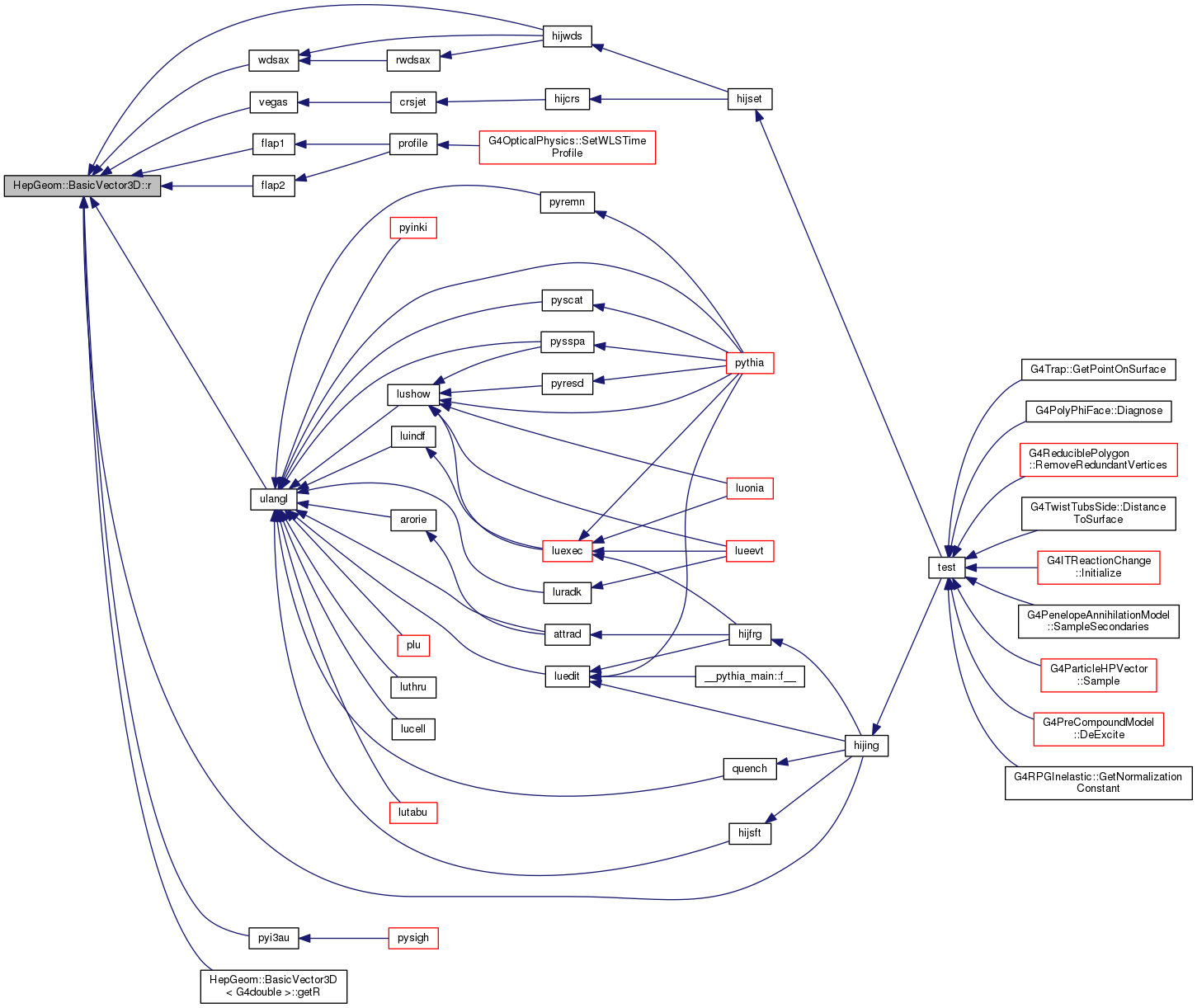

Here is the caller graph for this function:

template<class T>
T HepGeom::BasicVector3D< T >::rho ( ) const
inline

Gets rho-component in cylindrical coordinate system

Definition at line 175 of file BasicVector3D.h.

175 { return perp(); }

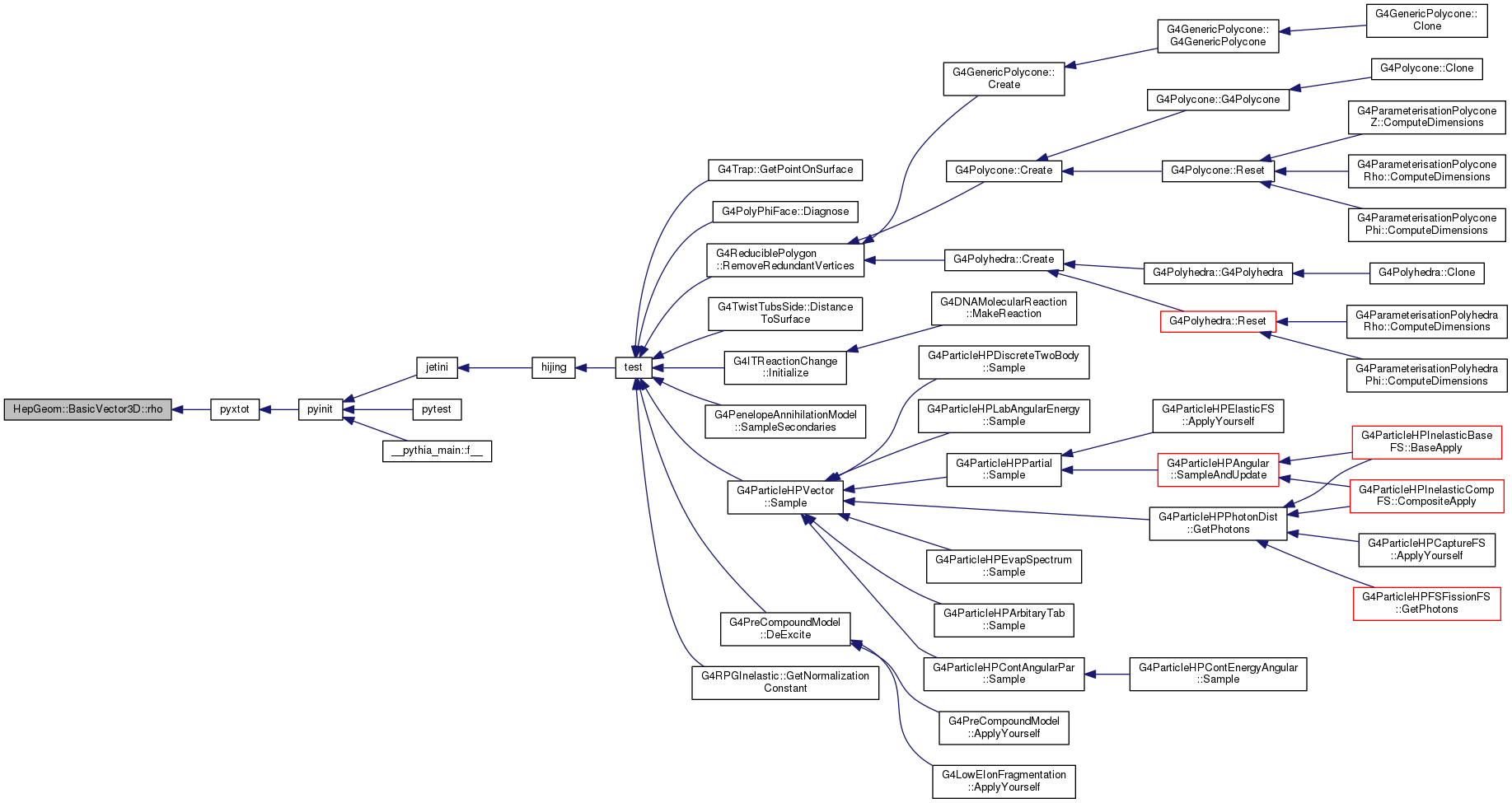

Here is the caller graph for this function:

template<>
BasicVector3D< float > & HepGeom::BasicVector3D< float >::rotate ( float  a,
const BasicVector3D< float > &  v
)

Definition at line 77 of file BasicVector3D.cc.

77  {
78  if (a == 0) return *this;
79  double cx = v.x(), cy = v.y(), cz = v.z();
80  double ll = std::sqrt(cx*cx + cy*cy + cz*cz);
81  if (ll == 0) {
82  std::cerr << "BasicVector<float>::rotate() : zero axis" << std::endl;
83  return *this;
84  }
85  double cosa = std::cos(a), sina = std::sin(a);
86  cx /= ll; cy /= ll; cz /= ll;
87
88  double xx = cosa + (1-cosa)*cx*cx;
89  double xy = (1-cosa)*cx*cy - sina*cz;
90  double xz = (1-cosa)*cx*cz + sina*cy;
91
92  double yx = (1-cosa)*cy*cx + sina*cz;
93  double yy = cosa + (1-cosa)*cy*cy;
94  double yz = (1-cosa)*cy*cz - sina*cx;
95
96  double zx = (1-cosa)*cz*cx - sina*cy;
97  double zy = (1-cosa)*cz*cy + sina*cx;
98  double zz = cosa + (1-cosa)*cz*cz;
99
100  cx = x(); cy = y(); cz = z();
101  set(xx*cx+xy*cy+xz*cz, yx*cx+yy*cy+yz*cz, zx*cx+zy*cy+zz*cz);
102  return *this;
103  }
HepGeom::BasicVector3D::set
void set(T x1, T y1, T z1)
Definition: BasicVector3D.h:161
a
std::vector< ExP01TrackerHit * > a
Definition: ExP01Classes.hh:33

Here is the call graph for this function:

template<>
BasicVector3D< double > & HepGeom::BasicVector3D< double >::rotate ( double  a,
const BasicVector3D< double > &  v
)

Definition at line 233 of file BasicVector3D.cc.

233  {
234  if (a == 0) return *this;
235  double cx = v.x(), cy = v.y(), cz = v.z();
236  double ll = std::sqrt(cx*cx + cy*cy + cz*cz);
237  if (ll == 0) {
238  std::cerr << "BasicVector<double>::rotate() : zero axis" << std::endl;
239  return *this;
240  }
241  double cosa = std::cos(a), sina = std::sin(a);
242  cx /= ll; cy /= ll; cz /= ll;
243
244  double xx = cosa + (1-cosa)*cx*cx;
245  double xy = (1-cosa)*cx*cy - sina*cz;
246  double xz = (1-cosa)*cx*cz + sina*cy;
247
248  double yx = (1-cosa)*cy*cx + sina*cz;
249  double yy = cosa + (1-cosa)*cy*cy;
250  double yz = (1-cosa)*cy*cz - sina*cx;
251
252  double zx = (1-cosa)*cz*cx - sina*cy;
253  double zy = (1-cosa)*cz*cy + sina*cx;
254  double zz = cosa + (1-cosa)*cz*cz;
255
256  cx = x(); cy = y(); cz = z();
257  set(xx*cx+xy*cy+xz*cz, yx*cx+yy*cy+yz*cz, zx*cx+zy*cy+zz*cz);
258  return *this;
259  }
HepGeom::BasicVector3D::set
void set(T x1, T y1, T z1)
Definition: BasicVector3D.h:161
a
std::vector< ExP01TrackerHit * > a
Definition: ExP01Classes.hh:33

Here is the call graph for this function:

template<class T>
BasicVector3D<T>& HepGeom::BasicVector3D< T >::rotate ( T  a,
const BasicVector3D< T > &  v
)

Rotates around the axis specified by another vector.

template<>
BasicVector3D< float > & HepGeom::BasicVector3D< float >::rotateX ( float  a)

Definition at line 49 of file BasicVector3D.cc.

49  {
50  double sina = std::sin(a), cosa = std::cos(a), dy = y(), dz = z();
51  setY(dy*cosa-dz*sina);
52  setZ(dz*cosa+dy*sina);
53  return *this;
54  }
a
std::vector< ExP01TrackerHit * > a
Definition: ExP01Classes.hh:33
template<>
BasicVector3D< double > & HepGeom::BasicVector3D< double >::rotateX ( double  a)

Definition at line 205 of file BasicVector3D.cc.

205  {
206  double sina = std::sin(a), cosa = std::cos(a), dy = y(), dz = z();
207  setY(dy*cosa-dz*sina);
208  setZ(dz*cosa+dy*sina);
209  return *this;
210  }
a
std::vector< ExP01TrackerHit * > a
Definition: ExP01Classes.hh:33
template<class T>
BasicVector3D<T>& HepGeom::BasicVector3D< T >::rotateX ( T  a)

Rotates around x-axis.

template<>
BasicVector3D< float > & HepGeom::BasicVector3D< float >::rotateY ( float  a)

Definition at line 58 of file BasicVector3D.cc.

58  {
59  double sina = std::sin(a), cosa = std::cos(a), dz = z(), dx = x();
60  setZ(dz*cosa-dx*sina);
61  setX(dx*cosa+dz*sina);
62  return *this;
63  }
a
std::vector< ExP01TrackerHit * > a
Definition: ExP01Classes.hh:33
template<>
BasicVector3D< double > & HepGeom::BasicVector3D< double >::rotateY ( double  a)

Definition at line 214 of file BasicVector3D.cc.

214  {
215  double sina = std::sin(a), cosa = std::cos(a), dz = z(), dx = x();
216  setZ(dz*cosa-dx*sina);
217  setX(dx*cosa+dz*sina);
218  return *this;
219  }
a
std::vector< ExP01TrackerHit * > a
Definition: ExP01Classes.hh:33
template<class T>
BasicVector3D<T>& HepGeom::BasicVector3D< T >::rotateY ( T  a)

Rotates around y-axis.

template<>
BasicVector3D< float > & HepGeom::BasicVector3D< float >::rotateZ ( float  a)

Definition at line 67 of file BasicVector3D.cc.

67  {
68  double sina = std::sin(a), cosa = std::cos(a), dx = x(), dy = y();
69  setX(dx*cosa-dy*sina);
70  setY(dy*cosa+dx*sina);
71  return *this;
72  }
a
std::vector< ExP01TrackerHit * > a
Definition: ExP01Classes.hh:33
template<>
BasicVector3D< double > & HepGeom::BasicVector3D< double >::rotateZ ( double  a)

Definition at line 223 of file BasicVector3D.cc.

223  {
224  double sina = std::sin(a), cosa = std::cos(a), dx = x(), dy = y();
225  setX(dx*cosa-dy*sina);
226  setY(dy*cosa+dx*sina);
227  return *this;
228  }
a
std::vector< ExP01TrackerHit * > a
Definition: ExP01Classes.hh:33
template<class T>
BasicVector3D<T>& HepGeom::BasicVector3D< T >::rotateZ ( T  a)

Rotates around z-axis.

template<class T>
void HepGeom::BasicVector3D< T >::set ( T  x1,
T  y1,
T  z1
)
inline

Sets components in cartesian coordinate system.

Definition at line 161 of file BasicVector3D.h.

161 { v_[0] = x1; v_[1] = y1; v_[2] = z1; }

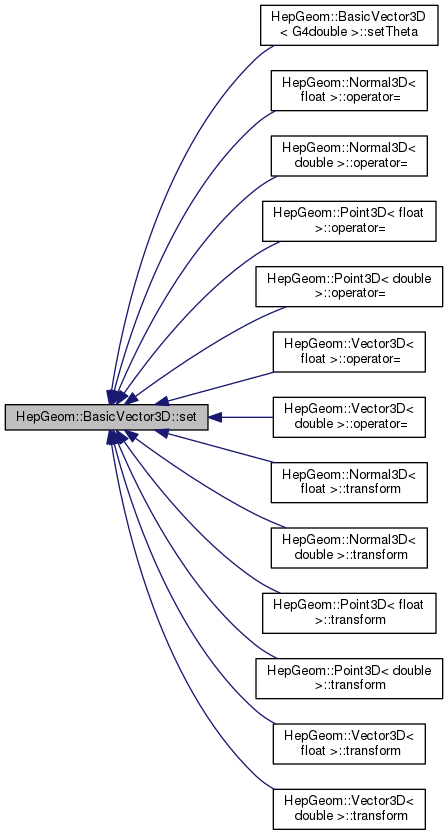

Here is the caller graph for this function:

template<>
void HepGeom::BasicVector3D< float >::setEta ( float  a)

Definition at line 23 of file BasicVector3D.cc.

23  {
24  double ma = mag();
25  if (ma == 0) return;
26  double tanHalfTheta = std::exp(-a);
27  double tanHalfTheta2 = tanHalfTheta * tanHalfTheta;
28  double cosTheta1 = (1 - tanHalfTheta2) / (1 + tanHalfTheta2);
29  double rh = ma * std::sqrt(1 - cosTheta1*cosTheta1);
30  double ph = phi();
31  set(rh*std::cos(ph), rh*std::sin(ph), ma*cosTheta1);
32  }
HepGeom::BasicVector3D::set
void set(T x1, T y1, T z1)
Definition: BasicVector3D.h:161
a
std::vector< ExP01TrackerHit * > a
Definition: ExP01Classes.hh:33
template<>
void HepGeom::BasicVector3D< double >::setEta ( double  a)

Definition at line 179 of file BasicVector3D.cc.

179  {
180  double ma = mag();
181  if (ma == 0) return;
182  double tanHalfTheta = std::exp(-a);
183  double tanHalfTheta2 = tanHalfTheta * tanHalfTheta;
184  double cosTheta1 = (1 - tanHalfTheta2) / (1 + tanHalfTheta2);
185  double rh = ma * std::sqrt(1 - cosTheta1*cosTheta1);
186  double ph = phi();
187  set(rh*std::cos(ph), rh*std::sin(ph), ma*cosTheta1);
188  }
HepGeom::BasicVector3D::set
void set(T x1, T y1, T z1)
Definition: BasicVector3D.h:161
a
std::vector< ExP01TrackerHit * > a
Definition: ExP01Classes.hh:33
template<class T>
void HepGeom::BasicVector3D< T >::setEta ( T  a)

Sets pseudo-rapidity, keeping magnitude and phi fixed.

template<class T>
void HepGeom::BasicVector3D< T >::setMag ( T  ma)
inline

Sets magnitude.

Definition at line 225 of file BasicVector3D.h.

225  {
226  T factor = mag();
227  if (factor > 0) {
228  factor = ma/factor; v_[0] *= factor; v_[1] *= factor; v_[2] *= factor;
229  }
230  }

Here is the caller graph for this function:

template<class T>
void HepGeom::BasicVector3D< T >::setPerp ( T  rh)
inline

Sets transverse component keeping phi and z constant.

Definition at line 179 of file BasicVector3D.h.

179  {
180  T factor = perp();
181  if (factor > 0) {
182  factor = rh/factor; v_[0] *= factor; v_[1] *= factor;
183  }
184  }
template<class T>
void HepGeom::BasicVector3D< T >::setPhi ( T  ph)
inline

Sets phi-component in spherical coordinate system.

Definition at line 236 of file BasicVector3D.h.

236 { T xy = perp(); setX(xy*std::cos(ph)); setY(xy*std::sin(ph)); }
template<class T>
void HepGeom::BasicVector3D< T >::setR ( T  ma)
inline

Sets r-component in spherical coordinate system.

Definition at line 233 of file BasicVector3D.h.

233 { setMag(ma); }
template<class T>
void HepGeom::BasicVector3D< T >::setTheta ( T  th)
inline

Sets theta-component in spherical coordinate system.

Definition at line 239 of file BasicVector3D.h.

239  {
240  T ma = mag();
241  T ph = phi();
242  set(ma*std::sin(th)*std::cos(ph), ma*std::sin(th)*std::sin(ph), ma*std::cos(th));
243  }
HepGeom::BasicVector3D::set
void set(T x1, T y1, T z1)
Definition: BasicVector3D.h:161
template<class T>
void HepGeom::BasicVector3D< T >::setX ( T  a)
inline

Sets x-component in cartesian coordinate system.

Definition at line 151 of file BasicVector3D.h.

151 { v_[0] = a; }
a
std::vector< ExP01TrackerHit * > a
Definition: ExP01Classes.hh:33

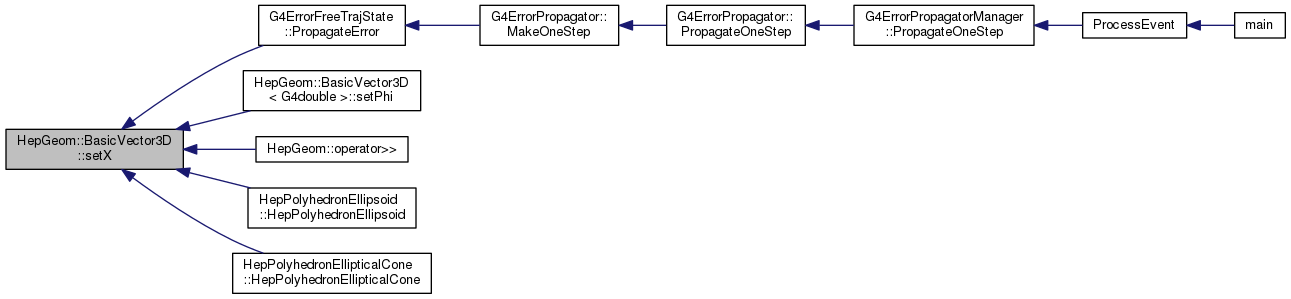

Here is the caller graph for this function:

template<class T>
void HepGeom::BasicVector3D< T >::setY ( T  a)
inline

Sets y-component in cartesian coordinate system.

Definition at line 154 of file BasicVector3D.h.

154 { v_[1] = a; }
a
std::vector< ExP01TrackerHit * > a
Definition: ExP01Classes.hh:33

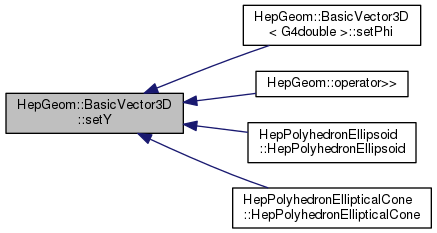

Here is the caller graph for this function:

template<class T>
void HepGeom::BasicVector3D< T >::setZ ( T  a)
inline

Sets z-component in cartesian coordinate system.

Definition at line 157 of file BasicVector3D.h.

157 { v_[2] = a; }
a
std::vector< ExP01TrackerHit * > a
Definition: ExP01Classes.hh:33

Here is the caller graph for this function:

template<class T>
T HepGeom::BasicVector3D< T >::theta ( ) const
inline

Gets polar angle.

Definition at line 206 of file BasicVector3D.h.

206  {
207  return x() == 0 && y() == 0 && z() == 0 ? 0 : std::atan2(perp(),z());
208  }

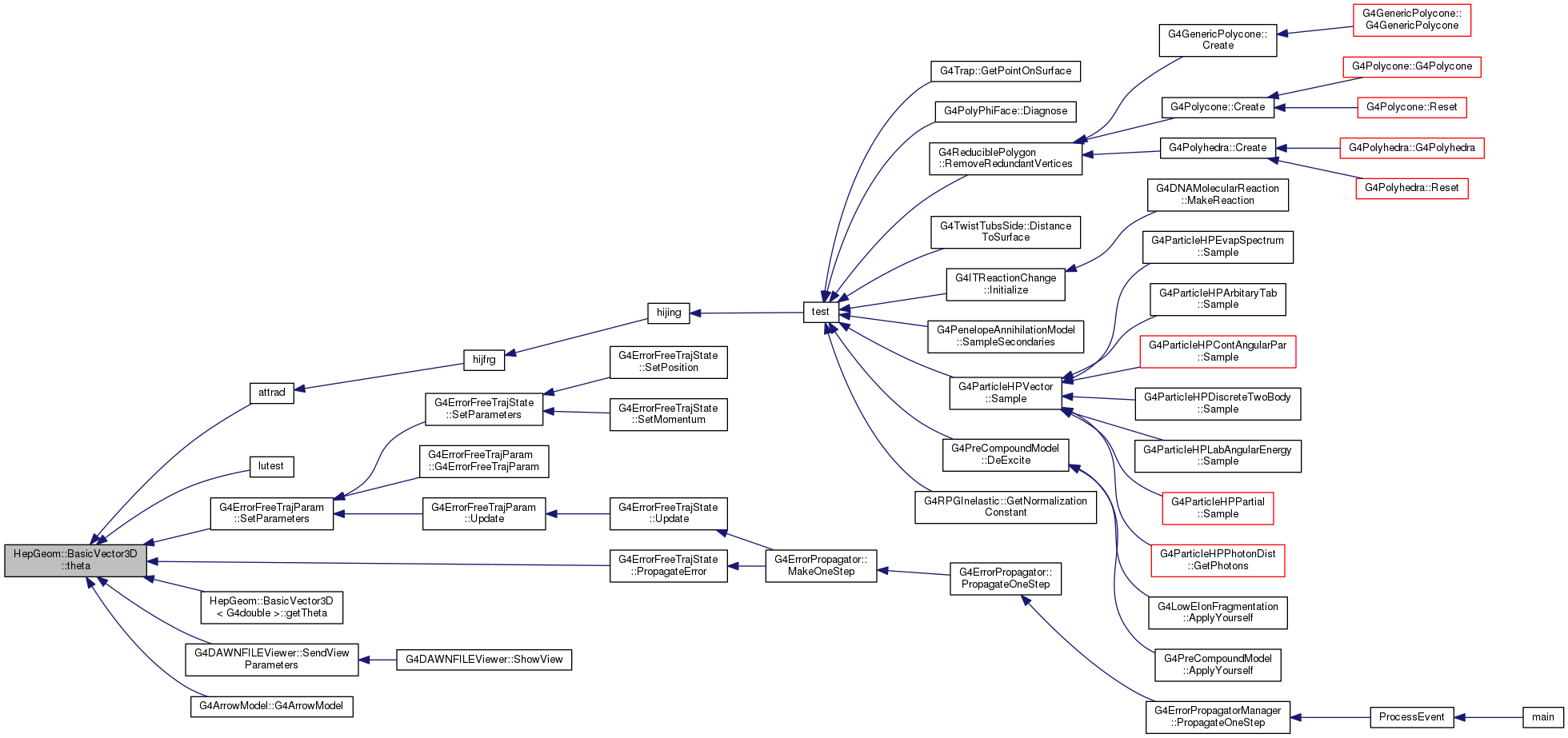

Here is the caller graph for this function:

template<class T>
BasicVector3D<T> HepGeom::BasicVector3D< T >::unit ( ) const
inline

Returns unit vector parallel to this.

Definition at line 304 of file BasicVector3D.h.

304  {
305  T len = mag();
306  return (len > 0) ?
307  BasicVector3D<T>(x()/len, y()/len, z()/len) : BasicVector3D<T>();
308  }
len
const XML_Char int len
Definition: expat.h:262

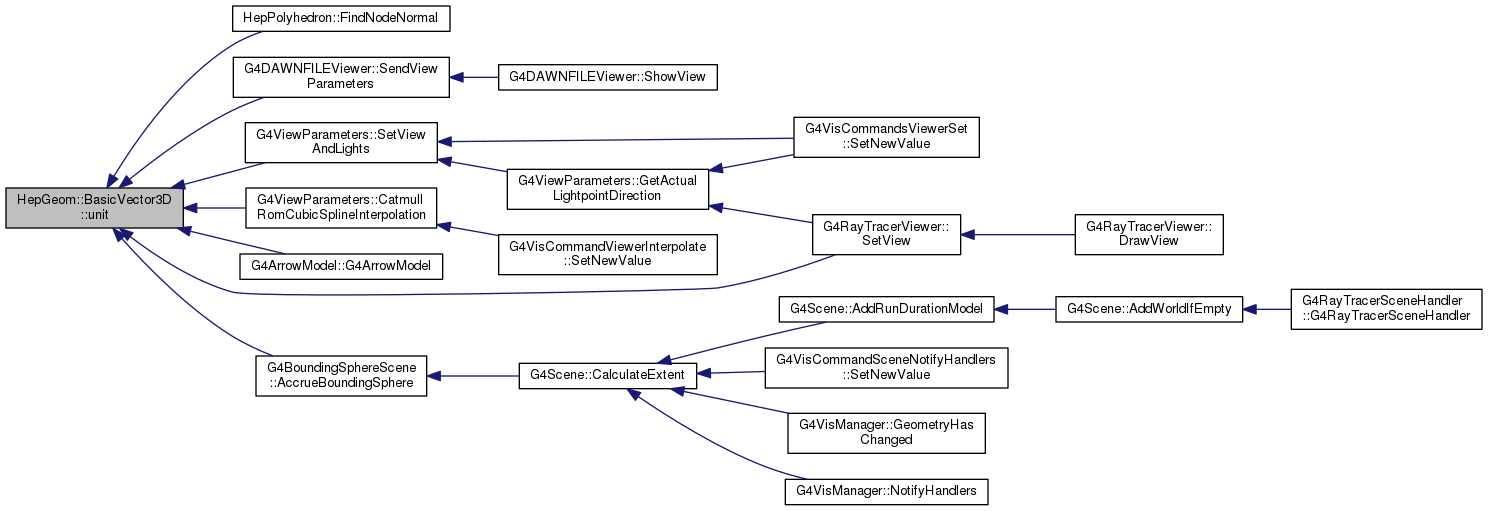

Here is the caller graph for this function:

template<class T>
T HepGeom::BasicVector3D< T >::x ( ) const
inline

Gets x-component in cartesian coordinate system.

Definition at line 141 of file BasicVector3D.h.

141 { return v_[0]; }
template<class T>
T HepGeom::BasicVector3D< T >::y ( ) const
inline

Gets y-component in cartesian coordinate system.

Definition at line 144 of file BasicVector3D.h.

144 { return v_[1]; }
template<class T>
T HepGeom::BasicVector3D< T >::z ( ) const
inline

Gets z-component in cartesian coordinate system.

Definition at line 147 of file BasicVector3D.h.

147 { return v_[2]; }

Friends And Related Function Documentation

template<class T>
bool operator!= ( const BasicVector3D< float > &  a,
const BasicVector3D< float > &  b
)
related

Comparison of two vectors for inequality.

Definition at line 447 of file BasicVector3D.h.

447  {
448  return (a.x()!=b.x() || a.y()!=b.y() || a.z()!=b.z());
449  }

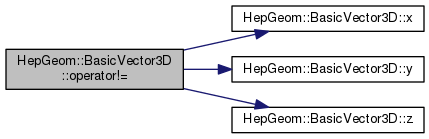

Here is the call graph for this function:

template<class T>
bool operator!= ( const BasicVector3D< double > &  a,
const BasicVector3D< double > &  b
)
related

Comparison of two vectors for inequality.

Definition at line 556 of file BasicVector3D.h.

557  {
558  return (a.x()!=b.x() || a.y()!=b.y() || a.z()!=b.z());
559  }

Here is the call graph for this function:

template<class T>
BasicVector3D< float > operator* ( const BasicVector3D< float > &  v,
double  a
)
related

Multiplication vector by scalar.

Definition at line 402 of file BasicVector3D.h.

402  {
403  return BasicVector3D<float>(v.x()*static_cast<float>(a), v.y()*static_cast<float>(a), v.z()*static_cast<float>(a));
404  }
a
std::vector< ExP01TrackerHit * > a
Definition: ExP01Classes.hh:33

Here is the call graph for this function:

template<class T>
float operator* ( const BasicVector3D< float > &  a,
const BasicVector3D< float > &  b
)
related

Scalar product of two vectors.

Definition at line 411 of file BasicVector3D.h.

411  {
412  return a.dot(b);
413  }
HepGeom::BasicVector3D::dot
T dot(const BasicVector3D< T > &v) const
Definition: BasicVector3D.h:269

Here is the call graph for this function:

template<class T>
BasicVector3D< float > operator* ( double  a,
const BasicVector3D< float > &  v
)
related

Multiplication scalar by vector.

Definition at line 420 of file BasicVector3D.h.

420  {
421  return BasicVector3D<float>(static_cast<float>(a)*v.x(), static_cast<float>(a)*v.y(), static_cast<float>(a)*v.z());
422  }
a
std::vector< ExP01TrackerHit * > a
Definition: ExP01Classes.hh:33

Here is the call graph for this function:

template<class T>
BasicVector3D< double > operator* ( const BasicVector3D< double > &  v,
double  a
)
related

Multiplication vector by scalar.

Definition at line 510 of file BasicVector3D.h.

510  {
511  return BasicVector3D<double>(v.x()*a, v.y()*a, v.z()*a);
512  }
a
std::vector< ExP01TrackerHit * > a
Definition: ExP01Classes.hh:33

Here is the call graph for this function:

template<class T>
double operator* ( const BasicVector3D< double > &  a,
const BasicVector3D< double > &  b
)
related

Scalar product of two vectors.

Definition at line 519 of file BasicVector3D.h.

519  {
520  return a.dot(b);
521  }
HepGeom::BasicVector3D::dot
T dot(const BasicVector3D< T > &v) const
Definition: BasicVector3D.h:269

Here is the call graph for this function:

template<class T>
BasicVector3D< double > operator* ( double  a,
const BasicVector3D< double > &  v
)
related

Multiplication scalar by vector.

Definition at line 528 of file BasicVector3D.h.

528  {
529  return BasicVector3D<double>(a*v.x(), a*v.y(), a*v.z());
530  }
a
std::vector< ExP01TrackerHit * > a
Definition: ExP01Classes.hh:33

Here is the call graph for this function:

template<class T>
BasicVector3D< float > operator+ ( const BasicVector3D< float > &  v)
related

Unary plus.

Definition at line 368 of file BasicVector3D.h.

368 { return v; }
test.v
tuple v
Definition: test.py:18
template<class T>
BasicVector3D< float > operator+ ( const BasicVector3D< float > &  a,
const BasicVector3D< float > &  b
)
related

Addition of two vectors.

Definition at line 375 of file BasicVector3D.h.

375  {
376  return BasicVector3D<float>(a.x()+b.x(), a.y()+b.y(), a.z()+b.z());
377  }

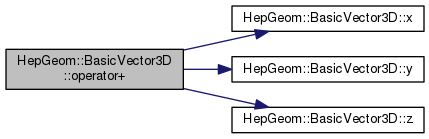

Here is the call graph for this function:

template<class T>
BasicVector3D< double > operator+ ( const BasicVector3D< double > &  v)
related

Unary plus.

Definition at line 476 of file BasicVector3D.h.

476 { return v; }
test.v
tuple v
Definition: test.py:18
template<class T>
BasicVector3D< double > operator+ ( const BasicVector3D< double > &  a,
const BasicVector3D< double > &  b
)
related

Addition of two vectors.

Definition at line 483 of file BasicVector3D.h.

483  {
484  return BasicVector3D<double>(a.x()+b.x(), a.y()+b.y(), a.z()+b.z());
485  }

Here is the call graph for this function:

template<class T>
BasicVector3D< float > operator- ( const BasicVector3D< float > &  v)
related

Unary minus.

Definition at line 384 of file BasicVector3D.h.

384  {
385  return BasicVector3D<float>(-v.x(), -v.y(), -v.z());
386  }

Here is the call graph for this function:

template<class T>
BasicVector3D< float > operator- ( const BasicVector3D< float > &  a,
const BasicVector3D< float > &  b
)
related

Subtraction of two vectors.

Definition at line 393 of file BasicVector3D.h.

393  {
394  return BasicVector3D<float>(a.x()-b.x(), a.y()-b.y(), a.z()-b.z());
395  }

Here is the call graph for this function:

template<class T>
BasicVector3D< double > operator- ( const BasicVector3D< double > &  v)
related

Unary minus.

Definition at line 492 of file BasicVector3D.h.

492  {
493  return BasicVector3D<double>(-v.x(), -v.y(), -v.z());
494  }

Here is the call graph for this function:

template<class T>
BasicVector3D< double > operator- ( const BasicVector3D< double > &  a,
const BasicVector3D< double > &  b
)
related

Subtraction of two vectors.

Definition at line 501 of file BasicVector3D.h.

501  {
502  return BasicVector3D<double>(a.x()-b.x(), a.y()-b.y(), a.z()-b.z());
503  }

Here is the call graph for this function:

template<class T>
BasicVector3D< float > operator/ ( const BasicVector3D< float > &  v,
double  a
)
related

Division vector by scalar.

Definition at line 429 of file BasicVector3D.h.

429  {
430  return BasicVector3D<float>(v.x()/static_cast<float>(a), v.y()/static_cast<float>(a), v.z()/static_cast<float>(a));
431  }
a
std::vector< ExP01TrackerHit * > a
Definition: ExP01Classes.hh:33

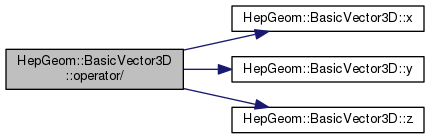

Here is the call graph for this function:

template<class T>
BasicVector3D< double > operator/ ( const BasicVector3D< double > &  v,
double  a
)
related

Division vector by scalar.

Definition at line 537 of file BasicVector3D.h.

537  {
538  return BasicVector3D<double>(v.x()/a, v.y()/a, v.z()/a);
539  }
a
std::vector< ExP01TrackerHit * > a
Definition: ExP01Classes.hh:33

Here is the call graph for this function:

template<class T>
std::ostream & operator<< ( std::ostream &  ,
const BasicVector3D< float > &
)
related

Output to stream.

Definition at line 107 of file BasicVector3D.cc.

108  {
109  return os << "(" << a.x() << "," << a.y() << "," << a.z() << ")";
110  }
a
std::vector< ExP01TrackerHit * > a
Definition: ExP01Classes.hh:33
template<class T>
std::ostream & operator<< ( std::ostream &  ,
const BasicVector3D< double > &
)
related

Output to stream.

Definition at line 263 of file BasicVector3D.cc.

264  {
265  return os << "(" << a.x() << "," << a.y() << "," << a.z() << ")";
266  }
a
std::vector< ExP01TrackerHit * > a
Definition: ExP01Classes.hh:33
template<class T>
bool operator== ( const BasicVector3D< float > &  a,
const BasicVector3D< float > &  b
)
related

Comparison of two vectors for equality.

Definition at line 438 of file BasicVector3D.h.

438  {
439  return (a.x()==b.x() && a.y()==b.y() && a.z()==b.z());
440  }

Here is the call graph for this function:

Here is the caller graph for this function:

template<class T>
bool operator== ( const BasicVector3D< double > &  a,
const BasicVector3D< double > &  b
)
related

Comparison of two vectors for equality.

Definition at line 546 of file BasicVector3D.h.

547  {
548  return (a.x()==b.x() && a.y()==b.y() && a.z()==b.z());
549  }

Here is the call graph for this function:

template<class T>
std::istream & operator>> ( std::istream &  ,
BasicVector3D< float > &
)
related

Input from stream.

Definition at line 114 of file BasicVector3D.cc.

115  {
116  // Required format is ( a, b, c ) that is, three numbers, preceded by
117  // (, followed by ), and separated by commas. The three numbers are
118  // taken as x, y, z.
119
120  float x, y, z;
121  char c;
122
123  is >> std::ws >> c;
124  // ws is defined to invoke eatwhite(istream & )
125  // see (Stroustrup gray book) page 333 and 345.
126  if (is.fail() || c != '(' ) {
127  std::cerr
128  << "Could not find required opening parenthesis "
129  << "in input of a BasicVector3D<float>"
130  << std::endl;
131  return is;
132  }
133
134  is >> x >> std::ws >> c;
135  if (is.fail() || c != ',' ) {
136  std::cerr
137  << "Could not find x value and required trailing comma "
138  << "in input of a BasicVector3D<float>"
139  << std::endl;
140  return is;
141  }
142
143  is >> y >> std::ws >> c;
144  if (is.fail() || c != ',' ) {
145  std::cerr
146  << "Could not find y value and required trailing comma "
147  << "in input of a BasicVector3D<float>"
148  << std::endl;
149  return is;
150  }
151
152  is >> z >> std::ws >> c;
153  if (is.fail() || c != ')' ) {
154  std::cerr
155  << "Could not find z value and required close parenthesis "
156  << "in input of a BasicVector3D<float>"
157  << std::endl;
158  return is;
159  }
160
161  a.setX(x);
162  a.setY(y);
163  a.setZ(z);
164  return is;
165  }
a
std::vector< ExP01TrackerHit * > a
Definition: ExP01Classes.hh:33
test.c
tuple c
Definition: test.py:13
template<class T>
std::istream & operator>> ( std::istream &  ,
BasicVector3D< double > &
)
related

Input from stream.

Definition at line 270 of file BasicVector3D.cc.

271  {
272  // Required format is ( a, b, c ) that is, three numbers, preceded by
273  // (, followed by ), and separated by commas. The three numbers are
274  // taken as x, y, z.
275
276  double x, y, z;
277  char c;
278
279  is >> std::ws >> c;
280  // ws is defined to invoke eatwhite(istream & )
281  // see (Stroustrup gray book) page 333 and 345.
282  if (is.fail() || c != '(' ) {
283  std::cerr
284  << "Could not find required opening parenthesis "
285  << "in input of a BasicVector3D<double>"
286  << std::endl;
287  return is;
288  }
289
290  is >> x >> std::ws >> c;
291  if (is.fail() || c != ',' ) {
292  std::cerr
293  << "Could not find x value and required trailing comma "
294  << "in input of a BasicVector3D<double>"
295  << std::endl;
296  return is;
297  }
298
299  is >> y >> std::ws >> c;
300  if (is.fail() || c != ',' ) {
301  std::cerr
302  << "Could not find y value and required trailing comma "
303  << "in input of a BasicVector3D<double>"
304  << std::endl;
305  return is;
306  }
307
308  is >> z >> std::ws >> c;
309  if (is.fail() || c != ')' ) {
310  std::cerr
311  << "Could not find z value and required close parenthesis "
312  << "in input of a BasicVector3D<double>"
313  << std::endl;
314  return is;
315  }
316
317  a.setX(x);
318  a.setY(y);
319  a.setZ(z);
320  return is;
321  }
a
std::vector< ExP01TrackerHit * > a
Definition: ExP01Classes.hh:33
test.c
tuple c
Definition: test.py:13

Member Data Documentation

template<class T>
T HepGeom::BasicVector3D< T >::v_[3]
protected

Definition at line 29 of file BasicVector3D.h.

The documentation for this class was generated from the following file:
