G4PSMinKinEAtGeneration Class Reference

#include <G4PSMinKinEAtGeneration.hh>

Inheritance diagram for G4PSMinKinEAtGeneration:

Collaboration diagram for G4PSMinKinEAtGeneration:

Public Member Functions
	G4PSMinKinEAtGeneration (G4String name, G4int depth=0)
	G4PSMinKinEAtGeneration (G4String name, const G4String &unit, G4int depth=0)
virtual	~G4PSMinKinEAtGeneration ()
virtual void	Initialize (G4HCofThisEvent *)
virtual void	EndOfEvent (G4HCofThisEvent *)
virtual void	clear ()
virtual void	DrawAll ()
virtual void	PrintAll ()
virtual void	SetUnit (const G4String &unit)
Public Member Functions inherited from G4VPrimitiveScorer
	G4VPrimitiveScorer (G4String name, G4int depth=0)
virtual	~G4VPrimitiveScorer ()
G4int	GetCollectionID (G4int)
void	SetUnit (const G4String &unit)
const G4String &	GetUnit () const
G4double	GetUnitValue () const
void	SetMultiFunctionalDetector (G4MultiFunctionalDetector *d)
G4MultiFunctionalDetector *	GetMultiFunctionalDetector () const
G4String	GetName () const
void	SetFilter (G4VSDFilter *f)
G4VSDFilter *	GetFilter () const
void	SetVerboseLevel (G4int vl)
G4int	GetVerboseLevel () const
void	SetNijk (G4int i, G4int j, G4int k)

Protected Member Functions
virtual G4bool	ProcessHits (G4Step *, G4TouchableHistory *)
Protected Member Functions inherited from G4VPrimitiveScorer
virtual G4int	GetIndex (G4Step *)
void	CheckAndSetUnit (const G4String &unit, const G4String &category)

Additional Inherited Members
Protected Attributes inherited from G4VPrimitiveScorer
G4String	primitiveName
G4MultiFunctionalDetector *	detector
G4VSDFilter *	filter
G4int	verboseLevel
G4int	indexDepth
G4String	unitName
G4double	unitValue
G4int	fNi
G4int	fNj
G4int	fNk

Detailed Description

Definition at line 48 of file G4PSMinKinEAtGeneration.hh.

Constructor & Destructor Documentation

G4PSMinKinEAtGeneration::G4PSMinKinEAtGeneration	(	G4String	name,
		G4int	depth = 0
	)

Definition at line 42 of file G4PSMinKinEAtGeneration.cc.

  :G4VPrimitiveScorer(name,depth),HCID(-1),EvtMap(0)
{
    SetUnit("MeV");
}

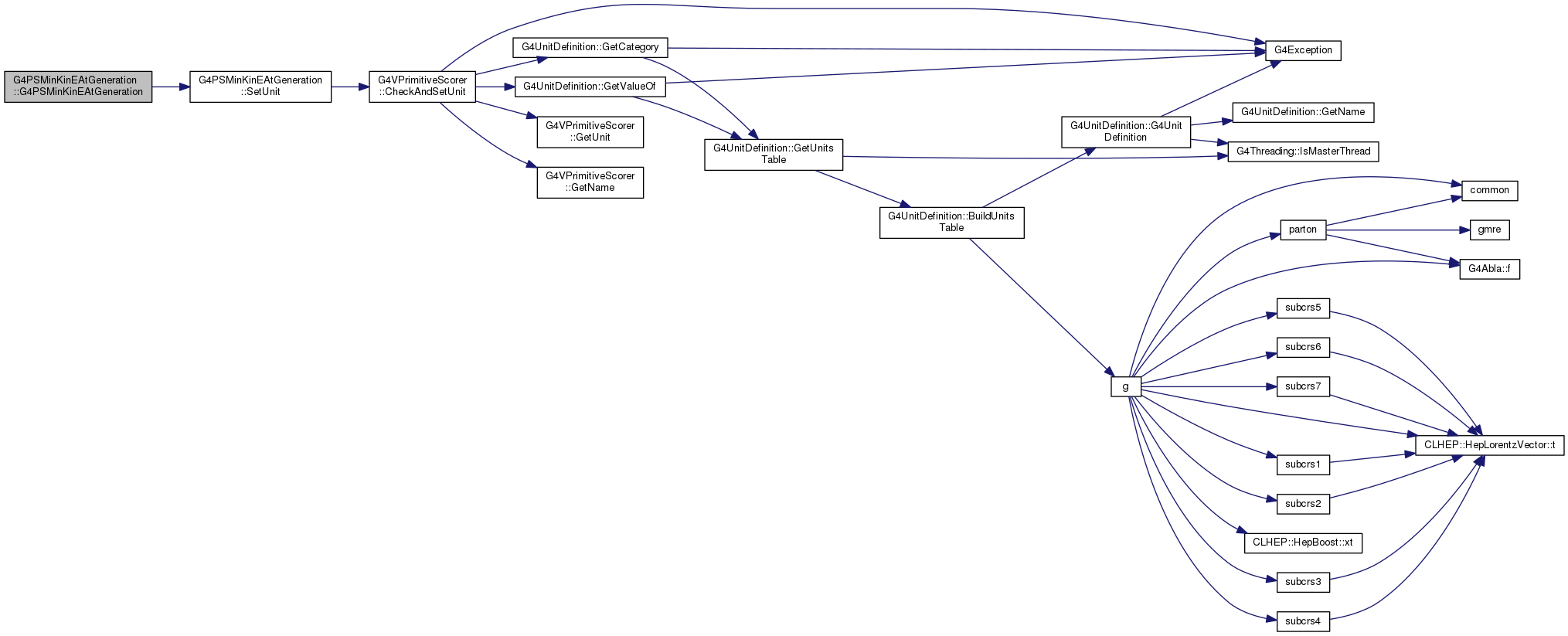

Here is the call graph for this function:

G4PSMinKinEAtGeneration::G4PSMinKinEAtGeneration	(	G4String	name,
		const G4String &	unit,
		G4int	depth = 0
	)

Definition at line 48 of file G4PSMinKinEAtGeneration.cc.

  :G4VPrimitiveScorer(name,depth),HCID(-1),EvtMap(0)
{
    SetUnit(unit);
}

Here is the call graph for this function:

G4PSMinKinEAtGeneration::~G4PSMinKinEAtGeneration ( )

virtual

Definition at line 56 of file G4PSMinKinEAtGeneration.cc.

{;}

Member Function Documentation

void G4PSMinKinEAtGeneration::clear ( void  )

virtual

Reimplemented from G4VPrimitiveScorer.

Definition at line 109 of file G4PSMinKinEAtGeneration.cc.

                                   {
  EvtMap->clear();
}

Here is the call graph for this function:

void G4PSMinKinEAtGeneration::DrawAll ( void  )

virtual

Reimplemented from G4VPrimitiveScorer.

Definition at line 113 of file G4PSMinKinEAtGeneration.cc.

{;}

void G4PSMinKinEAtGeneration::EndOfEvent ( G4HCofThisEvent *  )

virtual

Reimplemented from G4VPrimitiveScorer.

Definition at line 106 of file G4PSMinKinEAtGeneration.cc.

{;}

void G4PSMinKinEAtGeneration::Initialize ( G4HCofThisEvent *  HCE )

virtual

Reimplemented from G4VPrimitiveScorer.

Definition at line 99 of file G4PSMinKinEAtGeneration.cc.

{
  EvtMap = new G4THitsMap<G4double>(detector->GetName(),GetName());
  if(HCID < 0) {HCID = GetCollectionID(0);}
  HCE->AddHitsCollection(HCID, (G4VHitsCollection*)EvtMap);
}

Here is the call graph for this function:

void G4PSMinKinEAtGeneration::PrintAll ( void  )

virtual

Reimplemented from G4VPrimitiveScorer.

Definition at line 116 of file G4PSMinKinEAtGeneration.cc.

{
  G4cout << " PrimitiveScorer " << GetName() << G4endl;
  G4cout << " Number of entries " << EvtMap->entries() << G4endl;
  std::map<G4int,G4double*>::iterator itr = EvtMap->GetMap()->begin();
  for(; itr != EvtMap->GetMap()->end(); itr++) {
    G4cout << "  copy no.: " << itr->first
       << "  energy: " << *(itr->second)/GetUnitValue()
       << " ["<<GetUnit()<<"]"
       << G4endl;
  }
}

Here is the call graph for this function:

G4bool G4PSMinKinEAtGeneration::ProcessHits ( G4Step *  aStep, G4TouchableHistory *    )

protectedvirtual

Implements G4VPrimitiveScorer.

Definition at line 59 of file G4PSMinKinEAtGeneration.cc.

{
  // ===============
  //  First Step,
  //  Confirm this is a newly produced secondary.
  //
  //- check for newly produced particle. e.g. Step number is 1.
  if ( aStep->GetTrack()->GetCurrentStepNumber() != 1) return FALSE;
  //- check for this is not a primary particle. e.g. ParentID != 0 .
  if ( aStep->GetTrack()->GetParentID() == 0 ) return FALSE;

  //===============================================
  //- This is a newly produced secondary particle.
  //===============================================

  // ===============
  //  Second Step,
  //  Confirm this track has lower energy than previous one.
  //

  // -Kinetic energy of this particle at the starting point.
  G4double kinetic = aStep->GetPreStepPoint()->GetKineticEnergy();

  // -Stored value in the current HitsMap.
  G4int  index = GetIndex(aStep);
  G4double*   mapValue=  ((*EvtMap)[index]);

  // -
  // If mapValue exits (e.g not NULL ), compare it with
  // current track's kinetic energy.
  if ( mapValue && ( kinetic > *mapValue ) ) return FALSE;

  // -
  // Current Track is a newly produced secondary and has lower
  // kinetic energy than previous one in this geometry.
  //
  EvtMap->set(index, kinetic);
  return TRUE;
}

Here is the call graph for this function:

void G4PSMinKinEAtGeneration::SetUnit ( const G4String &  unit )

virtual

Definition at line 129 of file G4PSMinKinEAtGeneration.cc.

{
    CheckAndSetUnit(unit,"Energy");
}

Here is the call graph for this function:

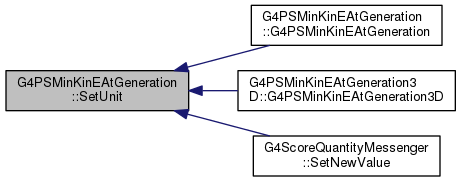

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• source/geant4.10.03.p03/source/digits_hits/scorer/include/G4PSMinKinEAtGeneration.hh
• source/geant4.10.03.p03/source/digits_hits/scorer/src/G4PSMinKinEAtGeneration.cc
