#include <G4BGGNucleonElasticXS.hh>

Inheritance diagram for G4BGGNucleonElasticXS:

Collaboration diagram for G4BGGNucleonElasticXS:

Public Member Functions
	G4BGGNucleonElasticXS (const G4ParticleDefinition *)

virtual	~G4BGGNucleonElasticXS ()

virtual G4bool	IsElementApplicable (const G4DynamicParticle , G4int Z, const G4Material mat=0)

virtual G4bool	IsIsoApplicable (const G4DynamicParticle , G4int Z, G4int A, const G4Element elm=0, const G4Material *mat=0)

virtual G4double	GetElementCrossSection (const G4DynamicParticle , G4int Z, const G4Material mat=0)

virtual G4double	GetIsoCrossSection (const G4DynamicParticle , G4int Z, G4int A, const G4Isotope iso=0, const G4Element elm=0, const G4Material mat=0)

virtual void	BuildPhysicsTable (const G4ParticleDefinition &)

virtual void	CrossSectionDescription (std::ostream &) const

void	SetLowestCrossSection (G4double val)

Public Member Functions inherited from G4VCrossSectionDataSet
	G4VCrossSectionDataSet (const G4String &nam="")

virtual	~G4VCrossSectionDataSet ()

G4double	GetCrossSection (const G4DynamicParticle , const G4Element , const G4Material *mat=0)

G4double	ComputeCrossSection (const G4DynamicParticle , const G4Element , const G4Material *mat=0)

virtual G4Isotope *	SelectIsotope (const G4Element *, G4double kinEnergy)

virtual void	DumpPhysicsTable (const G4ParticleDefinition &)

virtual G4int	GetVerboseLevel () const

virtual void	SetVerboseLevel (G4int value)

G4double	GetMinKinEnergy () const

void	SetMinKinEnergy (G4double value)

G4double	GetMaxKinEnergy () const

void	SetMaxKinEnergy (G4double value)

const G4String &	GetName () const

Additional Inherited Members
Protected Member Functions inherited from G4VCrossSectionDataSet
void	SetName (const G4String &)

Protected Attributes inherited from G4VCrossSectionDataSet
G4int	verboseLevel

Detailed Description

Definition at line 65 of file G4BGGNucleonElasticXS.hh.

Constructor & Destructor Documentation

G4BGGNucleonElasticXS::G4BGGNucleonElasticXS ( const G4ParticleDefinition * p )

Definition at line 60 of file G4BGGNucleonElasticXS.cc.

  : G4VCrossSectionDataSet("Barashenkov-Glauber")
 {
   verboseLevel = 0;
   fGlauberEnergy = 91.*GeV;
   fPDGEnergy = 5*GeV;
   fLowEnergy = 14.*MeV;
   fSAIDLowEnergyLimit = 1*MeV;
   fSAIDHighEnergyLimit = 1.3*GeV;
   fLowestXSection = millibarn;
   for (G4int i = 0; i < 93; ++i) {
     theGlauberFac[i] = 0.0;
     theCoulombFac[i] = 0.0;
     theA[i] = 1;
   }
   fNucleon = 0;
   fGlauber = 0;
   fHadron  = 0;
   fSAID    = 0;
   particle = p;
   theProton= G4Proton::Proton();
   isProton = false;
   isInitialized = false;
 }

Here is the call graph for this function:

G4BGGNucleonElasticXS::~G4BGGNucleonElasticXS ( )

virtual

Definition at line 87 of file G4BGGNucleonElasticXS.cc.

 {
   delete fSAID;
   delete fHadron;
   // The cross section registry will delete fNucleon
   delete fGlauber;
 }

Member Function Documentation

void G4BGGNucleonElasticXS::BuildPhysicsTable ( const G4ParticleDefinition & p )

virtual

Reimplemented from G4VCrossSectionDataSet.

Definition at line 196 of file G4BGGNucleonElasticXS.cc.

 {
   if(&p == theProton || &p == G4Neutron::Neutron()) {
     particle = &p;

   } else {
     G4cout << "### G4BGGNucleonElasticXS WARNING: is not applicable to "
        << p.GetParticleName()
        << G4endl;
     throw G4HadronicException(__FILE__, __LINE__,
       "G4BGGNucleonElasticXS::BuildPhysicsTable is used for wrong particle");
     return;
   }

   if(isInitialized) { return; }
   isInitialized = true;

   fNucleon = (G4NucleonNuclearCrossSection*)G4CrossSectionDataSetRegistry::Instance()->GetCrossSectionDataSet(G4NucleonNuclearCrossSection::Default_Name());
   fGlauber = new G4ComponentGGHadronNucleusXsc();
   fHadron  = new G4HadronNucleonXsc();
   fSAID    = new G4ComponentSAIDTotalXS();

   fNucleon->BuildPhysicsTable(*particle);
   fGlauber->BuildPhysicsTable(*particle);

   if(particle == theProton) {
     isProton = true;
     fSAIDHighEnergyLimit = 3*GeV;
   }

   G4ThreeVector mom(0.0,0.0,1.0);
   G4DynamicParticle dp(particle, mom, fGlauberEnergy);

   G4NistManager* nist = G4NistManager::Instance();

   G4double csup, csdn;
   G4int A;

   if(verboseLevel > 0) {
     G4cout << "### G4BGGNucleonElasticXS::Initialise for "
        << particle->GetParticleName() << G4endl;
   }

   for(G4int iz=2; iz<93; iz++) {

     A = G4lrint(nist->GetAtomicMassAmu(iz));
     theA[iz] = A;

     csup = fGlauber->GetElasticGlauberGribov(&dp, iz, A);
     csdn = fNucleon->GetElasticCrossSection(&dp, iz);

     theGlauberFac[iz] = csdn/csup;
     if(verboseLevel > 0) {
       G4cout << "Z= " << iz <<  "  A= " << A
          << " factor= " << theGlauberFac[iz] << G4endl;
     }
   }

   theCoulombFac[0] =
     fSAID->GetElasticIsotopeCrossSection(particle,fSAIDLowEnergyLimit,1,1)
     /CoulombFactor(fSAIDLowEnergyLimit, 1);

   dp.SetKineticEnergy(fPDGEnergy);
   fHadron->GetHadronNucleonXscPDG(&dp, theProton);
   theCoulombFac[1] = fHadron->GetElasticHadronNucleonXsc();

   if(verboseLevel > 0) {
     G4cout << "Z=1  A=1 " << " factor0= " << theCoulombFac[0]
        << " factor1= " << theCoulombFac[1]
        << G4endl;
   }

   dp.SetKineticEnergy(fLowEnergy);
   for(G4int iz=2; iz<93; iz++) {
     theCoulombFac[iz] =
       fNucleon->GetElasticCrossSection(&dp, iz)/CoulombFactor(fLowEnergy, iz);
     if(verboseLevel > 0) {
       G4cout << "Z= " << iz <<  "  A= " << theA[iz]
          << " factor= " << theCoulombFac[iz] << G4endl;
     }
   }
 }

Here is the call graph for this function:

void G4BGGNucleonElasticXS::CrossSectionDescription ( std::ostream & outFile ) const

virtual

Reimplemented from G4VCrossSectionDataSet.

Definition at line 308 of file G4BGGNucleonElasticXS.cc.

 {
   outFile << "The Barashenkov-Glauber-Gribov cross section handles elastic\n"
           << "scattering of protons and neutrons from nuclei using the\n"
           << "Barashenkov parameterization below 91 GeV and the Glauber-Gribov\n"
           << "parameterization above 91 GeV. n";
 }

G4double G4BGGNucleonElasticXS::GetElementCrossSection	(	const G4DynamicParticle *	dp,
		G4int	Z,
		const G4Material *	mat = `0`
	)

virtual

Reimplemented from G4VCrossSectionDataSet.

Definition at line 117 of file G4BGGNucleonElasticXS.cc.

 {
   // this method should be called only for Z > 1

   G4double cross = 0.0;
   G4double ekin = dp->GetKineticEnergy();
   G4int Z = ZZ;
   if(1 == Z) {
     cross = 1.0115*GetIsoCrossSection(dp,1,1);
   } else {
     if(Z > 92) { Z = 92; }

     if(ekin <= fLowEnergy) {
       cross = theCoulombFac[Z]*CoulombFactor(ekin, Z);

     } else if(ekin > fGlauberEnergy) {
       cross = theGlauberFac[Z]*fGlauber->GetElasticGlauberGribov(dp, Z, theA[Z]);
     } else {
       cross = fNucleon->GetElasticCrossSection(dp, Z);
     }
   }

   if(verboseLevel > 1) {
     G4cout << "G4BGGNucleonElasticXS::GetElementCrossSection  for "
        << dp->GetDefinition()->GetParticleName()
        << "  Ekin(GeV)= " << dp->GetKineticEnergy()/CLHEP::GeV
        << " in nucleus Z= " << Z << "  A= " << theA[Z]
        << " XS(b)= " << cross/barn
        << G4endl;
   }
   //AR-04Dec2013  if(cross <= fLowestXSection) { cross = 0.0; }
   return cross;
 }

Here is the call graph for this function:

G4double G4BGGNucleonElasticXS::GetIsoCrossSection	(	const G4DynamicParticle *	dp,
		G4int	Z,
		G4int	A,
		const G4Isotope *	iso = `0`,
		const G4Element *	elm = `0`,
		const G4Material *	mat = `0`
	)

virtual

Reimplemented from G4VCrossSectionDataSet.

Definition at line 155 of file G4BGGNucleonElasticXS.cc.

 {
   // this method should be called only for Z = 1

   G4double cross = 0.0;
   G4double ekin = dp->GetKineticEnergy();

   if(ekin <= fSAIDLowEnergyLimit) {
     cross = theCoulombFac[0]*CoulombFactor(ekin, 1);
   } else if(ekin <= fSAIDHighEnergyLimit) {
     cross = fSAID->GetElasticIsotopeCrossSection(particle, ekin, 1, 1);
   } else if(ekin <= fPDGEnergy) {
     G4double cross1 =
       fSAID->GetElasticIsotopeCrossSection(particle, fPDGEnergy, 1, 1);
     G4double cross2 = theCoulombFac[1];
     cross = cross1 + (cross2 - cross1)*(ekin - fSAIDHighEnergyLimit)
       /(fPDGEnergy - fSAIDHighEnergyLimit);
   } else {
     fHadron->GetHadronNucleonXscPDG(dp, theProton);
     cross = fHadron->GetElasticHadronNucleonXsc();
   }
   cross *= A;

   if(verboseLevel > 1) {
     G4cout << "G4BGGNucleonElasticXS::GetIsoCrossSection  for "
        << dp->GetDefinition()->GetParticleName()
        << "  Ekin(GeV)= " << dp->GetKineticEnergy()/CLHEP::GeV
        << " in nucleus Z= " << Z << "  A= " << A
        << " XS(b)= " << cross/barn
        << G4endl;
   }
   //AR-04Dec2013  if(cross <= fLowestXSection) { cross = 0.0; }
   return cross;
 }

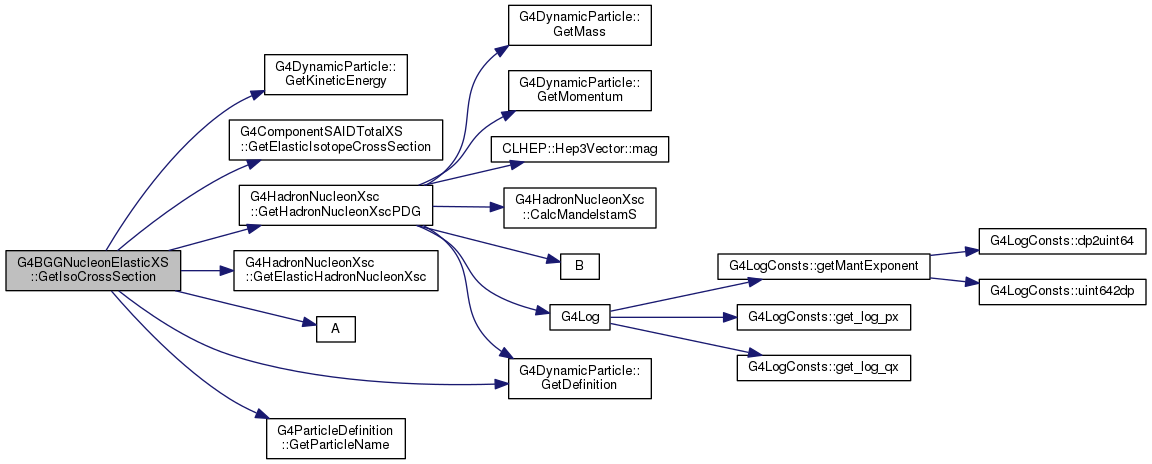

Here is the call graph for this function:

Here is the caller graph for this function:

G4bool G4BGGNucleonElasticXS::IsElementApplicable	(	const G4DynamicParticle *	,
		G4int	Z,
		const G4Material *	mat = `0`
	)

virtual

Reimplemented from G4VCrossSectionDataSet.

Definition at line 98 of file G4BGGNucleonElasticXS.cc.

 {
   return true;
 }

G4bool G4BGGNucleonElasticXS::IsIsoApplicable	(	const G4DynamicParticle *	,
		G4int	Z,
		G4int	A,
		const G4Element *	elm = `0`,
		const G4Material *	mat = `0`
	)

virtual

Reimplemented from G4VCrossSectionDataSet.

Definition at line 106 of file G4BGGNucleonElasticXS.cc.

 {
   return (1 == Z);
 }

void G4BGGNucleonElasticXS::SetLowestCrossSection ( G4double val )

inline

Definition at line 126 of file G4BGGNucleonElasticXS.hh.

 {
   fLowestXSection = val;
 }

The documentation for this class was generated from the following files:

source/geant4.10.03.p03/source/processes/hadronic/cross_sections/include/G4BGGNucleonElasticXS.hh
source/geant4.10.03.p03/source/processes/hadronic/cross_sections/src/G4BGGNucleonElasticXS.cc
