G4INCL::Math Namespace Reference

Functions

G4double toDegrees (G4double radians)

G4int heaviside (G4int n)

G4double pow13 (G4double x)

G4double powMinus13 (G4double x)

G4double pow23 (G4double x)

G4double aSinH (G4double x)

template<typename T >
G4int sign (const T t)

template<typename T >
max (const T t1, const T t2)
 brief Return the largest of the two arguments More...

template<typename T >
min (const T t1, const T t2)
 brief Return the smallest of the two arguments More...

G4double gaussianCDF (const G4double x)
 Cumulative distribution function for Gaussian. More...

G4double gaussianCDF (const G4double x, const G4double x0, const G4double sigma)
 Generic cumulative distribution function for Gaussian. More...


Variables

const G4double pi = 3.14159265358979323846264338328

const G4double twoPi = 2.0 * pi

const G4double tenPi = 10.0 * pi

const G4double piOverTwo = 0.5 * pi

const G4double oneOverSqrtTwo = 1./std::sqrt((G4double)2.)

const G4double oneOverSqrtThree = 1./std::sqrt((G4double)3.)

const G4double oneThird = 1./3.

const G4double twoThirds = 2./3.

const G4double sqrtFiveThirds = std::sqrt(5./3.)

const G4double sqrtThreeFifths = std::sqrt(3./5.)


Function Documentation

G4double G4INCL::Math::aSinH ( G4double  x)
inline

Definition at line 104 of file G4INCLGlobals.hh.

G4double G4INCL::Math::gaussianCDF ( const G4double  x)

Cumulative distribution function for Gaussian.

A public-domain approximation taken from Abramowitz and Stegun. Applies to a Gaussian with mean=0 and sigma=1.

Parameters
xa Gaussian variable

Definition at line 55 of file G4INCLGlobals.cc.

Here is the call graph for this function:

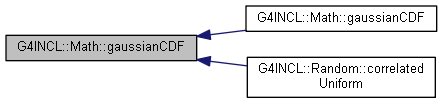

Here is the caller graph for this function:

G4double G4INCL::Math::gaussianCDF ( const G4double  x,
const G4double  x0,
const G4double  sigma
)

Generic cumulative distribution function for Gaussian.

A public-domain approximation taken from Abramowitz and Stegun. Applies to a generic Gaussian.

Parameters
xa Gaussian variable
x0mean of the Gaussian
sigmastandard deviation of the Gaussian

Definition at line 68 of file G4INCLGlobals.cc.

Here is the call graph for this function:

G4int G4INCL::Math::heaviside ( G4int  n)
inline

Definition at line 87 of file G4INCLGlobals.hh.

Here is the caller graph for this function:

template<typename T >
T G4INCL::Math::max ( const T  t1,
const T  t2
)
inline

brief Return the largest of the two arguments

Definition at line 116 of file G4INCLGlobals.hh.

template<typename T >
T G4INCL::Math::min ( const T  t1,
const T  t2
)
inline

brief Return the smallest of the two arguments

Definition at line 121 of file G4INCLGlobals.hh.

G4double G4INCL::Math::pow13 ( G4double  x)
inline

Definition at line 92 of file G4INCLGlobals.hh.

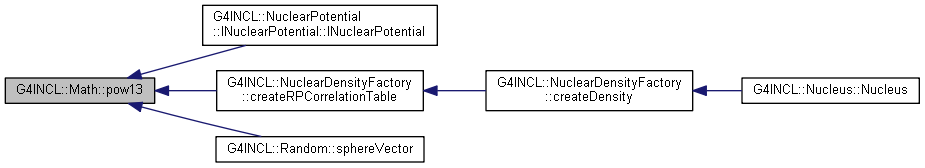

Here is the caller graph for this function:

G4double G4INCL::Math::pow23 ( G4double  x)
inline

Definition at line 100 of file G4INCLGlobals.hh.

G4double G4INCL::Math::powMinus13 ( G4double  x)
inline

Definition at line 96 of file G4INCLGlobals.hh.

template<typename T >
G4int G4INCL::Math::sign ( const T  t)
inline

A simple sign function that allows us to port fortran code to c++ more easily.

Definition at line 111 of file G4INCLGlobals.hh.

Here is the caller graph for this function:

G4double G4INCL::Math::toDegrees ( G4double  radians)
inline

Definition at line 83 of file G4INCLGlobals.hh.

Here is the caller graph for this function:

Variable Documentation

const G4double G4INCL::Math::oneOverSqrtThree = 1./std::sqrt((G4double)3.)

Definition at line 77 of file G4INCLGlobals.hh.

const G4double G4INCL::Math::oneOverSqrtTwo = 1./std::sqrt((G4double)2.)

Definition at line 76 of file G4INCLGlobals.hh.

const G4double G4INCL::Math::oneThird = 1./3.

Definition at line 78 of file G4INCLGlobals.hh.

const G4double G4INCL::Math::pi = 3.14159265358979323846264338328

Definition at line 72 of file G4INCLGlobals.hh.

const G4double G4INCL::Math::piOverTwo = 0.5 * pi

Definition at line 75 of file G4INCLGlobals.hh.

const G4double G4INCL::Math::sqrtFiveThirds = std::sqrt(5./3.)

Definition at line 80 of file G4INCLGlobals.hh.

const G4double G4INCL::Math::sqrtThreeFifths = std::sqrt(3./5.)

Definition at line 81 of file G4INCLGlobals.hh.

const G4double G4INCL::Math::tenPi = 10.0 * pi

Definition at line 74 of file G4INCLGlobals.hh.

const G4double G4INCL::Math::twoPi = 2.0 * pi

Definition at line 73 of file G4INCLGlobals.hh.

const G4double G4INCL::Math::twoThirds = 2./3.

Definition at line 79 of file G4INCLGlobals.hh.
