Functions
void	transformToLocalEnergyFrame (Nucleus const const n, Particle const p)

G4double	getLocalEnergy (Nucleus const const n, Particle const p)

ThreeVector	makeBoostVector (Particle const const p1, Particle const const p2)

G4double	totalEnergyInCM (Particle const const p1, Particle const const p2)

G4double	squareTotalEnergyInCM (Particle const const p1, Particle const const p2)

G4double	momentumInCM (Particle const const p1, Particle const const p2)
	gives the momentum in the CM frame of two particles. More...

G4double	momentumInCM (const G4double E, const G4double M1, const G4double M2)

G4double	momentumInLab (Particle const const p1, Particle const const p2)
	gives the momentum in the lab frame of two particles. More...

G4double	momentumInLab (const G4double s, const G4double m1, const G4double m2)

G4double	sumTotalEnergies (const ParticleList &)

ThreeVector	sumMomenta (const ParticleList &)

G4double	energy (const ThreeVector &p, const G4double m)

G4double	invariantMass (const G4double E, const ThreeVector &p)

G4double	squareInvariantMass (const G4double E, const ThreeVector &p)

G4double	gammaFromKineticEnergy (const ParticleSpecies &p, const G4double EKin)

Function Documentation

G4double G4INCL::KinematicsUtils::energy	(	const ThreeVector &	p,
		const G4double	m
	)

Definition at line 156 of file G4INCLKinematicsUtils.cc.

Here is the call graph for this function:

G4double G4INCL::KinematicsUtils::gammaFromKineticEnergy	(	const ParticleSpecies &	p,
		const G4double	EKin
	)

Definition at line 168 of file G4INCLKinematicsUtils.cc.

G4double G4INCL::KinematicsUtils::getLocalEnergy	(	Nucleus const *const	n,
		Particle *const	p
	)

Definition at line 51 of file G4INCLKinematicsUtils.cc.

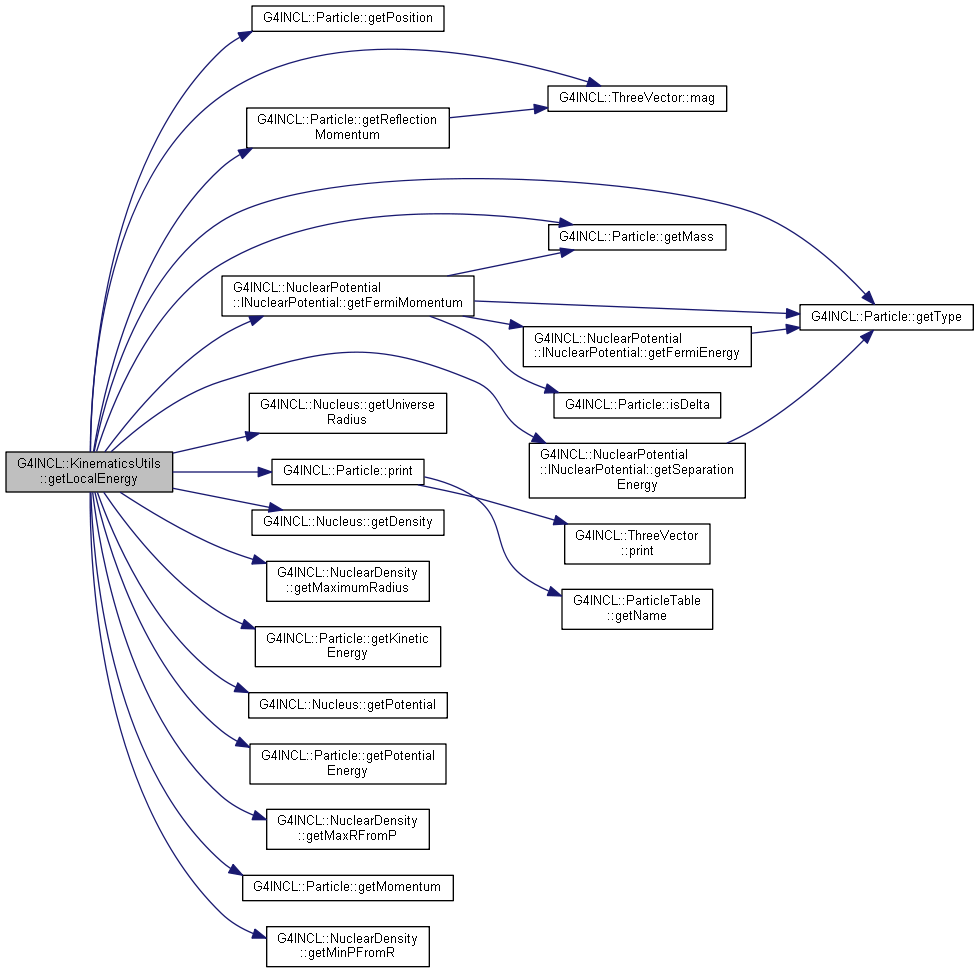

Here is the call graph for this function:

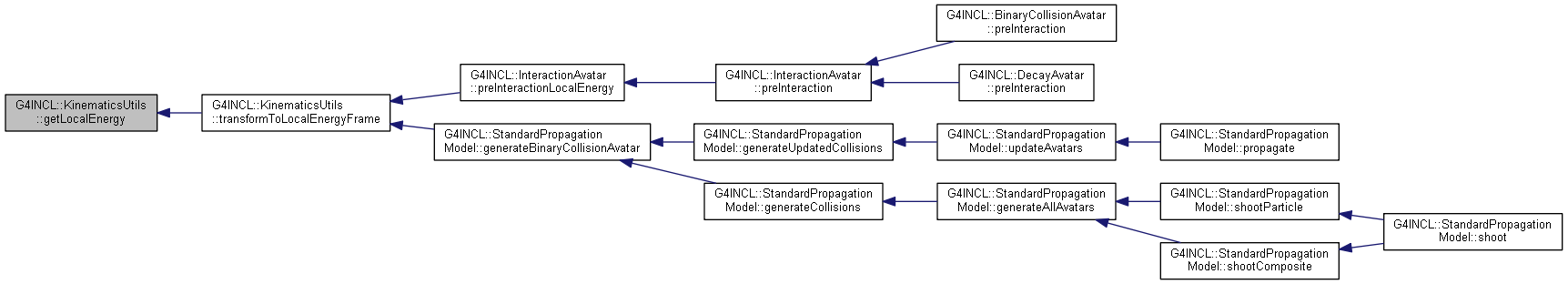

Here is the caller graph for this function:

G4double G4INCL::KinematicsUtils::invariantMass	(	const G4double	E,
		const ThreeVector &	p
	)

Definition at line 160 of file G4INCLKinematicsUtils.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

ThreeVector G4INCL::KinematicsUtils::makeBoostVector	(	Particle const *const	p1,
		Particle const *const	p2
	)

Definition at line 87 of file G4INCLKinematicsUtils.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

G4double G4INCL::KinematicsUtils::momentumInCM	(	Particle const *const	p1,
		Particle const *const	p2
	)

gives the momentum in the CM frame of two particles.

The formula is the following:

$p_{CM}^2 = \frac{z^2 - m_1^2 m_2^2}{2 z + m_1^2 + m_2^2}$

where $z$ is the scalar product of the momentum four-vectors:

$z = E_1 E_2 - \vec{p}_1\cdot\vec{p}_2$

Parameters

p1	pointer to particle 1
p2	pointer to particle 2

Returns: the absolute value of the momentum of any of the two particles in the CM frame, in MeV/c.

Definition at line 105 of file G4INCLKinematicsUtils.cc.

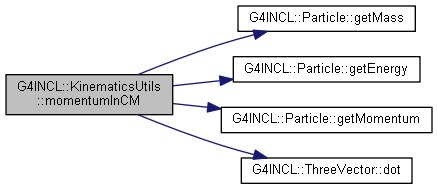

Here is the call graph for this function:

Here is the caller graph for this function:

G4double G4INCL::KinematicsUtils::momentumInCM	(	const G4double	E,
		const G4double	M1,
		const G4double	M2
	)

Definition at line 117 of file G4INCLKinematicsUtils.cc.

G4double G4INCL::KinematicsUtils::momentumInLab	(	Particle const *const	p1,
		Particle const *const	p2
	)

gives the momentum in the lab frame of two particles.

Assumes particle 1 carries all the momentum and particle 2 is at rest.

The formula is the following:

$p_{lab}^2 = \frac{s^2 - 2 s (m_1^2 + m_2^2) + {(m_1^2 - m_2^2)}^2}{4 m_2^2}$

Parameters

p1	pointer to particle 1
p2	pointer to particle 2

Returns: the absolute value of the momentum of particle 1 in the lab frame, in MeV/c

Definition at line 133 of file G4INCLKinematicsUtils.cc.

Here is the call graph for this function:

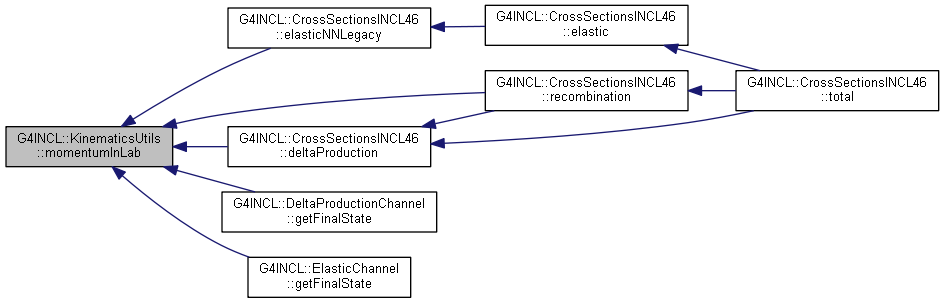

Here is the caller graph for this function:

G4double G4INCL::KinematicsUtils::momentumInLab	(	const G4double	s,
		const G4double	m1,
		const G4double	m2
	)

Definition at line 122 of file G4INCLKinematicsUtils.cc.

G4double G4INCL::KinematicsUtils::squareInvariantMass	(	const G4double	E,
		const ThreeVector &	p
	)

Definition at line 164 of file G4INCLKinematicsUtils.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

G4double G4INCL::KinematicsUtils::squareTotalEnergyInCM	(	Particle const *const	p1,
		Particle const *const	p2
	)

Definition at line 96 of file G4INCLKinematicsUtils.cc.

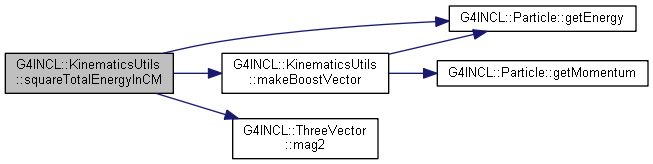

Here is the call graph for this function:

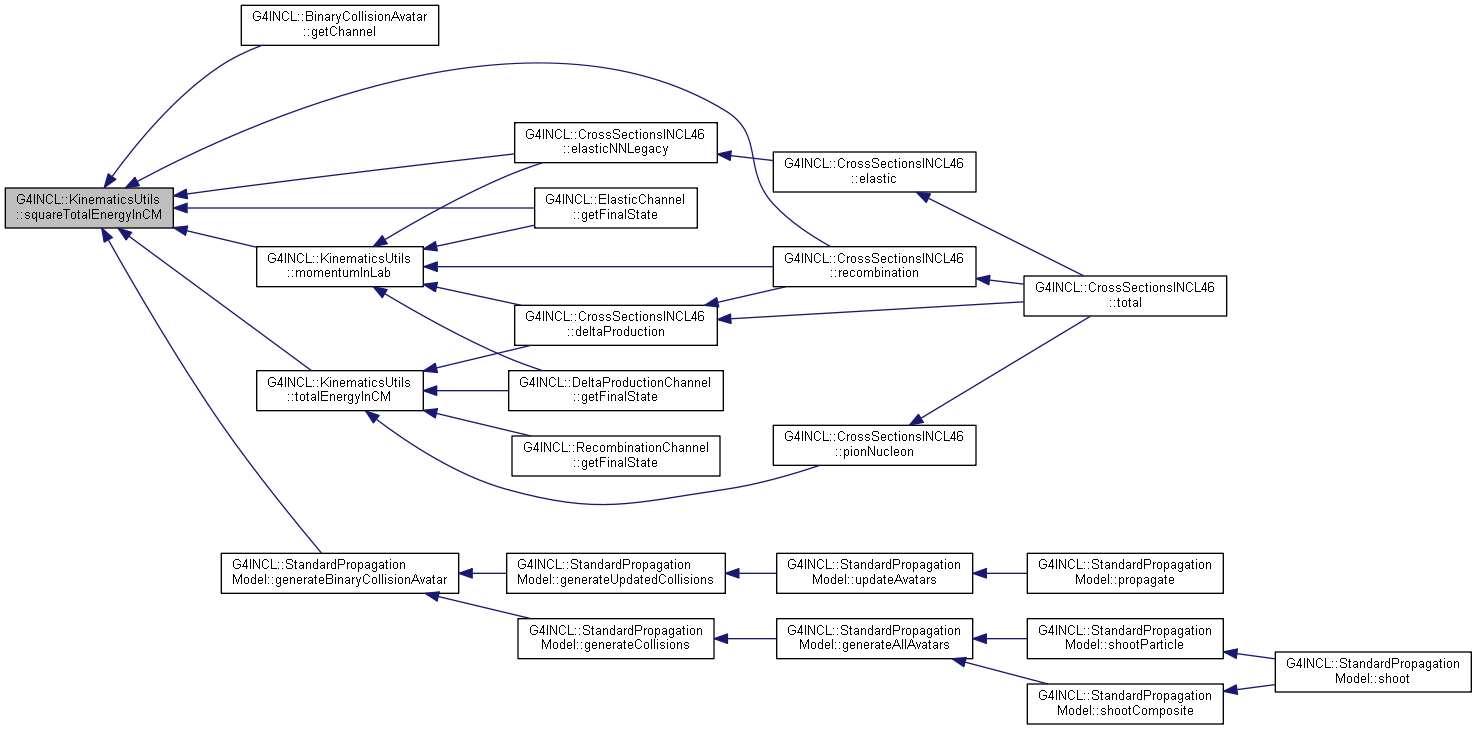

Here is the caller graph for this function:

ThreeVector G4INCL::KinematicsUtils::sumMomenta ( const ParticleList & pl )

Definition at line 148 of file G4INCLKinematicsUtils.cc.

G4double G4INCL::KinematicsUtils::sumTotalEnergies ( const ParticleList & pl )

Definition at line 140 of file G4INCLKinematicsUtils.cc.

G4double G4INCL::KinematicsUtils::totalEnergyInCM	(	Particle const *const	p1,
		Particle const *const	p2
	)

Definition at line 92 of file G4INCLKinematicsUtils.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

void G4INCL::KinematicsUtils::transformToLocalEnergyFrame	(	Nucleus const *const	n,
		Particle *const	p
	)

Definition at line 44 of file G4INCLKinematicsUtils.cc.

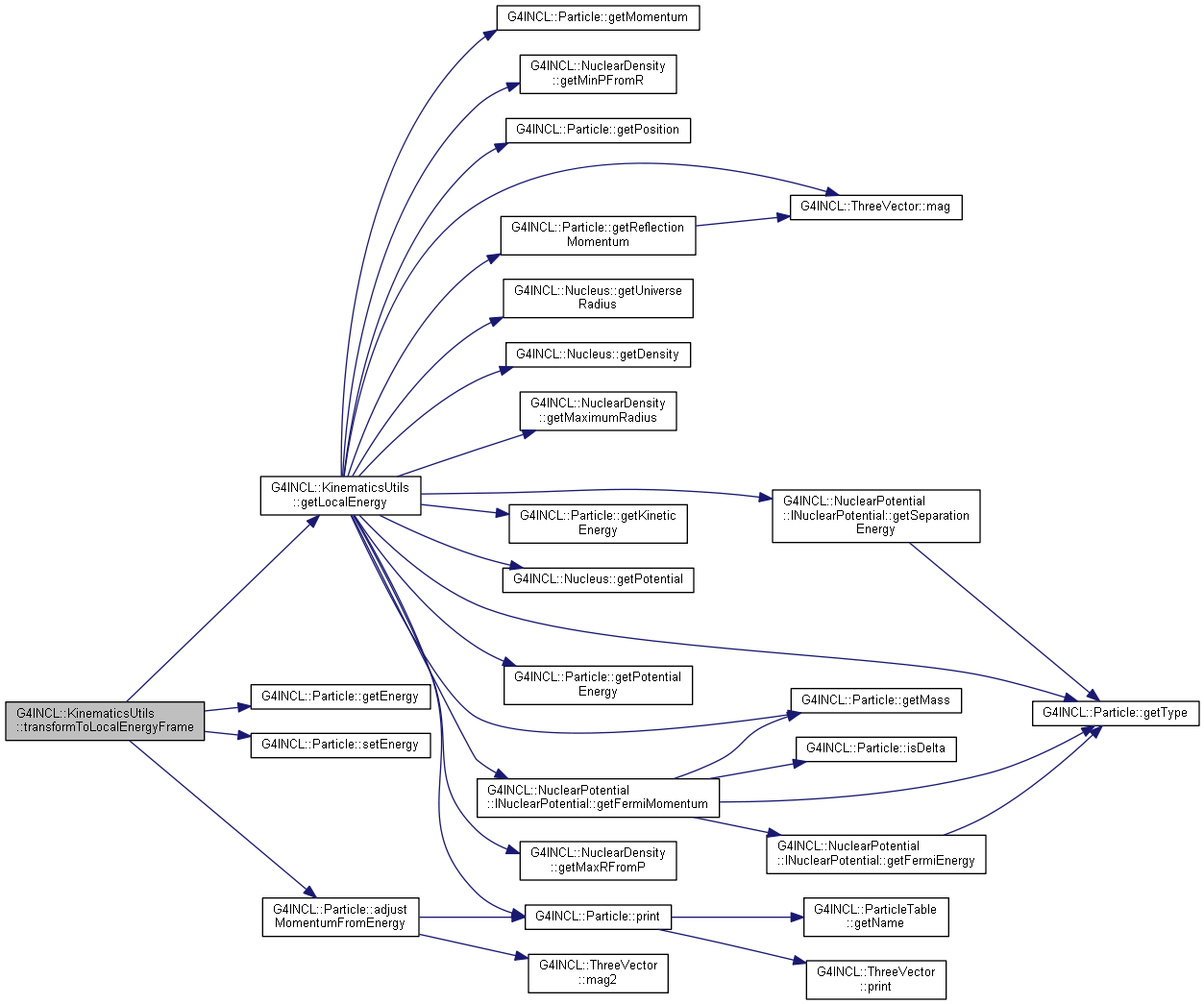

Here is the call graph for this function:

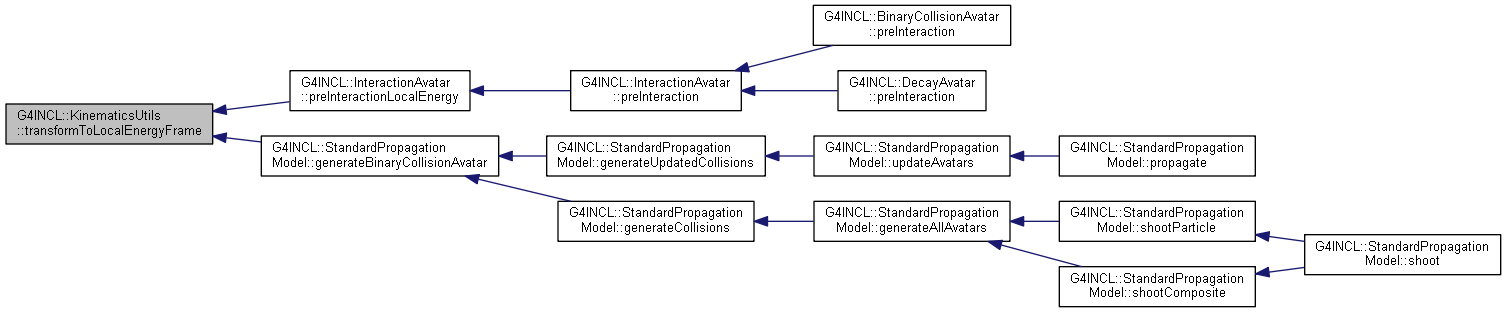

Here is the caller graph for this function:
