HepGeom::BasicVector3D< T > Class Template Reference

#include <BasicVector3D.h>

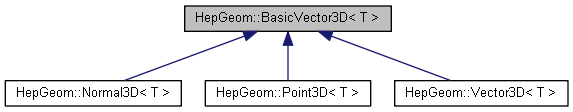

Inheritance diagram for HepGeom::BasicVector3D< T >:
Inheritance graph
[legend]
Collaboration diagram for HepGeom::BasicVector3D< T >:
Collaboration graph
[legend]

Public Types

enum  {
  X = 0, Y = 1, Z = 2, NUM_COORDINATES = 3,
  SIZE = NUM_COORDINATES
}


Public Member Functions

 BasicVector3D (T x1, T y1, T z1)

 BasicVector3D (const BasicVector3D< float > &v)

virtual ~BasicVector3D ()

 operator T * ()

 operator const T * () const

 operator CLHEP::Hep3Vector () const

BasicVector3D< T > & operator= (const BasicVector3D< T > &v)

BasicVector3D< T > & operator+= (const BasicVector3D< T > &v)

BasicVector3D< T > & operator-= (const BasicVector3D< T > &v)

BasicVector3D< T > & operator*= (double a)

BasicVector3D< T > & operator/= (double a)

operator() (int i) const

operator[] (int i) const

T & operator() (int i)

T & operator[] (int i)

x () const

y () const

z () const

void setX (T a)

void setY (T a)

void setZ (T a)

void set (T x1, T y1, T z1)

perp2 () const

perp () const

rho () const

void setPerp (T rh)

mag2 () const

mag () const

r () const

phi () const

theta () const

cosTheta () const

getR () const

getPhi () const

getTheta () const

void setMag (T ma)

void setR (T ma)

void setPhi (T ph)

void setTheta (T th)

pseudoRapidity () const

eta () const

getEta () const

void setEta (T a)

dot (const BasicVector3D< T > &v) const

BasicVector3D< T > cross (const BasicVector3D< T > &v) const

perp2 (const BasicVector3D< T > &v) const

perp (const BasicVector3D< T > &v) const

angle (const BasicVector3D< T > &v) const

BasicVector3D< T > unit () const

BasicVector3D< T > orthogonal () const

BasicVector3D< T > & rotateX (T a)

BasicVector3D< T > & rotateY (T a)

BasicVector3D< T > & rotateZ (T a)

BasicVector3D< T > & rotate (T a, const BasicVector3D< T > &v)

template<>
float pseudoRapidity () const

template<>
void setEta (float a)

template<>
float angle (const BasicVector3D< float > &v) const

template<>
BasicVector3D< float > & rotateX (float a)

template<>
BasicVector3D< float > & rotateY (float a)

template<>
BasicVector3D< float > & rotateZ (float a)

template<>
BasicVector3D< float > & rotate (float a, const BasicVector3D< float > &v)

template<>
double pseudoRapidity () const

template<>
void setEta (double a)

template<>
double angle (const BasicVector3D< double > &v) const

template<>
BasicVector3D< double > & rotateX (double a)

template<>
BasicVector3D< double > & rotateY (double a)

template<>
BasicVector3D< double > & rotateZ (double a)

template<>
BasicVector3D< double > & rotate (double a, const BasicVector3D< double > &v)


Protected Member Functions

 BasicVector3D ()


Protected Attributes

v_ [3]


Related Functions

(Note that these are not member functions.)

std::ostream & operator<< (std::ostream &, const BasicVector3D< float > &)

std::istream & operator>> (std::istream &, BasicVector3D< float > &)

BasicVector3D< float > operator+ (const BasicVector3D< float > &v)

BasicVector3D< float > operator+ (const BasicVector3D< float > &a, const BasicVector3D< float > &b)

BasicVector3D< float > operator- (const BasicVector3D< float > &v)

BasicVector3D< float > operator- (const BasicVector3D< float > &a, const BasicVector3D< float > &b)

BasicVector3D< float > operator* (const BasicVector3D< float > &v, double a)

float operator* (const BasicVector3D< float > &a, const BasicVector3D< float > &b)

BasicVector3D< float > operator* (double a, const BasicVector3D< float > &v)

BasicVector3D< float > operator/ (const BasicVector3D< float > &v, double a)

bool operator== (const BasicVector3D< float > &a, const BasicVector3D< float > &b)

bool operator!= (const BasicVector3D< float > &a, const BasicVector3D< float > &b)

std::ostream & operator<< (std::ostream &, const BasicVector3D< double > &)

std::istream & operator>> (std::istream &, BasicVector3D< double > &)

BasicVector3D< double > operator+ (const BasicVector3D< double > &v)

BasicVector3D< double > operator+ (const BasicVector3D< double > &a, const BasicVector3D< double > &b)

BasicVector3D< double > operator- (const BasicVector3D< double > &v)

BasicVector3D< double > operator- (const BasicVector3D< double > &a, const BasicVector3D< double > &b)

BasicVector3D< double > operator* (const BasicVector3D< double > &v, double a)

double operator* (const BasicVector3D< double > &a, const BasicVector3D< double > &b)

BasicVector3D< double > operator* (double a, const BasicVector3D< double > &v)

BasicVector3D< double > operator/ (const BasicVector3D< double > &v, double a)

bool operator== (const BasicVector3D< double > &a, const BasicVector3D< double > &b)

bool operator!= (const BasicVector3D< double > &a, const BasicVector3D< double > &b)


Detailed Description

template<class T>
class HepGeom::BasicVector3D< T >

Base class for Point3D<T>, Vector3D<T> and Normal3D<T>. It defines only common functionality for those classes and should not be used as separate class.

Author
Evgeni Chernyaev Evgue.nosp@m.ni.T.nosp@m.chern.nosp@m.iaev.nosp@m.@cern.nosp@m..ch

Definition at line 27 of file BasicVector3D.h.

Member Enumeration Documentation

template<class T>
anonymous enum

Safe indexing of the coordinates when using with matrices, arrays, etc.

Enumerator
X

index for x-component

Y

index for y-component

Z

index for z-component

NUM_COORDINATES

number of components

SIZE

number of components

Definition at line 41 of file BasicVector3D.h.

Constructor & Destructor Documentation

template<class T>
HepGeom::BasicVector3D< T >::BasicVector3D ( )
inlineprotected

Default constructor. It is protected - this class should not be instantiated directly.

Definition at line 35 of file BasicVector3D.h.

template<class T>
HepGeom::BasicVector3D< T >::BasicVector3D ( x1,
y1,
z1
)
inline

Constructor from three numbers.

Definition at line 51 of file BasicVector3D.h.

template<class T>
HepGeom::BasicVector3D< T >::BasicVector3D ( const BasicVector3D< float > &  v)
inline

Copy constructor. Note: BasicVector3D<double> has constructors from BasicVector3D<double> (provided by compiler) and from BasicVector3D<float> (defined in this file); BasicVector3D<float> has only the last one.

Definition at line 60 of file BasicVector3D.h.

template<class T>
virtual HepGeom::BasicVector3D< T >::~BasicVector3D ( )
inlinevirtual

Destructor.

Definition at line 66 of file BasicVector3D.h.

Member Function Documentation

template<>
float HepGeom::BasicVector3D< float >::angle ( const BasicVector3D< float > &  v) const

Definition at line 36 of file BasicVector3D.cc.

Here is the call graph for this function:

template<>
double HepGeom::BasicVector3D< double >::angle ( const BasicVector3D< double > &  v) const

Definition at line 192 of file BasicVector3D.cc.

Here is the call graph for this function:

template<class T>
T HepGeom::BasicVector3D< T >::angle ( const BasicVector3D< T > &  v) const

Returns angle w.r.t. another vector.

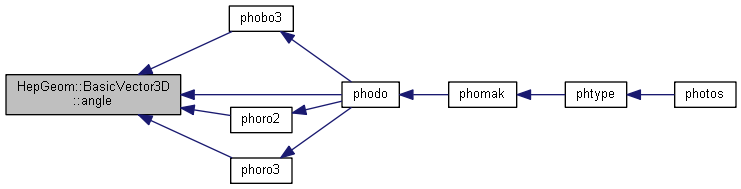

Here is the caller graph for this function:

template<class T>
T HepGeom::BasicVector3D< T >::cosTheta ( ) const
inline

Gets cosine of polar angle.

Definition at line 211 of file BasicVector3D.h.

template<class T>
BasicVector3D<T> HepGeom::BasicVector3D< T >::cross ( const BasicVector3D< T > &  v) const
inline

Vector product.

Definition at line 275 of file BasicVector3D.h.

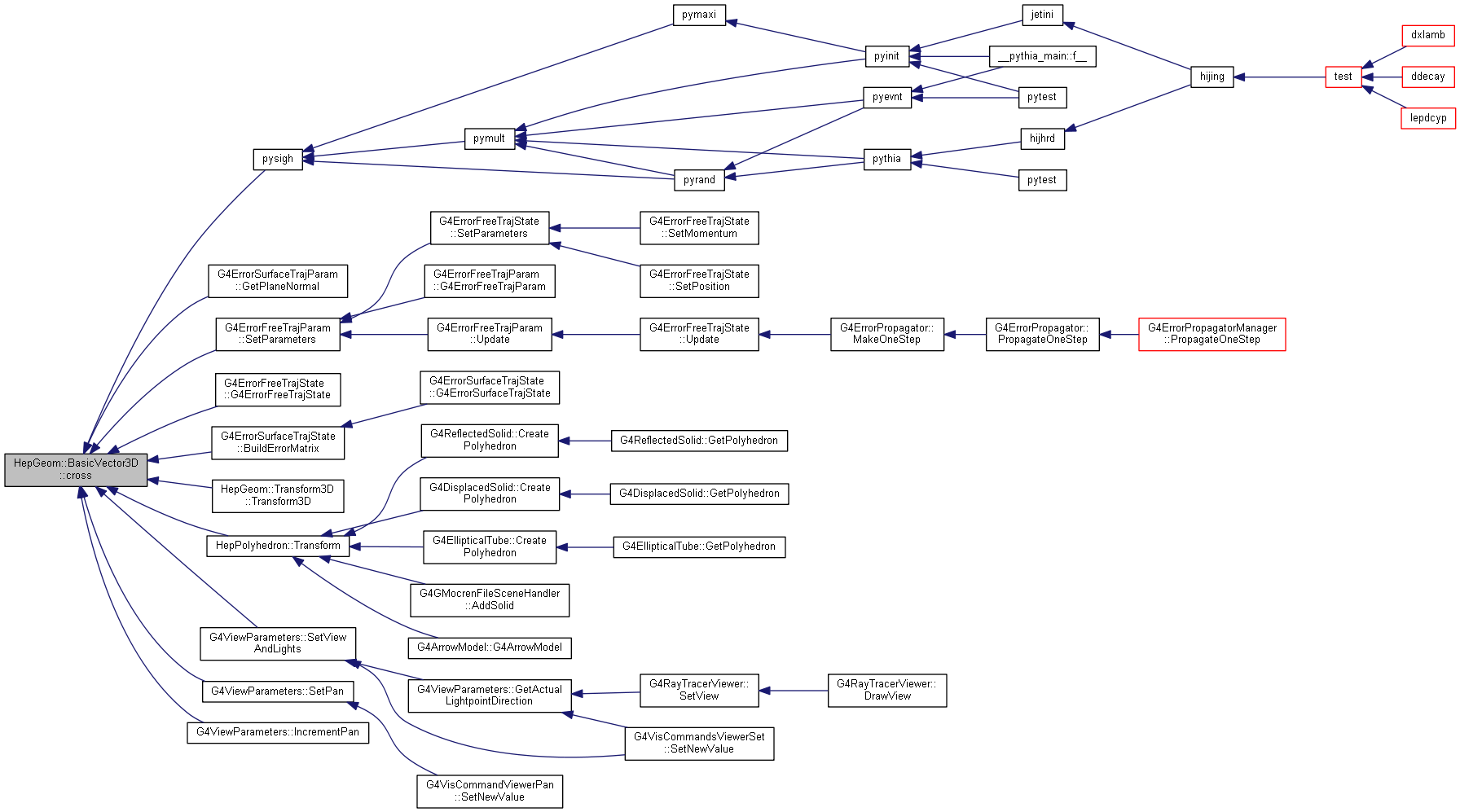

Here is the caller graph for this function:

template<class T>
T HepGeom::BasicVector3D< T >::dot ( const BasicVector3D< T > &  v) const
inline

Scalar product.

Definition at line 269 of file BasicVector3D.h.

Here is the caller graph for this function:

template<class T>
T HepGeom::BasicVector3D< T >::eta ( ) const
inline

Gets pseudo-rapidity.

Definition at line 254 of file BasicVector3D.h.

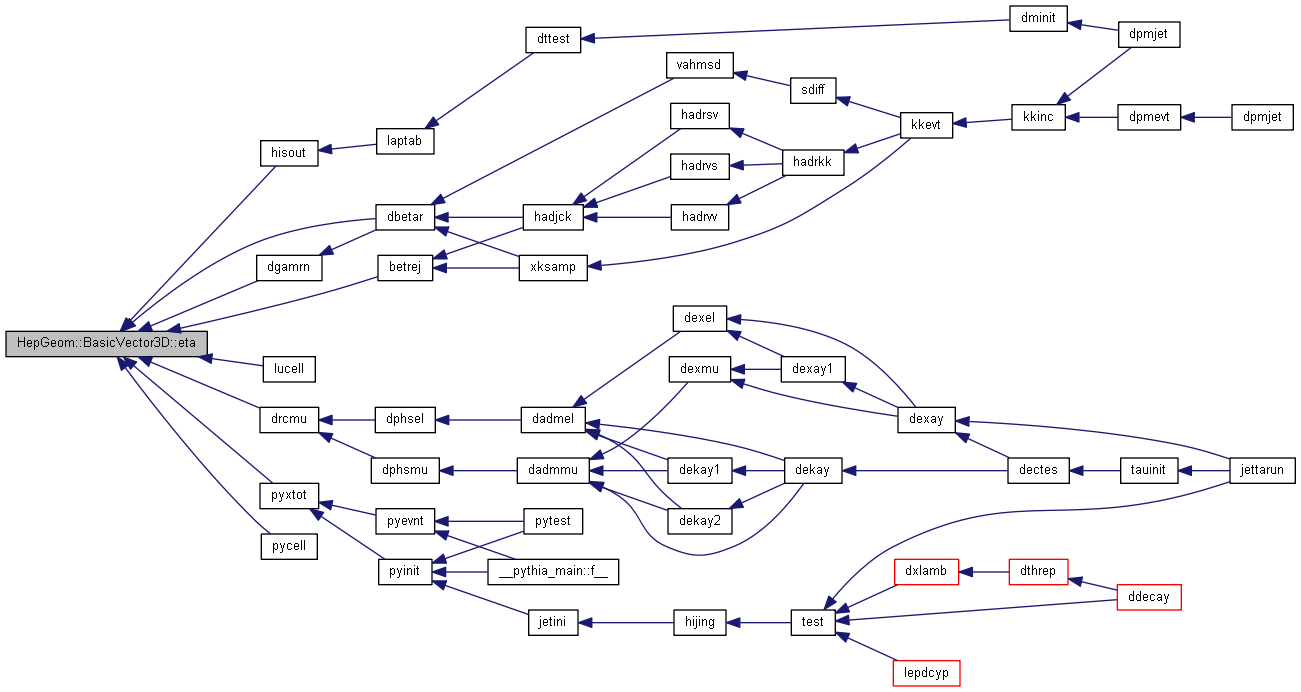

Here is the caller graph for this function:

template<class T>
T HepGeom::BasicVector3D< T >::getEta ( ) const
inline

Gets pseudo-rapidity.

Definition at line 257 of file BasicVector3D.h.

template<class T>
T HepGeom::BasicVector3D< T >::getPhi ( ) const
inline

Gets phi-component in spherical coordinate system

Definition at line 218 of file BasicVector3D.h.

template<class T>
T HepGeom::BasicVector3D< T >::getR ( ) const
inline

Gets r-component in spherical coordinate system

Definition at line 215 of file BasicVector3D.h.

template<class T>
T HepGeom::BasicVector3D< T >::getTheta ( ) const
inline

Gets theta-component in spherical coordinate system

Definition at line 221 of file BasicVector3D.h.

template<class T>
T HepGeom::BasicVector3D< T >::mag ( ) const
inline

Gets magnitude of the vector.

Definition at line 195 of file BasicVector3D.h.

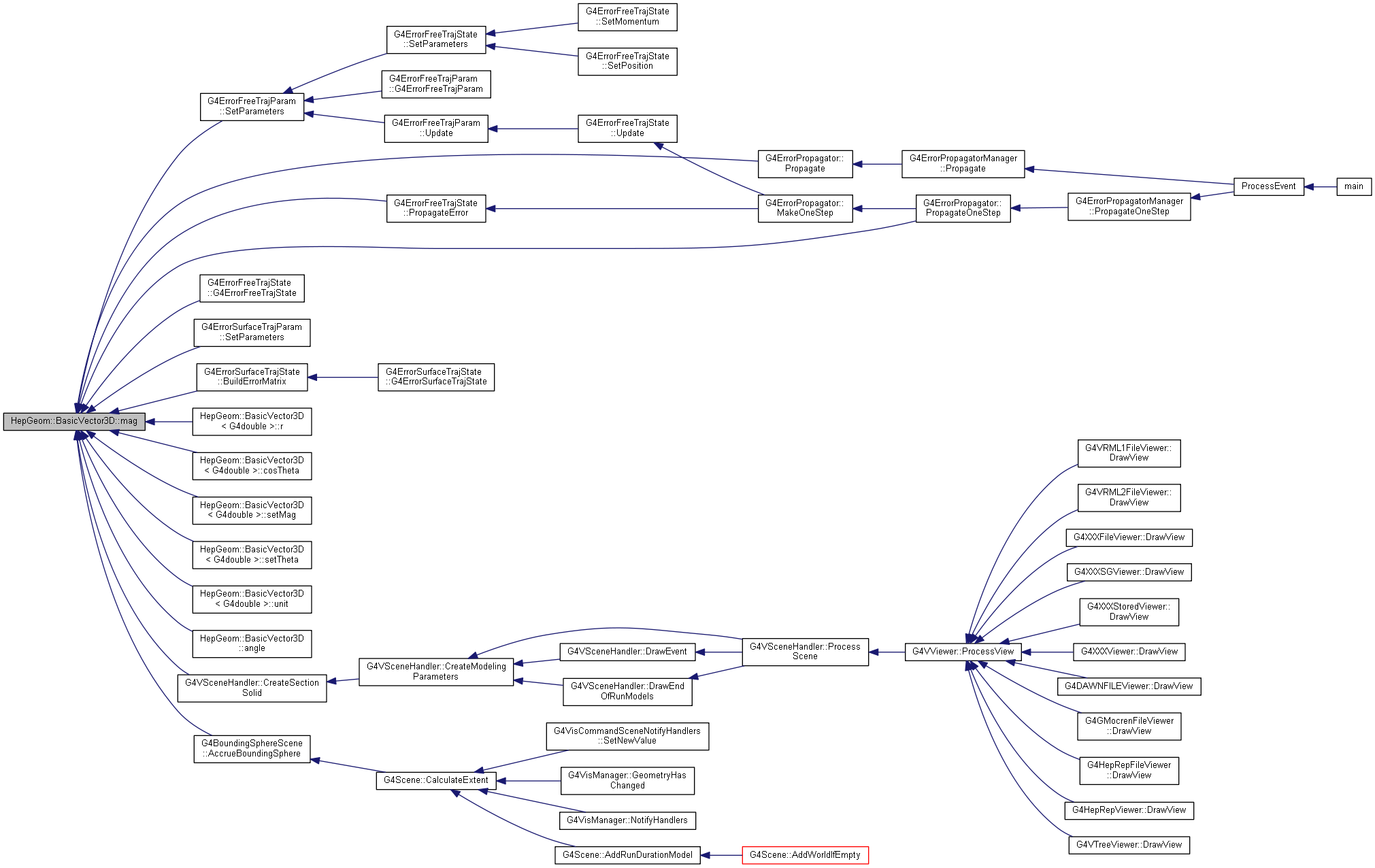

Here is the caller graph for this function:

template<class T>
T HepGeom::BasicVector3D< T >::mag2 ( ) const
inline

Gets magnitude squared of the vector.

Definition at line 192 of file BasicVector3D.h.

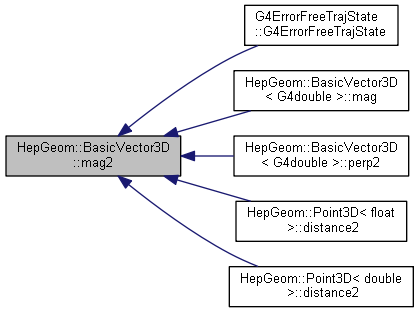

Here is the caller graph for this function:

template<class T>
HepGeom::BasicVector3D< T >::operator CLHEP::Hep3Vector ( ) const
inline

Conversion (cast) to CLHEP::Hep3Vector. This operator is needed only for backward compatibility and in principle should not exit.

Definition at line 85 of file BasicVector3D.h.

template<class T>
HepGeom::BasicVector3D< T >::operator const T * ( ) const
inline

Conversion (cast) to ordinary const array.

Definition at line 78 of file BasicVector3D.h.

template<class T>
HepGeom::BasicVector3D< T >::operator T * ( )
inline

Conversion (cast) to ordinary array.

Definition at line 74 of file BasicVector3D.h.

template<class T>
T HepGeom::BasicVector3D< T >::operator() ( int  i) const
inline

Gets components by index.

Definition at line 123 of file BasicVector3D.h.

template<class T>
T& HepGeom::BasicVector3D< T >::operator() ( int  i)
inline

Sets components by index.

Definition at line 130 of file BasicVector3D.h.

template<class T>
BasicVector3D<T>& HepGeom::BasicVector3D< T >::operator*= ( double  a)
inline

Multiplication by scalar.

Definition at line 108 of file BasicVector3D.h.

template<class T>
BasicVector3D<T>& HepGeom::BasicVector3D< T >::operator+= ( const BasicVector3D< T > &  v)
inline

Addition.

Definition at line 98 of file BasicVector3D.h.

template<class T>
BasicVector3D<T>& HepGeom::BasicVector3D< T >::operator-= ( const BasicVector3D< T > &  v)
inline

Subtraction.

Definition at line 103 of file BasicVector3D.h.

template<class T>
BasicVector3D<T>& HepGeom::BasicVector3D< T >::operator/= ( double  a)
inline

Division by scalar.

Definition at line 113 of file BasicVector3D.h.

template<class T>
BasicVector3D<T>& HepGeom::BasicVector3D< T >::operator= ( const BasicVector3D< T > &  v)
inline

Assignment.

Definition at line 93 of file BasicVector3D.h.

template<class T>
T HepGeom::BasicVector3D< T >::operator[] ( int  i) const
inline

Gets components by index.

Definition at line 126 of file BasicVector3D.h.

template<class T>
T& HepGeom::BasicVector3D< T >::operator[] ( int  i)
inline

Sets components by index.

Definition at line 133 of file BasicVector3D.h.

template<class T>
BasicVector3D<T> HepGeom::BasicVector3D< T >::orthogonal ( ) const
inline

Returns orthogonal vector.

Definition at line 312 of file BasicVector3D.h.

template<class T>
T HepGeom::BasicVector3D< T >::perp ( ) const
inline

Gets transverse component.

Definition at line 172 of file BasicVector3D.h.

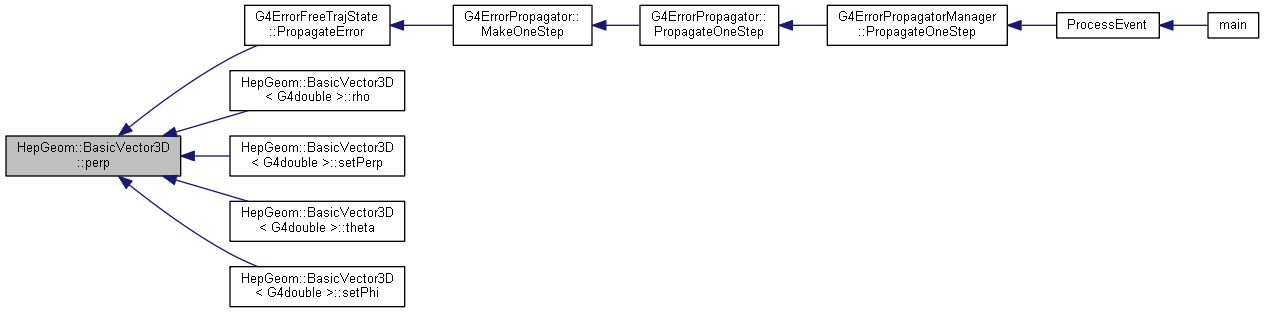

Here is the caller graph for this function:

template<class T>
T HepGeom::BasicVector3D< T >::perp ( const BasicVector3D< T > &  v) const
inline

Returns transverse component w.r.t. given axis.

Definition at line 290 of file BasicVector3D.h.

template<class T>
T HepGeom::BasicVector3D< T >::perp2 ( ) const
inline

Gets transverse component squared.

Definition at line 169 of file BasicVector3D.h.

Here is the caller graph for this function:

template<class T>
T HepGeom::BasicVector3D< T >::perp2 ( const BasicVector3D< T > &  v) const
inline

Returns transverse component w.r.t. given axis squared.

Definition at line 283 of file BasicVector3D.h.

template<class T>
T HepGeom::BasicVector3D< T >::phi ( ) const
inline

Gets azimuth angle.

Definition at line 201 of file BasicVector3D.h.

template<>
float HepGeom::BasicVector3D< float >::pseudoRapidity ( ) const

Definition at line 13 of file BasicVector3D.cc.

template<>
double HepGeom::BasicVector3D< double >::pseudoRapidity ( ) const

Definition at line 169 of file BasicVector3D.cc.

template<class T>
T HepGeom::BasicVector3D< T >::pseudoRapidity ( ) const

Gets pseudo-rapidity: -ln(tan(theta/2))

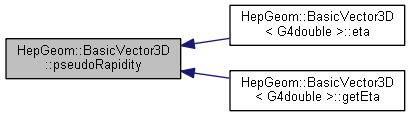

Here is the caller graph for this function:

template<class T>
T HepGeom::BasicVector3D< T >::r ( ) const
inline

Gets r-component in spherical coordinate system

Definition at line 198 of file BasicVector3D.h.

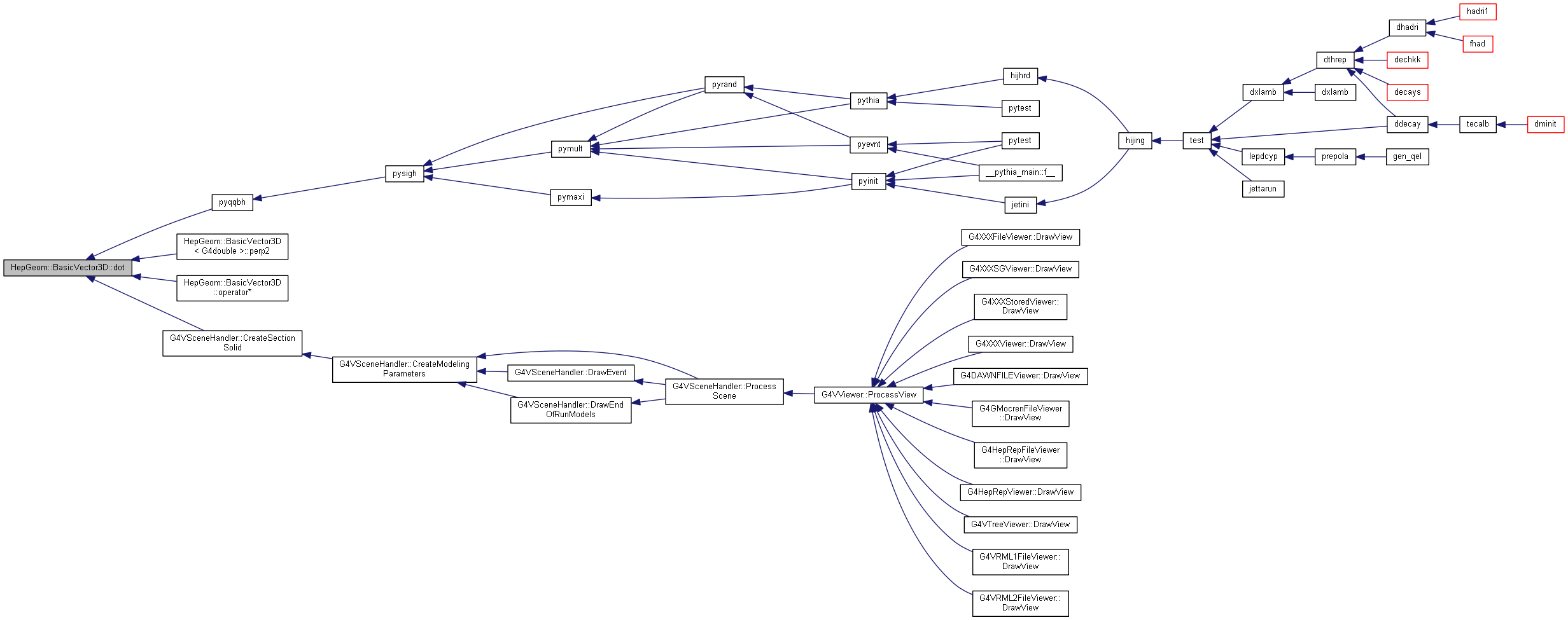

Here is the caller graph for this function:

template<class T>
T HepGeom::BasicVector3D< T >::rho ( ) const
inline

Gets rho-component in cylindrical coordinate system

Definition at line 175 of file BasicVector3D.h.

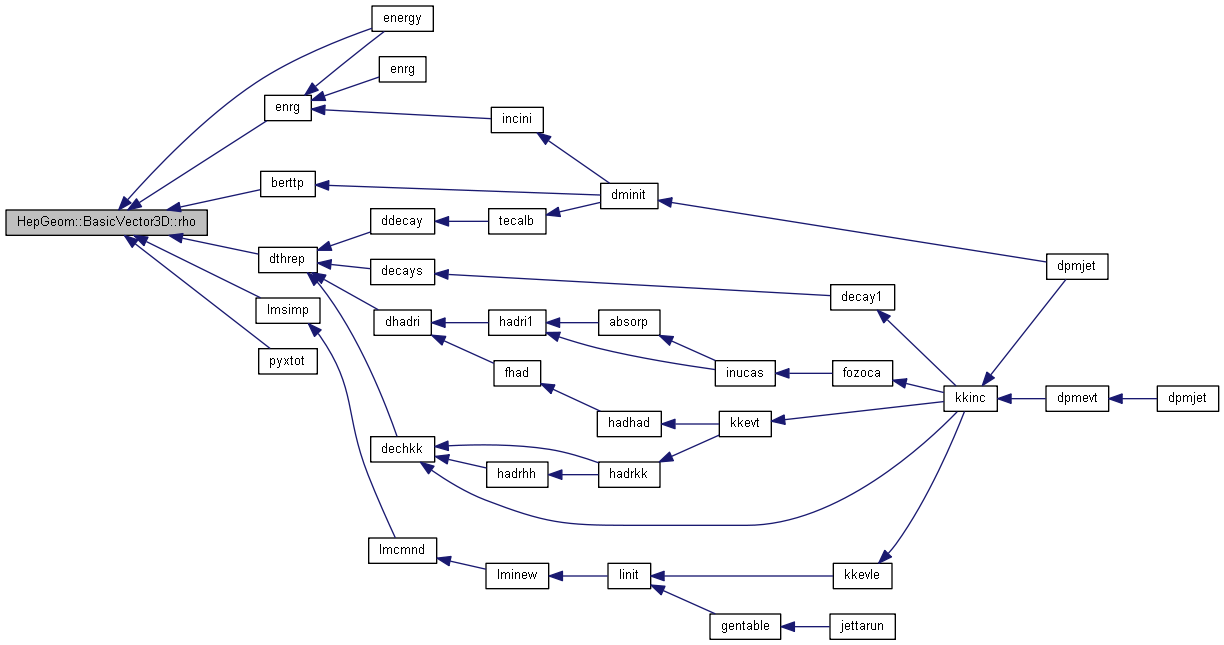

Here is the caller graph for this function:

template<>
BasicVector3D< float > & HepGeom::BasicVector3D< float >::rotate ( float  a,
const BasicVector3D< float > &  v
)

Definition at line 77 of file BasicVector3D.cc.

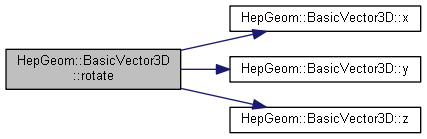

Here is the call graph for this function:

template<>
BasicVector3D< double > & HepGeom::BasicVector3D< double >::rotate ( double  a,
const BasicVector3D< double > &  v
)

Definition at line 233 of file BasicVector3D.cc.

Here is the call graph for this function:

template<class T>
BasicVector3D<T>& HepGeom::BasicVector3D< T >::rotate ( a,
const BasicVector3D< T > &  v
)

Rotates around the axis specified by another vector.

template<>
BasicVector3D< float > & HepGeom::BasicVector3D< float >::rotateX ( float  a)

Definition at line 49 of file BasicVector3D.cc.

template<>
BasicVector3D< double > & HepGeom::BasicVector3D< double >::rotateX ( double  a)

Definition at line 205 of file BasicVector3D.cc.

template<class T>
BasicVector3D<T>& HepGeom::BasicVector3D< T >::rotateX ( a)

Rotates around x-axis.

template<>
BasicVector3D< float > & HepGeom::BasicVector3D< float >::rotateY ( float  a)

Definition at line 58 of file BasicVector3D.cc.

template<>
BasicVector3D< double > & HepGeom::BasicVector3D< double >::rotateY ( double  a)

Definition at line 214 of file BasicVector3D.cc.

template<class T>
BasicVector3D<T>& HepGeom::BasicVector3D< T >::rotateY ( a)

Rotates around y-axis.

template<>
BasicVector3D< float > & HepGeom::BasicVector3D< float >::rotateZ ( float  a)

Definition at line 67 of file BasicVector3D.cc.

template<>
BasicVector3D< double > & HepGeom::BasicVector3D< double >::rotateZ ( double  a)

Definition at line 223 of file BasicVector3D.cc.

template<class T>
BasicVector3D<T>& HepGeom::BasicVector3D< T >::rotateZ ( a)

Rotates around z-axis.

template<class T>
void HepGeom::BasicVector3D< T >::set ( x1,
y1,
z1
)
inline

Sets components in cartesian coordinate system.

Definition at line 161 of file BasicVector3D.h.

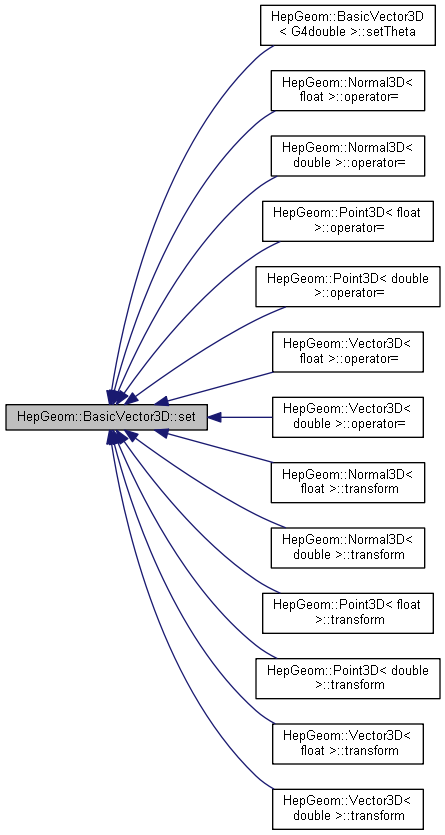

Here is the caller graph for this function:

template<>
void HepGeom::BasicVector3D< float >::setEta ( float  a)

Definition at line 23 of file BasicVector3D.cc.

template<>
void HepGeom::BasicVector3D< double >::setEta ( double  a)

Definition at line 179 of file BasicVector3D.cc.

template<class T>
void HepGeom::BasicVector3D< T >::setEta ( a)

Sets pseudo-rapidity, keeping magnitude and phi fixed.

template<class T>
void HepGeom::BasicVector3D< T >::setMag ( ma)
inline

Sets magnitude.

Definition at line 225 of file BasicVector3D.h.

Here is the caller graph for this function:

template<class T>
void HepGeom::BasicVector3D< T >::setPerp ( rh)
inline

Sets transverse component keeping phi and z constant.

Definition at line 179 of file BasicVector3D.h.

template<class T>
void HepGeom::BasicVector3D< T >::setPhi ( ph)
inline

Sets phi-component in spherical coordinate system.

Definition at line 236 of file BasicVector3D.h.

template<class T>
void HepGeom::BasicVector3D< T >::setR ( ma)
inline

Sets r-component in spherical coordinate system.

Definition at line 233 of file BasicVector3D.h.

template<class T>
void HepGeom::BasicVector3D< T >::setTheta ( th)
inline

Sets theta-component in spherical coordinate system.

Definition at line 239 of file BasicVector3D.h.

template<class T>
void HepGeom::BasicVector3D< T >::setX ( a)
inline

Sets x-component in cartesian coordinate system.

Definition at line 151 of file BasicVector3D.h.

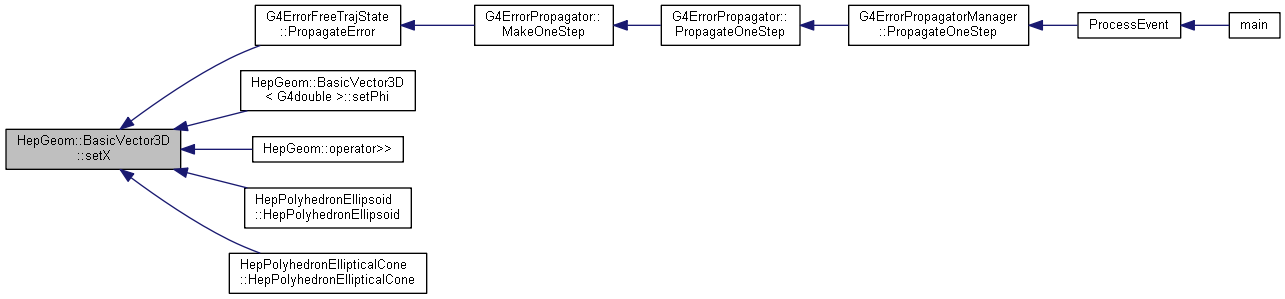

Here is the caller graph for this function:

template<class T>
void HepGeom::BasicVector3D< T >::setY ( a)
inline

Sets y-component in cartesian coordinate system.

Definition at line 154 of file BasicVector3D.h.

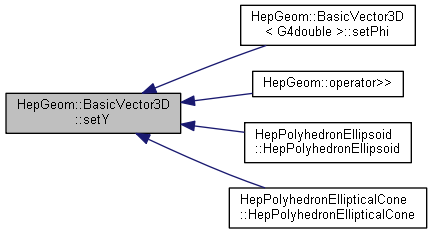

Here is the caller graph for this function:

template<class T>
void HepGeom::BasicVector3D< T >::setZ ( a)
inline

Sets z-component in cartesian coordinate system.

Definition at line 157 of file BasicVector3D.h.

Here is the caller graph for this function:

template<class T>
T HepGeom::BasicVector3D< T >::theta ( ) const
inline

Gets polar angle.

Definition at line 206 of file BasicVector3D.h.

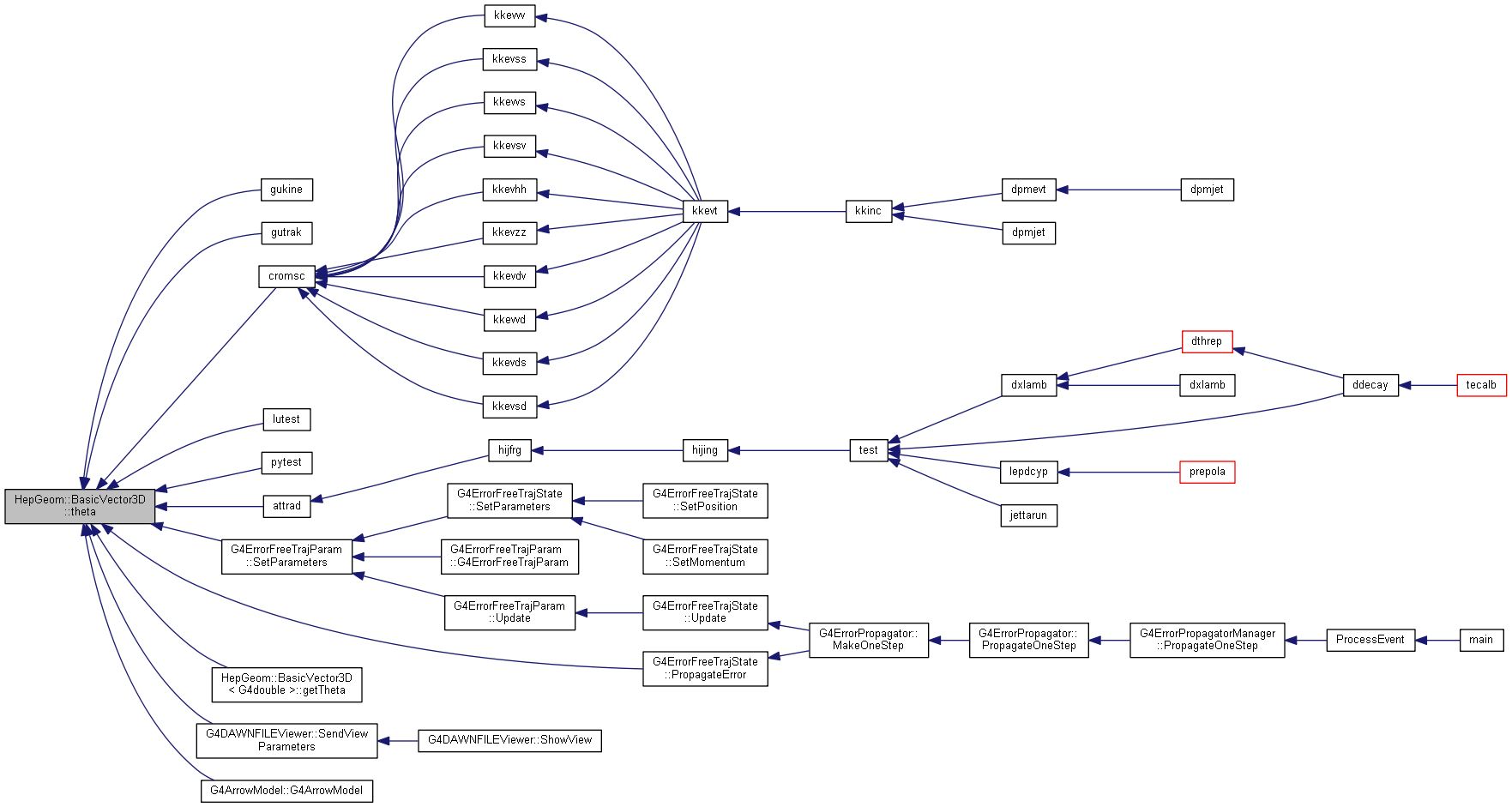

Here is the caller graph for this function:

template<class T>
BasicVector3D<T> HepGeom::BasicVector3D< T >::unit ( ) const
inline

Returns unit vector parallel to this.

Definition at line 304 of file BasicVector3D.h.

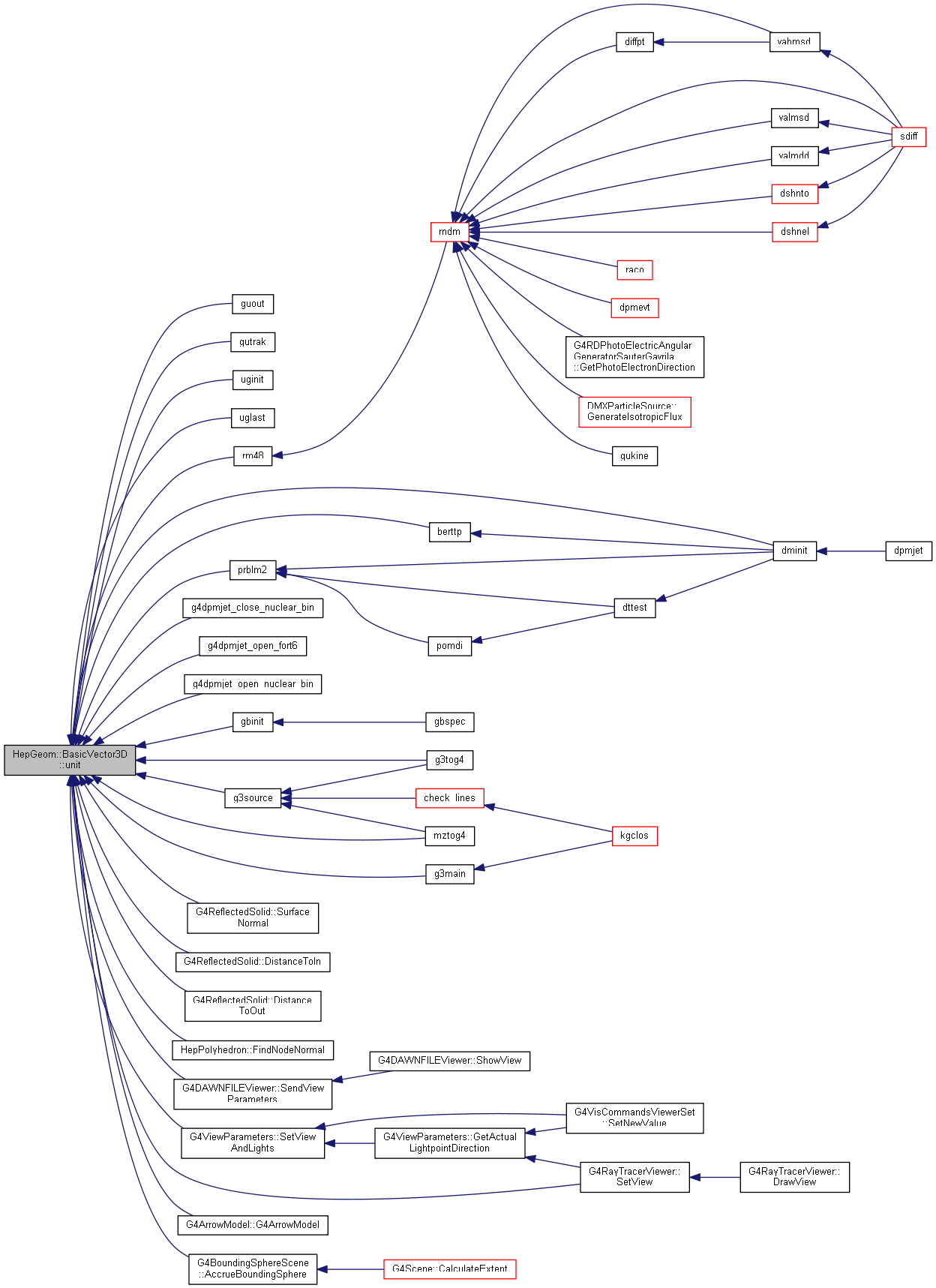

Here is the caller graph for this function:

template<class T>
T HepGeom::BasicVector3D< T >::x ( ) const
inline

Gets x-component in cartesian coordinate system.

Definition at line 141 of file BasicVector3D.h.

template<class T>
T HepGeom::BasicVector3D< T >::y ( ) const
inline

Gets y-component in cartesian coordinate system.

Definition at line 144 of file BasicVector3D.h.

template<class T>
T HepGeom::BasicVector3D< T >::z ( ) const
inline

Gets z-component in cartesian coordinate system.

Definition at line 147 of file BasicVector3D.h.

Friends And Related Function Documentation

template<class T>
bool operator!= ( const BasicVector3D< float > &  a,
const BasicVector3D< float > &  b
)
related

Comparison of two vectors for inequality.

Definition at line 447 of file BasicVector3D.h.

Here is the call graph for this function:

template<class T>
bool operator!= ( const BasicVector3D< double > &  a,
const BasicVector3D< double > &  b
)
related

Comparison of two vectors for inequality.

Definition at line 556 of file BasicVector3D.h.

Here is the call graph for this function:

template<class T>
BasicVector3D< float > operator* ( const BasicVector3D< float > &  v,
double  a
)
related

Multiplication vector by scalar.

Definition at line 402 of file BasicVector3D.h.

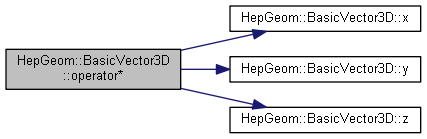

Here is the call graph for this function:

template<class T>
float operator* ( const BasicVector3D< float > &  a,
const BasicVector3D< float > &  b
)
related

Scalar product of two vectors.

Definition at line 411 of file BasicVector3D.h.

Here is the call graph for this function:

template<class T>
BasicVector3D< float > operator* ( double  a,
const BasicVector3D< float > &  v
)
related

Multiplication scalar by vector.

Definition at line 420 of file BasicVector3D.h.

Here is the call graph for this function:

template<class T>
BasicVector3D< double > operator* ( const BasicVector3D< double > &  v,
double  a
)
related

Multiplication vector by scalar.

Definition at line 510 of file BasicVector3D.h.

Here is the call graph for this function:

template<class T>
double operator* ( const BasicVector3D< double > &  a,
const BasicVector3D< double > &  b
)
related

Scalar product of two vectors.

Definition at line 519 of file BasicVector3D.h.

Here is the call graph for this function:

template<class T>
BasicVector3D< double > operator* ( double  a,
const BasicVector3D< double > &  v
)
related

Multiplication scalar by vector.

Definition at line 528 of file BasicVector3D.h.

Here is the call graph for this function:

template<class T>
BasicVector3D< float > operator+ ( const BasicVector3D< float > &  v)
related

Unary plus.

Definition at line 368 of file BasicVector3D.h.

template<class T>
BasicVector3D< float > operator+ ( const BasicVector3D< float > &  a,
const BasicVector3D< float > &  b
)
related

Addition of two vectors.

Definition at line 375 of file BasicVector3D.h.

Here is the call graph for this function:

template<class T>
BasicVector3D< double > operator+ ( const BasicVector3D< double > &  v)
related

Unary plus.

Definition at line 476 of file BasicVector3D.h.

template<class T>
BasicVector3D< double > operator+ ( const BasicVector3D< double > &  a,
const BasicVector3D< double > &  b
)
related

Addition of two vectors.

Definition at line 483 of file BasicVector3D.h.

Here is the call graph for this function:

template<class T>
BasicVector3D< float > operator- ( const BasicVector3D< float > &  v)
related

Unary minus.

Definition at line 384 of file BasicVector3D.h.

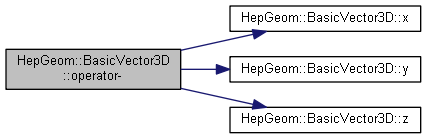

Here is the call graph for this function:

template<class T>
BasicVector3D< float > operator- ( const BasicVector3D< float > &  a,
const BasicVector3D< float > &  b
)
related

Subtraction of two vectors.

Definition at line 393 of file BasicVector3D.h.

Here is the call graph for this function:

template<class T>
BasicVector3D< double > operator- ( const BasicVector3D< double > &  v)
related

Unary minus.

Definition at line 492 of file BasicVector3D.h.

Here is the call graph for this function:

template<class T>
BasicVector3D< double > operator- ( const BasicVector3D< double > &  a,
const BasicVector3D< double > &  b
)
related

Subtraction of two vectors.

Definition at line 501 of file BasicVector3D.h.

Here is the call graph for this function:

template<class T>
BasicVector3D< float > operator/ ( const BasicVector3D< float > &  v,
double  a
)
related

Division vector by scalar.

Definition at line 429 of file BasicVector3D.h.

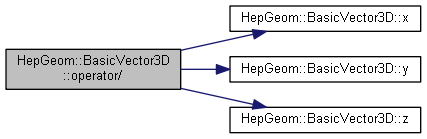

Here is the call graph for this function:

template<class T>
BasicVector3D< double > operator/ ( const BasicVector3D< double > &  v,
double  a
)
related

Division vector by scalar.

Definition at line 537 of file BasicVector3D.h.

Here is the call graph for this function:

template<class T>
std::ostream & operator<< ( std::ostream &  ,
const BasicVector3D< float > &
)
related

Output to stream.

Definition at line 107 of file BasicVector3D.cc.

template<class T>
std::ostream & operator<< ( std::ostream &  ,
const BasicVector3D< double > &
)
related

Output to stream.

Definition at line 263 of file BasicVector3D.cc.

template<class T>
bool operator== ( const BasicVector3D< float > &  a,
const BasicVector3D< float > &  b
)
related

Comparison of two vectors for equality.

Definition at line 438 of file BasicVector3D.h.

Here is the call graph for this function:

Here is the caller graph for this function:

template<class T>
bool operator== ( const BasicVector3D< double > &  a,
const BasicVector3D< double > &  b
)
related

Comparison of two vectors for equality.

Definition at line 546 of file BasicVector3D.h.

Here is the call graph for this function:

template<class T>
std::istream & operator>> ( std::istream &  ,
BasicVector3D< float > &
)
related

Input from stream.

Definition at line 114 of file BasicVector3D.cc.

template<class T>
std::istream & operator>> ( std::istream &  ,
BasicVector3D< double > &
)
related

Input from stream.

Definition at line 270 of file BasicVector3D.cc.

Member Data Documentation

template<class T>
T HepGeom::BasicVector3D< T >::v_[3]
protected

Definition at line 29 of file BasicVector3D.h.


The documentation for this class was generated from the following file:
