Inheritance diagram for G4NeutronHPPInelasticFS:

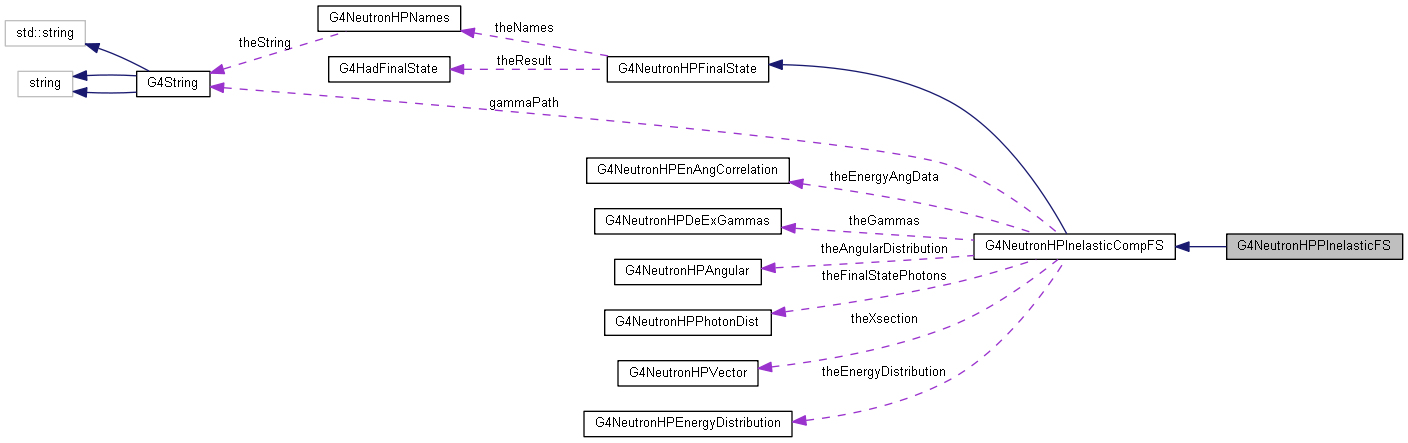

Collaboration diagram for G4NeutronHPPInelasticFS:

[legend]

Public Member Functions
	G4NeutronHPPInelasticFS ()

	~G4NeutronHPPInelasticFS ()

void	Init (G4double A, G4double Z, G4int M, G4String &dirName, G4String &aFSType)

G4HadFinalState *	ApplyYourself (const G4HadProjectile &theTrack)

G4NeutronHPFinalState *	New ()

Public Member Functions inherited from G4NeutronHPInelasticCompFS
	G4NeutronHPInelasticCompFS ()

virtual	~G4NeutronHPInelasticCompFS ()

void	InitGammas (G4double AR, G4double ZR)

virtual G4double	GetXsec (G4double anEnergy)

virtual G4NeutronHPVector *	GetXsec ()

G4int	SelectExitChannel (G4double eKinetic)

void	CompositeApply (const G4HadProjectile &theTrack, G4ParticleDefinition *aHadron)

void	InitDistributionInitialState (G4ReactionProduct &aNeutron, G4ReactionProduct &aTarget, G4int it)

Public Member Functions inherited from G4NeutronHPFinalState
	G4NeutronHPFinalState ()

virtual	~G4NeutronHPFinalState ()

void	Init (G4double A, G4double Z, G4String &dirName, G4String &aFSType)

G4bool	HasXsec ()

G4bool	HasFSData ()

G4bool	HasAnyData ()

void	SetA_Z (G4double anA, G4double aZ, G4int aM=0)

G4double	GetZ ()

G4double	GetN ()

G4int	GetM ()

Additional Inherited Members
Protected Member Functions inherited from G4NeutronHPFinalState
void	SetAZMs (G4double anA, G4double aZ, G4int aM, G4NeutronHPDataUsed used)

void	adjust_final_state (G4LorentzVector)

G4bool	DoNotAdjustFinalState ()

Protected Attributes inherited from G4NeutronHPInelasticCompFS
G4NeutronHPVector *	theXsection [51]

G4NeutronHPEnergyDistribution *	theEnergyDistribution [51]

G4NeutronHPAngular *	theAngularDistribution [51]

G4NeutronHPEnAngCorrelation *	theEnergyAngData [51]

G4NeutronHPPhotonDist *	theFinalStatePhotons [51]

G4NeutronHPDeExGammas	theGammas

G4String	gammaPath

G4double	theCurrentA

G4double	theCurrentZ

std::vector< G4double >	QI

std::vector< G4int >	LR

Protected Attributes inherited from G4NeutronHPFinalState
G4bool	hasXsec

G4bool	hasFSData

G4bool	hasAnyData

G4NeutronHPNames	theNames

G4HadFinalState	theResult

G4double	theBaseA

G4double	theBaseZ

G4int	theBaseM

G4int	theNDLDataZ

G4int	theNDLDataA

G4int	theNDLDataM

Detailed Description

Definition at line 40 of file G4NeutronHPPInelasticFS.hh.

Constructor & Destructor Documentation

G4NeutronHPPInelasticFS::G4NeutronHPPInelasticFS ( )

inline

Definition at line 44 of file G4NeutronHPPInelasticFS.hh.

Here is the caller graph for this function:

G4NeutronHPPInelasticFS::~G4NeutronHPPInelasticFS ( )

inline

Definition at line 45 of file G4NeutronHPPInelasticFS.hh.

G4HadFinalState * G4NeutronHPPInelasticFS::ApplyYourself ( const G4HadProjectile & theTrack )

virtual

Definition at line 42 of file G4NeutronHPPInelasticFS.cc.

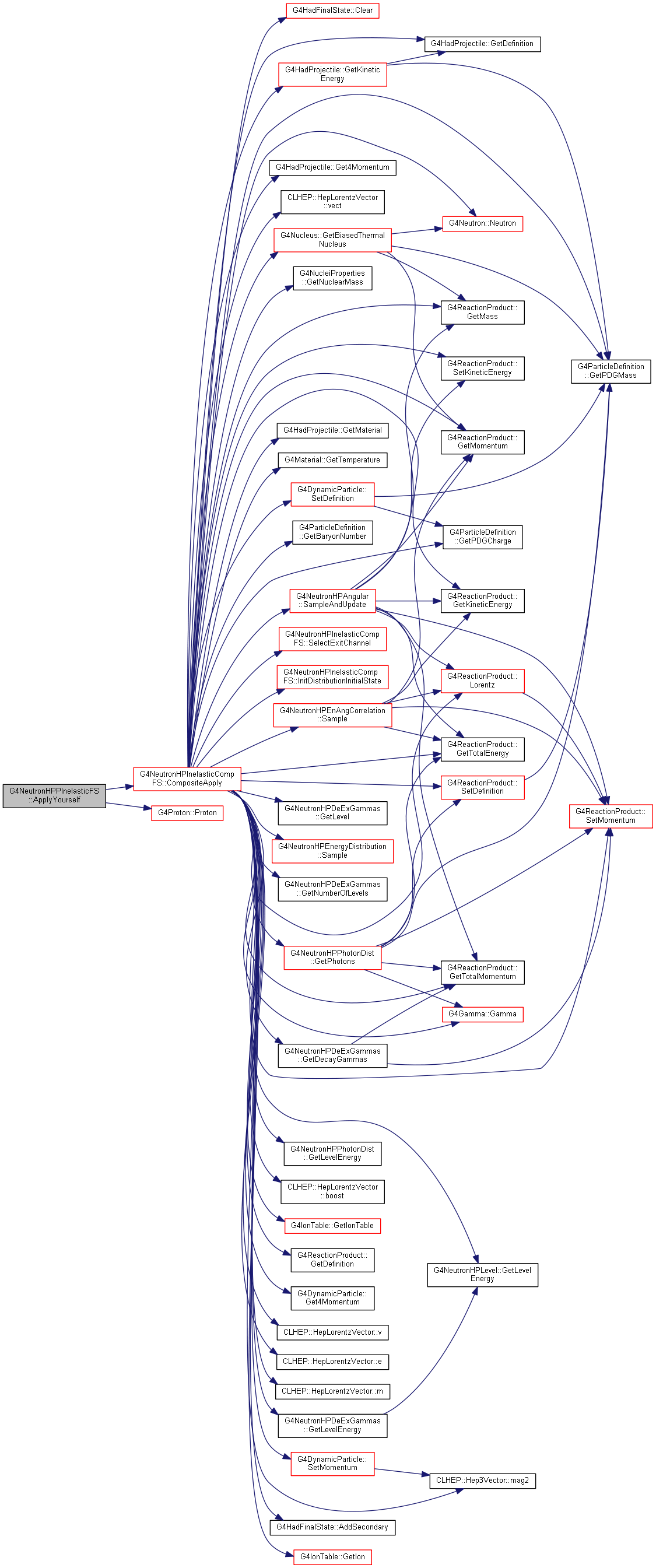

Here is the call graph for this function:

void G4NeutronHPPInelasticFS::Init	(	G4double	A,
		G4double	Z,
		G4int	M,
		G4String &	dirName,
		G4String &	aFSType
	)

virtual

Definition at line 34 of file G4NeutronHPPInelasticFS.cc.

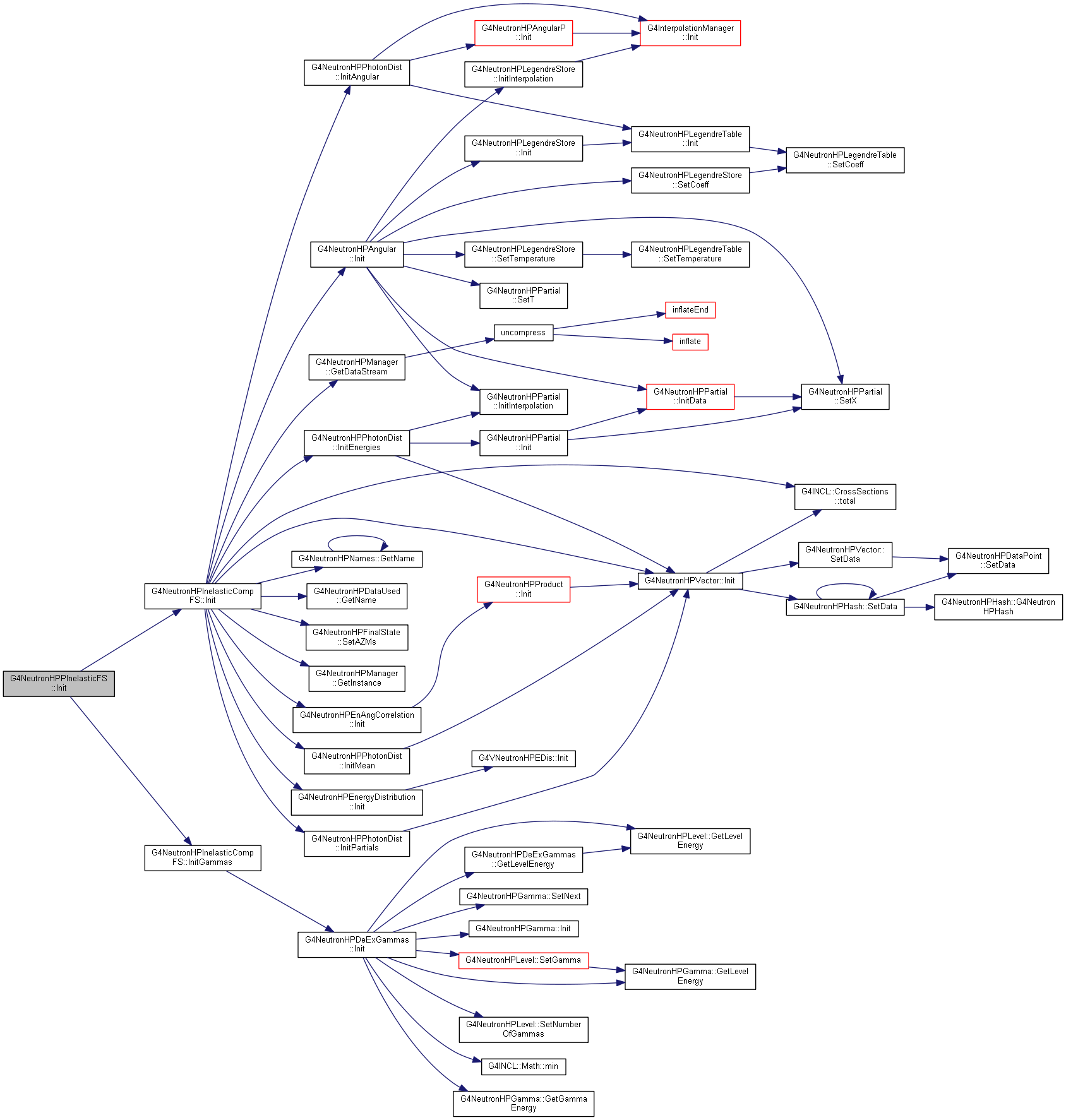

Here is the call graph for this function:

G4NeutronHPFinalState* G4NeutronHPPInelasticFS::New ( )

inlinevirtual

Definition at line 48 of file G4NeutronHPPInelasticFS.hh.

Here is the call graph for this function:

The documentation for this class was generated from the following files:

source/source/processes/hadronic/models/neutron_hp/include/G4NeutronHPPInelasticFS.hh
source/source/processes/hadronic/models/neutron_hp/src/G4NeutronHPPInelasticFS.cc
