Inheritance diagram for G4FPYNormalFragmentDist:

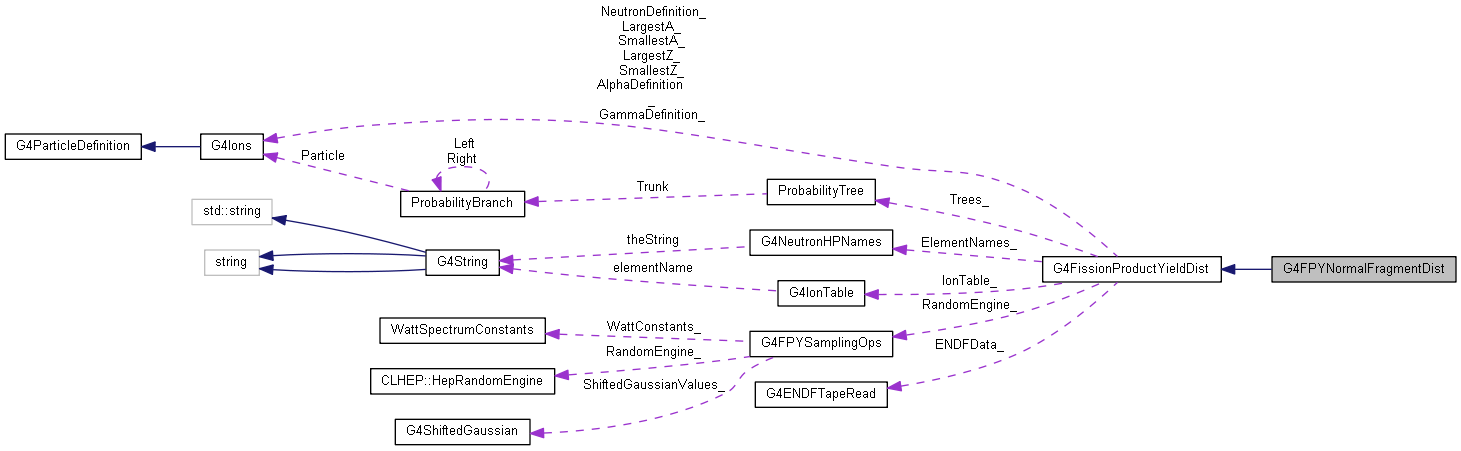

Collaboration diagram for G4FPYNormalFragmentDist:

[legend]

Public Member Functions
	G4FPYNormalFragmentDist (G4int WhichIsotope, G4FFGEnumerations::MetaState WhichMetaState, G4FFGEnumerations::FissionCause WhichCause, G4FFGEnumerations::YieldType WhichYieldType, std::istringstream &dataFile)

	G4FPYNormalFragmentDist (G4int WhichIsotope, G4FFGEnumerations::MetaState WhichMetaState, G4FFGEnumerations::FissionCause WhichCause, G4FFGEnumerations::YieldType WhichYieldType, G4int Verbosity, std::istringstream &dataFile)

virtual	~G4FPYNormalFragmentDist (void)

Public Member Functions inherited from G4FissionProductYieldDist
	G4FissionProductYieldDist (G4int WhichIsotope, G4FFGEnumerations::MetaState WhichMetaState, G4FFGEnumerations::FissionCause WhichCause, G4FFGEnumerations::YieldType WhichYieldType, std::istringstream &dataStream)

	G4FissionProductYieldDist (G4int WhichIsotope, G4FFGEnumerations::MetaState WhichMetaState, G4FFGEnumerations::FissionCause WhichCause, G4FFGEnumerations::YieldType WhichYieldType, G4int Verbosity, std::istringstream &dataStream)

G4DynamicParticleVector *	G4GetFission (void)

G4Ions *	G4GetFissionProduct (void)

void	G4SetAlphaProduction (G4double WhatAlphaProduction)

void	G4SetEnergy (G4double WhatIncidentEnergy)

void	G4SetTernaryProbability (G4double TernaryProbability)

void	G4SetVerbosity (G4int WhatVerbosity)

virtual	~G4FissionProductYieldDist (void)

Protected Member Functions
void	Initialize (void)

virtual G4Ions *	GetFissionProduct (void)

Protected Member Functions inherited from G4FissionProductYieldDist
void	CheckAlphaSanity (void)

G4Ions *	FindParticle (G4double RandomParticle)

G4Ions *	FindParticleExtrapolation (G4double RandomParticle, G4bool LowerEnergyGroupExists)

G4Ions *	FindParticleInterpolation (G4double RandomParticle, G4int LowerEnergyGroup)

G4Ions *	FindParticleBranchSearch (ProbabilityBranch *Branch, G4double RandomParticle, G4int EnergyGroup1, G4int EnergyGroup2)

virtual void	GenerateAlphas (std::vector< G4ReactionProduct * > *Alphas)

virtual void	GenerateNeutrons (std::vector< G4ReactionProduct * > *Neutrons)

G4Ions *	GetParticleDefinition (G4int Product, G4FFGEnumerations::MetaState MetaState)

G4String	MakeDirectoryName (void)

G4String	MakeFileName (G4int Isotope, G4FFGEnumerations::MetaState MetaState)

G4DynamicParticle *	MakeG4DynamicParticle (G4ReactionProduct *)

G4String	MakeIsotopeName (G4int Isotope, G4FFGEnumerations::MetaState MetaState)

virtual void	MakeTrees (void)

virtual void	ReadProbabilities (void)

void	Renormalize (ProbabilityBranch *Branch)

void	SampleAlphaEnergies (std::vector< G4ReactionProduct * > *Alphas)

void	SampleGammaEnergies (std::vector< G4ReactionProduct * > *Gammas)

void	SampleNeutronEnergies (std::vector< G4ReactionProduct * > *Neutrons)

void	SetNubar (void)

virtual void	SortProbability (G4ENDFYieldDataContainer *YieldData)

void	BurnTree (ProbabilityBranch *Branch)

Additional Inherited Members
Protected Attributes inherited from G4FissionProductYieldDist
const G4int	Isotope_

const G4FFGEnumerations::MetaState	MetaState_

const G4FFGEnumerations::FissionCause	Cause_

const G4FFGEnumerations::YieldType	YieldType_

G4ENDFTapeRead *	ENDFData_

G4Ions *	AlphaDefinition_

G4double	AlphaProduction_

G4double	TernaryProbability_

G4Ions *	GammaDefinition_

G4double	IncidentEnergy_

G4double	MeanGammaEnergy_

G4Ions *	NeutronDefinition_

G4double	Nubar_

G4double	NubarWidth_

G4int	RemainingZ_

G4int	RemainingA_

G4double	RemainingEnergy_

G4int	Verbosity_

ProbabilityTree *	Trees_

G4Ions *	SmallestZ_

G4Ions *	SmallestA_

G4Ions *	LargestZ_

G4Ions *	LargestA_

G4int	YieldEnergyGroups_

G4double *	YieldEnergies_

G4double *	MaintainNormalizedData_

G4double *	DataTotal_

G4int	TreeCount_

G4int	BranchCount_

G4IonTable *	IonTable_

G4NeutronHPNames *	ElementNames_

G4FPYSamplingOps *	RandomEngine_

Detailed Description

G4FPYNormalFragmentDist is an inherited class of G4FissionProductYield that samples fission fragments from the entire data set.

Definition at line 45 of file G4FPYNormalFragmentDist.hh.

Constructor & Destructor Documentation

G4FPYNormalFragmentDist::G4FPYNormalFragmentDist	(	G4int	WhichIsotope,
		G4FFGEnumerations::MetaState	WhichMetaState,
		G4FFGEnumerations::FissionCause	WhichCause,
		G4FFGEnumerations::YieldType	WhichYieldType,
		std::istringstream &	dataFile
	)

Default constructor

Usage:
- WhichIsotope: Isotope number of the element in ZZZAAA form
- WhichMetaState: GROUND_STATE, META_1, or META_2
- WhichCause: SPONTANEOUS or N_INDUCED
- WhichYieldType: INDEPENDENT or CUMULATIVE
Notes:

Definition at line 43 of file G4FPYNormalFragmentDist.cc.

Here is the call graph for this function:

G4FPYNormalFragmentDist::G4FPYNormalFragmentDist	(	G4int	WhichIsotope,
		G4FFGEnumerations::MetaState	WhichMetaState,
		G4FFGEnumerations::FissionCause	WhichCause,
		G4FFGEnumerations::YieldType	WhichYieldType,
		G4int	Verbosity,
		std::istringstream &	dataFile
	)

Overloaded constructor

Definition at line 59 of file G4FPYNormalFragmentDist.cc.

Here is the call graph for this function:

G4FPYNormalFragmentDist::~G4FPYNormalFragmentDist ( void )

virtual

Default deconstructor. It is a virtual function since G4FPYNormalFragmentDist inherits from G4FissionProductYieldDist

G4Ions * G4FPYNormalFragmentDist::GetFissionProduct ( void )

protectedvirtual

Selects a fission product from the probability tree, limited by the number of nucleons available to the system.

Definition at line 87 of file G4FPYNormalFragmentDist.cc.

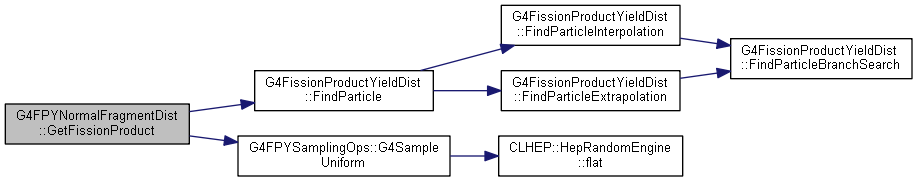

Here is the call graph for this function:

void G4FPYNormalFragmentDist::Initialize ( void )

protected

Initialize is a common function called by all constructors.

Definition at line 77 of file G4FPYNormalFragmentDist.cc.

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

source/source/processes/hadronic/models/neutron_hp/include/G4FPYNormalFragmentDist.hh
source/source/processes/hadronic/models/neutron_hp/src/G4FPYNormalFragmentDist.cc
