G4FPYBiasedLightFragmentDist Class Reference

#include <G4FPYBiasedLightFragmentDist.hh>

Inheritance diagram for G4FPYBiasedLightFragmentDist:

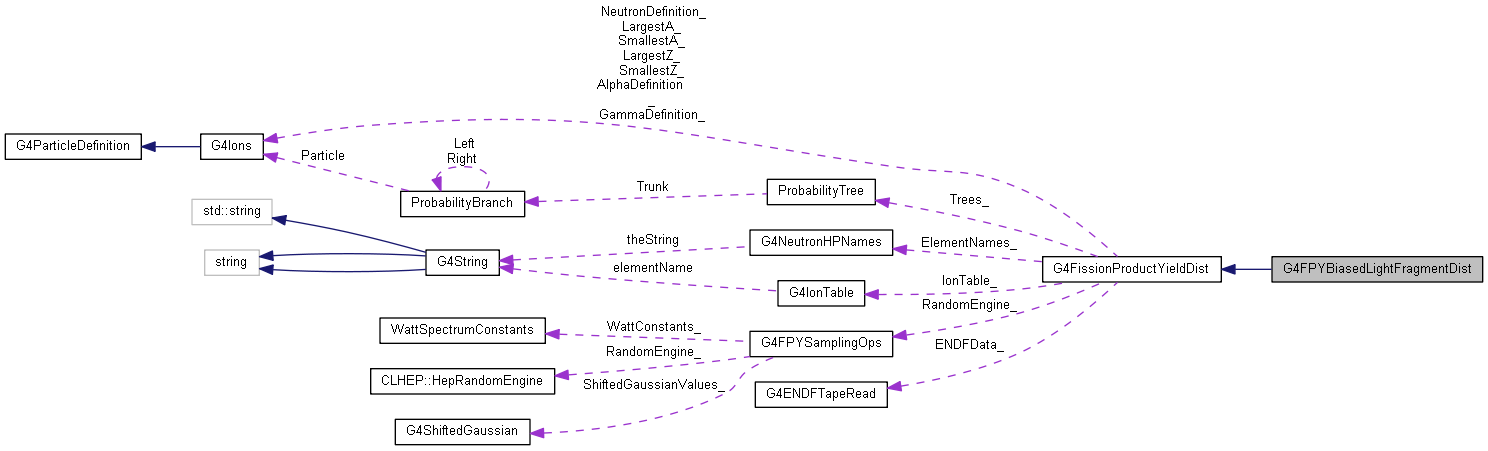

Collaboration diagram for G4FPYBiasedLightFragmentDist:

Public Member Functions
	G4FPYBiasedLightFragmentDist (G4int WhichIsotope, G4FFGEnumerations::MetaState WhichMetaState, G4FFGEnumerations::FissionCause WhichCause, G4FFGEnumerations::YieldType WhichYieldType, std::istringstream &dataStream)
	G4FPYBiasedLightFragmentDist (G4int WhichIsotope, G4FFGEnumerations::MetaState WhichMetaState, G4FFGEnumerations::FissionCause WhichCause, G4FFGEnumerations::YieldType WhichYieldType, G4int Verbosity, std::istringstream &dataStream)
virtual	~G4FPYBiasedLightFragmentDist (void)
Public Member Functions inherited from G4FissionProductYieldDist
	G4FissionProductYieldDist (G4int WhichIsotope, G4FFGEnumerations::MetaState WhichMetaState, G4FFGEnumerations::FissionCause WhichCause, G4FFGEnumerations::YieldType WhichYieldType, std::istringstream &dataStream)
	G4FissionProductYieldDist (G4int WhichIsotope, G4FFGEnumerations::MetaState WhichMetaState, G4FFGEnumerations::FissionCause WhichCause, G4FFGEnumerations::YieldType WhichYieldType, G4int Verbosity, std::istringstream &dataStream)
G4DynamicParticleVector *	G4GetFission (void)
G4Ions *	G4GetFissionProduct (void)
void	G4SetAlphaProduction (G4double WhatAlphaProduction)
void	G4SetEnergy (G4double WhatIncidentEnergy)
void	G4SetTernaryProbability (G4double TernaryProbability)
void	G4SetVerbosity (G4int WhatVerbosity)
virtual	~G4FissionProductYieldDist (void)

Protected Member Functions
void	Initialize (void)
virtual G4Ions *	GetFissionProduct (void)
Protected Member Functions inherited from G4FissionProductYieldDist
void	CheckAlphaSanity (void)
G4Ions *	FindParticle (G4double RandomParticle)
G4Ions *	FindParticleExtrapolation (G4double RandomParticle, G4bool LowerEnergyGroupExists)
G4Ions *	FindParticleInterpolation (G4double RandomParticle, G4int LowerEnergyGroup)
G4Ions *	FindParticleBranchSearch (ProbabilityBranch *Branch, G4double RandomParticle, G4int EnergyGroup1, G4int EnergyGroup2)
virtual void	GenerateAlphas (std::vector< G4ReactionProduct * > *Alphas)
virtual void	GenerateNeutrons (std::vector< G4ReactionProduct * > *Neutrons)
G4Ions *	GetParticleDefinition (G4int Product, G4FFGEnumerations::MetaState MetaState)
G4String	MakeDirectoryName (void)
G4String	MakeFileName (G4int Isotope, G4FFGEnumerations::MetaState MetaState)
G4DynamicParticle *	MakeG4DynamicParticle (G4ReactionProduct *)
G4String	MakeIsotopeName (G4int Isotope, G4FFGEnumerations::MetaState MetaState)
virtual void	MakeTrees (void)
virtual void	ReadProbabilities (void)
void	Renormalize (ProbabilityBranch *Branch)
void	SampleAlphaEnergies (std::vector< G4ReactionProduct * > *Alphas)
void	SampleGammaEnergies (std::vector< G4ReactionProduct * > *Gammas)
void	SampleNeutronEnergies (std::vector< G4ReactionProduct * > *Neutrons)
void	SetNubar (void)
virtual void	SortProbability (G4ENDFYieldDataContainer *YieldData)
void	BurnTree (ProbabilityBranch *Branch)

Protected Attributes
G4int	HalfWeight_
Protected Attributes inherited from G4FissionProductYieldDist
const G4int	Isotope_
const G4FFGEnumerations::MetaState	MetaState_
const G4FFGEnumerations::FissionCause	Cause_
const G4FFGEnumerations::YieldType	YieldType_
G4ENDFTapeRead *	ENDFData_
G4Ions *	AlphaDefinition_
G4double	AlphaProduction_
G4double	TernaryProbability_
G4Ions *	GammaDefinition_
G4double	IncidentEnergy_
G4double	MeanGammaEnergy_
G4Ions *	NeutronDefinition_
G4double	Nubar_
G4double	NubarWidth_
G4int	RemainingZ_
G4int	RemainingA_
G4double	RemainingEnergy_
G4int	Verbosity_
ProbabilityTree *	Trees_
G4Ions *	SmallestZ_
G4Ions *	SmallestA_
G4Ions *	LargestZ_
G4Ions *	LargestA_
G4int	YieldEnergyGroups_
G4double *	YieldEnergies_
G4double *	MaintainNormalizedData_
G4double *	DataTotal_
G4int	TreeCount_
G4int	BranchCount_
G4IonTable *	IonTable_
G4NeutronHPNames *	ElementNames_
G4FPYSamplingOps *	RandomEngine_

Detailed Description

G4FPYBiasedLightFragmentDist is an inherited class of G4FissionProductYield that only samples the 'light' fission fragments, defined by A < 115

• This inherited class of G4FissionProductYield samples only the lighter fission fragments, defined by A < 115
• This biasing was implemented because of an artifact that is introduced due to random sampling of fission fragments. Typically small fission fragments (neutrons, alphas, gammas) are sampled after the first fragment is sampled. If a heavy fragment (A >= 115) is sampled first then the resulting lighter fission fragment, after all the other particles have been removed from the available mass, will most likely land far off the neutron drip line.
• This implementation reduces the probability that such an improbable nucleus will be created by first sampling the lighter fission fragment and allowing the heavy fission fragment, which has a lot more flexibility for varying neutron populations, to make up the slack.

Definition at line 58 of file G4FPYBiasedLightFragmentDist.hh.

Constructor & Destructor Documentation

G4FPYBiasedLightFragmentDist::G4FPYBiasedLightFragmentDist	(	G4int	WhichIsotope,
		G4FFGEnumerations::MetaState	WhichMetaState,
		G4FFGEnumerations::FissionCause	WhichCause,
		G4FFGEnumerations::YieldType	WhichYieldType,
		std::istringstream &	dataStream
	)

Default constructor

• Usage:
  • WhichIsotope: Isotope number of the element in ZZZAAA form
  • WhichMetaState: GROUND_STATE, META_1, or META_2
  • WhichCause: SPONTANEOUS or N_INDUCED
  • WhichYieldType: INDEPENDENT or CUMULATIVE
• Notes:

Definition at line 43 of file G4FPYBiasedLightFragmentDist.cc.

Here is the call graph for this function:

G4FPYBiasedLightFragmentDist::G4FPYBiasedLightFragmentDist	(	G4int	WhichIsotope,
		G4FFGEnumerations::MetaState	WhichMetaState,
		G4FFGEnumerations::FissionCause	WhichCause,
		G4FFGEnumerations::YieldType	WhichYieldType,
		G4int	Verbosity,
		std::istringstream &	dataStream
	)

Overloaded constructor

• Usage:
  • WhichIsotope: Isotope number of the element in ZZZAAA form
  • WhichMetaState: GROUND_STATE, META_1, or META_2
  • WhichCause: SPONTANEOUS or N_INDUCED
  • WhichYieldType: INDEPENDENT or CUMULATIVE
  • Verbosity: Verbosity level
• Notes:

Definition at line 59 of file G4FPYBiasedLightFragmentDist.cc.

Here is the call graph for this function:

G4FPYBiasedLightFragmentDist::~G4FPYBiasedLightFragmentDist ( void  )

virtual

Default deconstructor. It is a virtual function since G4FPYBiasedLightFragmentDist inherits from G4FissionProductYieldDist

Definition at line 128 of file G4FPYBiasedLightFragmentDist.cc.

Member Function Documentation

G4Ions * G4FPYBiasedLightFragmentDist::GetFissionProduct ( void  )

protectedvirtual

Selects a fission product from the probability tree, limited by the number of nucleons available to the system

Todo:

Figure out what to do if a suitable particle is not found in 1000 iterations

Implements G4FissionProductYieldDist.

Definition at line 88 of file G4FPYBiasedLightFragmentDist.cc.

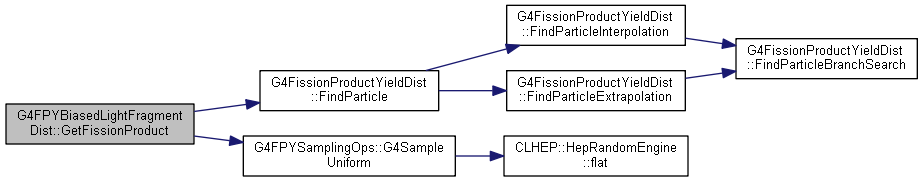

Here is the call graph for this function:

void G4FPYBiasedLightFragmentDist::Initialize ( void  )

protected

Initialize is a common function called by all constructors.

Definition at line 77 of file G4FPYBiasedLightFragmentDist.cc.

Here is the caller graph for this function:

Member Data Documentation

G4int G4FPYBiasedLightFragmentDist::HalfWeight_

protected

Defines the half-weight of the fission isotope

Definition at line 100 of file G4FPYBiasedLightFragmentDist.hh.

---

The documentation for this class was generated from the following files:

• source/source/processes/hadronic/models/neutron_hp/include/G4FPYBiasedLightFragmentDist.hh
• source/source/processes/hadronic/models/neutron_hp/src/G4FPYBiasedLightFragmentDist.cc
