G4DNAMolecularStepByStepModel Class Reference

#include <G4DNAMolecularStepByStepModel.hh>

Inheritance diagram for G4DNAMolecularStepByStepModel:

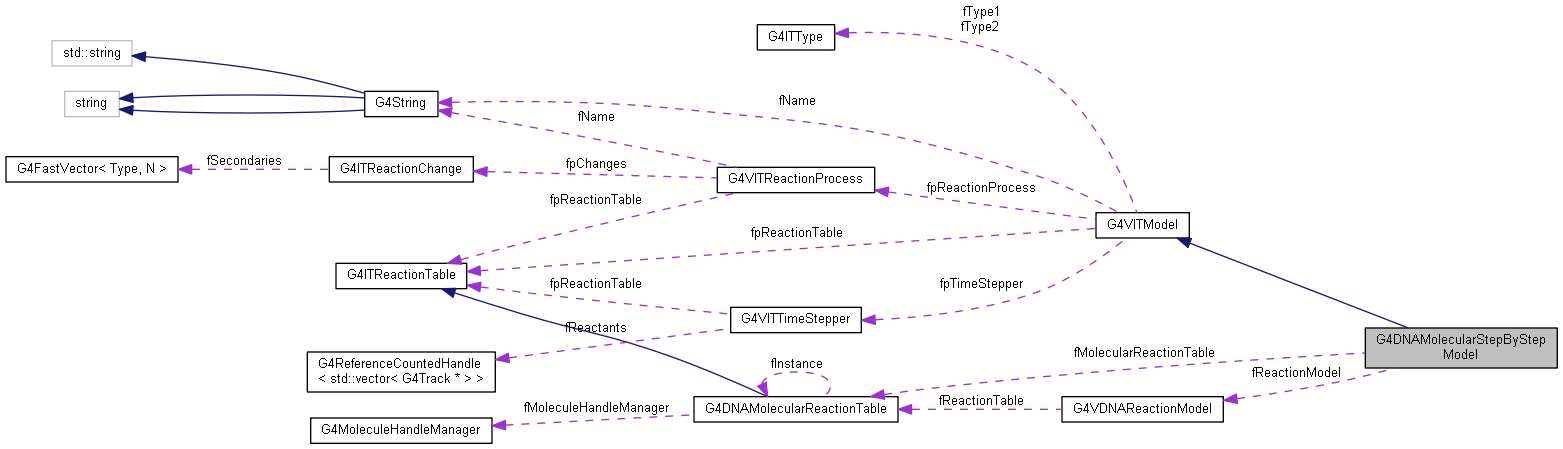

Collaboration diagram for G4DNAMolecularStepByStepModel:

Public Member Functions
	G4DNAMolecularStepByStepModel (const G4String &name="DNAMolecularStepByStepModel")
virtual	~G4DNAMolecularStepByStepModel ()
	G4DNAMolecularStepByStepModel (const G4DNAMolecularStepByStepModel &)
virtual void	PrintInfo ()
virtual void	Initialize ()
void	SetReactionModel (G4VDNAReactionModel *)
G4VDNAReactionModel *	GetReactionModel ()
Public Member Functions inherited from G4VITModel
	G4VITModel (const G4String &aName="NoName")
virtual	~G4VITModel ()
void	IsApplicable (G4ITType &type1, G4ITType &type2)
void	SetTimeStepper (G4VITTimeStepper *timeStepper)
void	SetReactionProcess (G4VITReactionProcess *reactionProcess)
G4VITTimeStepper *	GetTimeStepper ()
const G4String &	GetName ()
G4VITReactionProcess *	GetReactionProcess ()
void	SetReactionTable (G4ITReactionTable *)
const G4ITReactionTable *	GetReactionTable ()

Protected Attributes
const G4DNAMolecularReactionTable *&	fMolecularReactionTable
G4VDNAReactionModel *	fReactionModel
Protected Attributes inherited from G4VITModel
G4String	fName
G4VITTimeStepper *	fpTimeStepper
G4VITReactionProcess *	fpReactionProcess
const G4ITReactionTable *	fpReactionTable
G4ITType	fType1
G4ITType	fType2

Additional Inherited Members
Protected Member Functions inherited from G4VITModel
	G4VITModel (const G4VITModel &other)
G4VITModel &	operator= (const G4VITModel &other)

Detailed Description

G4DNAMolecularStepByStepModel :

• TimeStepper : G4DNAMolecularEncounterStepper
• ReactionProcess : G4DNAMolecularReaction Before each step, the next minimum encounter time is calculated for each pair of molecule. The minimum time step is selected. All the molecules are stepped within this time step. Then, only the relevant pair of molecules are checked for reaction.

Definition at line 58 of file G4DNAMolecularStepByStepModel.hh.

Constructor & Destructor Documentation

G4DNAMolecularStepByStepModel::G4DNAMolecularStepByStepModel

(

const G4String &

name = "DNAMolecularStepByStepModel"

)

Default constructor

Definition at line 31 of file G4DNAMolecularStepByStepModel.cc.

G4DNAMolecularStepByStepModel::~G4DNAMolecularStepByStepModel ( )

virtual

Default destructor

Definition at line 43 of file G4DNAMolecularStepByStepModel.cc.

G4DNAMolecularStepByStepModel::G4DNAMolecularStepByStepModel

(

const G4DNAMolecularStepByStepModel &

right

)

Definition at line 60 of file G4DNAMolecularStepByStepModel.cc.

Member Function Documentation

G4VDNAReactionModel * G4DNAMolecularStepByStepModel::GetReactionModel ( )

inline

Definition at line 95 of file G4DNAMolecularStepByStepModel.hh.

void G4DNAMolecularStepByStepModel::Initialize ( )

virtual

Reimplemented from G4VITModel.

Definition at line 74 of file G4DNAMolecularStepByStepModel.cc.

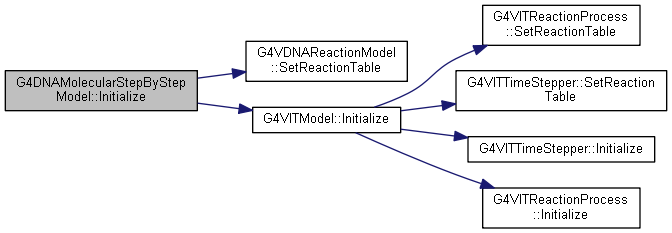

Here is the call graph for this function:

void G4DNAMolecularStepByStepModel::PrintInfo ( )

virtual

Reimplemented from G4VITModel.

Definition at line 80 of file G4DNAMolecularStepByStepModel.cc.

void G4DNAMolecularStepByStepModel::SetReactionModel ( G4VDNAReactionModel *  reactionModel )

inline

Definition at line 88 of file G4DNAMolecularStepByStepModel.hh.

Member Data Documentation

const G4DNAMolecularReactionTable*& G4DNAMolecularStepByStepModel::fMolecularReactionTable

protected

Definition at line 77 of file G4DNAMolecularStepByStepModel.hh.

G4VDNAReactionModel* G4DNAMolecularStepByStepModel::fReactionModel

protected

Definition at line 78 of file G4DNAMolecularStepByStepModel.hh.

---

The documentation for this class was generated from the following files:

• source/source/processes/electromagnetic/dna/models/include/G4DNAMolecularStepByStepModel.hh
• source/source/processes/electromagnetic/dna/models/src/G4DNAMolecularStepByStepModel.cc
