PhysListEmStandardSSM Class Reference

#include <PhysListEmStandardSSM.hh>

Inheritance diagram for PhysListEmStandardSSM:

Collaboration diagram for PhysListEmStandardSSM:

Public Member Functions
	PhysListEmStandardSSM (const G4String &name="standardSSM")
	~PhysListEmStandardSSM ()
virtual void	ConstructParticle ()
virtual void	ConstructProcess ()
	PhysListEmStandardSSM (const G4String &name="standardSSM")
	~PhysListEmStandardSSM ()
virtual void	ConstructParticle ()
virtual void	ConstructProcess ()
Public Member Functions inherited from G4VPhysicsConstructor
	G4VPhysicsConstructor (const G4String &="")
	G4VPhysicsConstructor (const G4String &name, G4int physics_type)
virtual	~G4VPhysicsConstructor ()
void	SetPhysicsName (const G4String &="")
const G4String &	GetPhysicsName () const
void	SetPhysicsType (G4int)
G4int	GetPhysicsType () const
void	SetVerboseLevel (G4int value)
G4int	GetVerboseLevel () const
G4int	GetInstanceID () const

Additional Inherited Members
Static Public Member Functions inherited from G4VPhysicsConstructor
static const G4VPCManager &	GetSubInstanceManager ()
Protected Member Functions inherited from G4VPhysicsConstructor
G4bool	RegisterProcess (G4VProcess *process, G4ParticleDefinition *particle)
G4ParticleTable::G4PTblDicIterator *	GetParticleIterator () const
Protected Attributes inherited from G4VPhysicsConstructor
G4int	verboseLevel
G4String	namePhysics
G4int	typePhysics
G4ParticleTable *	theParticleTable
G4int	g4vpcInstanceID
Static Protected Attributes inherited from G4VPhysicsConstructor
static G4RUN_DLL G4VPCManager	subInstanceManager

Detailed Description

Definition at line 42 of file PhysListEmStandardSSM.hh.

Constructor & Destructor Documentation

PhysListEmStandardSSM::PhysListEmStandardSSM

(

const G4String &

name = "standardSSM"

)

Definition at line 63 of file PhysListEmStandardSSM.cc.

   :  G4VPhysicsConstructor(name)
{}

PhysListEmStandardSSM::~PhysListEmStandardSSM

(

)

Definition at line 69 of file PhysListEmStandardSSM.cc.

{}

PhysListEmStandardSSM::PhysListEmStandardSSM

(

const G4String &

name = "standardSSM"

)

PhysListEmStandardSSM::~PhysListEmStandardSSM

(

)

Member Function Documentation

virtual void PhysListEmStandardSSM::ConstructParticle ( void  )

inlinevirtual

Implements G4VPhysicsConstructor.

Definition at line 50 of file PhysListEmStandardSSM.hh.

{};

virtual void PhysListEmStandardSSM::ConstructParticle ( void  )

inlinevirtual

Implements G4VPhysicsConstructor.

Definition at line 50 of file PhysListEmStandardSSM.hh.

{};

virtual void PhysListEmStandardSSM::ConstructProcess ( )

virtual

Implements G4VPhysicsConstructor.

void PhysListEmStandardSSM::ConstructProcess ( void  )

virtual

Implements G4VPhysicsConstructor.

Definition at line 74 of file PhysListEmStandardSSM.cc.

{
  // Add standard EM Processes

  auto particleIterator=GetParticleIterator();
  particleIterator->reset();
  while( (*particleIterator)() ){
    G4ParticleDefinition* particle = particleIterator->value();
    G4ProcessManager* pmanager = particle->GetProcessManager();
    G4String particleName = particle->GetParticleName();

    if (particleName == "gamma") {
      // gamma
      pmanager->AddDiscreteProcess(new G4PhotoElectricEffect);
      pmanager->AddDiscreteProcess(new G4ComptonScattering);
      pmanager->AddDiscreteProcess(new G4GammaConversion);

    } else if (particleName == "e-") {
      //electron
      pmanager->AddProcess(new G4eIonisation,        -1, 1, 1);
      pmanager->AddProcess(new G4eBremsstrahlung,    -1, 2, 2);

      G4CoulombScattering* cs = new G4CoulombScattering();
      G4eSingleCoulombScatteringModel* model =
        new G4eSingleCoulombScatteringModel();
      //model->SetLowEnergyThreshold(10*eV);
      model->SetPolarAngleLimit(0.0);
      cs->AddEmModel(0, model);
      pmanager->AddDiscreteProcess(cs);

    } else if (particleName == "e+") {
      //positron

      pmanager->AddProcess(new G4eIonisation,        -1, 1, 1);
      pmanager->AddProcess(new G4eBremsstrahlung,    -1, 2, 2);
      pmanager->AddProcess(new G4eplusAnnihilation,   0,-1, 3);

      G4CoulombScattering* cs = new G4CoulombScattering();
      G4eSingleCoulombScatteringModel* model =
        new G4eSingleCoulombScatteringModel();
      model->SetPolarAngleLimit(0.0);
      cs->AddEmModel(0, model);
      pmanager->AddDiscreteProcess(cs);

    } else if (particleName == "mu+" ||
               particleName == "mu-"    ) {
      //muon
      pmanager->AddProcess(new G4MuIonisation,       -1, 1, 1);
      pmanager->AddProcess(new G4MuBremsstrahlung,   -1, 2, 2);
      pmanager->AddProcess(new G4MuPairProduction,   -1, 3, 3);
      G4CoulombScattering* cs = new G4CoulombScattering();
      G4eCoulombScatteringModel* model = new G4eCoulombScatteringModel();
      model->SetPolarAngleLimit(0.0);
      cs->AddEmModel(0, model);
      pmanager->AddDiscreteProcess(cs);


    } else if (particleName == "alpha" || particleName == "He3") {
      pmanager->AddProcess(new G4ionIonisation,      -1, 1, 1);
      G4CoulombScattering* cs = new G4CoulombScattering();
      cs->AddEmModel(0, new G4IonCoulombScatteringModel());
      cs->SetBuildTableFlag(false);
      pmanager->AddDiscreteProcess(cs);

    } else if (particleName == "GenericIon" ) {
      pmanager->AddProcess(new G4ionIonisation,      -1, 1, 1);
      G4CoulombScattering* cs = new G4CoulombScattering();
      cs->AddEmModel(0, new G4IonCoulombScatteringModel());
      cs->SetBuildTableFlag(false);
      pmanager->AddDiscreteProcess(cs);

    } else if ((!particle->IsShortLived()) &&
               (particle->GetPDGCharge() != 0.0) &&
               (particle->GetParticleName() != "chargedgeantino")) {
      //all others charged particles except geantino
      pmanager->AddProcess(new G4hIonisation,        -1, 1, 1);
      pmanager->AddDiscreteProcess(new G4CoulombScattering);
    }
  }
}

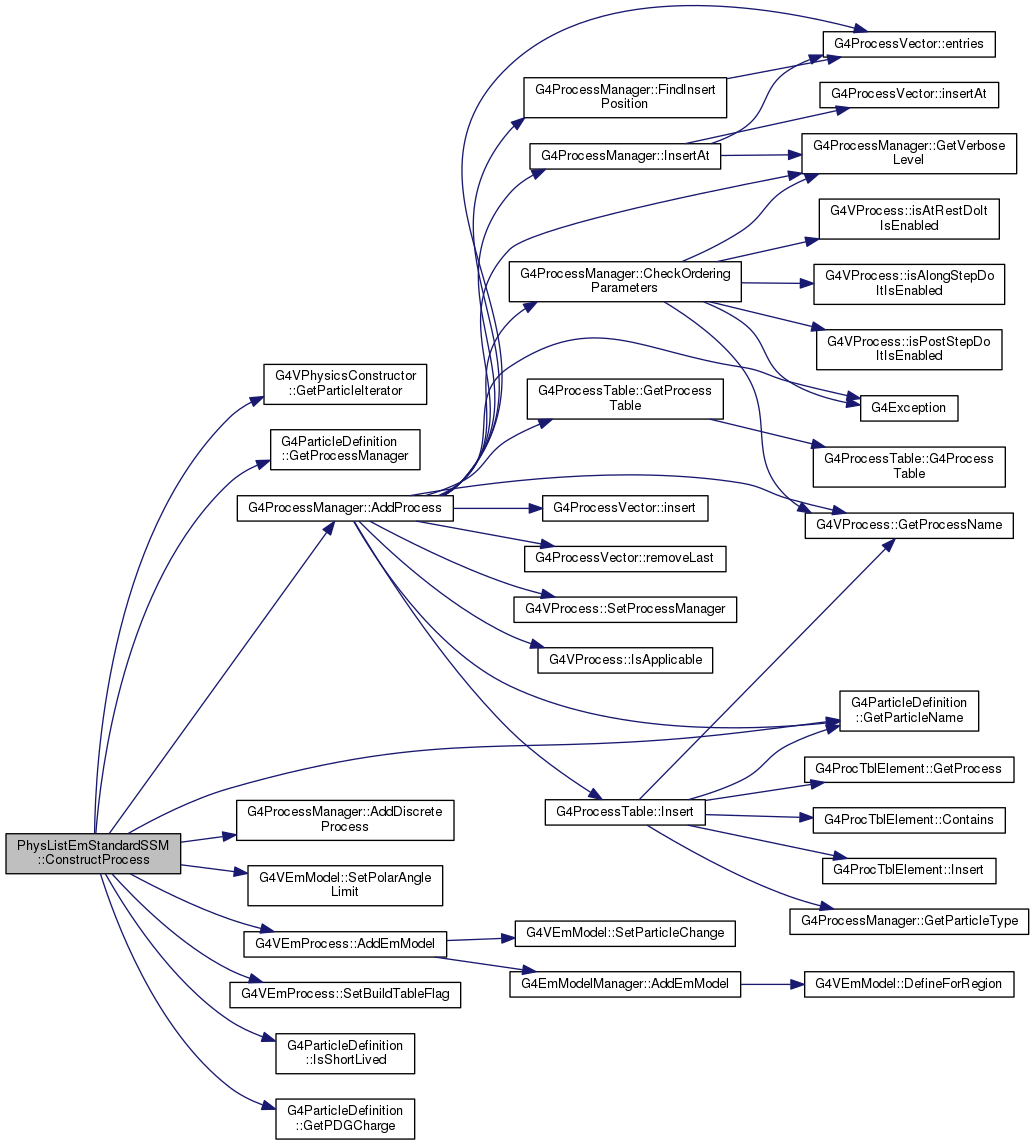

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• source/geant4.10.03.p03/examples/extended/electromagnetic/TestEm12/include/PhysListEmStandardSSM.hh
• source/geant4.10.03.p03/examples/extended/electromagnetic/TestEm5/include/PhysListEmStandardSSM.hh
• source/geant4.10.03.p03/examples/extended/electromagnetic/TestEm12/src/PhysListEmStandardSSM.cc
• source/geant4.10.03.p03/examples/extended/electromagnetic/TestEm5/src/PhysListEmStandardSSM.cc
