G4RDCompositeEMDataSet Class Reference

#include <G4RDCompositeEMDataSet.hh>

Inheritance diagram for G4RDCompositeEMDataSet:

Collaboration diagram for G4RDCompositeEMDataSet:

Public Member Functions
	G4RDCompositeEMDataSet (G4RDVDataSetAlgorithm *argAlgorithm, G4double eUnit=CLHEP::MeV, G4double dataUnit=CLHEP::barn, G4int zMin=1, G4int zMax=99)
virtual	~G4RDCompositeEMDataSet ()
virtual G4double	FindValue (G4double x, G4int componentId=0) const
virtual void	PrintData (void) const
virtual const G4RDVEMDataSet *	GetComponent (G4int componentId) const
virtual void	AddComponent (G4RDVEMDataSet *dataSet)
virtual size_t	NumberOfComponents () const
virtual const G4DataVector &	GetEnergies (G4int componentId) const
virtual const G4DataVector &	GetData (G4int componentId) const
virtual void	SetEnergiesData (G4DataVector *x, G4DataVector *data, G4int componentId)
virtual G4bool	LoadData (const G4String &fileName)
virtual G4bool	SaveData (const G4String &fileName) const
virtual G4double	RandomSelect (G4int componentId) const
Public Member Functions inherited from G4RDVEMDataSet
	G4RDVEMDataSet ()
virtual	~G4RDVEMDataSet ()

Detailed Description

Definition at line 57 of file G4RDCompositeEMDataSet.hh.

Constructor & Destructor Documentation

G4RDCompositeEMDataSet::G4RDCompositeEMDataSet	(	G4RDVDataSetAlgorithm *	argAlgorithm,
		G4double	eUnit = CLHEP::MeV,
		G4double	dataUnit = CLHEP::barn,
		G4int	zMin = 1,
		G4int	zMax = 99
	)

Definition at line 44 of file G4RDCompositeEMDataSet.cc.

  :
  algorithm(argAlgorithm),
  unitEnergies(argUnitEnergies),
  unitData(argUnitData),
  minZ(argMinZ),
  maxZ(argMaxZ)
{
  if (algorithm == 0)
    G4Exception("G4RDCompositeEMDataSet::G4RDCompositeEMDataSet()",
                "InvalidSetup", FatalException, "Interpolation == 0!");
}

Here is the call graph for this function:

Here is the caller graph for this function:

G4RDCompositeEMDataSet::~G4RDCompositeEMDataSet ( )

virtual

Definition at line 63 of file G4RDCompositeEMDataSet.cc.

{
  CleanUpComponents();
  if (algorithm) delete algorithm;
}

Member Function Documentation

virtual void G4RDCompositeEMDataSet::AddComponent ( G4RDVEMDataSet *  dataSet )

inlinevirtual

Implements G4RDVEMDataSet.

Definition at line 73 of file G4RDCompositeEMDataSet.hh.

{ components.push_back(dataSet); }

Here is the caller graph for this function:

G4double G4RDCompositeEMDataSet::FindValue ( G4double  x, G4int  componentId = 0  ) const

virtual

Implements G4RDVEMDataSet.

Definition at line 70 of file G4RDCompositeEMDataSet.cc.

{
  const G4RDVEMDataSet* component(GetComponent(argComponentId));

  if (component) return component->FindValue(argEnergy);

  std::ostringstream message;
  message << "Component " << argComponentId << " not found";

  G4Exception("G4RDCompositeEMDataSet::FindValue()",
              "DataNotFound", FatalException, message.str().c_str());

  return 0.;
}

Here is the call graph for this function:

virtual const G4RDVEMDataSet* G4RDCompositeEMDataSet::GetComponent ( G4int  componentId ) const

inlinevirtual

Implements G4RDVEMDataSet.

Definition at line 72 of file G4RDCompositeEMDataSet.hh.

{ return components[componentId]; }

Here is the caller graph for this function:

virtual const G4DataVector& G4RDCompositeEMDataSet::GetData ( G4int  componentId ) const

inlinevirtual

Implements G4RDVEMDataSet.

Definition at line 77 of file G4RDCompositeEMDataSet.hh.

{ return GetComponent(componentId)->GetData(0); }

Here is the call graph for this function:

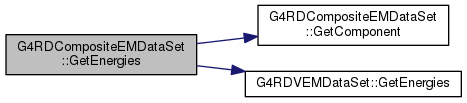

virtual const G4DataVector& G4RDCompositeEMDataSet::GetEnergies ( G4int  componentId ) const

inlinevirtual

Implements G4RDVEMDataSet.

Definition at line 76 of file G4RDCompositeEMDataSet.hh.

{ return GetComponent(componentId)->GetEnergies(0); }

Here is the call graph for this function:

G4bool G4RDCompositeEMDataSet::LoadData ( const G4String &  fileName )

virtual

Implements G4RDVEMDataSet.

Definition at line 119 of file G4RDCompositeEMDataSet.cc.

{
  CleanUpComponents();

  for (G4int z(minZ); z<maxZ; z++)
    {
      G4RDVEMDataSet* component = new G4RDEMDataSet(z, algorithm->Clone(), unitEnergies, unitData);
      if (!component->LoadData(argFileName))
    {
      delete component;
      return false;
    }
      AddComponent(component);
    }
  return true;
}

Here is the call graph for this function:

virtual size_t G4RDCompositeEMDataSet::NumberOfComponents ( void  ) const

inlinevirtual

Implements G4RDVEMDataSet.

Definition at line 74 of file G4RDCompositeEMDataSet.hh.

{ return components.size(); }

Here is the caller graph for this function:

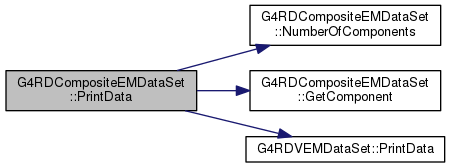

void G4RDCompositeEMDataSet::PrintData ( void  ) const

virtual

Implements G4RDVEMDataSet.

Definition at line 85 of file G4RDCompositeEMDataSet.cc.

{
  const size_t n(NumberOfComponents());

  G4cout << "The data set has " << n << " components" << G4endl;
  G4cout << G4endl;

  size_t i(0);

  while (i<n)
    {
      G4cout << "--- Component " << i << " ---" << G4endl;
      GetComponent(i)->PrintData();
      i++;
    }
}

Here is the call graph for this function:

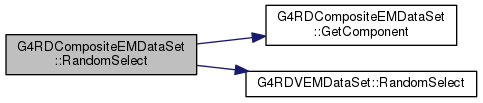

G4double G4RDCompositeEMDataSet::RandomSelect ( G4int  componentId ) const

virtual

Implements G4RDVEMDataSet.

Definition at line 170 of file G4RDCompositeEMDataSet.cc.

{
  G4double value = 0.;
  if (componentId >= 0 && componentId < (G4int)components.size())
    {
      const G4RDVEMDataSet* dataSet = GetComponent(componentId);
      value = dataSet->RandomSelect();
    }
  return value;
}

Here is the call graph for this function:

G4bool G4RDCompositeEMDataSet::SaveData ( const G4String &  fileName ) const

virtual

Implements G4RDVEMDataSet.

Definition at line 138 of file G4RDCompositeEMDataSet.cc.

{
  for (G4int z=minZ; z<maxZ; z++)
    {
      const G4RDVEMDataSet* component(GetComponent(z-minZ));

      if (!component)
    {
      std::ostringstream message;
      message << "Component " << (z-minZ) << " not found";
      G4Exception("G4RDCompositeEMDataSet::SaveData()",
                      "DataNotFound", FatalException, message.str().c_str());
    }

      if (!component->SaveData(argFileName))
    return false;
    }

  return true;
}

Here is the call graph for this function:

void G4RDCompositeEMDataSet::SetEnergiesData ( G4DataVector *  x, G4DataVector *  data, G4int  componentId  )

virtual

Implements G4RDVEMDataSet.

Definition at line 102 of file G4RDCompositeEMDataSet.cc.

{
  G4RDVEMDataSet * component(components[argComponentId]);

  if (component)
    {
      component->SetEnergiesData(argEnergies, argData, 0);
      return;
    }

  std::ostringstream message;
  message << "Component " << argComponentId << " not found";

  G4Exception("G4RDCompositeEMDataSet::SetEnergiesData()",
              "DataNotFound", FatalException, message.str().c_str());
}

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• source/geant4.10.03.p03/examples/advanced/eRosita/physics/include/G4RDCompositeEMDataSet.hh
• source/geant4.10.03.p03/examples/advanced/eRosita/physics/src/G4RDCompositeEMDataSet.cc
