G4ParticleHPChannelList Class Reference

#include <G4ParticleHPChannelList.hh>

Public Member Functions
	G4ParticleHPChannelList (G4int n, G4ParticleDefinition *projectile)
	G4ParticleHPChannelList ()
void	Init (G4int n)
	~G4ParticleHPChannelList ()
G4HadFinalState *	ApplyYourself (const G4Element *theElement, const G4HadProjectile &aTrack)
void	Init (G4Element *anElement, const G4String &dirName, G4ParticleDefinition *projectile)
void	Register (G4ParticleHPFinalState *theFS, const G4String &aName)
G4double	GetXsec (G4double anEnergy)
G4int	GetNumberOfChannels ()
G4bool	HasDataInAnyFinalState ()
void	RestartRegistration ()
void	DumpInfo ()

Detailed Description

Definition at line 47 of file G4ParticleHPChannelList.hh.

Constructor & Destructor Documentation

G4ParticleHPChannelList::G4ParticleHPChannelList	(	G4int	n,
		G4ParticleDefinition *	projectile
	)

Definition at line 42 of file G4ParticleHPChannelList.cc.

  :theProjectile(projectile)
  {
    nChannels = n;
    theChannels  = new G4ParticleHPChannel * [n];
    allChannelsCreated = false;
    theInitCount = 0;
    theElement = NULL;
  }

G4ParticleHPChannelList::G4ParticleHPChannelList

(

)

Definition at line 53 of file G4ParticleHPChannelList.cc.

  {
    nChannels = 0;
    theChannels = 0;
    allChannelsCreated = false;
    theInitCount = 0;
    theElement = NULL;
    theProjectile = G4Neutron::Neutron();
  }

Here is the call graph for this function:

G4ParticleHPChannelList::~G4ParticleHPChannelList

(

)

Definition at line 63 of file G4ParticleHPChannelList.cc.

  {
    if(theChannels!=0)
    {
      for(G4int i=0;i<nChannels; i++)
      {
        delete theChannels[i];
      }
      delete [] theChannels;
    }
  }

Member Function Documentation

G4HadFinalState * G4ParticleHPChannelList::ApplyYourself	(	const G4Element *	theElement,
		const G4HadProjectile &	aTrack
	)

Definition at line 77 of file G4ParticleHPChannelList.cc.

  {
    G4ParticleHPThermalBoost aThermalE;
    G4int i, ii;
    // decide on the isotope
    G4int numberOfIsos(0);
    for(ii=0; ii<nChannels; ii++)
    {
      numberOfIsos = theChannels[ii]->GetNiso();
      if(numberOfIsos!=0) break;
    }
    G4double * running= new G4double [numberOfIsos];
    running[0] = 0;
    for(i=0;i<numberOfIsos; i++)
    {
      if(i!=0) running[i] = running[i-1];
      for(ii=0; ii<nChannels; ii++)
      {
    if(theChannels[ii]->HasAnyData(i))
    {
          running[i] +=theChannels[ii]->GetWeightedXsec(aThermalE.GetThermalEnergy(aTrack,
                                                          theChannels[ii]->GetN(i),
                                  theChannels[ii]->GetZ(i),
                                  aTrack.GetMaterial()->GetTemperature()),
                                    i);
    }
      }
    }
    G4int isotope=nChannels-1;
    G4double random=G4UniformRand();
    for(i=0;i<numberOfIsos; i++)
    {
      isotope = i;
      //if(random<running[i]/running[numberOfIsos-1]) break;
      if(running[numberOfIsos-1] != 0) if(random<running[i]/running[numberOfIsos-1]) break;
    }
    delete [] running;

     // decide on the channel
    running = new G4double[nChannels];
    running[0]=0;
    G4int targA=-1; // For production of unChanged
    G4int targZ=-1;
    for(i=0; i<nChannels; i++)
    {
      if(i!=0) running[i] = running[i-1];
      if(theChannels[i]->HasAnyData(isotope))
      {
        targA=(G4int)theChannels[i]->GetN(isotope); //Will be simply used the last valid value
        targZ=(G4int)theChannels[i]->GetZ(isotope);
        running[i] += theChannels[i]->GetFSCrossSection(aThermalE.GetThermalEnergy(aTrack,
                                                          targA,
                                  targZ,
                                  aTrack.GetMaterial()->GetTemperature()),
                                    isotope);
        targA=(G4int)theChannels[i]->GetN(isotope); //Will be simply used the last valid value
        targZ=(G4int)theChannels[i]->GetZ(isotope);
    //  G4cout << " G4ParticleHPChannelList " << i << " targA " << targA << " targZ " << targZ << " running " << running[i] << G4endl;
      }
    }

    //TK120607
    if ( running[nChannels-1] == 0 )
    {
       //This happened usually by the miss match between the cross section data and model
       if ( targA == -1 && targZ == -1 ) {
          throw G4HadronicException(__FILE__, __LINE__, "ParticleHP model encounter lethal discrepancy with cross section data");
       }

       //TK121106
       G4cout << "Warning from NeutronHP: could not find proper reaction channel. This may cause by inconsistency between cross section and model.  Unchanged final states are returned." << G4endl;
       unChanged.Clear();

       //For Ep Check create unchanged final state including rest target
       G4ParticleDefinition* targ_pd = G4IonTable::GetIonTable()->GetIon ( targZ , targA , 0.0 );
       G4DynamicParticle* targ_dp = new G4DynamicParticle( targ_pd , G4ThreeVector(1,0,0), 0.0 );
       unChanged.SetEnergyChange(aTrack.GetKineticEnergy());
       unChanged.SetMomentumChange(aTrack.Get4Momentum().vect() );
       unChanged.AddSecondary(targ_dp);
       //TK121106
       G4ParticleHPManager::GetInstance()->GetReactionWhiteBoard()->SetTargA( targA );
       G4ParticleHPManager::GetInstance()->GetReactionWhiteBoard()->SetTargZ( targZ );
       delete [] running;
       return &unChanged;
    }
    //TK120607


    G4int lChan=0;
    random=G4UniformRand();
    for(i=0; i<nChannels; i++)
    {
      lChan = i;
      if(running[nChannels-1] != 0) if(random<running[i]/running[nChannels-1]) break;
    }
    delete [] running;
#ifdef G4PHPDEBUG
    if( getenv("G4ParticleHPDebug") ) G4cout << " G4ParticleHPChannelList SELECTED ISOTOPE " << isotope << " SELECTED CHANNEL " << lChan << G4endl;
#endif
    return theChannels[lChan]->ApplyYourself(aTrack, isotope);
  }

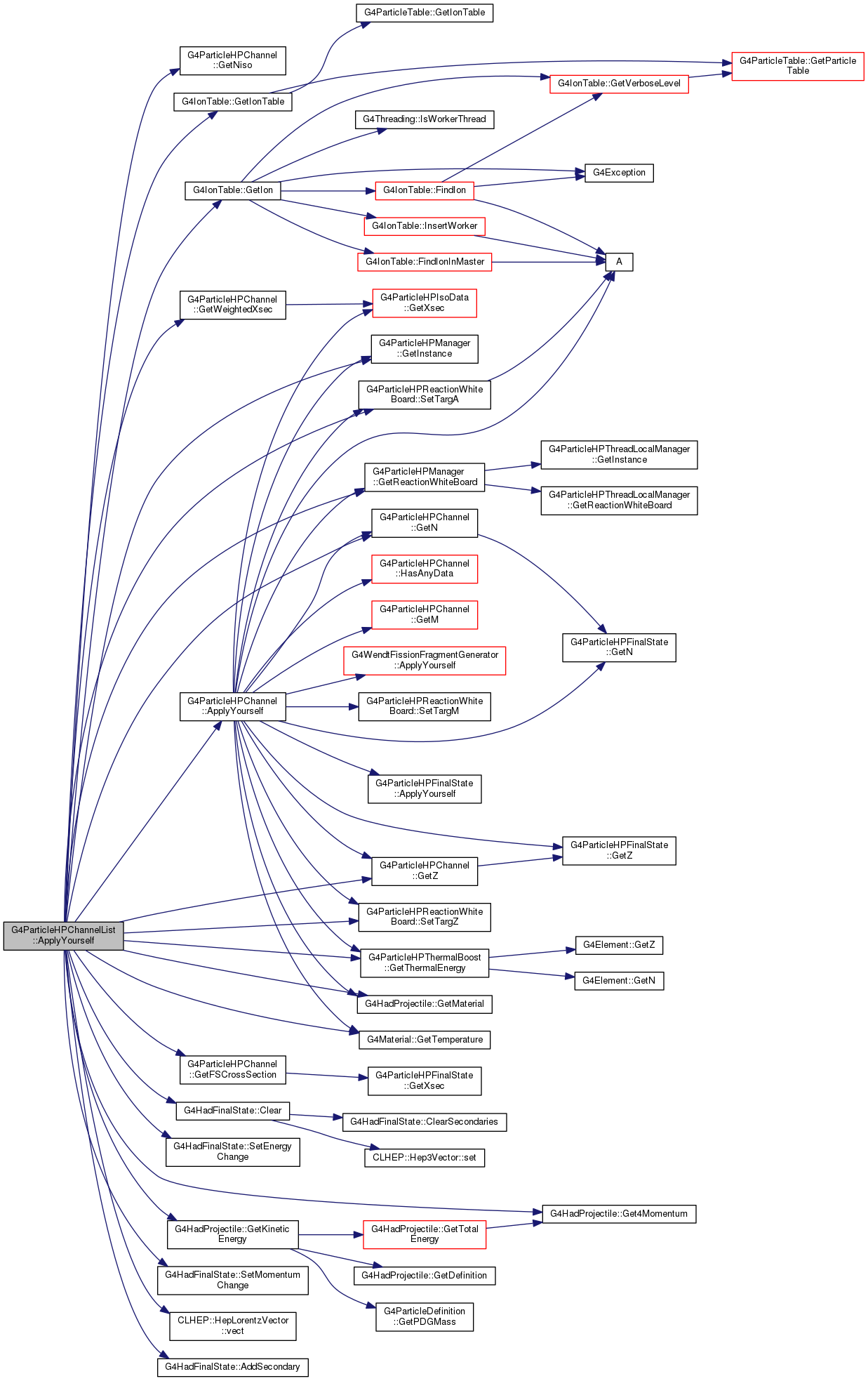

Here is the call graph for this function:

void G4ParticleHPChannelList::DumpInfo

(

)

Definition at line 223 of file G4ParticleHPChannelList.cc.

                                      {

  G4cout<<"================================================================"<<G4endl;
  G4cout<<" Element: "<<theElement->GetName()<<G4endl;
  G4cout<<" Number of channels: "<<nChannels<<G4endl;
  G4cout<<" Projectile: "<<theProjectile->GetParticleName()<<G4endl;
  G4cout<<" Directory name: "<<theDir<<G4endl;
  for(int i=0;i<nChannels;i++){
    if(theChannels[i]->HasDataInAnyFinalState()){
      G4cout<<"----------------------------------------------------------------"<<G4endl;
      theChannels[i]->DumpInfo();
      G4cout<<"----------------------------------------------------------------"<<G4endl;
    }
  }
  G4cout<<"================================================================"<<G4endl;

}

Here is the call graph for this function:

G4int G4ParticleHPChannelList::GetNumberOfChannels ( )

inline

Definition at line 77 of file G4ParticleHPChannelList.hh.

{ return nChannels; }

G4double G4ParticleHPChannelList::GetXsec ( G4double  anEnergy )

inline

Definition at line 66 of file G4ParticleHPChannelList.hh.

  {
    G4double result=0;
    G4int i;
    for(i=0; i<nChannels; i++)
    {
      result+=std::max(0., theChannels[i]->GetXsec(anEnergy));
    }
    return result;
  }

Here is the call graph for this function:

G4bool G4ParticleHPChannelList::HasDataInAnyFinalState ( )

inline

Definition at line 79 of file G4ParticleHPChannelList.hh.

  {
    G4bool result = false;
    G4int i;
    for(i=0; i<nChannels; i++)
    {
      if(theChannels[i]->HasDataInAnyFinalState()) result = true;
    }
    return result;
  }

Here is the caller graph for this function:

void G4ParticleHPChannelList::Init

(

G4int

n

)

void G4ParticleHPChannelList::Init	(	G4Element *	anElement,
		const G4String &	dirName,
		G4ParticleDefinition *	projectile
	)

Definition at line 179 of file G4ParticleHPChannelList.cc.

  {
    theDir = dirName;
//    G4cout << theDir << G4endl;
    theElement = anElement;
//    G4cout << theElement << G4endl;
    theProjectile = projectile;
  }

void G4ParticleHPChannelList::Register	(	G4ParticleHPFinalState *	theFS,
		const G4String &	aName
	)

Definition at line 188 of file G4ParticleHPChannelList.cc.

  {
    if(!allChannelsCreated)
    {
      if(nChannels!=0)
      {
    G4ParticleHPChannel ** theBuffer = new G4ParticleHPChannel * [nChannels+1];
    G4int i;
    for(i=0; i<nChannels; i++)
    {
      theBuffer[i] = theChannels[i];
    }
    delete [] theChannels;
    theChannels = theBuffer;
      }
      else
      {
    theChannels = new G4ParticleHPChannel * [nChannels+1];
      }
      G4String name;
      name = aName+"/";
      theChannels[nChannels] = new G4ParticleHPChannel(theProjectile);
      theChannels[nChannels]->Init(theElement, theDir, name);
      //      theChannels[nChannels]->SetProjectile( theProjectile );
      nChannels++;
    }

    //110527TKDB  Unnessary codes, Detected by gcc4.6 compiler
    //G4bool result;
    //result = theChannels[theInitCount]->Register(theFS);
    theChannels[theInitCount]->Register(theFS);
    theInitCount++;
  }

Here is the call graph for this function:

void G4ParticleHPChannelList::RestartRegistration ( )

inline

Definition at line 89 of file G4ParticleHPChannelList.hh.

  {
    allChannelsCreated = true;
    theInitCount = 0;
  }

---

The documentation for this class was generated from the following files:

• source/geant4.10.03.p03/source/processes/hadronic/models/particle_hp/include/G4ParticleHPChannelList.hh
• source/geant4.10.03.p03/source/processes/hadronic/models/particle_hp/src/G4ParticleHPChannelList.cc
