G4ModelCmdSetStepPtsFillStyle< M > Class Template Reference

#include <G4ModelCommandsT.hh>

Inheritance diagram for G4ModelCmdSetStepPtsFillStyle< M >:

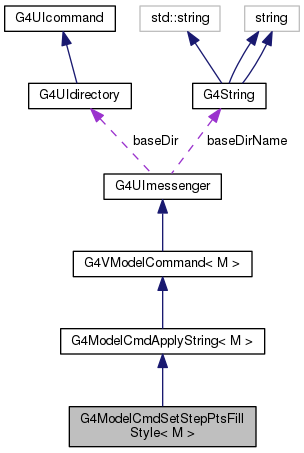

Collaboration diagram for G4ModelCmdSetStepPtsFillStyle< M >:

Public Member Functions

 G4ModelCmdSetStepPtsFillStyle (M *model, const G4String &placement, const G4String &cmdName="setStepPtsFillStyle")

- Public Member Functions inherited from G4ModelCmdApplyString< M >
 G4ModelCmdApplyString (M *model, const G4String &placement, const G4String &cmdName)

virtual ~G4ModelCmdApplyString ()

void SetNewValue (G4UIcommand *command, G4String newValue)

- Public Member Functions inherited from G4VModelCommand< M >
 G4VModelCommand (M *model, const G4String &placement="")

virtual ~G4VModelCommand ()

G4String GetCurrentValue (G4UIcommand *command)

G4String Placement ()

- Public Member Functions inherited from G4UImessenger
 G4UImessenger ()

 G4UImessenger (const G4String &path, const G4String &dsc, G4bool commandsToBeBroadcasted=true)

virtual ~G4UImessenger ()

G4bool operator== (const G4UImessenger &messenger) const

G4bool CommandsShouldBeInMaster () const


Protected Member Functions

void Apply (const G4String &type)

- Protected Member Functions inherited from G4ModelCmdApplyString< M >
G4UIcmdWithAStringCommand ()

- Protected Member Functions inherited from G4VModelCommand< M >
M * Model ()

- Protected Member Functions inherited from G4UImessenger
G4String ItoS (G4int i)

G4String DtoS (G4double a)

G4String BtoS (G4bool b)

G4int StoI (G4String s)

G4double StoD (G4String s)

G4bool StoB (G4String s)

void AddUIcommand (G4UIcommand *newCommand)

void CreateDirectory (const G4String &path, const G4String &dsc, G4bool commandsToBeBroadcasted=true)

template<typename T >
T * CreateCommand (const G4String &cname, const G4String &dsc)


Additional Inherited Members

- Protected Attributes inherited from G4UImessenger
G4UIdirectorybaseDir

G4String baseDirName

G4bool commandsShouldBeInMaster


Detailed Description

template<typename M>
class G4ModelCmdSetStepPtsFillStyle< M >

Definition at line 617 of file G4ModelCommandsT.hh.

Constructor & Destructor Documentation

template<typename M >
G4ModelCmdSetStepPtsFillStyle< M >::G4ModelCmdSetStepPtsFillStyle ( M *  model,
const G4String placement,
const G4String cmdName = "setStepPtsFillStyle"
)
inline

Definition at line 621 of file G4ModelCommandsT.hh.

623  :G4ModelCmdApplyString<M>(model, placement, cmdName)
624  {
626  cmd->SetGuidance("Set step fill style type.");
627  cmd->SetCandidates("noFill hashed filled");
628  }
G4UIcmdWithAString * Command()
void SetGuidance(const char *aGuidance)
Definition: G4UIcommand.hh:161
void SetCandidates(const char *candidateList)
const XML_Char XML_Content * model
Definition: expat.h:151

Here is the call graph for this function:

Member Function Documentation

template<typename M >
void G4ModelCmdSetStepPtsFillStyle< M >::Apply ( const G4String type)
inlineprotectedvirtual

Implements G4ModelCmdApplyString< M >.

Definition at line 632 of file G4ModelCommandsT.hh.

632  {
633  G4VMarker::FillStyle myFillStyle;
634
635  if (type == "noFill") {myFillStyle = G4VMarker::noFill;}
636  else if (type == "hashed") {myFillStyle = G4VMarker::hashed;}
637  else if (type == "filled") {myFillStyle = G4VMarker::filled;}
638  else {
640  ed << "Invalid argument. See command guidance for options.";
642  ("G4ModelCmdSetStepPtsFillStyle::Apply",
643  "modeling0113", JustWarning, ed);
644  return;
645  }
646  G4VModelCommand<M>::Model()->SetStepPtsFillStyle(myFillStyle);
647  }
std::ostringstream G4ExceptionDescription
Definition: globals.hh:76
void G4Exception(const char *originOfException, const char *exceptionCode, G4ExceptionSeverity severity, const char *comments)
Definition: G4Exception.cc:41

Here is the call graph for this function:


The documentation for this class was generated from the following file:
