Geant4  10.03.p03
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Macros Groups Pages
Public Member Functions | List of all members
G4LEPTSAttachmentModel Class Reference

#include <G4LEPTSAttachmentModel.hh>

Inheritance diagram for G4LEPTSAttachmentModel:
Inheritance graph
[legend]
Collaboration diagram for G4LEPTSAttachmentModel:
Collaboration graph
[legend]

Public Member Functions

 G4LEPTSAttachmentModel (const G4String &processName="G4LEPTSAttachmentModel")

 ~G4LEPTSAttachmentModel ()

virtual void Initialise (const G4ParticleDefinition *, const G4DataVector &)

virtual void SampleSecondaries (std::vector< G4DynamicParticle * > *, const G4MaterialCutsCouple *, const G4DynamicParticle *, G4double tmin=0.0, G4double tmax=DBL_MAX)

virtual G4double CrossSectionPerVolume (const G4Material *, const G4ParticleDefinition *, G4double kineticEnergy, G4double cutEnergy=0.0, G4double maxEnergy=DBL_MAX)

- Public Member Functions inherited from G4VLEPTSModel
 G4VLEPTSModel (const G4String &processName)

 ~G4VLEPTSModel ()

void BuildPhysicsTable (const G4ParticleDefinition &aParticleType)

G4double GetMeanFreePath (const G4Material *mate, const G4ParticleDefinition *aParticle, G4double kineticEnergy)

G4ThreeVector SampleNewDirection (const G4Material *aMaterial, G4ThreeVector Dir, G4double e, G4double el)

G4double SampleAngle (const G4Material *aMaterial, G4double e, G4double el)

G4ThreeVector SampleNewDirection (G4ThreeVector Dir, G4double ang)

G4VLEPTSModel & operator= (const G4VLEPTSModel &right)

 G4VLEPTSModel (const G4VLEPTSModel &)

- Public Member Functions inherited from G4VEmModel
 G4VEmModel (const G4String &nam)

virtual ~G4VEmModel ()

virtual void InitialiseLocal (const G4ParticleDefinition *, G4VEmModel *masterModel)

virtual void InitialiseForMaterial (const G4ParticleDefinition *, const G4Material *)

virtual void InitialiseForElement (const G4ParticleDefinition *, G4int Z)

virtual G4double ComputeDEDXPerVolume (const G4Material *, const G4ParticleDefinition *, G4double kineticEnergy, G4double cutEnergy=DBL_MAX)

virtual G4double GetPartialCrossSection (const G4Material *, G4int level, const G4ParticleDefinition *, G4double kineticEnergy)

virtual G4double ComputeCrossSectionPerAtom (const G4ParticleDefinition *, G4double kinEnergy, G4double Z, G4double A=0., G4double cutEnergy=0.0, G4double maxEnergy=DBL_MAX)

virtual G4double ComputeCrossSectionPerShell (const G4ParticleDefinition *, G4int Z, G4int shellIdx, G4double kinEnergy, G4double cutEnergy=0.0, G4double maxEnergy=DBL_MAX)

virtual G4double ChargeSquareRatio (const G4Track &)

virtual G4double GetChargeSquareRatio (const G4ParticleDefinition *, const G4Material *, G4double kineticEnergy)

virtual G4double GetParticleCharge (const G4ParticleDefinition *, const G4Material *, G4double kineticEnergy)

virtual void StartTracking (G4Track *)

virtual void CorrectionsAlongStep (const G4MaterialCutsCouple *, const G4DynamicParticle *, G4double &eloss, G4double &niel, G4double length)

virtual G4double Value (const G4MaterialCutsCouple *, const G4ParticleDefinition *, G4double kineticEnergy)

virtual G4double MinPrimaryEnergy (const G4Material *, const G4ParticleDefinition *, G4double cut=0.0)

virtual G4double MinEnergyCut (const G4ParticleDefinition *, const G4MaterialCutsCouple *)

virtual void SetupForMaterial (const G4ParticleDefinition *, const G4Material *, G4double kineticEnergy)

virtual void DefineForRegion (const G4Region *)

virtual void ModelDescription (std::ostream &outFile) const

void InitialiseElementSelectors (const G4ParticleDefinition *, const G4DataVector &)

std::vector
< G4EmElementSelector * > * 		GetElementSelectors ()

void SetElementSelectors (std::vector< G4EmElementSelector * > *)

virtual G4double ComputeDEDX (const G4MaterialCutsCouple *, const G4ParticleDefinition *, G4double kineticEnergy, G4double cutEnergy=DBL_MAX)

G4double CrossSection (const G4MaterialCutsCouple *, const G4ParticleDefinition *, G4double kineticEnergy, G4double cutEnergy=0.0, G4double maxEnergy=DBL_MAX)

G4double ComputeMeanFreePath (const G4ParticleDefinition *, G4double kineticEnergy, const G4Material *, G4double cutEnergy=0.0, G4double maxEnergy=DBL_MAX)

G4double ComputeCrossSectionPerAtom (const G4ParticleDefinition *, const G4Element *, G4double kinEnergy, G4double cutEnergy=0.0, G4double maxEnergy=DBL_MAX)

G4int SelectIsotopeNumber (const G4Element *)

const G4Element * SelectRandomAtom (const G4MaterialCutsCouple *, const G4ParticleDefinition *, G4double kineticEnergy, G4double cutEnergy=0.0, G4double maxEnergy=DBL_MAX)

const G4Element * SelectRandomAtom (const G4Material *, const G4ParticleDefinition *, G4double kineticEnergy, G4double cutEnergy=0.0, G4double maxEnergy=DBL_MAX)

G4int SelectRandomAtomNumber (const G4Material *)

void SetParticleChange (G4VParticleChange *, G4VEmFluctuationModel *f=nullptr)

void SetCrossSectionTable (G4PhysicsTable *, G4bool isLocal)

G4ElementData * GetElementData ()

G4PhysicsTable * GetCrossSectionTable ()

G4VEmFluctuationModel * GetModelOfFluctuations ()

G4VEmAngularDistribution * GetAngularDistribution ()

void SetAngularDistribution (G4VEmAngularDistribution *)

G4double HighEnergyLimit () const

G4double LowEnergyLimit () const

G4double HighEnergyActivationLimit () const

G4double LowEnergyActivationLimit () const

G4double PolarAngleLimit () const

G4double SecondaryThreshold () const

G4bool LPMFlag () const

G4bool DeexcitationFlag () const

G4bool ForceBuildTableFlag () const

G4bool UseAngularGeneratorFlag () const

void SetAngularGeneratorFlag (G4bool)

void SetHighEnergyLimit (G4double)

void SetLowEnergyLimit (G4double)

void SetActivationHighEnergyLimit (G4double)

void SetActivationLowEnergyLimit (G4double)

G4bool IsActive (G4double kinEnergy)

void SetPolarAngleLimit (G4double)

void SetSecondaryThreshold (G4double)

void SetLPMFlag (G4bool val)

void SetDeexcitationFlag (G4bool val)

void SetForceBuildTable (G4bool val)

void SetFluctuationFlag (G4bool val)

void SetMasterThread (G4bool val)

G4bool IsMaster () const

G4double MaxSecondaryKinEnergy (const G4DynamicParticle *dynParticle)

const G4String & GetName () const

void SetCurrentCouple (const G4MaterialCutsCouple *)

const G4Element * GetCurrentElement () const

const G4Isotope * GetCurrentIsotope () const

G4bool IsLocked () const

void SetLocked (G4bool)


Additional Inherited Members

- Protected Member Functions inherited from G4VLEPTSModel
void Init ()

G4bool ReadParam (G4String fileName, const G4Material *aMaterial)

virtual std::map< G4int,
std::vector< G4double > > 		ReadIXS (G4String fileName, const G4Material *aMaterial)

G4double SampleEnergyLoss (const G4Material *aMaterial, G4double eMin, G4double eMax)

void BuildMeanFreePathTable (const G4Material *aMaterial, std::map< G4int, std::vector< G4double > > &integralXS)

- Protected Member Functions inherited from G4VEmModel
G4ParticleChangeForLoss * GetParticleChangeForLoss ()

G4ParticleChangeForGamma * GetParticleChangeForGamma ()

virtual G4double MaxSecondaryEnergy (const G4ParticleDefinition *, G4double kineticEnergy)

const G4MaterialCutsCouple * CurrentCouple () const

void SetCurrentElement (const G4Element *)

- Protected Attributes inherited from G4VLEPTSModel
G4PhysicsTable * theMeanFreePathTable

G4double theLowestEnergyLimit

G4double theHighestEnergyLimit

G4int theNumbBinTable

std::map< const G4Material
*, G4double > 		theIonisPot

std::map< const G4Material
*, G4double > 		theIonisPotInt

std::map< const G4Material
*, G4double > 		theMolecularMass

std::map< const G4Material
*, G4LEPTSDiffXS * > 		theDiffXS

std::map< const G4Material
*, G4LEPTSDistribution * > 		theRMTDistr

std::map< const G4Material
*, G4LEPTSElossDistr * > 		theElostDistr

std::map< const G4Material
*, G4LEPTSDistribution * > 		theElostDistr2

std::map< const G4Material
*, G4int > 		theNXSdat

std::map< const G4Material
*, G4int > 		theNXSsub

G4bool isInitialised

XSType theXSType

G4int verboseLevel

- Protected Attributes inherited from G4VEmModel
G4ElementData * fElementData

G4VParticleChange * pParticleChange

G4PhysicsTable * xSectionTable

const std::vector< G4double > * theDensityFactor

const std::vector< G4int > * theDensityIdx

size_t idxTable

G4bool lossFlucFlag

- Static Protected Attributes inherited from G4VEmModel
static const G4double inveplus = 1.0/CLHEP::eplus


Detailed Description

Definition at line 33 of file G4LEPTSAttachmentModel.hh.

Constructor & Destructor Documentation

G4LEPTSAttachmentModel::G4LEPTSAttachmentModel ( const G4String &  processName = "G4LEPTSAttachmentModel")

Definition at line 29 of file G4LEPTSAttachmentModel.cc.

30  : G4VLEPTSModel( modelName )
31 {
32  theXSType = XSAttachment;
33
34 } // constructor
G4VLEPTSModel::G4VLEPTSModel
G4VLEPTSModel(const G4String &processName)
Definition: G4VLEPTSModel.cc:31
XSAttachment
Definition: G4VLEPTSModel.hh:55
G4LEPTSAttachmentModel::~G4LEPTSAttachmentModel ( )

Definition at line 37 of file G4LEPTSAttachmentModel.cc.

37  {
38 }

Member Function Documentation

G4double G4LEPTSAttachmentModel::CrossSectionPerVolume ( const G4Material *  mate,
const G4ParticleDefinition *  aParticle,
G4double  kineticEnergy,
G4double  cutEnergy = 0.0,
G4double  maxEnergy = DBL_MAX
)
virtual

Reimplemented from G4VEmModel.

Definition at line 55 of file G4LEPTSAttachmentModel.cc.

60 {
61  return 1./GetMeanFreePath( mate, aParticle, kineticEnergy );
62
63 }
G4VLEPTSModel::GetMeanFreePath
G4double GetMeanFreePath(const G4Material *mate, const G4ParticleDefinition *aParticle, G4double kineticEnergy)
Definition: G4VLEPTSModel.cc:67

Here is the call graph for this function:

void G4LEPTSAttachmentModel::Initialise ( const G4ParticleDefinition *  aParticle,
const G4DataVector &
)
virtual

Implements G4VEmModel.

Definition at line 43 of file G4LEPTSAttachmentModel.cc.

45 {
46  Init();
47  BuildPhysicsTable( *aParticle );
48
49  fParticleChangeForGamma = GetParticleChangeForGamma();
50
51 }
G4VLEPTSModel::BuildPhysicsTable
void BuildPhysicsTable(const G4ParticleDefinition &aParticleType)
Definition: G4VLEPTSModel.cc:87
G4VEmModel::GetParticleChangeForGamma
G4ParticleChangeForGamma * GetParticleChangeForGamma()
Definition: G4VEmModel.cc:132

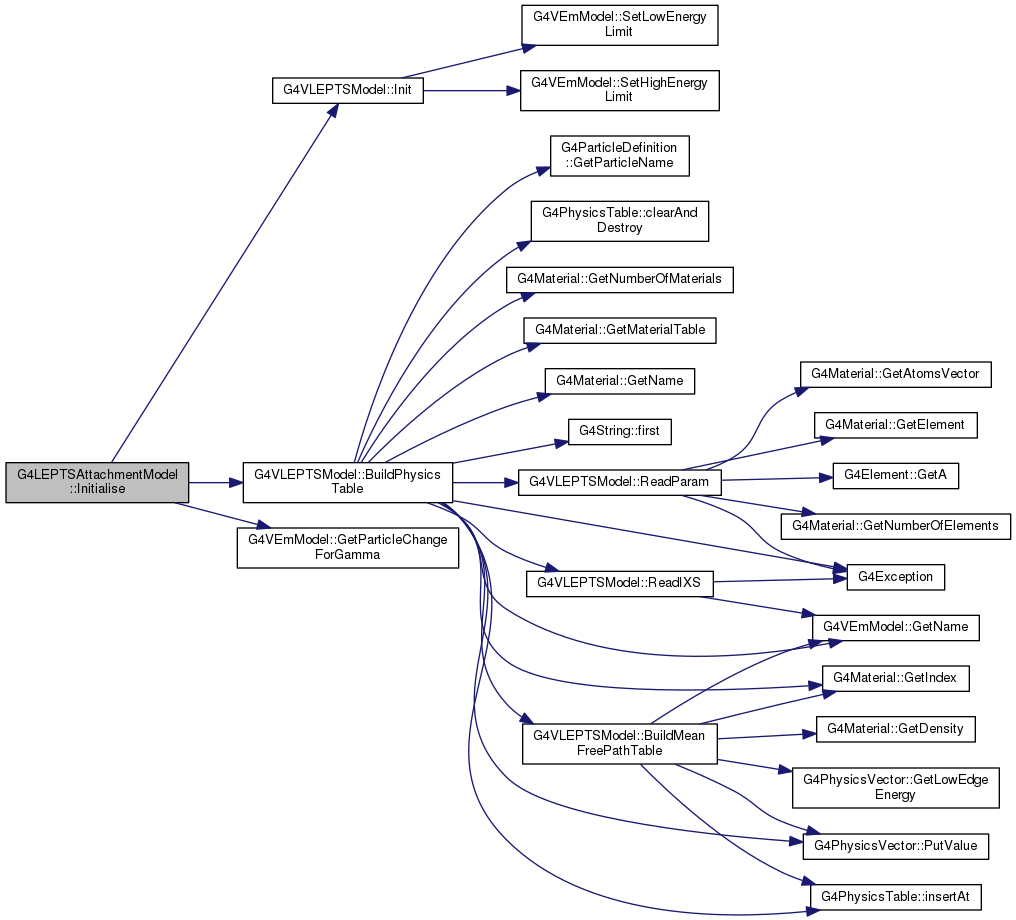

Here is the call graph for this function:

void G4LEPTSAttachmentModel::SampleSecondaries ( std::vector< G4DynamicParticle * > *  ,
const G4MaterialCutsCouple *  ,
const G4DynamicParticle *  aDynamicParticle,
G4double  tmin = 0.0,
G4double  tmax = DBL_MAX
)
virtual

Implements G4VEmModel.

Definition at line 66 of file G4LEPTSAttachmentModel.cc.

71 {
72  G4double P0KinEn = aDynamicParticle->GetKineticEnergy();
73
74  fParticleChangeForGamma->SetProposedKineticEnergy(0.);
75  fParticleChangeForGamma->ProposeLocalEnergyDeposit (P0KinEn);
76  fParticleChangeForGamma->ProposeTrackStatus( fStopAndKill);
77
78 }
G4DynamicParticle::GetKineticEnergy
G4double GetKineticEnergy() const
G4VParticleChange::ProposeLocalEnergyDeposit
void ProposeLocalEnergyDeposit(G4double anEnergyPart)
fStopAndKill
Definition: G4TrackStatus.hh:56
G4ParticleChangeForGamma::SetProposedKineticEnergy
void SetProposedKineticEnergy(G4double proposedKinEnergy)
Definition: G4ParticleChangeForGamma.hh:129
G4double
double G4double
Definition: G4Types.hh:76
G4VParticleChange::ProposeTrackStatus
void ProposeTrackStatus(G4TrackStatus status)

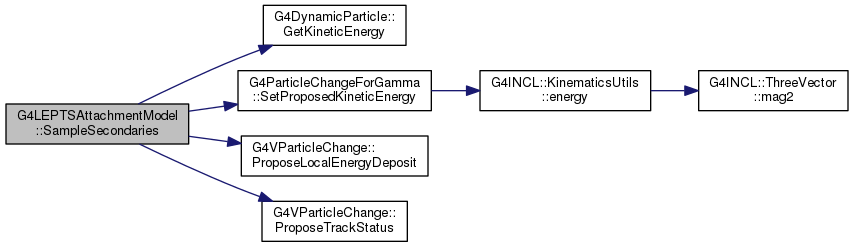

Here is the call graph for this function:

The documentation for this class was generated from the following files:
