G4INCLXXProtonBuilder Class Reference

#include <G4INCLXXProtonBuilder.hh>

Inheritance diagram for G4INCLXXProtonBuilder:

Collaboration diagram for G4INCLXXProtonBuilder:

Public Member Functions
	G4INCLXXProtonBuilder ()
virtual	~G4INCLXXProtonBuilder ()
virtual void	Build (G4HadronElasticProcess *aP)
virtual void	Build (G4ProtonInelasticProcess *aP)
void	SetMinEnergy (G4double aM)
void	SetMaxEnergy (G4double aM)
Public Member Functions inherited from G4VProtonBuilder
	G4VProtonBuilder ()
virtual	~G4VProtonBuilder ()

Detailed Description

Builder for proton processes using the INCL++ intra-nuclear cascade model.

By default the INCL++ is used for projectile energies 0 - 3 GeV.

The builder uses INCL++ cascade model with G4ExcitationHandler de-excitation. This is implemented in interface G4INCLXXInterface.

See Also

G4INCLXXInterface

G4INCLXXNeutronBuilder

G4INCLXXPiKBuilder

Definition at line 54 of file G4INCLXXProtonBuilder.hh.

Constructor & Destructor Documentation

G4INCLXXProtonBuilder::G4INCLXXProtonBuilder

(

)

Definition at line 37 of file G4INCLXXProtonBuilder.cc.

{
  thePreCompoundMin = 0;
  thePreCompoundMax = 2*MeV;
  theMin = 1.0*MeV;
  theMax = 3.0*GeV;
  G4HadronicInteraction* p =
    G4HadronicInteractionRegistry::Instance()->FindModel("PRECO");
  thePreCompoundModel = static_cast<G4VPreCompoundModel*>(p);
  if(!thePreCompoundModel) { thePreCompoundModel = new G4PreCompoundModel(); }
  theModel = new G4INCLXXInterface(thePreCompoundModel);
}

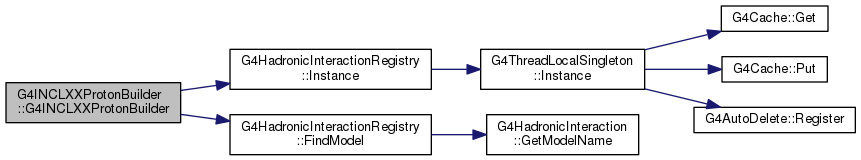

Here is the call graph for this function:

G4INCLXXProtonBuilder::~G4INCLXXProtonBuilder ( )

virtual

Definition at line 51 of file G4INCLXXProtonBuilder.cc.

{
  //delete theModel;
}

Member Function Documentation

void G4INCLXXProtonBuilder::Build ( G4HadronElasticProcess *  aP )

virtual

Build elastic process.

No elastic process is built.

Implements G4VProtonBuilder.

Definition at line 57 of file G4INCLXXProtonBuilder.cc.

{
}

void G4INCLXXProtonBuilder::Build ( G4ProtonInelasticProcess *  aP )

virtual

Build inelastic process.

Implements G4VProtonBuilder.

Definition at line 62 of file G4INCLXXProtonBuilder.cc.

{
  thePreCompoundModel->SetMinEnergy(thePreCompoundMin);
  thePreCompoundModel->SetMaxEnergy(thePreCompoundMax);
  aP->RegisterMe(thePreCompoundModel);
  theModel->SetMinEnergy(theMin);
  theModel->SetMaxEnergy(theMax);
  aP->RegisterMe(theModel);
  aP->AddDataSet(new G4BGGNucleonInelasticXS(G4Proton::Proton()));
}

Here is the call graph for this function:

void G4INCLXXProtonBuilder::SetMaxEnergy ( G4double  aM )

inline

Set the maximum energy limit for the model.

Definition at line 81 of file G4INCLXXProtonBuilder.hh.

{theMax = aM;}

void G4INCLXXProtonBuilder::SetMinEnergy ( G4double  aM )

inline

Set the minimum energy limit for the model.

Definition at line 76 of file G4INCLXXProtonBuilder.hh.

{theMin = aM;}

---

The documentation for this class was generated from the following files:

• source/geant4.10.03.p03/source/physics_lists/builders/include/G4INCLXXProtonBuilder.hh
• source/geant4.10.03.p03/source/physics_lists/builders/src/G4INCLXXProtonBuilder.cc
