#include <G4ICRU73NoDeltaModel.hh>

Inheritance diagram for G4ICRU73NoDeltaModel:

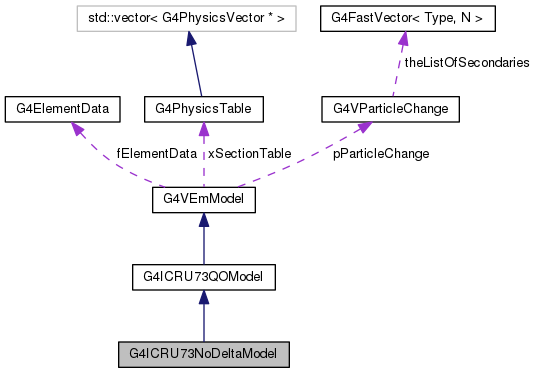

Collaboration diagram for G4ICRU73NoDeltaModel:

Public Member Functions
	G4ICRU73NoDeltaModel (const G4ParticleDefinition *p=nullptr, const G4String &nam="ICRU73QONoD")

virtual	~G4ICRU73NoDeltaModel ()

virtual G4double	ComputeDEDXPerVolume (const G4Material , const G4ParticleDefinition , G4double kineticEnergy, G4double cutEnergy) override

virtual G4double	CrossSectionPerVolume (const G4Material , const G4ParticleDefinition , G4double kineticEnergy, G4double cutEnergy, G4double maxEnergy) override

Public Member Functions inherited from G4ICRU73QOModel
	G4ICRU73QOModel (const G4ParticleDefinition *p=0, const G4String &nam="ICRU73QO")

virtual	~G4ICRU73QOModel ()

virtual void	Initialise (const G4ParticleDefinition *, const G4DataVector &) override

virtual G4double	ComputeCrossSectionPerElectron (const G4ParticleDefinition *, G4double kineticEnergy, G4double cutEnergy, G4double maxEnergy) final

virtual G4double	ComputeCrossSectionPerAtom (const G4ParticleDefinition *, G4double kineticEnergy, G4double Z, G4double A, G4double cutEnergy, G4double maxEnergy) override

virtual void	SampleSecondaries (std::vector< G4DynamicParticle * > , const G4MaterialCutsCouple , const G4DynamicParticle *, G4double tmin, G4double maxEnergy) override

virtual void	CorrectionsAlongStep (const G4MaterialCutsCouple , const G4DynamicParticle , G4double &eloss, G4double &niel, G4double length) override

Public Member Functions inherited from G4VEmModel
	G4VEmModel (const G4String &nam)

virtual	~G4VEmModel ()

virtual void	InitialiseLocal (const G4ParticleDefinition , G4VEmModel masterModel)

virtual void	InitialiseForMaterial (const G4ParticleDefinition , const G4Material )

virtual void	InitialiseForElement (const G4ParticleDefinition *, G4int Z)

virtual G4double	GetPartialCrossSection (const G4Material , G4int level, const G4ParticleDefinition , G4double kineticEnergy)

virtual G4double	ComputeCrossSectionPerShell (const G4ParticleDefinition *, G4int Z, G4int shellIdx, G4double kinEnergy, G4double cutEnergy=0.0, G4double maxEnergy=DBL_MAX)

virtual G4double	ChargeSquareRatio (const G4Track &)

virtual G4double	GetChargeSquareRatio (const G4ParticleDefinition , const G4Material , G4double kineticEnergy)

virtual G4double	GetParticleCharge (const G4ParticleDefinition , const G4Material , G4double kineticEnergy)

virtual void	StartTracking (G4Track *)

virtual G4double	Value (const G4MaterialCutsCouple , const G4ParticleDefinition , G4double kineticEnergy)

virtual G4double	MinPrimaryEnergy (const G4Material , const G4ParticleDefinition , G4double cut=0.0)

virtual G4double	MinEnergyCut (const G4ParticleDefinition , const G4MaterialCutsCouple )

virtual void	SetupForMaterial (const G4ParticleDefinition , const G4Material , G4double kineticEnergy)

virtual void	DefineForRegion (const G4Region *)

virtual void	ModelDescription (std::ostream &outFile) const

void	InitialiseElementSelectors (const G4ParticleDefinition *, const G4DataVector &)

std::vector < G4EmElementSelector * > *	GetElementSelectors ()

void	SetElementSelectors (std::vector< G4EmElementSelector * > *)

virtual G4double	ComputeDEDX (const G4MaterialCutsCouple , const G4ParticleDefinition , G4double kineticEnergy, G4double cutEnergy=DBL_MAX)

G4double	CrossSection (const G4MaterialCutsCouple , const G4ParticleDefinition , G4double kineticEnergy, G4double cutEnergy=0.0, G4double maxEnergy=DBL_MAX)

G4double	ComputeMeanFreePath (const G4ParticleDefinition , G4double kineticEnergy, const G4Material , G4double cutEnergy=0.0, G4double maxEnergy=DBL_MAX)

G4double	ComputeCrossSectionPerAtom (const G4ParticleDefinition , const G4Element , G4double kinEnergy, G4double cutEnergy=0.0, G4double maxEnergy=DBL_MAX)

G4int	SelectIsotopeNumber (const G4Element *)

const G4Element *	SelectRandomAtom (const G4MaterialCutsCouple , const G4ParticleDefinition , G4double kineticEnergy, G4double cutEnergy=0.0, G4double maxEnergy=DBL_MAX)

const G4Element *	SelectRandomAtom (const G4Material , const G4ParticleDefinition , G4double kineticEnergy, G4double cutEnergy=0.0, G4double maxEnergy=DBL_MAX)

G4int	SelectRandomAtomNumber (const G4Material *)

void	SetParticleChange (G4VParticleChange , G4VEmFluctuationModel f=nullptr)

void	SetCrossSectionTable (G4PhysicsTable *, G4bool isLocal)

G4ElementData *	GetElementData ()

G4PhysicsTable *	GetCrossSectionTable ()

G4VEmFluctuationModel *	GetModelOfFluctuations ()

G4VEmAngularDistribution *	GetAngularDistribution ()

void	SetAngularDistribution (G4VEmAngularDistribution *)

G4double	HighEnergyLimit () const

G4double	LowEnergyLimit () const

G4double	HighEnergyActivationLimit () const

G4double	LowEnergyActivationLimit () const

G4double	PolarAngleLimit () const

G4double	SecondaryThreshold () const

G4bool	LPMFlag () const

G4bool	DeexcitationFlag () const

G4bool	ForceBuildTableFlag () const

G4bool	UseAngularGeneratorFlag () const

void	SetAngularGeneratorFlag (G4bool)

void	SetHighEnergyLimit (G4double)

void	SetLowEnergyLimit (G4double)

void	SetActivationHighEnergyLimit (G4double)

void	SetActivationLowEnergyLimit (G4double)

G4bool	IsActive (G4double kinEnergy)

void	SetPolarAngleLimit (G4double)

void	SetSecondaryThreshold (G4double)

void	SetLPMFlag (G4bool val)

void	SetDeexcitationFlag (G4bool val)

void	SetForceBuildTable (G4bool val)

void	SetFluctuationFlag (G4bool val)

void	SetMasterThread (G4bool val)

G4bool	IsMaster () const

G4double	MaxSecondaryKinEnergy (const G4DynamicParticle *dynParticle)

const G4String &	GetName () const

void	SetCurrentCouple (const G4MaterialCutsCouple *)

const G4Element *	GetCurrentElement () const

const G4Isotope *	GetCurrentIsotope () const

G4bool	IsLocked () const

void	SetLocked (G4bool)

Additional Inherited Members
Protected Member Functions inherited from G4ICRU73QOModel
virtual G4double	MaxSecondaryEnergy (const G4ParticleDefinition *, G4double kinEnergy) final

Protected Member Functions inherited from G4VEmModel
G4ParticleChangeForLoss *	GetParticleChangeForLoss ()

G4ParticleChangeForGamma *	GetParticleChangeForGamma ()

const G4MaterialCutsCouple *	CurrentCouple () const

void	SetCurrentElement (const G4Element *)

Protected Attributes inherited from G4VEmModel
G4ElementData *	fElementData

G4VParticleChange *	pParticleChange

G4PhysicsTable *	xSectionTable

const std::vector< G4double > *	theDensityFactor

const std::vector< G4int > *	theDensityIdx

size_t	idxTable

G4bool	lossFlucFlag

Static Protected Attributes inherited from G4VEmModel
static const G4double	inveplus = 1.0/CLHEP::eplus

Detailed Description

Definition at line 54 of file G4ICRU73NoDeltaModel.hh.

Constructor & Destructor Documentation

G4ICRU73NoDeltaModel::G4ICRU73NoDeltaModel	(	const G4ParticleDefinition *	p = `nullptr`,
		const G4String &	nam = `"ICRU73QONoD"`
	)

explicit

Definition at line 54 of file G4ICRU73NoDeltaModel.cc.

                                             :
   G4ICRU73QOModel(p, nam)
 {}

G4ICRU73NoDeltaModel::~G4ICRU73NoDeltaModel ( )

virtual

Definition at line 61 of file G4ICRU73NoDeltaModel.cc.

62 {}

Member Function Documentation

G4double G4ICRU73NoDeltaModel::ComputeDEDXPerVolume	(	const G4Material *	material,
		const G4ParticleDefinition *	pd,
		G4double	kineticEnergy,
		G4double	cutEnergy
	)

overridevirtual

Reimplemented from G4ICRU73QOModel.

Definition at line 66 of file G4ICRU73NoDeltaModel.cc.

 {
   return
     G4ICRU73QOModel::ComputeDEDXPerVolume(material, pd, kinEnergy, DBL_MAX);
 }

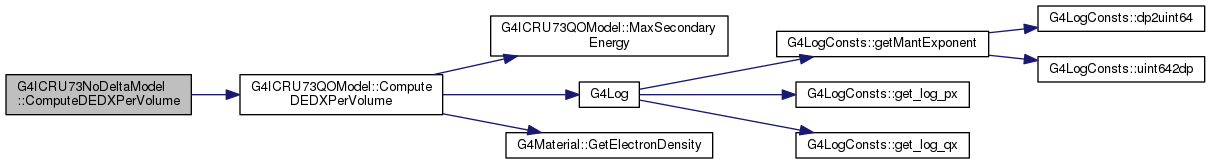

Here is the call graph for this function:

G4double G4ICRU73NoDeltaModel::CrossSectionPerVolume	(	const G4Material *	,
		const G4ParticleDefinition *	,
		G4double	kineticEnergy,
		G4double	cutEnergy,
		G4double	maxEnergy
	)

overridevirtual

Reimplemented from G4ICRU73QOModel.

Definition at line 77 of file G4ICRU73NoDeltaModel.cc.

 {
   return 0.0;
 }

The documentation for this class was generated from the following files:

source/geant4.10.03.p03/source/processes/electromagnetic/highenergy/include/G4ICRU73NoDeltaModel.hh
source/geant4.10.03.p03/source/processes/electromagnetic/highenergy/src/G4ICRU73NoDeltaModel.cc
