G4HadronPhysicsQGS_BIC Class Reference

#include <G4HadronPhysicsQGS_BIC.hh>

Inheritance diagram for G4HadronPhysicsQGS_BIC:

Collaboration diagram for G4HadronPhysicsQGS_BIC:

Public Member Functions
	G4HadronPhysicsQGS_BIC (G4int verbose=1)
	G4HadronPhysicsQGS_BIC (const G4String &name, G4bool quasiElastic=true)
virtual	~G4HadronPhysicsQGS_BIC ()
virtual void	ConstructParticle ()
virtual void	ConstructProcess ()
Public Member Functions inherited from G4VPhysicsConstructor
	G4VPhysicsConstructor (const G4String &="")
	G4VPhysicsConstructor (const G4String &name, G4int physics_type)
virtual	~G4VPhysicsConstructor ()
void	SetPhysicsName (const G4String &="")
const G4String &	GetPhysicsName () const
void	SetPhysicsType (G4int)
G4int	GetPhysicsType () const
void	SetVerboseLevel (G4int value)
G4int	GetVerboseLevel () const
G4int	GetInstanceID () const

Additional Inherited Members
Static Public Member Functions inherited from G4VPhysicsConstructor
static const G4VPCManager &	GetSubInstanceManager ()
Protected Member Functions inherited from G4VPhysicsConstructor
G4bool	RegisterProcess (G4VProcess *process, G4ParticleDefinition *particle)
G4ParticleTable::G4PTblDicIterator *	GetParticleIterator () const
Protected Attributes inherited from G4VPhysicsConstructor
G4int	verboseLevel
G4String	namePhysics
G4int	typePhysics
G4ParticleTable *	theParticleTable
G4int	g4vpcInstanceID
Static Protected Attributes inherited from G4VPhysicsConstructor
static G4RUN_DLL G4VPCManager	subInstanceManager

Detailed Description

Definition at line 75 of file G4HadronPhysicsQGS_BIC.hh.

Constructor & Destructor Documentation

G4HadronPhysicsQGS_BIC::G4HadronPhysicsQGS_BIC

(

G4int

verbose = 1

)

Definition at line 73 of file G4HadronPhysicsQGS_BIC.cc.

    :  G4VPhysicsConstructor("hInelastic QGS_BIC")
/*  , theNeutrons(0)
    , theFTFBinaryNeutron(0)
    , theQGSBinaryNeutron(0)
    , theBinaryNeutron(0)
    , thePion(0)
    , theBinaryPion(0)
    , theBertiniPion(0)
    , theFTFBinaryPion(0)
    , theQGSBinaryPion(0)
    , theKaon(0)
    , theBertiniKaon(0)
    , theFTFBinaryKaon(0)
    , theQGSBinaryKaon(0)
    , thePro(0)
    , theFTFBinaryPro(0)
    , theQGSBinaryPro(0)
    , theBinaryPro(0)
    , theHyperon(0)
    , theAntiBaryon(0)
    , theFTFPAntiBaryon(0)
    , xsKaon(0)
    , xsNeutronInelasticXS(0)
    , xsNeutronCaptureXS(0)*/
//    , QuasiElastic(true)
{}

G4HadronPhysicsQGS_BIC::G4HadronPhysicsQGS_BIC	(	const G4String &	name,
		G4bool	quasiElastic = true
	)

Definition at line 101 of file G4HadronPhysicsQGS_BIC.cc.

    :  G4VPhysicsConstructor(name)
/*  , theNeutrons(0)
    , theFTFBinaryNeutron(0)
    , theQGSBinaryNeutron(0)
    , theBinaryNeutron(0)
    , thePion(0)
    , theBinaryPion(0)
    , theBertiniPion(0)
    , theFTFBinaryPion(0)
    , theQGSBinaryPion(0)
    , theKaon(0)
    , theBertiniKaon(0)
    , theFTFBinaryKaon(0)
    , theQGSBinaryKaon(0)
    , thePro(0)
    , theFTFBinaryPro(0)
    , theQGSBinaryPro(0)
    , theBinaryPro(0)
    , theHyperon(0)
    , theAntiBaryon(0)
    , theFTFPAntiBaryon(0)
    , xsKaon(0)
    , xsNeutronInelasticXS(0)
    , xsNeutronCaptureXS(0)*/
//    , QuasiElastic(quasiElastic)
{}

G4HadronPhysicsQGS_BIC::~G4HadronPhysicsQGS_BIC ( )

virtual

Definition at line 183 of file G4HadronPhysicsQGS_BIC.cc.

{
  if (!tpdata) return;

   delete tpdata->theBinaryNeutron;
   delete tpdata->theQGSBinaryNeutron;
   delete tpdata->theFTFBinaryNeutron;
   delete tpdata->theNeutrons;
   delete tpdata->theQGSBinaryPion;
   delete tpdata->theFTFBinaryPion;
   delete tpdata->theBertiniPion;
   delete tpdata->theBinaryPion;
   delete tpdata->thePion;
   delete tpdata->theQGSBinaryKaon;
   delete tpdata->theFTFBinaryKaon;
   delete tpdata->theBertiniKaon;
   delete tpdata->theKaon;
   delete tpdata->theBinaryPro;
   delete tpdata->theQGSBinaryPro;
   delete tpdata->theFTFBinaryPro;
   delete tpdata->thePro;
   delete tpdata->theFTFPAntiBaryon;
   delete tpdata->theAntiBaryon;
   delete tpdata->theHyperon;

   delete tpdata; tpdata = 0;
}

Member Function Documentation

void G4HadronPhysicsQGS_BIC::ConstructParticle ( void  )

virtual

Implements G4VPhysicsConstructor.

Definition at line 211 of file G4HadronPhysicsQGS_BIC.cc.

{
  G4MesonConstructor pMesonConstructor;
  pMesonConstructor.ConstructParticle();

  G4BaryonConstructor pBaryonConstructor;
  pBaryonConstructor.ConstructParticle();

  G4ShortLivedConstructor pShortLivedConstructor;
  pShortLivedConstructor.ConstructParticle();

  G4IonConstructor pIonConstructor;
  pIonConstructor.ConstructParticle();
}

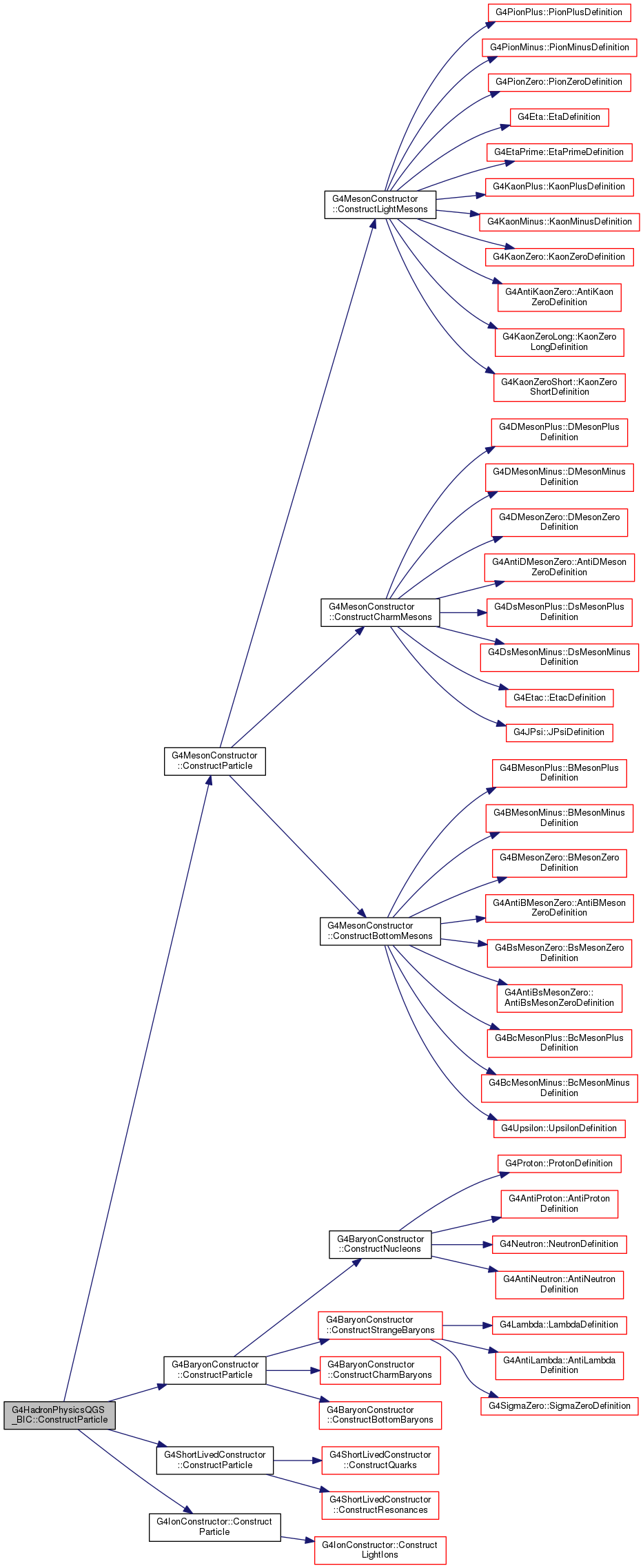

Here is the call graph for this function:

void G4HadronPhysicsQGS_BIC::ConstructProcess ( void  )

virtual

Implements G4VPhysicsConstructor.

Definition at line 227 of file G4HadronPhysicsQGS_BIC.cc.

{
  if ( tpdata == 0 ) tpdata = new ThreadPrivate;
  CreateModels();
  tpdata->theNeutrons->Build();
  tpdata->thePro->Build();
  tpdata->thePion->Build();
  tpdata->theKaon->Build();
  tpdata->theHyperon->Build();
  tpdata->theAntiBaryon->Build();

  // --- Kaons ---
  tpdata->xsKaon = new G4ComponentGGHadronNucleusXsc();
  G4VCrossSectionDataSet * kaonxs = new G4CrossSectionInelastic(tpdata->xsKaon);
  G4PhysListUtil::FindInelasticProcess(G4KaonMinus::KaonMinus())->AddDataSet(kaonxs);
  G4PhysListUtil::FindInelasticProcess(G4KaonPlus::KaonPlus())->AddDataSet(kaonxs);
  G4PhysListUtil::FindInelasticProcess(G4KaonZeroShort::KaonZeroShort())->AddDataSet(kaonxs);
  G4PhysListUtil::FindInelasticProcess(G4KaonZeroLong::KaonZeroLong())->AddDataSet(kaonxs);

  // --- Neutrons ---
  tpdata->xsNeutronInelasticXS = (G4NeutronInelasticXS*)G4CrossSectionDataSetRegistry::Instance()->GetCrossSectionDataSet(G4NeutronInelasticXS::Default_Name());
  G4PhysListUtil::FindInelasticProcess(G4Neutron::Neutron())->AddDataSet(tpdata->xsNeutronInelasticXS);

  G4HadronicProcess* capture = 0;
  G4ProcessManager* pmanager = G4Neutron::Neutron()->GetProcessManager();
  G4ProcessVector*  pv = pmanager->GetProcessList();
  for ( size_t i=0; i < static_cast<size_t>(pv->size()); ++i ) {
    if ( fCapture == ((*pv)[i])->GetProcessSubType() ) {
      capture = static_cast<G4HadronicProcess*>((*pv)[i]);
    }
  }
  if ( ! capture ) {
    capture = new G4HadronCaptureProcess("nCapture");
    pmanager->AddDiscreteProcess(capture);
  }
  tpdata->xsNeutronCaptureXS = (G4NeutronCaptureXS*)G4CrossSectionDataSetRegistry::Instance()->GetCrossSectionDataSet(G4NeutronCaptureXS::Default_Name());
  capture->AddDataSet(tpdata->xsNeutronCaptureXS);
  capture->RegisterMe(new G4NeutronRadCapture());
}

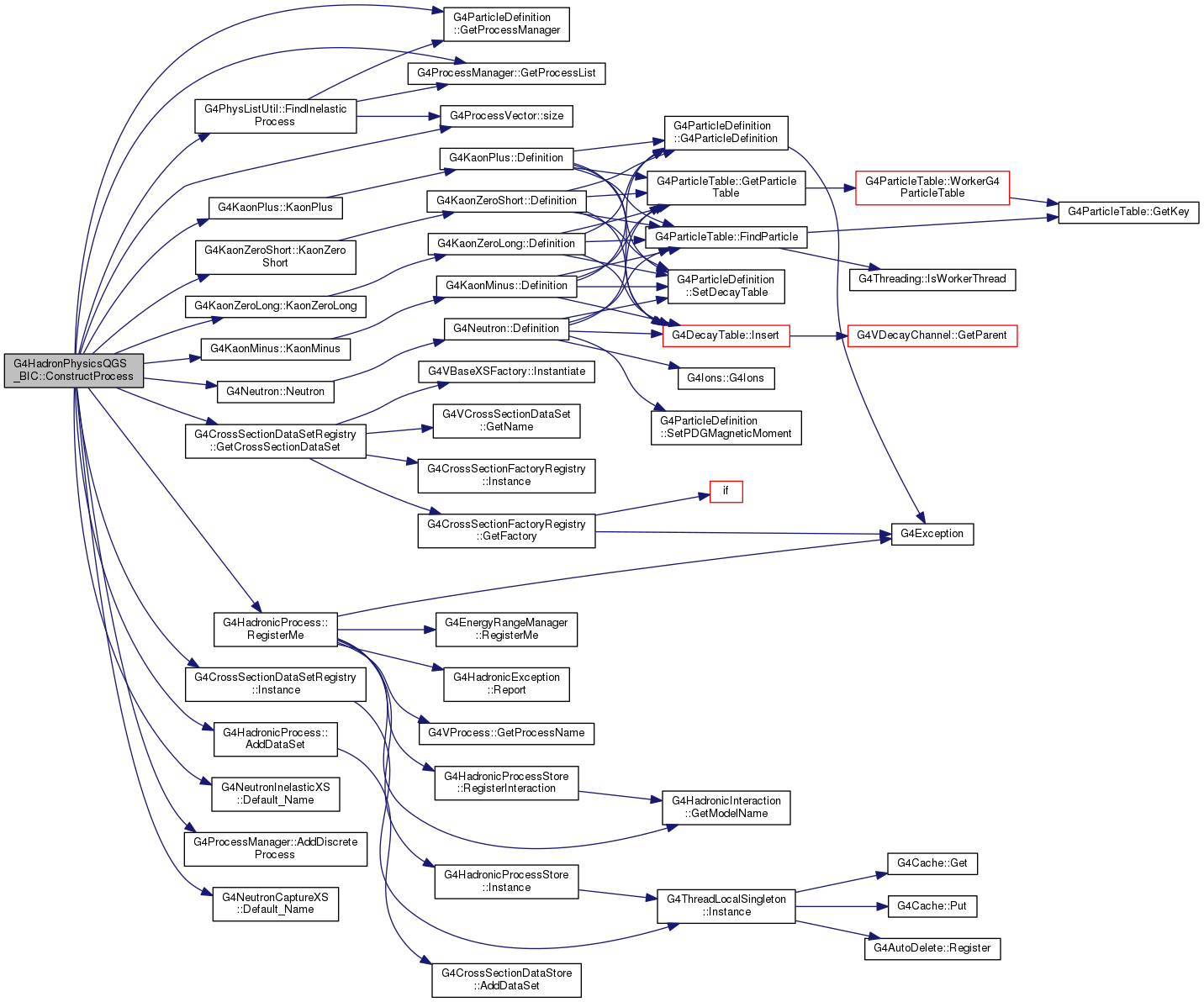

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• source/geant4.10.03.p03/source/physics_lists/constructors/hadron_inelastic/include/G4HadronPhysicsQGS_BIC.hh
• source/geant4.10.03.p03/source/physics_lists/constructors/hadron_inelastic/src/G4HadronPhysicsQGS_BIC.cc
