G4HadronPhysicsINCLXX Class Reference

#include <G4HadronPhysicsINCLXX.hh>

Inheritance diagram for G4HadronPhysicsINCLXX:

Collaboration diagram for G4HadronPhysicsINCLXX:

Public Member Functions
	G4HadronPhysicsINCLXX (G4int verbose=1)
	G4HadronPhysicsINCLXX (const G4String &name, const G4bool quasiElastic=true, const G4bool neutronHP=false, const G4bool ftfp=false)
virtual	~G4HadronPhysicsINCLXX ()
virtual void	ConstructParticle ()
virtual void	ConstructProcess ()
void	SetQuasiElastic (G4bool value)
Public Member Functions inherited from G4VPhysicsConstructor
	G4VPhysicsConstructor (const G4String &="")
	G4VPhysicsConstructor (const G4String &name, G4int physics_type)
virtual	~G4VPhysicsConstructor ()
void	SetPhysicsName (const G4String &="")
const G4String &	GetPhysicsName () const
void	SetPhysicsType (G4int)
G4int	GetPhysicsType () const
void	SetVerboseLevel (G4int value)
G4int	GetVerboseLevel () const
G4int	GetInstanceID () const

Additional Inherited Members
Static Public Member Functions inherited from G4VPhysicsConstructor
static const G4VPCManager &	GetSubInstanceManager ()
Protected Member Functions inherited from G4VPhysicsConstructor
G4bool	RegisterProcess (G4VProcess *process, G4ParticleDefinition *particle)
G4ParticleTable::G4PTblDicIterator *	GetParticleIterator () const
Protected Attributes inherited from G4VPhysicsConstructor
G4int	verboseLevel
G4String	namePhysics
G4int	typePhysics
G4ParticleTable *	theParticleTable
G4int	g4vpcInstanceID
Static Protected Attributes inherited from G4VPhysicsConstructor
static G4RUN_DLL G4VPCManager	subInstanceManager

Detailed Description

Definition at line 89 of file G4HadronPhysicsINCLXX.hh.

Constructor & Destructor Documentation

G4HadronPhysicsINCLXX::G4HadronPhysicsINCLXX

(

G4int

verbose = 1

)

Definition at line 81 of file G4HadronPhysicsINCLXX.cc.

    :  G4VPhysicsConstructor("hInelastic INCLXX")
    , QuasiElastic(true)
    , withNeutronHP(false)
    , withFTFP(false)
{
}

G4HadronPhysicsINCLXX::G4HadronPhysicsINCLXX	(	const G4String &	name,
		const G4bool	quasiElastic = true,
		const G4bool	neutronHP = false,
		const G4bool	ftfp = false
	)

Definition at line 89 of file G4HadronPhysicsINCLXX.cc.

    :  G4VPhysicsConstructor(name)
    , QuasiElastic(quasiElastic)
    , withNeutronHP(neutronHP)
    , withFTFP(ftfp)
{
}

G4HadronPhysicsINCLXX::~G4HadronPhysicsINCLXX ( )

virtual

Definition at line 176 of file G4HadronPhysicsINCLXX.cc.

{
  if(tpdata) {
    delete tpdata->theFTFPNeutron;
    delete tpdata->theQGSPNeutron;
    delete tpdata->theINCLXXNeutron;
    delete tpdata->theNeutronHP;
    delete tpdata->theFTFPPro;
    delete tpdata->theQGSPPro;
    delete tpdata->thePro;
    delete tpdata->theINCLXXPro;
    delete tpdata->theFTFPPion;
    delete tpdata->theQGSPPion;
    delete tpdata->theFTFPKaon;
    delete tpdata->theQGSPKaon;
    delete tpdata->theINCLXXPion;
    delete tpdata->thePion;
    delete tpdata->theKaon;
    delete tpdata->theHyperon;
    delete tpdata->theAntiBaryon;
    delete tpdata->theFTFPAntiBaryon;

    delete tpdata; tpdata = 0;
  }
}

Member Function Documentation

void G4HadronPhysicsINCLXX::ConstructParticle ( void  )

virtual

Implements G4VPhysicsConstructor.

Definition at line 202 of file G4HadronPhysicsINCLXX.cc.

{
  G4MesonConstructor pMesonConstructor;
  pMesonConstructor.ConstructParticle();

  G4BaryonConstructor pBaryonConstructor;
  pBaryonConstructor.ConstructParticle();

  G4ShortLivedConstructor pShortLivedConstructor;
  pShortLivedConstructor.ConstructParticle();

  G4IonConstructor pIonConstructor;
  pIonConstructor.ConstructParticle();
}

Here is the call graph for this function:

void G4HadronPhysicsINCLXX::ConstructProcess ( void  )

virtual

Implements G4VPhysicsConstructor.

Definition at line 218 of file G4HadronPhysicsINCLXX.cc.

{
  if ( tpdata == 0 ) tpdata = new ThreadPrivate;
  CreateModels();
  tpdata->theNeutrons->Build();
  tpdata->thePro->Build();
  tpdata->thePion->Build();
  tpdata->theKaon->Build();

  // --- Kaons ---
  tpdata->xsKaon = new G4ComponentGGHadronNucleusXsc();
  G4VCrossSectionDataSet * kaonxs = new G4CrossSectionInelastic(tpdata->xsKaon);
  G4PhysListUtil::FindInelasticProcess(G4KaonMinus::KaonMinus())->AddDataSet(kaonxs);
  G4PhysListUtil::FindInelasticProcess(G4KaonPlus::KaonPlus())->AddDataSet(kaonxs);
  G4PhysListUtil::FindInelasticProcess(G4KaonZeroShort::KaonZeroShort())->AddDataSet(kaonxs);
  G4PhysListUtil::FindInelasticProcess(G4KaonZeroLong::KaonZeroLong())->AddDataSet(kaonxs);

  tpdata->theHyperon->Build();
  tpdata->theAntiBaryon->Build();

  // --- Neutrons ---
  G4HadronicProcess* capture = 0;
  G4HadronicProcess* fission = 0;
  G4ProcessManager* pmanager = G4Neutron::Neutron()->GetProcessManager();
  G4ProcessVector*  pv = pmanager->GetProcessList();
  for ( size_t i=0; i < static_cast<size_t>(pv->size()); ++i ) {
    if ( fCapture == ((*pv)[i])->GetProcessSubType() ) {
      capture = static_cast<G4HadronicProcess*>((*pv)[i]);
    } else if ( fFission == ((*pv)[i])->GetProcessSubType() ) {
      fission = static_cast<G4HadronicProcess*>((*pv)[i]);
    }
  }
  if ( ! capture ) {
    capture = new G4HadronCaptureProcess("nCapture");
    pmanager->AddDiscreteProcess(capture);
  }
  tpdata->xsNeutronCaptureXS = (G4NeutronCaptureXS*)G4CrossSectionDataSetRegistry::Instance()->GetCrossSectionDataSet(G4NeutronCaptureXS::Default_Name());
  capture->AddDataSet(tpdata->xsNeutronCaptureXS);
  G4NeutronRadCapture* theNeutronRadCapture = new G4NeutronRadCapture();
  capture->RegisterMe( theNeutronRadCapture );
  if ( withNeutronHP ) {
    capture->AddDataSet( new G4ParticleHPCaptureData );
    theNeutronRadCapture->SetMinEnergy( 19.9*MeV );
    if ( ! fission ) {
      fission = new G4HadronFissionProcess("nFission");
      pmanager->AddDiscreteProcess(fission);
    }
    G4LFission* theNeutronLEPFission = new G4LFission();
    theNeutronLEPFission->SetMinEnergy( 19.9*MeV );
    fission->RegisterMe( theNeutronLEPFission );
  }
}

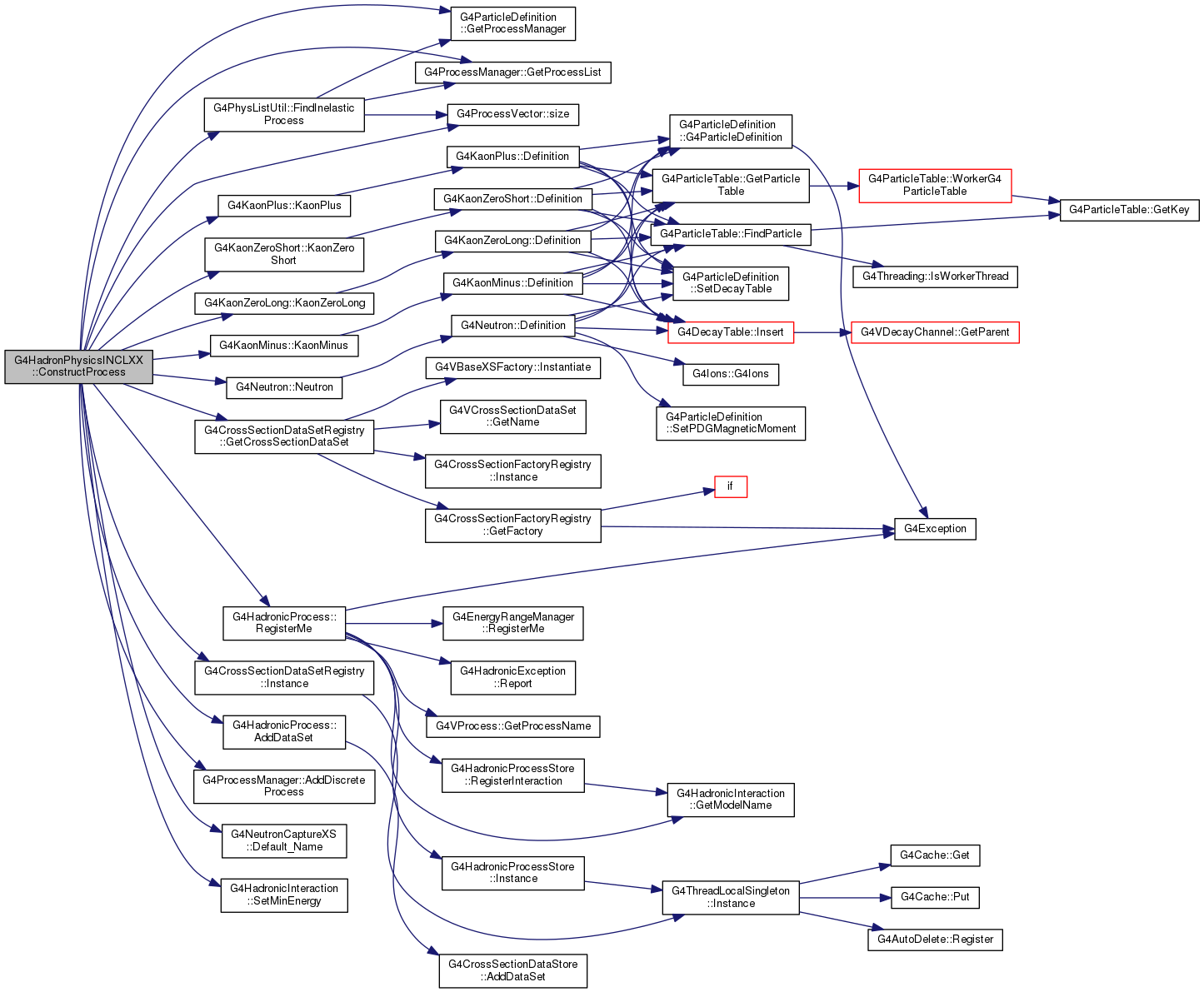

Here is the call graph for this function:

void G4HadronPhysicsINCLXX::SetQuasiElastic ( G4bool  value )

inline

Definition at line 100 of file G4HadronPhysicsINCLXX.hh.

{QuasiElastic = value;};

---

The documentation for this class was generated from the following files:

• source/geant4.10.03.p03/source/physics_lists/constructors/hadron_inelastic/include/G4HadronPhysicsINCLXX.hh
• source/geant4.10.03.p03/source/physics_lists/constructors/hadron_inelastic/src/G4HadronPhysicsINCLXX.cc
