G4FTFPPiKBuilder Class Reference

#include <G4FTFPPiKBuilder.hh>

Inheritance diagram for G4FTFPPiKBuilder:

Collaboration diagram for G4FTFPPiKBuilder:

Public Member Functions
	G4FTFPPiKBuilder (G4bool quasiElastic=false)
virtual	~G4FTFPPiKBuilder ()
virtual void	Build (G4HadronElasticProcess *aP)
virtual void	Build (G4PionPlusInelasticProcess *aP)
virtual void	Build (G4PionMinusInelasticProcess *aP)
virtual void	Build (G4KaonPlusInelasticProcess *aP)
virtual void	Build (G4KaonMinusInelasticProcess *aP)
virtual void	Build (G4KaonZeroLInelasticProcess *aP)
virtual void	Build (G4KaonZeroSInelasticProcess *aP)
void	SetMinEnergy (G4double aM)
void	SetMaxEnergy (G4double aM)
Public Member Functions inherited from G4VPiKBuilder
	G4VPiKBuilder ()
virtual	~G4VPiKBuilder ()

Detailed Description

Definition at line 59 of file G4FTFPPiKBuilder.hh.

Constructor & Destructor Documentation

G4FTFPPiKBuilder::G4FTFPPiKBuilder

(

G4bool

quasiElastic = false

)

Definition at line 51 of file G4FTFPPiKBuilder.cc.

{
  thePiData = new G4CrossSectionPairGG((G4PiNuclearCrossSection*)G4CrossSectionDataSetRegistry::Instance()->GetCrossSectionDataSet(G4PiNuclearCrossSection::Default_Name()), 91*GeV);
  theMin = 4*GeV;
  theMax = 100*TeV;
  theModel = new G4TheoFSGenerator("FTFP");

  theStringModel = new G4FTFModel;
  theStringDecay = new G4ExcitedStringDecay(theLund = new G4LundStringFragmentation);
  theStringModel->SetFragmentationModel(theStringDecay);

  theCascade = new G4GeneratorPrecompoundInterface();

  theModel->SetHighEnergyGenerator(theStringModel);
  if (quasiElastic)
  {
     theQuasiElastic=new G4QuasiElasticChannel;
     theModel->SetQuasiElasticChannel(theQuasiElastic);
  } else
  {  theQuasiElastic=0;}

  theModel->SetTransport(theCascade);
  theModel->SetMinEnergy(theMin);
  theModel->SetMaxEnergy(100*TeV);
}

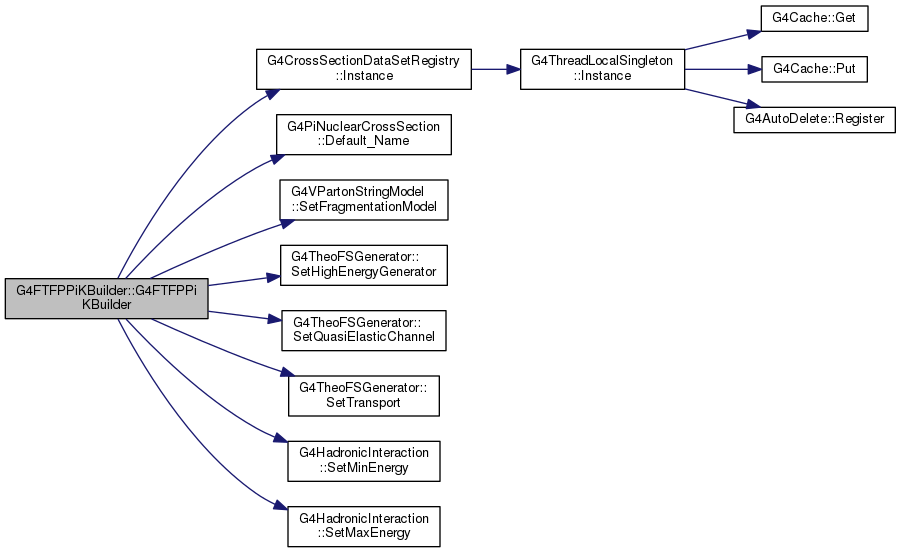

Here is the call graph for this function:

G4FTFPPiKBuilder::~G4FTFPPiKBuilder ( )

virtual

Definition at line 77 of file G4FTFPPiKBuilder.cc.

{
  delete theStringDecay;
  delete theStringModel;
  if ( theQuasiElastic ) delete theQuasiElastic;
  delete theLund;
}

Member Function Documentation

void G4FTFPPiKBuilder::Build ( G4HadronElasticProcess *  aP )

virtual

Implements G4VPiKBuilder.

Definition at line 86 of file G4FTFPPiKBuilder.cc.

{}

void G4FTFPPiKBuilder::Build ( G4PionPlusInelasticProcess *  aP )

virtual

Implements G4VPiKBuilder.

Definition at line 89 of file G4FTFPPiKBuilder.cc.

{
  theModel->SetMinEnergy(theMin);
  theModel->SetMaxEnergy(theMax);
  aP->AddDataSet(thePiData);
  aP->RegisterMe(theModel);
}

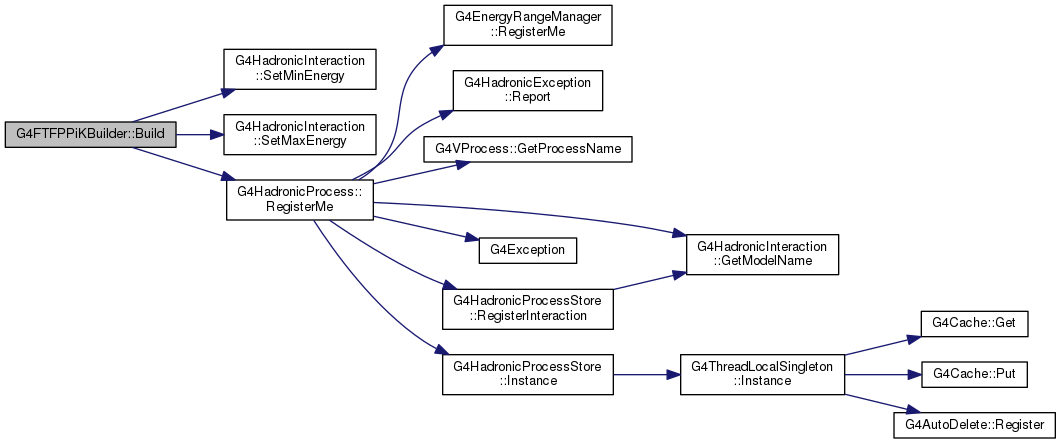

Here is the call graph for this function:

void G4FTFPPiKBuilder::Build ( G4PionMinusInelasticProcess *  aP )

virtual

Implements G4VPiKBuilder.

Definition at line 98 of file G4FTFPPiKBuilder.cc.

{
  theModel->SetMinEnergy(theMin);
  theModel->SetMaxEnergy(theMax);
  aP->AddDataSet(thePiData);
  aP->RegisterMe(theModel);
}

Here is the call graph for this function:

void G4FTFPPiKBuilder::Build ( G4KaonPlusInelasticProcess *  aP )

virtual

Implements G4VPiKBuilder.

Definition at line 107 of file G4FTFPPiKBuilder.cc.

{
  theModel->SetMinEnergy(theMin);
  theModel->SetMaxEnergy(theMax);
  aP->RegisterMe(theModel);
}

Here is the call graph for this function:

void G4FTFPPiKBuilder::Build ( G4KaonMinusInelasticProcess *  aP )

virtual

Implements G4VPiKBuilder.

Definition at line 115 of file G4FTFPPiKBuilder.cc.

{
  theModel->SetMinEnergy(theMin);
  theModel->SetMaxEnergy(theMax);
  aP->RegisterMe(theModel);
}

Here is the call graph for this function:

void G4FTFPPiKBuilder::Build ( G4KaonZeroLInelasticProcess *  aP )

virtual

Implements G4VPiKBuilder.

Definition at line 123 of file G4FTFPPiKBuilder.cc.

{
  theModel->SetMinEnergy(theMin);
  theModel->SetMaxEnergy(theMax);
  aP->RegisterMe(theModel);
}

Here is the call graph for this function:

void G4FTFPPiKBuilder::Build ( G4KaonZeroSInelasticProcess *  aP )

virtual

Implements G4VPiKBuilder.

Definition at line 131 of file G4FTFPPiKBuilder.cc.

{
  theModel->SetMinEnergy(theMin);
  theModel->SetMaxEnergy(theMax);
  aP->RegisterMe(theModel);
}

Here is the call graph for this function:

void G4FTFPPiKBuilder::SetMaxEnergy ( G4double  aM )

inline

Definition at line 75 of file G4FTFPPiKBuilder.hh.

{theMax = aM;}

void G4FTFPPiKBuilder::SetMinEnergy ( G4double  aM )

inline

Definition at line 74 of file G4FTFPPiKBuilder.hh.

{theMin = aM;}

---

The documentation for this class was generated from the following files:

• source/geant4.10.03.p03/source/physics_lists/builders/include/G4FTFPPiKBuilder.hh
• source/geant4.10.03.p03/source/physics_lists/builders/src/G4FTFPPiKBuilder.cc
