G4DNASecondOrderReaction Class Reference

#include <G4DNASecondOrderReaction.hh>

Inheritance diagram for G4DNASecondOrderReaction:
Collaboration diagram for G4DNASecondOrderReaction:

Classes

struct  SecondOrderReactionState


Public Member Functions

 G4DNASecondOrderReaction (const G4String &aName="DNASecondOrderReaction", G4ProcessType type=fDecay)

virtual ~G4DNASecondOrderReaction ()

 G4DNASecondOrderReaction (const G4DNASecondOrderReaction &)

G4DNASecondOrderReactionoperator= (const G4DNASecondOrderReaction &)

void StartTracking (G4Track *)

void SetReaction (const G4MolecularConfiguration *, const G4Material *, double)

virtual void BuildPhysicsTable (const G4ParticleDefinition &)

virtual G4double PostStepGetPhysicalInteractionLength (const G4Track &track, G4double previousStepSize, G4ForceCondition *condition)

virtual G4VParticleChangePostStepDoIt (const G4Track &, const G4Step &)

virtual G4double AtRestGetPhysicalInteractionLength (const G4Track &, G4ForceCondition *)

virtual G4VParticleChangeAtRestDoIt (const G4Track &, const G4Step &)

virtual G4double AlongStepGetPhysicalInteractionLength (const G4Track &, G4double, G4double, G4double &, G4GPILSelection *)

virtual G4VParticleChangeAlongStepDoIt (const G4Track &, const G4Step &)

- Public Member Functions inherited from G4VITProcess
 G4VITProcess (const G4String &name, G4ProcessType type=fNotDefined)

virtual ~G4VITProcess ()

 G4VITProcess (const G4VITProcess &other)

G4VITProcessoperator= (const G4VITProcess &other)

G4int operator== (const G4VITProcess &right) const

G4int operator!= (const G4VITProcess &right) const

size_t GetProcessID () const

G4shared_ptr< G4ProcessState_LockGetProcessState ()

void SetProcessState (G4shared_ptr< G4ProcessState_Lock > aProcInfo)

void ResetProcessState ()

G4double GetInteractionTimeLeft ()

virtual void ResetNumberOfInteractionLengthLeft ()

G4bool ProposesTimeStep () const

- Public Member Functions inherited from G4VProcess
 G4VProcess (const G4String &aName="NoName", G4ProcessType aType=fNotDefined)

 G4VProcess (const G4VProcess &right)

virtual ~G4VProcess ()

G4int operator== (const G4VProcess &right) const

G4int operator!= (const G4VProcess &right) const

G4double GetCurrentInteractionLength () const

void SetPILfactor (G4double value)

G4double GetPILfactor () const

G4double AlongStepGPIL (const G4Track &track, G4double previousStepSize, G4double currentMinimumStep, G4double &proposedSafety, G4GPILSelection *selection)

G4double AtRestGPIL (const G4Track &track, G4ForceCondition *condition)

G4double PostStepGPIL (const G4Track &track, G4double previousStepSize, G4ForceCondition *condition)

virtual G4bool IsApplicable (const G4ParticleDefinition &)

virtual void PreparePhysicsTable (const G4ParticleDefinition &)

virtual G4bool StorePhysicsTable (const G4ParticleDefinition *, const G4String &, G4bool)

virtual G4bool RetrievePhysicsTable (const G4ParticleDefinition *, const G4String &, G4bool)

const G4StringGetPhysicsTableFileName (const G4ParticleDefinition *, const G4String &directory, const G4String &tableName, G4bool ascii=false)

const G4StringGetProcessName () const

G4ProcessType GetProcessType () const

void SetProcessType (G4ProcessType)

G4int GetProcessSubType () const

void SetProcessSubType (G4int)

virtual void EndTracking ()

virtual void SetProcessManager (const G4ProcessManager *)

virtual const G4ProcessManagerGetProcessManager ()

G4double GetNumberOfInteractionLengthLeft () const

G4double GetTotalNumberOfInteractionLengthTraversed () const

G4bool isAtRestDoItIsEnabled () const

G4bool isAlongStepDoItIsEnabled () const

G4bool isPostStepDoItIsEnabled () const

virtual void DumpInfo () const

void SetVerboseLevel (G4int value)

G4int GetVerboseLevel () const

virtual void SetMasterProcess (G4VProcess *masterP)

const G4VProcessGetMasterProcess () const

virtual void BuildWorkerPhysicsTable (const G4ParticleDefinition &part)

virtual void PrepareWorkerPhysicsTable (const G4ParticleDefinition &)


Protected Attributes

G4bool fIsInitialized

G4double fReturnedValue

const std::vector< double > * fpMoleculeDensity

G4double fReactionRate

G4double fConcentration

G4double fMolarMassOfMaterial

G4ParticleChange fParticleChange

const G4MolecularConfigurationfpMolecularConfiguration

const G4MaterialfpMaterial

- Protected Attributes inherited from G4VITProcess
G4shared_ptr< G4ProcessStatefpState

G4bool fProposesTimeStep

- Protected Attributes inherited from G4VProcess
const G4ProcessManageraProcessManager

G4VParticleChangepParticleChange

G4ParticleChange aParticleChange

G4double theNumberOfInteractionLengthLeft

G4double currentInteractionLength

G4double theInitialNumberOfInteractionLength

G4String theProcessName

G4String thePhysicsTableFileName

G4ProcessType theProcessType

G4int theProcessSubType

G4double thePILfactor

G4bool enableAtRestDoIt

G4bool enableAlongStepDoIt

G4bool enablePostStepDoIt

G4int verboseLevel


Additional Inherited Members

- Static Public Member Functions inherited from G4VITProcess
static const size_t & GetMaxProcessIndex ()

- Static Public Member Functions inherited from G4VProcess
static const G4StringGetProcessTypeName (G4ProcessType)

- Protected Member Functions inherited from G4VITProcess
void RetrieveProcessInfo ()

void CreateInfo ()

template<typename T >
T * GetState ()

virtual void SubtractNumberOfInteractionLengthLeft (G4double previousStepSize)

virtual void ClearInteractionTimeLeft ()

virtual void ClearNumberOfInteractionLengthLeft ()

void SetInstantiateProcessState (G4bool flag)

G4bool InstantiateProcessState ()

- Protected Member Functions inherited from G4VProcess
void SubtractNumberOfInteractionLengthLeft (G4double previousStepSize)

void ClearNumberOfInteractionLengthLeft ()


Detailed Description

Definition at line 55 of file G4DNASecondOrderReaction.hh.

Constructor & Destructor Documentation

G4DNASecondOrderReaction::G4DNASecondOrderReaction ( const G4String aName = "DNASecondOrderReaction",
G4ProcessType  type = fDecay
)

Definition at line 68 of file G4DNASecondOrderReaction.cc.

68  :
69  G4VITProcess(aName,type)
70 {
71  Create();
72 }
G4VITProcess(const G4String &name, G4ProcessType type=fNotDefined)
Definition: G4VITProcess.cc:35
G4DNASecondOrderReaction::~G4DNASecondOrderReaction ( )
virtual

Definition at line 80 of file G4DNASecondOrderReaction.cc.

81 {
82  ;
83 }
G4DNASecondOrderReaction::G4DNASecondOrderReaction ( const G4DNASecondOrderReaction rhs)

Definition at line 74 of file G4DNASecondOrderReaction.cc.

74  :
75  G4VITProcess(rhs)
76 {
77  Create();
78 }
G4VITProcess(const G4String &name, G4ProcessType type=fNotDefined)
Definition: G4VITProcess.cc:35

Member Function Documentation

virtual G4VParticleChange* G4DNASecondOrderReaction::AlongStepDoIt ( const G4Track ,
const G4Step
)
inlinevirtual

Implements G4VProcess.

Definition at line 103 of file G4DNASecondOrderReaction.hh.

106  {return 0;}
virtual G4double G4DNASecondOrderReaction::AlongStepGetPhysicalInteractionLength ( const G4Track ,
G4double  ,
G4double  ,
G4double ,
G4GPILSelection
)
inlinevirtual

Implements G4VProcess.

Definition at line 94 of file G4DNASecondOrderReaction.hh.

100  { return -1.0; }
virtual G4VParticleChange* G4DNASecondOrderReaction::AtRestDoIt ( const G4Track ,
const G4Step
)
inlinevirtual

Implements G4VProcess.

Definition at line 88 of file G4DNASecondOrderReaction.hh.

91  {return 0;}
virtual G4double G4DNASecondOrderReaction::AtRestGetPhysicalInteractionLength ( const G4Track ,
G4ForceCondition
)
inlinevirtual

Implements G4VProcess.

Definition at line 83 of file G4DNASecondOrderReaction.hh.

86  { return -1.0; }
void G4DNASecondOrderReaction::BuildPhysicsTable ( const G4ParticleDefinition )
virtual

Reimplemented from G4VITProcess.

Definition at line 98 of file G4DNASecondOrderReaction.cc.

99 {
102  fIsInitialized = true;
103 }
const std::vector< double > * fpMoleculeDensity
static constexpr double Avogadro
const std::vector< double > * GetNumMolPerVolTableFor(const G4Material *) const
static G4DNAMolecularMaterial * Instance()
G4double GetMassOfMolecule() const
Definition: G4Material.hh:242

Here is the call graph for this function:

G4DNASecondOrderReaction & G4DNASecondOrderReaction::operator= ( const G4DNASecondOrderReaction rhs)

Definition at line 84 of file G4DNASecondOrderReaction.cc.

85 {
86  if (this == &rhs) return *this; // handle self assignment
87
88  //assignment operator
89  return *this;
90 }
G4VParticleChange * G4DNASecondOrderReaction::PostStepDoIt ( const G4Track track,
const G4Step
)
virtual

Implements G4VProcess.

Definition at line 245 of file G4DNASecondOrderReaction.cc.

246 {
247  G4Molecule* molecule = GetMolecule(track);
248 #ifdef G4VERBOSE
249  if(verboseLevel > 1)
250  {
251  G4cout << "___________" << G4endl;
252  G4cout << ">>> Beginning of G4DNASecondOrderReaction verbose" << G4endl;
253  G4cout << ">>> Returned value : " << G4BestUnit(fReturnedValue,"Time") << G4endl;
254  G4cout << ">>> Time Step : " << G4BestUnit(G4VScheduler::Instance()->GetTimeStep(),"Time") << G4endl;
255  G4cout << ">>> Reaction : " << molecule->GetName() << " + " << fpMaterial->GetName() << G4endl;
256  G4cout << ">>> End of G4DNASecondOrderReaction verbose <<<" << G4endl;
257  }
258 #endif
263  State(fPreviousTimeAtPreStepPoint) = -1;
264  return &fParticleChange;
265 }
G4int verboseLevel
Definition: G4VProcess.hh:368
static G4VScheduler * Instance()
Definition: G4VScheduler.cc:48
virtual void AddIndirectDamage(const G4String &baseName, const G4Molecule *molecule, const G4ThreeVector &position, double time)
Definition: G4DNADamage.cc:96
const G4String & GetName() const
Definition: G4Material.hh:178
const G4ThreeVector & GetPosition() const
static G4DNADamage * Instance()
Definition: G4DNADamage.cc:57
#define G4BestUnit(a, b)
#define G4_USE_G4BESTUNIT_FOR_VERBOSE 1
const G4String & GetName() const
Definition: G4Molecule.cc:356
G4GLOB_DLL std::ostream G4cout
G4double GetGlobalTime() const
G4Molecule * GetMolecule(const G4Track &track)
Definition: G4Molecule.cc:76
#define State(theXInfo)
virtual void Initialize(const G4Track &)
#define G4endl
Definition: G4ios.hh:61
void ProposeTrackStatus(G4TrackStatus status)
#define DBL_MAX
Definition: templates.hh:83

Here is the call graph for this function:

G4double G4DNASecondOrderReaction::PostStepGetPhysicalInteractionLength ( const G4Track track,
G4double  previousStepSize,
G4ForceCondition condition
)
virtual

Implements G4VProcess.

Definition at line 130 of file G4DNASecondOrderReaction.cc.

133 {
134  // G4cout << "G4DNASecondOrderReaction::PostStepGetPhysicalInteractionLength" << G4endl;
135  // G4cout << "For reaction : " << fpMaterial->GetName() << " + " << fpMolecularConfiguration->GetName() << G4endl;
136
137  //_______________________________________________________________________
138  // Check whether the track is in the good material (maybe composite material)
139  const G4Material* material = track.GetMaterial();
140
141  G4Molecule* mol = GetMolecule(track);
142  if(!mol) return DBL_MAX;
144  {
145  // G4cout <<"mol->GetMolecularConfiguration() != fpMolecularConfiguration" << G4endl;
146  return DBL_MAX;
147  }
148
149  G4double molDensity = (*fpMoleculeDensity)[material->GetIndex()];
150
151  if(molDensity == 0.0) // ie : not found
152  {
153  if(State(fIsInGoodMaterial))
154  {
156  //State(fPreviousTimeAtPreStepPoint) = -1;
157  State(fIsInGoodMaterial) = false;
158  }
159
160  // G4cout << " Material " << fpMaterial->GetName() << " not found "
161  // <<" | name of current material : " << material->GetName()
162  // << G4endl;
163
164  return DBL_MAX; // Becareful return here !!
165  }
166
167  // G4cout << " Va calculer le temps d'interaction " << G4endl;
168
169  State(fIsInGoodMaterial) = true;
170
171  // fConcentration = molDensity/fMolarMassOfMaterial;
172  fConcentration = molDensity/CLHEP::Avogadro;
173  // G4cout << "Concentration : " << fConcentration / (g/mole)<< G4endl;
174
175  //_______________________________________________________________________
176  // Either initialize the lapse of time left
177  // meaning
178  // => the track enters for the first time in the material
179  // or substract the previous time step to the previously calculated lapse
180  // of time left
181  // meaning
182  // => the track has not left this material since the previous call
183  G4double previousTimeStep(-1.);
184
185  if(State(fPreviousTimeAtPreStepPoint) != -1)
186  {
187  previousTimeStep = track.GetGlobalTime() -
188  State(fPreviousTimeAtPreStepPoint) ;
189  }
190
191  State(fPreviousTimeAtPreStepPoint) = track.GetGlobalTime();
192
193  // condition is set to "Not Forced"
194  *pForceCond = NotForced;
195
196  if (
197  (previousTimeStep < 0.0) ||
198  (fpState->theNumberOfInteractionLengthLeft<=0.0)) {
199  // beggining of tracking (or just after DoIt of this process)
201  } else if ( previousTimeStep > 0.0) {
202  // get mean free path
203  // subtract NumberOfInteractionLengthLeft
204  SubtractNumberOfInteractionLengthLeft( previousTimeStep );
205  } else {
206  // zero time step
207  // Force trigerring the process
208  //*pForceCond = Forced;
209  }
210
211  fpState->currentInteractionLength = 1/(fReactionRate*fConcentration);
212
213  // G4cout << "fpState->currentInteractionLength = "
214  // << fpState->currentInteractionLength << G4endl;
215
216  G4double value;
217  if (fpState->currentInteractionLength <DBL_MAX) {
218  value = fpState->theNumberOfInteractionLengthLeft
219  * (fpState->currentInteractionLength);
220  } else {
221  value = DBL_MAX;
222  }
223 #ifdef G4VERBOSE
224  if (verboseLevel>2) {
225  G4cout << "G4VITRestDiscreteProcess::PostStepGetPhysicalInteractionLength ";
226  G4cout << "[ " << GetProcessName() << "]" <<G4endl;
227  track.GetDynamicParticle()->DumpInfo();
228  G4cout << " in Material " << track.GetMaterial()->GetName() <<G4endl;
229  G4cout << "InteractionLength= " << value/cm <<"[cm] " <<G4endl;
230  }
231 #endif
232
233 // G4cout << "currentInteractionLength : " << fpState->currentInteractionLength << G4endl;
234 // G4cout << "Material : " << fpMaterial->GetName()
235 // << "ID: " << track.GetTrackID()
236 // << " Returned time : " << G4BestUnit(value,"Time") << G4endl;
237
238  if(value < fReturnedValue)
240
241  return value*-1;
242  // multiple by -1 to indicate to the tracking system that we are returning a time
243 }
G4int verboseLevel
Definition: G4VProcess.hh:368
const G4DynamicParticle * GetDynamicParticle() const
virtual void ResetNumberOfInteractionLengthLeft()
size_t GetIndex() const
Definition: G4Material.hh:262
const G4String & GetName() const
Definition: G4Material.hh:178
void DumpInfo(G4int mode=0) const
G4MolecularConfiguration * GetMolecularConfiguration() const
Definition: G4Molecule.cc:576
static constexpr double Avogadro
virtual void SubtractNumberOfInteractionLengthLeft(G4double previousStepSize)
string material
Definition: eplot.py:19
G4GLOB_DLL std::ostream G4cout
const XML_Char int const XML_Char * value
Definition: expat.h:331
static constexpr double cm
Definition: G4SIunits.hh:119
G4shared_ptr< G4ProcessState > fpState
G4double GetGlobalTime() const
G4Molecule * GetMolecule(const G4Track &track)
Definition: G4Molecule.cc:76
const G4String & GetProcessName() const
Definition: G4VProcess.hh:408
G4Material * GetMaterial() const
#define State(theXInfo)
#define G4endl
Definition: G4ios.hh:61
double G4double
Definition: G4Types.hh:76
#define DBL_MAX
Definition: templates.hh:83
const G4MolecularConfiguration * fpMolecularConfiguration

Here is the call graph for this function:

void G4DNASecondOrderReaction::SetReaction ( const G4MolecularConfiguration molConf,
const G4Material mat,
double  reactionRate
)

Definition at line 114 of file G4DNASecondOrderReaction.cc.

116 {
117  if(fIsInitialized)
118  {
119  G4ExceptionDescription exceptionDescription ;
120  exceptionDescription << "G4DNASecondOrderReaction was already initialised. ";
121  exceptionDescription << "You cannot set a reaction after initialisation.";
122  G4Exception("G4DNASecondOrderReaction::SetReaction","G4DNASecondOrderReaction001",
123  FatalErrorInArgument,exceptionDescription);
124  }
125  fpMolecularConfiguration = molConf;
126  fpMaterial = mat;
127  fReactionRate = reactionRate;
128 }
std::ostringstream G4ExceptionDescription
Definition: globals.hh:76
void G4Exception(const char *originOfException, const char *exceptionCode, G4ExceptionSeverity severity, const char *comments)
Definition: G4Exception.cc:41
const G4MolecularConfiguration * fpMolecularConfiguration

Here is the call graph for this function:

void G4DNASecondOrderReaction::StartTracking ( G4Track track)
virtual

Reimplemented from G4VITProcess.

Definition at line 106 of file G4DNASecondOrderReaction.cc.

107 {
109  G4VITProcess::fpState.reset(new SecondOrderReactionState());
111 }
virtual void StartTracking(G4Track *)
Definition: G4VProcess.cc:101
virtual void StartTracking(G4Track *)
Definition: G4VITProcess.cc:86
G4shared_ptr< G4ProcessState > fpState

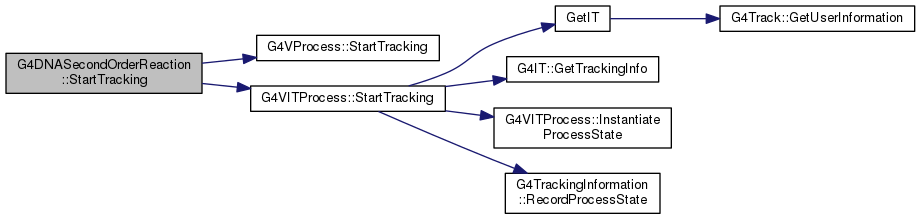

Here is the call graph for this function:

Member Data Documentation

G4double G4DNASecondOrderReaction::fConcentration
protected

Definition at line 127 of file G4DNASecondOrderReaction.hh.

G4bool G4DNASecondOrderReaction::fIsInitialized
protected

Definition at line 121 of file G4DNASecondOrderReaction.hh.

G4double G4DNASecondOrderReaction::fMolarMassOfMaterial
protected

Definition at line 128 of file G4DNASecondOrderReaction.hh.

G4ParticleChange G4DNASecondOrderReaction::fParticleChange
protected

Definition at line 129 of file G4DNASecondOrderReaction.hh.

const G4Material* G4DNASecondOrderReaction::fpMaterial
protected

Definition at line 132 of file G4DNASecondOrderReaction.hh.

const G4MolecularConfiguration* G4DNASecondOrderReaction::fpMolecularConfiguration
protected

Definition at line 131 of file G4DNASecondOrderReaction.hh.

const std::vector<double>* G4DNASecondOrderReaction::fpMoleculeDensity
protected

Definition at line 125 of file G4DNASecondOrderReaction.hh.

G4double G4DNASecondOrderReaction::fReactionRate
protected

Definition at line 126 of file G4DNASecondOrderReaction.hh.

G4double G4DNASecondOrderReaction::fReturnedValue
protected

Definition at line 123 of file G4DNASecondOrderReaction.hh.


The documentation for this class was generated from the following files:
