ExTGRCLineProcessor Class Reference

#include <ExTGRCLineProcessor.hh>

Inheritance diagram for ExTGRCLineProcessor:

Collaboration diagram for ExTGRCLineProcessor:

Public Member Functions
	ExTGRCLineProcessor ()
	~ExTGRCLineProcessor ()
G4bool	ProcessLine (const std::vector< G4String > &wl)
Public Member Functions inherited from G4tgrLineProcessor
	G4tgrLineProcessor ()
virtual	~G4tgrLineProcessor ()

Additional Inherited Members
Protected Member Functions inherited from G4tgrLineProcessor
G4tgrVolume *	FindVolume (const G4String &volname)

Detailed Description

Line processor that adds the definition of regions

Changes: creation May 2007

Author

P. Arce

Definition at line 44 of file ExTGRCLineProcessor.hh.

Constructor & Destructor Documentation

ExTGRCLineProcessor::ExTGRCLineProcessor

(

)

Definition at line 35 of file ExTGRCLineProcessor.cc.

                                         : G4tgrLineProcessor()
{
}

ExTGRCLineProcessor::~ExTGRCLineProcessor

(

)

Definition at line 40 of file ExTGRCLineProcessor.cc.

{
}

Member Function Documentation

G4bool ExTGRCLineProcessor::ProcessLine ( const std::vector< G4String > &  wl )

virtual

Reimplemented from G4tgrLineProcessor.

Definition at line 45 of file ExTGRCLineProcessor.cc.

{

  G4bool iret = G4tgrLineProcessor::ProcessLine( wl );

  G4String wl0 = wl[0];
  for( size_t ii = 0; ii < wl0.length(); ii++ )
  {
    wl0[ii] = toupper( wl0[ii] );
  }

  if( !iret )
  {
    //------------------------------- parameter number
    if( wl0 == ":REGION" )
    {
      std::vector<G4String>::const_iterator ite = wl.begin()+1;
      std::vector<G4String> wlc;
      for( ; ite != wl.end(); ite++ )   //loop skipping the first one
      {
        wlc.push_back( *ite );
      }
      //      wlc = wlc.erase( wlc.begin() );
      ExTGRCRegionCutsMgr::GetInstance()->AddRegionData( wlc );
      iret = 1;

    }
    else if( wl0 == ":CUTS" )
    {
      std::vector<G4String>::const_iterator ite = wl.begin()+1;
      std::vector<G4String> wlc;
      for( ; ite != wl.end(); ite++ )   //loop skipping the first one
      {
        wlc.push_back( *ite );
      }
      ExTGRCRegionCutsMgr::GetInstance()->AddRegionCuts( wlc );
      iret = 1;
    }
    else
    {
      iret = 0;
    }
  }

  return iret;
}

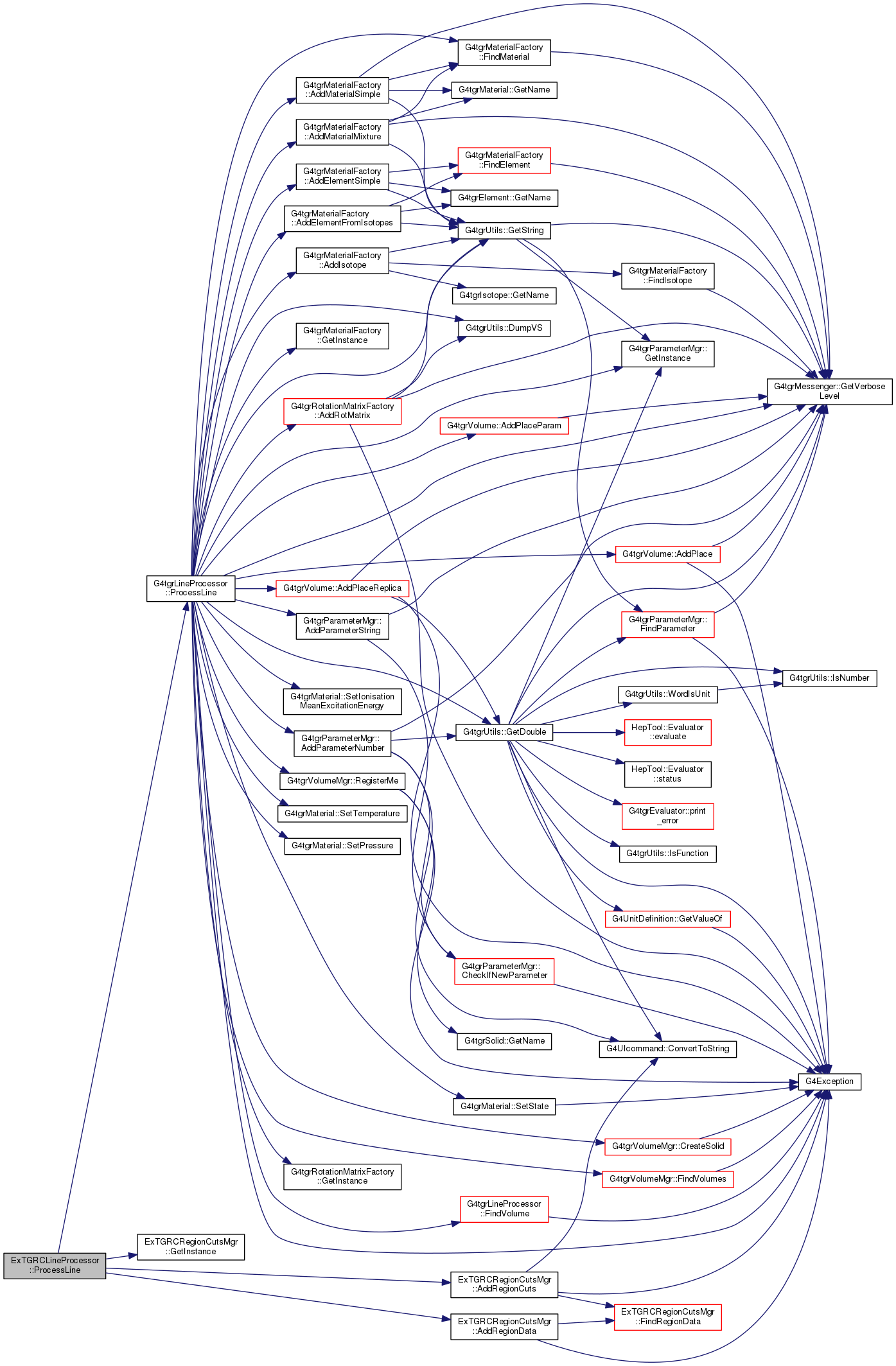

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• source/geant4.10.03.p03/examples/extended/persistency/P03/include/ExTGRCLineProcessor.hh
• source/geant4.10.03.p03/examples/extended/persistency/P03/src/ExTGRCLineProcessor.cc
