XrayFluoSimulation Class Reference

#include <XrayFluoSimulation.hh>

Public Member Functions
	XrayFluoSimulation (G4int seed)
	~XrayFluoSimulation ()
void	RunSimulation (int argc, char *argv[])

Detailed Description

Definition at line 40 of file XrayFluoSimulation.hh.

Constructor & Destructor Documentation

XrayFluoSimulation::XrayFluoSimulation

(

G4int

seed

)

Definition at line 63 of file XrayFluoSimulation.cc.

                                                :dir(seed)
{;}

XrayFluoSimulation::~XrayFluoSimulation

(

)

Definition at line 67 of file XrayFluoSimulation.cc.

{;}

Member Function Documentation

void XrayFluoSimulation::RunSimulation	(	int	argc,
		char *	argv[]
	)

Definition at line 70 of file XrayFluoSimulation.cc.

{
  // choose the Random engine
  G4Random::setTheEngine(new CLHEP::RanecuEngine);
  G4Random::setTheSeed(dir);

#ifdef G4MULTITHREADED
  // Construct the default run manager
  G4MTRunManager* runManager = new G4MTRunManager();
  G4cout << "Using the MT Run Manager (G4MULTITHREADED=ON)" << G4endl;
#else
  G4RunManager * runManager = new G4RunManager;
  G4cout << "Using the sequential Run Manager" << G4endl;
#endif


  // chosing Geometry setup
  G4int geometryNumber = 0;

  if (argc == 3){
    geometryNumber =  atoi(argv[2]);

  }
  while ( (geometryNumber < 1) || (geometryNumber >4)) {
    G4cout << "Please Select Simulation Geometrical Set-Up: "<< G4endl;
    G4cout << "1 - Test Beam" << G4endl;
    G4cout << "2 - Infinite Plane" << G4endl;
    G4cout << "3 - Planet and Sun"<< G4endl;
    G4cout << "4 - Phase-Space Production"<< G4endl;

    G4cin >> geometryNumber;
  }

  // set analysis to have the messenger running...
  XrayFluoAnalysisManager* analysis =
    XrayFluoAnalysisManager::getInstance();

  // set mandatory initialization

  //Initialize geometry
  if (geometryNumber == 1 || geometryNumber == 4) {
    XrayFluoDetectorConstruction* testBeamDetector
      = XrayFluoDetectorConstruction::GetInstance();
    if (geometryNumber == 4) {
      testBeamDetector->PhaseSpaceOn();
      analysis->PhaseSpaceOn();
    }
    runManager->SetUserInitialization(testBeamDetector);
  }
  else if (geometryNumber == 2) {
    XrayFluoPlaneDetectorConstruction*
      planeDetector = XrayFluoPlaneDetectorConstruction::GetInstance();
    runManager->SetUserInitialization(planeDetector);
  }
  else if (geometryNumber == 3) {
    XrayFluoMercuryDetectorConstruction* mercuryDetector =
      XrayFluoMercuryDetectorConstruction::GetInstance();
    runManager->SetUserInitialization(mercuryDetector);
  }


  //Initialize physics
  runManager->SetUserInitialization(new   XrayFluoPhysicsList());

  //Initialize actions
  runManager->SetUserInitialization
    (new XrayFluoActionInitializer(geometryNumber));

#ifdef G4VIS_USE
  //visualization manager
  G4VisManager* visManager = new G4VisExecutive;
  visManager->Initialize();
#endif

  // get the pointer to the User Interface manager
  G4UImanager* UImanager = G4UImanager::GetUIpointer();

  if (getenv("G4VIS_USE")) {
    UImanager->ApplyCommand("/control/execute vis.mac");
  }

  if (argc == 1)   // Define UI session for interactive mode.
    {
      UImanager->ApplyCommand("/control/execute initInter.mac");
#ifdef G4UI_USE
      G4UIExecutive* ui = new G4UIExecutive(argc, argv);
      ui->SessionStart();
      delete ui;
#endif
    }
  else           // Batch mode
    {
      G4String command = "/control/execute ";
      G4String fileName = argv[1];
      UImanager->ApplyCommand(command+fileName);
    }

  // job termination
#ifdef G4VIS_USE
  delete visManager;
  G4cout << "visManager deleted"<< G4endl;
#endif


  delete runManager;


}

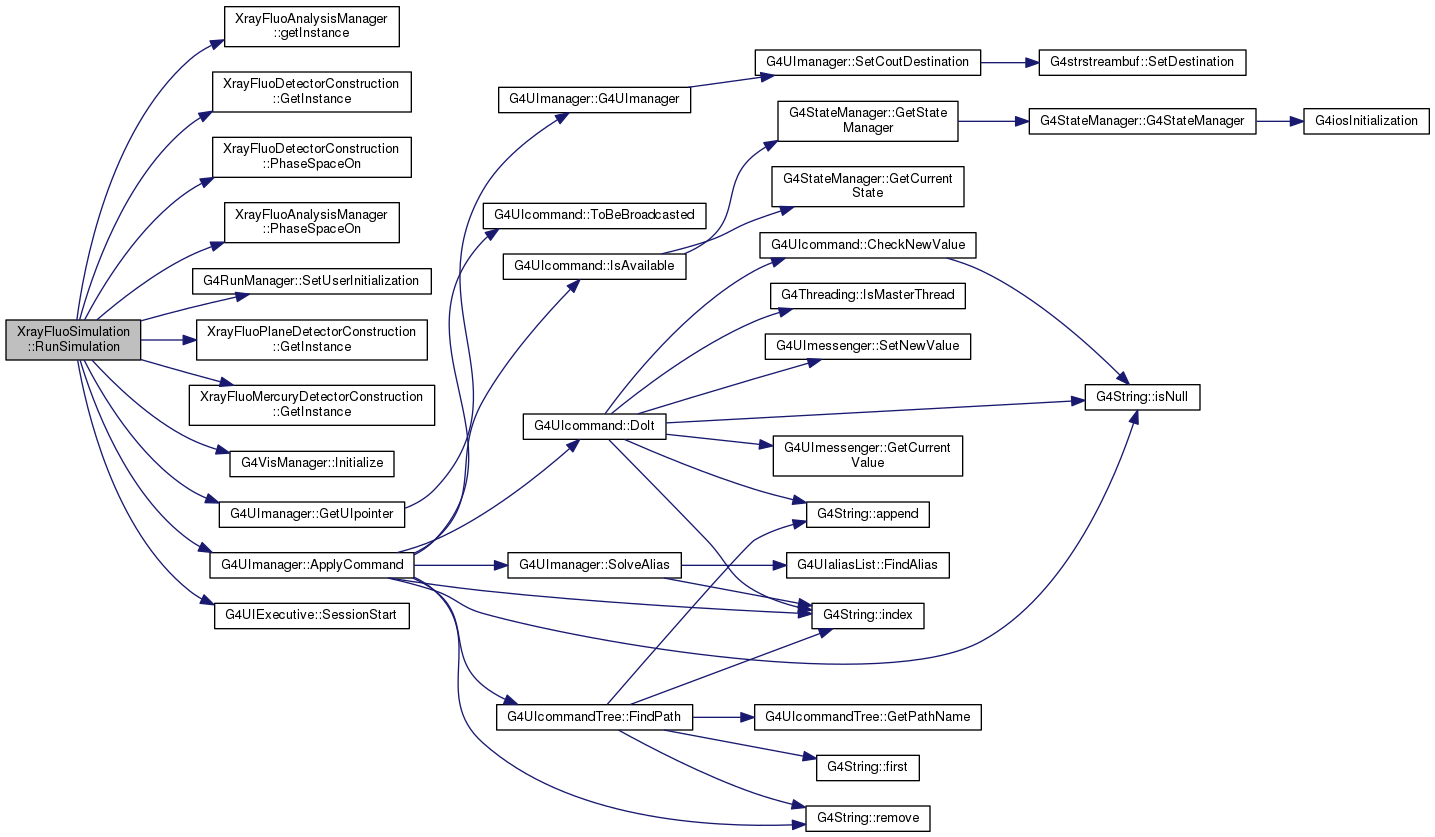

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• source/geant4.10.03.p02/examples/advanced/xray_fluorescence/include/XrayFluoSimulation.hh
• source/geant4.10.03.p02/examples/advanced/xray_fluorescence/src/XrayFluoSimulation.cc
