PhysListEmStandardGS Class Reference

#include <PhysListEmStandardGS.hh>

Inheritance diagram for PhysListEmStandardGS:

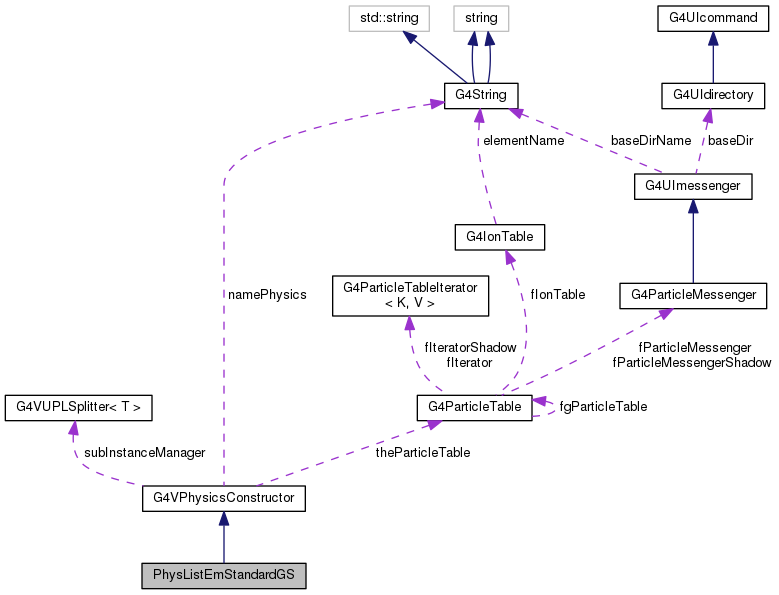

Collaboration diagram for PhysListEmStandardGS:

Public Member Functions
	PhysListEmStandardGS (const G4String &name="standardGS")
	~PhysListEmStandardGS ()
virtual void	ConstructParticle ()
virtual void	ConstructProcess ()
Public Member Functions inherited from G4VPhysicsConstructor
	G4VPhysicsConstructor (const G4String &="")
	G4VPhysicsConstructor (const G4String &name, G4int physics_type)
virtual	~G4VPhysicsConstructor ()
void	SetPhysicsName (const G4String &="")
const G4String &	GetPhysicsName () const
void	SetPhysicsType (G4int)
G4int	GetPhysicsType () const
void	SetVerboseLevel (G4int value)
G4int	GetVerboseLevel () const
G4int	GetInstanceID () const

Additional Inherited Members
Static Public Member Functions inherited from G4VPhysicsConstructor
static const G4VPCManager &	GetSubInstanceManager ()
Protected Member Functions inherited from G4VPhysicsConstructor
G4bool	RegisterProcess (G4VProcess *process, G4ParticleDefinition *particle)
G4ParticleTable::G4PTblDicIterator *	GetParticleIterator () const
Protected Attributes inherited from G4VPhysicsConstructor
G4int	verboseLevel
G4String	namePhysics
G4int	typePhysics
G4ParticleTable *	theParticleTable
G4int	g4vpcInstanceID
Static Protected Attributes inherited from G4VPhysicsConstructor
static G4RUN_DLL G4VPCManager	subInstanceManager

Detailed Description

Definition at line 42 of file PhysListEmStandardGS.hh.

Constructor & Destructor Documentation

PhysListEmStandardGS::PhysListEmStandardGS

(

const G4String &

name = "standardGS"

)

Definition at line 64 of file PhysListEmStandardGS.cc.

   :  G4VPhysicsConstructor(name)
{}

PhysListEmStandardGS::~PhysListEmStandardGS

(

)

Definition at line 70 of file PhysListEmStandardGS.cc.

{}

Member Function Documentation

virtual void PhysListEmStandardGS::ConstructParticle ( void  )

inlinevirtual

Implements G4VPhysicsConstructor.

Definition at line 50 of file PhysListEmStandardGS.hh.

{};

void PhysListEmStandardGS::ConstructProcess ( void  )

virtual

Implements G4VPhysicsConstructor.

Definition at line 75 of file PhysListEmStandardGS.cc.

{
  // Add standard EM Processes
  //

  auto particleIterator=GetParticleIterator();
  particleIterator->reset();
  while( (*particleIterator)() ){
    G4ParticleDefinition* particle = particleIterator->value();
    G4ProcessManager* pmanager = particle->GetProcessManager();
    G4String particleName = particle->GetParticleName();

    if (particleName == "gamma") {
      // gamma
      pmanager->AddDiscreteProcess(new G4PhotoElectricEffect);
      pmanager->AddDiscreteProcess(new G4ComptonScattering);
      pmanager->AddDiscreteProcess(new G4GammaConversion);

    } else if (particleName == "e-") {
      //electron
      G4eMultipleScattering* msc = new G4eMultipleScattering();
      msc->AddEmModel(0, new G4GoudsmitSaundersonMscModel());
      pmanager->AddProcess(msc,                       -1, 1, 1);
      pmanager->AddProcess(new G4eIonisation,         -1, 2, 2);
      pmanager->AddProcess(new G4eBremsstrahlung,     -1, 3, 3);

    } else if (particleName == "e+") {
      //positron
      G4eMultipleScattering* msc = new G4eMultipleScattering();
      msc->AddEmModel(0, new G4GoudsmitSaundersonMscModel());
      pmanager->AddProcess(msc,                       -1, 1, 1);
      pmanager->AddProcess(new G4eIonisation,         -1, 2, 2);
      pmanager->AddProcess(new G4eBremsstrahlung,     -1, 3, 3);
      pmanager->AddProcess(new G4eplusAnnihilation,    0,-1, 4);

    } else if (particleName == "mu+" ||
               particleName == "mu-"    ) {
      //muon
      pmanager->AddProcess(new G4MuMultipleScattering, -1, 1, 1);
      pmanager->AddProcess(new G4MuIonisation,         -1, 2, 2);
      pmanager->AddProcess(new G4MuBremsstrahlung,     -1, 3, 3);
      pmanager->AddProcess(new G4MuPairProduction,     -1, 4, 4);

    } else if( particleName == "proton" ||
               particleName == "pi-" ||
               particleName == "pi+"    ) {
      //proton
      pmanager->AddProcess(new G4hMultipleScattering, -1, 1, 1);
      pmanager->AddProcess(new G4hIonisation,         -1, 2, 2);
      pmanager->AddProcess(new G4hBremsstrahlung,     -1, 3, 3);
      pmanager->AddProcess(new G4hPairProduction,     -1, 4, 4);

    } else if( particleName == "alpha" ||
               particleName == "He3"    ) {
      //alpha
      pmanager->AddProcess(new G4hMultipleScattering, -1, 1, 1);
      pmanager->AddProcess(new G4ionIonisation,       -1, 2, 2);
      pmanager->AddProcess(new G4NuclearStopping,     -1, 3,-1);

    } else if( particleName == "GenericIon" ) {
      //Ions
      pmanager->AddProcess(new G4hMultipleScattering, -1, 1, 1);
      G4ionIonisation* ionIoni = new G4ionIonisation();
      ionIoni->SetEmModel(new G4IonParametrisedLossModel());
      pmanager->AddProcess(ionIoni,                   -1, 2, 2);
      pmanager->AddProcess(new G4NuclearStopping,     -1, 3,-1);

    } else if ((!particle->IsShortLived()) &&
               (particle->GetPDGCharge() != 0.0) &&
               (particle->GetParticleName() != "chargedgeantino")) {
      //all others charged particles except geantino
      pmanager->AddProcess(new G4hMultipleScattering, -1, 1, 1);
      pmanager->AddProcess(new G4hIonisation,         -1, 2, 2);
    }
  }
}

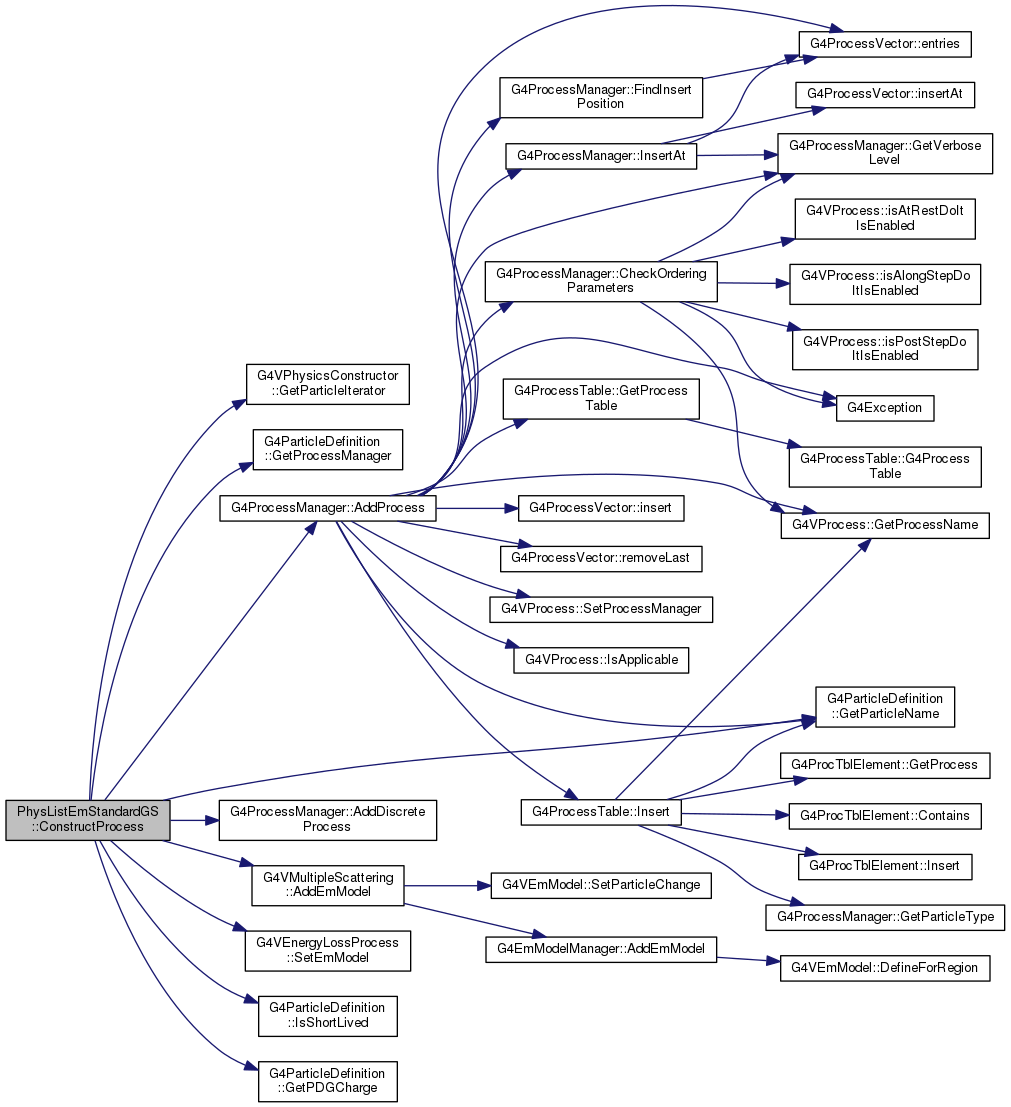

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• source/geant4.10.03.p02/examples/extended/medical/electronScattering/include/PhysListEmStandardGS.hh
• source/geant4.10.03.p02/examples/extended/medical/electronScattering/src/PhysListEmStandardGS.cc
