PhysListEmStandard_SS Class Reference

#include <PhysListEmStandard_SS.hh>

Inheritance diagram for PhysListEmStandard_SS:

Collaboration diagram for PhysListEmStandard_SS:

Public Member Functions
	PhysListEmStandard_SS (const G4String &name, DetectorConstruction *det)
	~PhysListEmStandard_SS ()
virtual void	ConstructParticle ()
virtual void	ConstructProcess ()
	PhysListEmStandard_SS (const G4String &name)
	~PhysListEmStandard_SS ()
virtual void	ConstructParticle ()
virtual void	ConstructProcess ()
Public Member Functions inherited from G4VPhysicsConstructor
	G4VPhysicsConstructor (const G4String &="")
	G4VPhysicsConstructor (const G4String &name, G4int physics_type)
virtual	~G4VPhysicsConstructor ()
void	SetPhysicsName (const G4String &="")
const G4String &	GetPhysicsName () const
void	SetPhysicsType (G4int)
G4int	GetPhysicsType () const
void	SetVerboseLevel (G4int value)
G4int	GetVerboseLevel () const
G4int	GetInstanceID () const

Additional Inherited Members
Static Public Member Functions inherited from G4VPhysicsConstructor
static const G4VPCManager &	GetSubInstanceManager ()
Protected Member Functions inherited from G4VPhysicsConstructor
G4bool	RegisterProcess (G4VProcess *process, G4ParticleDefinition *particle)
G4ParticleTable::G4PTblDicIterator *	GetParticleIterator () const
Protected Attributes inherited from G4VPhysicsConstructor
G4int	verboseLevel
G4String	namePhysics
G4int	typePhysics
G4ParticleTable *	theParticleTable
G4int	g4vpcInstanceID
Static Protected Attributes inherited from G4VPhysicsConstructor
static G4RUN_DLL G4VPCManager	subInstanceManager

Detailed Description

Definition at line 44 of file PhysListEmStandard_SS.hh.

Constructor & Destructor Documentation

PhysListEmStandard_SS::PhysListEmStandard_SS	(	const G4String &	name,
		DetectorConstruction *	det
	)

Definition at line 63 of file PhysListEmStandard_SS.cc.

: G4VPhysicsConstructor(name), fDetector(det)
{
  G4EmParameters* param = G4EmParameters::Instance();
  param->SetDefaults();
  param->SetVerbose(1);
  param->SetMinEnergy(100*eV);
  param->SetMaxEnergy(10*GeV);
  param->SetNumberOfBinsPerDecade(20);
  param->SetLowestElectronEnergy(1*eV);
  param->SetBuildCSDARange(true);
  param->SetMaxEnergyForCSDARange(10*GeV);
  param->SetMscThetaLimit(0.0);
  SetPhysicsType(bElectromagnetic);
}

Here is the call graph for this function:

PhysListEmStandard_SS::~PhysListEmStandard_SS

(

)

Definition at line 82 of file PhysListEmStandard_SS.cc.

{}

PhysListEmStandard_SS::PhysListEmStandard_SS

(

const G4String &

name

)

Definition at line 61 of file PhysListEmStandard_SS.cc.

: G4VPhysicsConstructor(name)
{
  G4EmParameters* param = G4EmParameters::Instance();
  param->SetDefaults();
  param->SetVerbose(1);
  param->SetMinEnergy(100*eV);
  param->SetMaxEnergy(10*GeV);
  param->SetNumberOfBinsPerDecade(20);
  param->SetLowestElectronEnergy(1*eV);
  param->SetBuildCSDARange(true);
  param->SetMaxEnergyForCSDARange(10*GeV);
  param->SetMscThetaLimit(0.0);
  SetPhysicsType(bElectromagnetic);
}

Here is the call graph for this function:

PhysListEmStandard_SS::~PhysListEmStandard_SS

(

)

Member Function Documentation

virtual void PhysListEmStandard_SS::ConstructParticle ( void  )

inlinevirtual

Implements G4VPhysicsConstructor.

Definition at line 51 of file PhysListEmStandard_SS.hh.

{};

virtual void PhysListEmStandard_SS::ConstructParticle ( void  )

inlinevirtual

Implements G4VPhysicsConstructor.

Definition at line 53 of file PhysListEmStandard_SS.hh.

{};

virtual void PhysListEmStandard_SS::ConstructProcess ( )

virtual

Implements G4VPhysicsConstructor.

void PhysListEmStandard_SS::ConstructProcess ( void  )

virtual

Implements G4VPhysicsConstructor.

Definition at line 87 of file PhysListEmStandard_SS.cc.

{
  // Add standard EM Processes
  //

  auto particleIterator=GetParticleIterator();
  particleIterator->reset();
  while( (*particleIterator)() ){
    G4ParticleDefinition* particle = particleIterator->value();
    G4ProcessManager* pmanager = particle->GetProcessManager();
    G4String particleName = particle->GetParticleName();

    if (particleName == "gamma") {
      // gamma

      G4ComptonScattering* compton = new G4ComptonScattering();
      MyKleinNishinaCompton* comptonModel =
        new MyKleinNishinaCompton(fDetector);
      comptonModel->SetCSFactor(1000.);
      compton->SetEmModel(comptonModel );

      pmanager->AddDiscreteProcess(new G4PhotoElectricEffect);
      pmanager->AddDiscreteProcess(compton);
      pmanager->AddDiscreteProcess(new G4GammaConversion);

    } else if (particleName == "e-") {
      //electron

      G4eIonisation* eIoni = new G4eIonisation();
      eIoni->SetEmModel(new MyMollerBhabhaModel, 1);
      eIoni->SetStepFunction(0.2, 10*um);

      G4CoulombScattering* cs = new G4CoulombScattering();
      G4eCoulombScatteringModel* csmod = new G4eCoulombScatteringModel();
      cs->SetEmModel(csmod, 1);
      pmanager->AddProcess(cs,     -1, -1, 1);
      pmanager->AddProcess(eIoni,  -1,  1, 2);

    } else if (particleName == "e+") {
      //positron

      G4eIonisation* pIoni = new G4eIonisation();
      pIoni->SetEmModel(new MyMollerBhabhaModel);

      pmanager->AddProcess(new G4CoulombScattering,  -1, -1, 1);
      pmanager->AddProcess(pIoni,                    -1,  1, 2);
      pmanager->AddProcess(new G4eplusAnnihilation,   0,- 1, 3);

    } else if( particleName == "proton" ) {
      //proton
      pmanager->AddProcess(new G4CoulombScattering,  -1, -1, 1);
      pmanager->AddProcess(new G4hIonisation,        -1,  1, 2);
    }
  }
}

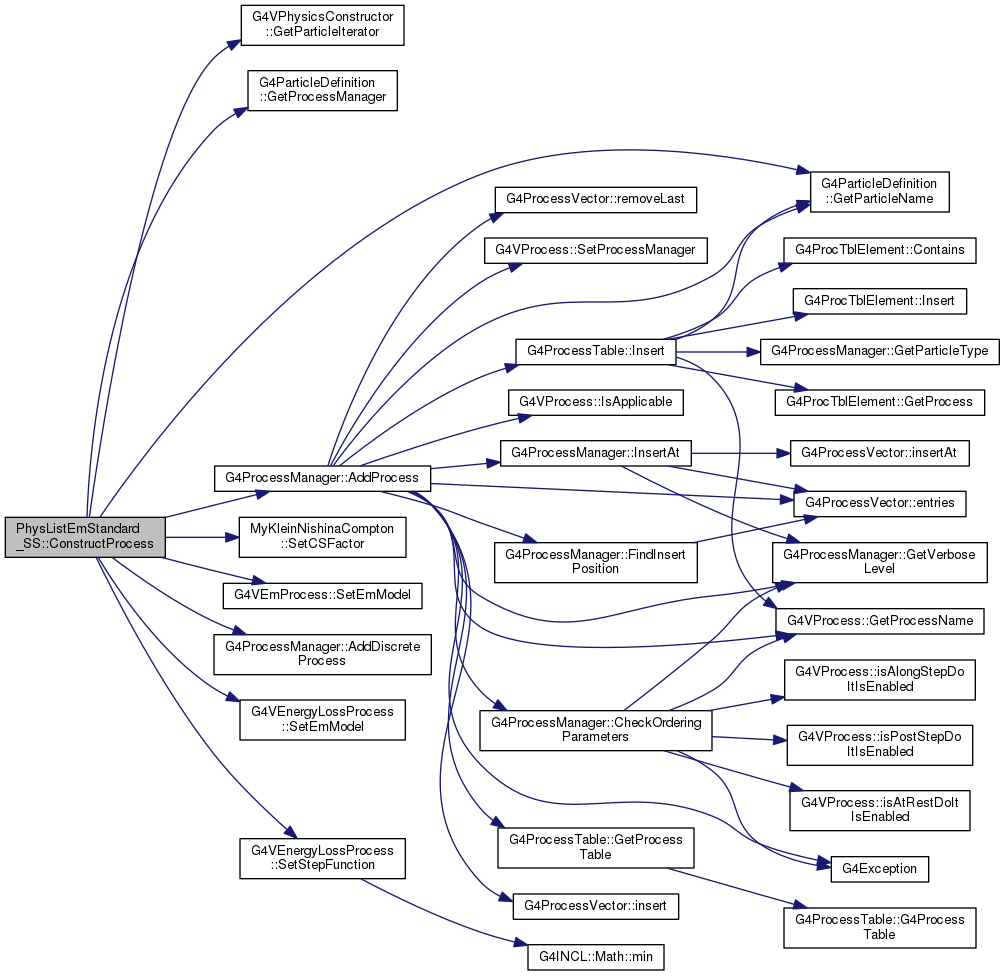

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• source/geant4.10.03.p02/examples/extended/medical/fanoCavity/include/PhysListEmStandard_SS.hh
• source/geant4.10.03.p02/examples/extended/medical/fanoCavity2/include/PhysListEmStandard_SS.hh
• source/geant4.10.03.p02/examples/extended/medical/fanoCavity/src/PhysListEmStandard_SS.cc
• source/geant4.10.03.p02/examples/extended/medical/fanoCavity2/src/PhysListEmStandard_SS.cc
