PhysListEmStandard_GS Class Reference

#include <PhysListEmStandard_GS.hh>

Inheritance diagram for PhysListEmStandard_GS:

Collaboration diagram for PhysListEmStandard_GS:

Public Member Functions
	PhysListEmStandard_GS (const G4String &name, DetectorConstruction *det)
	~PhysListEmStandard_GS ()
virtual void	ConstructParticle ()
virtual void	ConstructProcess ()
	PhysListEmStandard_GS (const G4String &name)
	~PhysListEmStandard_GS ()
virtual void	ConstructParticle ()
virtual void	ConstructProcess ()
Public Member Functions inherited from G4VPhysicsConstructor
	G4VPhysicsConstructor (const G4String &="")
	G4VPhysicsConstructor (const G4String &name, G4int physics_type)
virtual	~G4VPhysicsConstructor ()
void	SetPhysicsName (const G4String &="")
const G4String &	GetPhysicsName () const
void	SetPhysicsType (G4int)
G4int	GetPhysicsType () const
void	SetVerboseLevel (G4int value)
G4int	GetVerboseLevel () const
G4int	GetInstanceID () const

Additional Inherited Members
Static Public Member Functions inherited from G4VPhysicsConstructor
static const G4VPCManager &	GetSubInstanceManager ()
Protected Member Functions inherited from G4VPhysicsConstructor
G4bool	RegisterProcess (G4VProcess *process, G4ParticleDefinition *particle)
G4ParticleTable::G4PTblDicIterator *	GetParticleIterator () const
Protected Attributes inherited from G4VPhysicsConstructor
G4int	verboseLevel
G4String	namePhysics
G4int	typePhysics
G4ParticleTable *	theParticleTable
G4int	g4vpcInstanceID
Static Protected Attributes inherited from G4VPhysicsConstructor
static G4RUN_DLL G4VPCManager	subInstanceManager

Detailed Description

Definition at line 44 of file PhysListEmStandard_GS.hh.

Constructor & Destructor Documentation

PhysListEmStandard_GS::PhysListEmStandard_GS	(	const G4String &	name,
		DetectorConstruction *	det
	)

Definition at line 64 of file PhysListEmStandard_GS.cc.

: G4VPhysicsConstructor(name), fDetector(det)
{
  G4EmParameters* param = G4EmParameters::Instance();
  param->SetDefaults();
  param->SetVerbose(1);
  param->SetMinEnergy(100*eV);
  param->SetMaxEnergy(10*GeV);
  param->SetNumberOfBinsPerDecade(20);
  param->SetLowestElectronEnergy(1*eV);
  param->SetBuildCSDARange(true);
  param->SetMaxEnergyForCSDARange(10*GeV);
  param->SetMscStepLimitType(fUseDistanceToBoundary);
  SetPhysicsType(bElectromagnetic);
}

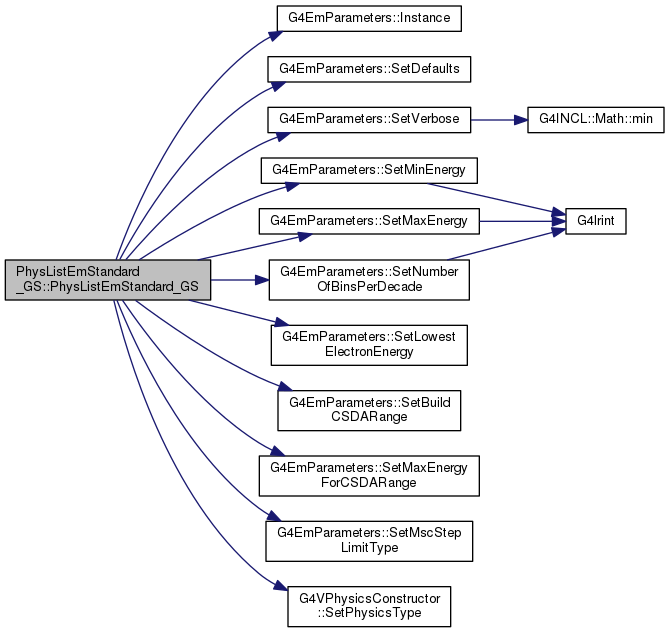

Here is the call graph for this function:

PhysListEmStandard_GS::~PhysListEmStandard_GS

(

)

Definition at line 83 of file PhysListEmStandard_GS.cc.

{}

PhysListEmStandard_GS::PhysListEmStandard_GS

(

const G4String &

name

)

Definition at line 62 of file PhysListEmStandard_GS.cc.

: G4VPhysicsConstructor(name)
{
  G4EmParameters* param = G4EmParameters::Instance();
  param->SetDefaults();
  param->SetVerbose(1);
  param->SetMinEnergy(100*eV);
  param->SetMaxEnergy(10*GeV);
  param->SetNumberOfBinsPerDecade(20);
  param->SetLowestElectronEnergy(1*eV);
  param->SetBuildCSDARange(true);
  param->SetMaxEnergyForCSDARange(10*GeV);
  param->SetMscStepLimitType(fUseDistanceToBoundary);
  SetPhysicsType(bElectromagnetic);
}

Here is the call graph for this function:

PhysListEmStandard_GS::~PhysListEmStandard_GS

(

)

Member Function Documentation

virtual void PhysListEmStandard_GS::ConstructParticle ( void  )

inlinevirtual

Implements G4VPhysicsConstructor.

Definition at line 50 of file PhysListEmStandard_GS.hh.

{};

virtual void PhysListEmStandard_GS::ConstructParticle ( void  )

inlinevirtual

Implements G4VPhysicsConstructor.

Definition at line 52 of file PhysListEmStandard_GS.hh.

{};

virtual void PhysListEmStandard_GS::ConstructProcess ( )

virtual

Implements G4VPhysicsConstructor.

void PhysListEmStandard_GS::ConstructProcess ( void  )

virtual

Implements G4VPhysicsConstructor.

Definition at line 88 of file PhysListEmStandard_GS.cc.

{
  // Add standard EM Processes
  //

  auto particleIterator=GetParticleIterator();
  particleIterator->reset();
  while( (*particleIterator)() ){
    G4ParticleDefinition* particle = particleIterator->value();
    G4ProcessManager* pmanager = particle->GetProcessManager();
    G4String particleName = particle->GetParticleName();

    if (particleName == "gamma") {
      // gamma

      G4ComptonScattering* compton = new G4ComptonScattering();
      MyKleinNishinaCompton* comptonModel =
        new MyKleinNishinaCompton(fDetector);
      comptonModel->SetCSFactor(1000.);
      compton->SetEmModel(comptonModel );

      pmanager->AddDiscreteProcess(new G4PhotoElectricEffect);
      pmanager->AddDiscreteProcess(compton);
      pmanager->AddDiscreteProcess(new G4GammaConversion);

    } else if (particleName == "e-") {
      //electron

      G4eMultipleScattering* eMsc = new G4eMultipleScattering();
      eMsc->AddEmModel(1, new G4GoudsmitSaundersonMscModel);

      G4eIonisation* eIoni = new G4eIonisation();
      eIoni->SetEmModel(new MyMollerBhabhaModel);
      eIoni->SetStepFunction(0.2, 10*um);

      pmanager->AddProcess(eMsc,                      -1, 1, 1);
      pmanager->AddProcess(eIoni,                     -1, 2, 2);

    } else if (particleName == "e+") {
      //positron

      G4eMultipleScattering* pMsc = new G4eMultipleScattering();
      pMsc->AddEmModel(1, new G4GoudsmitSaundersonMscModel);

      G4eIonisation* pIoni = new G4eIonisation();
      pIoni->SetEmModel(new MyMollerBhabhaModel);

      pmanager->AddProcess(pMsc,                      -1, 1, 1);
      pmanager->AddProcess(pIoni,                     -1, 2, 2);
      pmanager->AddProcess(new G4eplusAnnihilation,    0,-1, 3);

    } else if( particleName == "proton" ) {
      //proton
      pmanager->AddProcess(new G4hMultipleScattering, -1, 1, 1);
      pmanager->AddProcess(new G4hIonisation,         -1, 2, 2);
    }
  }
}

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• source/geant4.10.03.p02/examples/extended/medical/fanoCavity/include/PhysListEmStandard_GS.hh
• source/geant4.10.03.p02/examples/extended/medical/fanoCavity2/include/PhysListEmStandard_GS.hh
• source/geant4.10.03.p02/examples/extended/medical/fanoCavity/src/PhysListEmStandard_GS.cc
• source/geant4.10.03.p02/examples/extended/medical/fanoCavity2/src/PhysListEmStandard_GS.cc
