IORTDetectorSD Class Reference

#include <IORTDetectorSD.hh>

Inheritance diagram for IORTDetectorSD:

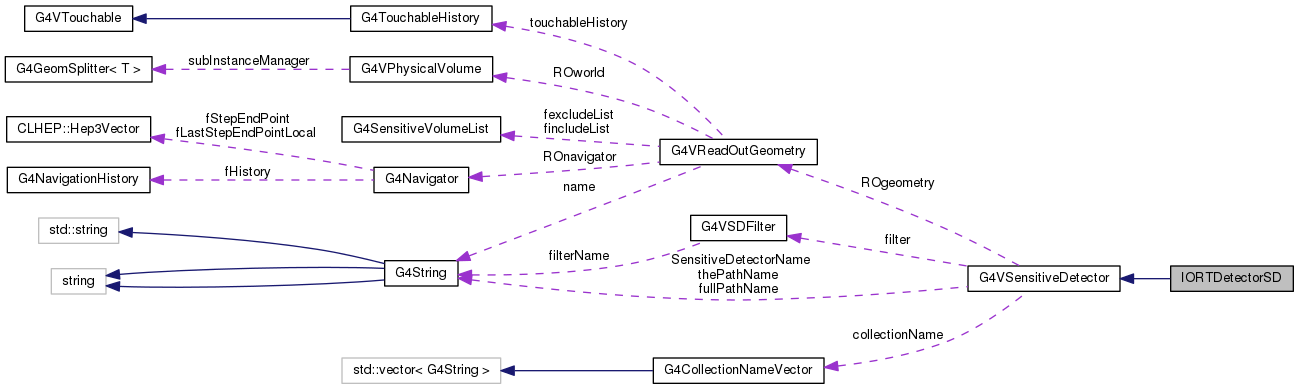

Collaboration diagram for IORTDetectorSD:

Public Member Functions
	IORTDetectorSD (G4String name)
	~IORTDetectorSD ()
void	Initialize (G4HCofThisEvent *)
G4bool	ProcessHits (G4Step *aStep, G4TouchableHistory *ROhist)
void	EndOfEvent (G4HCofThisEvent *HCE)
Public Member Functions inherited from G4VSensitiveDetector
	G4VSensitiveDetector (G4String name)
	G4VSensitiveDetector (const G4VSensitiveDetector &right)
virtual	~G4VSensitiveDetector ()
G4VSensitiveDetector &	operator= (const G4VSensitiveDetector &right)
G4int	operator== (const G4VSensitiveDetector &right) const
G4int	operator!= (const G4VSensitiveDetector &right) const
virtual void	clear ()
virtual void	DrawAll ()
virtual void	PrintAll ()
G4bool	Hit (G4Step *aStep)
void	SetROgeometry (G4VReadOutGeometry *value)
void	SetFilter (G4VSDFilter *value)
G4int	GetNumberOfCollections () const
G4String	GetCollectionName (G4int id) const
void	SetVerboseLevel (G4int vl)
void	Activate (G4bool activeFlag)
G4bool	isActive () const
G4String	GetName () const
G4String	GetPathName () const
G4String	GetFullPathName () const
G4VReadOutGeometry *	GetROgeometry () const
G4VSDFilter *	GetFilter () const
virtual G4VSensitiveDetector *	Clone () const

Public Attributes
std::ofstream	ofs

Additional Inherited Members
Protected Member Functions inherited from G4VSensitiveDetector
virtual G4int	GetCollectionID (G4int i)
Protected Attributes inherited from G4VSensitiveDetector
G4CollectionNameVector	collectionName
G4String	SensitiveDetectorName
G4String	thePathName
G4String	fullPathName
G4int	verboseLevel
G4bool	active
G4VReadOutGeometry *	ROgeometry
G4VSDFilter *	filter

Detailed Description

Definition at line 50 of file IORTDetectorSD.hh.

Constructor & Destructor Documentation

IORTDetectorSD::IORTDetectorSD

(

G4String

name

)

Definition at line 53 of file IORTDetectorSD.cc.

                                            :
    G4VSensitiveDetector(dname)
{
    G4String HCname;
    collectionName.insert(HCname="IORTDetectorHitsCollection");
    HitsCollection = NULL;
    sensitiveDetectorName = dname;
}

Here is the call graph for this function:

IORTDetectorSD::~IORTDetectorSD

(

)

Definition at line 63 of file IORTDetectorSD.cc.

{
}

Member Function Documentation

void IORTDetectorSD::EndOfEvent ( G4HCofThisEvent *  HCE )

virtual

Reimplemented from G4VSensitiveDetector.

Definition at line 195 of file IORTDetectorSD.cc.

{
  static G4int HCID = -1;
  if(HCID < 0)
    {
      HCID = GetCollectionID(0);
    }

  HCE -> AddHitsCollection(HCID,HitsCollection);
}

Here is the call graph for this function:

void IORTDetectorSD::Initialize ( G4HCofThisEvent *  )

virtual

Reimplemented from G4VSensitiveDetector.

Definition at line 68 of file IORTDetectorSD.cc.

{
    HitsCollection = new IORTDetectorHitsCollection(sensitiveDetectorName,
        collectionName[0]);
}

G4bool IORTDetectorSD::ProcessHits ( G4Step *  aStep, G4TouchableHistory *  ROhist  )

virtual

Implements G4VSensitiveDetector.

Definition at line 75 of file IORTDetectorSD.cc.

{
    //The code doesn't seem to get here if we use the IAEA geometry. FIXME
    if(!ROhist)
    return false;

    if (aStep -> GetPreStepPoint() -> GetPhysicalVolume() -> GetName() != "DetectorPhys")
    return false;
    // Get kinetic energy
    G4Track * theTrack = aStep  ->  GetTrack();
    //G4double kineticEnergy =  theTrack -> GetKineticEnergy();

    G4ParticleDefinition *particleDef = theTrack -> GetDefinition();
    //Get particle name
    G4String particleName =  particleDef -> GetParticleName();
    // G4cout << particleDef -> GetParticleType() << '\n';
    // Get unique track_id (in an event)
    G4int trackID = theTrack -> GetTrackID();

    G4double energyDeposit = aStep -> GetTotalEnergyDeposit();

    G4int Z = particleDef-> GetAtomicNumber();
    //G4int A = particleDef-> GetAtomicMass();

    // Read voxel indexes: i is the x index, k is the z index
    G4int k  = ROhist -> GetReplicaNumber(0);
    G4int i  = ROhist -> GetReplicaNumber(2);
    G4int j  = ROhist -> GetReplicaNumber(1);

    IORTAnalysisManager* analysis = IORTAnalysisManager::GetInstance();

    IORTMatrix* matrix = IORTMatrix::GetInstance();

    if (matrix)
    {

    // Increment Fluences & accumulate energy spectra
    // Hit voxels are marked with track_id throught hitTrack matrix
    G4int* hitTrack = matrix -> GetHitTrack(i,j,k); // hitTrack MUST BE cleared at every eventAction!
    if ( *hitTrack != trackID )
    {
        *hitTrack = trackID;
        /*
         * Fill FLUENCE data for every single nuclide
         * Exclude e-, neutrons, gamma, ...
         */
        if ( Z >= 1)
            matrix -> Fill(trackID, particleDef, i, j, k, 0, true);
        /*
        // Fragments kinetic energy (ntuple)
        if (trackID !=1 && Z>=1)
        {
        // First step kinetic energy for every fragment
        analysis -> FillKineticFragmentTuple(i, j, k, A, Z, kineticEnergy/MeV);
        }
        // Kinetic energy spectra for primary particles

        if ( trackID == 1 && i == 0)
        {
        // First step kinetic energy for primaries only
        analysis -> FillKineticEnergyPrimaryNTuple(i, j, k, kineticEnergy/MeV);
        }
        */
    }

    if(energyDeposit != 0)
    {
/*
 *  This method will fill a dose matrix for every single nuclide.
 *  A method of the IORTMatrix class (StoreDoseFluenceAscii())
 *  is called automatically at the end of main (or via the macro command /analysis/writeDoseFile.
 *  It permits to store all dose/fluence data into a single plane ASCII file.
*/
        // if (A==1 && Z==1) // primary and sec. protons
        if ( Z>=1 )    //  exclude e-, neutrons, gamma, ...
            matrix -> Fill(trackID, particleDef, i, j, k, energyDeposit);
        /*
         * Create a hit with the information of position is in the detector
         */
        IORTDetectorHit* detectorHit = new IORTDetectorHit();
        detectorHit -> SetEdepAndPosition(i, j, k, energyDeposit);
        HitsCollection -> insert(detectorHit);
    }
    }

    if(energyDeposit != 0)
      {
    if(trackID != 1)
      {
        if (particleName == "proton")
        analysis -> SecondaryProtonEnergyDeposit(i, energyDeposit/MeV);

        else if (particleName == "neutron")
        analysis -> SecondaryNeutronEnergyDeposit(i, energyDeposit/MeV);

        else if (particleName == "alpha")
        analysis -> SecondaryAlphaEnergyDeposit(i, energyDeposit/MeV);

        else if (particleName == "gamma")
        analysis -> SecondaryGammaEnergyDeposit(i, energyDeposit/MeV);

        else if (particleName == "e-")
        analysis -> SecondaryElectronEnergyDeposit(i, energyDeposit/MeV);

        else if (particleName == "triton")
        analysis -> SecondaryTritonEnergyDeposit(i, energyDeposit/MeV);

        else if (particleName == "deuteron")
        analysis -> SecondaryDeuteronEnergyDeposit(i, energyDeposit/MeV);

        else if (particleName == "pi+" || particleName == "pi-" ||
             particleName == "pi0")
        analysis -> SecondaryPionEnergyDeposit(i, energyDeposit/MeV);
    }
    }

    return true;
}

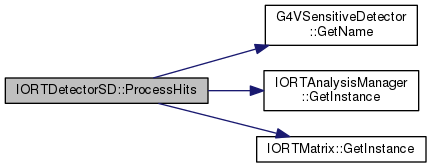

Here is the call graph for this function:

Member Data Documentation

std::ofstream IORTDetectorSD::ofs

Definition at line 56 of file IORTDetectorSD.hh.

---

The documentation for this class was generated from the following files:

• source/geant4.10.03.p02/examples/advanced/iort_therapy/include/IORTDetectorSD.hh
• source/geant4.10.03.p02/examples/advanced/iort_therapy/src/IORTDetectorSD.cc
