G4RToEConvForProton Class Reference

#include <G4RToEConvForProton.hh>

Inheritance diagram for G4RToEConvForProton:
Collaboration diagram for G4RToEConvForProton:

Public Member Functions

 G4RToEConvForProton ()

virtual ~G4RToEConvForProton ()

virtual G4double Convert (G4double rangeCut, const G4Material *material)

virtual void Reset ()

- Public Member Functions inherited from G4VRangeToEnergyConverter
 G4VRangeToEnergyConverter ()

 G4VRangeToEnergyConverter (const G4VRangeToEnergyConverter &right)

G4VRangeToEnergyConverteroperator= (const G4VRangeToEnergyConverter &right)

virtual ~G4VRangeToEnergyConverter ()

G4int operator== (const G4VRangeToEnergyConverter &right) const

G4int operator!= (const G4VRangeToEnergyConverter &right) const

const G4ParticleDefinitionGetParticleType () const

const G4PhysicsTableGetLossTable () const

void SetVerboseLevel (G4int value)

G4int GetVerboseLevel () const


Protected Member Functions

virtual G4double ComputeLoss (G4double AtomicNumber, G4double KineticEnergy)

- Protected Member Functions inherited from G4VRangeToEnergyConverter
virtual void BuildLossTable ()

virtual void BuildRangeVector (const G4Material *aMaterial, G4RangeVector *rangeVector)

G4double ConvertCutToKineticEnergy (G4RangeVector *theRangeVector, G4double theCutInLength, size_t materialIndex) const


Protected Attributes

G4double Mass

G4double Z

G4double tau0

G4double taul

G4double taum

G4double ionpot

G4double ca

G4double cba

G4double cc

- Protected Attributes inherited from G4VRangeToEnergyConverter
G4double fMaxEnergyCut

const G4ParticleDefinitiontheParticle

G4LossTabletheLossTable

G4int NumberOfElements

const G4int TotBin

std::vector< G4RangeVector * > fRangeVectorStore


Additional Inherited Members

- Static Public Member Functions inherited from G4VRangeToEnergyConverter
static void SetEnergyRange (G4double lowedge, G4double highedge)

static G4double GetLowEdgeEnergy ()

static G4double GetHighEdgeEnergy ()

static G4double GetMaxEnergyCut ()

static void SetMaxEnergyCut (G4double value)

- Protected Types inherited from G4VRangeToEnergyConverter
typedef G4PhysicsTable G4LossTable

typedef G4PhysicsLogVector G4LossVector

typedef G4PhysicsLogVector G4RangeVector

- Static Protected Attributes inherited from G4VRangeToEnergyConverter
static G4double LowestEnergy = 0.99e-3*MeV

static G4double HighestEnergy = 100.0e6*MeV

static G4double MaxEnergyCut = 10.0*GeV


Detailed Description

Definition at line 51 of file G4RToEConvForProton.hh.

Constructor & Destructor Documentation

G4RToEConvForProton::G4RToEConvForProton ( )

Definition at line 44 of file G4RToEConvForProton.cc.

46  Mass(0.0),
47  Z(-1.),
48  tau0(0.0), taul(0.0), taum(0.0),
49  ionpot(0.0),
50  ca(0.0), cba(0.0), cc(0.0)
51 {
53  if (theParticle ==0) {
54 #ifdef G4VERBOSE
55  if (GetVerboseLevel()>0) {
56  G4cout << " G4RToEConvForProton::G4RToEConvForProton() ";
57  G4cout << " proton is not defined !!" << G4endl;
58  }
59 #endif
60  } else {
62  }
63 }
G4ParticleDefinition * FindParticle(G4int PDGEncoding)
G4GLOB_DLL std::ostream G4cout
G4double GetPDGMass() const
static G4ParticleTable * GetParticleTable()
#define G4endl
Definition: G4ios.hh:61
const G4ParticleDefinition * theParticle

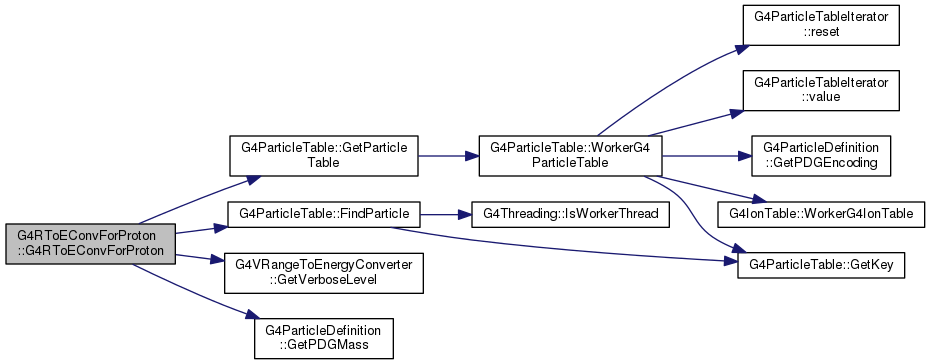

Here is the call graph for this function:

G4RToEConvForProton::~G4RToEConvForProton ( )
virtual

Definition at line 65 of file G4RToEConvForProton.cc.

66 {
67 }

Member Function Documentation

G4double G4RToEConvForProton::ComputeLoss ( G4double  AtomicNumber,
G4double  KineticEnergy
)
protectedvirtual

Implements G4VRangeToEnergyConverter.

Definition at line 81 of file G4RToEConvForProton.cc.

83 {
84  // calculate dE/dx
85  const G4double z2Particle = 1.0;
86
87  if( std::fabs(AtomicNumber-Z)>0.1 ){
88  // recalculate constants
89  Z = AtomicNumber;
90  G4double Z13 = std::exp(std::log(Z)/3.);
91  tau0 = 0.1*Z13*MeV/proton_mass_c2;
92  taum = 0.035*Z13*MeV/proton_mass_c2;
93  taul = 2.*MeV/proton_mass_c2;
94  ionpot = 1.6e-5*MeV*std::exp(0.9*std::log(Z));
95  cc = (taul+1.)*(taul+1.)*std::log(2.*electron_mass_c2*taul*(taul+2.)/ionpot)/(taul*(taul+2.))-1.;
96  cc = 2.*twopi_mc2_rcl2*Z*cc*std::sqrt(taul);
97  ca = cc/((1.-0.5*std::sqrt(tau0/taum))*tau0);
98  cba = -0.5/std::sqrt(taum);
99  }
100
101  G4double tau = KineticEnergy/Mass;
102  G4double dEdx;
103  if ( tau <= tau0 ) {
104  dEdx = ca*(std::sqrt(tau)+cba*tau);
105  } else {
106  if( tau <= taul ) {
107  dEdx = cc/std::sqrt(tau);
108  } else {
109  dEdx = (tau+1.)*(tau+1.)*
110  std::log(2.*electron_mass_c2*tau*(tau+2.)/ionpot)/(tau*(tau+2.))-1.;
111  dEdx = 2.*twopi_mc2_rcl2*Z*dEdx;
112  }
113  }
114  return dEdx*z2Particle ;
115 }
float proton_mass_c2
Definition: hepunit.py:275
float electron_mass_c2
Definition: hepunit.py:274
static constexpr double MeV
Definition: G4SIunits.hh:214
double G4double
Definition: G4Types.hh:76
G4double G4RToEConvForProton::Convert ( G4double  rangeCut,
const G4Material material
)
virtual

Reimplemented from G4VRangeToEnergyConverter.

Definition at line 70 of file G4RToEConvForProton.cc.

71 {
72  // Simple formula
73  // range = Ekin/(100*keV)*(1*mm);
74  return (rangeCut/(1.0*mm)) * (100.0*keV);
75 }
static constexpr double mm
Definition: G4SIunits.hh:115
static constexpr double keV
Definition: G4SIunits.hh:216
void G4RToEConvForProton::Reset ( )
virtual

Reimplemented from G4VRangeToEnergyConverter.

Definition at line 121 of file G4RToEConvForProton.cc.

122 {
123  // do nothing because loss tables and range vectors are not used
124  return;
125 }

Member Data Documentation

G4double G4RToEConvForProton::ca
protected

Definition at line 78 of file G4RToEConvForProton.hh.

G4double G4RToEConvForProton::cba
protected

Definition at line 79 of file G4RToEConvForProton.hh.

G4double G4RToEConvForProton::cc
protected

Definition at line 80 of file G4RToEConvForProton.hh.

G4double G4RToEConvForProton::ionpot
protected

Definition at line 77 of file G4RToEConvForProton.hh.

G4double G4RToEConvForProton::Mass
protected

Definition at line 72 of file G4RToEConvForProton.hh.

G4double G4RToEConvForProton::tau0
protected

Definition at line 74 of file G4RToEConvForProton.hh.

G4double G4RToEConvForProton::taul
protected

Definition at line 75 of file G4RToEConvForProton.hh.

G4double G4RToEConvForProton::taum
protected

Definition at line 76 of file G4RToEConvForProton.hh.

G4double G4RToEConvForProton::Z
protected

Definition at line 73 of file G4RToEConvForProton.hh.


The documentation for this class was generated from the following files:
