G4RTRun Class Reference

#include <G4RTRun.hh>

Inheritance diagram for G4RTRun:

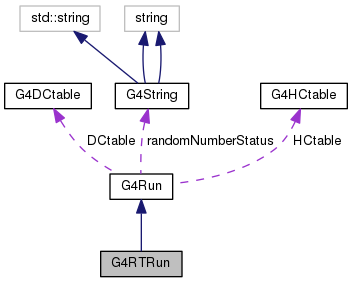

Collaboration diagram for G4RTRun:

Public Member Functions
	G4RTRun ()
virtual	~G4RTRun ()
virtual void	RecordEvent (const G4Event *)
virtual void	Merge (const G4Run *)
G4THitsMap< G4Colour > *	GetMap () const
Public Member Functions inherited from G4Run
	G4Run ()
virtual	~G4Run ()
G4int	GetRunID () const
G4int	GetNumberOfEvent () const
G4int	GetNumberOfEventToBeProcessed () const
const G4HCtable *	GetHCtable () const
const G4DCtable *	GetDCtable () const
const G4String &	GetRandomNumberStatus () const
void	SetRunID (G4int id)
void	SetNumberOfEventToBeProcessed (G4int n_ev)
void	SetHCtable (G4HCtable *HCtbl)
void	SetDCtable (G4DCtable *DCtbl)
void	SetRandomNumberStatus (G4String &st)
void	StoreEvent (G4Event *evt)
const std::vector< const G4Event * > *	GetEventVector () const

Additional Inherited Members
Protected Attributes inherited from G4Run
G4int	runID
G4int	numberOfEvent
G4int	numberOfEventToBeProcessed
G4HCtable *	HCtable
G4DCtable *	DCtable
G4String	randomNumberStatus
std::vector< const G4Event * > *	eventVector

Detailed Description

Definition at line 51 of file G4RTRun.hh.

Constructor & Destructor Documentation

G4RTRun::G4RTRun

(

)

Definition at line 48 of file G4RTRun.cc.

{
  colorMap = new G4THitsMap<G4Colour>("G4RTRun","ColorMap");

  backgroundColour = G4TheMTRayTracer::theInstance->backgroundColour;
  lightDirection = G4TheMTRayTracer::theInstance->lightDirection;
  attenuationLength = G4TheMTRayTracer::theInstance->attenuationLength;
}

G4RTRun::~G4RTRun ( )

virtual

Definition at line 57 of file G4RTRun.cc.

{
  colorMap->clear();
  delete colorMap;
}

Here is the call graph for this function:

Member Function Documentation

G4THitsMap<G4Colour>* G4RTRun::GetMap ( ) const

inline

Definition at line 64 of file G4RTRun.hh.

{ return colorMap; }

Here is the caller graph for this function:

void G4RTRun::Merge ( const G4Run *  aLocalRun )

virtual

Reimplemented from G4Run.

Definition at line 90 of file G4RTRun.cc.

{
  const G4RTRun* theLocalRun = static_cast<const G4RTRun*>(aLocalRun);
  if(theLocalRun) *(colorMap) += *(theLocalRun->colorMap);
  G4Run::Merge(aLocalRun);
}

Here is the call graph for this function:

void G4RTRun::RecordEvent ( const G4Event *  evt )

virtual

Reimplemented from G4Run.

Definition at line 63 of file G4RTRun.cc.

{
  G4TrajectoryContainer * trajectoryContainer = evt->GetTrajectoryContainer();
  if(!trajectoryContainer) return;
  G4RayTrajectory* trajectory = static_cast<G4RayTrajectory*>( (*trajectoryContainer)[0] );
  if(!trajectory) return;

  G4int nPoint = trajectory->GetPointEntries();
  if(nPoint==0) return;

  G4int evId = evt->GetEventID();
  G4Colour initialCol(backgroundColour);
  if( trajectory->GetPointC(nPoint-1)->GetPostStepAtt() )
  { initialCol = GetSurfaceColour(trajectory->GetPointC(nPoint-1)); }
  G4Colour rayColour = Attenuate(trajectory->GetPointC(nPoint-1),initialCol);

  for(int i=nPoint-2;i>=0;i--)
  {
    G4Colour surfaceCol = GetSurfaceColour(trajectory->GetPointC(i));
    G4double weight = 1.0 - surfaceCol.GetAlpha();
    G4Colour mixedCol = GetMixedColour(rayColour,surfaceCol,weight);
    rayColour = Attenuate(trajectory->GetPointC(i),mixedCol);
  }

  colorMap->add(evId,rayColour);
}

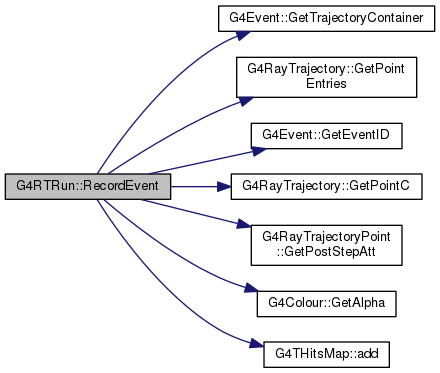

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• source/geant4.10.03.p02/source/visualization/RayTracer/include/G4RTRun.hh
• source/geant4.10.03.p02/source/visualization/RayTracer/src/G4RTRun.cc
