G4RPGAntiSigmaPlusInelastic Class Reference

#include <G4RPGAntiSigmaPlusInelastic.hh>

Inheritance diagram for G4RPGAntiSigmaPlusInelastic:
Inheritance graph
[legend]
Collaboration diagram for G4RPGAntiSigmaPlusInelastic:
Collaboration graph
[legend]

Public Member Functions

 G4RPGAntiSigmaPlusInelastic ()

 ~G4RPGAntiSigmaPlusInelastic ()

G4HadFinalState * ApplyYourself (const G4HadProjectile &aTrack, G4Nucleus &targetNucleus)

- Public Member Functions inherited from G4RPGInelastic
 G4RPGInelastic (const G4String &modelName="RPGInelastic")

virtual ~G4RPGInelastic ()

- Public Member Functions inherited from G4HadronicInteraction
 G4HadronicInteraction (const G4String &modelName="HadronicModel")

virtual ~G4HadronicInteraction ()

virtual G4double SampleInvariantT (const G4ParticleDefinition *p, G4double plab, G4int Z, G4int A)

virtual G4bool IsApplicable (const G4HadProjectile &aTrack, G4Nucleus &targetNucleus)

G4double GetMinEnergy () const

G4double GetMinEnergy (const G4Material *aMaterial, const G4Element *anElement) const

void SetMinEnergy (G4double anEnergy)

void SetMinEnergy (G4double anEnergy, const G4Element *anElement)

void SetMinEnergy (G4double anEnergy, const G4Material *aMaterial)

G4double GetMaxEnergy () const

G4double GetMaxEnergy (const G4Material *aMaterial, const G4Element *anElement) const

void SetMaxEnergy (const G4double anEnergy)

void SetMaxEnergy (G4double anEnergy, const G4Element *anElement)

void SetMaxEnergy (G4double anEnergy, const G4Material *aMaterial)

G4int GetVerboseLevel () const

void SetVerboseLevel (G4int value)

const G4String & GetModelName () const

void DeActivateFor (const G4Material *aMaterial)

void ActivateFor (const G4Material *aMaterial)

void DeActivateFor (const G4Element *anElement)

void ActivateFor (const G4Element *anElement)

G4bool IsBlocked (const G4Material *aMaterial) const

G4bool IsBlocked (const G4Element *anElement) const

void SetRecoilEnergyThreshold (G4double val)

G4double GetRecoilEnergyThreshold () const

virtual const std::pair
< G4double, G4double > 		GetFatalEnergyCheckLevels () const

virtual std::pair< G4double,
G4double > 		GetEnergyMomentumCheckLevels () const

void SetEnergyMomentumCheckLevels (G4double relativeLevel, G4double absoluteLevel)

virtual void ModelDescription (std::ostream &outFile) const

virtual void BuildPhysicsTable (const G4ParticleDefinition &)

virtual void InitialiseModel ()


Additional Inherited Members

- Protected Types inherited from G4RPGInelastic
enum  {
  pi0, pip, pim, kp,
  km, k0, k0b, pro,
  neu, lam, sp, s0,
  sm, xi0, xim, om,
  ap, an
}

- Protected Member Functions inherited from G4RPGInelastic
G4double Pmltpc (G4int np, G4int nm, G4int nz, G4int n, G4double b, G4double c)

G4int Factorial (G4int n)

G4bool MarkLeadingStrangeParticle (const G4ReactionProduct &currentParticle, const G4ReactionProduct &targetParticle, G4ReactionProduct &leadParticle)

void SetUpPions (const G4int np, const G4int nm, const G4int nz, G4FastVector< G4ReactionProduct, 256 > &vec, G4int &vecLen)

void GetNormalizationConstant (const G4double availableEnergy, G4double &n, G4double &anpn)

void CalculateMomenta (G4FastVector< G4ReactionProduct, 256 > &vec, G4int &vecLen, const G4HadProjectile *originalIncident, const G4DynamicParticle *originalTarget, G4ReactionProduct &modifiedOriginal, G4Nucleus &targetNucleus, G4ReactionProduct &currentParticle, G4ReactionProduct &targetParticle, G4bool &incidentHasChanged, G4bool &targetHasChanged, G4bool quasiElastic)

void SetUpChange (G4FastVector< G4ReactionProduct, 256 > &vec, G4int &vecLen, G4ReactionProduct &currentParticle, G4ReactionProduct &targetParticle, G4bool &incidentHasChanged)

std::pair< G4int, G4double > interpolateEnergy (G4double ke) const

G4int sampleFlat (std::vector< G4double > sigma) const

void CheckQnums (G4FastVector< G4ReactionProduct, 256 > &vec, G4int &vecLen, G4ReactionProduct &currentParticle, G4ReactionProduct &targetParticle, G4double Q, G4double B, G4double S)

- Protected Member Functions inherited from G4HadronicInteraction
void SetModelName (const G4String &nam)

G4bool IsBlocked () const

void Block ()

- Protected Attributes inherited from G4RPGInelastic
G4RPGFragmentation fragmentation

G4RPGTwoCluster twoCluster

G4RPGPionSuppression pionSuppression

G4RPGStrangeProduction strangeProduction

G4RPGTwoBody twoBody

G4ParticleDefinition * particleDef [18]

- Protected Attributes inherited from G4HadronicInteraction
G4HadFinalState theParticleChange

G4int verboseLevel

G4double theMinEnergy

G4double theMaxEnergy

G4bool isBlocked


Detailed Description

Definition at line 42 of file G4RPGAntiSigmaPlusInelastic.hh.

Constructor & Destructor Documentation

G4RPGAntiSigmaPlusInelastic::G4RPGAntiSigmaPlusInelastic ( )
inline

Definition at line 46 of file G4RPGAntiSigmaPlusInelastic.hh.

46  : G4RPGInelastic("G4RPGAntiSigmaPlusInelastic")
47  {
48  SetMinEnergy( 0.0 );
49  SetMaxEnergy( 25.*CLHEP::GeV );
50  }
G4HadronicInteraction::SetMinEnergy
void SetMinEnergy(G4double anEnergy)
Definition: G4HadronicInteraction.hh:90
CLHEP::GeV
static constexpr double GeV
Definition: SystemOfUnits.h:177
G4RPGInelastic::G4RPGInelastic
G4RPGInelastic(const G4String &modelName="RPGInelastic")
Definition: G4RPGInelastic.cc:39
G4HadronicInteraction::SetMaxEnergy
void SetMaxEnergy(const G4double anEnergy)
Definition: G4HadronicInteraction.hh:103

Here is the call graph for this function:

G4RPGAntiSigmaPlusInelastic::~G4RPGAntiSigmaPlusInelastic ( )
inline

Definition at line 52 of file G4RPGAntiSigmaPlusInelastic.hh.

52 { }

Member Function Documentation

G4HadFinalState * G4RPGAntiSigmaPlusInelastic::ApplyYourself ( const G4HadProjectile &  aTrack,
G4Nucleus &  targetNucleus
)
virtual

Implements G4HadronicInteraction.

Definition at line 36 of file G4RPGAntiSigmaPlusInelastic.cc.

38 {
39  const G4HadProjectile *originalIncident = &aTrack;
40  if (originalIncident->GetKineticEnergy()<= 0.1*MeV)
41  {
42  theParticleChange.SetStatusChange(isAlive);
43  theParticleChange.SetEnergyChange(aTrack.GetKineticEnergy());
44  theParticleChange.SetMomentumChange(aTrack.Get4Momentum().vect().unit());
45  return &theParticleChange;
46  }
47
48  // Choose the target particle
49
50  G4DynamicParticle *originalTarget = targetNucleus.ReturnTargetParticle();
51
52  if( verboseLevel > 1 )
53  {
54  const G4Material *targetMaterial = aTrack.GetMaterial();
55  G4cout << "G4RPGAntiSigmaPlusInelastic::ApplyYourself called" << G4endl;
56  G4cout << "kinetic energy = " << originalIncident->GetKineticEnergy()/MeV << "MeV, ";
57  G4cout << "target material = " << targetMaterial->GetName() << ", ";
58  G4cout << "target particle = " << originalTarget->GetDefinition()->GetParticleName()
59  << G4endl;
60  }
61
62  // Fermi motion and evaporation
63  // As of Geant3, the Fermi energy calculation had not been Done
64
65  G4double ek = originalIncident->GetKineticEnergy()/MeV;
66  G4double amas = originalIncident->GetDefinition()->GetPDGMass()/MeV;
67  G4ReactionProduct modifiedOriginal;
68  modifiedOriginal = *originalIncident;
69
70  G4double tkin = targetNucleus.Cinema( ek );
71  ek += tkin;
72  modifiedOriginal.SetKineticEnergy( ek*MeV );
73  G4double et = ek + amas;
74  G4double p = std::sqrt( std::abs((et-amas)*(et+amas)) );
75  G4double pp = modifiedOriginal.GetMomentum().mag()/MeV;
76  if( pp > 0.0 )
77  {
78  G4ThreeVector momentum = modifiedOriginal.GetMomentum();
79  modifiedOriginal.SetMomentum( momentum * (p/pp) );
80  }
81  //
82  // calculate black track energies
83  //
84  tkin = targetNucleus.EvaporationEffects( ek );
85  ek -= tkin;
86  modifiedOriginal.SetKineticEnergy( ek*MeV );
87  et = ek + amas;
88  p = std::sqrt( std::abs((et-amas)*(et+amas)) );
89  pp = modifiedOriginal.GetMomentum().mag()/MeV;
90  if( pp > 0.0 )
91  {
92  G4ThreeVector momentum = modifiedOriginal.GetMomentum();
93  modifiedOriginal.SetMomentum( momentum * (p/pp) );
94  }
95  G4ReactionProduct currentParticle = modifiedOriginal;
96  G4ReactionProduct targetParticle;
97  targetParticle = *originalTarget;
98  currentParticle.SetSide( 1 ); // incident always goes in forward hemisphere
99  targetParticle.SetSide( -1 ); // target always goes in backward hemisphere
100  G4bool incidentHasChanged = false;
101  G4bool targetHasChanged = false;
102  G4bool quasiElastic = false;
103  G4FastVector<G4ReactionProduct,GHADLISTSIZE> vec; // vec will contain the secondary particles
104  G4int vecLen = 0;
105  vec.Initialize( 0 );
106
107  const G4double cutOff = 0.1;
108  const G4double anni = std::min( 1.3*currentParticle.GetTotalMomentum()/GeV, 0.4 );
109  if( (currentParticle.GetKineticEnergy()/MeV > cutOff) || (G4UniformRand() > anni) )
110  Cascade( vec, vecLen,
111  originalIncident, currentParticle, targetParticle,
112  incidentHasChanged, targetHasChanged, quasiElastic );
113
114  CalculateMomenta( vec, vecLen,
115  originalIncident, originalTarget, modifiedOriginal,
116  targetNucleus, currentParticle, targetParticle,
117  incidentHasChanged, targetHasChanged, quasiElastic );
118
119  SetUpChange( vec, vecLen,
120  currentParticle, targetParticle,
121  incidentHasChanged );
122
123  delete originalTarget;
124  return &theParticleChange;
125 }
G4Nucleus::EvaporationEffects
G4double EvaporationEffects(G4double kineticEnergy)
Definition: G4Nucleus.cc:278
G4ReactionProduct::GetTotalMomentum
G4double GetTotalMomentum() const
Definition: G4ReactionProduct.hh:126
G4RPGInelastic::SetUpChange
void SetUpChange(G4FastVector< G4ReactionProduct, 256 > &vec, G4int &vecLen, G4ReactionProduct &currentParticle, G4ReactionProduct &targetParticle, G4bool &incidentHasChanged)
Definition: G4RPGInelastic.cc:404
G4ReactionProduct::SetKineticEnergy
void SetKineticEnergy(const G4double en)
Definition: G4ReactionProduct.hh:132
G4ReactionProduct::SetMomentum
void SetMomentum(const G4double x, const G4double y, const G4double z)
Definition: G4ReactionProduct.cc:171
p
const char * p
Definition: xmltok.h:285
G4Material::GetName
const G4String & GetName() const
Definition: G4Material.hh:178
G4ReactionProduct::SetSide
void SetSide(const G4int sid)
Definition: G4ReactionProduct.hh:159
G4RPGInelastic::CalculateMomenta
void CalculateMomenta(G4FastVector< G4ReactionProduct, 256 > &vec, G4int &vecLen, const G4HadProjectile *originalIncident, const G4DynamicParticle *originalTarget, G4ReactionProduct &modifiedOriginal, G4Nucleus &targetNucleus, G4ReactionProduct &currentParticle, G4ReactionProduct &targetParticle, G4bool &incidentHasChanged, G4bool &targetHasChanged, G4bool quasiElastic)
Definition: G4RPGInelastic.cc:203
G4DynamicParticle::GetDefinition
G4ParticleDefinition * GetDefinition() const
G4FastVector::Initialize
void Initialize(G4int items)
Definition: G4FastVector.hh:63
G4int
int G4int
Definition: G4Types.hh:78
G4Nucleus::ReturnTargetParticle
G4DynamicParticle * ReturnTargetParticle() const
Definition: G4Nucleus.cc:241
G4ParticleDefinition::GetParticleName
const G4String & GetParticleName() const
Definition: G4ParticleDefinition.hh:120
G4HadFinalState::SetStatusChange
void SetStatusChange(G4HadFinalStateStatus aS)
Definition: G4HadFinalState.hh:67
CLHEP::HepLorentzVector::vect
Hep3Vector vect() const
G4UniformRand
#define G4UniformRand()
Definition: Randomize.hh:97
G4cout
G4GLOB_DLL std::ostream G4cout
G4HadProjectile::GetDefinition
const G4ParticleDefinition * GetDefinition() const
Definition: G4HadProjectile.hh:81
G4bool
bool G4bool
Definition: G4Types.hh:79
G4HadProjectile::GetKineticEnergy
G4double GetKineticEnergy() const
Definition: G4HadProjectile.hh:106
ek
G4double ek
Definition: G4ParticleHPJENDLHEData.cc:259
G4HadProjectile::Get4Momentum
const G4LorentzVector & Get4Momentum() const
Definition: G4HadProjectile.hh:86
G4ReactionProduct::GetKineticEnergy
G4double GetKineticEnergy() const
Definition: G4ReactionProduct.hh:138
G4HadFinalState::SetEnergyChange
void SetEnergyChange(G4double anEnergy)
Definition: G4HadFinalState.cc:39
isAlive
Definition: G4HadFinalState.hh:42
G4ParticleDefinition::GetPDGMass
G4double GetPDGMass() const
Definition: G4ParticleDefinition.hh:122
CLHEP::Hep3Vector::unit
Hep3Vector unit() const
G4Nucleus::Cinema
G4double Cinema(G4double kineticEnergy)
Definition: G4Nucleus.cc:382
G4INCL::Math::min
T min(const T t1, const T t2)
brief Return the smallest of the two arguments
Definition: G4INCLGlobals.hh:117
GeV
static constexpr double GeV
Definition: G4SIunits.hh:217
G4ReactionProduct::GetMomentum
G4ThreeVector GetMomentum() const
Definition: G4ReactionProduct.hh:123
G4endl
#define G4endl
Definition: G4ios.hh:61
MeV
static constexpr double MeV
Definition: G4SIunits.hh:214
G4HadProjectile::GetMaterial
const G4Material * GetMaterial() const
Definition: G4HadProjectile.hh:76
G4double
double G4double
Definition: G4Types.hh:76
CLHEP::Hep3Vector::mag
double mag() const
G4HadFinalState::SetMomentumChange
void SetMomentumChange(const G4ThreeVector &aV)
Definition: G4HadFinalState.hh:56

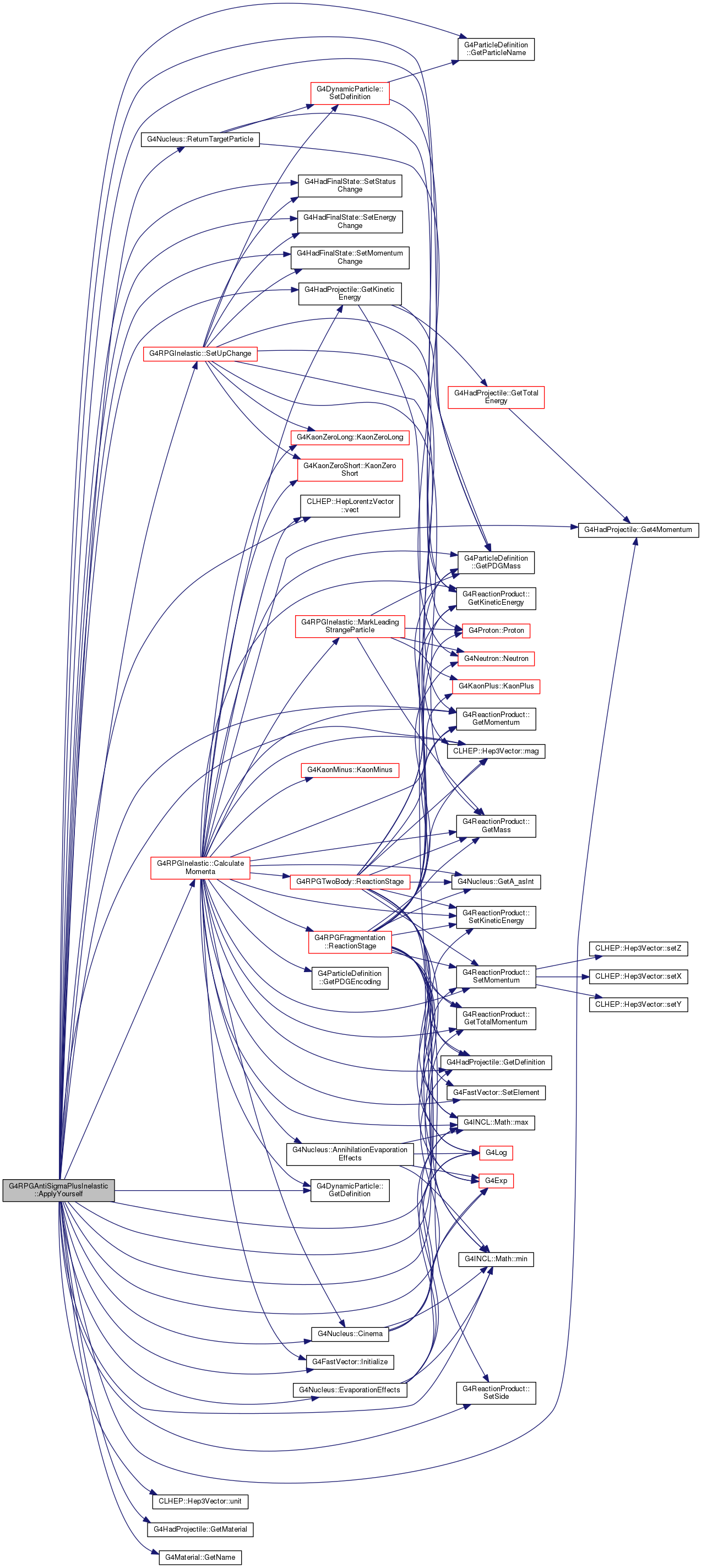

Here is the call graph for this function:

The documentation for this class was generated from the following files:
